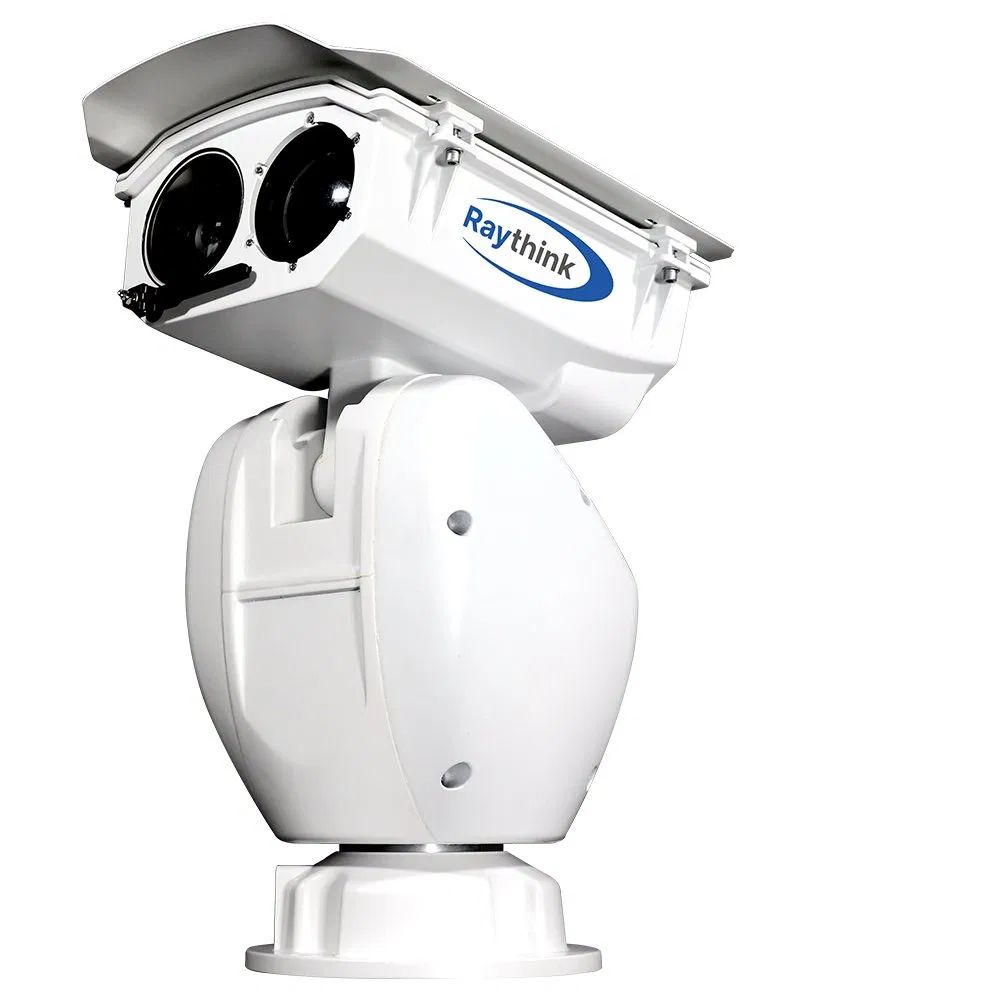

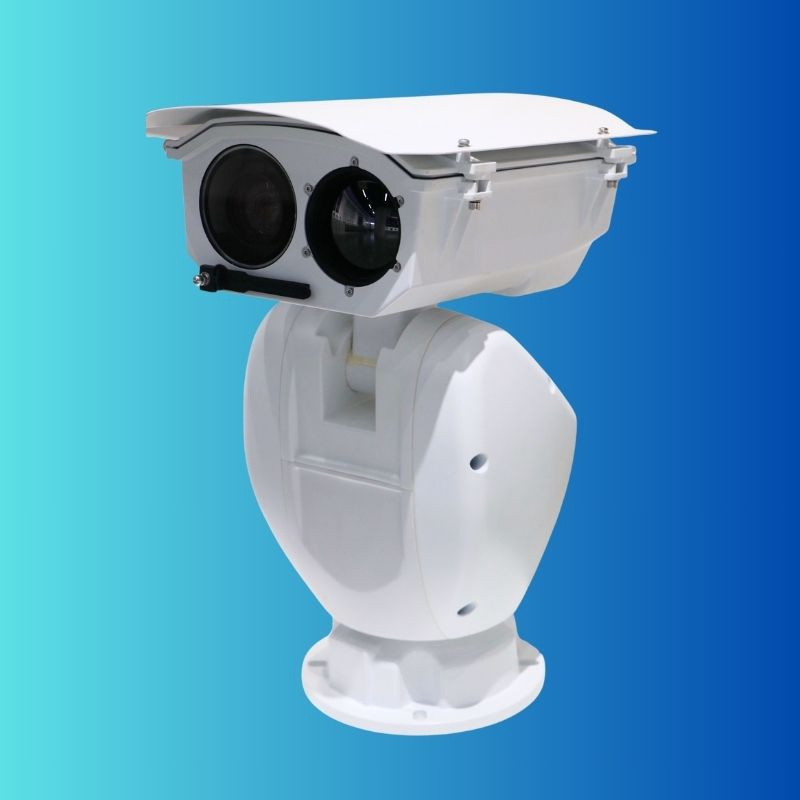

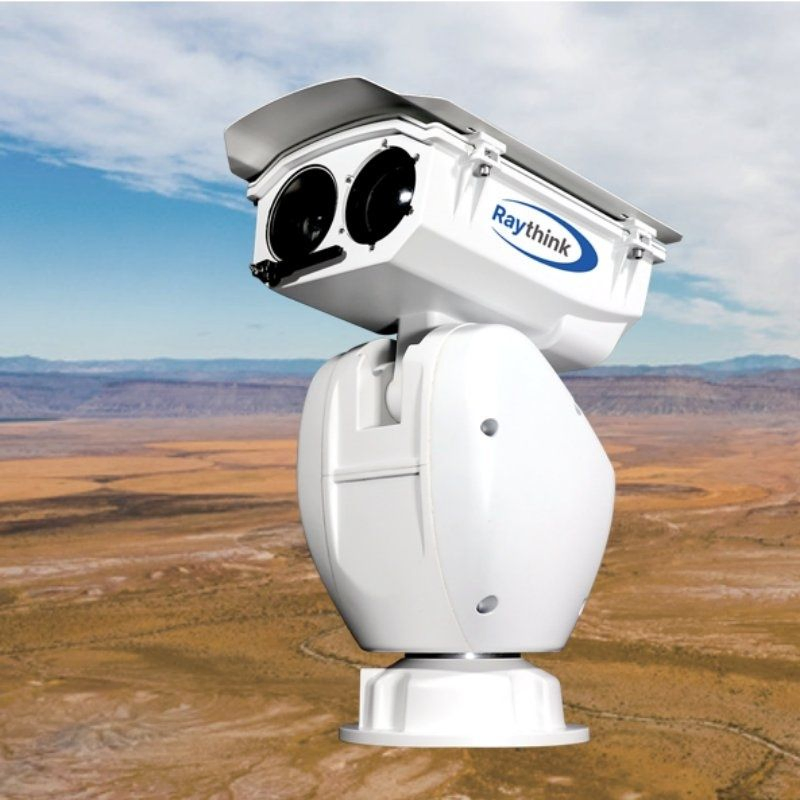

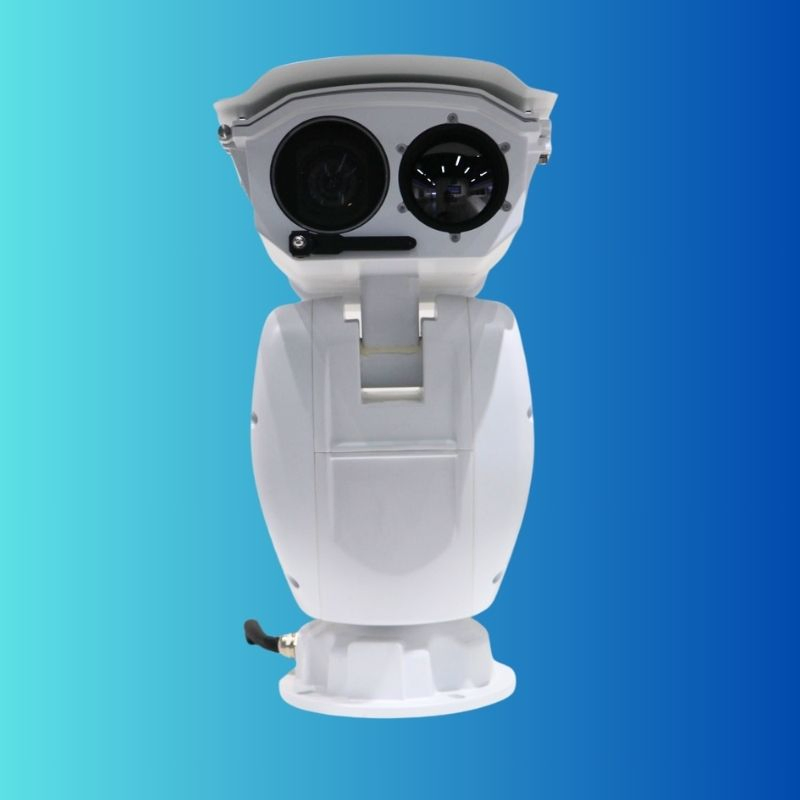

Weatherproof PTZ Camera with Dual-Spectrum Imaging for Perimeter and Facility Protection

1 / 5

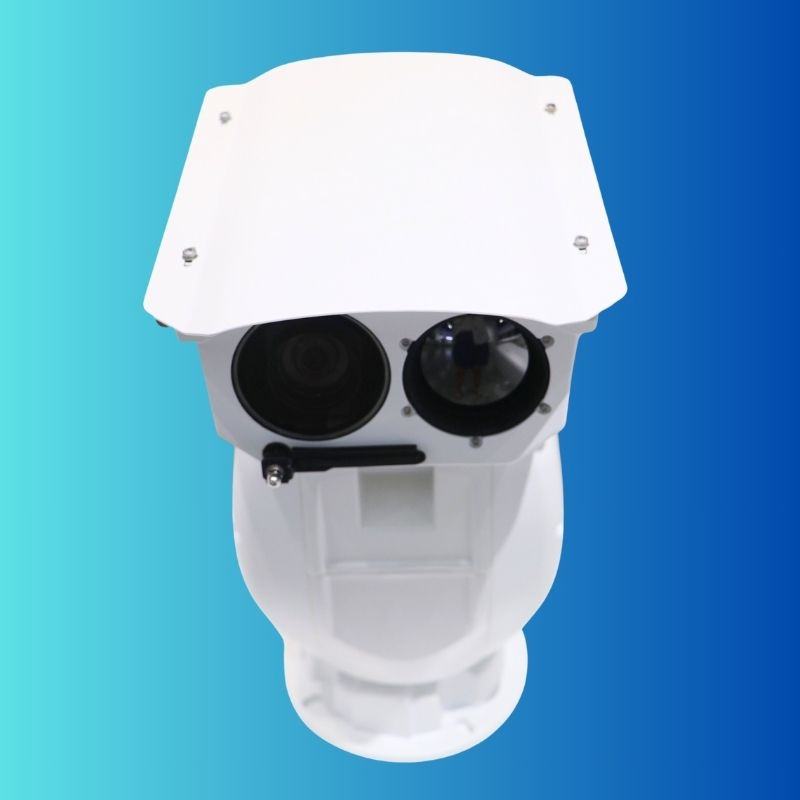

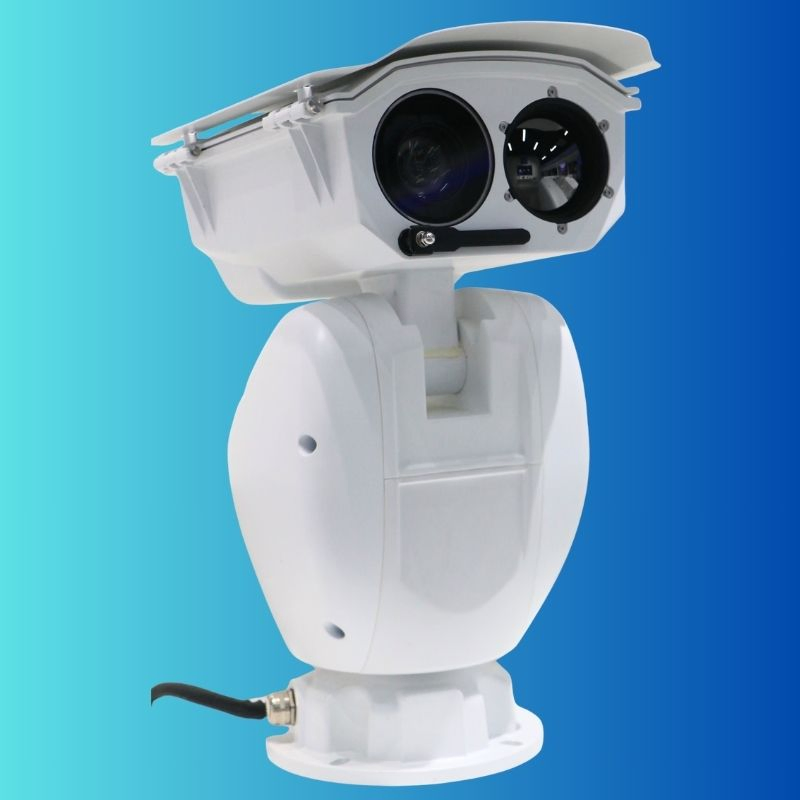

Weatherproof PTZ Camera with Dual-Spectrum Imaging for Perimeter and Facility Protection

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Send Inquiry

Product Description

📊

Basic Information

Model NO.

PC464A1

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Certification

CE, FCC, RoHS, EMI/EMC

Effective Distance

≧30m

Work Environment

-40℃~+70℃;<90%Rh

Storage

Micro SD (up to 256g)

Fire Detection

Support

Pixel Pitch

12μm

Package Size

65.50cm * 65.00cm * 34.50cm

Gross Weight

21.000kg

🔍

Product Description

PC4 series is a compact solution that integrates HD visible light, infrared thermal imaging and PTZ system, with intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection inside. It provides all-weather, 24/7 surveillance for scenarios such as perimeter surveillance, forest fire prevention and critical area protection.

⭐

Product Highlights

12μm Uncooled Infrared Detector: Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
Dual-Spectrum Imaging: All-weather, 24/7 security monitoring with dual thermal & visible light imaging.
Long-Range Detection: Supports 75mm and 100mm fixed-focus, as well as 25~75mm continuous zoom infrared lens.
Platform Integration: Support ONVIF, provide SDK & demo for development; provide NVR and VMS software.
Intelligent Fire Detection: Integrated intelligent fire detection algorithm for efficient monitoring and reduced false alarms.
Intelligent Video Analysis: Support tripwire/intrusion detection and fire point monitoring.

📋

Technical Specifications

Technical Specifications	PC464A1
Thermal Module
Detector Type	VOx, uncooled FPA detector
Spectral Range	8~14μm
NETD	≤40mK(@25°C,F#1.0,25Hz)
Resolution	640×512
Focal Length	25~75/75/100mm
Optical Module
Sensor	1/1.8" 4-megapixel CMOS image sensor
Resolution	2688×1520
Focal Length	6~336/6~360mm
PTZ
Pan	360° continuous, 0.1°~100°/s
Tilt	-90°~+90°, 0.1°~60°/s
General
Protection	IP66 Standard; TVS 6000V Lightning Protection
Power Consumption	75W
Weight	14kg

🌐

Application Scenarios

Forest Fire Prevention & River Monitoring

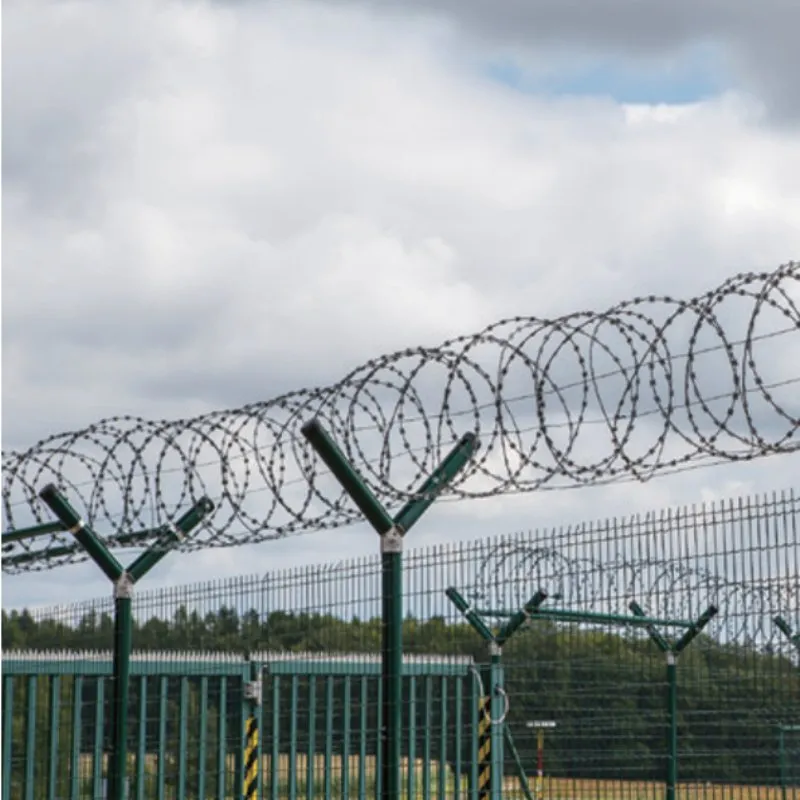

Perimeter Surveillance & Critical Infrastructure Protection

📸

Gallery

❓

Frequently Asked Questions

How can we guarantee quality?

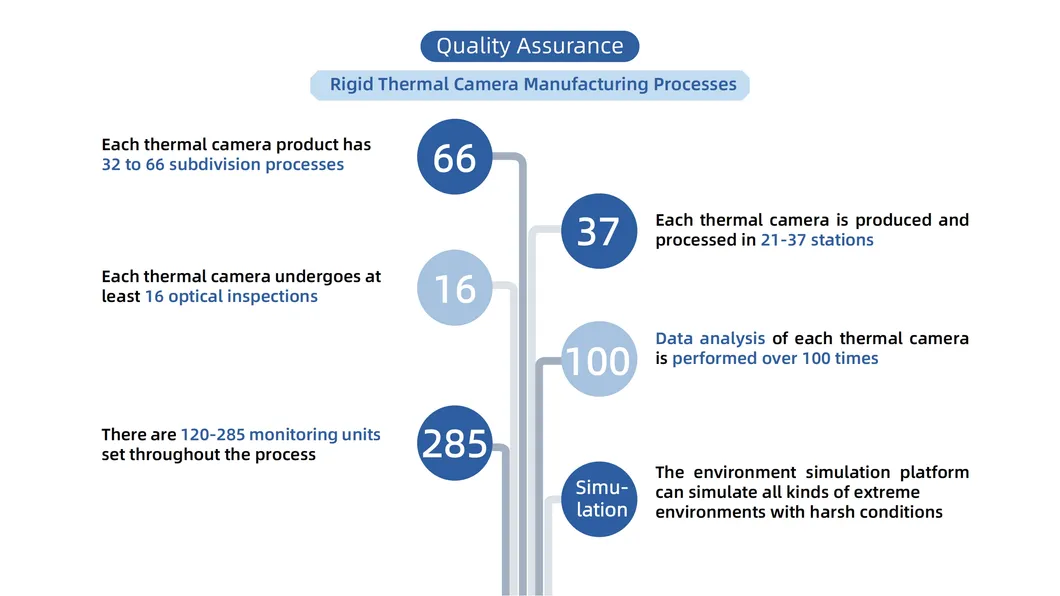

We have professional infrared detector chip manufacturing, rigid thermal camera manufacturing process, perfect quality management system, and CNAS certification reliability test platform.

How long is your delivery time?

For small orders, it usually takes 7 working days. Products requiring customization will take approximately 2-4 weeks.

What's the MOQ?

MOQ depends on the specific product. Please contact us for details.

What's your payment terms?

Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.

What's the product warranty policy?

Thermal vision products come with a 2-year warranty, while thermal modules are covered by a 1-year warranty.

How about after-sale support?

We provide lifetime Technical Support; our engineers respond to technical requests within 24 hours.
