Customization: Available
Technology: Infrared
Style: Zoom Lens
Send Inquiry

Product Description

🔍 Basic Information
Model NO.
FLYIR-SLFH-12KM
Type
CCTV Camera
Sensor
CCD
HDMI Format
1080P
Resolution
650tvl
Effective Distance
12000m
Sensor Size
1/3 inch
Certification
CCC, ISO9001: 2000
Origin
China
📝 Product Description
Using visible light fireworks recognition + infrared thermal imaging temperature measurement intelligent dual spectrum recognition camera for fire detection and recognition. The positioning of forest fires is achieved through the rotation of the azimuth and elevation angles of the heavy-duty digital gimbal. By using wireless bridges and Beidou satellites to establish transmission links, video images and warning control signals are transmitted to the command center for monitoring, storage, and management.
System Components: Front-end monitoring station system, wireless transmission system, and command center system.
🌍 Application Scenarios
Forest fire monitoring and warning, river and lake, oil field safety, port and terminal monitoring, urban fire warning, tourist attraction monitoring, border and coastal defense, substation, nuclear power plant, petrochemical industry, urban high-altitude lookout, airport runway, etc.
📊 Product Parameters
Type FLYIR-SLFH-12KM
Farthest smoke alarm distance 13500M (5 m x 5 m)
Fire point farthest alarm distance 11000M (2 m x 2 m)
Vehicle's maximum alarm distance 5500M (4 m x 1.4 m)
Maximum alarm distance for personnel 1800M (1.8m x 0.5m)
Thermal imaging system components
Detector type Uncooled infrared focal plane array sensor, microside bolometer induction
Pixel 384x288
Spectrum 8-14µm
Infrared lens focal length 25-225mm
Field angle 3.5ºx 2.8º-17.2ºx 13.8º
Visible light system device
Vidicon HD1920x1080, Color 2 million HD, 0.002Lux
Lens focal length 25~800mm
Field angle 0.53ºx 0.3º-40.7ºx 23.6º
Network & Environmental
Coded format H.265/264/BP/MP/HPMJPEG/SDL
Operating temperature -40°C ~ +70°C
Level of protection IP66

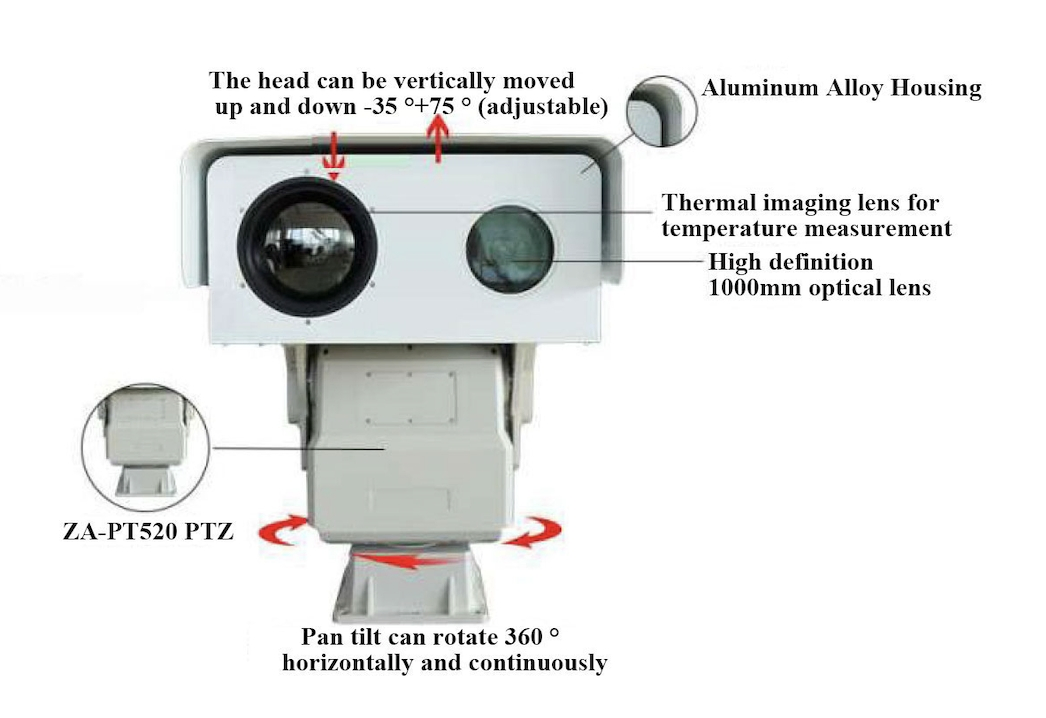

PTZ characteristics
Rotation range Horizontal 360 ° continuous rotation, vertical ±45 °
Presetting bit 256
🖼️ Detailed Photos

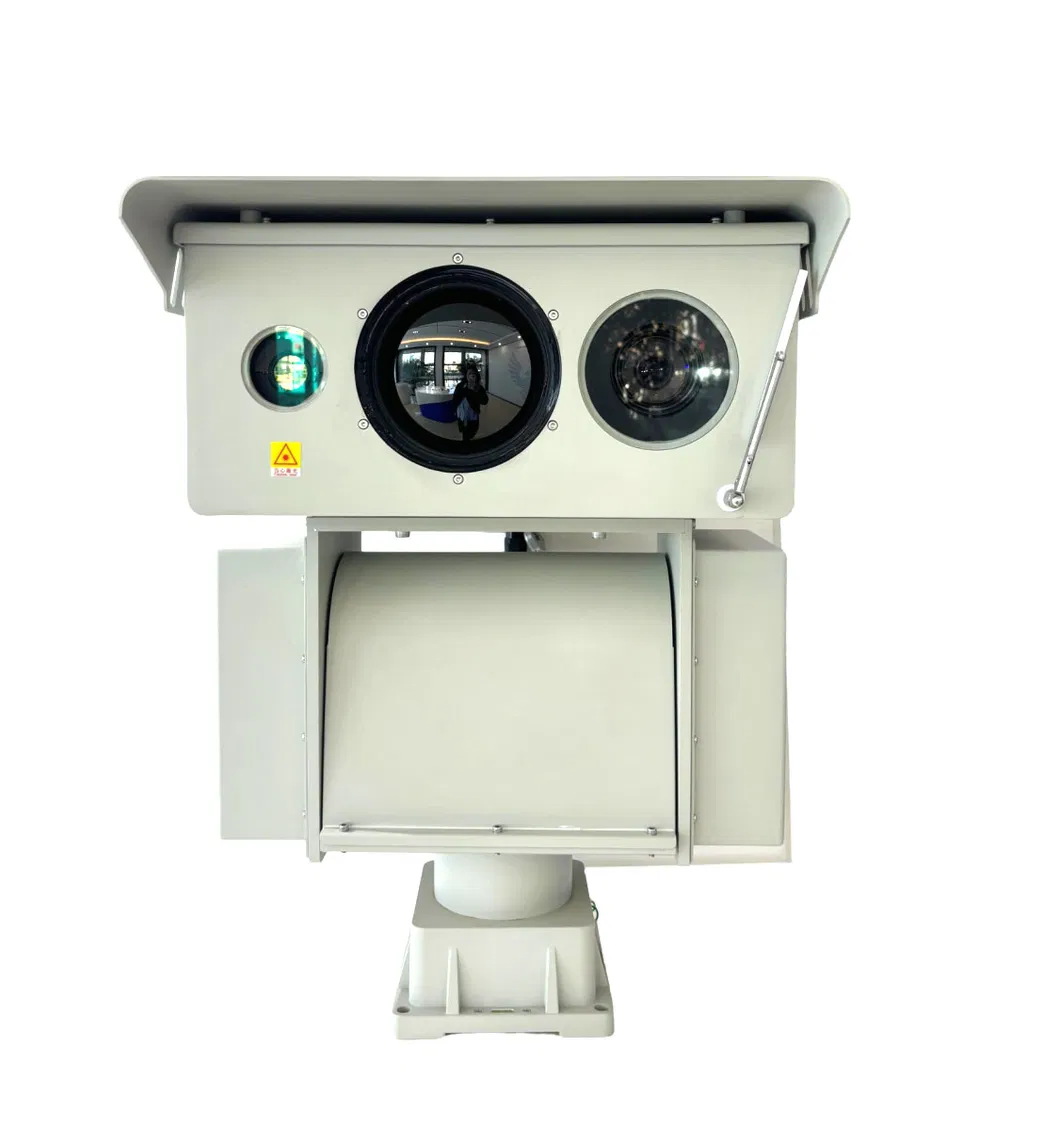

Superior Imaging Security Camera

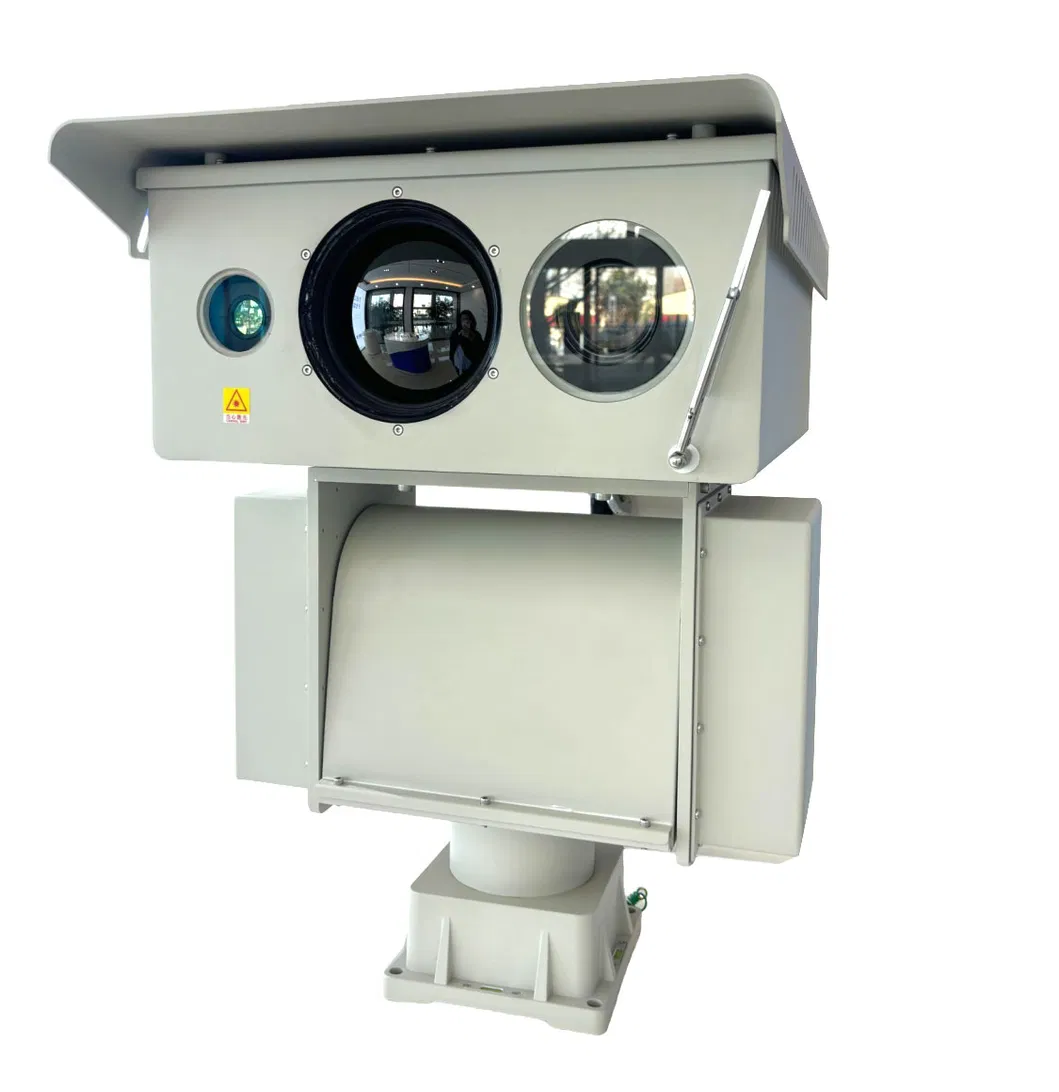

High-Performance Pan Tilt Camera

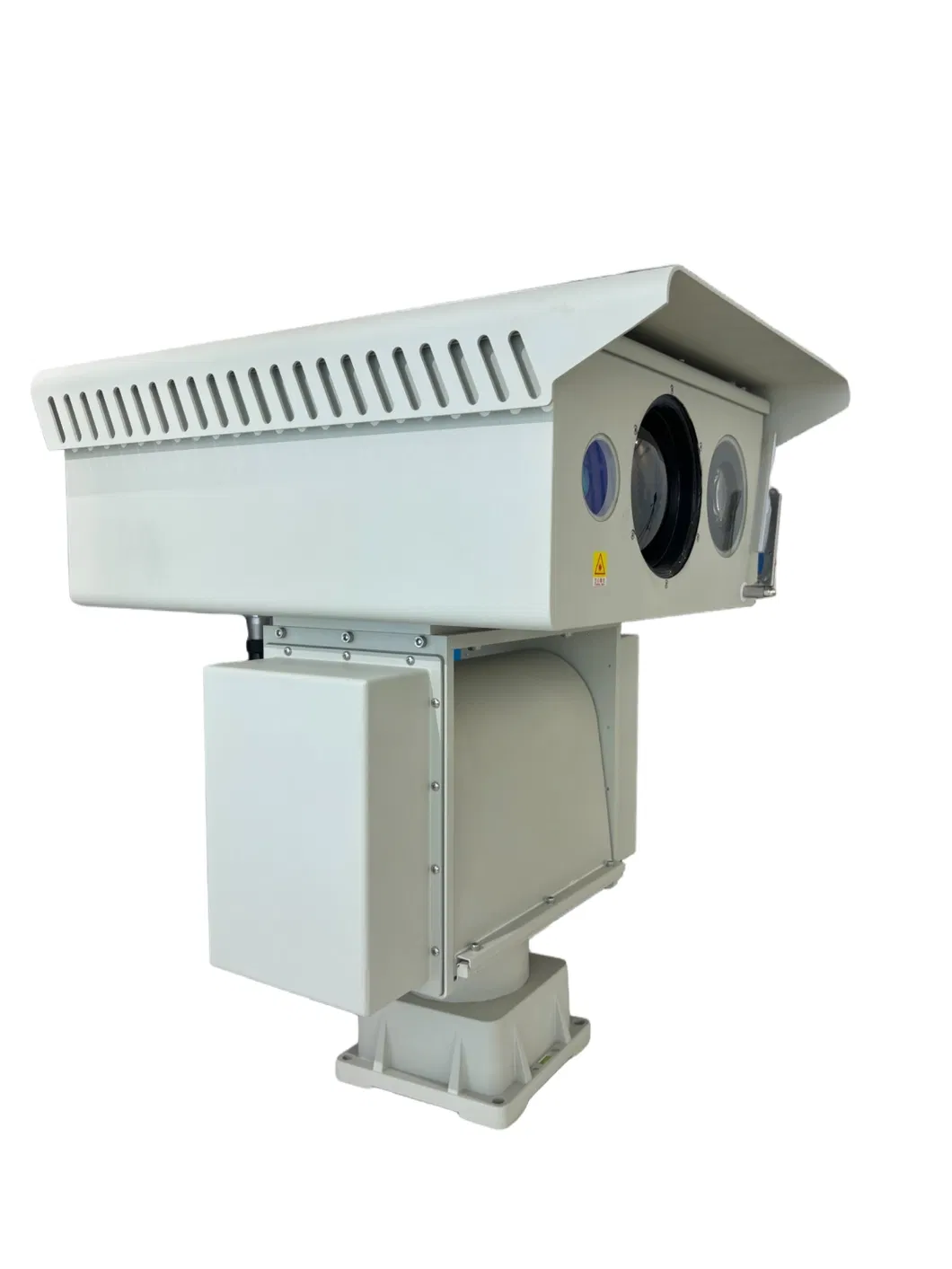

Advanced Security Camera Display
❓ Frequently Asked Questions
What is the maximum fire detection range for this camera?
The camera can detect smoke from up to 13,500 meters and specific fire points from up to 11,000 meters, making it ideal for large-scale forest monitoring.
Does the system work in extreme weather conditions?
Yes, it is designed for harsh environments with an IP66 protection rating and an operating temperature range of -40°C to +70°C.
How is the video data transmitted from remote forest locations?
The system utilizes high-speed wireless bridges and Beidou satellites to establish stable transmission links to the command center.
Can the camera detect fires automatically at night?
Yes, it uses intelligent dual-spectrum recognition, combining visible light and infrared thermal imaging to ensure 24/7 fire detection capabilities.
What are the PTZ rotation capabilities?
The camera features a heavy-duty digital gimbal that allows for 360° continuous horizontal rotation and ±45° vertical adjustment.
Does the camera support high-definition video recording?
Yes, the visible light system provides HD 1920x1080 resolution with a powerful 25~800mm zoom lens for detailed observation.
