Cutting-Edge Flyir-Slfh-12km Pan Tilt Camera with Superior Imaging Technology

1 / 5

Cutting-Edge Flyir-Slfh-12km Pan Tilt Camera with Superior Imaging Technology

Customization:	Available
Technology:	Infrared
Style:	Zoom Lens

Send Inquiry

Product Description

Basic Information

Model NO.

FLYIR-SLFH-12KM

Type

CCTV Camera

Sensor

CCD

HDMI Format

1080P

Kind

Autofocus Lens

Effective Distance

12000m

Feature

Waterproof, High Definition, Auto BLC

Protection

IP66

Product Description

Using visible light fireworks recognition and infrared thermal imaging temperature measurement, this intelligent dual-spectrum recognition camera is designed for professional fire detection and recognition. The system achieves precise positioning of forest fires through the heavy-duty digital gimbal's azimuth and elevation rotation.

The entire solution integrates front-end monitoring stations, wireless transmission links (wireless bridges or Beidou satellites), and a centralized command center for real-time monitoring, data storage, and emergency management.

Application Scenarios

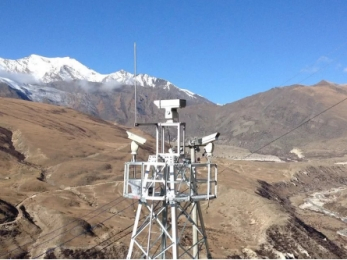

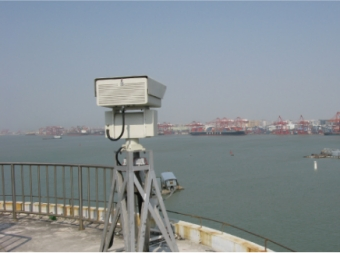

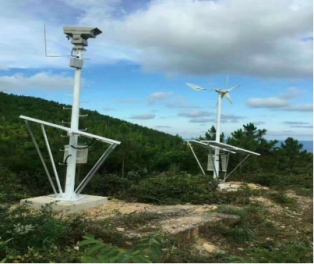

This system is ideal for: Forest fire monitoring and warning, river and lake observation, oil field safety, port and terminal monitoring, urban fire warning, tourist attraction surveillance, border and coastal defense, substations, nuclear power plants, petrochemical industries, urban high-altitude lookout, and airport runway monitoring.

Product Parameters

Farthest Smoke Alarm	13500M (5m x 5m)
Fire Point Alarm Distance	11000M (2m x 2m)
Vehicle Alarm Distance	5500M (4m x 1.4m)

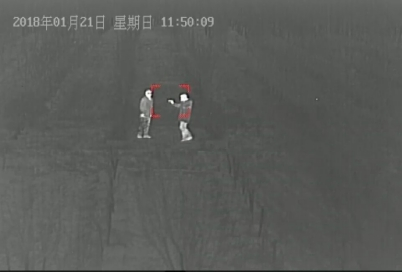

Thermal Detector Type	Uncooled infrared focal plane array sensor
Thermal Pixel/Spectrum	384x288 / 8-14µm
Infrared Lens Focal Length	25-225mm Continuous Autofocus
Visible Light Camera	HD 1920x1080, 2 Million Pixels
Visible Light Lens	25~800mm
Operating Temperature	-40°C to +70°C

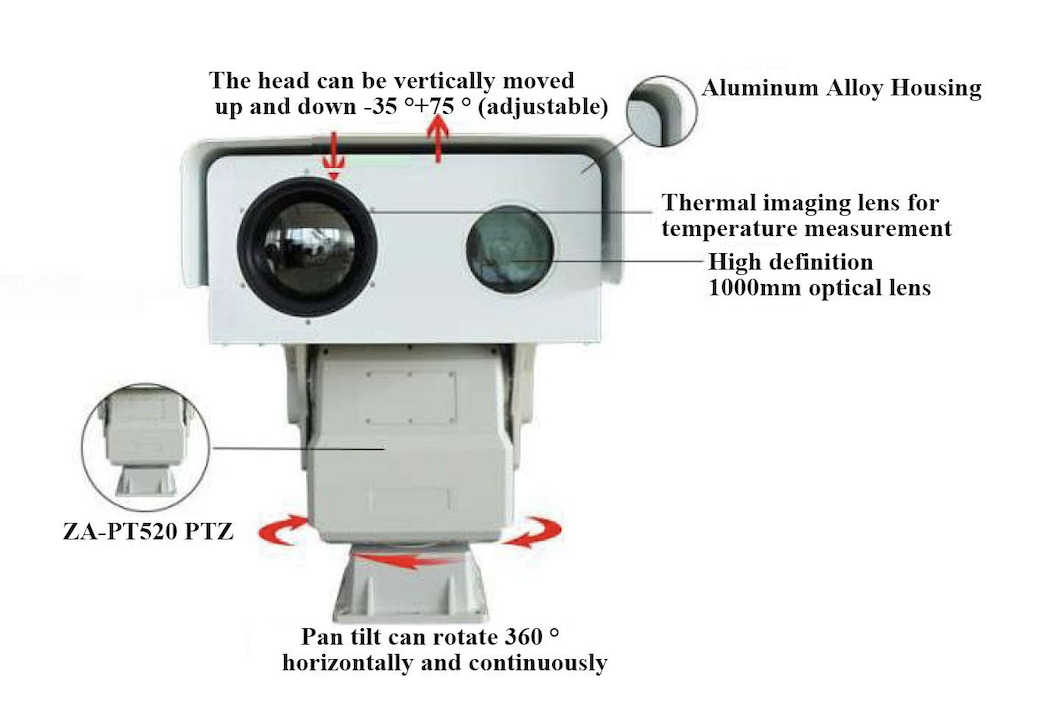

PTZ Rotation	Horizontal 360° continuous, Vertical ±45°
Control Mode	RS485/422, Pelco-P, Pelco-D

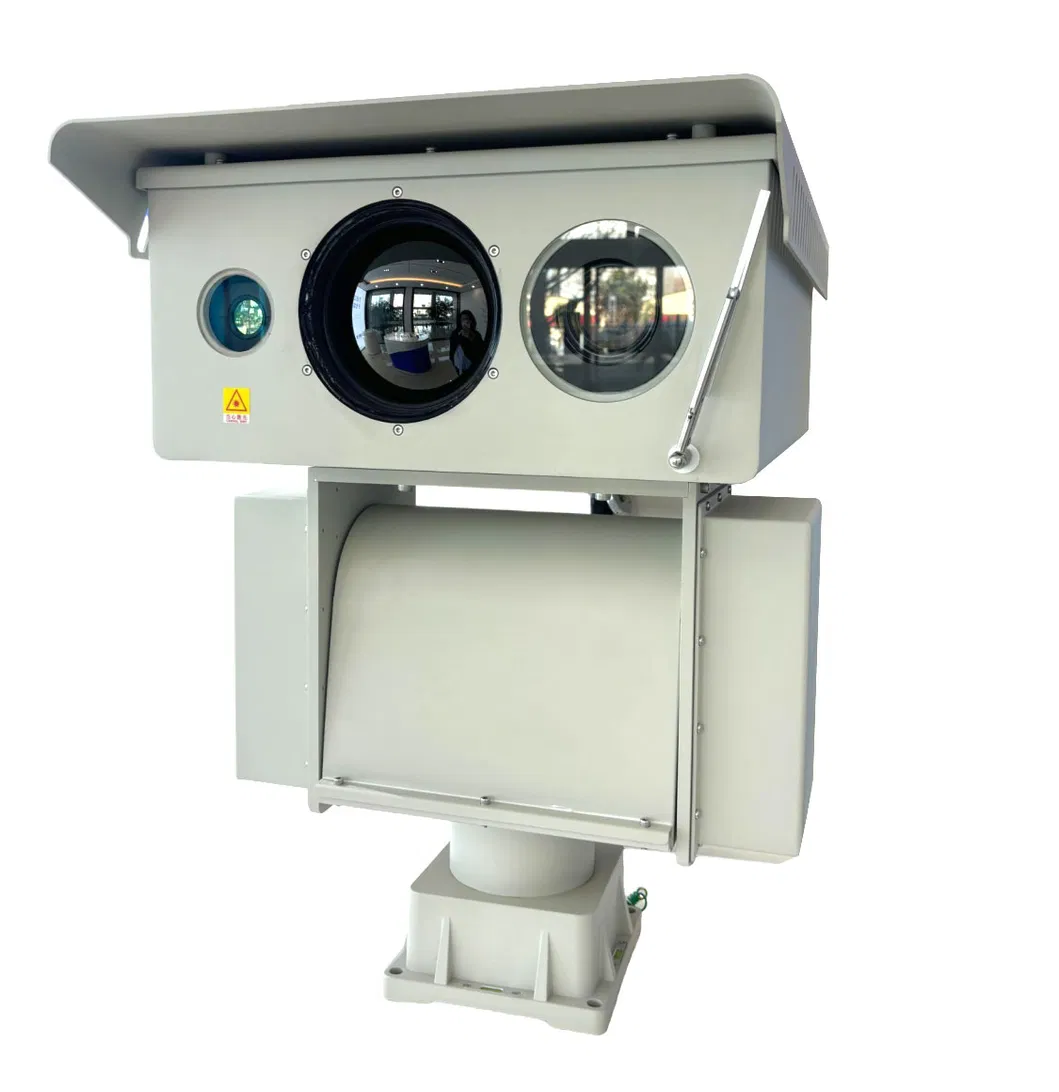

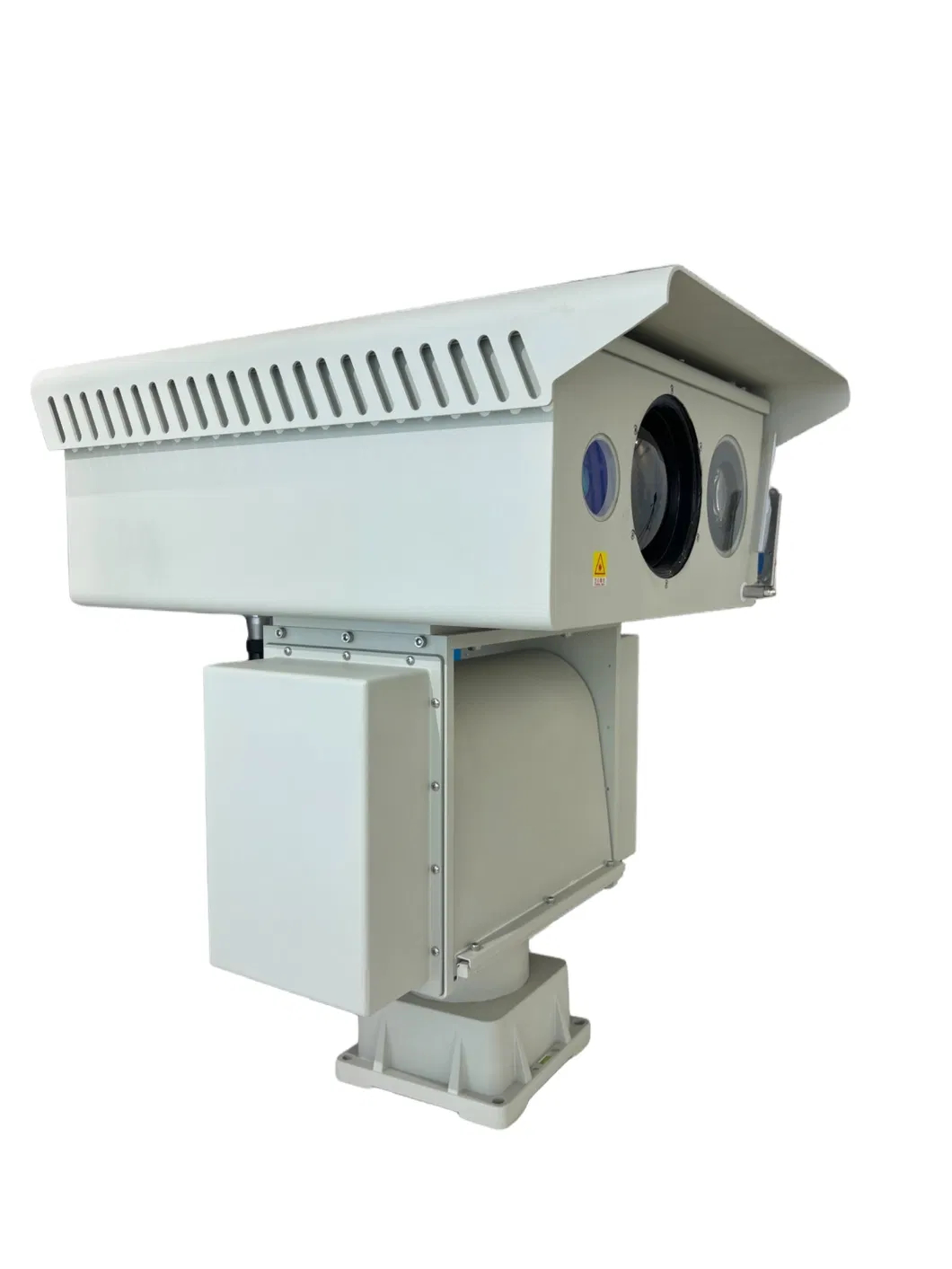

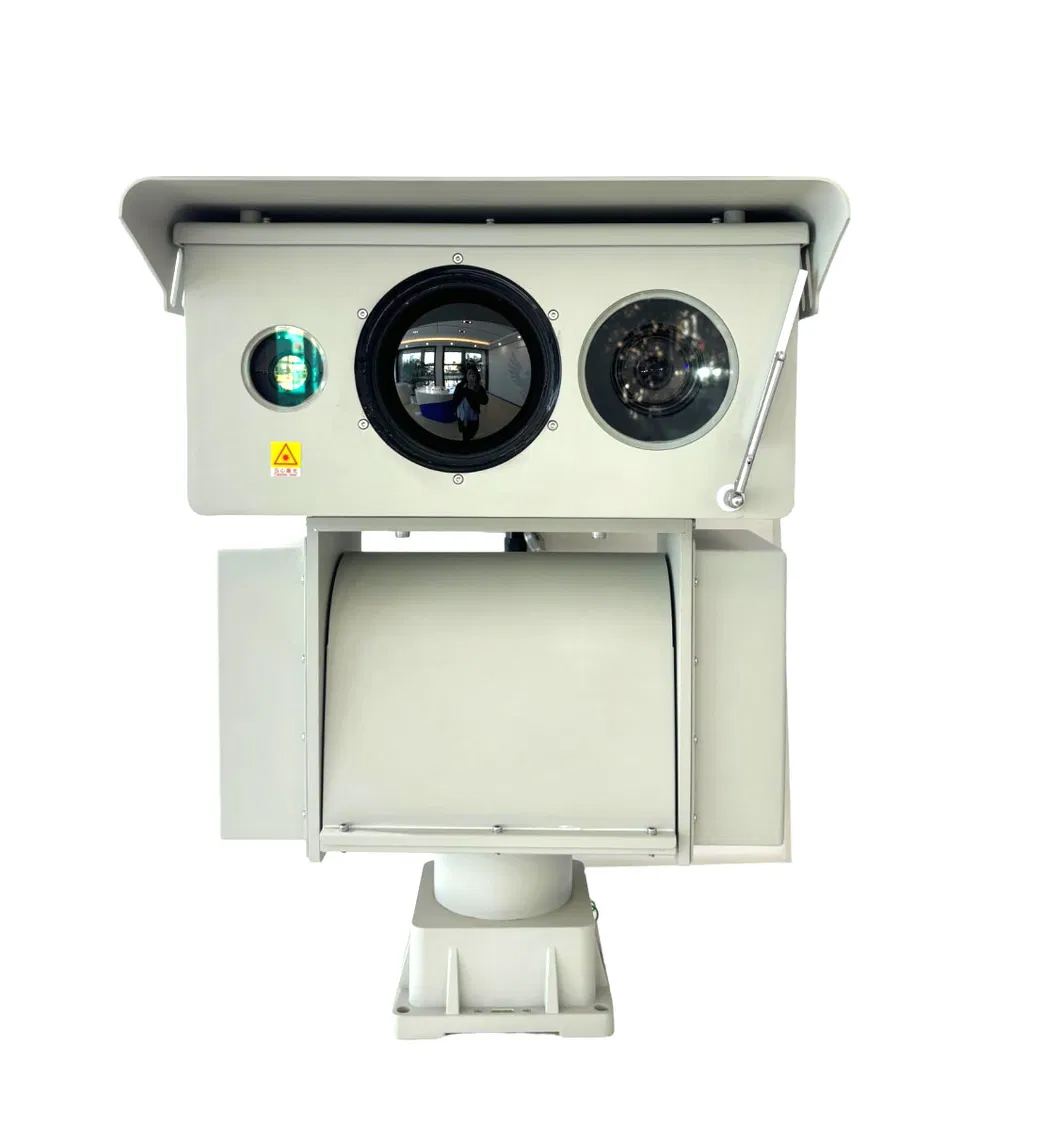

Detailed Photos

Frequently Asked Questions

What is the maximum distance for fire detection?

The camera can detect fire points (2m x 2m) at a distance of up to 11,000 meters and smoke (5m x 5m) at up to 13,500 meters.

How does the dual-spectrum technology work?

It combines visible light for smoke recognition and infrared thermal imaging for temperature monitoring, providing accurate fire detection regardless of lighting conditions.

Is the camera suitable for extreme outdoor environments?

Yes, it features an IP66 protection rating, salt-spray resistance (48 hours), and an operating temperature range of -40°C to +70°C.

Does the system support remote control?

The heavy-duty PTZ supports horizontal 360° rotation and can be controlled via RS485/422 interfaces using standard Pelco protocols.

What are the storage and coding formats?

The camera supports efficient H.265 and H.264 compression formats with a code rate ranging from 64Kbps to 8Mbps.

Can it be used for border security?

Absolutely. With long-range monitoring of personnel (up to 1800m) and vehicles (up to 5500m), it is highly effective for border and coastal defense.
