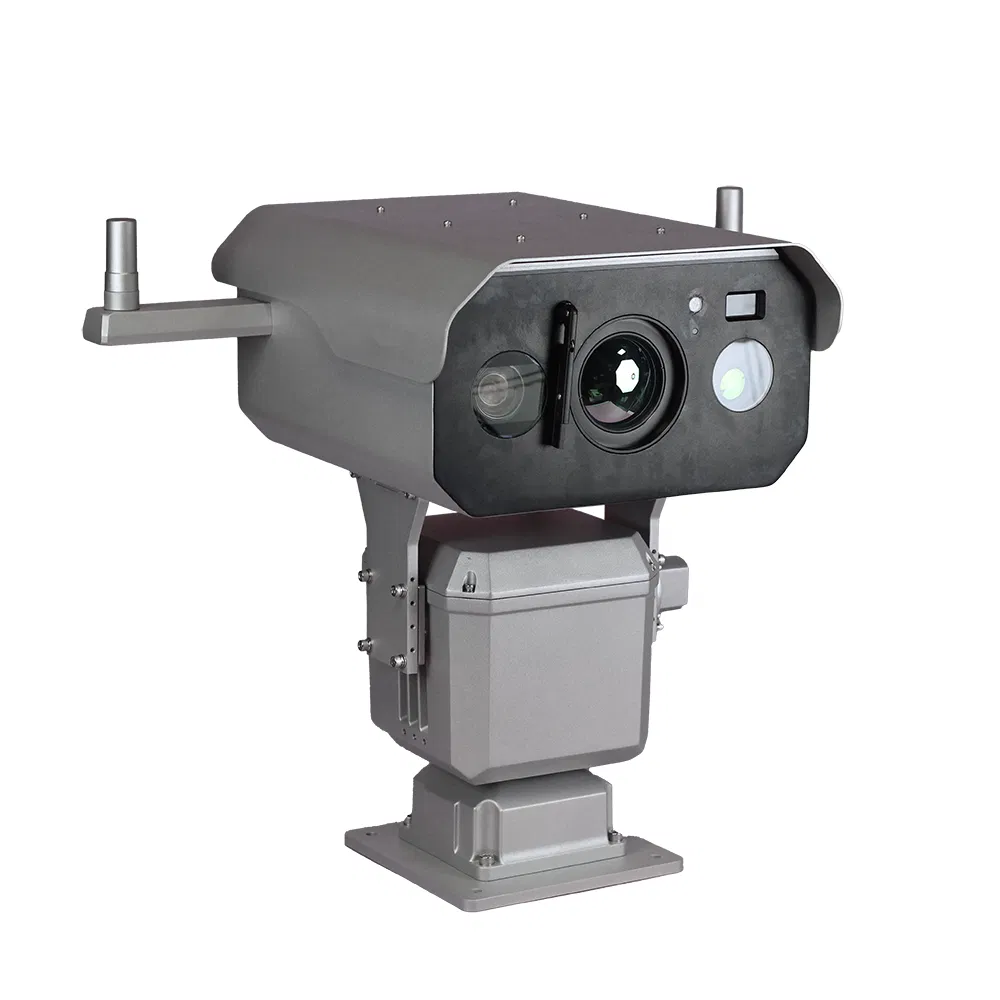

Advanced Heavy Duty Pan Tilt System for Outdoor Applications

1 / 5

Advanced Heavy Duty Pan Tilt System for Outdoor Applications

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

ℹ Basic Info.

Model NO.

SOAR1040

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Kind

Autofocus Lens

Feature

Waterproof / Weatherproof, High Definition, Vandal-proof

Effective Distance

≧30m

Sensor Size

1/3 inch

Remote Control

With Remote Control

📋 Product Description

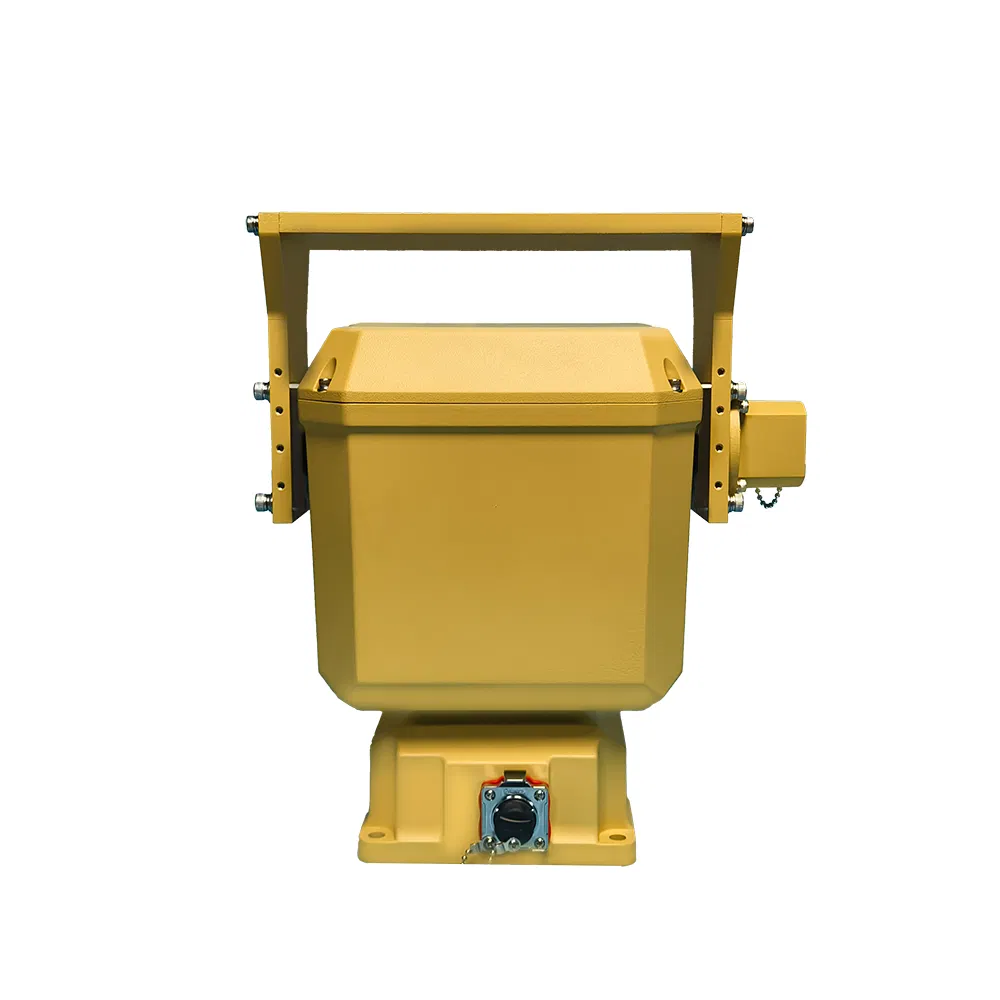

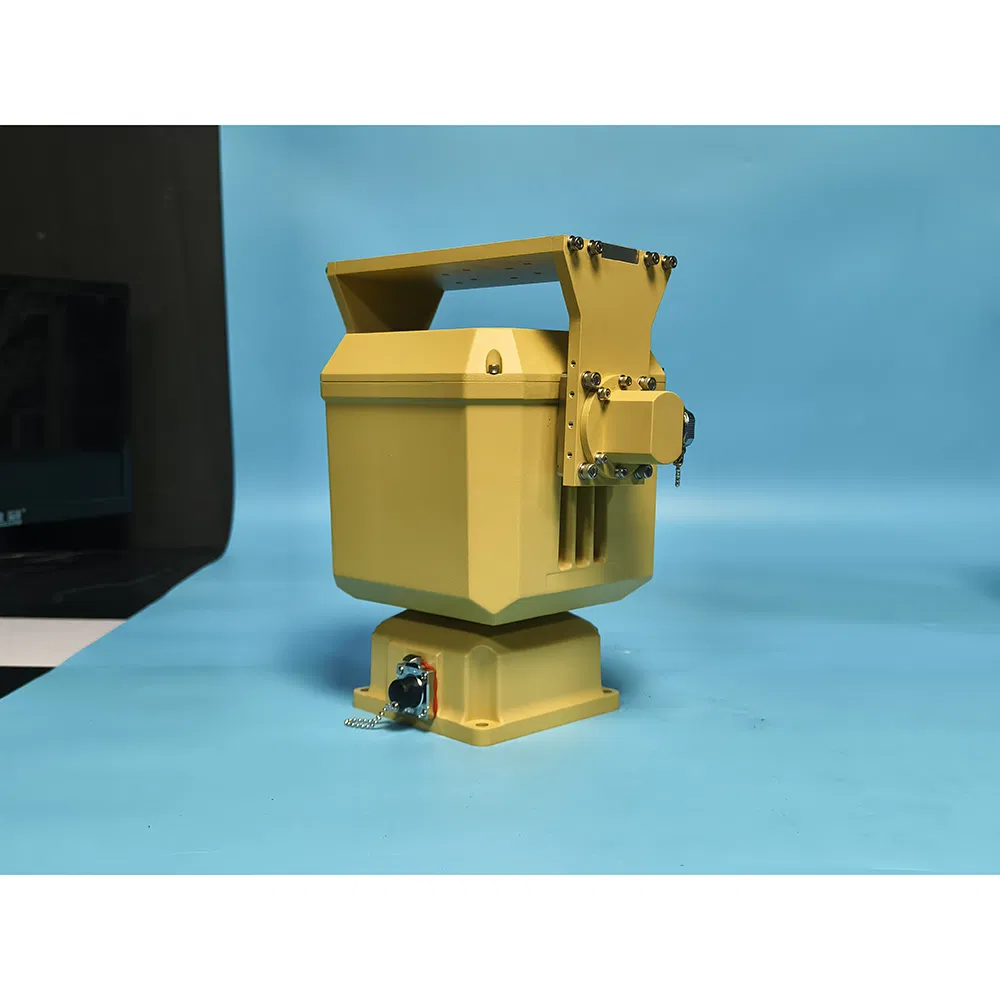

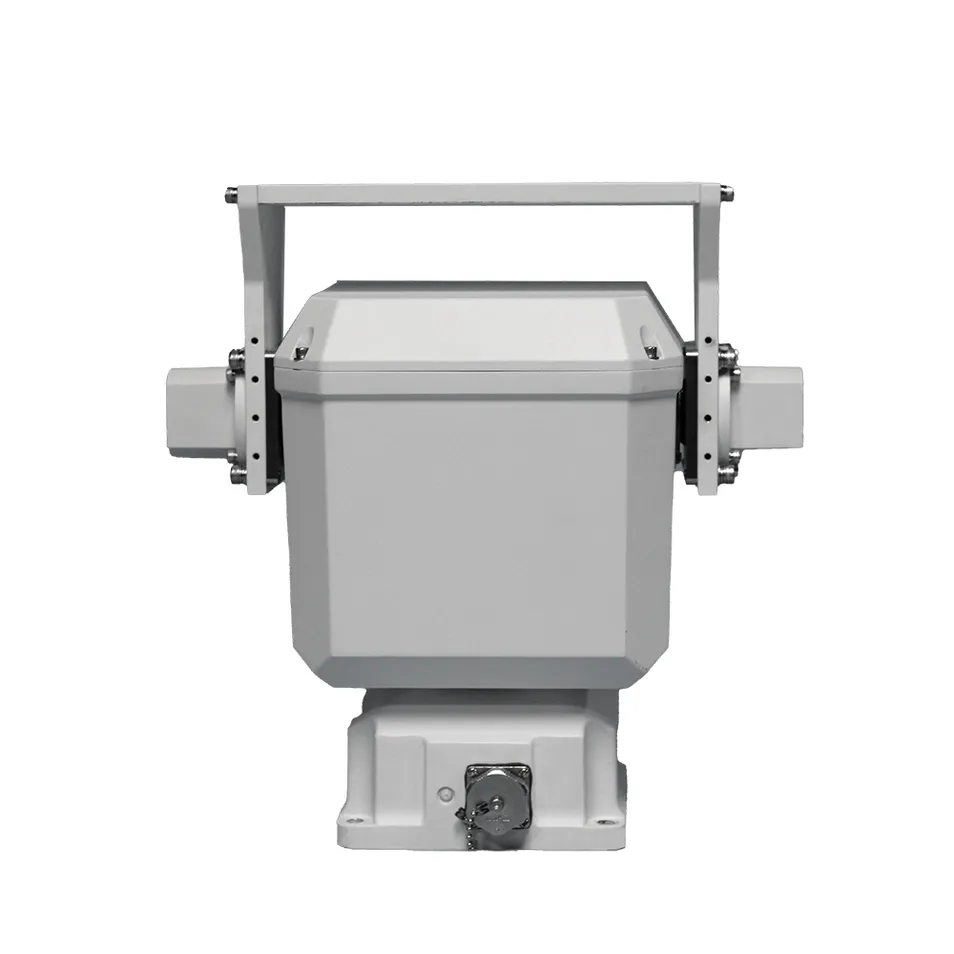

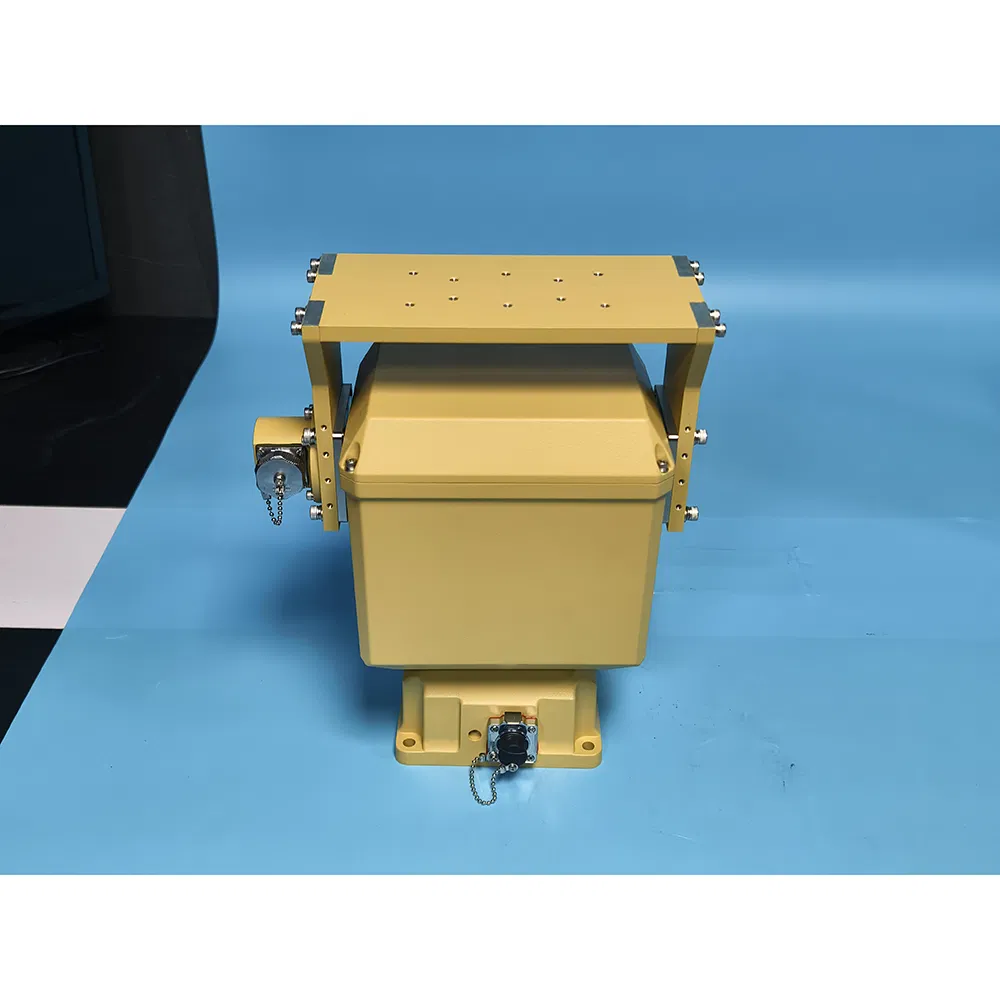

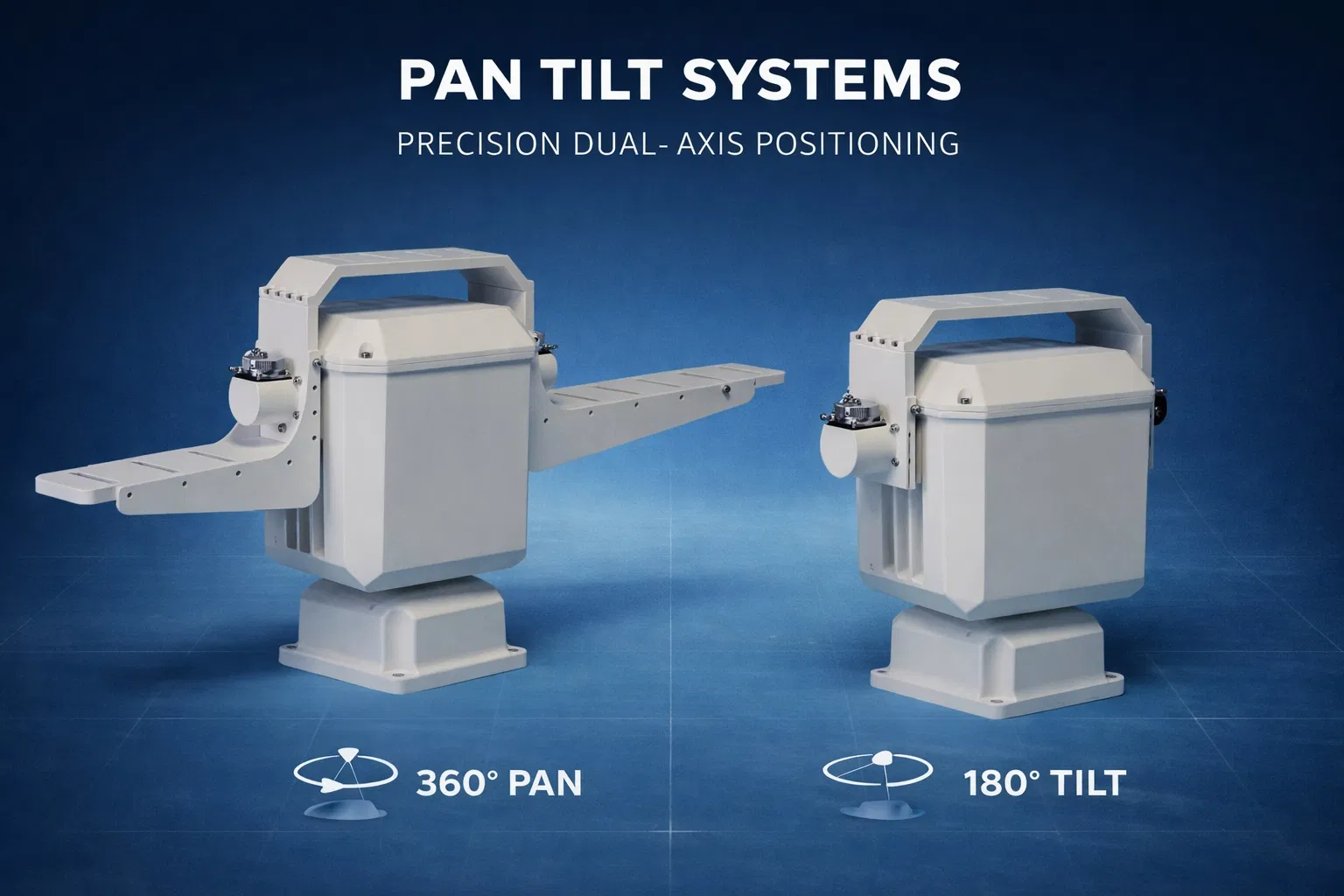

Mid-load Heavy Duty Pan Tilt Positioner

The SO1040 Series Pan/Tilt system accommodates various single payload using a versatile bracketing system for top mounting. It is designed for easy integration, serving as an open platform that offers the necessary flexibility while reducing development and integration efforts.

This unit has demonstrated its reliability in numerous mission-critical applications for positioning cameras, lasers, antennas, and other instruments in both stationary and mobile settings. Features a harmonic gear drive, ensuring high precision and long life.

⭐ Product Highlights

Supports up to 30kg payload for heavy-duty multi-sensor integration
Features high-precision harmonic drive with zero-backlash performance and 0.005° positioning accuracy.
Provides 360° continuous pan and ±90° tilt with ultra-smooth low-speed control.
Optional Enables long-range surveillance with thermal imaging, 120× optical zoom, and optional 10km laser range finder.
Optional built-in AI supports human, vehicle, vessel, and drone detection with auto tracking.
IP67-rated rugged design ensures reliable operation from –40°C to +70°C in harsh environments.
Pelco-D protocol compatibility and easy integration

⚙ Specification

Payload
Top Payload	Up to 30kg
Side Payload	Up to 30kg
Pan Tilt
Pan/Tilt Range	Pan: 0° to 360° endless; Tilt: –90° to +90°
Pan/Tilt Speed	10kg: Pan 0.05-60°/s, Tilt 0.05-40°/s; 30kg: Pan 0.05-40°/s, Tilt 0.05-20°/s
Preset	255
Positioning Accuracy	Pan: 0.005°; Tilt : 0.01°
Communication interface	RS-422/RS-485/RJ45
Protocol	Pelco-D
Input / Output Ports
Power Input	DC24V / DC48V
Network Port	1 × RJ-45 (10/100 Base-T)
Power Output	DC24V, 4A
Audio/Alarm/RS485	Supported (Multiple Channels)
General
Working Temperature	-40°C to +70°C / 95% or less humidity
Protection Level	IP67 Standard; TVS 6000V lightning protection, Surge protection
Dimension / Weight	335 mm × 192 mm × 337.5 mm / Approx. 9kg

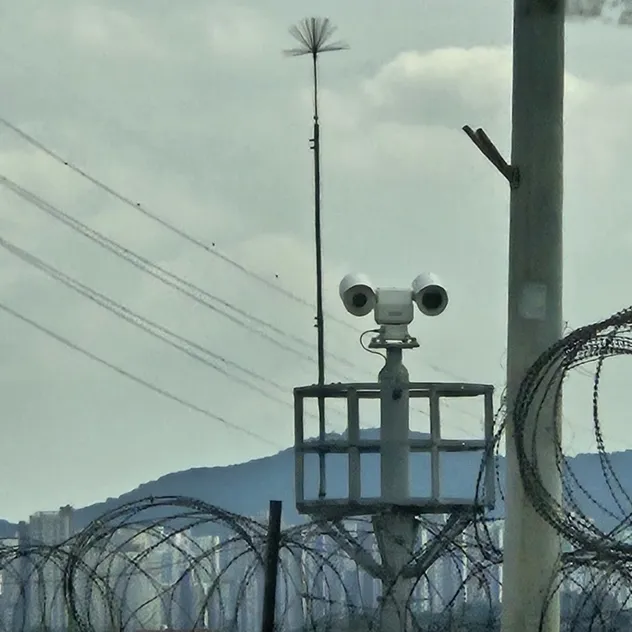

🔍 Application scenarios

🏢 Company Profile

Founded in 2005, we specialize in designing and developing PTZ camera systems and advanced optical imaging solutions. We serve demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. Our business also focuses on mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision.

With a dedicated Optical Camera Division established in 2019, we focus on high-performance zoom and thermal imaging cameras. Our team of over 160 professionals includes 62 R&D experts with an average of 11 years of industry experience. Guided by a philosophy of long-term partnership, we are committed to growing together with our clients through continuous innovation.
