Outdoor Carrier-Grade Wireless Base Stations with Qualcomm Processor and Transmission Speed up to 867Mbps

Customization:	Available
Type:	Wireless Base Station
Work Mode:	Point-to-Point, Point-to-Multipoint

01

Overview & Basic Info

Model NO.	SW8000CBE
WiFi Antenna Type	External
Transmission Rate	867Mbps
Voltage	AC:100-240V
Antenna Gain	34dBi
Certification	ISO9001, RoHS, CE
Production Capacity	50000/Piece/Month

02

Product Description

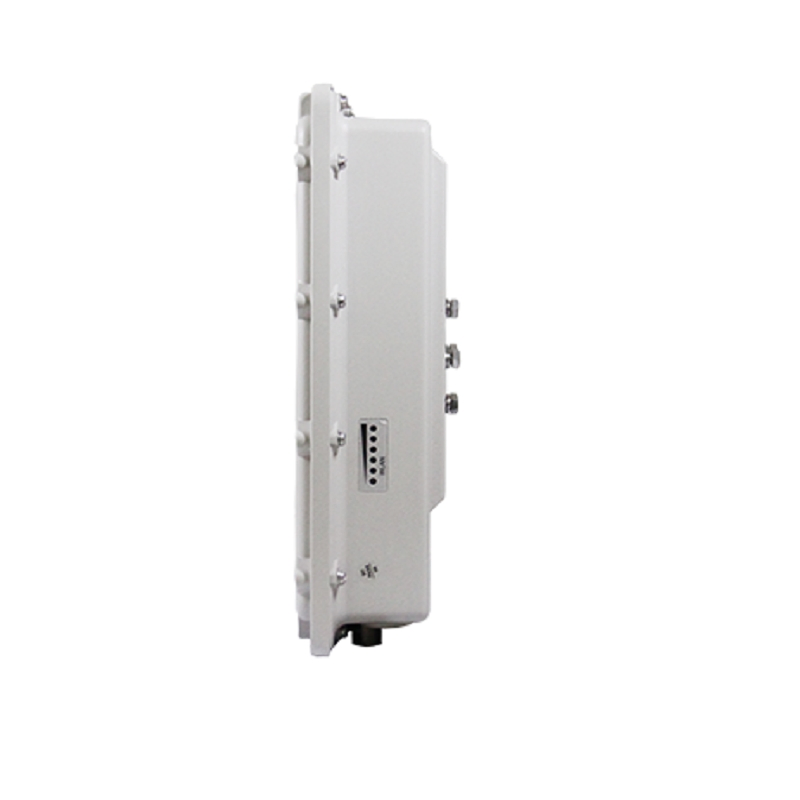

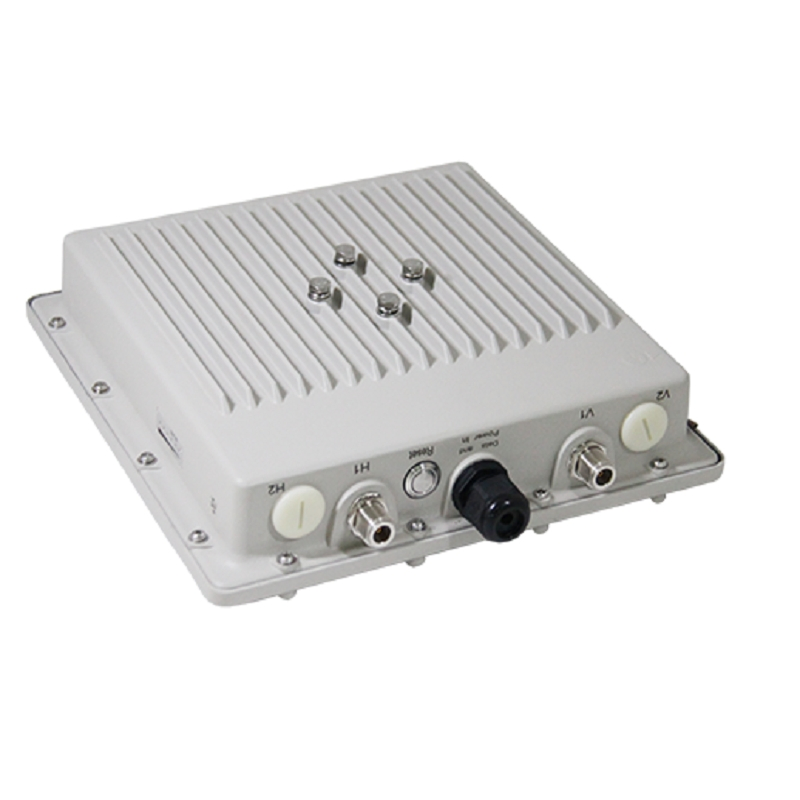

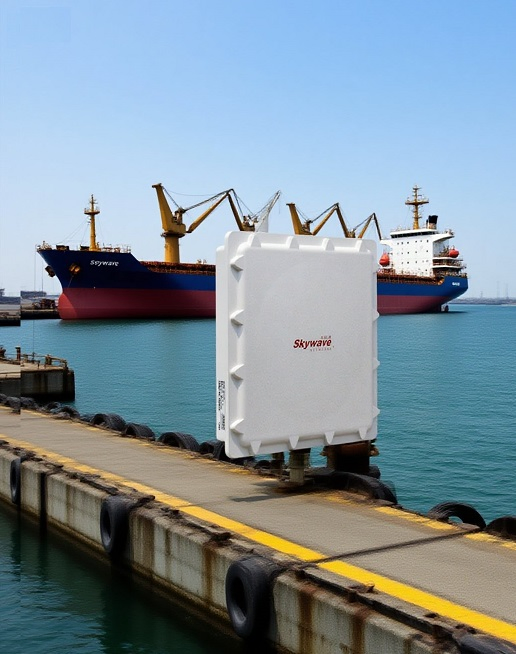

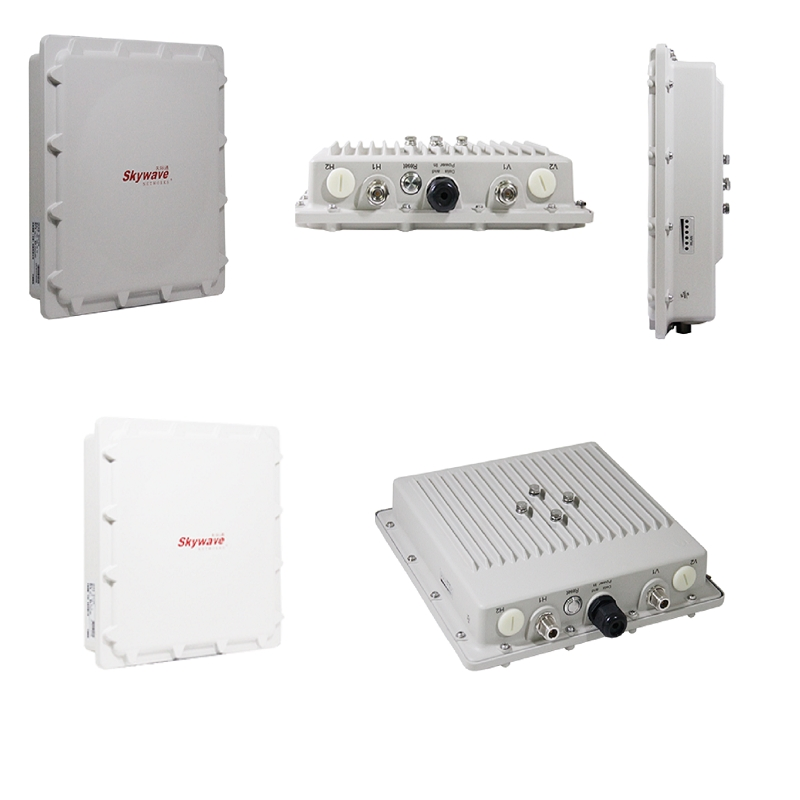

Outdoor Carrier-Grade Wireless Base Station

SW8000CBE is an outdoor carrier-grade split-type wireless base station operating in the 5GHz unlicensed frequency band. It is a wireless network device compliant with the IEEE802.11ac standard. The product adopts a high-performance Qualcomm Atheros high-speed network processor and is based on the MIMO (Multiple-Input Multiple-Output) technology of IEEE802.11ac, featuring a 2T2R architecture that supports a wireless transmission rate of up to 867Mbps.

It is particularly suitable for long-distance backbone network transmission projects and real-time services with large data flows, such as high-definition video surveillance applications in oil fields, electric power, water conservancy, forestry, industrial and mining enterprises, safe cities, intelligent transportation, digital energy, etc.

03

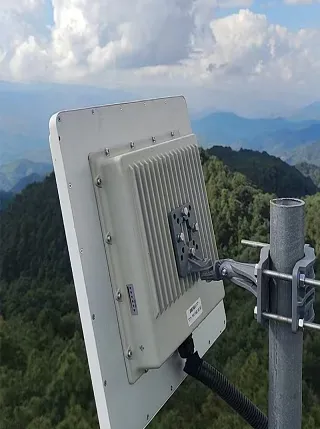

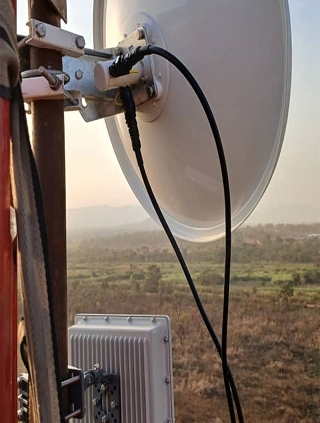

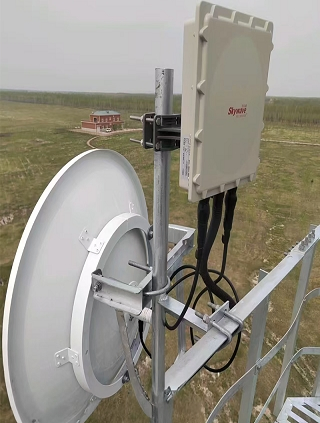

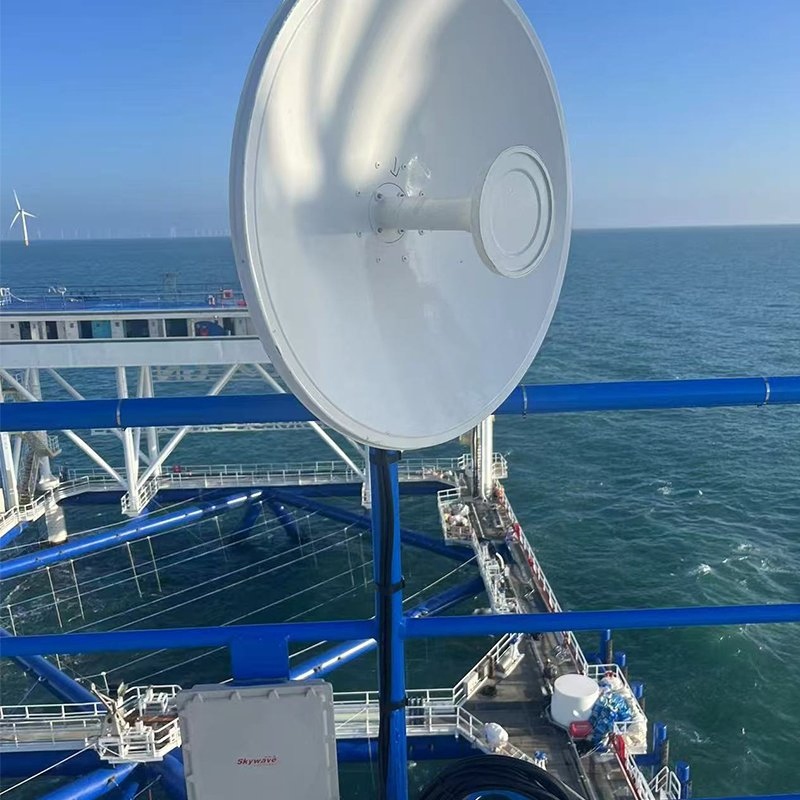

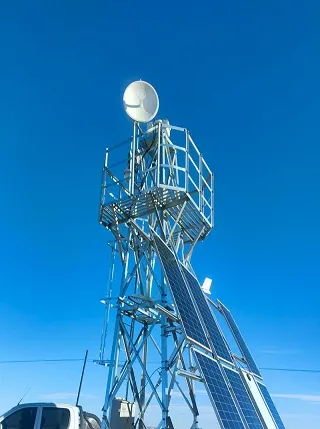

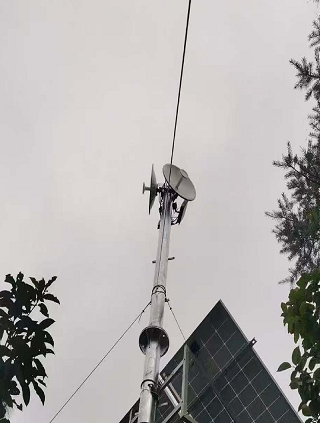

Application Scenarios

04

Product Parameters

Technical Specifications
Frequency Band	IEEE802.11a/n/ac: 4920~ 6100MHz
RF Power Output	2*500mW
Sensitivity	-96dBm @ MCS0 (802.11ac)
Maximum Working Rate	867Mbps
CPU	QCA9557-AT4A-R/QCA9882-BR4A-R (720MHz)
RAM	128MB DDR2
Power Consumption	MAX: 17W
Interface	1Gigabit PoE Ethernet port, 2N-type connectors
Operating Temperature	-50℃ ~+ 80℃
Protection Level	IP68 Integrated Fully Enclosed Design

05

Product Advantages

High Standard: Compliant with IEEE 802.11a/n/ac with MIMO and OFDM.
Long Distance: Maximum integrated distance can reach more than 200 kilometers.
Ultra Stable: MTBF over 200,000 hours, eliminating system crashes.
Gigabit Performance: Adaptive Ethernet port supporting Gigabit PoE.
Anti-Interference: BeamForming technology to suppress environmental noise.
TDMA Protocol: Enhances point-to-multipoint wireless efficiency.
Bandwidth Control: Flexible selection of 5/10/20/40/80MHz channels.
Rugged Design: IP68 dustproof and waterproof with surge protection.

06

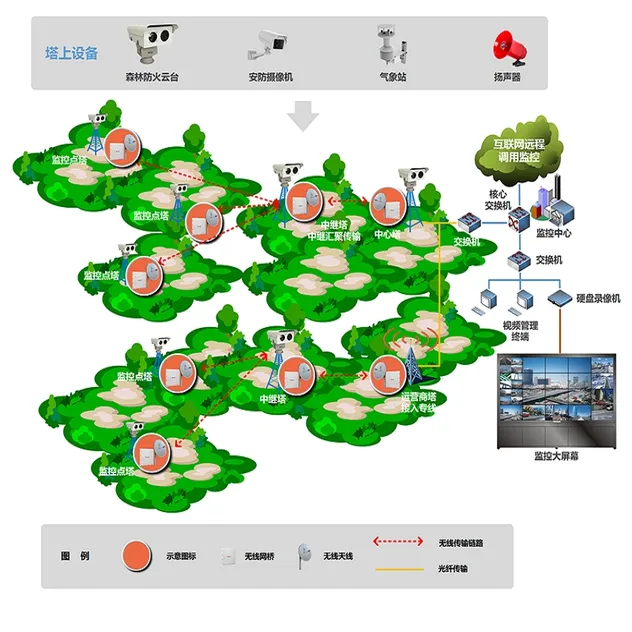

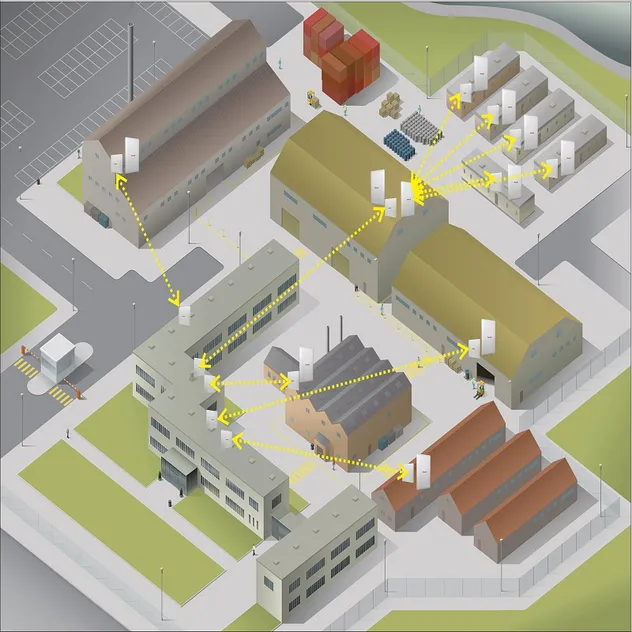

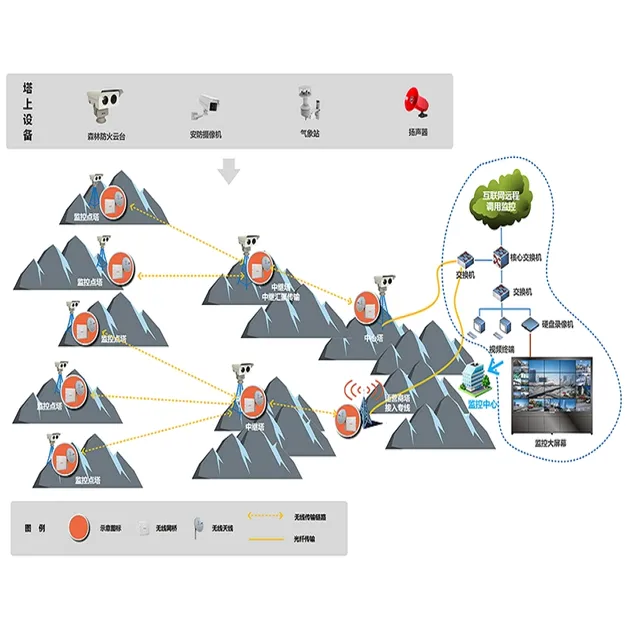

Success Cases

07

Packing & Delivery

Package Size: 354.00cm * 345.00cm * 10.00cm

Gross Weight: 3.000kg

?

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a manufacturer integrating industry and trade, specializing in high-performance wireless communication equipment.

Do you support product customization (OEM/ODM)?

Yes, we support on-demand customization, including logo customization, color adjustments, and appearance size modifications to meet your specific project needs.

What payment methods are accepted?

We support multiple payment methods including T/T, Western Union, PayPal, and cash. Specific terms can be negotiated based on the order size.

What are the available modes of transportation?

We offer flexible shipping options including sea, air, and land freight depending on the volume of goods and your specific delivery requirements.

How can I obtain an accurate price quotation?

Please provide your specific technical requirements and project scope. We will customize a solution and provide a detailed price quote based on your needs.

What is the typical transmission distance of your base stations?

With high transmission power and sensitivity, combined with the integrated antenna, the maximum transmission distance can reach over 200 kilometers in optimal conditions.
