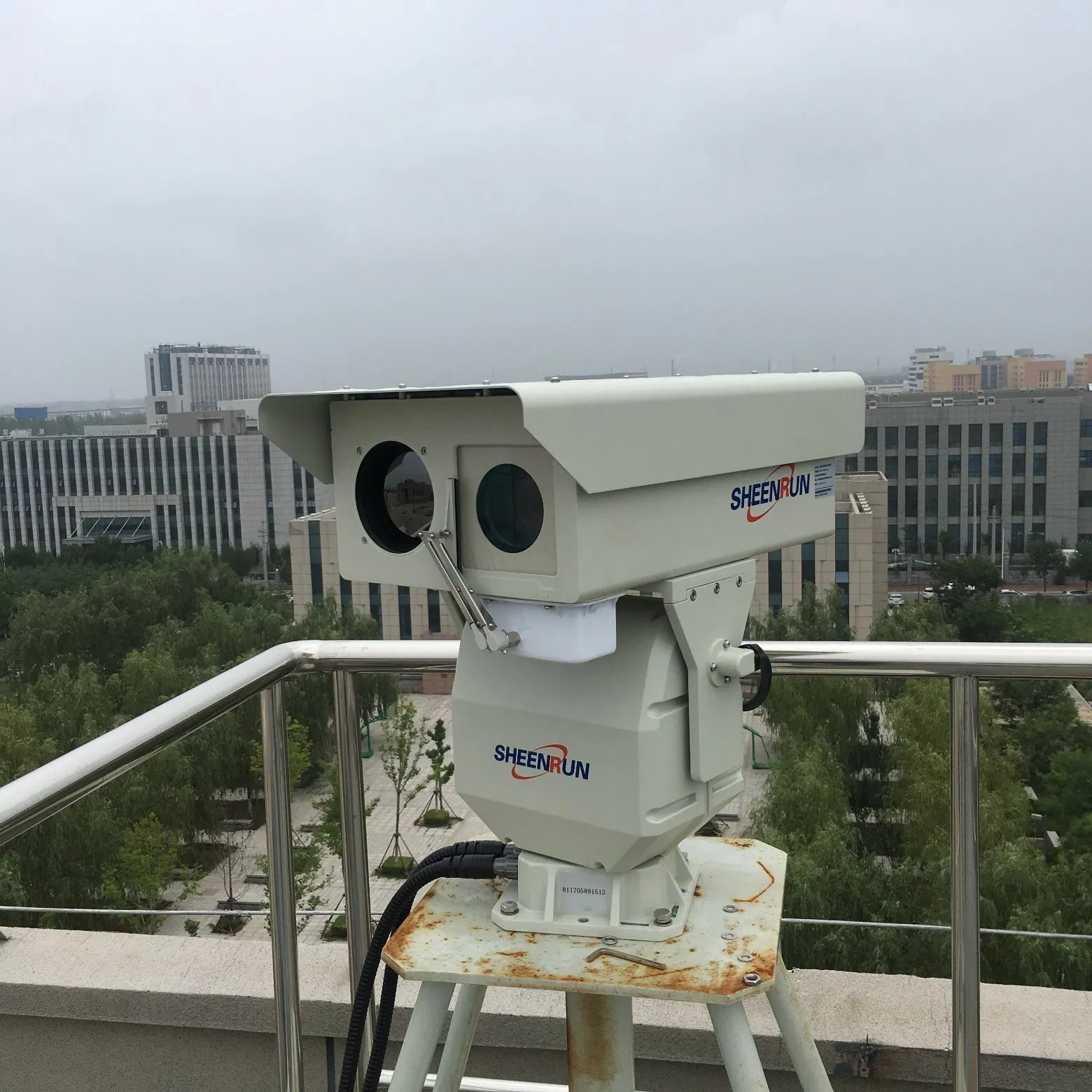

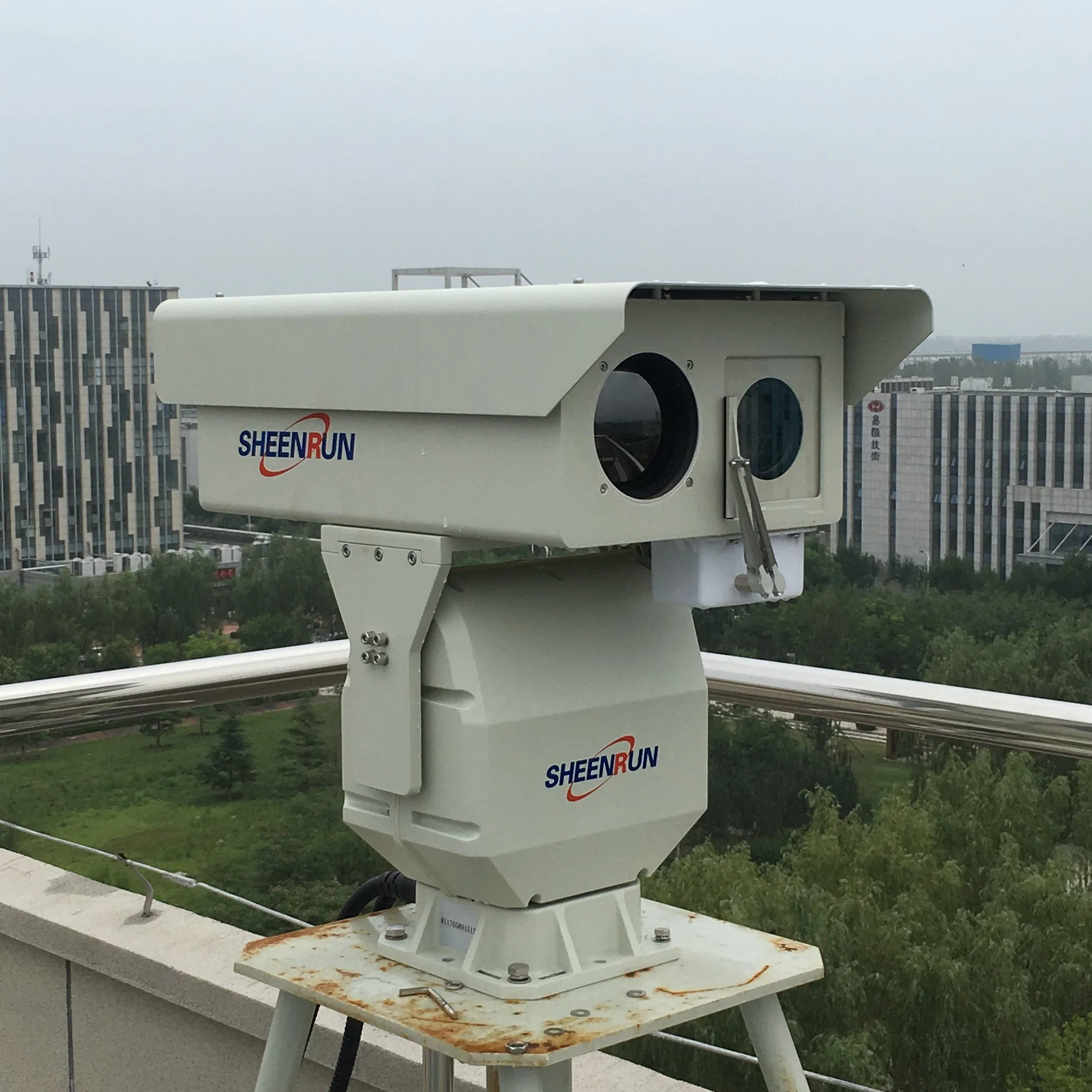

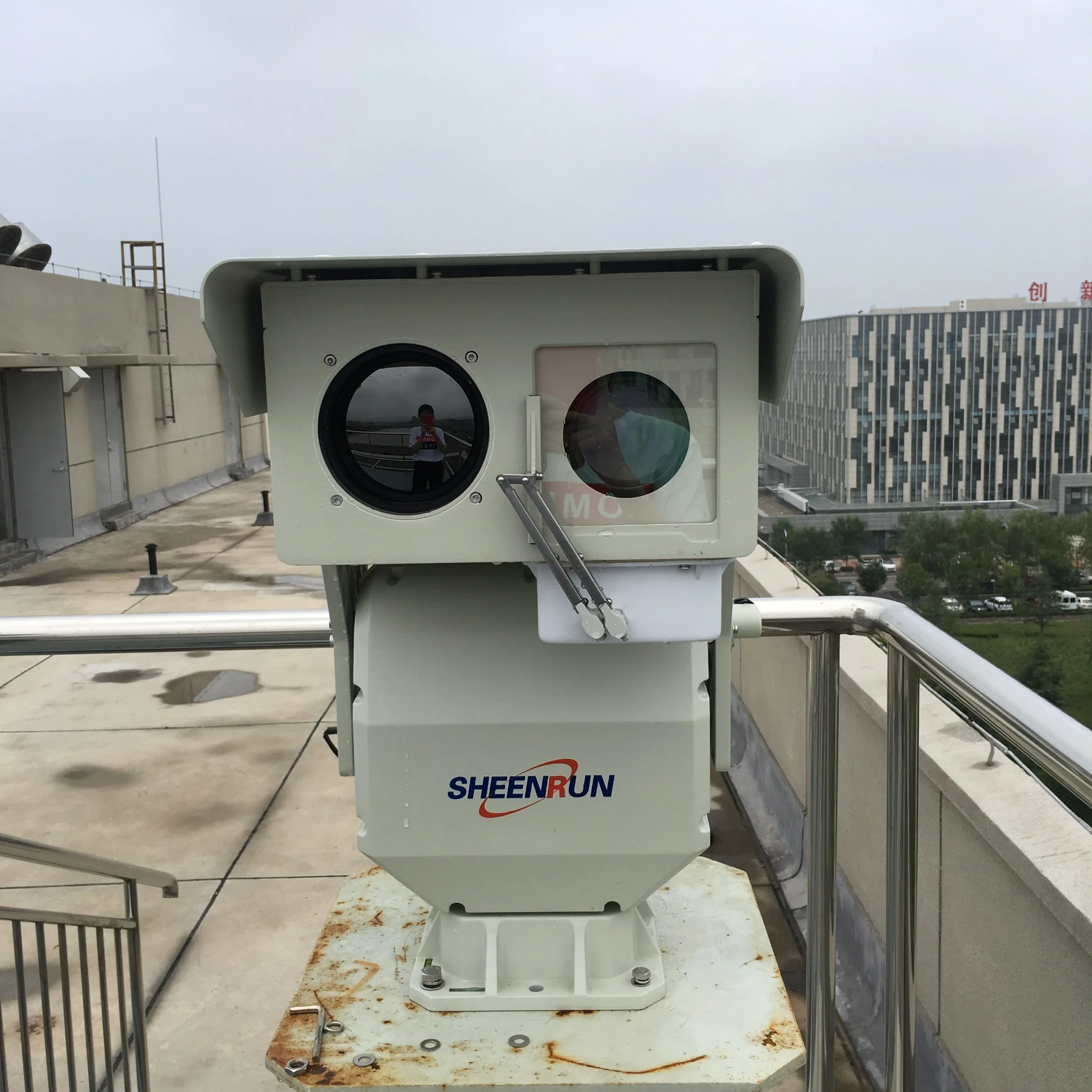

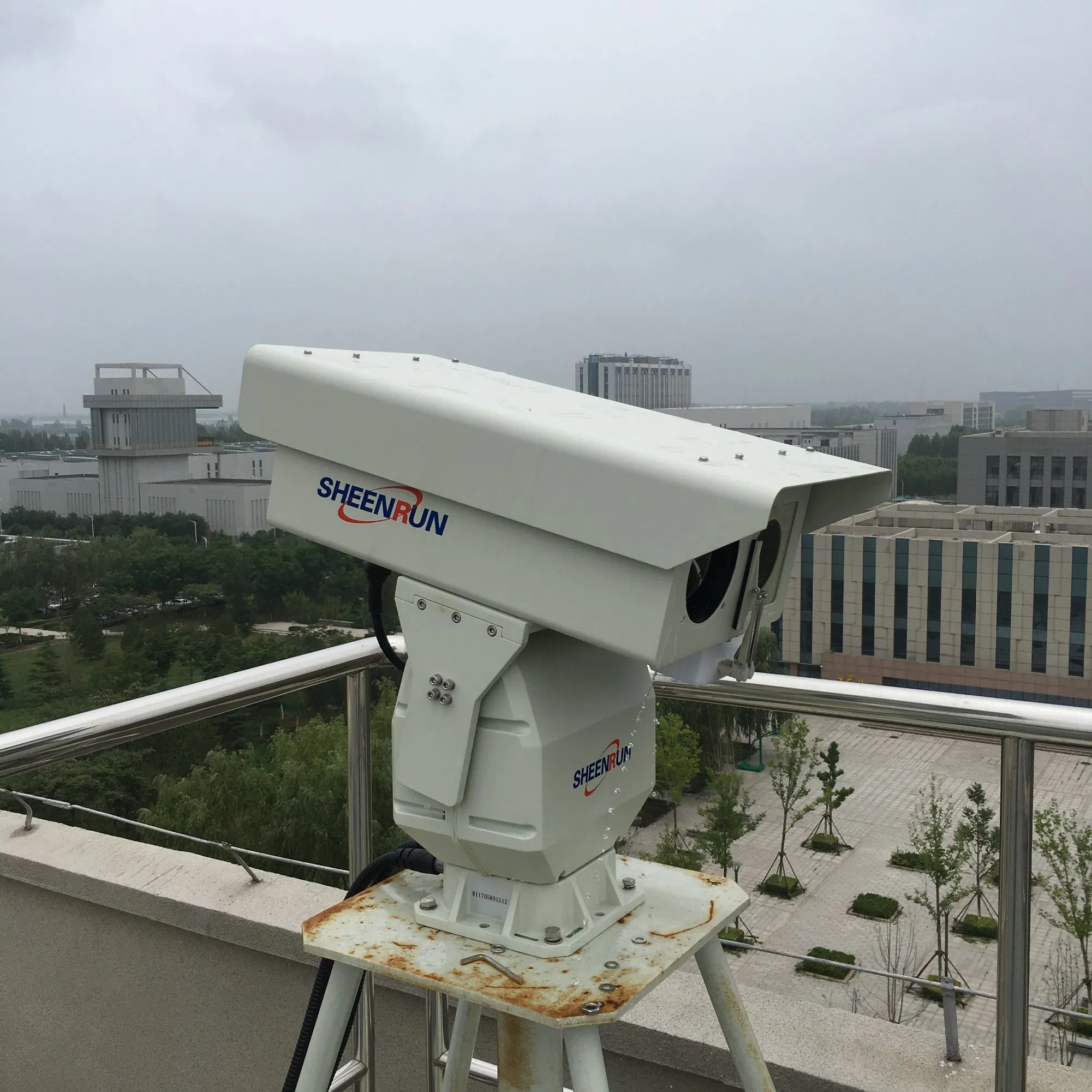

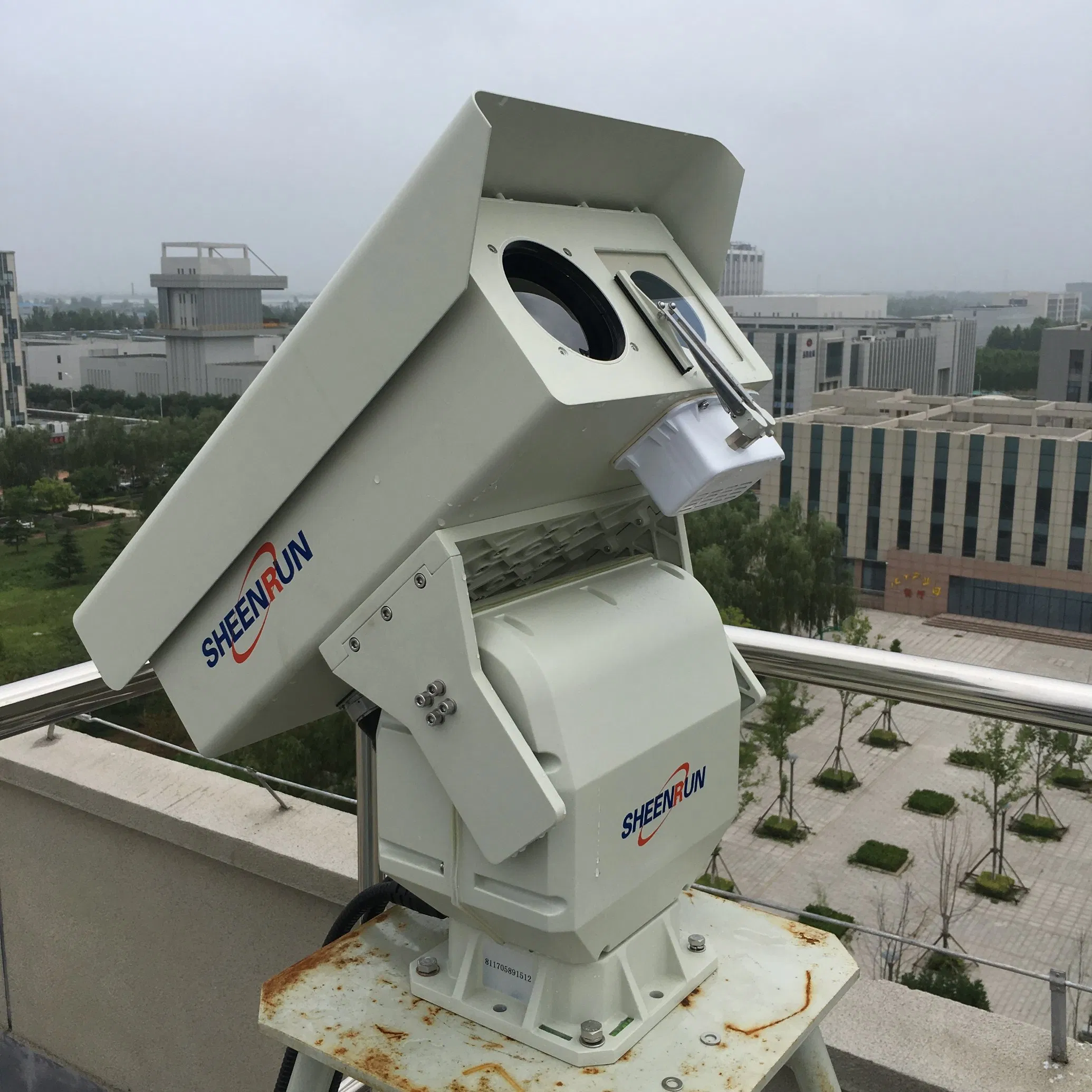

Dual Sensor PTZ Thermal Imaging Camera Day Vision for Forest Fire Prevention

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Basic Information

Model NO.

HLV3020HTIR155RAT

Type

PTZ Thermal Camera

Sensor

CMOS

HDMI Format

1080P

Certification

CE, FCC, CCC, ISO9001: 2000

Effective Distance

3m-90000m

Detector Type

Uncooled Fpa Vox, 640*512pixel

Warranty

12 Months

Product Features

Long-range visible light camera and thermal imaging camera integrating design, realizing day and night monitoring.
Day & night mode, low illuminance, color to black camera.
Universal, variable speed pantilt, realizing all-around, no-blind-corner monitoring.
Integrated intelligent temperature controlling system for 24/7 stable operation.
Passive infrared thermal imaging with excellent concealment.
Professionally designed housing: high temperature resistant, anti-corrosion, and IP66 waterproof.
Low power consumption and stable working performance.

Product Specifications

Monitor Distance	Visible Light: 10000m
Monitor Distance	Thermal Camera: Fire (1m×1m) 4400m / Fire (3m×3m) 10800m
Alarm Detection	High temperature region occupies 2x2 pixels; Threshold 1-255; 0.1s response.
HD Camera	Focal length: 12.5~750mm; F3.8~F22.C; 1/1.8'' Progressive Scan CMOS.
Thermal Detector	Uncooled microbolometer (VOx); 640×512 resolution; 8~14μm spectrum.
Infrared Lens	30~150mm, 5x optical zoom.
Turntable	Horizontal 360° infinite rotation; Pitch -45°~+45°; 2048 Preset positions.
Environmental	Operation temp: -25ºC~+55ºC; IP66 International protection.

Product Visualization

Packaging & Shipping

Package

Standard Wooden or Carton cases

Delivery

7-20 days after confirmation

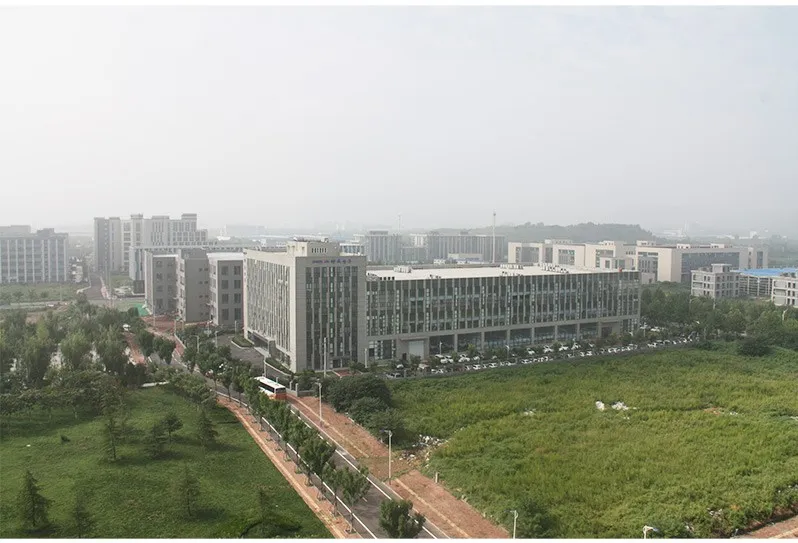

Professional Capability

Independent innovation in continuous zoom infrared thermal imaging technology. Laser night vision and infrared products are widely used in national defense, safe cities, railways, highways, forest fire prevention, and oil fields, providing all-weather surveillance support.

Frequently Asked Questions

What is the maximum monitoring distance?

The camera offers a visible light monitoring distance of up to 10,000 meters. For thermal detection, it can detect fire sources (3m x 3m) up to 10,800 meters away.

Does the camera support automatic fire detection?

Yes, it features an optimized front-end fast processing algorithm that can detect high-temperature regions as small as 2x2 pixels with a 0.1s alarm response time.

What are the environmental protections for this camera?

The camera is IP66 rated, meaning it is waterproof and dustproof. It also features anti-salt spray protection and an integrated temperature control system for 24/7 operation.

Can the camera rotate to cover all angles?

Yes, it has a horizontal 360° infinite continuous rotation and a pitch angle of -45° to +45°, ensuring all-around monitoring with no blind spots.

What types of video encoding are supported?

The camera supports H.265, H.264, and MJPEG coded formats with 1080P resolution and triple stream support.

What is the warranty period for this product?

This PTZ thermal camera comes with a standard 12-month warranty from the date of purchase.
