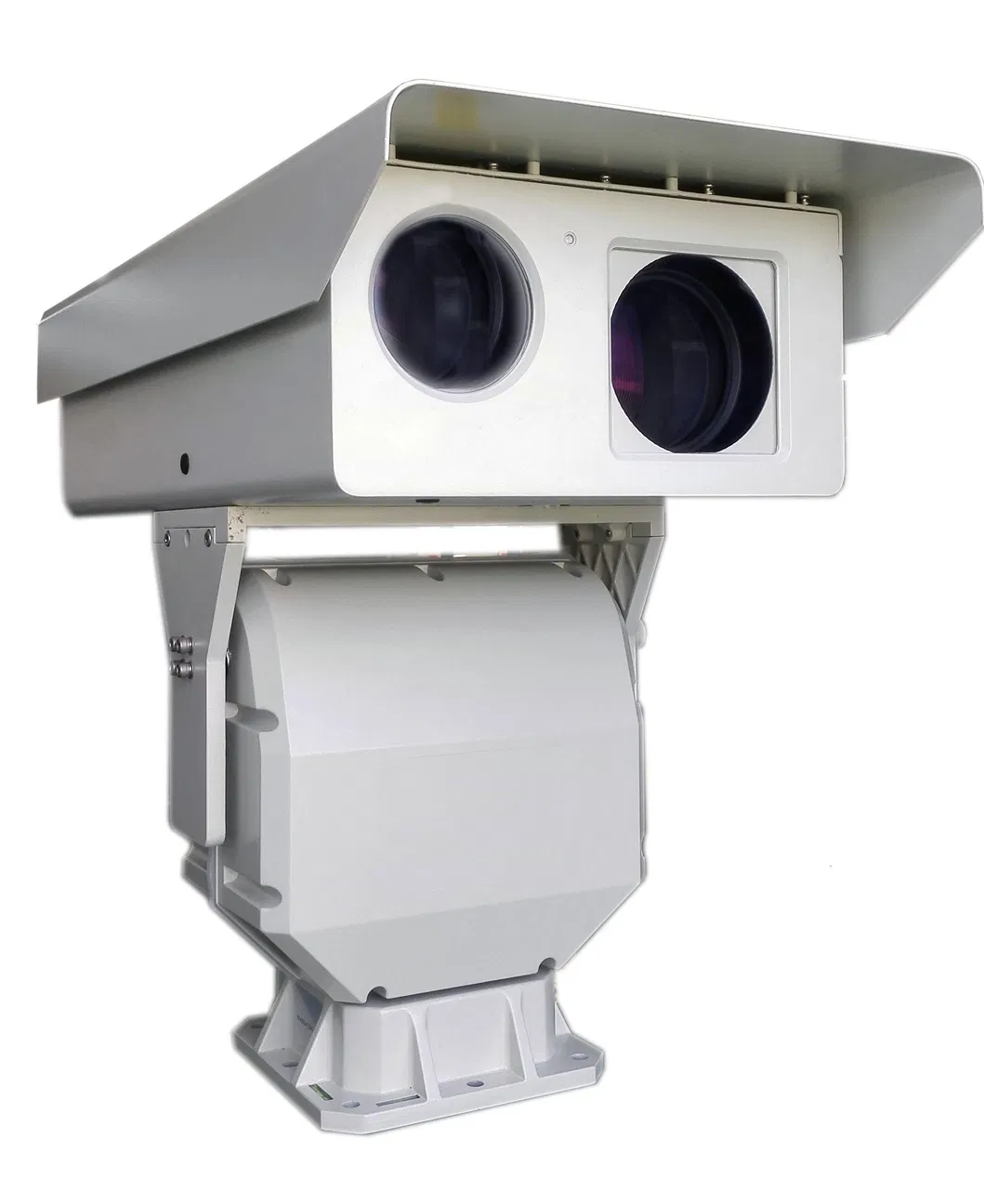

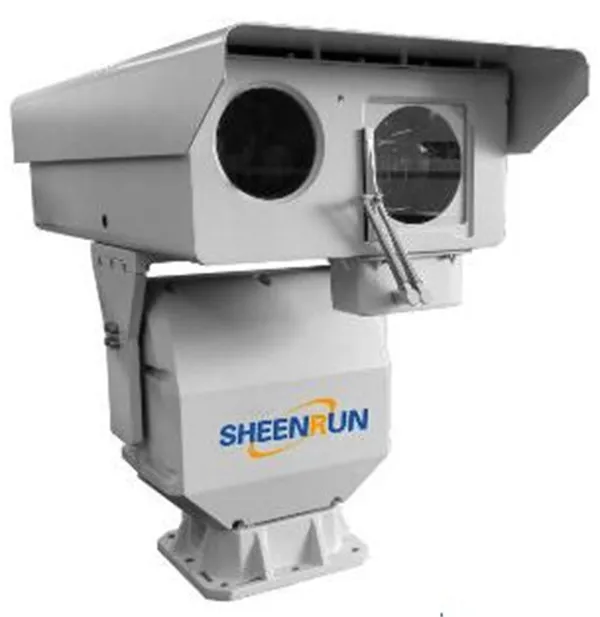

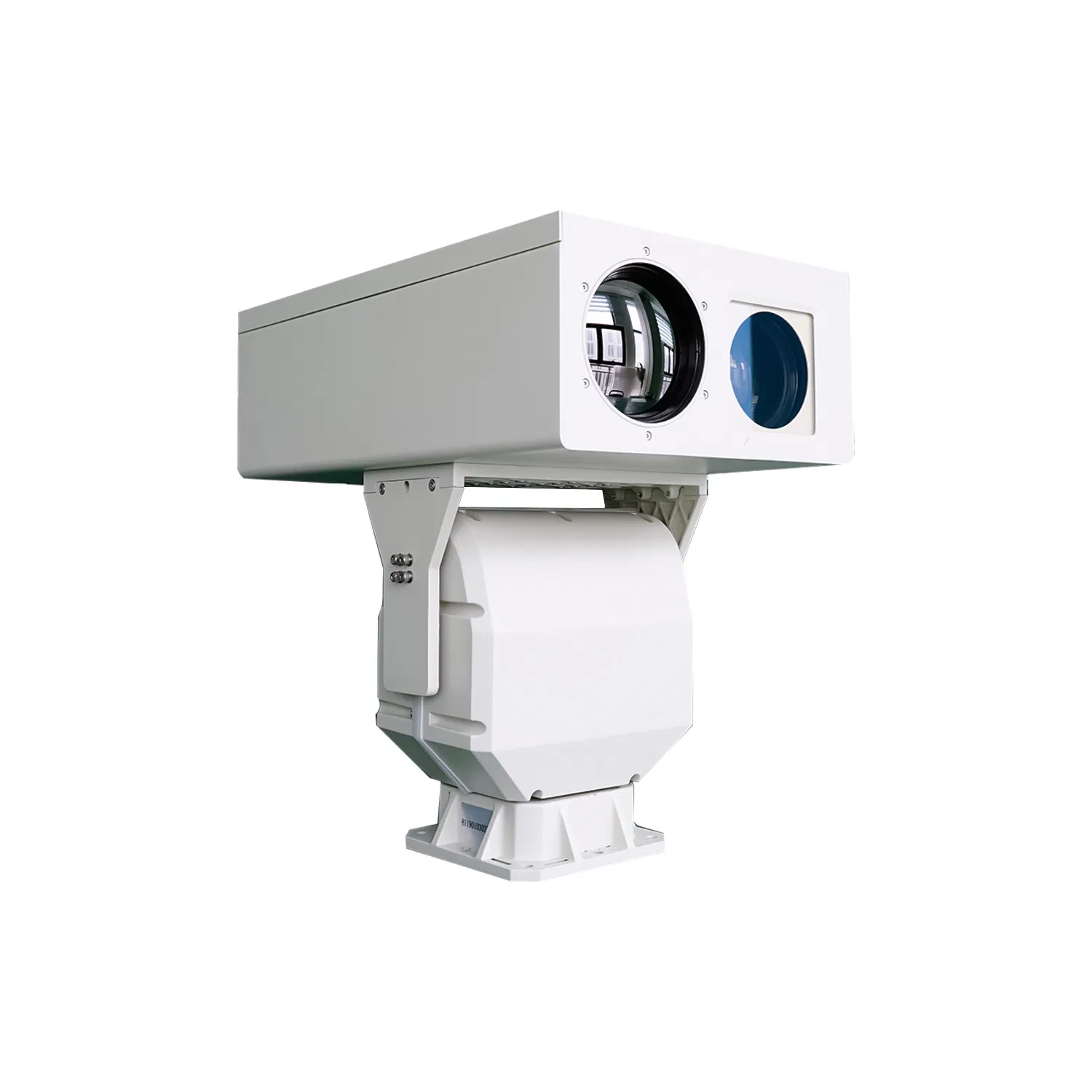

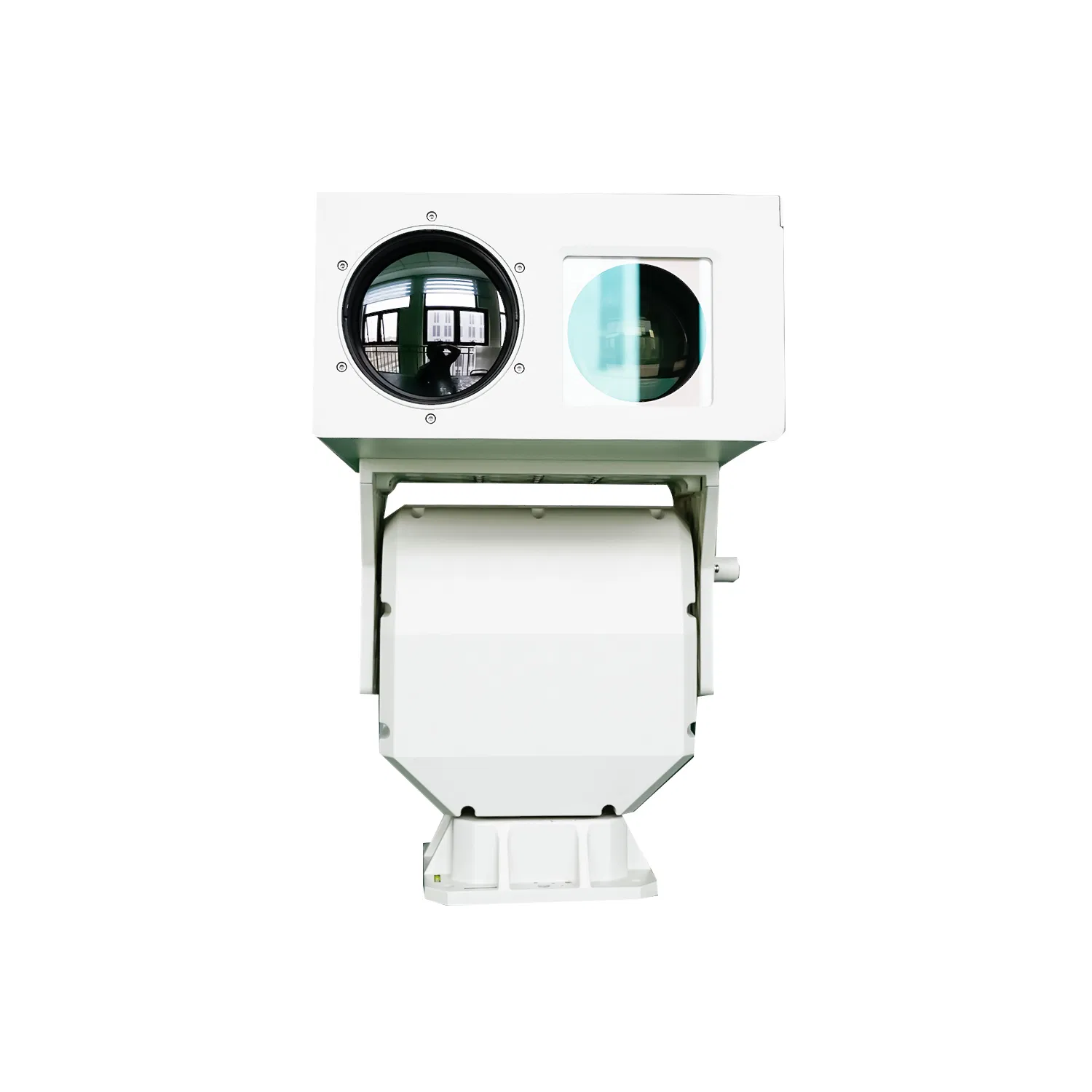

Forest Fire Prevention Long Distance HD PTZ Thermal Imager Camera

1 / 5

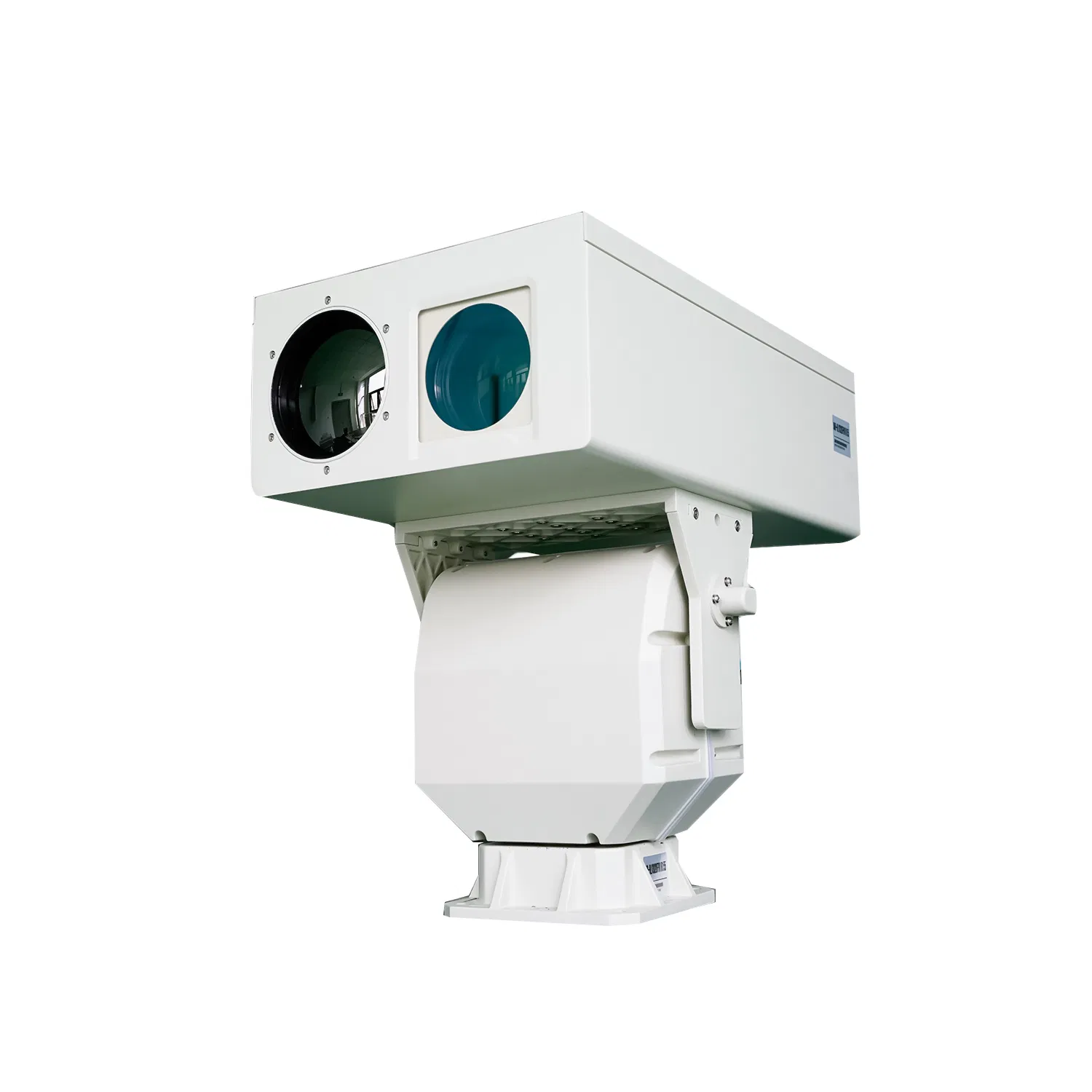

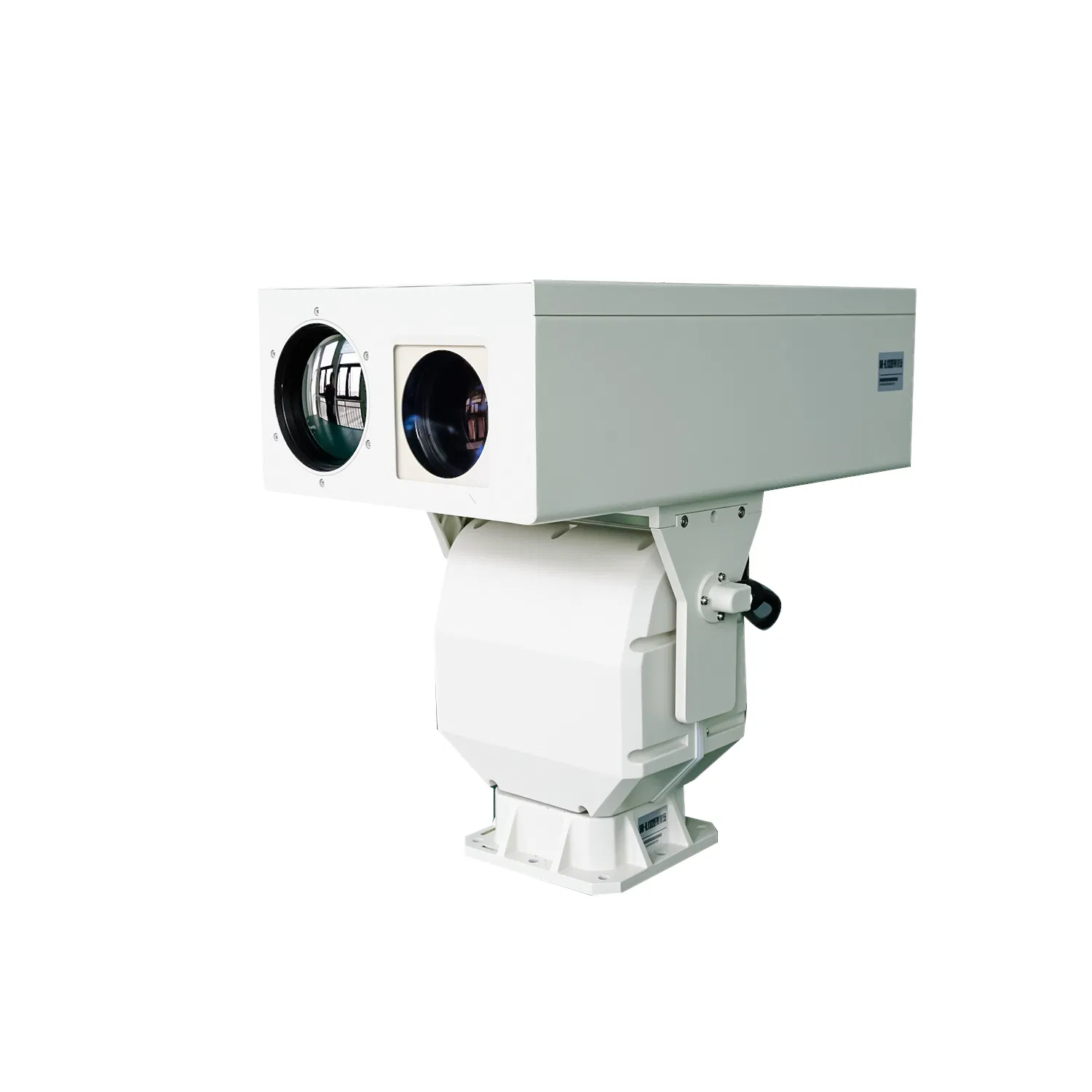

Forest Fire Prevention Long Distance HD PTZ Thermal Imager Camera

Customization:	Available
Technology:	Long Wave Infrared Thermal Imaging
Style:	Pan/Tilt

Send Inquiry

Product Description

📋

Basic Product Information

Model NO.

SHR-HLV3020TIR185R

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Effective Distance

4 Km

Feature

Waterproof, Weatherproof, High Definition

Car Detection

14400m

Human Detection

5040m

Thermal Lens

36~180mm, 5X Optical Zoom

PTZ Angle

Pan 360°continuously, Tilt ±45°

🚀

Product Features

Continuous zoom thermal imaging technology for strong fog penetration and long-distance detection.
2 megapixels low illuminance color camera for 24/7 day and night continuous monitoring.
Multi-position intelligent identification autofocus technology for fast and accurate focusing.
Front-end equipment control software supports online network upgrades for easy maintenance.
PTZ design includes a maintenance window and plug-in circuit board design for quick replacement.
Universal variable speed PTZ achieving all-round monitoring with high-precision positioning.
Professional-grade shell: anti-high-temperature, corrosion-resistant, waterproof, and anti-acid-rain.
Self-test function upon power-up, returning to user-defined zero or power-off position.

⚙️

Technical Specifications

Operating Distance	Visible Light: 8000m
Operating Distance	Thermal (Vehicle): Detection 12000m, Recognition 3000m, Identification 1500m

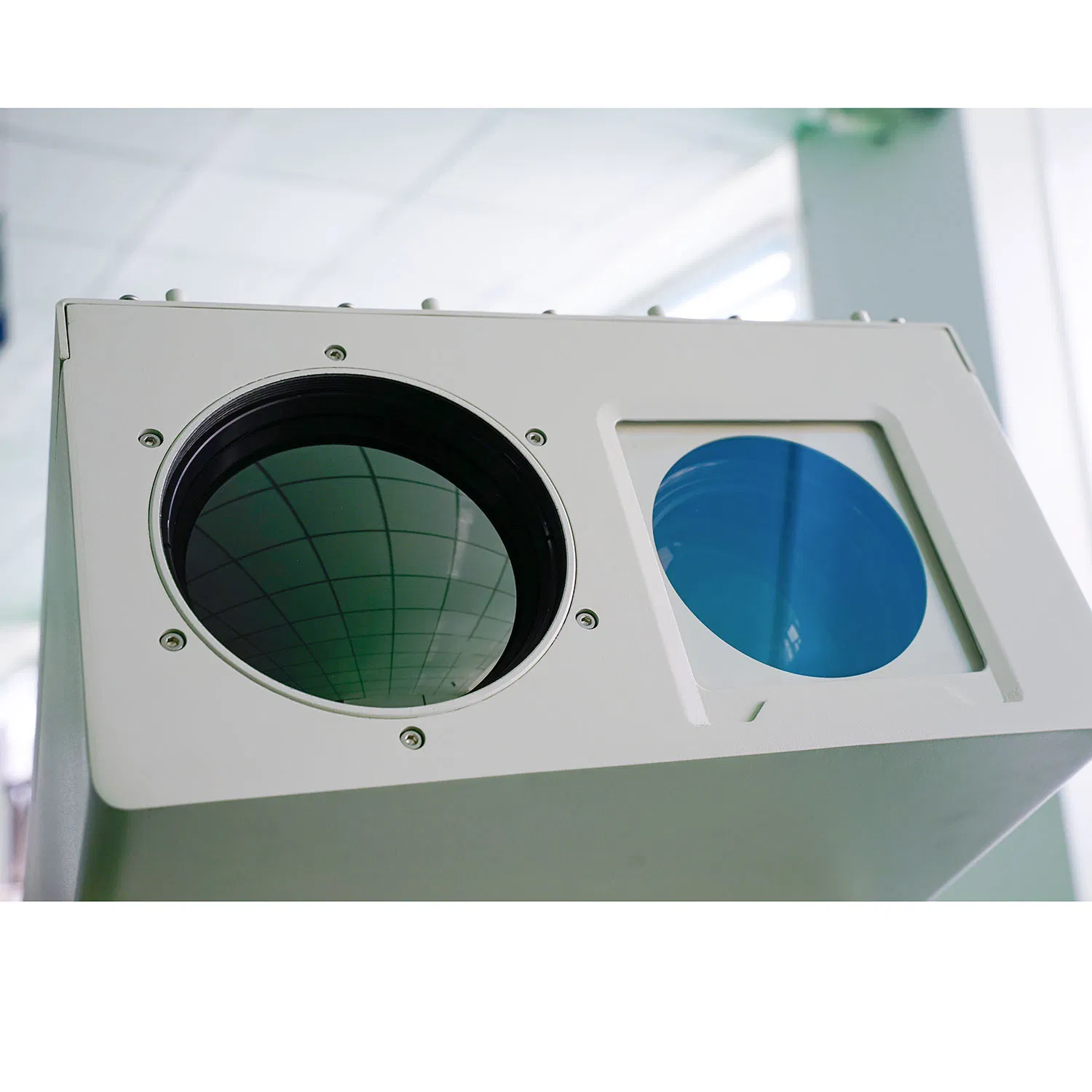

HD Lens	12.5~750mm; FOV 0.6°~35°; Auto Aperture
HD Camera	1/1.8" Progressive Scan CMOS; 2.1MP; H.265/H.264; 1920x1080 Resolution
Infrared Lens	30~150mm Focal Length; 5× Optical Zoom; F1.0~F1.2
Detector	Uncooled microbolometer (VOx); 384×288/640x512 pixels; Spectral 8~14μm
Pan-Tilt	Horizontal 360° continuous; Tilt -45°~+45°; 255 Preset bits
Environment	Working Temp: -25ºC~+55ºC; Protection Grade: IP66
Physical	Dimension: 712×385×583mm; Weight: ≤55kg

🛠️

Our Services & Packaging

Support: One year warranty (extended available), life-long technical support, OEM/Customized product options.

Shipping: Wooden and carton cases ensure safety. Support for FEDEX, UPS, TNT, DHL.

📸

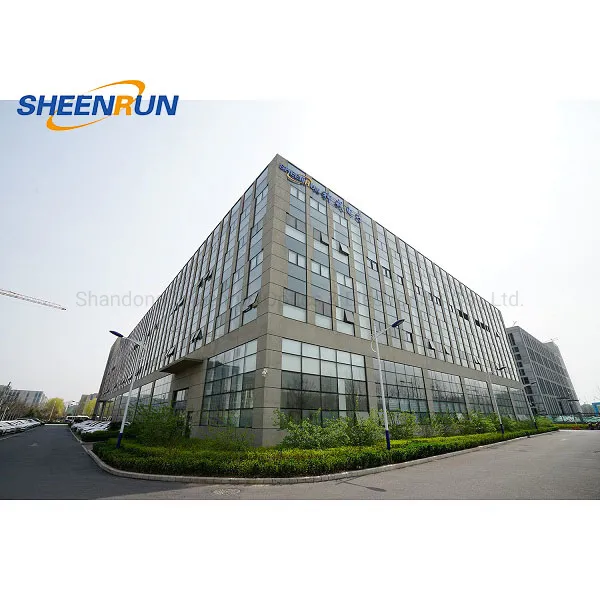

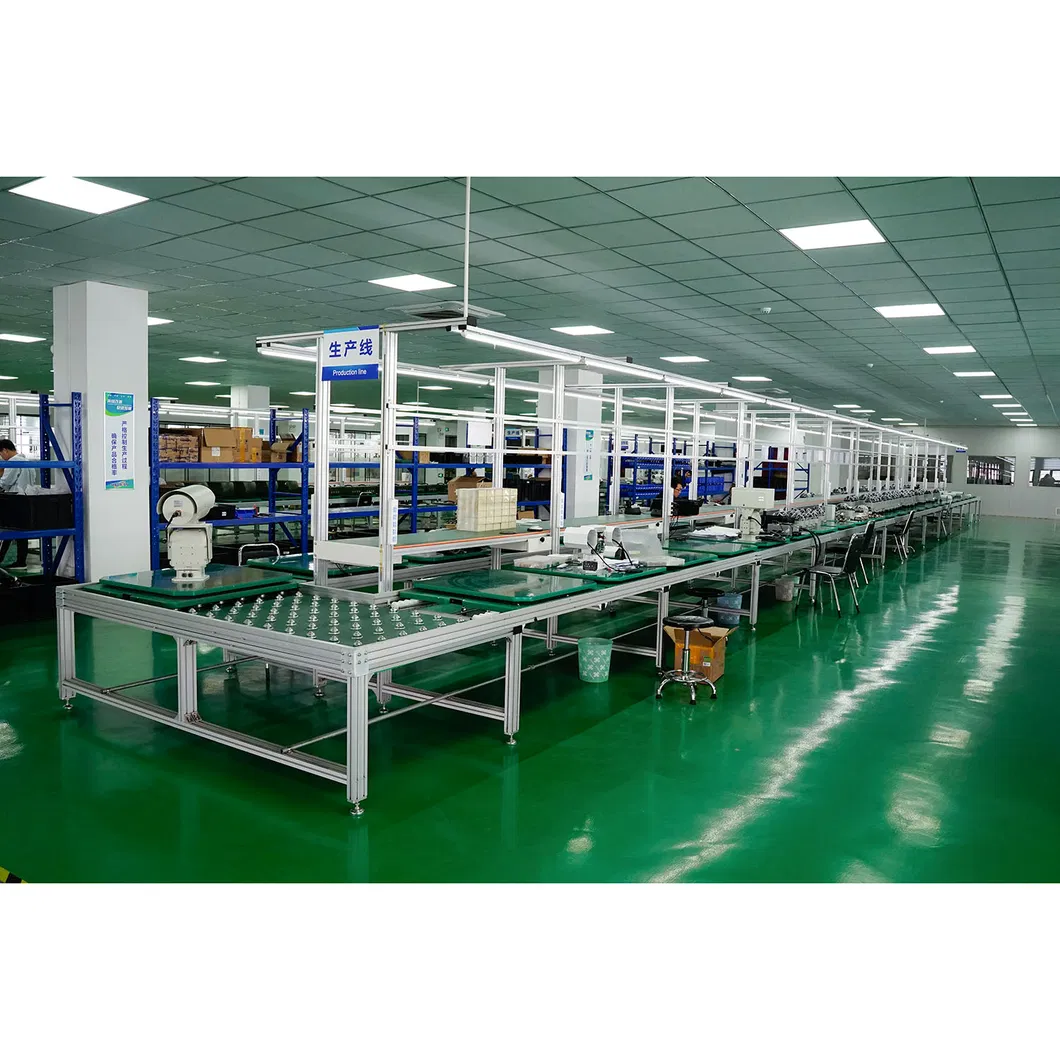

Facility & Exhibition

Frequently Asked Questions (FAQ)

What is the maximum detection range of this camera?

The camera can detect vehicles at a distance of up to 12,000 meters and humans at up to 4,200 meters using thermal imaging technology.

Is the camera suitable for harsh outdoor environments?

Yes, the camera features an IP66 protection grade and a professional-grade shell that is anti-corrosive, waterproof, and designed to withstand high temperatures and acid rain.

Does the system support night monitoring?

Absolutely. It combines a 2MP low-illuminance color camera with thermal imaging to provide continuous 24/7 day and night monitoring capabilities.

Can the thermal imaging lens zoom?

Yes, the thermal camera is equipped with a 30~150mm lens providing 5X optical zoom with continuous zoom technology.

What kind of maintenance support is provided?

We offer a one-year warranty, life-long technical support, and the hardware design includes a maintenance window for quick circuit board replacement.

What are the power requirements for the device?

The system operates on a DC30V interface and comes with a waterproof power supply compatible with 90VAC~305VAC input.
