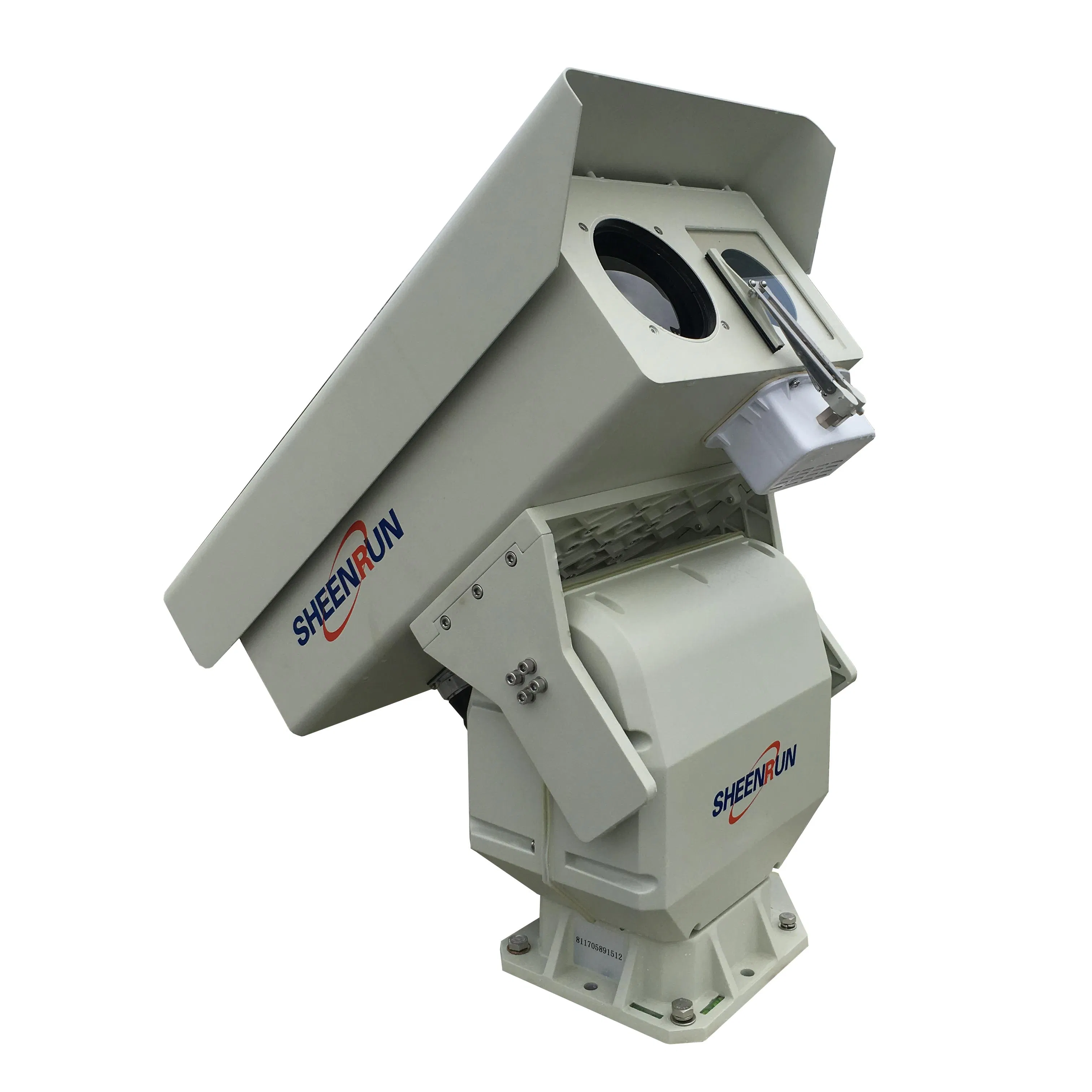

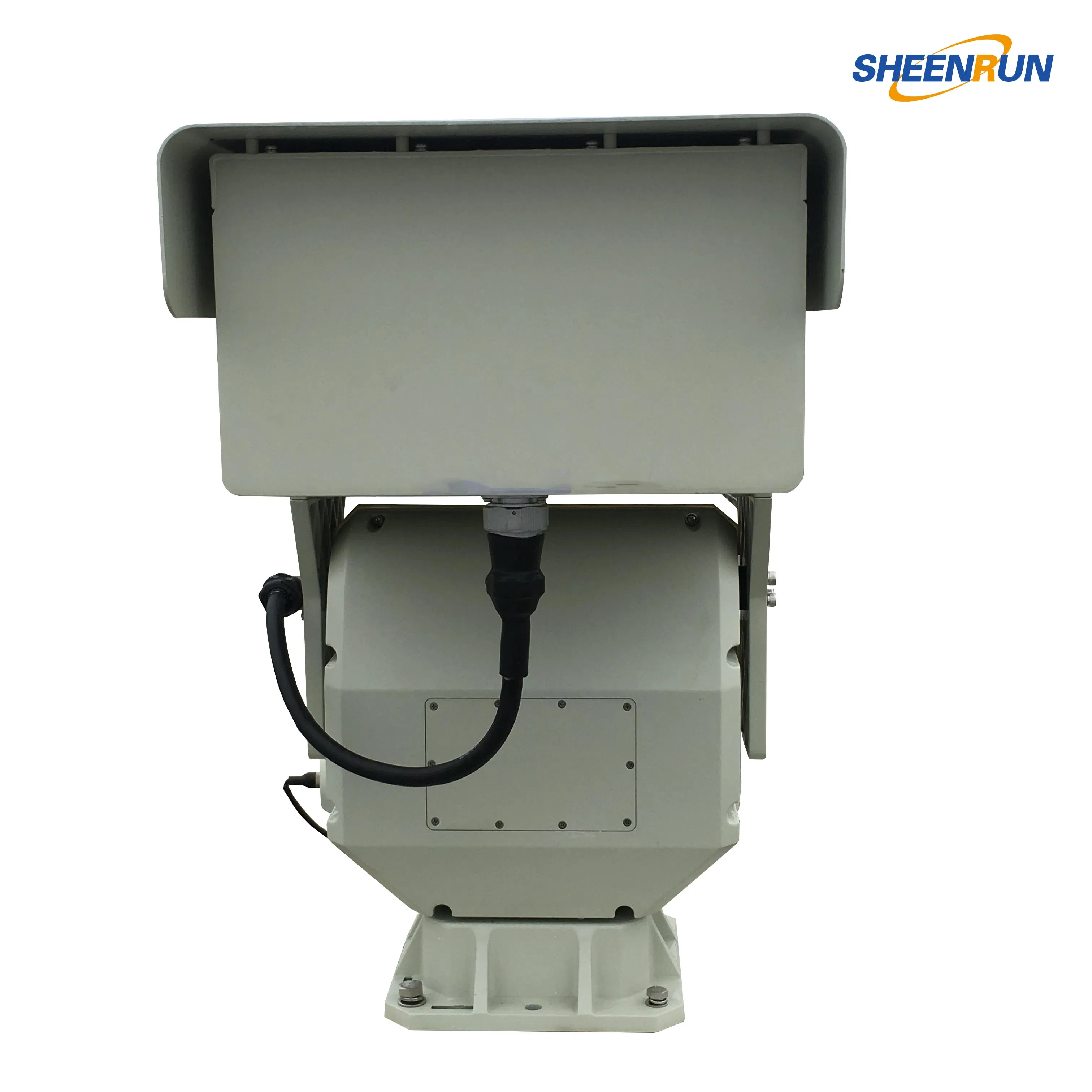

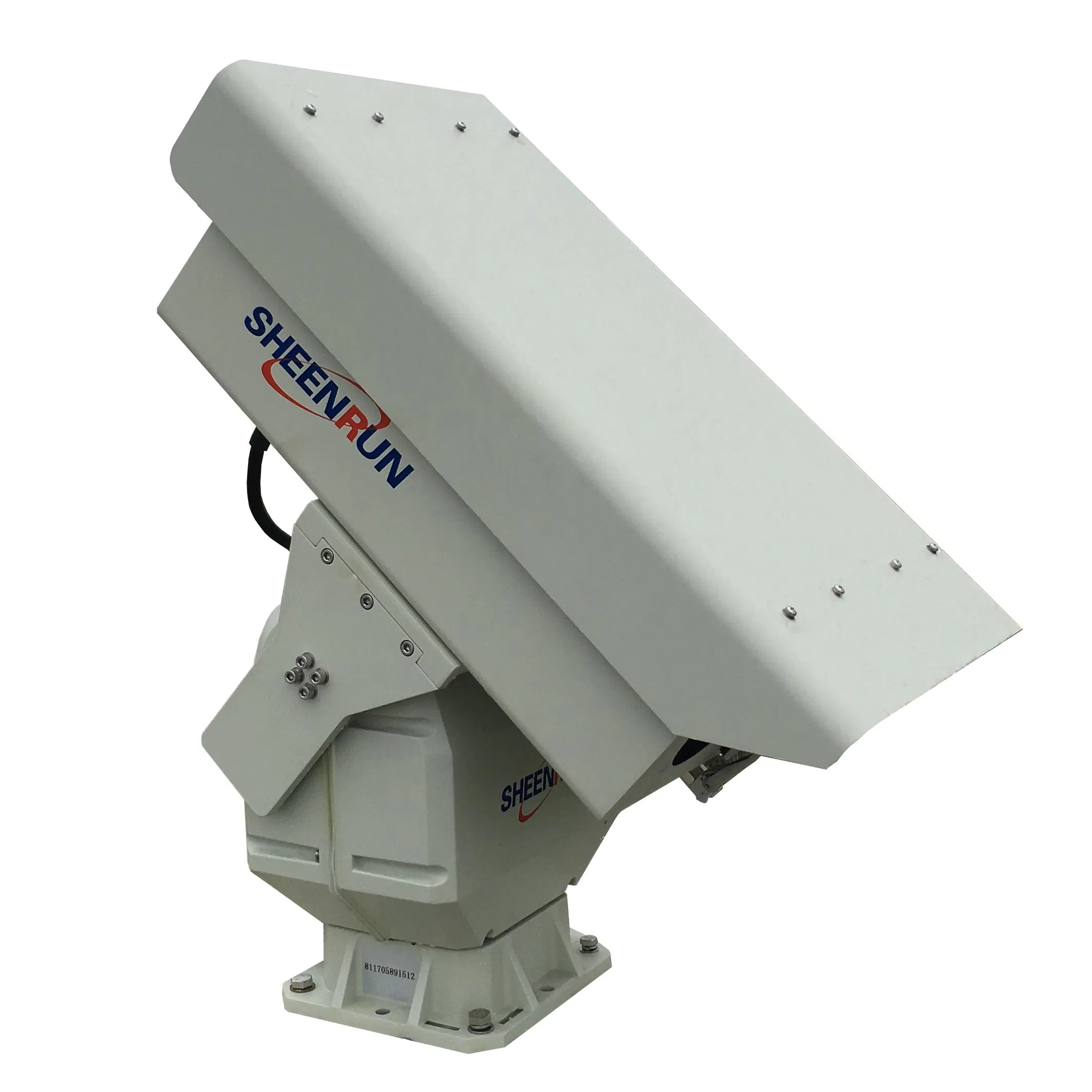

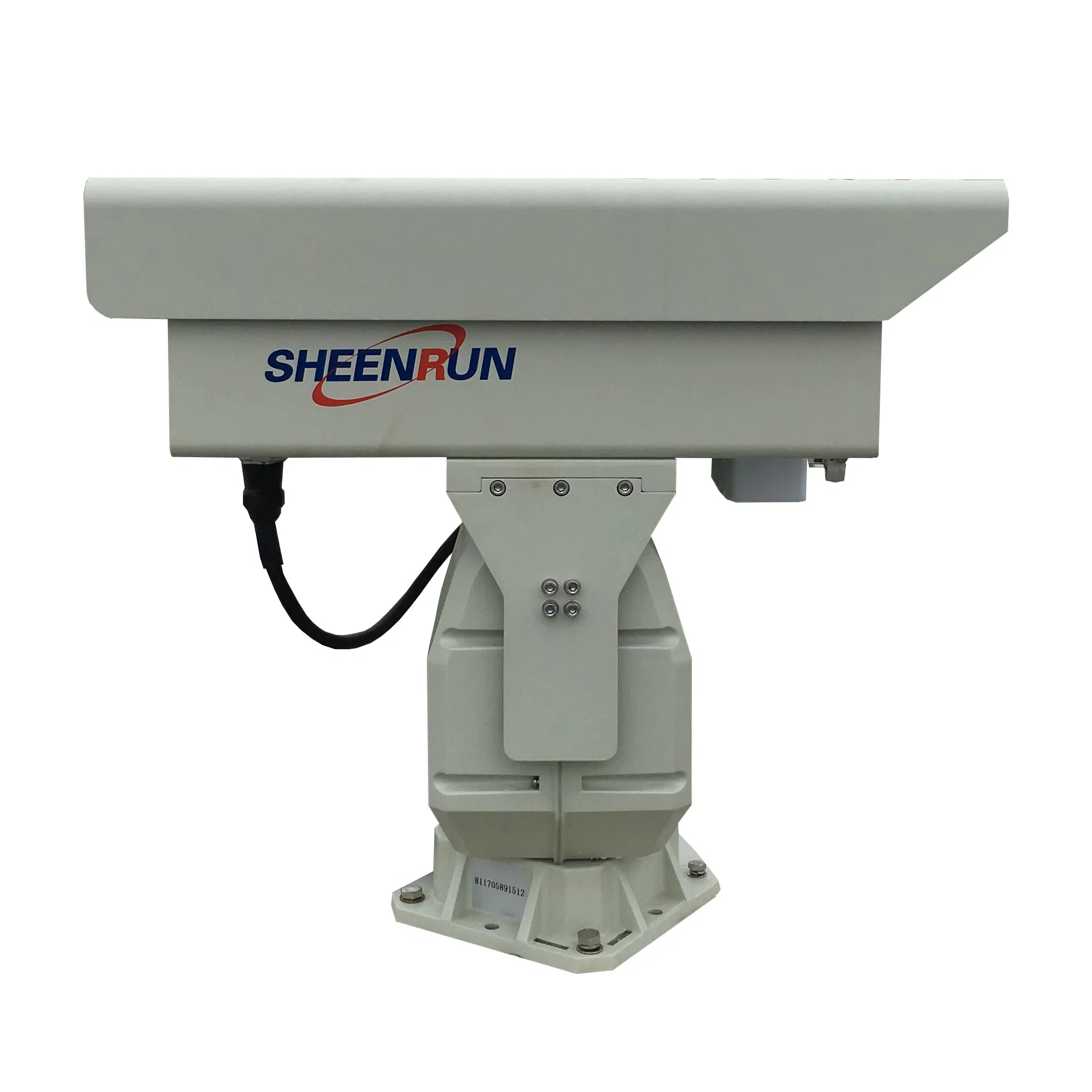

2000m-4000m Forest Fire Prevention System Infrared PTZ Thermal Imaging Camera

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Basic Information

Model NO.

HLV1020TIR104RAT

Type

PTZ Thermal Camera

Sensor

CMOS

Effective Distance

2000m-4000m

Resolution

1080P

Certification

CE, FCC, CCC, ISO9001

Detector Type

Uncooled Detector (Vox)

Warranty

12 Months

Kind

Autofocus Lens

Protocol

Pelco-D Pelco-P

Product Features

✔ Long range visible light and thermal imaging integrated design for 24/7 monitoring.

✔ Universal variable speed pantilt for high-precision, no-blind-corner location.

✔ Integrated intelligent temperature control system ensures stable operation in all conditions.

✔ Passive infrared thermal imaging offers high concealment and detection accuracy.

✔ High-strength housing: anti-corrosion, waterproof, anti-acid rain, and high temperature resistant.

✔ Low power consumption and stable performance for long-term deployments.

Technical Specifications

Distance	Day Camera	Detection distance: 3000m
	Thermal Camera Target	Fire (1m×1m) / Fire (2m×2m)
	Alarm Distance	2000m / 4000m
Day Camera	Sensor	1/1.8'' Progressive Scan CMOS, 2MP
	Focal Length	12.5~400mm
	Video Compression	H.264 / H.265 / MJPEG
Thermal Detector	Detector Type	Uncooled Vox Detector, 384x288 Pixels
Thermal Detector	Spectrum / NETD	8~14μm / ≤50mK
Pantilt	Rotation Range	Horizontal 0º~360º, Vertical -45º~+45º
Pantilt	Speed	Pan: 0.01º~20º/s, Tilt: 0.01º~12º/s
Environment	Protection	IP66, Operating Temp: -25ºC to +55ºC

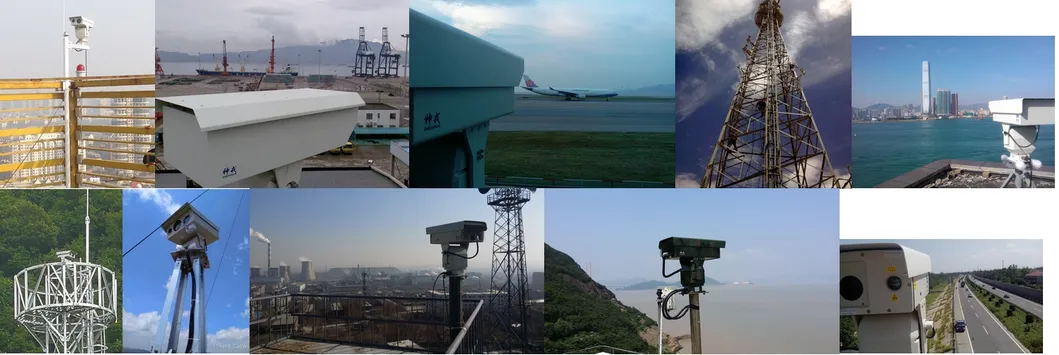

Application & Showcase

Exhibition Display

Frequently Asked Questions

What is the maximum fire detection range of this system?

The system is capable of detecting a 2m x 2m fire target at a distance of up to 4000 meters, with an alarm range starting from 2000 meters.

Can this camera operate in extreme weather conditions?

Yes, the device features an IP66 international protection rating and is built with high-temperature resistant and anti-corrosion materials, operating effectively between -25ºC and +55ºC.

How does the intelligent temperature control system work?

The integrated system automatically regulates the internal temperature of the housing, ensuring that all electronic components work stably 24/7 regardless of external environment changes.

Does the PTZ support automatic monitoring paths?

Yes, the pantilt supports up to 8 auto-cruise paths, with each path allowing for 10 preset positions, providing comprehensive area coverage.

What imaging modes are available for day and night?

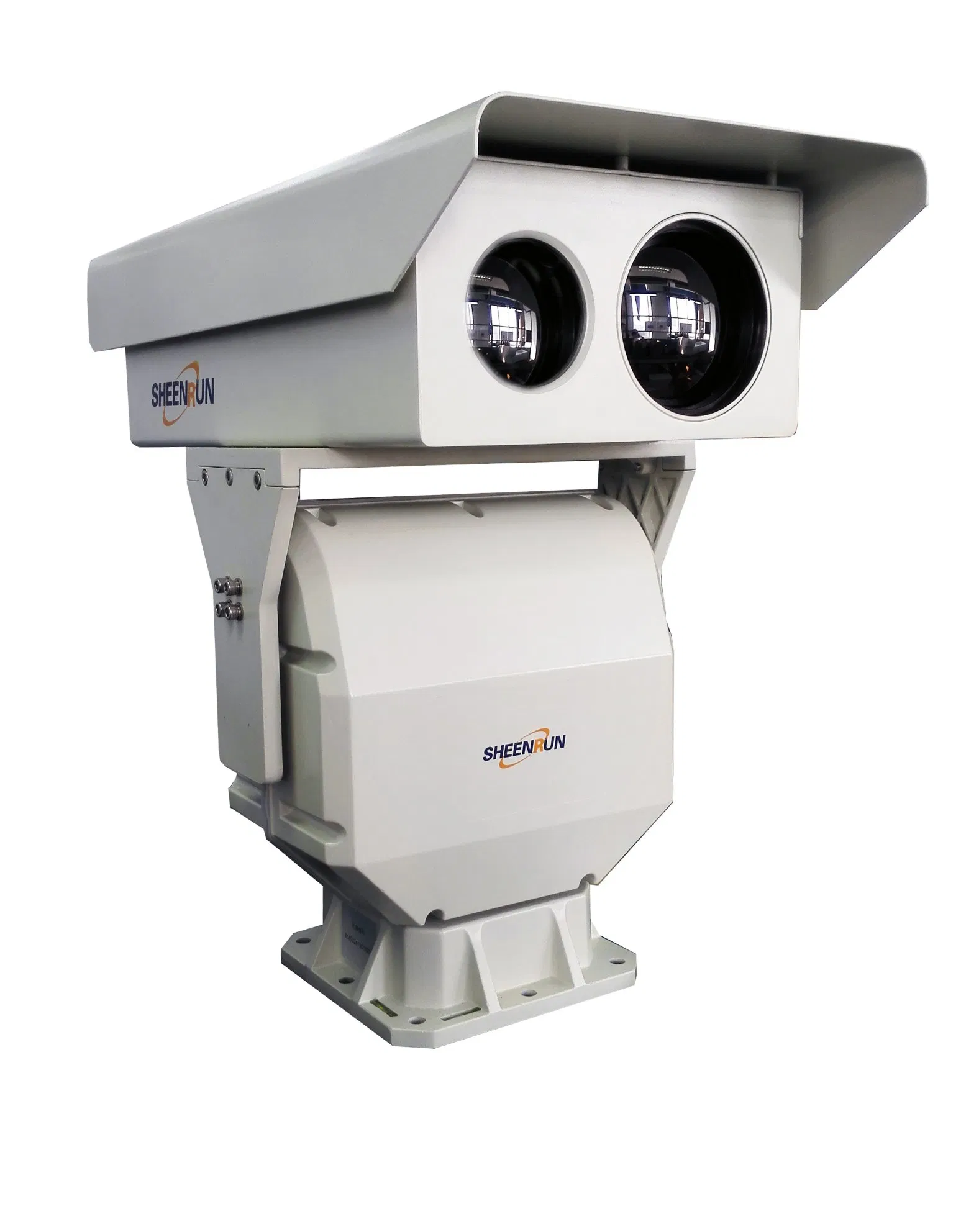

The camera features a dual-lens design combining a 2MP visible light camera with an uncooled Vox thermal detector, supporting day/night ICR filter switching and pseudo-color thermal processing.

What are the power requirements for this PTZ thermal camera?

The system operates on a DC30V power supply with a maximum power consumption of 120W.
