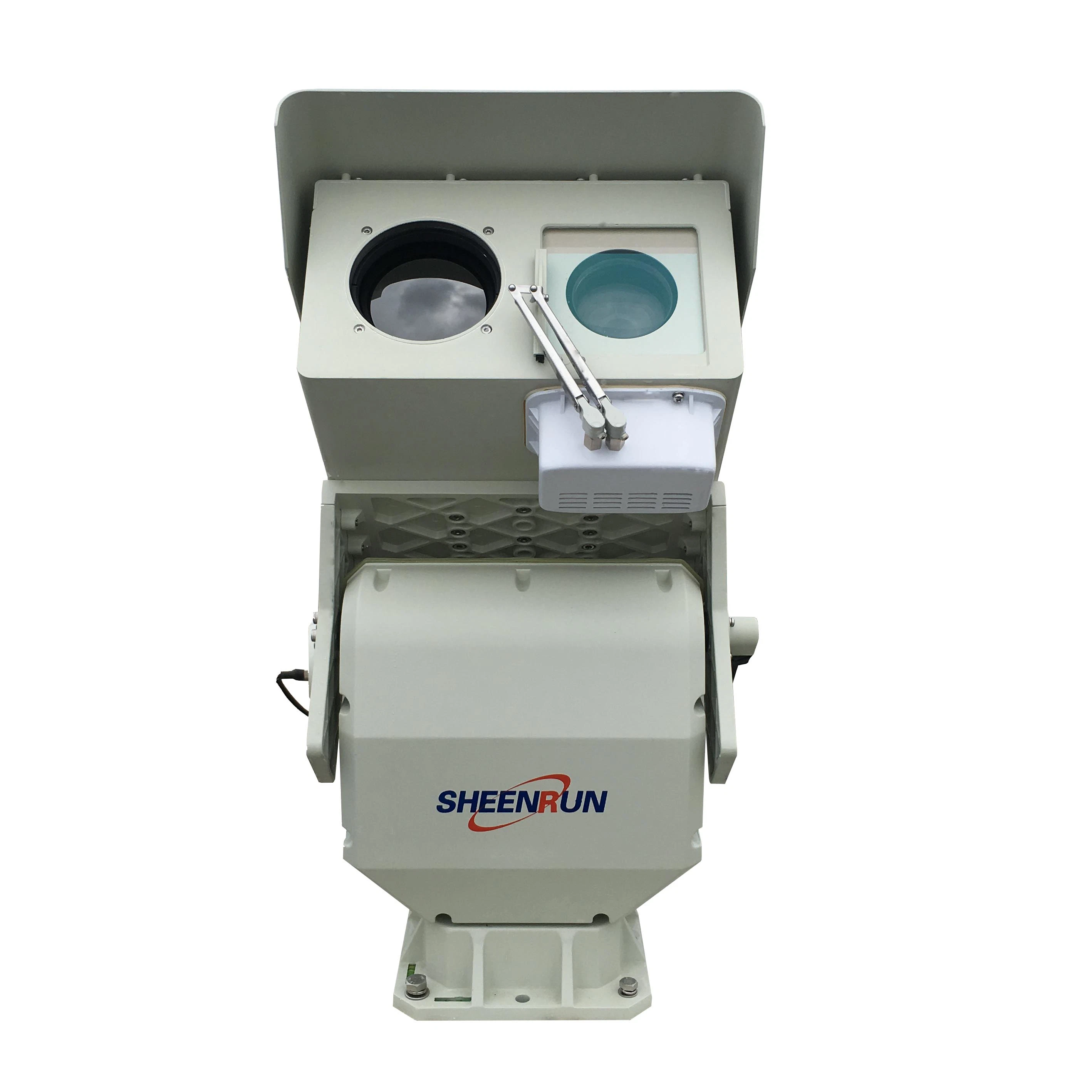

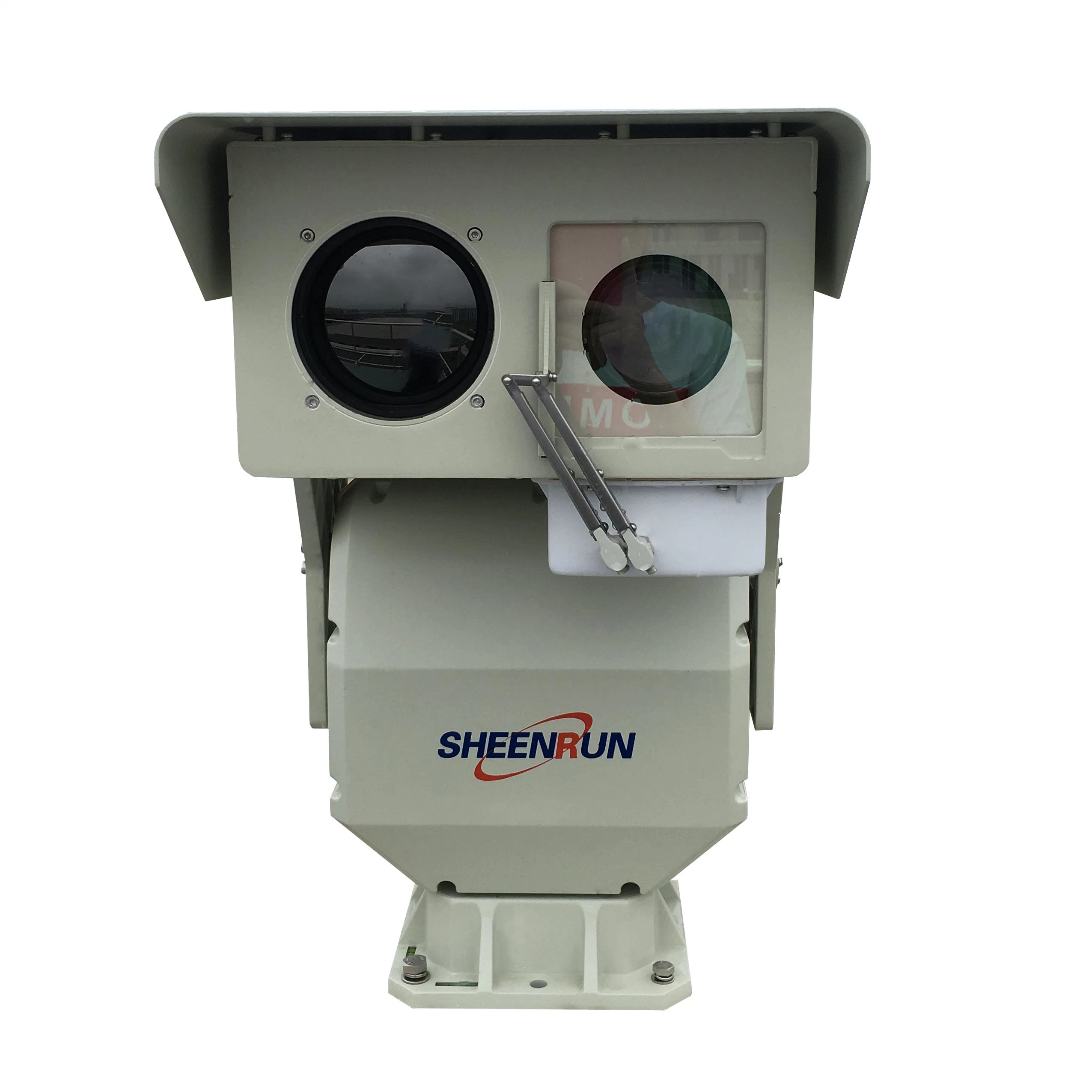

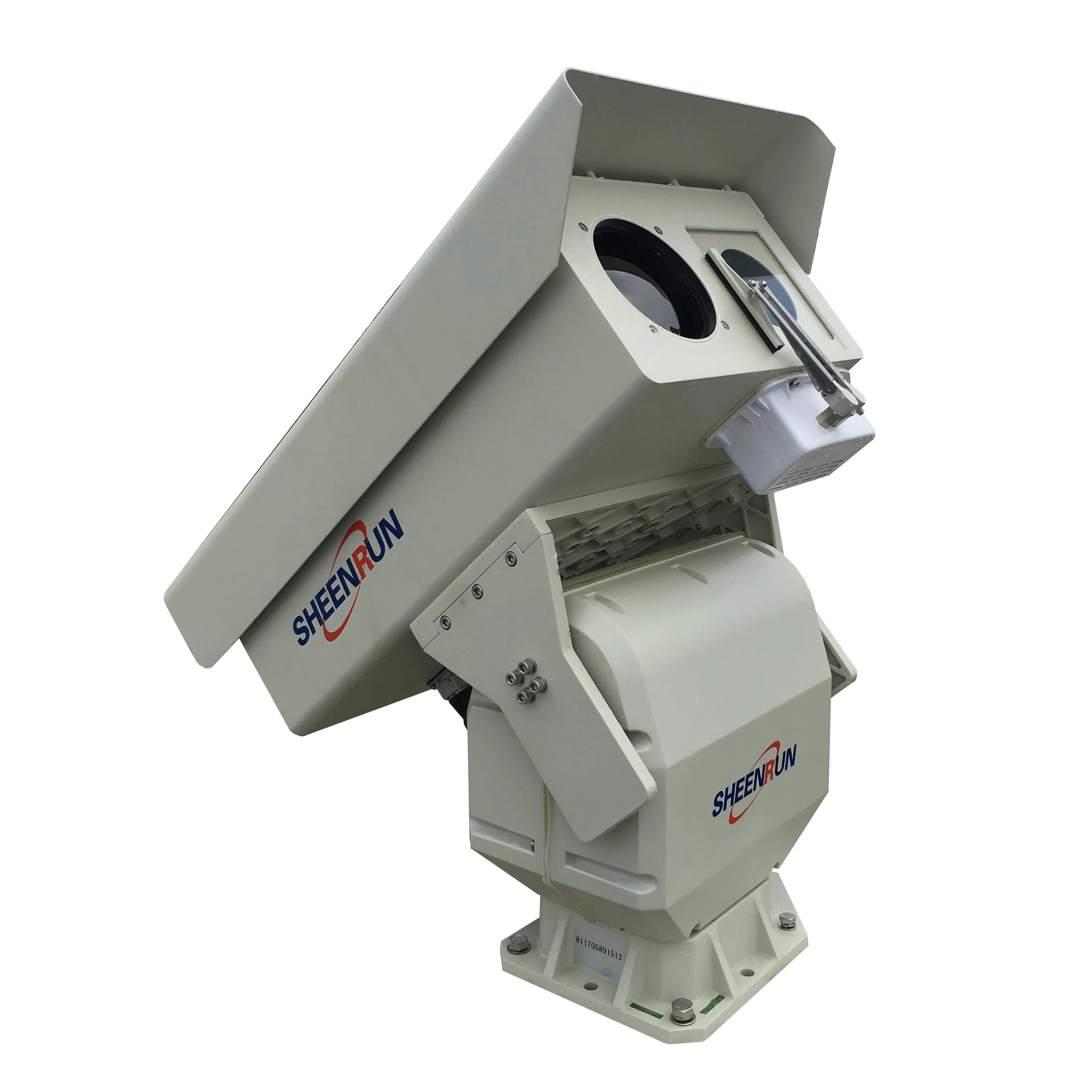

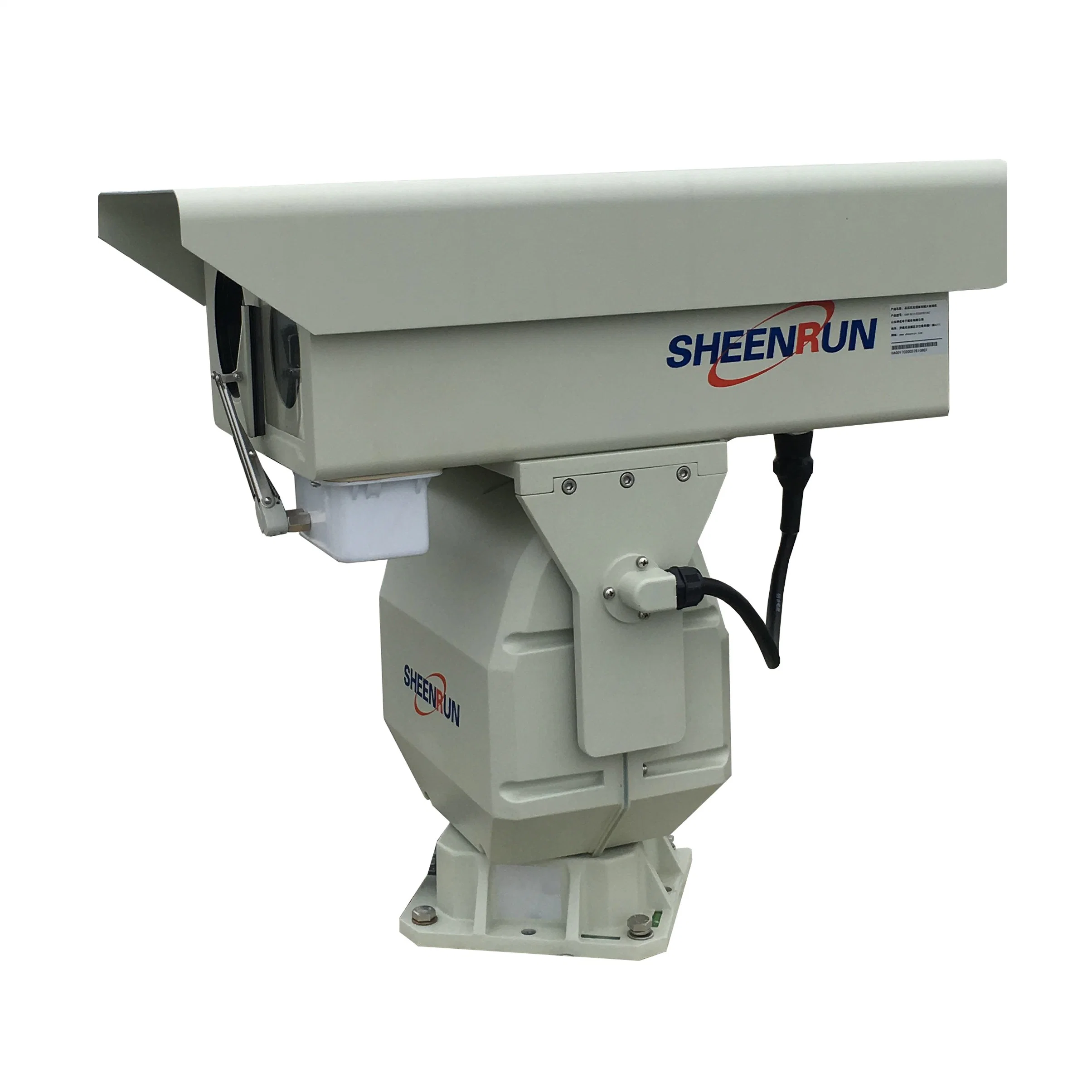

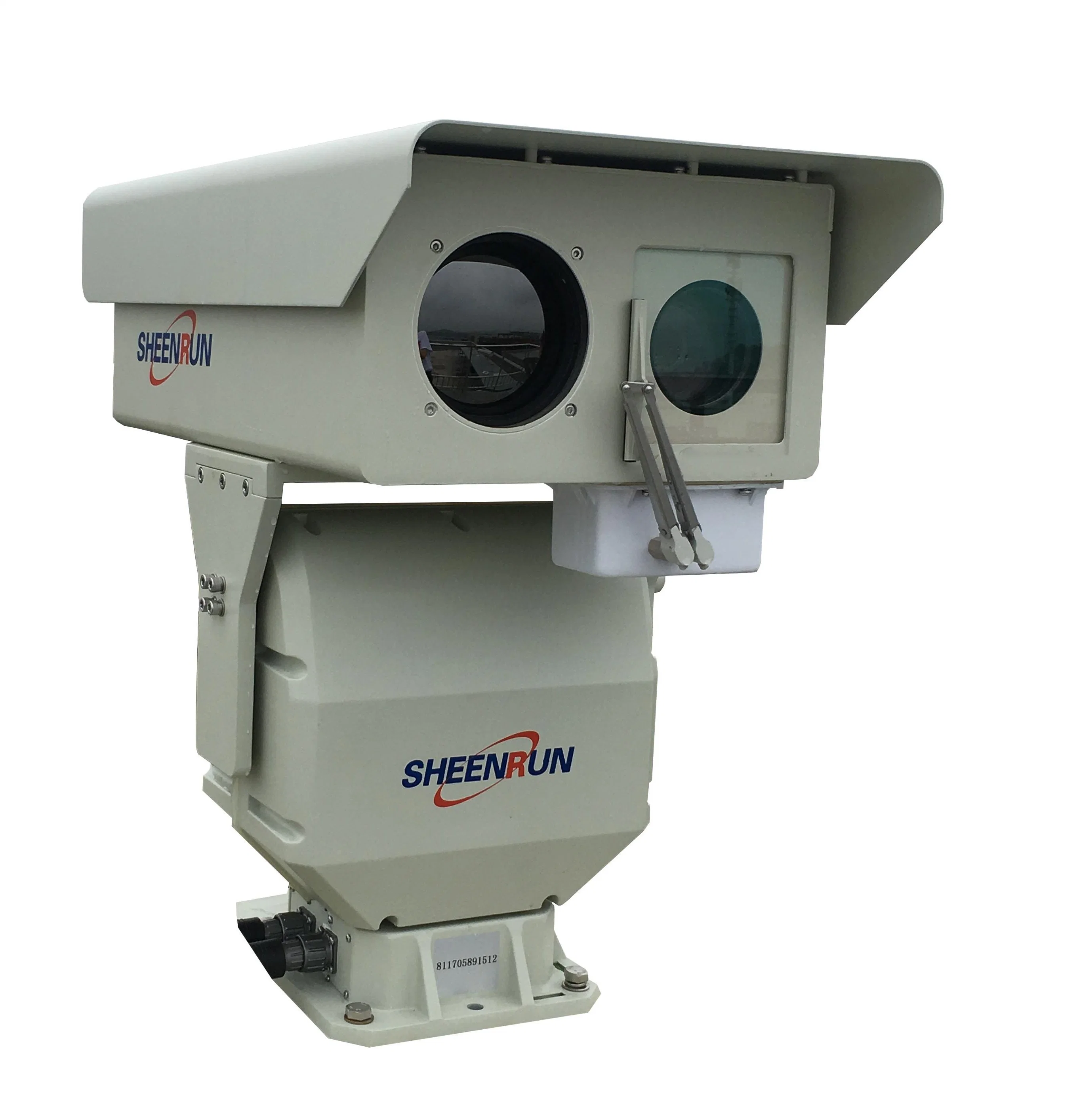

Factory Price Forest Fire Prevention Dual Sensor Thermal Imaging Camera

Send Inquiry

Product Description

📋 Basic Information

Model NO.

HLV3020HTIR155RAT

Type

PTZ Thermal Camera

Sensor

CMOS

HDMI Format

1080P

Certification

CE, FCC, CCC, ISO9001: 2000

Effective Distance

3m-90000m

Detector Type

Uncooled Fpa Vox, 640*512pixel

Warranty

12 Months

🚀 Product Features

Long range visible light camera and thermal imaging camera integrating design.

Day&night mode, low illuminance, color to black camera.

Universal variable speed pantilt for no-blind-corner monitoring.

Integrated intelligent temperature controlling system for 24/7 work.

Passive infrared thermal imaging with good concealment.

High temperature resistant, anti-corrosion, and IP66 waterproof housing.

Low power consumption and stable working performance.

⚙️ Technical Specifications

Monitor Distance	Visible light	10000m
Monitor Distance	Thermal camera	Fire (1m×1m): 4400m / Fire (3m×3m): 10800m
HD Camera	Focal length	12.5~750mm
	FOV	0.6°~35°
	Resolution	1080P, Support three stream
Thermal Detector	Effective pixel	640×512
	Spectrum range	8~14μm
	Lens	30~150mm, 5x optical zoom
Pantilt	Horizontal angle	360° infinite continuous rotation
	Pitch angle	-45°~+45°
	Preset position	2048 positions
Environment	International Protection	IP66
Environment	Operation temp	-25ºC ~ +55ºC
