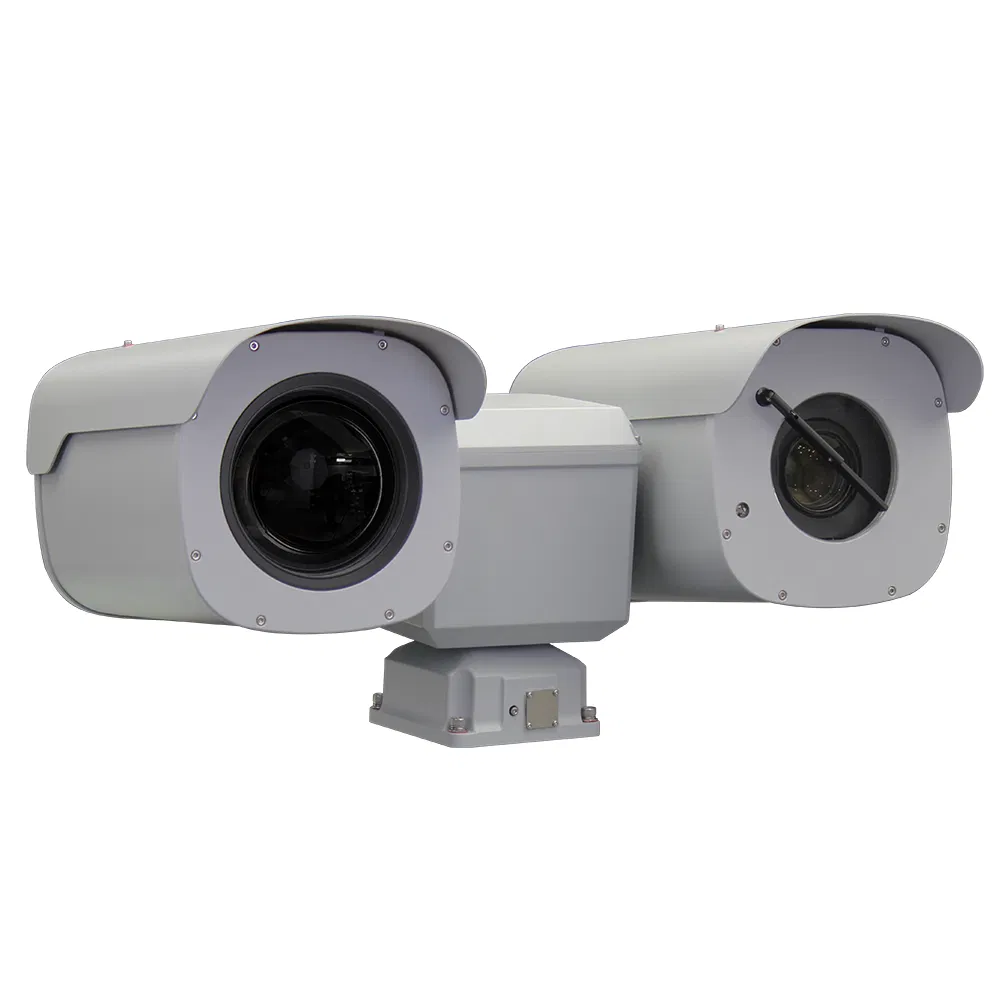

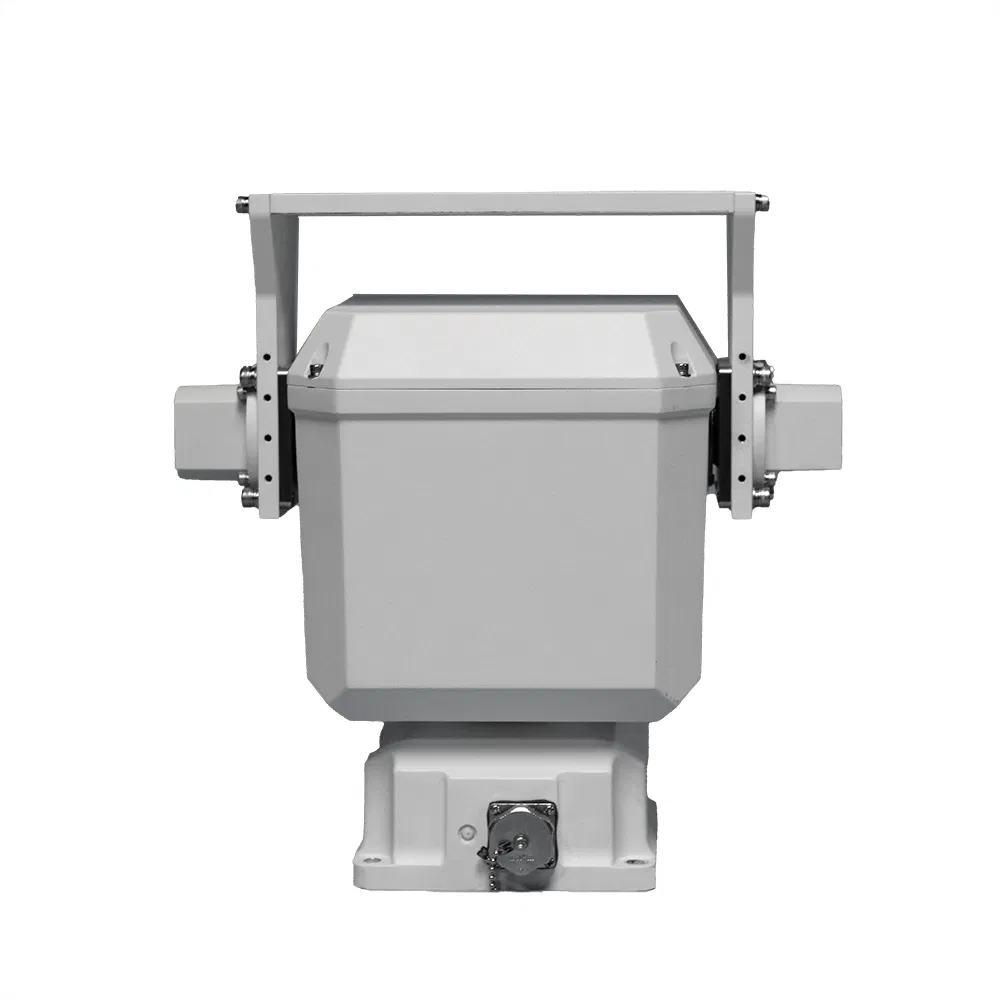

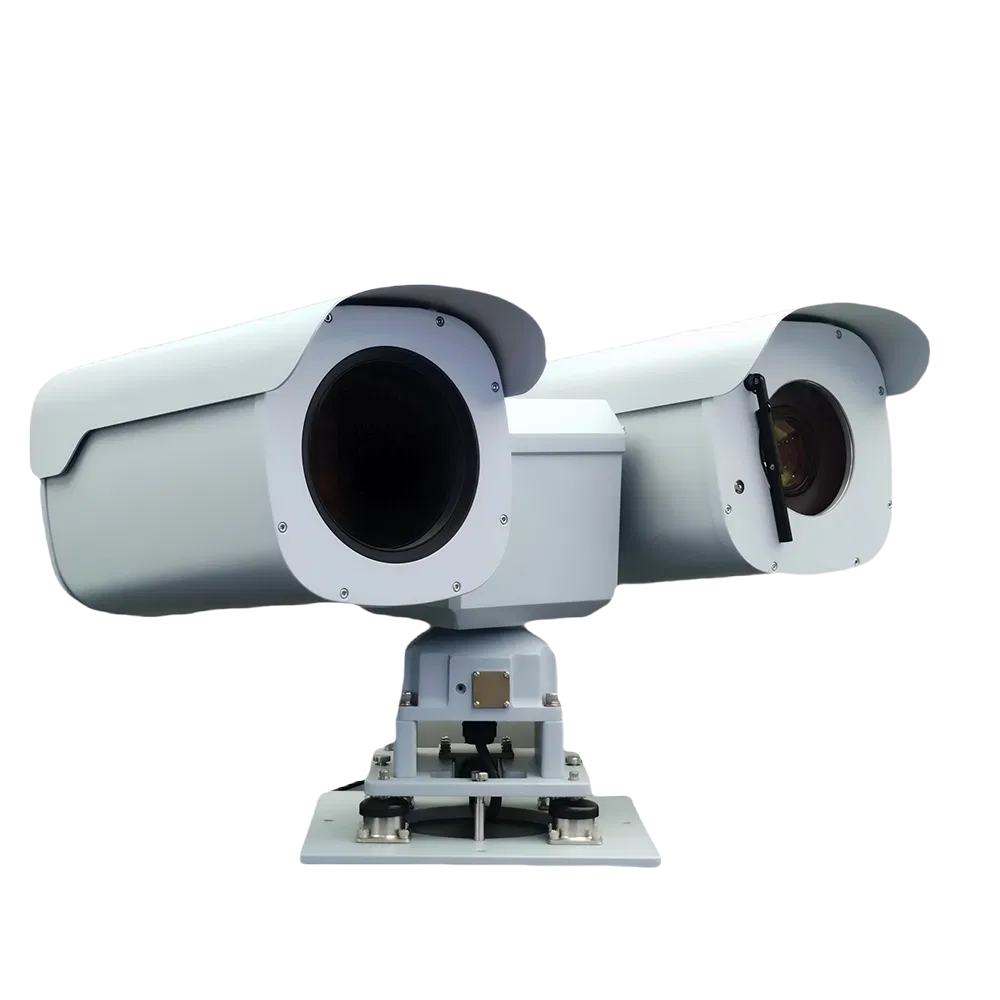

Durable Heavy Duty Pan Tilt Positioner for Outdoor Environments

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Basic Information

Model NO.	SOAR1040
Type	CCTV Camera
Sensor	CMOS
HDMI Format	1080P
Kind	Autofocus Lens
Feature	Waterproof / Weatherproof, High Definition, Vandal-proof
Effective Distance	≧30m
Sensor Size	1/3 inch
Remote Control	With Remote Control

Product Description

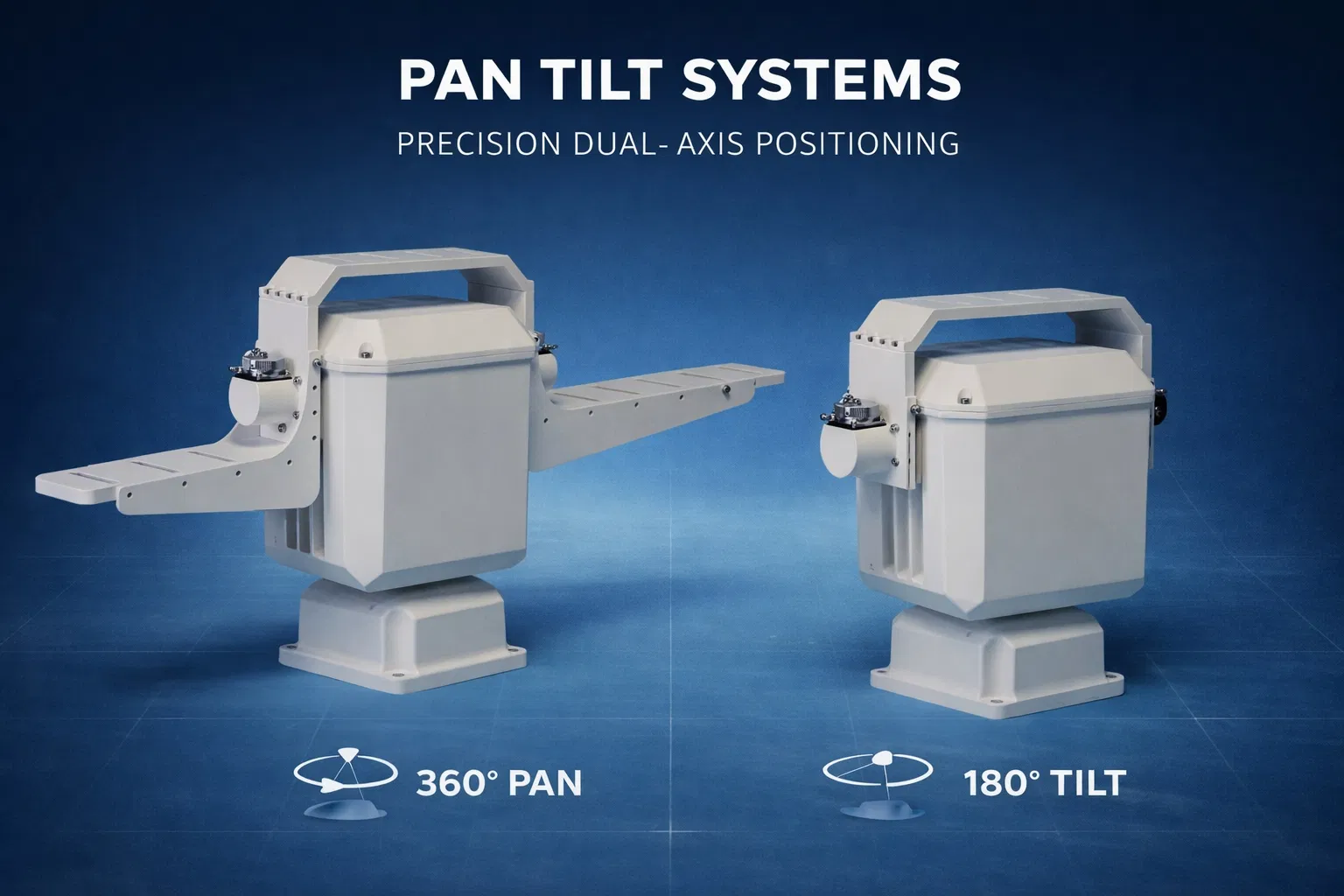

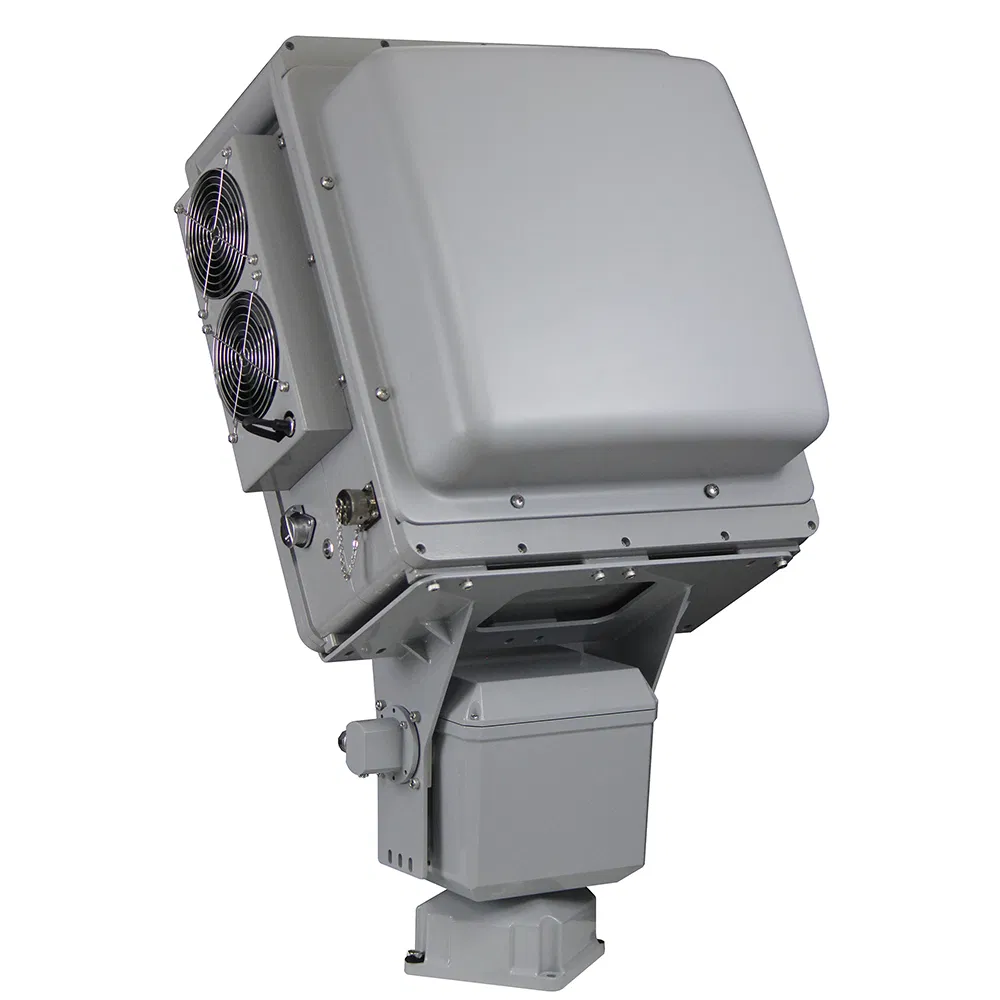

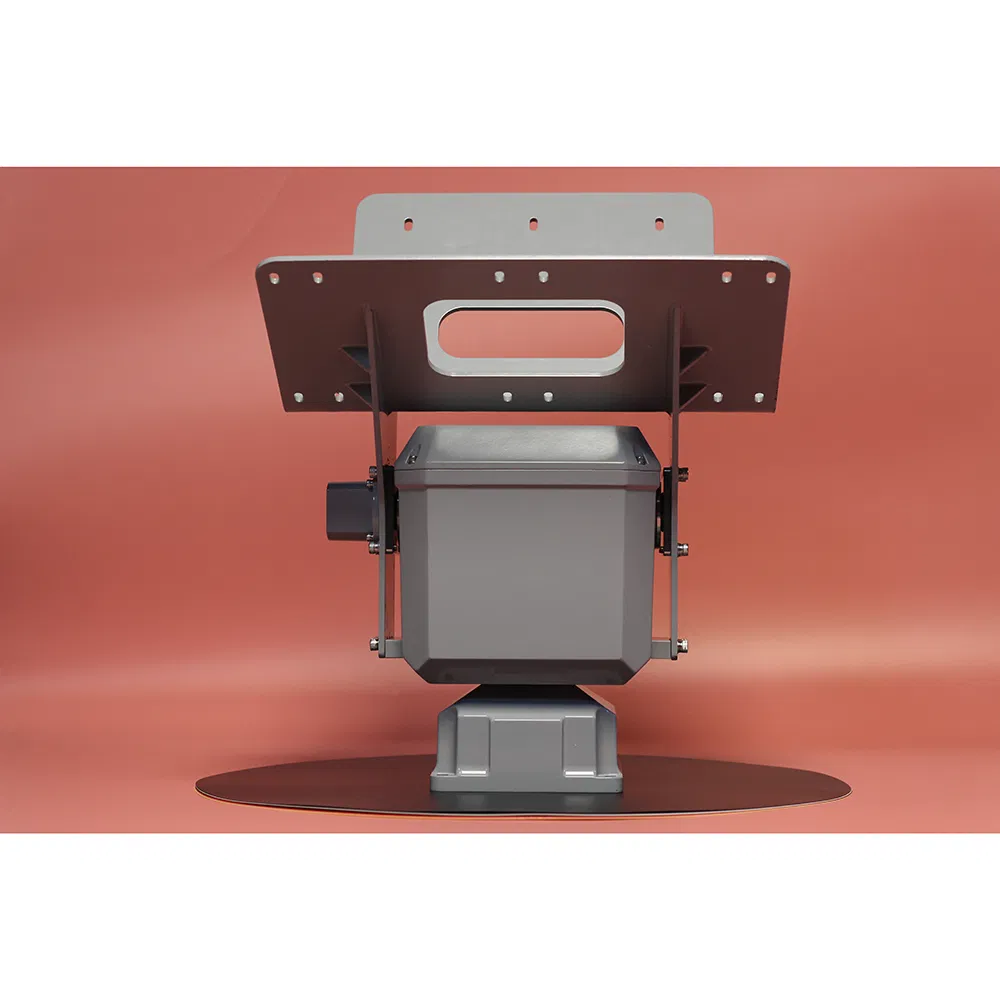

Mid-load Heavy Duty Pan Tilt Positioner

SO1040 Series Pan/Tilt system accommodates various single payload using a versatile bracketing system for top mounting. It is designed for easy integration, serving as an open platform that offers the necessary flexibility while reducing development and integration efforts.

This unit has demonstrated its reliability in numerous mission-critical applications for positioning cameras, lasers, antennas, and other instruments in both stationary and mobile settings. Features a harmonic gear drive, ensuring high precision and long life. Additionally, it can be delivered as a complete system with all required sensors if needed.

Product Highlights

✓ Supports up to 30kg payload for heavy-duty multi-sensor integration

✓ High-precision harmonic drive with zero-backlash performance and 0.005° positioning accuracy.

✓ Provides 360° continuous pan and ±90° tilt with ultra-smooth low-speed control.

✓ Enables long-range surveillance with thermal imaging, 120× optical zoom, and optional 10km laser range finder.

✓ Optional built-in AI supports human, vehicle, vessel, and drone detection with auto tracking.

✓ IP67-rated rugged design ensures reliable operation from –40°C to +70°C in harsh environments.

✓ Pelco-D protocol compatibility and easy integration

Technical Specification

Payload
Top Payload	Up to 30kg
Side Payload	Up to 30kg
Pan Tilt
Pan/Tilt Range	Pan: 0° to 360° endless; Tilt: –90° to +90°
Pan/Tilt Speed	10kg: 0.05-60°/s; 20kg: 0.05-50°/s; 30kg: 0.05-40°/s
Positioning Accuracy	Pan: 0.005°; Tilt : 0.01°
Communication protocol	Pelco-D
General
Working Temp	-40°C to +70°C
Protection Level	IP67, TVS 6000V Lightning/Surge protection
Dimension/Weight	335 mm × 192 mm × 337.5 mm / Approx. 9kg

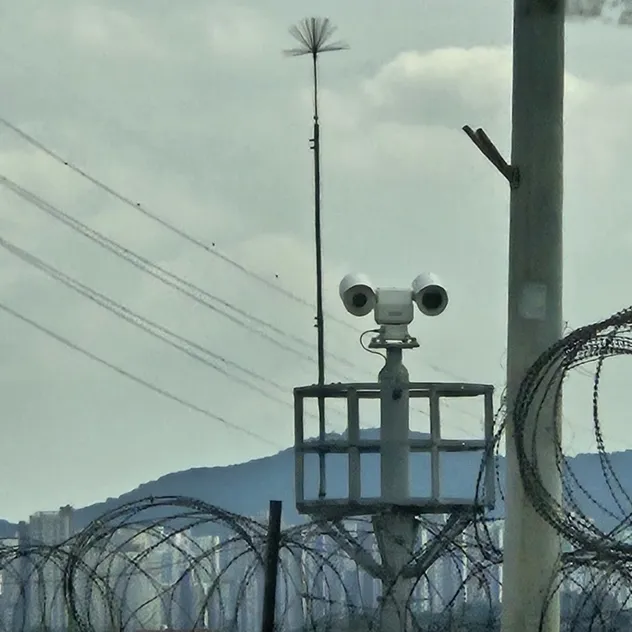

Application Scenarios

Company Profile

Specializing in designing and developing PTZ camera systems and advanced optical imaging solutions. Serving demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. Business focus includes mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision. With a dedicated Optical Camera Division, we focus on high-performance zoom and thermal imaging cameras, ranging from core components to complete, customized system solutions. Our team includes dozens of R&D experts with an average of 11 years of industry experience, committed to continuous innovation and collaboration.
