High-Performance 5g Wireless Base Station with 2T2R Antenna

Customization:	Available
Portability:	Yes
Interface:	Wireless

Basic Specifications

Model NO.	SW8000NBI
Product Name	Outdoor Wireless Base Station
Frequency Band	IEEE802.11A/N: 4920 ~ 6100 MHz
Channel	5/10/20/40MHz
RF Power Output	2*500MW
Transmission Protocol	802.11, Private Protocol
Supporting System	LINUX
Standard	IEEE802.11A/N, IEEE 802.3u, IEEE 802.3D
Roaming / DFS	Support Seamless Roaming & Dynamic Frequency Selection
Dimensions	31523080mm

Product Description

The SW8000NBI is an outdoor industrial-grade sector antenna integrated wireless base station. Operating in the 5GHz unlicensed frequency band, it complies with the IEEE802.11a/n standard.

Powered by a high-performance Qualcomm Atheros network processor and based on 2T2R MIMO technology, it supports rates up to 300Mbps. The device is specifically engineered for long-distance backbone network transmission in demanding environments like oil fields, construction sites, and safe city monitoring.

Core Advantages

🛡️

Stable & Reliable

MTBF > 200,000 hours, eliminating unexpected crashes and disconnections in critical tasks.

📡

Long Range

Combined high transmission power (500mW) with high sensitivity for distances up to 5 kilometers.

☁️

Industrial Design

IP66 fully enclosed UV-proof ABS shell. Weatherproof against rain, wind, and extreme temperatures.

⚡

PoE Support

Integrated Gigabit PoE Ethernet port for easy outdoor installation without dedicated feeder cables.

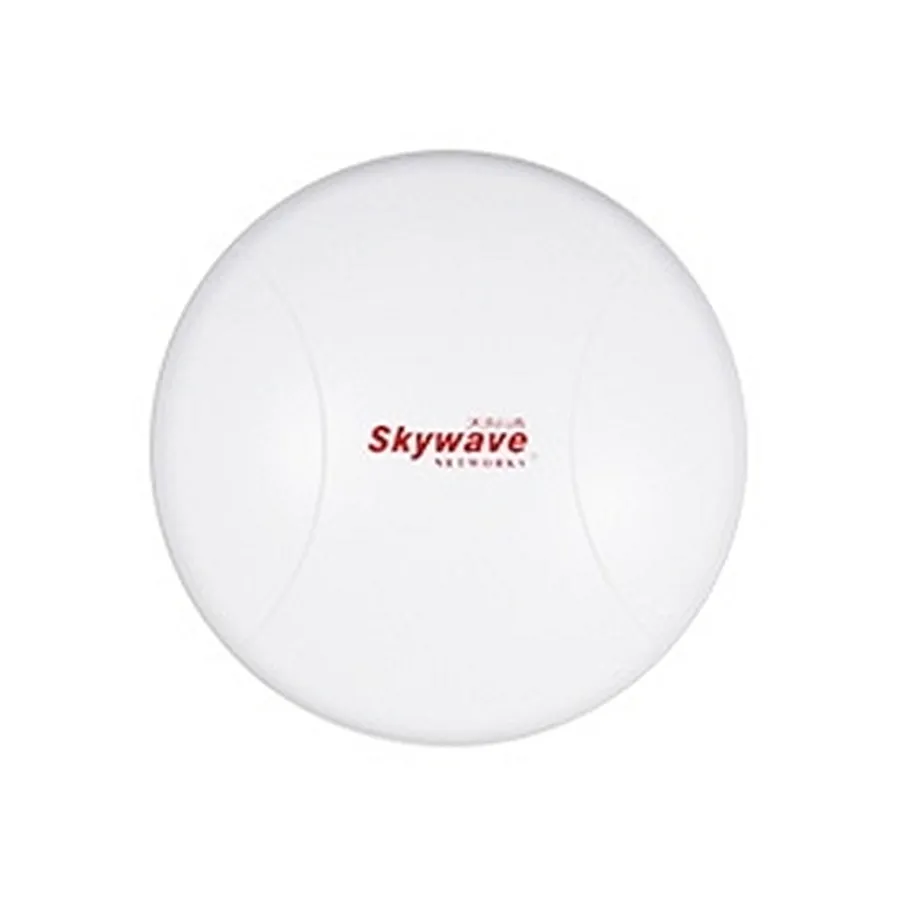

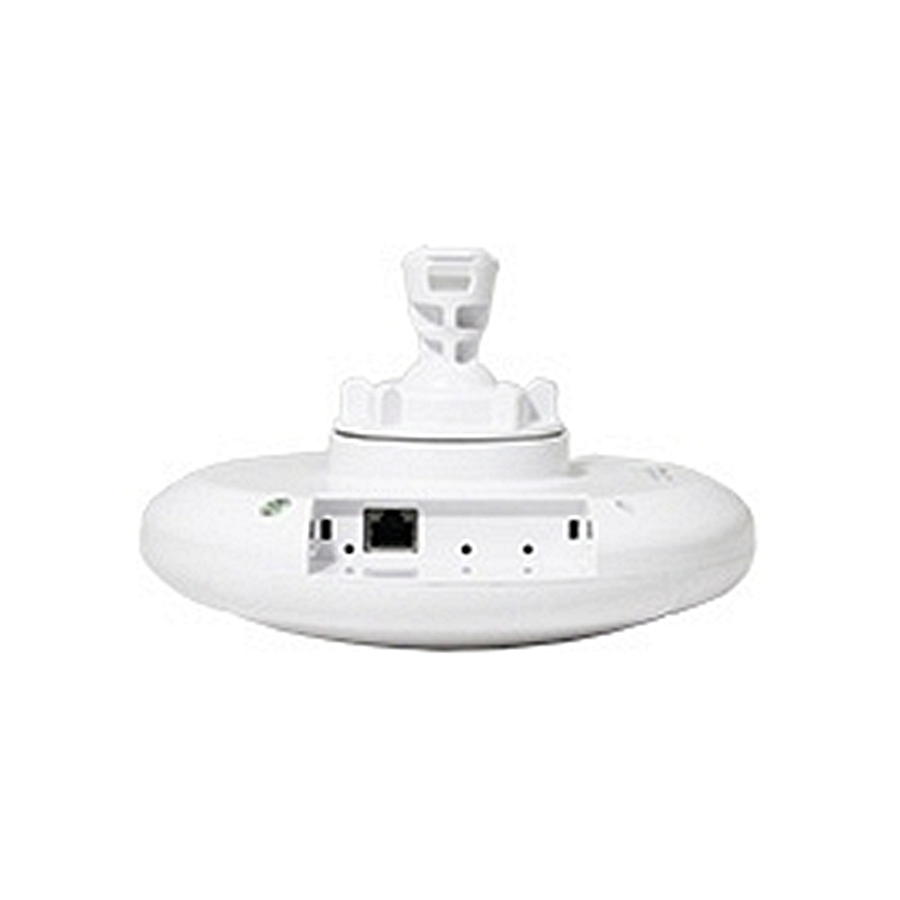

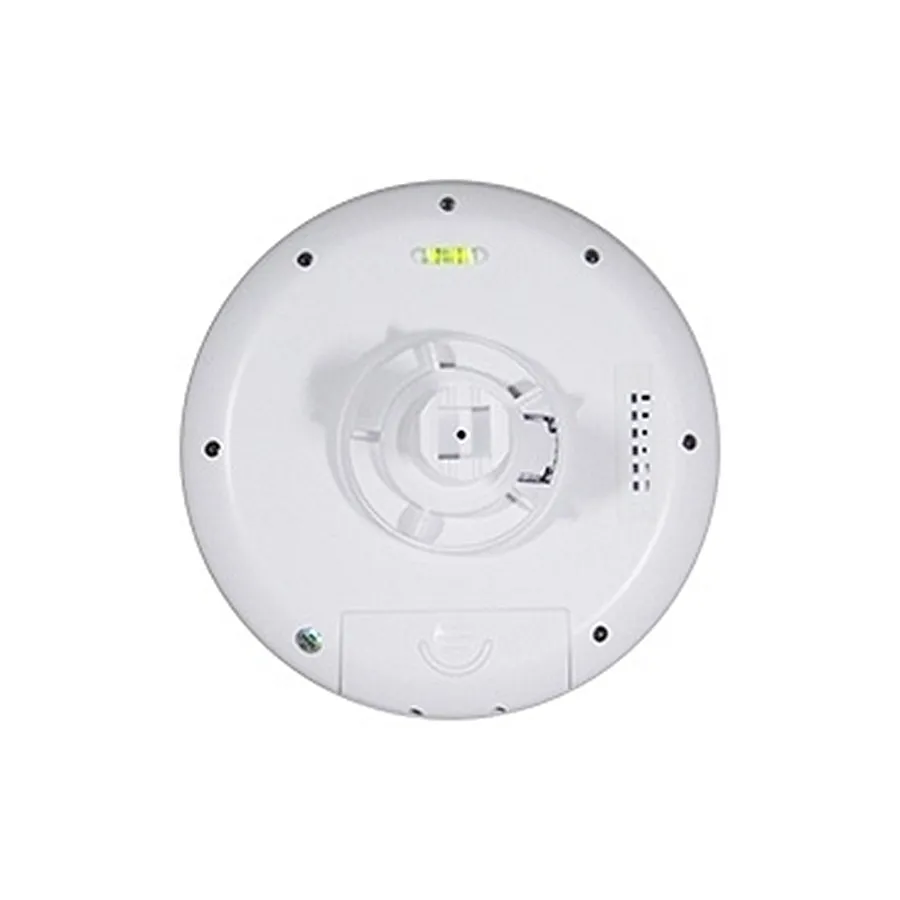

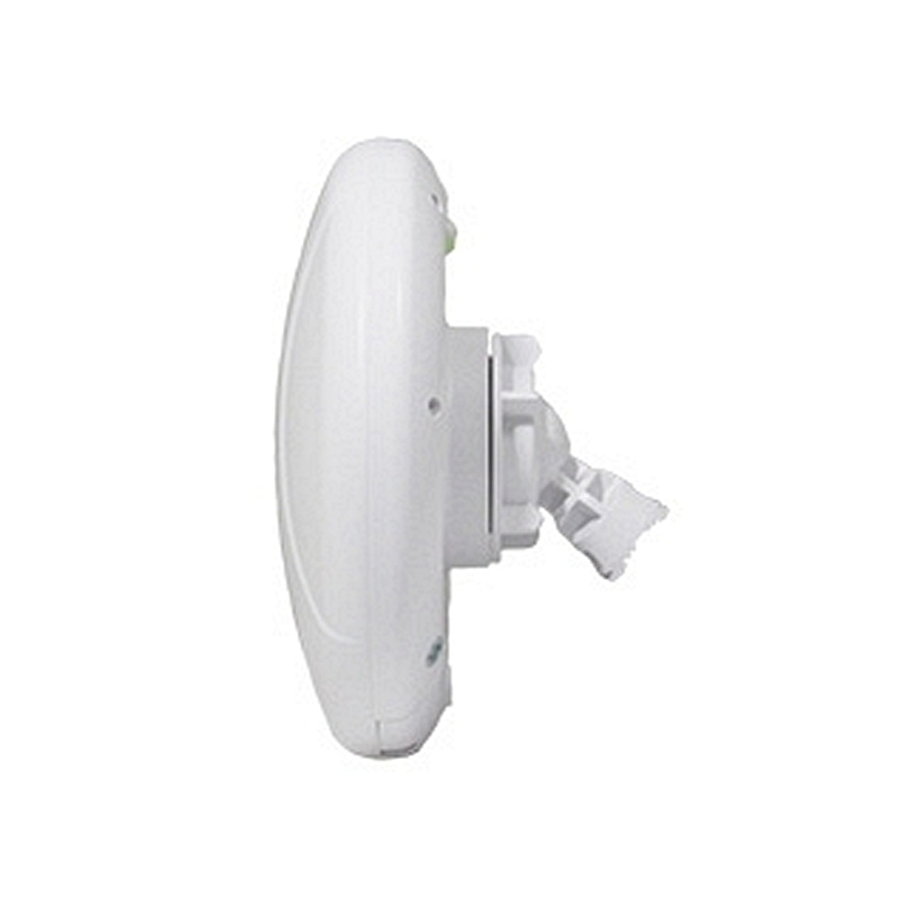

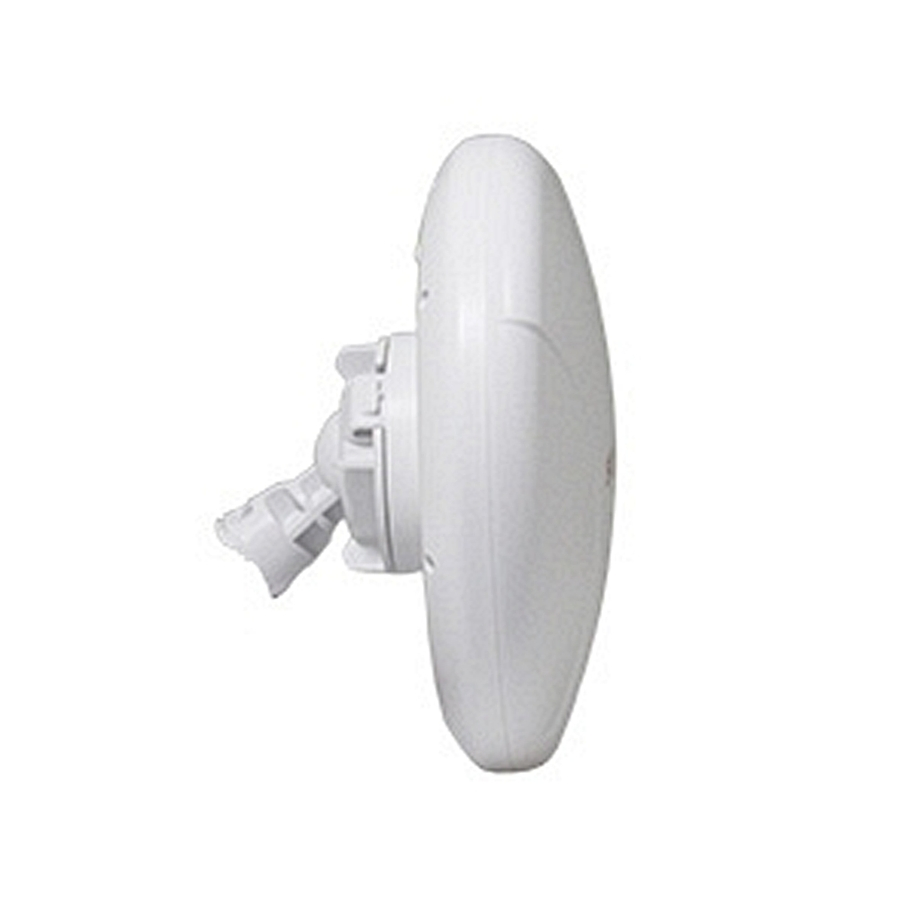

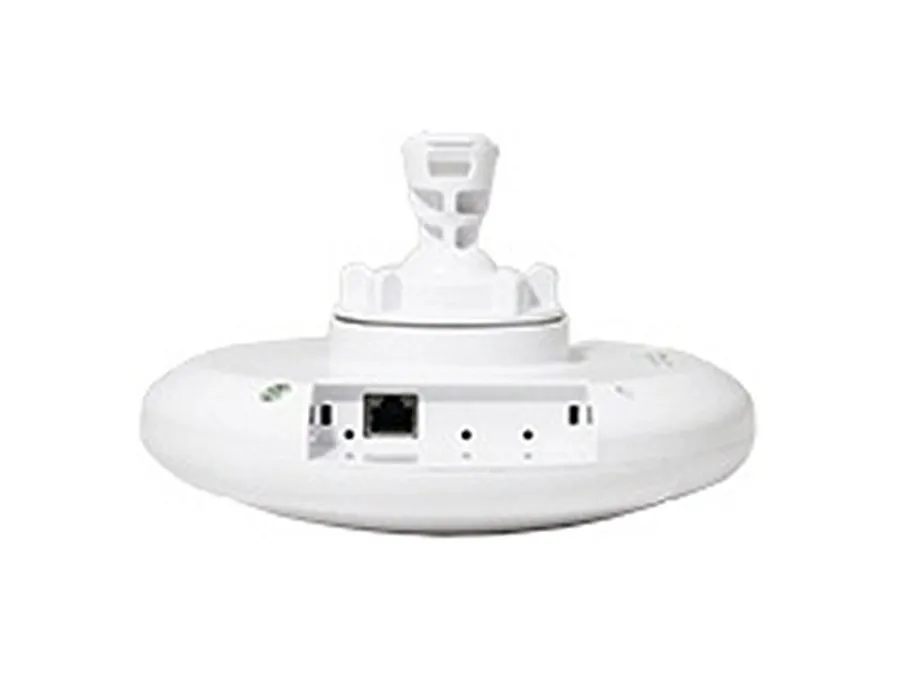

Detailed Photos

Technical Parameters

RADIO FREQUENCY
Frequency Range	4920 ~ 6100 MHz
Modulation	OFDM: BPSK, QPSK, 16-QAM, 64-QAM; DSSS: DBPSK, DQPSK, CCK
Sensitivity	-96dBm @ MCS0 / 6Mbps
HARDWARE SPECIFICATIONS
CPU / RAM	600MHz Processor / 64MB DDR2
Power Supply	8-30VDC, Supports PoE
Interface	1*Gigabit PoE Ethernet port
Antenna	Built-In 16DBi 60-Degree Dual-Polarization Sector Antenna
ENVIRONMENTAL
Temperature	Working: -50°C ~ +80°C; Storage: -55°C ~ +90°C
Protection	IP66 Waterproof, 20KeV Static Protection

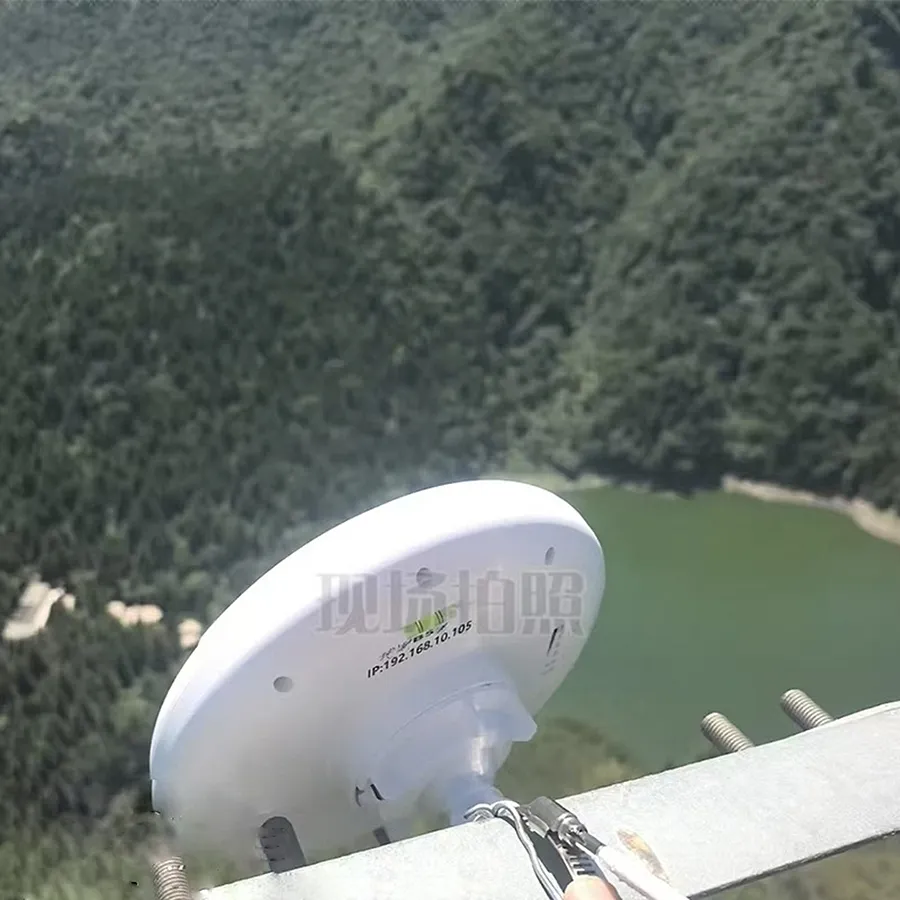

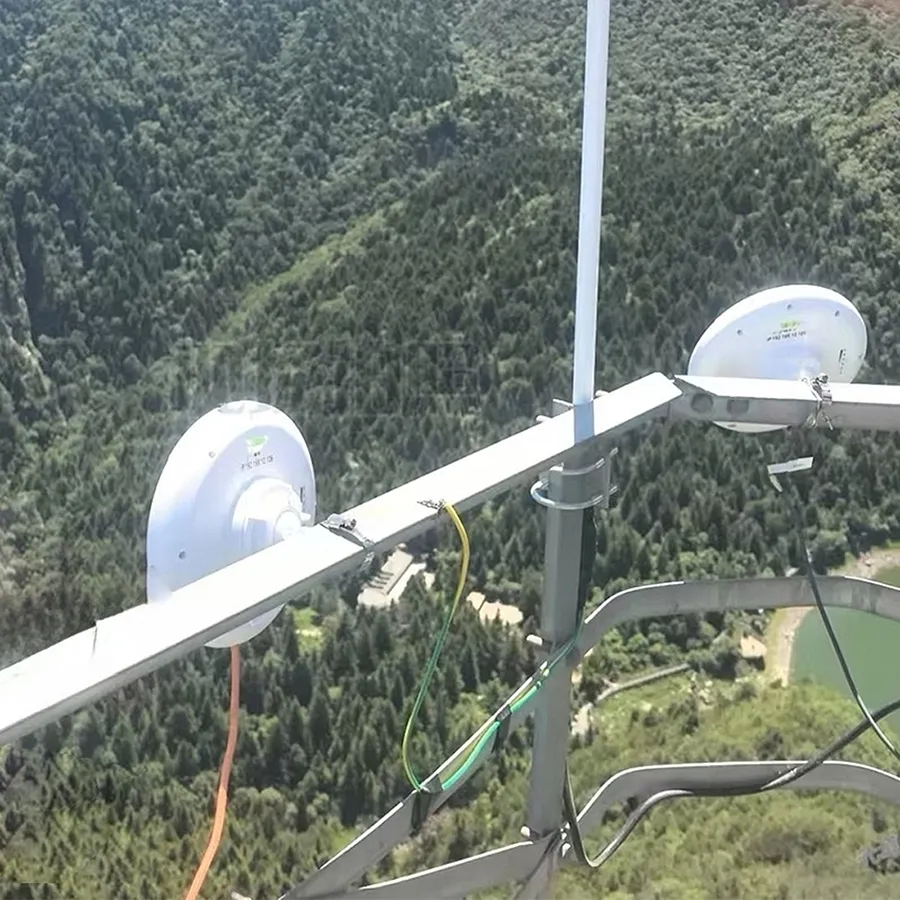

Deployment & Application

Frequently Asked Questions

What is the maximum transmission distance of this base station?

The SW8000NBI features high RF output power and high receiving sensitivity, allowing for stable point-to-point wireless transmission up to 5 kilometers.

Does the device support Power over Ethernet (PoE)?

Yes, it supports 8-30VDC PoE power supply through its Gigabit Ethernet port, simplifying outdoor installation by using a single cable for both data and power.

Is it suitable for extreme weather conditions?

Absolutely. It is designed with an IP66-rated, UV-proof ABS shell and can operate in temperatures ranging from -50°C to +80°C, making it ideal for harsh environments.

What wireless modes are supported?

It supports Point-to-Point (PTP), Point-to-Multipoint (PTMP), and wireless roaming (WDS) modes to accommodate various networking requirements.

How does the device handle signal interference?

The base station utilizes BeamForming technology and Dynamic Frequency Selection (DFS) to automatically scan and select the cleanest channel in the 5GHz band.

Can I monitor the signal strength during installation?

Yes, the device is equipped with a 5-level LED signal light indicator on the hardware to provide real-time feedback for antenna alignment and debugging.
