HawkEye Camera
1 / 5
| Model NO. | SOAR1040 |
| Type | CCTV Camera |
| Sensor | CMOS |
| HDMI Format | 1080P |
| Kind | Autofocus Lens |
| Feature | Waterproof / Weatherproof, High Definition, Vandal-proof |
| Effective Distance | ≧30m |

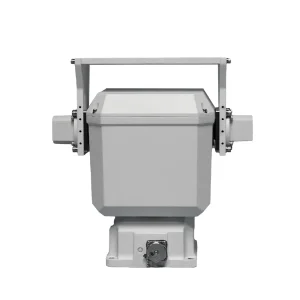

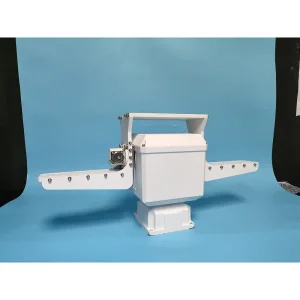

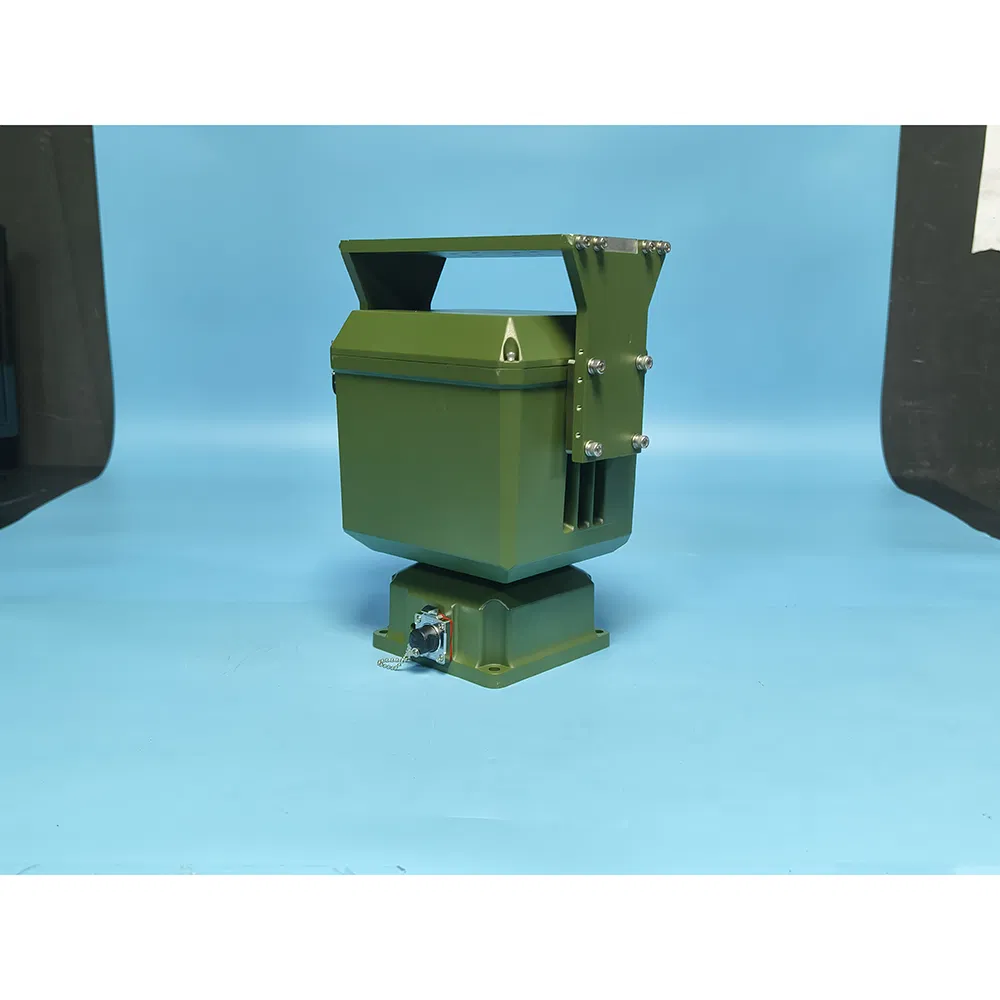

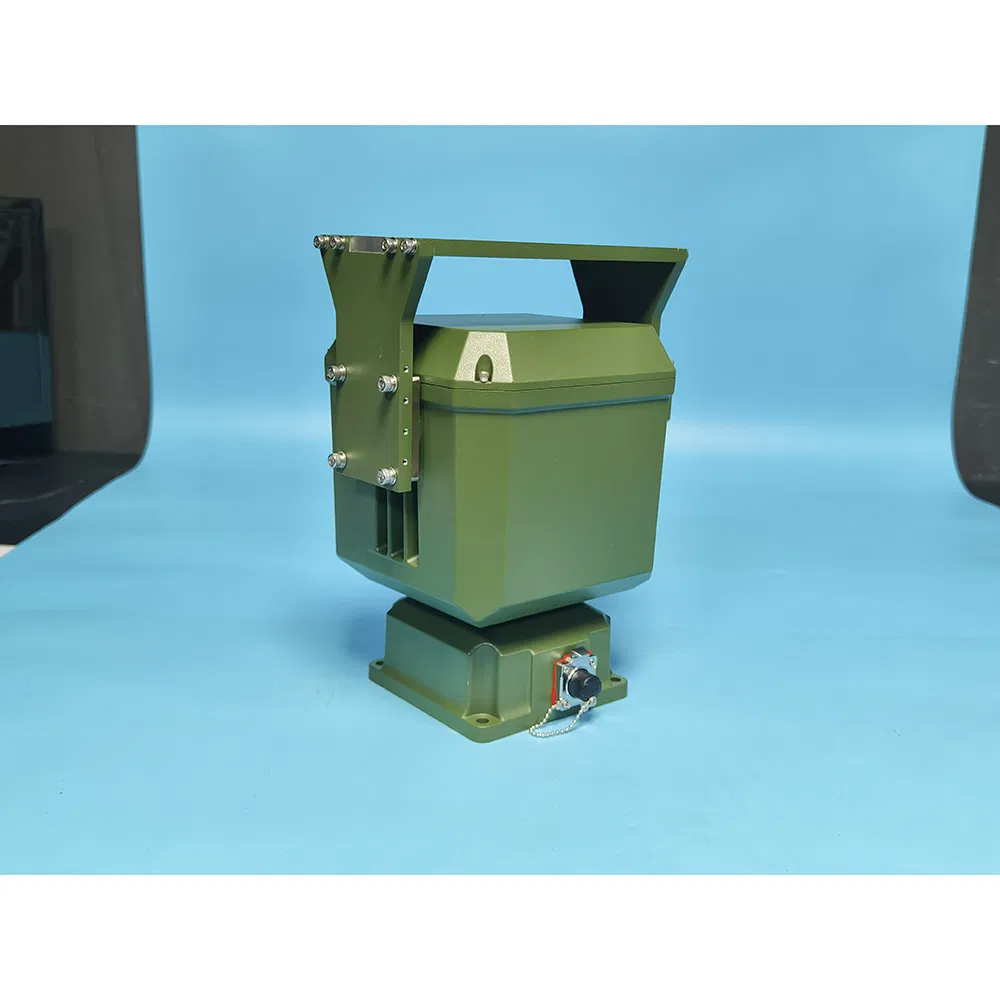

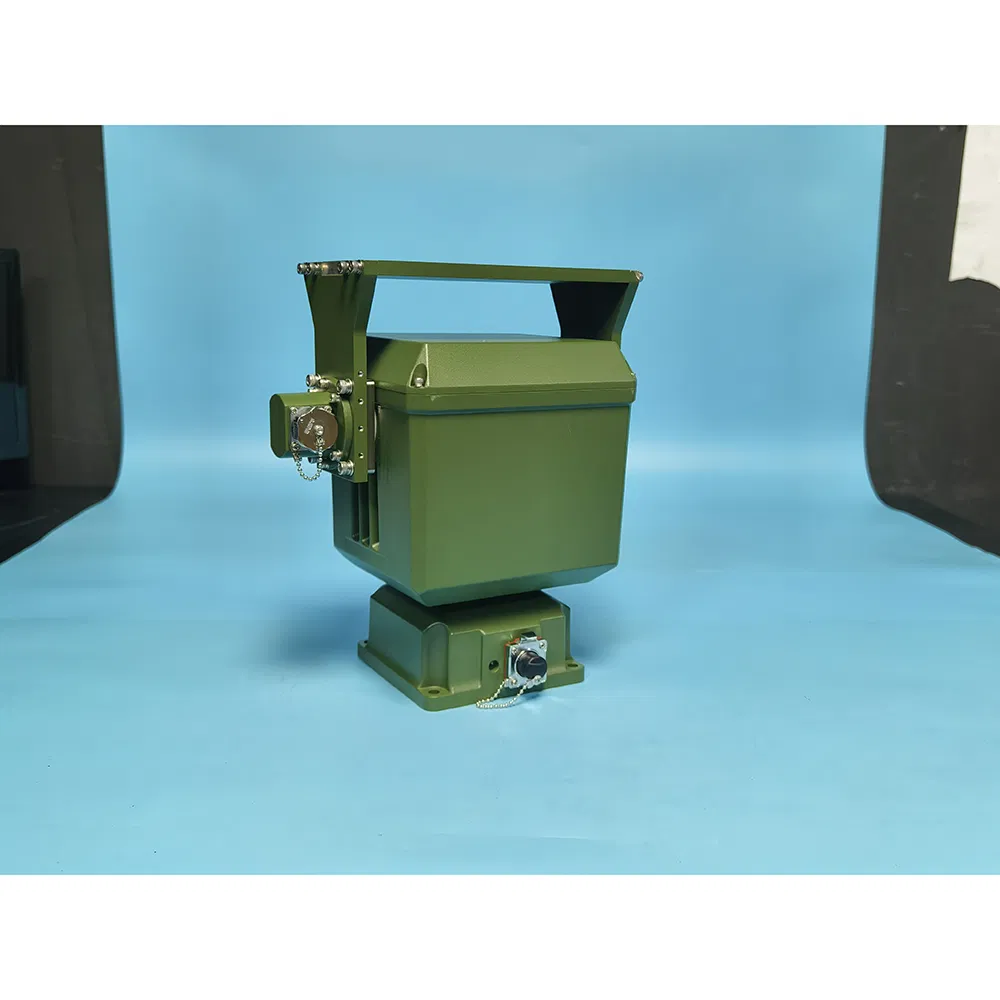

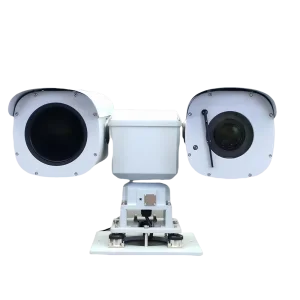

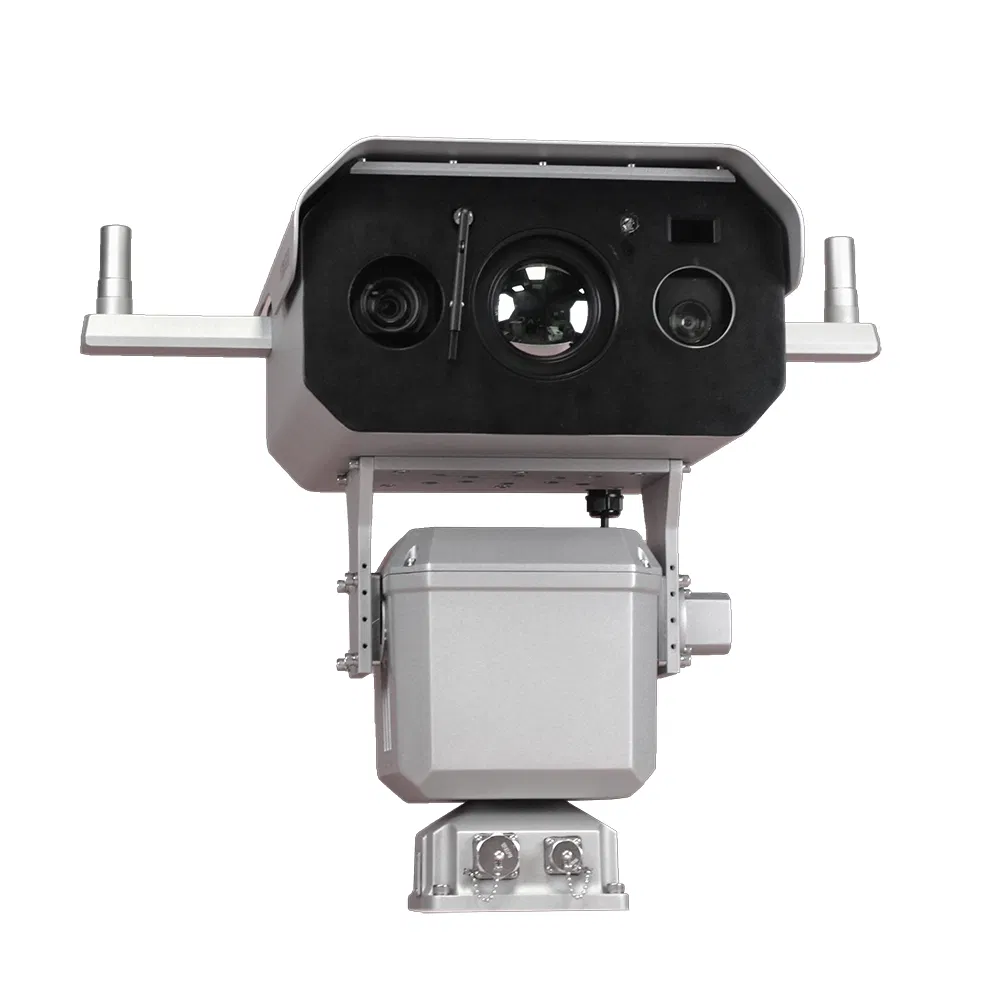

The SO1040 Series Pan/Tilt system accommodates various single payload using a versatile bracketing system for top mounting. It is designed for easy integration, serving as an open platform that offers the necessary flexibility while reducing development and integration efforts.
This unit has demonstrated its reliability in numerous mission-critical applications for positioning cameras, lasers, antennas, and other instruments in both stationary and mobile settings. Features a harmonic gear drive, ensuring high precision and long life. Additionally, it can be delivered as a complete system with all required sensors if needed.
| Payload | |
| Top / Side Payload | Up to 30kg |
| Pan Tilt Performance | |

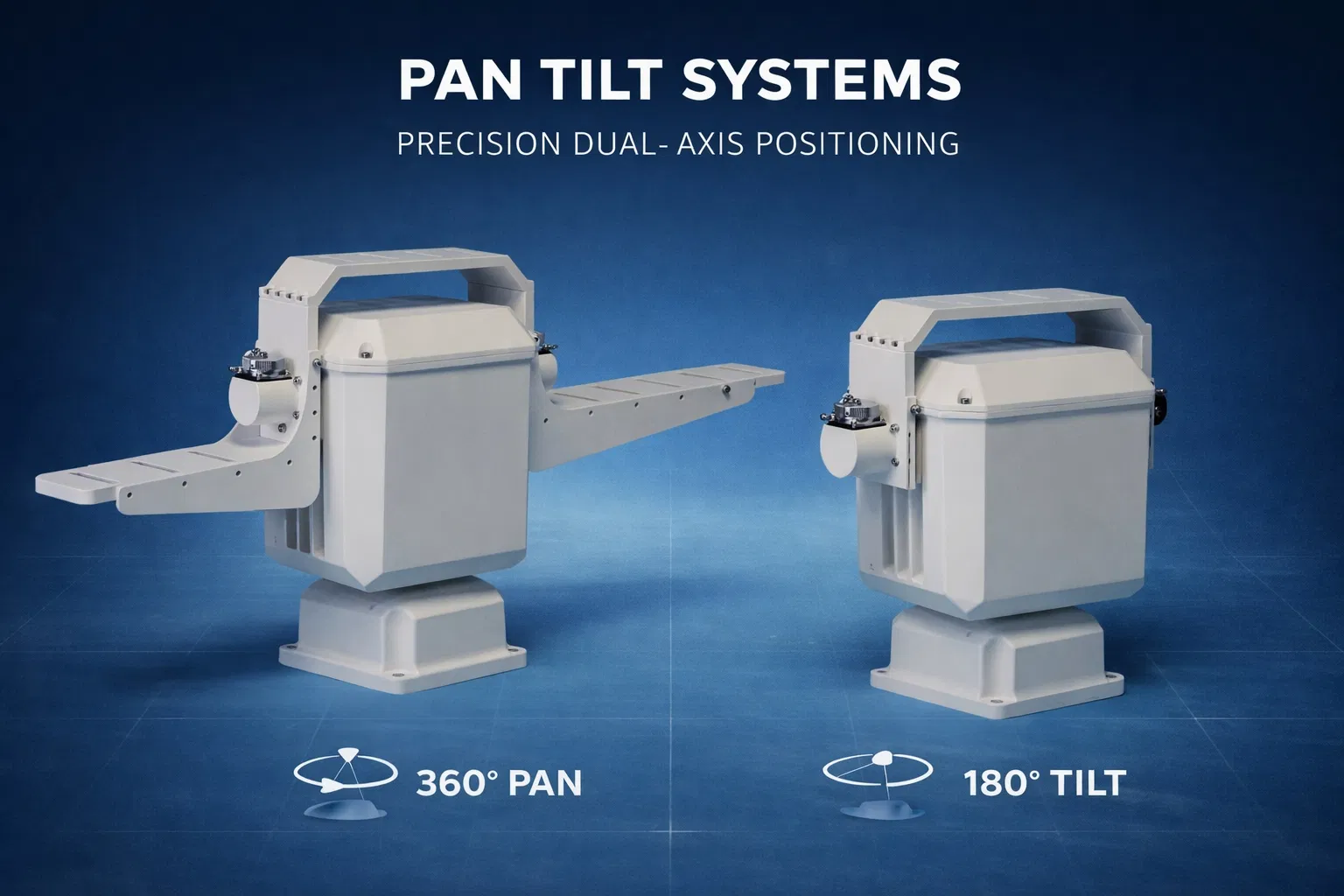

| Pan/Tilt Range | Pan: 360° endless; Tilt: –90° to +90° |
| Pan/Tilt Speed | 0.05 to 60°/s (depending on load) |
| Positioning Accuracy | Pan: 0.005°; Tilt: 0.01° |
| Communication | RS-422/RS-485/RJ45; Protocol: Pelco-D |
| Ports | |
| Input Port | Power, RJ-45, Alarm I/O, Audio I/O, CVBS, Ground |
| Output Port | DC24V 4A, RJ-45, Audio, RS-485 |
| General | |
| Power Consumption | Max 60W (DC24V / DC48V) |
| Environment | -40°C to +70°C; IP67 Standard |
| Dimension/Weight | 335mm x 192mm x 337.5mm; Approx. 9kg |

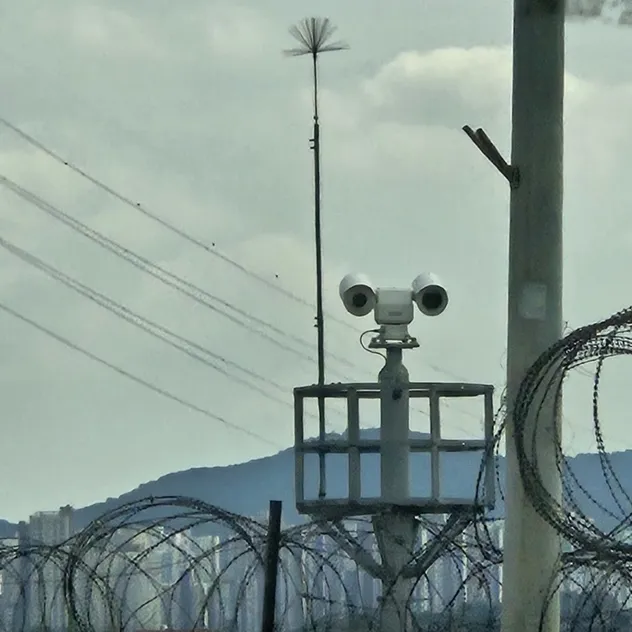

Founded in 2005, our company specializes in designing and developing PTZ camera systems and advanced optical imaging solutions. We serve demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. Our business also focuses on mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision.
With a dedicated Optical Camera Division, we focus on high-performance zoom and thermal imaging cameras, ranging from core components to complete customized system solutions. Our R&D experts bring an average of 11 years of industry experience to every project, ensuring continuous innovation and collaboration.
