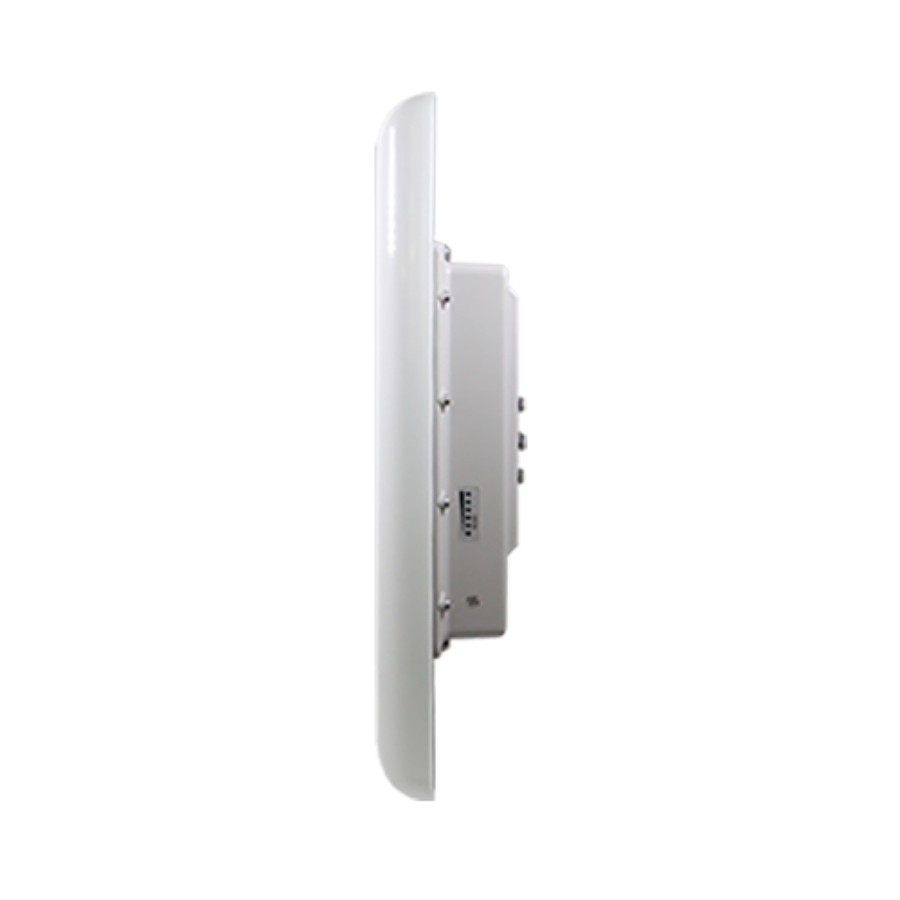

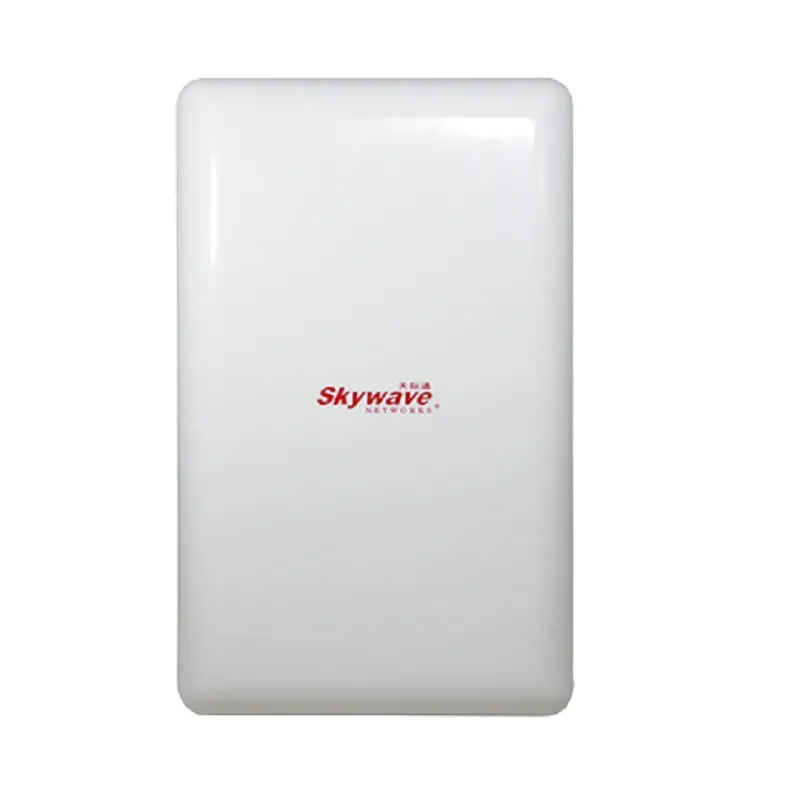

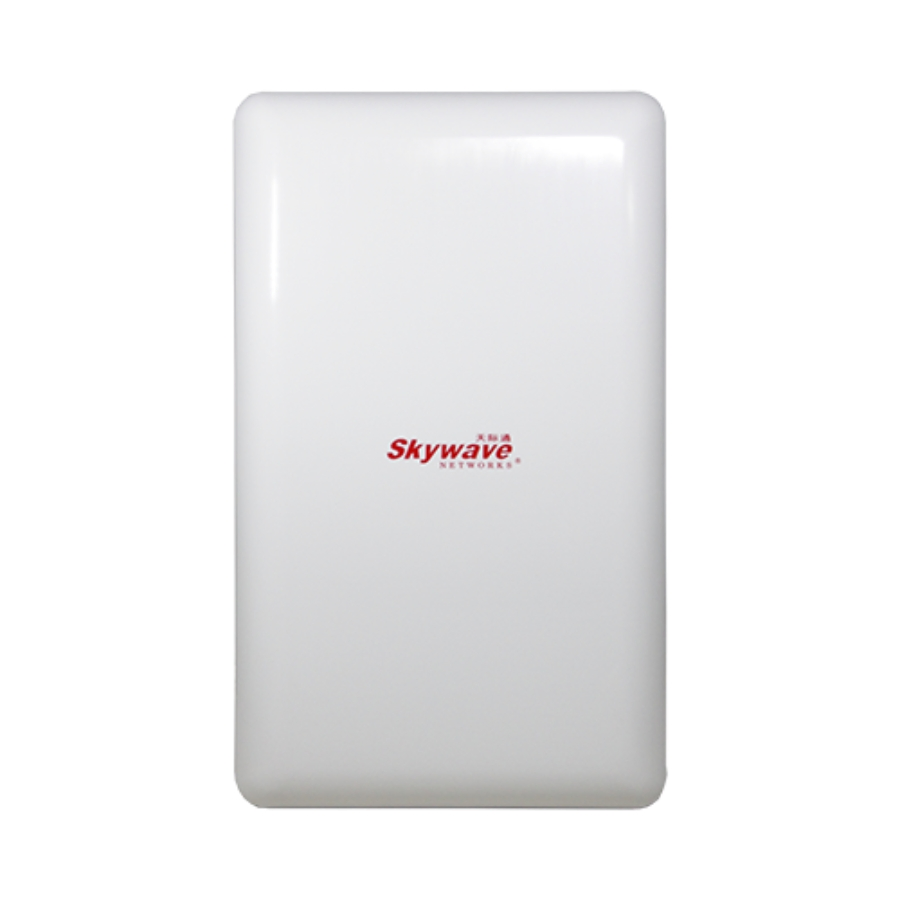

Outdoor Carrier-Grade Antenna-Integrated Wireless Access Base Station

Customization:	Available
Type:	Base Station
Work Mode:	Ap Bridge,Bridge,Station,Station Bridge,Station Wd

Product Overview

SW8000CBU is an outdoor carrier-grade antenna-integrated wireless base station that operates in the 5GHz unlicensed frequency band and is a wireless network device compliant with the IEEE802.11ac standard. The product adopts a high-performance Qualcomm Atheros high-speed network processor and is based on the MIMO technology of IEEE802.11ac, supporting a wireless transmission rate of up to 867Mbps.

Model NO.

SW8000CBU

WiFi Antenna

Built-in

Rate

>200Mbps

Voltage

AC:100-240V

Antenna Gain

16dBi Dual-Polarized

Frequency

4920 ~ 6100MHz

Protection

IP68 Rating

RF Power

2*500MW

Technical Specifications

RADIO FREQUENCY
Frequency Band	IEEE802.11a/n/ac: 4920~ 6100MHz
Channel Bandwidth	5/10/20/40/80MHz
RF Power Output	2*500mW
Sensitivity	802.11ac: -96 dBm@MCS0, -72dBm@MCS9
DATA & HARDWARE
Maximum Rate	867Mbps
Standards	IEEE 802.11a/n/ac/h/d; IEEE802.3u/d/ab
RAM	128MB DDR2
Power Consumption	MAX: 17W
Network Interface	1*Gigabit PoE Ethernet port
Operating Temp	-50°C to +80°C

Product Advantages

Long Distance Transmission: Integrated antenna can achieve a maximum distance of over 15 kilometers with high sensitivity.

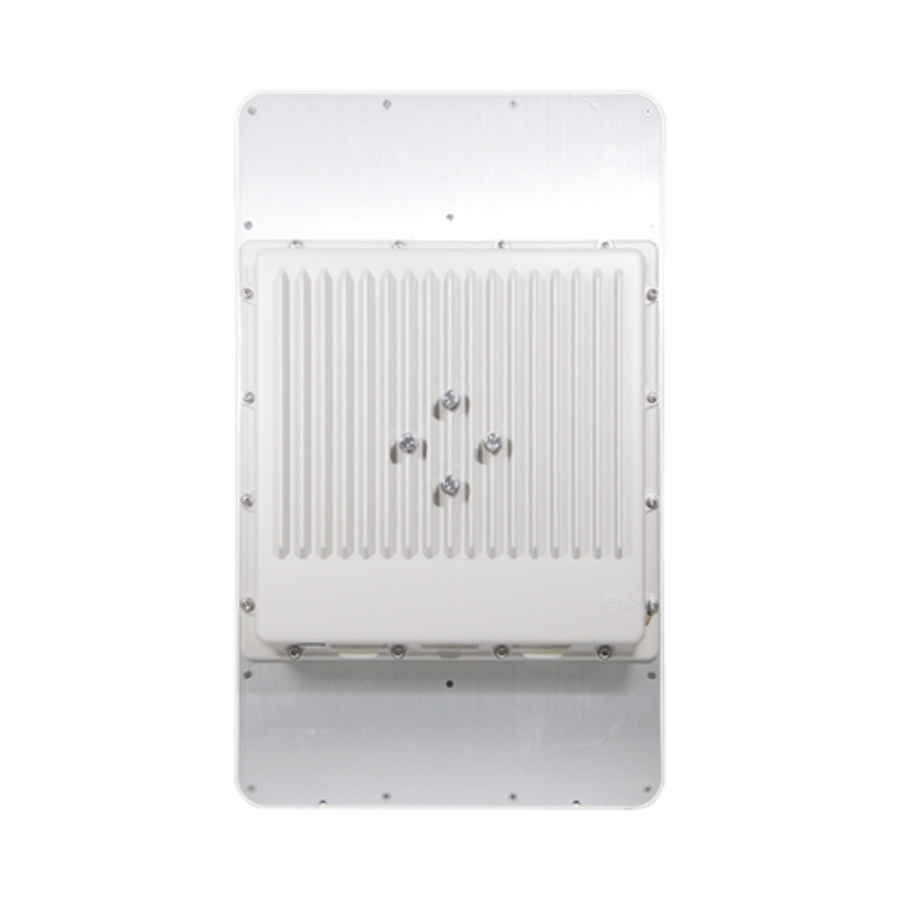

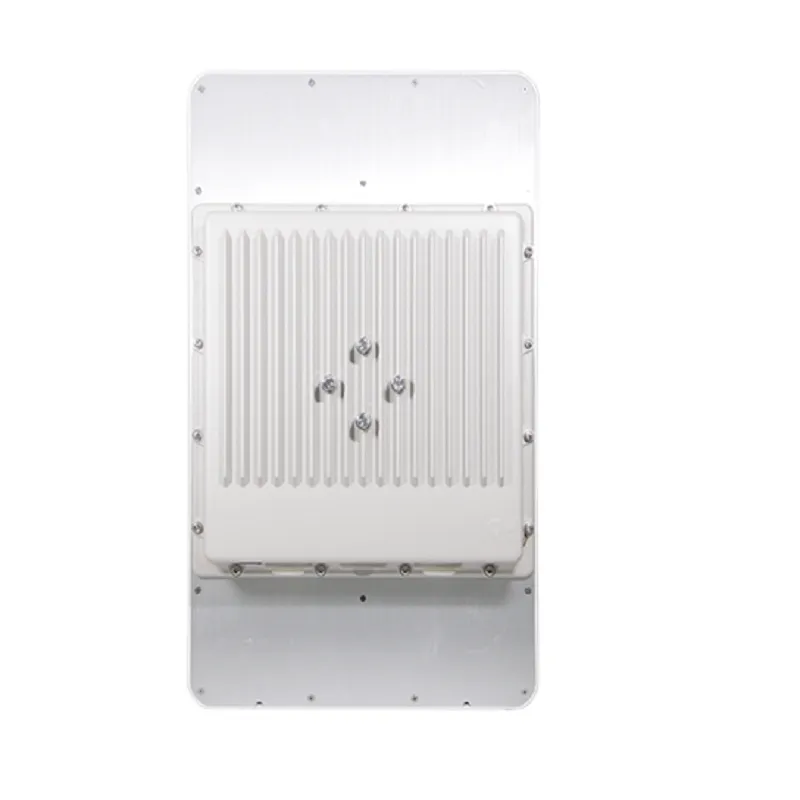

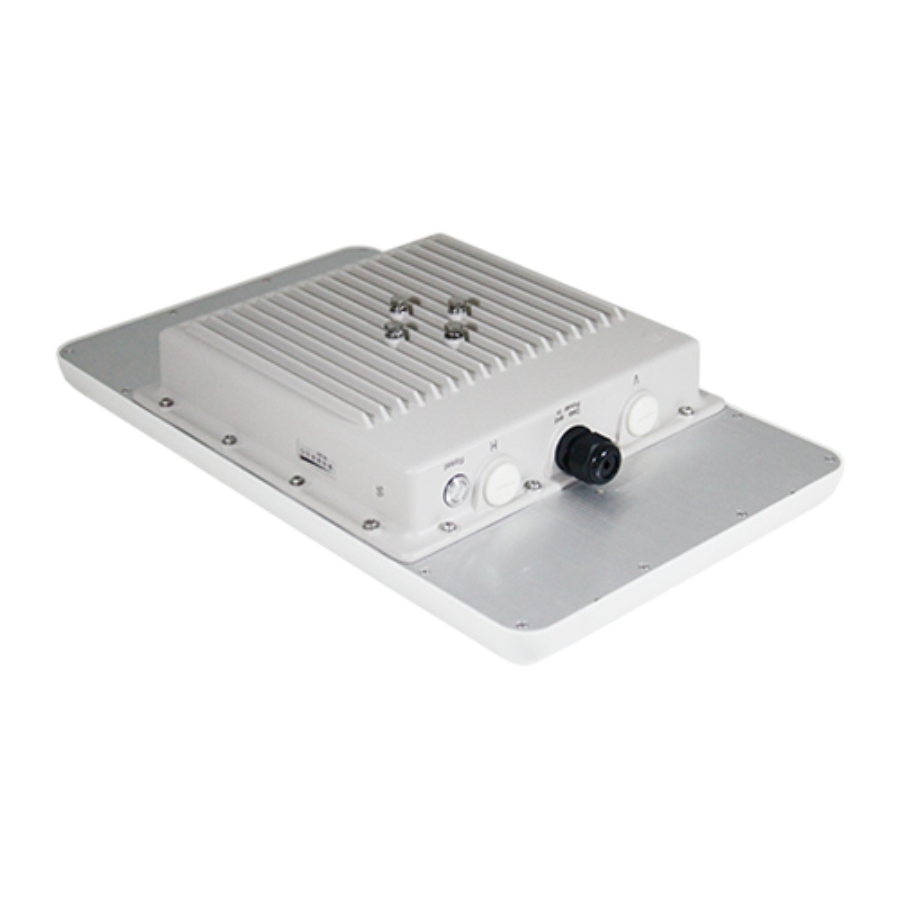

Industrial-Grade Build: Metal cast aluminum housing, IP68 encapsulation, and integrated pressure relief valve for harsh environments.
Gigabit Performance: Supports 80MHz bandwidth providing up to 867Mbps transmission rate via Gigabit PoE.
Smart Management: Features TDMA protocol, WMM (QoS) bandwidth management, and 5-level LED signal strength indication.
Enhanced Stability: Over 200,000 hours MTBF with dual watchdog functions to prevent system crashes.

Frequently Asked Questions

Q1: Can I customize the product logo and color?

Yes, we support on-demand customization, including LOGO customization, color customization, and appearance size customization.

Q2: What is the maximum transmission distance of the SW8000CBU?

With high transmission power and high reception sensitivity, the integrated antenna can achieve a maximum distance of over 15 kilometers in optimal conditions.

Q3: Does the device support PoE power supply?

Yes, it supports Gigabit PoE (Power over Ethernet) power supply, which simplifies outdoor installation and reduces construction costs.

Q4: How does the device perform in extreme weather?

The device is designed for industrial use with an IP68 rating. It features a metal cast aluminum shell and a pressure relief valve, operating reliably from -50°C to +80°C.

Q5: What payment methods are accepted for orders?

We support T/T, Western Union, Paypal, and cash. Specific details can be negotiated based on your order requirements.

Q6: How can I ensure the signal is aligned during installation?

The device includes a 5-level LED signal light that automatically displays received signal strength, facilitating rapid engineering installation and debugging.
