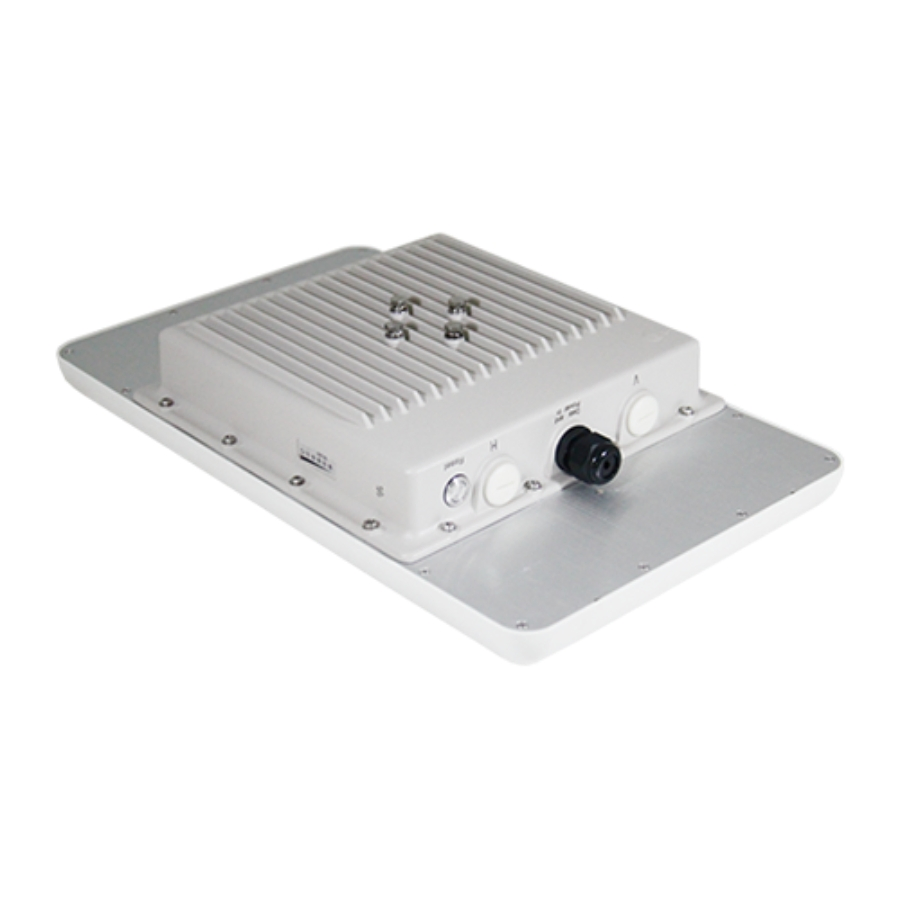

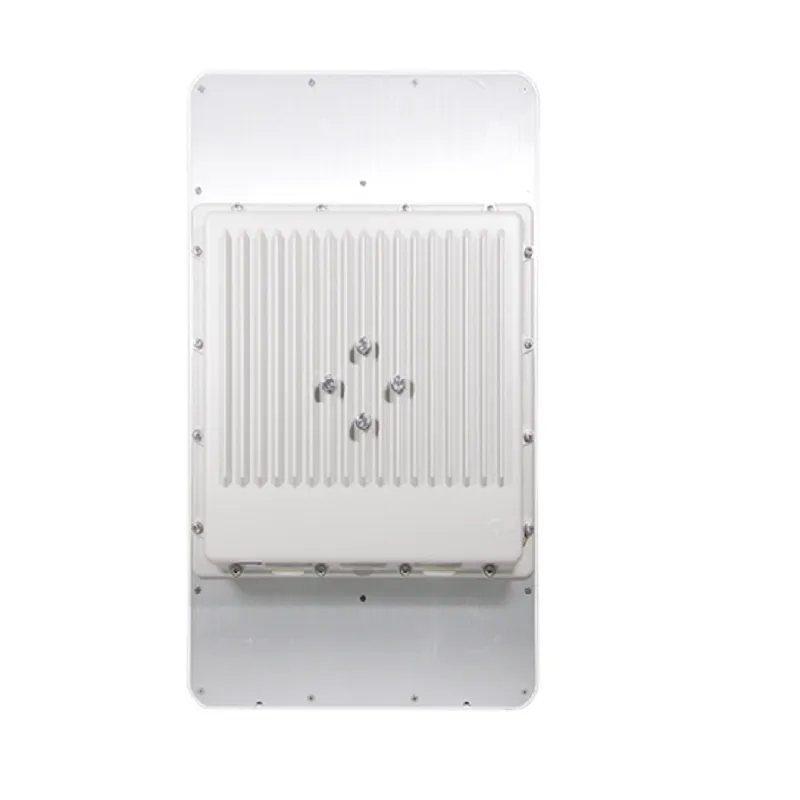

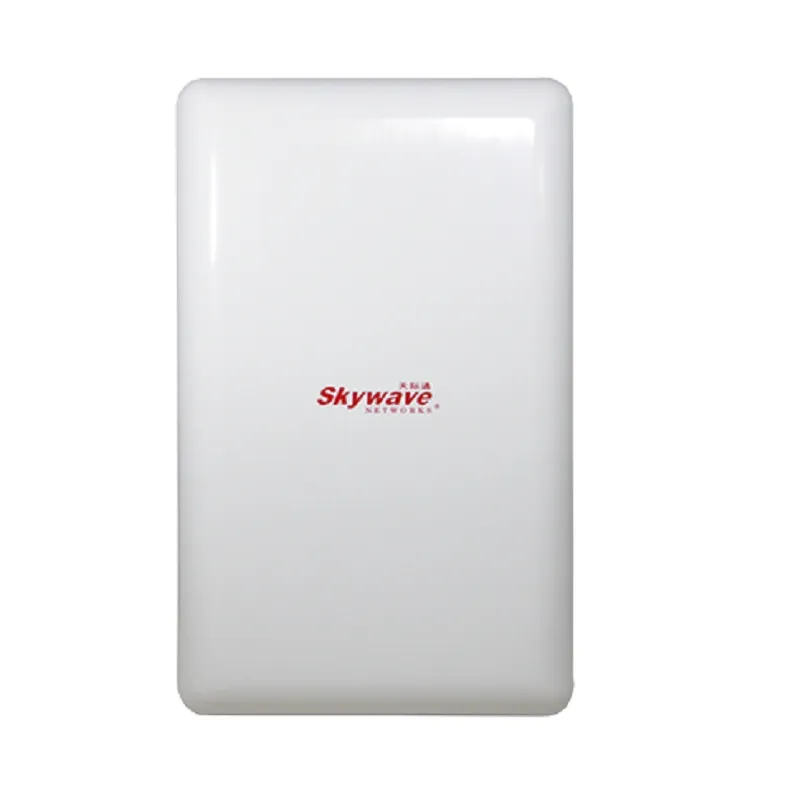

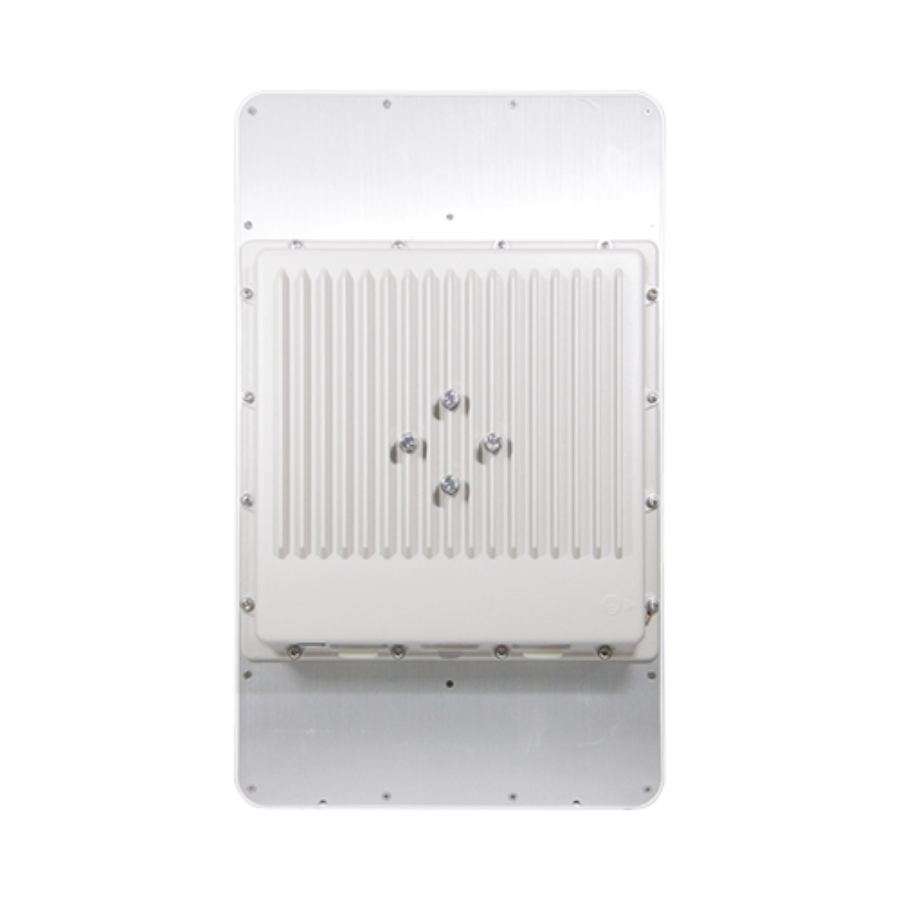

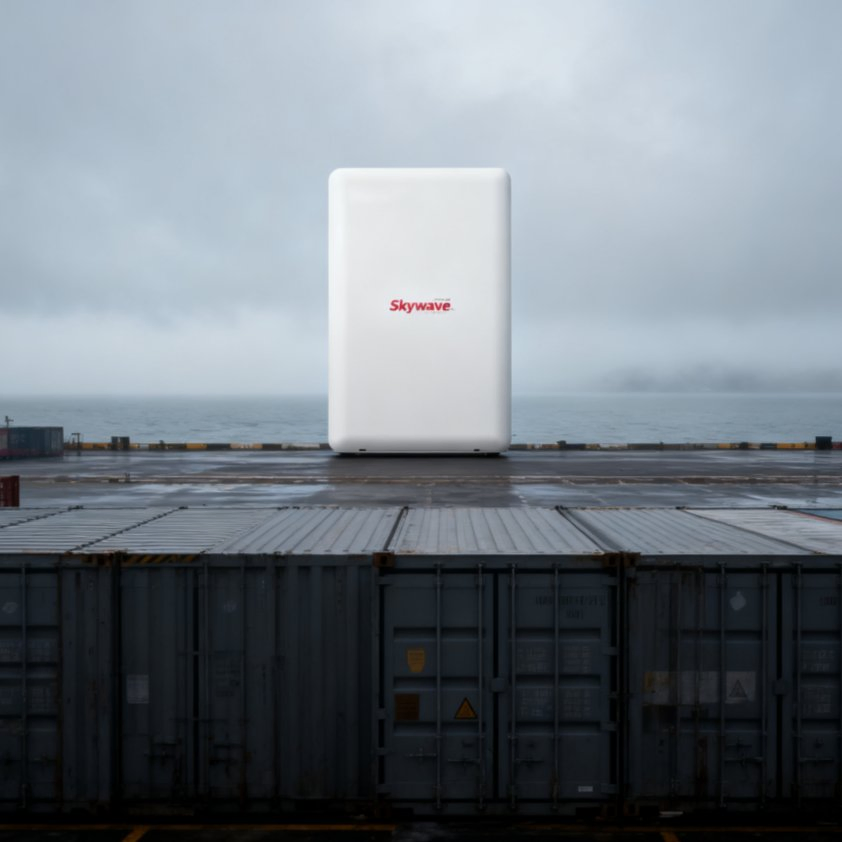

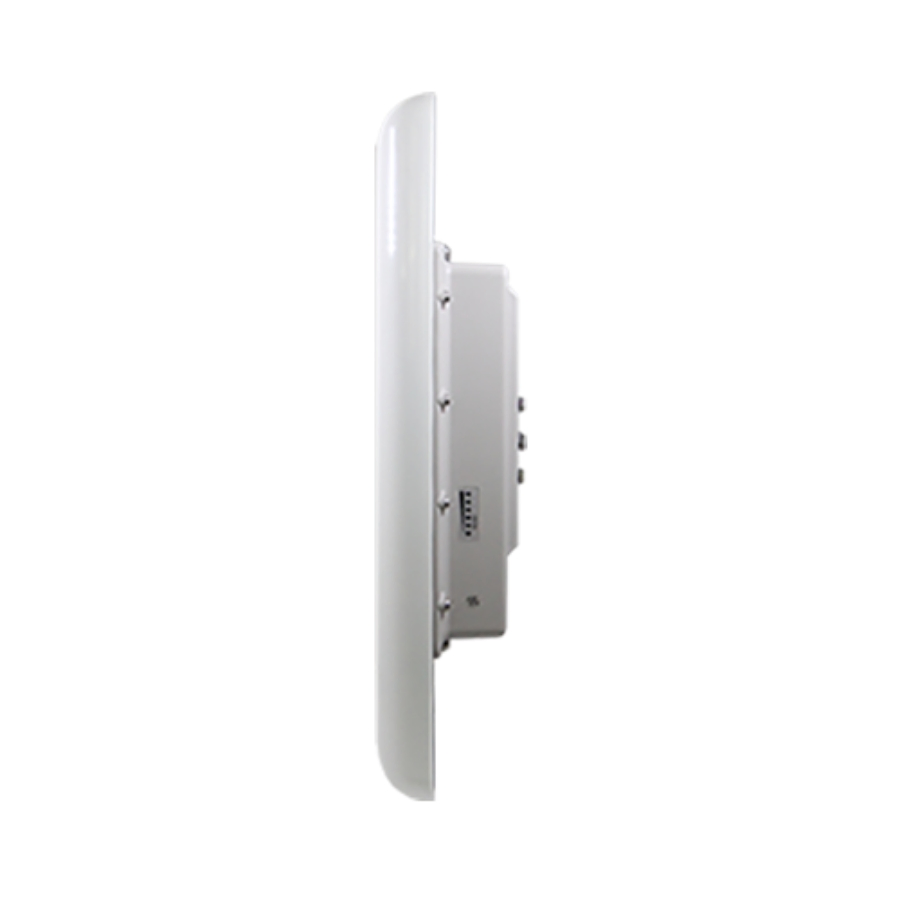

SW8000CBU is an outdoor carrier-grade antenna-integrated wireless base station that operates in the 5GHz unlicensed frequency band. Compliant with the IEEE802.11ac standard, it features a high-performance Qualcomm Atheros processor and 2T2R MIMO architecture, supporting rates up to 867Mbps.

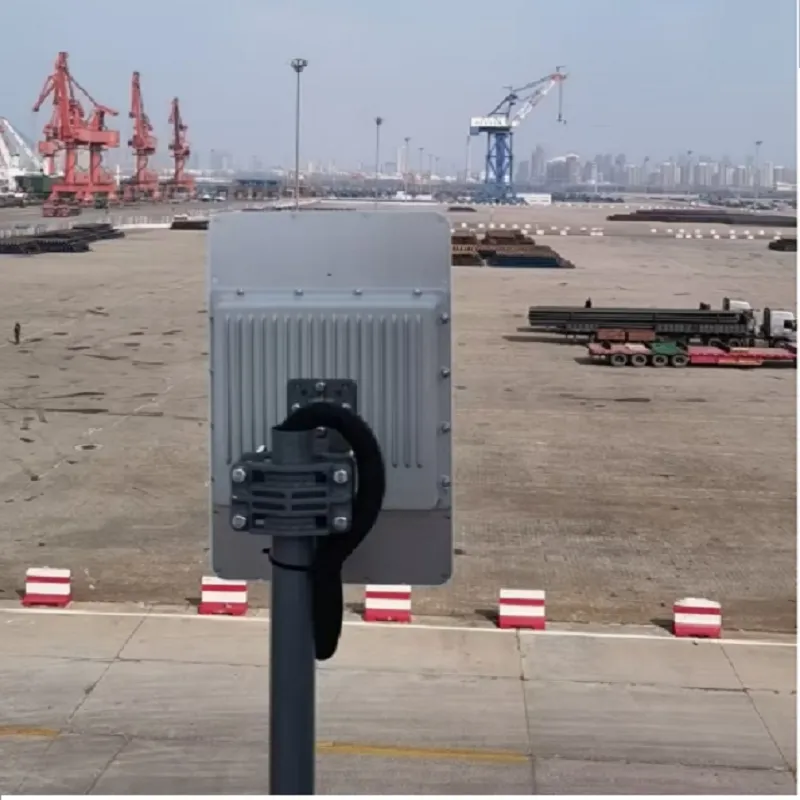

The device integrates a 22 MIMO panel directional antenna, making it ideal for long-distance backbone transmission and high-definition video surveillance in sectors like oil fields, electric power, and intelligent transportation.
| Model | SW8000CBU | Voltage | AC:100-240V |
| Transmission Rate | >200Mbps (Max 867Mbps) | Antenna Type | Built-in 16dBi Dual-Polarized |
| IP Rating | IP68 | Operating Temp | -50 °C to +80 °C |
| Frequency Band | 4920 ~ 6100MHz | Certification | ISO9001, RoHS, FCC, CE |

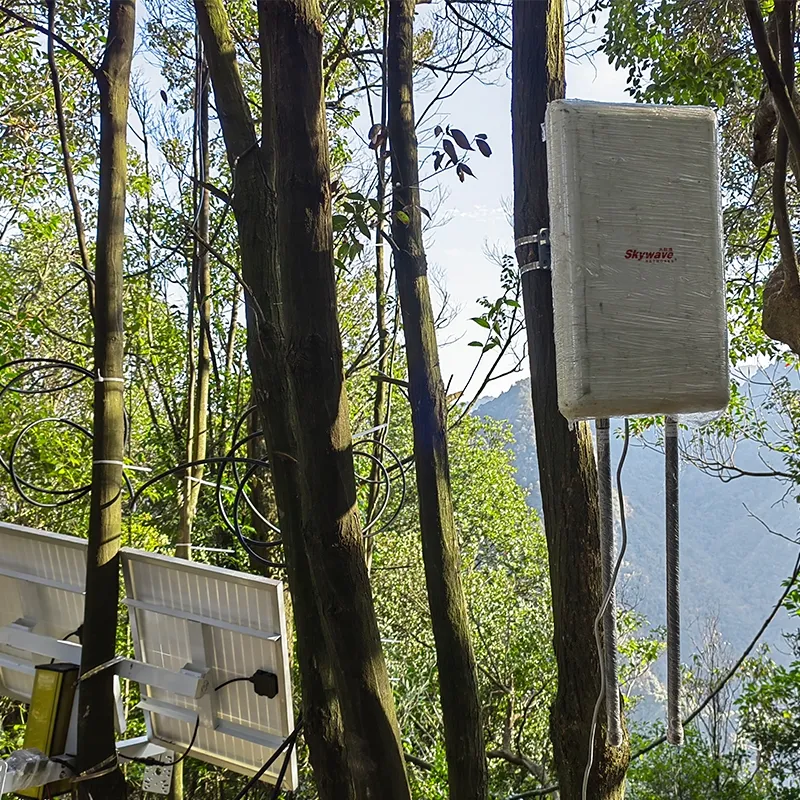

Supporting both PTP and PTMP applications, the SW8000CBU features advanced wireless functions including roaming (WDS), virtual AP, and mobile WiFi access management. Its metal cast aluminum shell ensures wind, rain, and lightning protection, providing a maintenance-free outdoor solution.
With PoE technology, installation is simplified, reducing feeder cable loss and construction costs while ensuring high bandwidth and anti-interference capabilities.
| RADIO FREQUENCY | |
| RF Power Output | 2*500mW |
| Sensitivity | 802.11ac: -96 dBm@MCS0, -72dBm@MCS9 |
| Modulation | OFDM: BPSK QPSK16-QAM 64-QAM 256-QAM |
| SOFTWARE & PROTOCOLS | |
| Working Mode | AP Bridge, Bridge, Station, WDS, Mesh |
| Security | WEP/WPA/WPA2/AES/TKIP/EAP, Private Encryption |
| Watchdog | Dual Network & RF Watchdog for Stability |
| HARDWARE | |
| CPU / RAM | 720MHz / 128MB DDR2 |

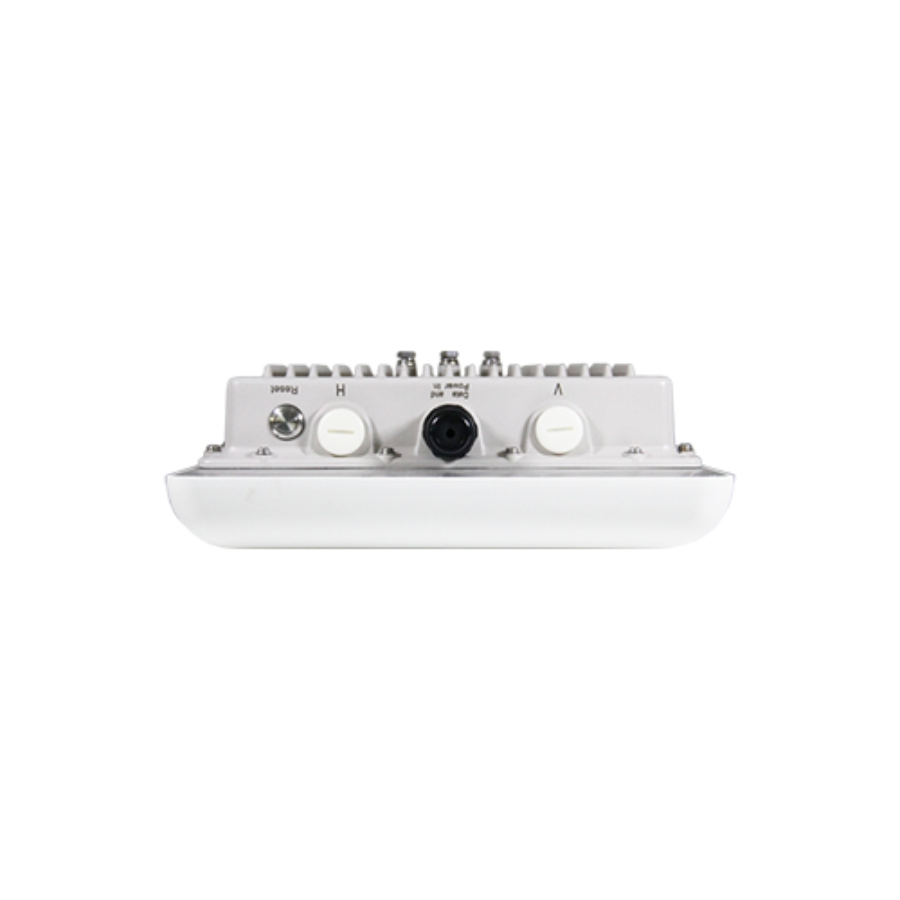

| Interface | 1*Gigabit PoE Ethernet Port |
| Housing | Cast Aluminum, IP68 Enclosure |
