Powerful Sector Integrated Antenna Base Station with Excellent Penetration and Coverage

1 / 5

Powerful Sector Integrated Antenna Base Station with Excellent Penetration and Coverage

Customization:	Available
Certification:	CCC, RoHS, ISO, CE
Condition:	New

Send Inquiry

Product Description

Basic Specifications

Model NO.	SW8000NBI
Work Mode	Point-to-Point (Ptp) and Point-to-Multipoint (Ptmp)
Usage	Radio, Television, Observatory, Satellite, Plane, Ship, Car
Type	Wireless Base Station
Frequency Band	IEEE802.11A/N: 4920 ~ 6100 MHz
RF Power Output	2*500MW
Maximum Rate	300Mbps
Working Temp	-50℃ ~ + 80℃

Product Description

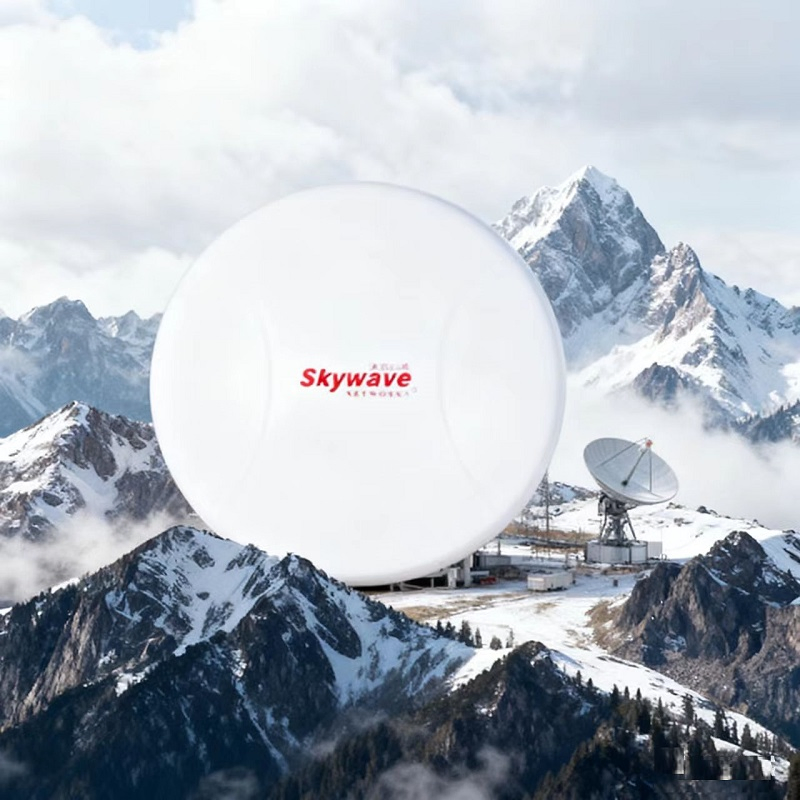

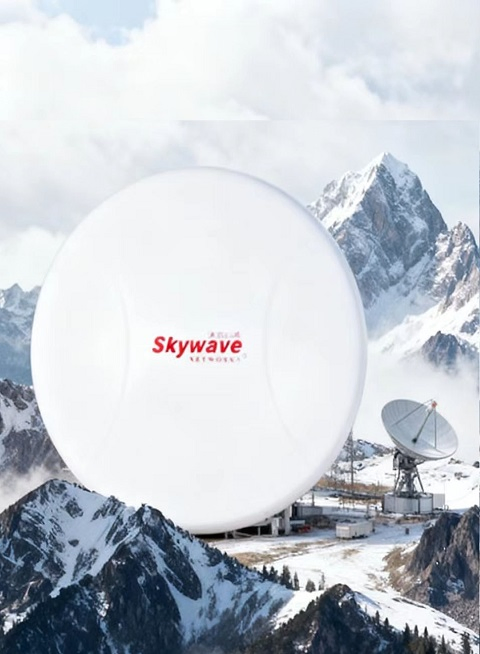

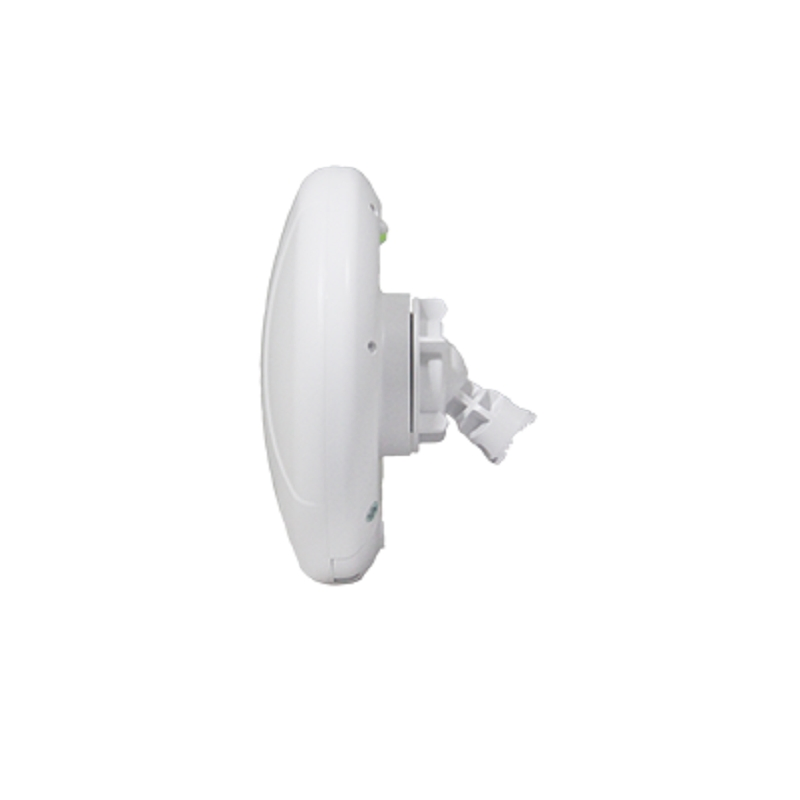

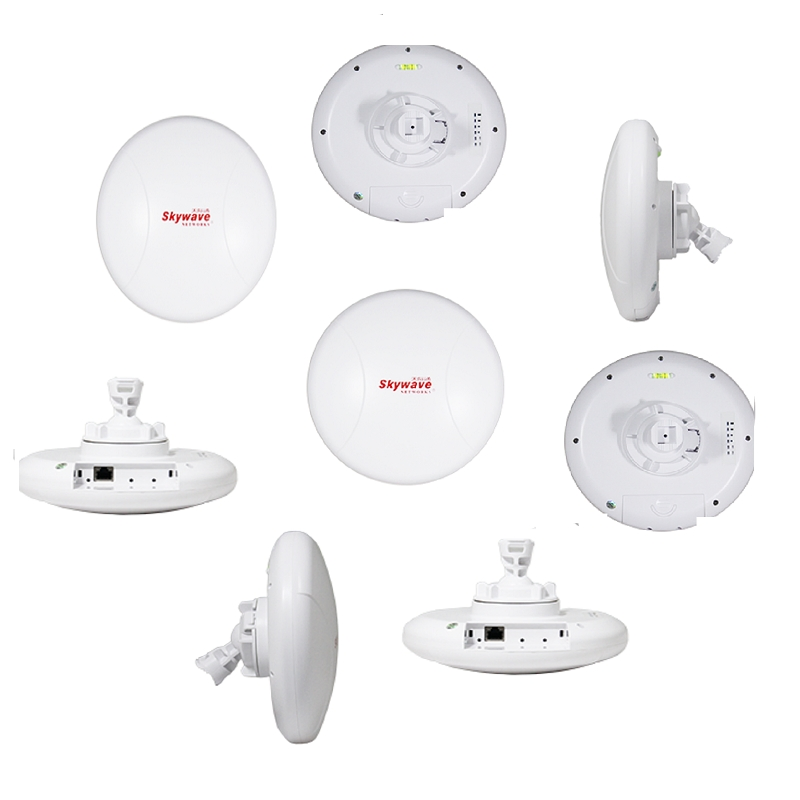

SW8000NBI is an outdoor industrial-grade sector antenna integrated wireless base station, operating in the 5GHz unlicensed frequency band and complying with the IEEE802.11a/n standard.

Powered by a high-performance Qualcomm Atheros processor and 2T2R MIMO technology, it supports rates up to 300Mbps with an RF combined output of 2*500mW. The integrated plate-shaped sector antenna is specifically designed for long-distance backbone networks and high-definition video surveillance in challenging environments like construction sites, oil fields, and smart cities.

It supports Point-to-Point (PTP) and Point-to-Multipoint (PTMP) applications, featuring wireless roaming (WDS), Routing, DHCP, and WatchDog. The UV-proof ABS shell ensures all-weather protection against rain, lightning, and extreme temperatures.

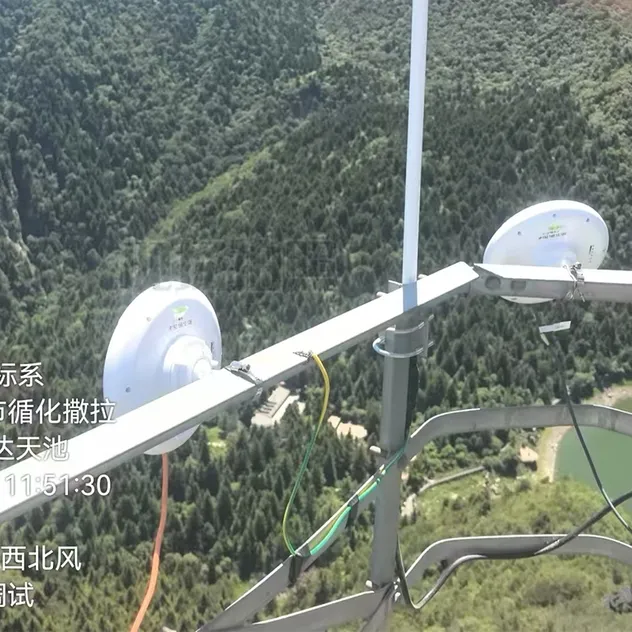

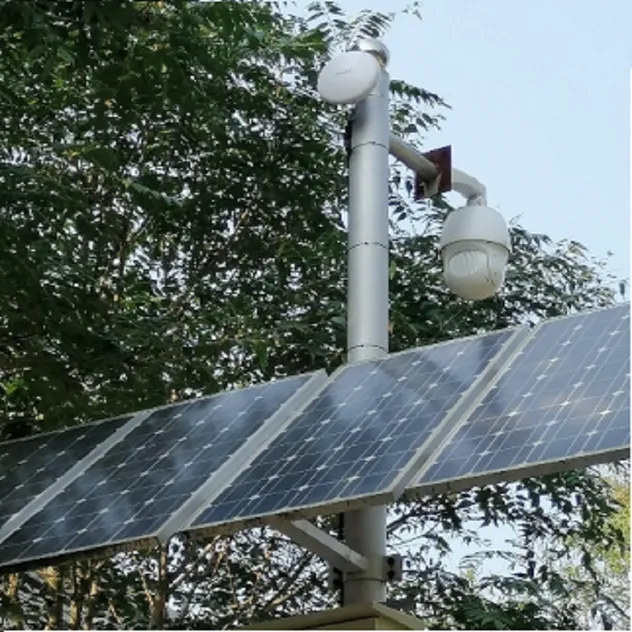

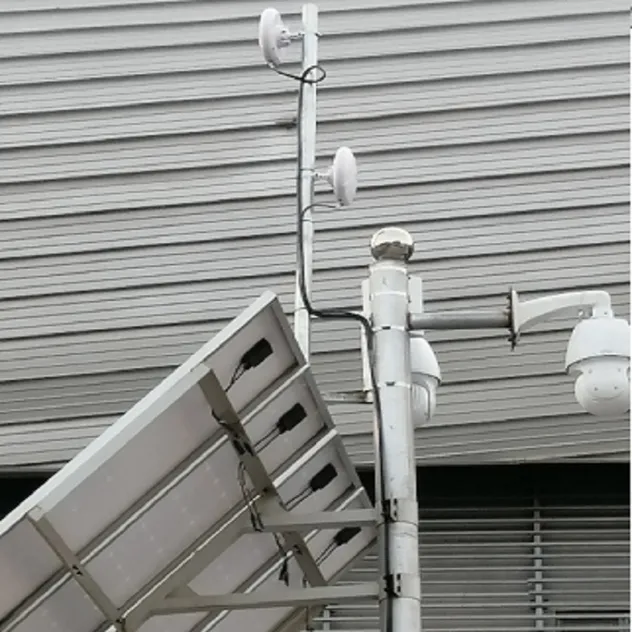

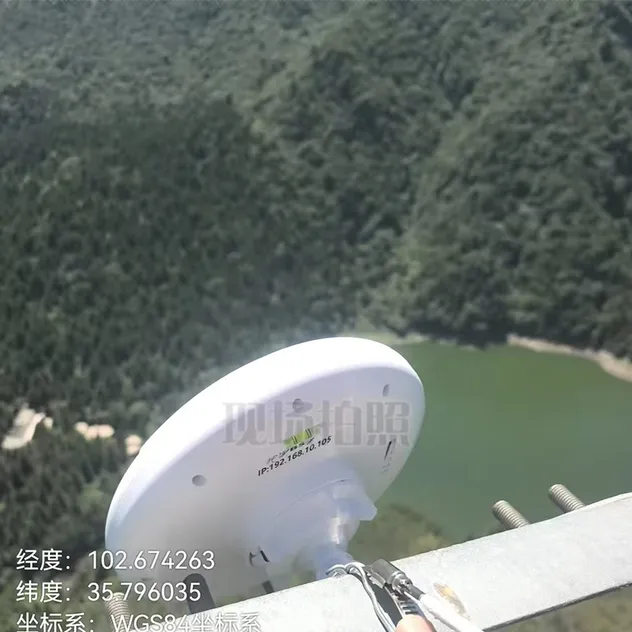

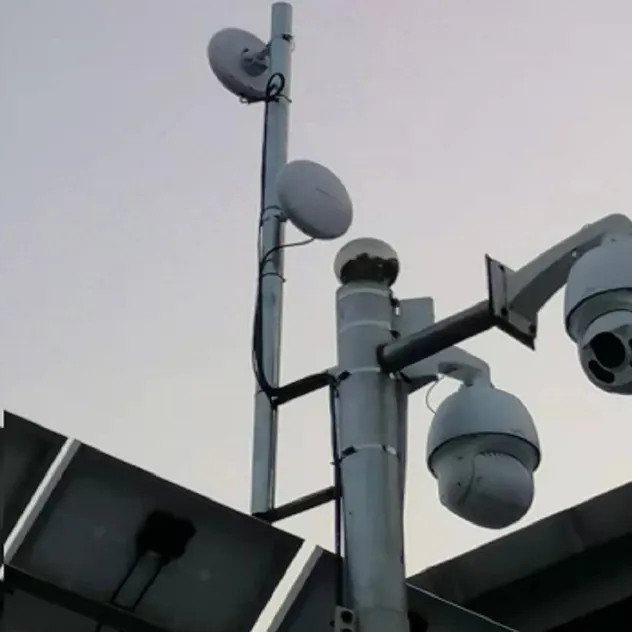

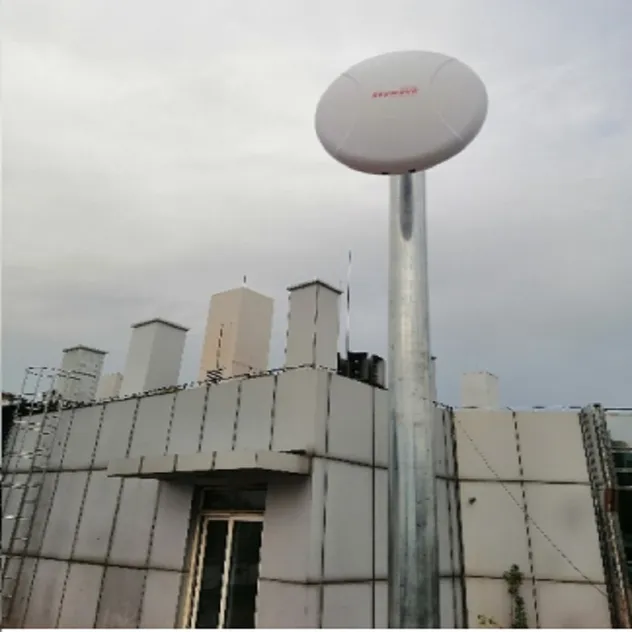

Application Scenarios

Technical Parameters

Radio Frequency
Frequency band	IEEE802.11a/n: 4920~ 6100MHz
Channel	5/10/20/40MHz
Sensitivity	802.11a: -96dBm@6Mbps; 802.11n: -96dBm@MCS0
Modulation	OFDM: BPSK QPSK 16-QAM 64-QAM
Hardware & Security
CPU / RAM	600MHz / 64MB DDR2
Encryption	WEP, WPA/WPA2, AES, TKIP, 802.1X
Interface	1*Gigabit PoE Ethernet port
Protection	IP66 Waterproof, 20KeV ESD Protection

Key Advantages

✓ 300Mbps High-speed wireless transmission with 2*2 MIMO.

✓ Long-distance coverage up to 5km with high RF power.

✓ Private TDMA protocol for efficient point-to-multipoint efficiency.

✓ Industrial IP66 rated UV-proof shell for extreme weather stability.

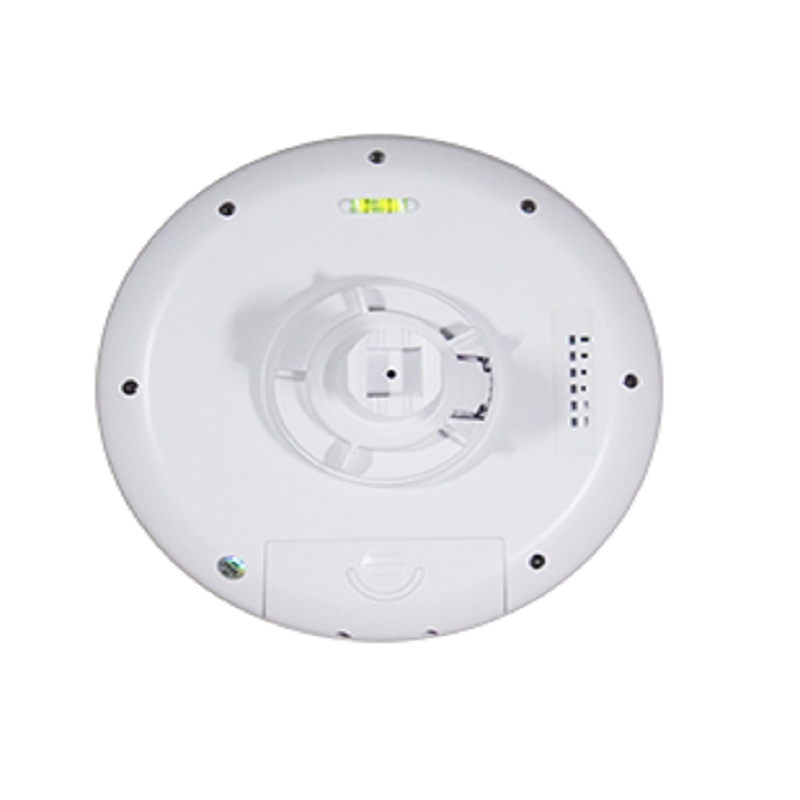

✓ Real-time signal strength LED indicators for easy debugging.

✓ Support for Beamforming and interference suppression technology.

Packing & Delivery

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company? A: We are a professional manufacturer integrating industry and trade, specializing in industrial-grade wireless network solutions.

Q2: Do you support customization (OEM/ODM)? A: Yes, we support on-demand customization including logo, color, appearance, and technical specifications.

Q3: What payment methods are accepted? A: We support various payment methods including T/T, Western Union, Paypal, and cash.

Q4: How do you handle shipping and transportation? A: We arrange sea, air, or land transportation based on the volume of goods and your specific requirements.

Q5: What is the maximum transmission distance of the SW8000NBI? A: With its high transmission power and sensitivity, the maximum point-to-point distance can reach up to 5 kilometers.

Q6: How can I obtain an accurate price quote? A: Please provide your specific project demands and quantity, and our team will provide a customized solution and quotation.
