Customization: Available
Certification: CCC, RoHS, ISO, CE
Condition: New
Send Inquiry

Product Description

📋 Basic Information
Model NO. SW8000NBU
Work Mode Point-to-Point, Point-to-Multipoint
Type Wireless Base Station
Frequency Band IEEE802.11A/N: 4920 ~ 6100MHz
Channel 5/10/20/40MHz
RF Power Output 2*500MW
Maximum Rate 300Mbps
Operating Temp. -50°C to +80°C
Production Capacity 50000/Piece/Month
📍 Product Description

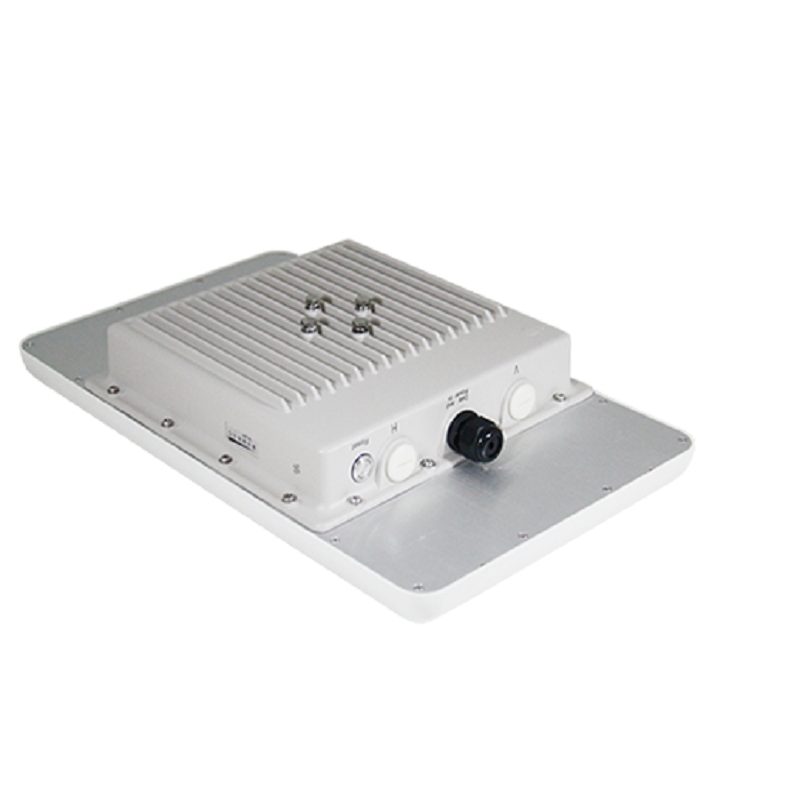

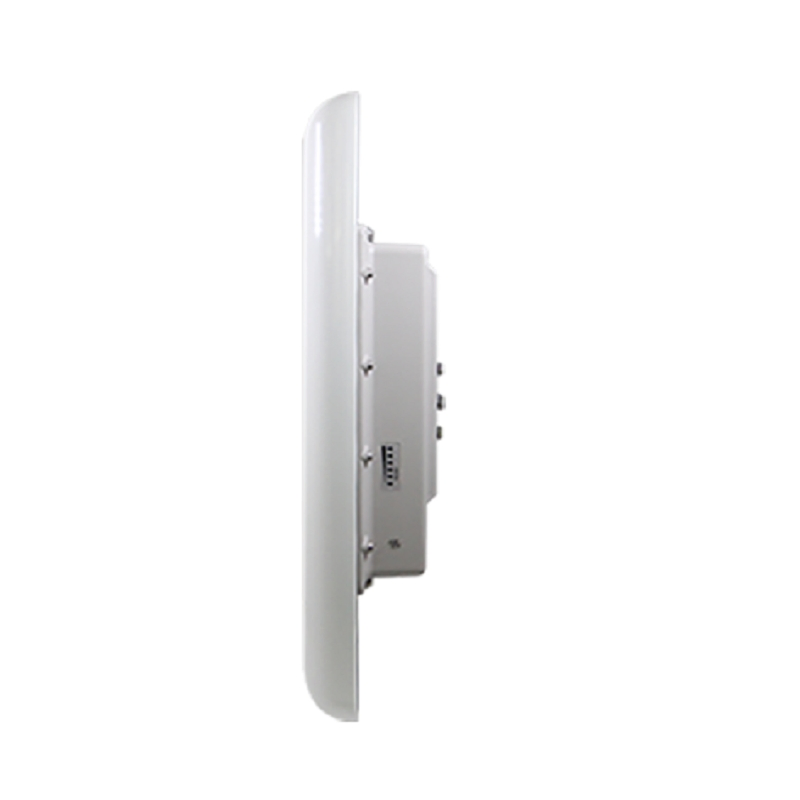

Integrated Wireless Base Station

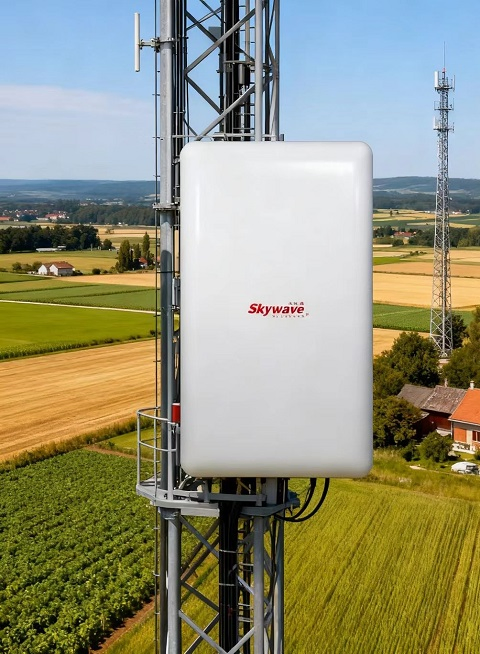

SW8000NBU Details

SW8000NBU is an outdoor, carrier-grade wireless base station with an integrated antenna. Operating in the 5GHz unlicensed frequency band, it is compliant with IEEE802.11n standards. It utilizes high-performance Qualcomm Atheros processors and MIMO technology for wireless transmission rates up to 300Mbps.

Designed for long-distance backbone network transmission, it is perfect for high-definition video surveillance in challenging environments like oilfields, power plants, and intelligent transportation systems. The weatherproof cast aluminum housing ensures durability against rain, lightning, and extreme temperatures.

🌐 Application Scenarios

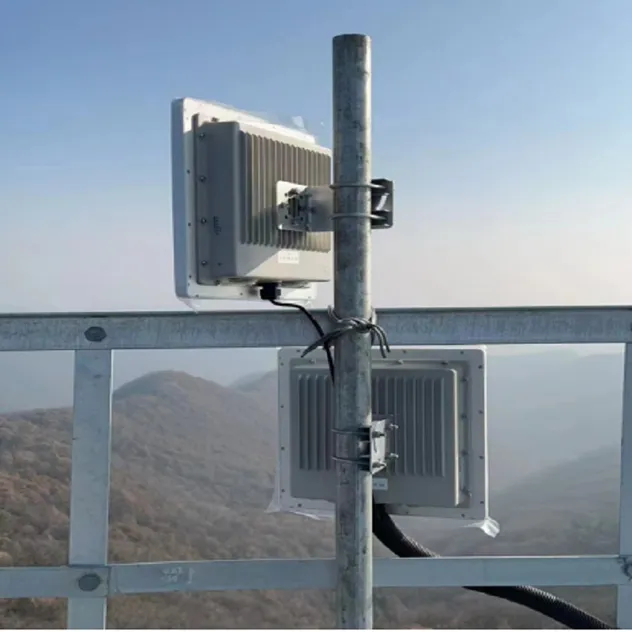

Scenario 1

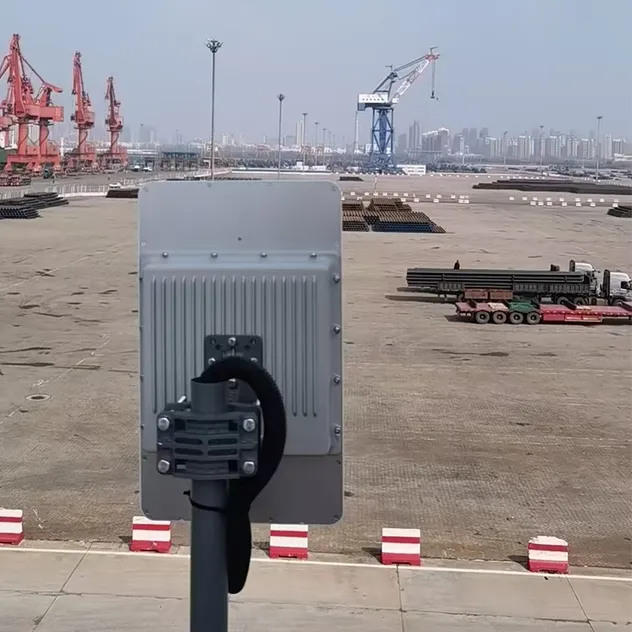

Scenario 2

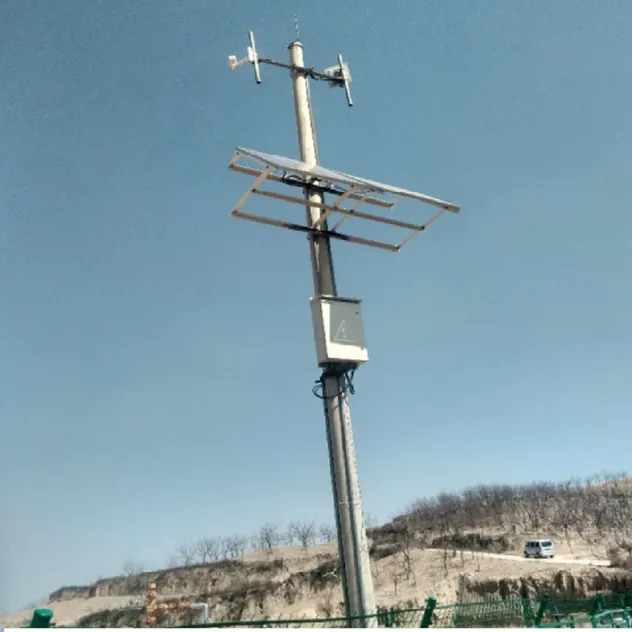

Scenario 3

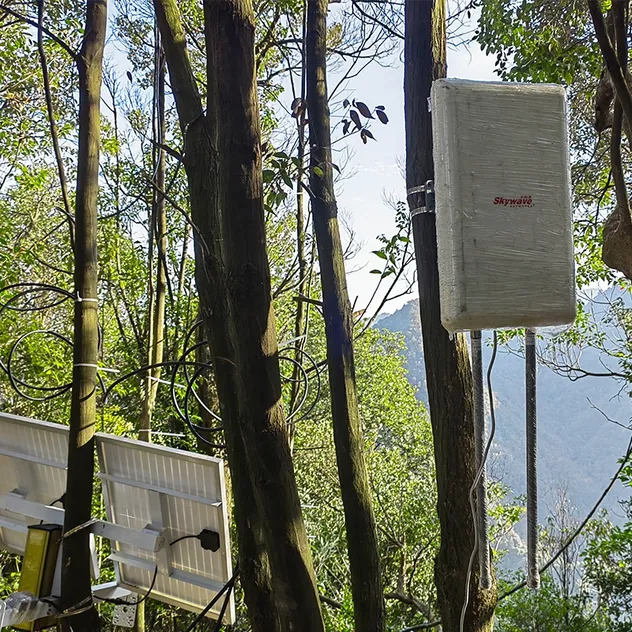

Scenario 4

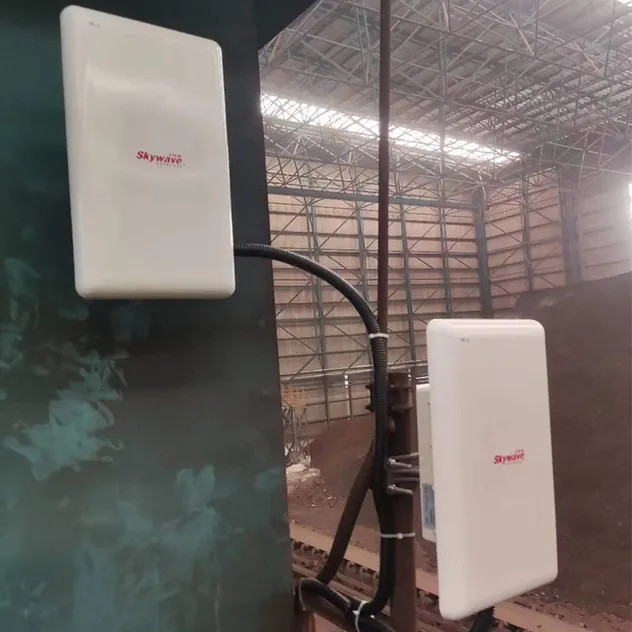

Scenario 5

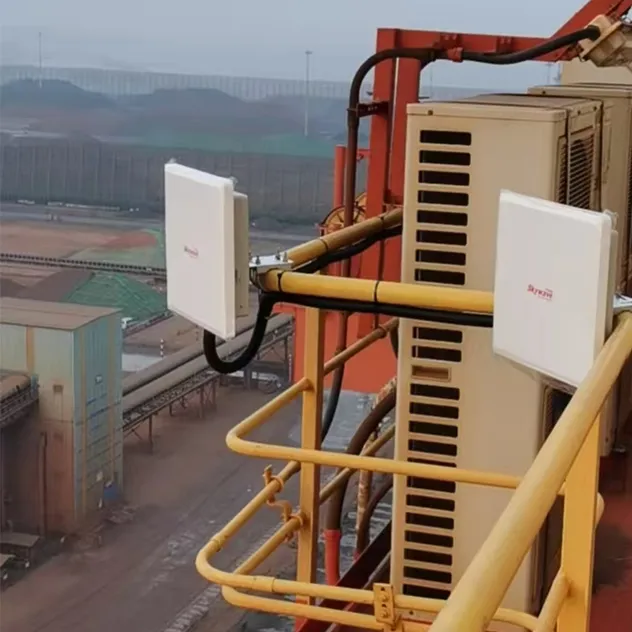

Scenario 6
⚙ Product Parameters
RF Specifications
RF Power Output2*500mW
Sensitivity802.11a:-96dBm@6Mbps; 802.11n:-96dBm@MCS0
Hardware Specifications
CPU ChipsetAR9342/AR9283 (600MHz)
Memory64MB DDR2
Network Port1 Gigabit PoE Ethernet port
Antenna PortBuilt-in 16dBi 90-degree dual-polarization sector antenna
Environment & Security
Environmental AdaptabilityIP68 fully enclosed design
Surge ProtectionCommon mode: 6kV, differential mode: 4kV
EncryptionWEP/WPA/WPA2/AES/TKIP/EAP
⭐ Product Advantages
✔
Stable and Reliable: MBTF exceeds 200,000 hours, eliminating crashes and disconnections.
✔
Long Distance: High transmit power allows distances exceeding 10km.
✔
TDMA Protocol: Proprietary TDMA improves point-to-multipoint efficiency.
✔
Interference Immunity: Beamforming technology effectively suppresses interference.
✔
Industrial Housing: IP68 metal cast aluminum housing for harsh weather protection.
🏆 Success Cases

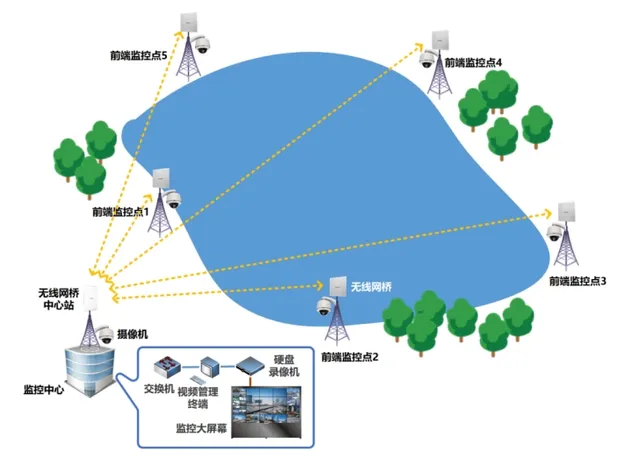

Case 1

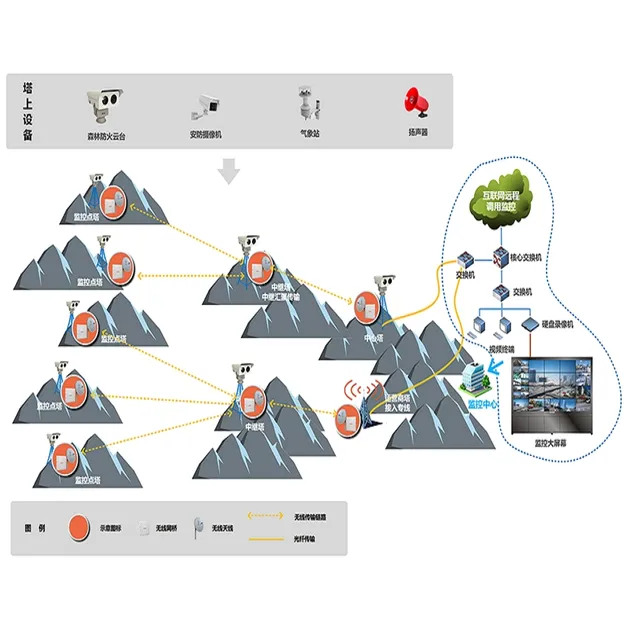

Case 2

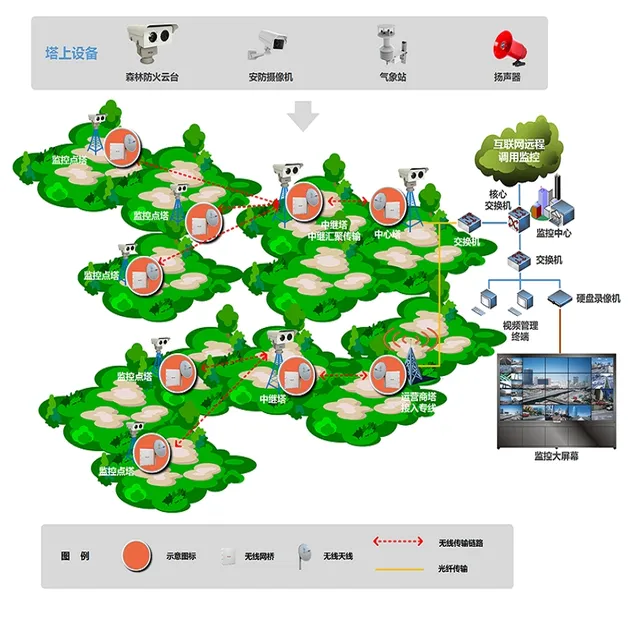

Case 3
Project Overview
📦 Packing & Delivery
Packaging 1
Packaging 2
❓ Frequently Asked Questions
Q1: Can this wireless base station work in extreme cold or hot environments? A: Yes, it is designed for industrial use with an operating temperature range of -50°C to +80°C.
Q2: Does the device support customization, such as logo or color? A: Yes, we support on-demand customization including logo, color, and appearance size to meet your specific project needs.
Q3: What is the maximum transmission distance for the SW8000NBU? A: With its high transmit power and high-gain integrated antenna, the transmission distance can exceed 10km in clear line-of-sight conditions.
Q4: Is the housing waterproof? A: Absolutely. It features a cast aluminum housing with an IP68 rating, making it completely dustproof and waterproof.
Q5: What power supply method does it use? A: The device supports Gigabit PoE (Power over Ethernet), which simplifies outdoor installation by using a single cable for both data and power.
Q6: What modes of transportation are available for delivery? A: We offer sea, air, and land transportation based on the order volume and your specific requirements.
