| Model NO. | SW8000NBU |

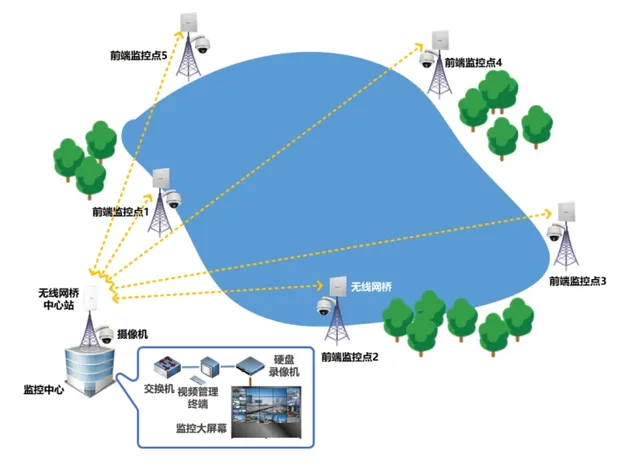

| Work Mode | Point-to-Point, Point-to-Multipoint |
| Type | Wireless Base Station |
| Frequency Band | IEEE802.11A/N: 4920 ~ 6100MHz |
| Max Rate | 300Mbps |
| Operating Temp | -50°C to +80°C |
| Protection | IP68 Waterproof/Dustproof |

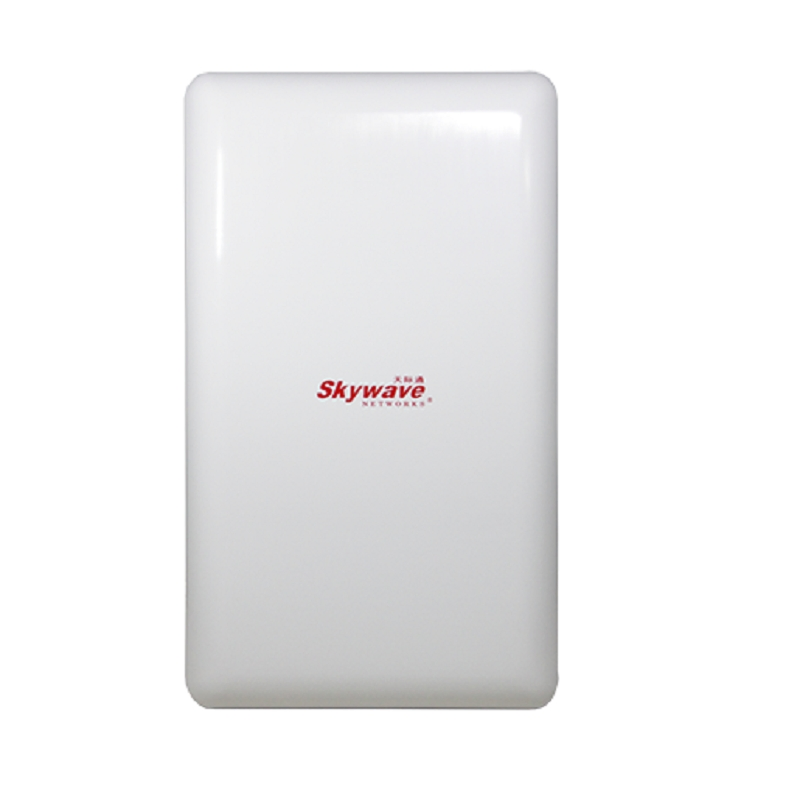

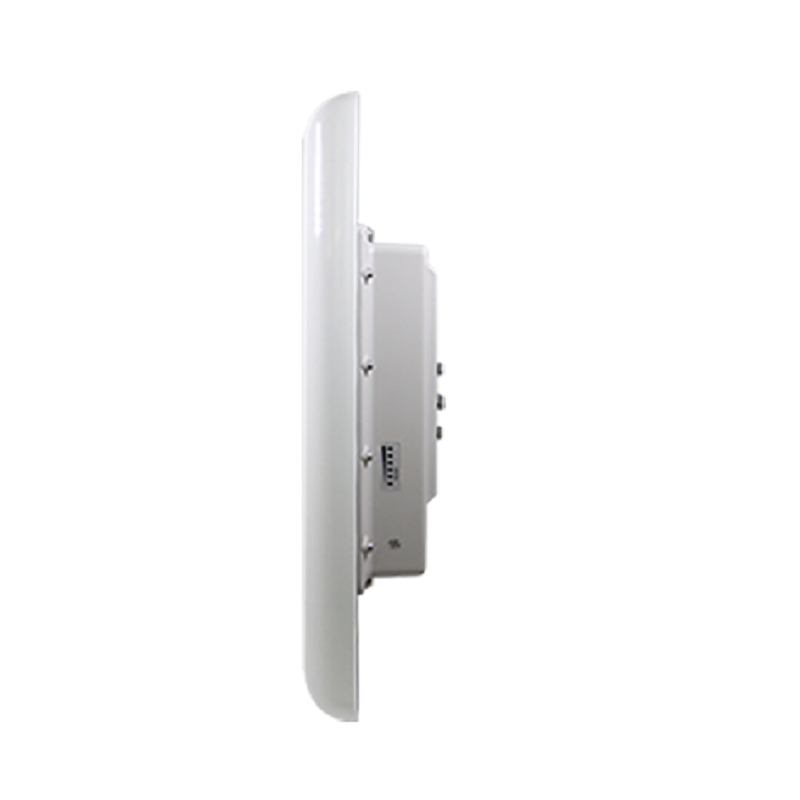

SW8000NBU is an outdoor, carrier-grade wireless base station with an integrated antenna. Operating in the 5GHz unlicensed frequency band and compliant with IEEE802.11n, it utilizes high-performance Qualcomm Atheros processors and MIMO technology.

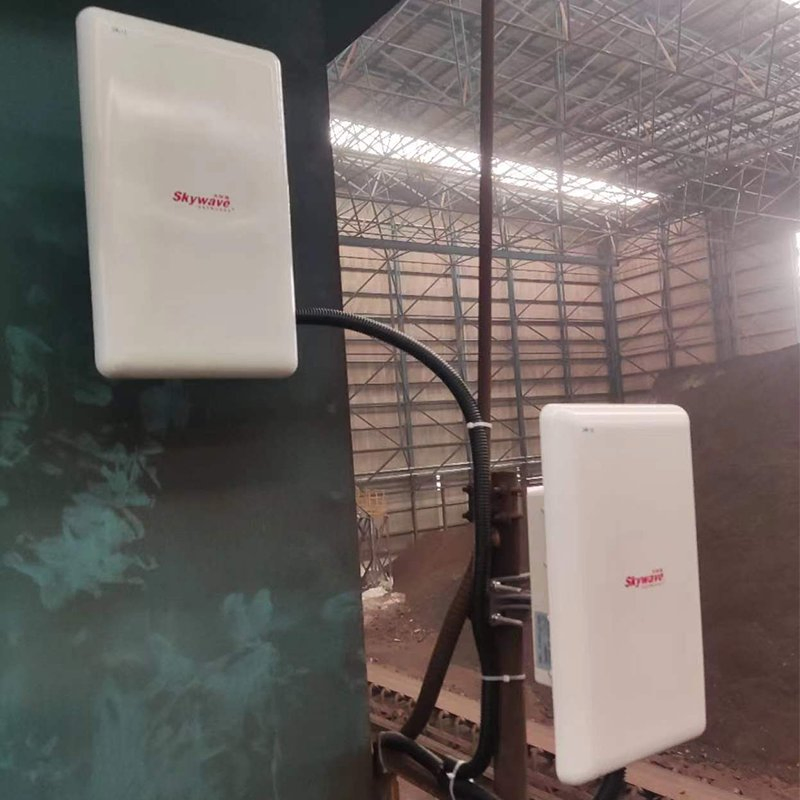

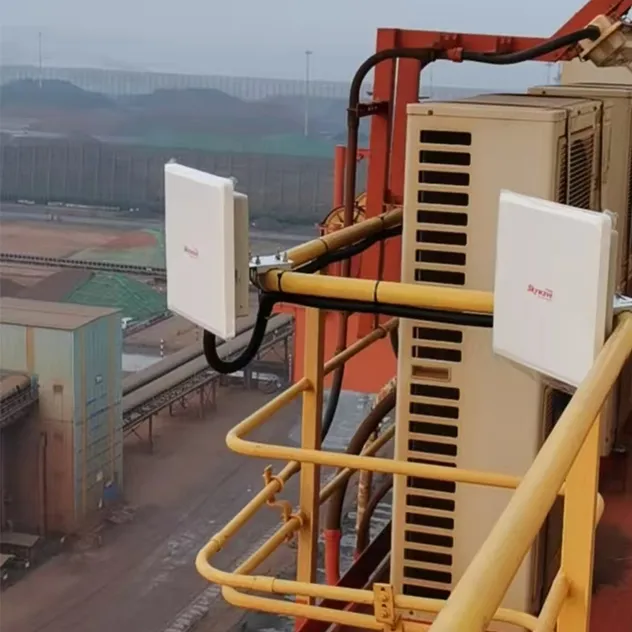

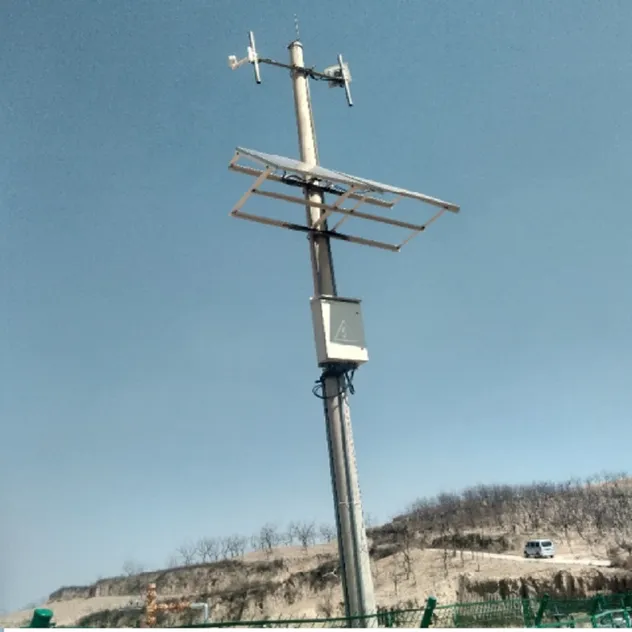

It features a 2T2R architecture supporting rates up to 300Mbps with an RF power output of 2x500mW and -96dBm sensitivity. The cast aluminum housing ensures it is weatherproof, windproof, lightning-proof, and heat-dissipating, making it ideal for harsh industrial environments like oilfields and smart city transportation.
| RF Specifications | |
| Frequency | 4920 ~ 6100MHz |
| Channel Bandwidth | 5/10/20/40MHz |
| Modulation | OFDM: BPSK, QPSK, 16-QAM, 64-QAM |
| Hardware Specifications | |
| CPU Chipset | AR9342/AR9283 (600MHz) |
| Memory | 64MB DDR2 |
| Network Port | 1 Gigabit PoE Ethernet port |
| Power Supply | PoE (AC: 100-240V / DC: 8-30V) |
| Physical & Environmental | |
| Dimensions | 450×270×90 mm |
| Ingress Protection | IP68 fully enclosed design |
| Surge Protection | Common 6kV, Differential 4kV |
