Long Range Security Surveillance Forest Fire Proof Prevention PTZ Thermal Imaging Cameras
Long Range Security Surveillance Forest Fire Proof Prevention PTZ Thermal Imaging Cameras
Long Range Security Surveillance Forest Fire Proof Prevention PTZ Thermal Imaging Cameras
Long Range Security Surveillance Forest Fire Proof Prevention PTZ Thermal Imaging Cameras
Long Range Security Surveillance Forest Fire Proof Prevention PTZ Thermal Imaging Cameras
1 / 5
Long Range Security Surveillance Forest Fire Proof Prevention PTZ Thermal Imaging Cameras
Long Range Security Surveillance Forest Fire Proof Prevention PTZ Thermal Imaging Cameras
Long Range Security Surveillance Forest Fire Proof Prevention PTZ Thermal Imaging Cameras
Long Range Security Surveillance Forest Fire Proof Prevention PTZ Thermal Imaging Cameras
Long Range Security Surveillance Forest Fire Proof Prevention PTZ Thermal Imaging Cameras

Long Range Security Surveillance Forest Fire Proof Prevention PTZ Thermal Imaging Cameras

Customization: Available
Technology: Infrared
Style: Pan/Tilt
Send Inquiry

Product Description

Basic Information
Model NO.
SHR-HLVTIR155R
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Kind
Autofocus Lens
Certification
CE, FCC, ISO9001: 2000
Feature
Waterproof, High Definition, Mini Size, Auto BLC
Effective Distance
≧30m
Protection Grade
IP66
Human Detection
3600m
Vehicle Detection
9900m
Focal Length
30~150mm, 5x Optical Zoom
Product Features
  • Continuous zooming thermal imaging technology for clear search and long-distance recognition.
  • Infrared detector with high temperature sensitivity (min resolution of 50mK).
  • Day and night 2 megapixels low illuminance color camera for continuous monitoring.
  • Optional auto focusing and multiple triggering modes.
  • Thermal imaging camera presetting function to enhance working efficiency.
  • 3D locating function with frame selection magnifying and click-to-center features.
  • Professionally designed shell: Anti-corrosion, waterproof, anti-acid rain, and high temperature resistant.
Technical Specifications
Operating Distance
Visible light1000m
Thermal (Human 1.8x0.5m)Detection: 3600mRecognition: 900m
Thermal (Vehicle 2.3x2.3m)Detection: 9900mRecognition: 2470m
Camera & Video Coding
Sensor Type1/2.8" Progressive Scan CMOS
Resolution2.1MP (1920x1080)
Lensf=4.5~135mm, 30x optical zooming
Video Frame Rate1~30f/s
Infrared Lens & Detector
Focal Length30~150mm, 5x optical zooming
Detector TypeUncooled microbolometer focal plane array (VOx)
Spectral Range8~14μm
Pan-Tilt & Interface
AngleHorizontal 360° continuous, Pitching -45°~+45°
Capacity22kg top load
InterfaceRJ45, RS485, BNC video output
Environmental & Power
Working Temp-25ºC~+55ºC
Power Consumption≤60W (AC24V)
Weight / Install21kg / Outdoor pedestal mounting
Our Service
  • OEM and customization accepted.
  • Spot installation and remote technical support available.
  • Life-long technical support with professional troubleshooting.
  • 14-month standard warranty (extended warranty available).
Product Display

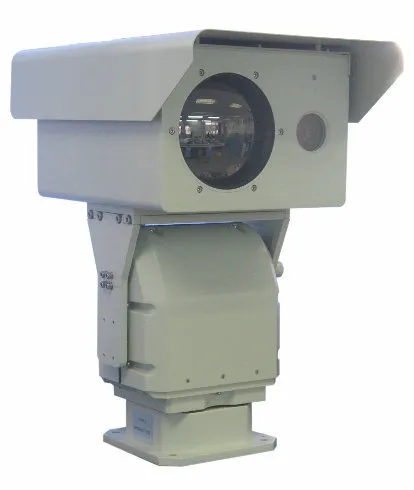

PTZ Thermal Imaging Camera
Effect Demonstration

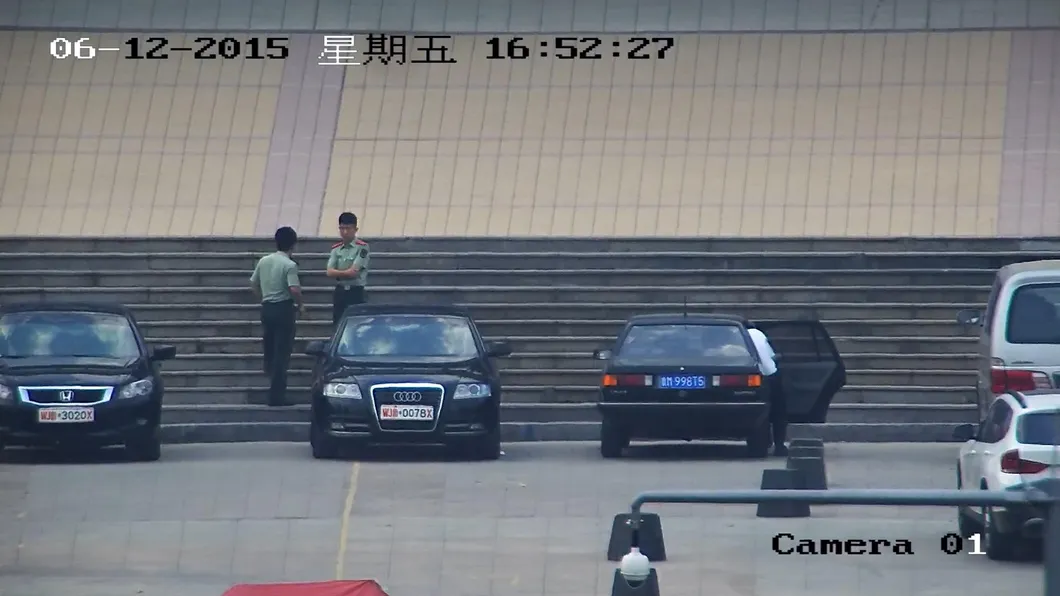

Thermal Demo 1

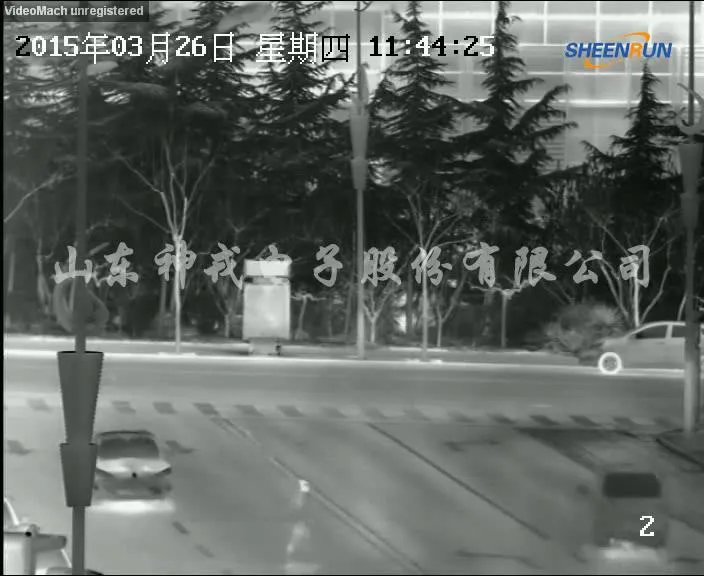

Thermal Demo 2
Frequently Asked Questions
What is the maximum detection range of this camera?
This camera can detect vehicles at a distance of up to 9900 meters and humans at approximately 3600 meters using its advanced thermal imaging technology.
Does the system support night vision?
Yes, it features a 2MP low illuminance color camera and uncooled thermal imaging, allowing for 24/7 continuous monitoring regardless of light conditions.
Is the camera suitable for outdoor use in harsh weather?
Absolutely. It has an IP66 protection grade and a professionally designed shell that is anti-corrosion, waterproof, and resistant to acid rain and high temperatures.
What kind of zooming capabilities does it offer?
The system provides 30x optical zoom for visible light and 5x optical zoom for thermal imaging, ensuring high-quality details at long distances.
Can the camera be controlled remotely?
Yes, it supports remote control via RS485 and network interfaces, including 3D locating, zooming, and focusing functions.
What is the standard warranty period?
We generally offer a 14-month warranty, with options available for extended warranty and life-long technical support.
