Outdoor 5GHz Unlicensed Frequency Band Carrier-Grade Wireless Base Station

Customization:	Available
Type:	Wireless Base Station
Work Mode:	Point-to-Point, Point-to-Multipoint

Send Inquiry

Product Description

Basic Information

Model NO.	SW8000CBE
WiFi Antenna Type	External
Transmission Rate	867Mbps
Voltage	AC:100-240V
Antenna Gain	34dBi
Color	White
Certification	ISO9001, RoHS, CE
Transport Package	Paper Box
Specification	32331097mm
Origin	China
Production Capacity	50000/Piece/Month

Product Description

●

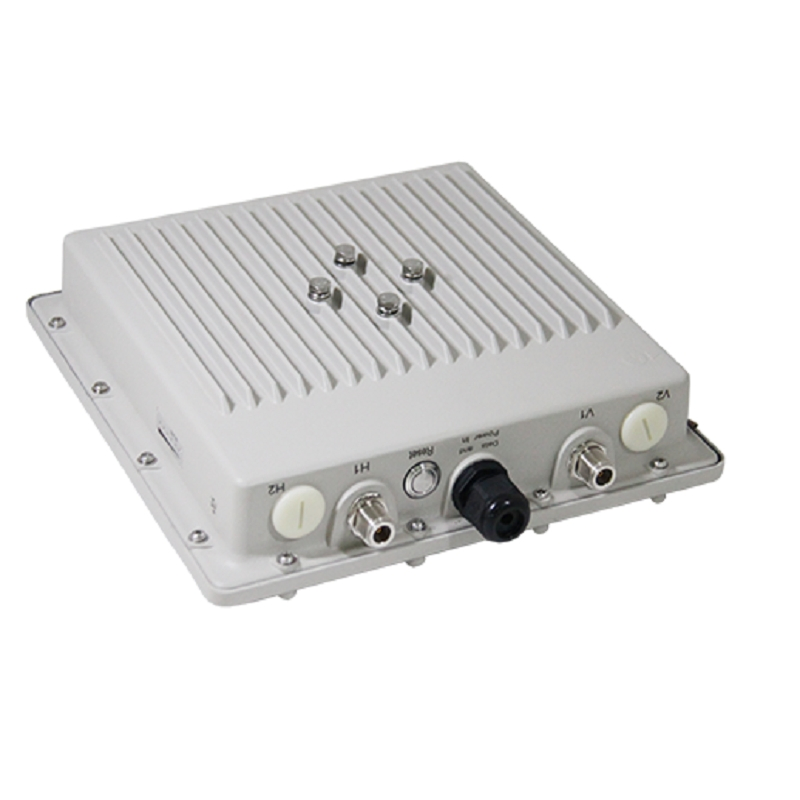

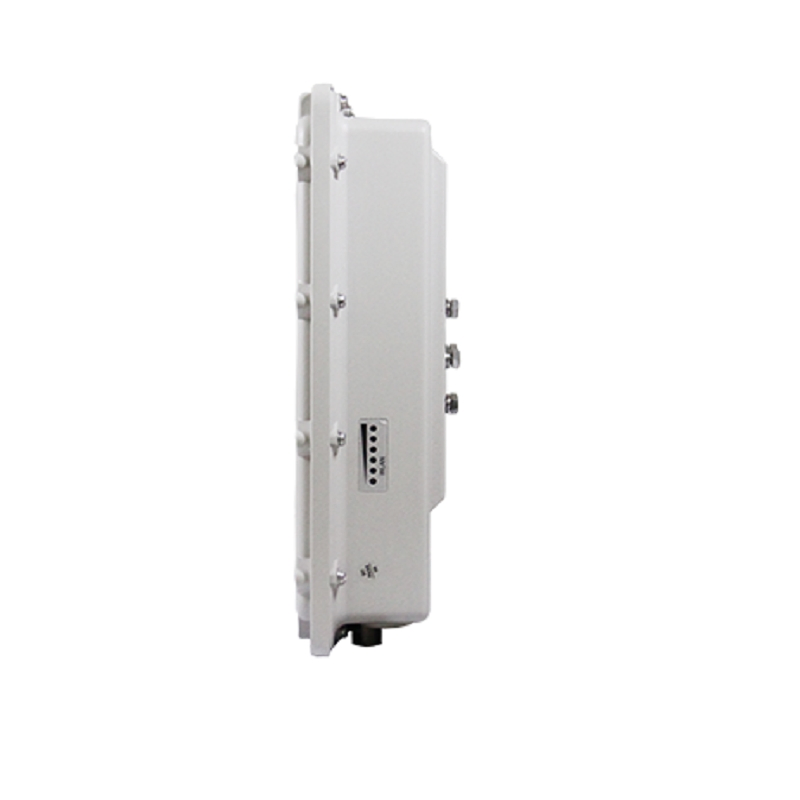

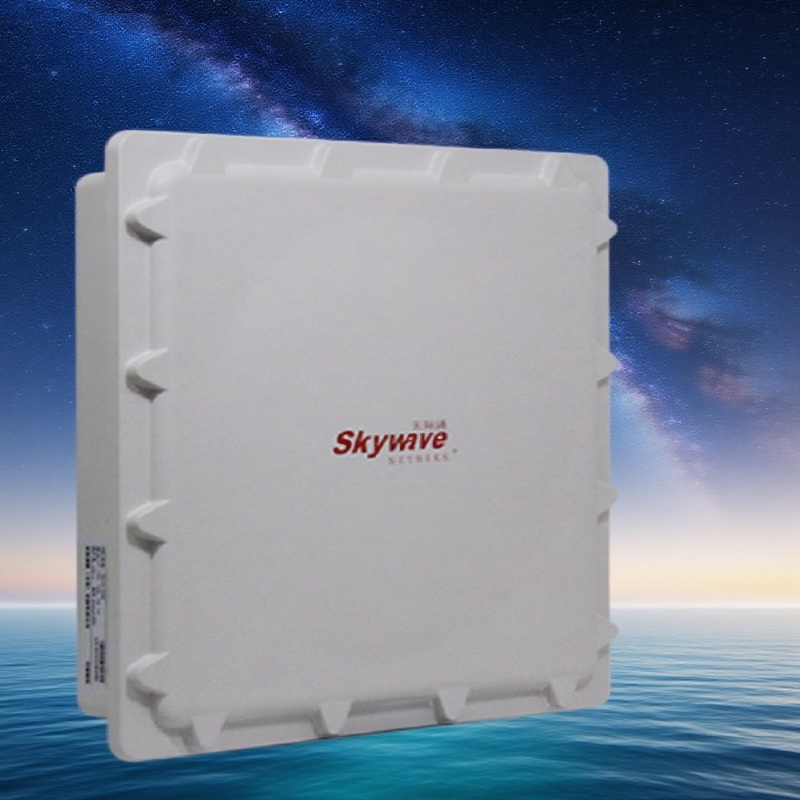

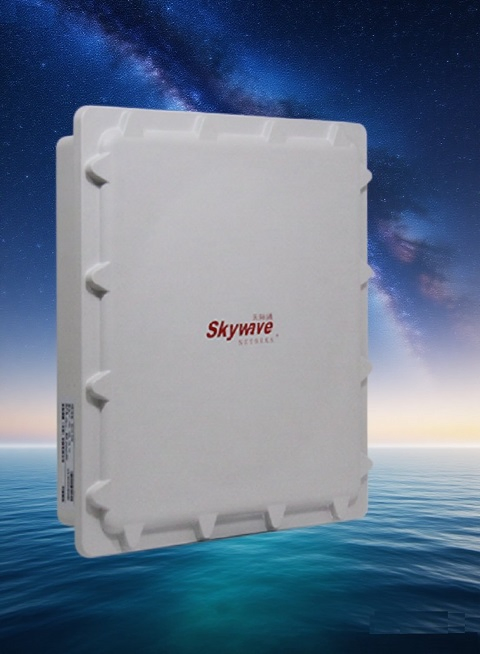

SW8000CBE is an outdoor carrier-grade split-type wireless base station operating in the 5GHz unlicensed frequency band. It is a wireless network device compliant with the IEEE802.11ac standard.

●

The product adopts a high-performance Qualcomm Atheros high-speed network processor and is based on MIMO (Multiple-Input Multiple-Output) technology, featuring a 2T2R architecture that supports wireless transmission rates up to 867Mbps.

●

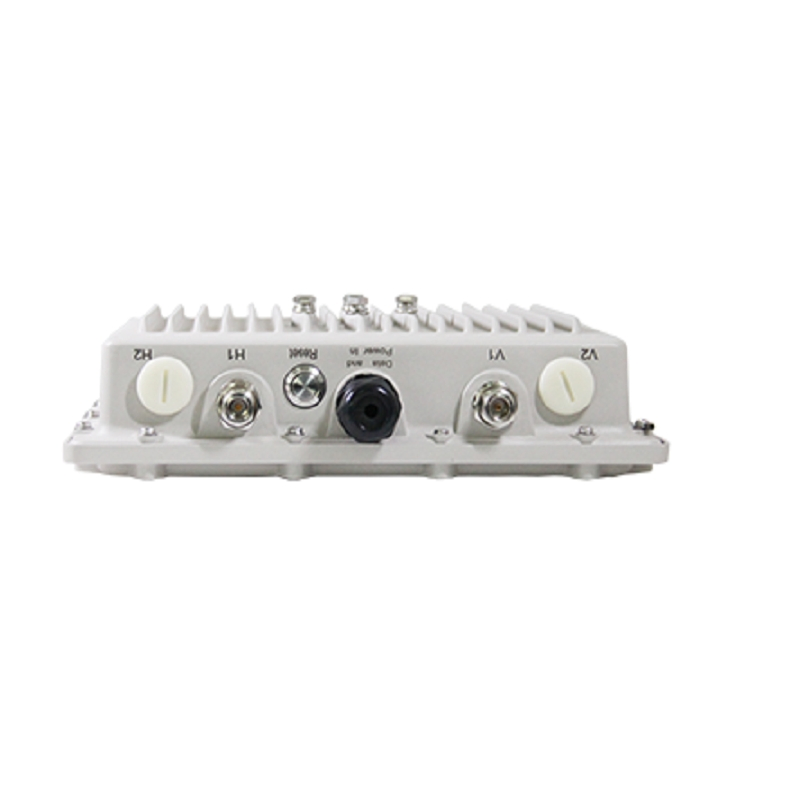

Equipped with 2 N-type radio frequency interfaces, it connects to external antennas for long-distance backbone network transmission, ideal for high-definition video surveillance in industrial, energy, and safe city projects.

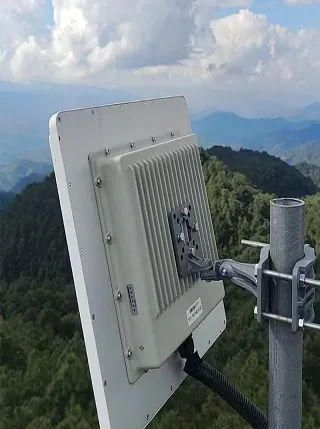

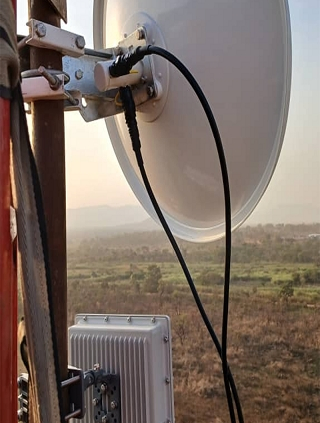

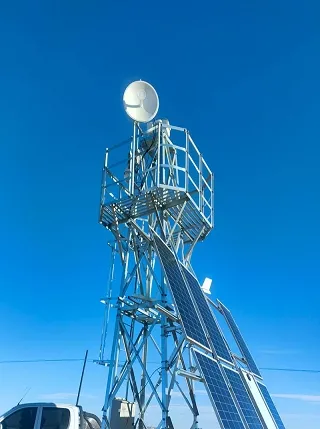

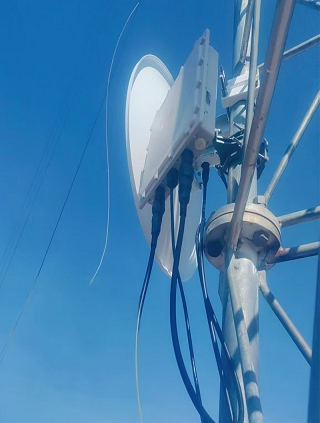

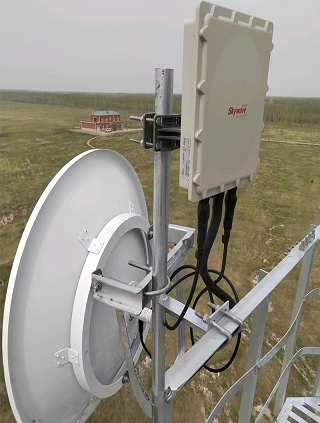

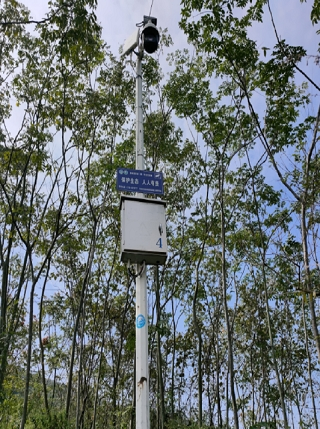

Application Scenarios

Product Parameters

Radio Frequency
Frequency Band	IEEE802.11a/n/ac: 4920~ 6100MHz
Channel	5/10/20/40/80MHz
RF Power Output	2*500mW
Sensitivity	-96dBm @ 6Mbps, -72dBm @ MCS9
Data and Working Parameters
Maximum Rate	867Mbps
Working Mode	Point-to-point, Point-to-multipoint
Seamless Roaming	Supported
Watchdog	Network & RF Dual Watchdog
Hardware Specifications
CPU	QCA9557-AT4A-R / QCA9882-BR4A-R
RAM	128MB DDR2
IP Rating	IP68 Fully Enclosed
Operation Temp	-50℃ ~ +80℃

Product Advantages

✔

Standard compatibility: Compliant with IEEE 802.11a/n/ac standards using MIMO and OFDM.

✔

Stable and reliable: MTBF over 200,000 hours ensures zero-offline stability.

✔

Long distance: High transmission power allows links reaching more than 200 kilometers with specific antennas.

✔

TDMA protocol: Enhances point-to-multipoint wireless transmission efficiency.

✔

IP68 Protection: Fully waterproof and dustproof design with integrated surge protection.

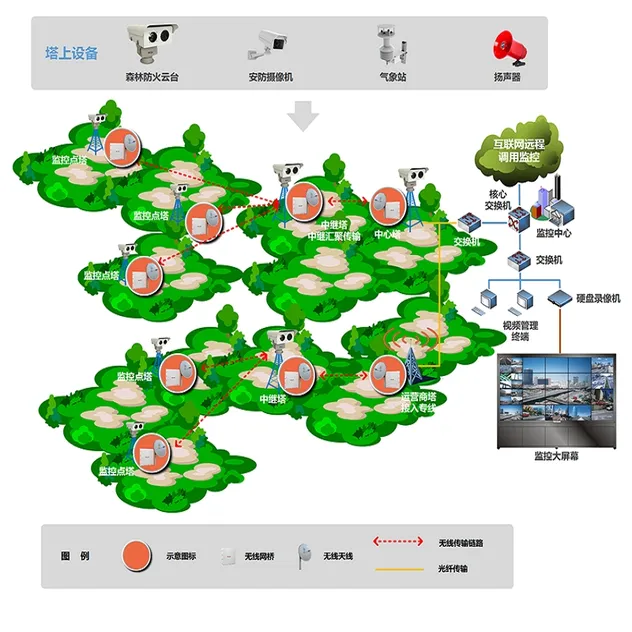

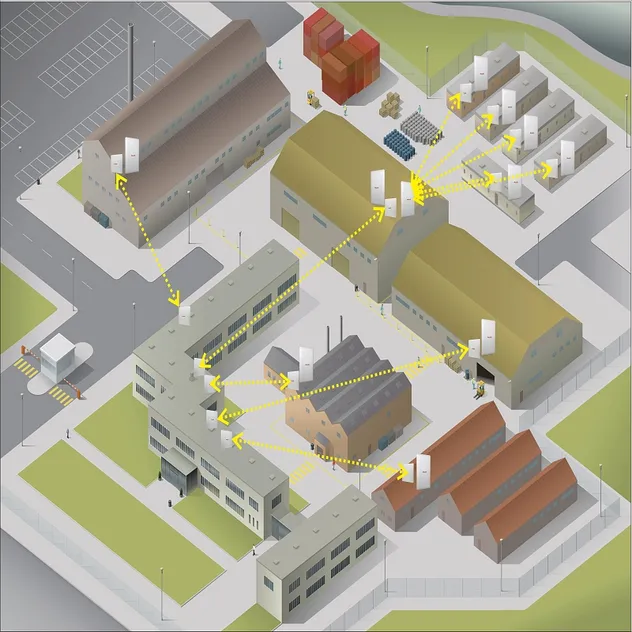

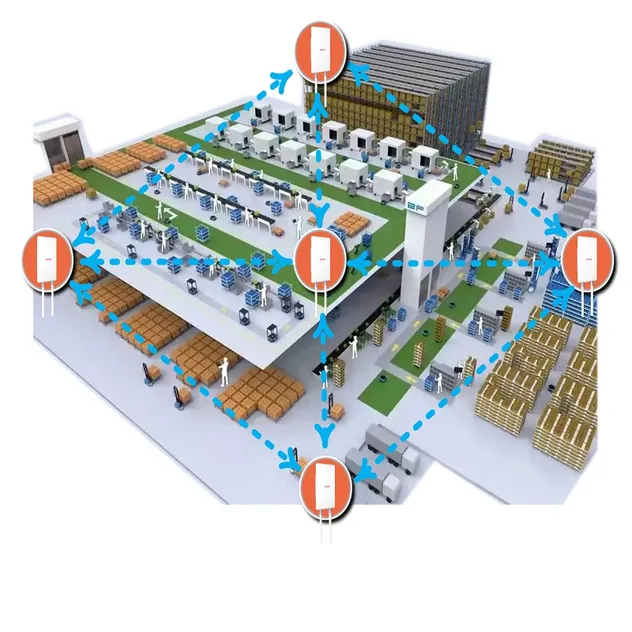

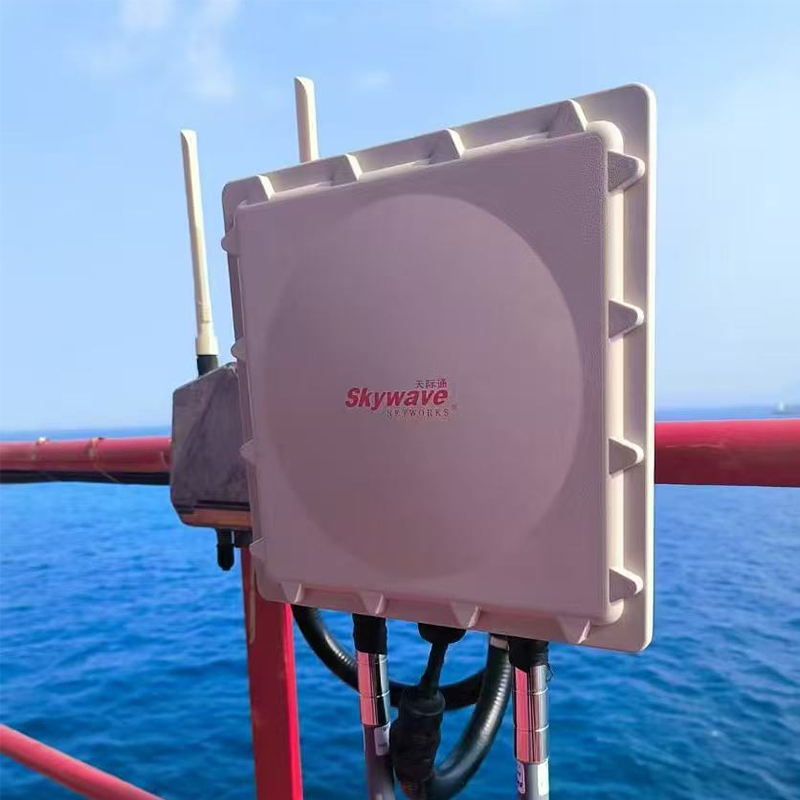

Success Cases

Packing & Delivery

Frequently Asked Questions

Q1: What is the maximum wireless transmission rate? A: The SW8000CBE supports a wireless transmission rate of up to 867Mbps based on the IEEE802.11ac 2T2R MIMO architecture.

Q2: Can it withstand extreme weather conditions? A: Yes, it features an IP68 integrated fully enclosed design and can operate in temperatures ranging from -50℃ to +80℃.

Q3: Do you support product customization? A: Yes, we support on-demand customization including LOGO, color, and appearance size customization.

Q4: What are the main application areas for this base station? A: It is ideal for long-distance backbone networks in oil fields, electric power, water conservancy, and safe city video surveillance.

Q5: What payment methods are accepted? A: We support various methods including T/T, Western Union, Paypal, and cash. Specific details can be negotiated.

Q6: How is the device powered? A: The device supports Gigabit PoE (Power over Ethernet) power supply, which simplifies outdoor construction and maintenance.
