Outdoor Carrier-Grade Antenna-Integrated Wireless Base Station

Customization:	Available
Type:	Base Station
Work Mode:	Ap Bridge,Bridge,Station,Station Bridge,Station Wd

Send Inquiry

Product Description

Product Overview

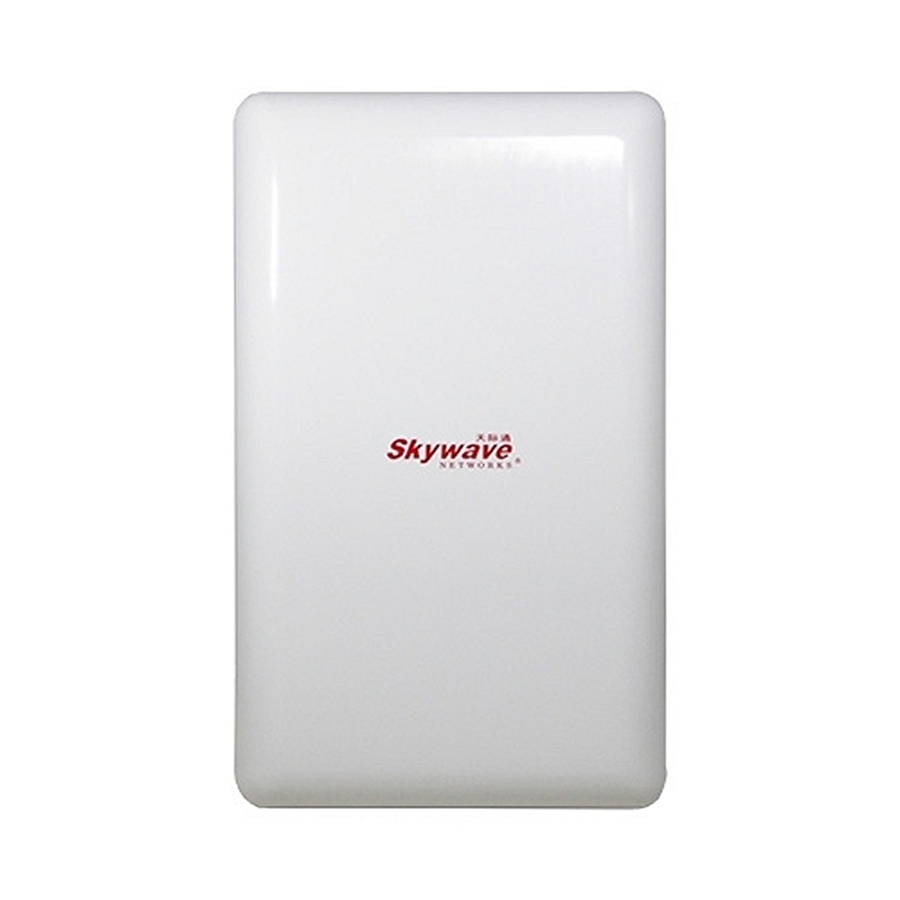

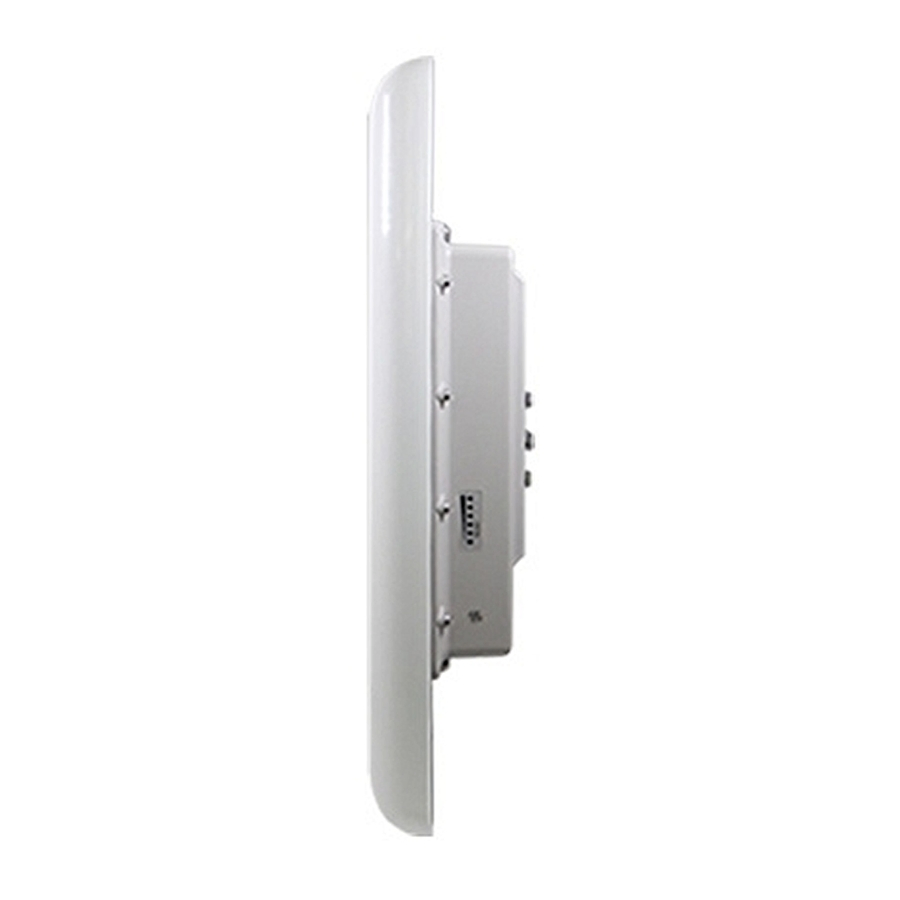

The SW8000CBU is an outdoor carrier-grade antenna-integrated wireless base station that operates in the 5GHz unlicensed frequency band. Compliant with the IEEE802.11ac standard, it features a high-performance Qualcomm Atheros processor and MIMO technology. Supporting a wireless transmission rate of up to 867Mbps, it is backward compatible with 802.11a/n standards. With an RF power output of up to 2500mW and a high-gain 22 MIMO panel directional antenna, it is ideal for long-distance backbone transmission and high-definition video surveillance in industrial environments like oil fields, power grids, and smart cities.

This product supports Point-to-Point (PTP) and Point-to-Multipoint (PTMP) applications. Housed in a durable cast aluminum shell, it is designed for all-weather operation with IP68 protection against wind, rain, lightning, and dust. Its PoE-based design simplifies installation, reducing construction costs and transmission loss.

Basic Information

Model NO.

SW8000CBU

WiFi Antenna Type

Built-in

Transmission Rate

>200Mbps

Voltage

AC:100-240V

Antenna Gain

16dBi 90-Degree Dual-Polarized Sector

Color

White

Certification

ISO9001, RoHS, FCC, CE

Max Working Rate

867Mbps

Frequency Band

4920 ~ 6100MHz

IP Rating

IP68

Operating Temp

-50 °C to +80 °C

RF Power Output

2*500MW

Technical Specifications

RADIO FREQUENCY & DATA
Frequency Band	IEEE802.11a/n/ac: 4920~ 6100MHz
Channel Width	5/10/20/40/80MHz
RF Power Output	2*500mW
Sensitivity	802.11ac: -96 dBm@MCS0, -72dBm@MCS9
Modulation	OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; DSSS
Working Mode	AP Bridge, Bridge, Station, Station WDS, Mesh
Security	WEP/WPA/WPA2/AES/TKIP/EAP, Private Protocol Encryption
HARDWARE & ENVIRONMENT
CPU / RAM	QCA9557 720MHz / 128MB DDR2
Network Interface	1*Gigabit PoE Ethernet port
Dimensions	450×270×90mm
Weight	2.8Kg
Protection	IP68 Enclosure, 6KV Surge Protection, 20KV Air Static Protection
Ventilation	Integrated 304 Stainless Steel Pressure Relief Valve

Product Advantages

Long Distance Transmission: Integrated high-gain antenna achieves distances over 15 kilometers.
Stable Performance: MTBF of over 200,000 hours ensures continuous industrial-grade operation.
Advanced Protocol: Supports proprietary TDMA for enhanced point-to-multipoint efficiency.
Smart Management: BeamForming technology suppresses interference; WMM (QoS) prioritizes voice and video.
All-Weather Reliability: IP68 metal cast aluminum housing with built-in ventilation valve for pressure balance.
Easy Setup: 5-level LED signal strength indicator for rapid alignment and deployment.

Frequently Asked Questions

Can I customize the product with my own logo?

Yes, we support on-demand customization, including logo branding, color adjustments, and specific hardware sizing to meet your requirements.

What is the maximum transmission distance for this device?

With high transmission power and the integrated high-gain antenna, the device can achieve a maximum transmission distance of over 15 kilometers in optimal conditions.

How does the device handle extreme weather conditions?

The unit features an IP68-rated metal cast aluminum housing and a stainless steel pressure relief valve to balance air pressure and prevent condensation, operating reliably from -50°C to +80°C.

What payment and shipping methods are available?

We support various payment methods including T/T, Western Union, and PayPal. Shipping can be arranged via sea, air, or land based on your specific volume and urgency.

Is the device compatible with standard WiFi devices?

Yes, it is fully compliant with IEEE 802.11a/n/ac standards and supports mobile phone Wi-Fi access management as well as standard wireless roaming.

How can I get a formal quotation for my project?

Please provide your specific requirements and deployment environment. We will customize a solution and provide a detailed price quote based on your needs.
