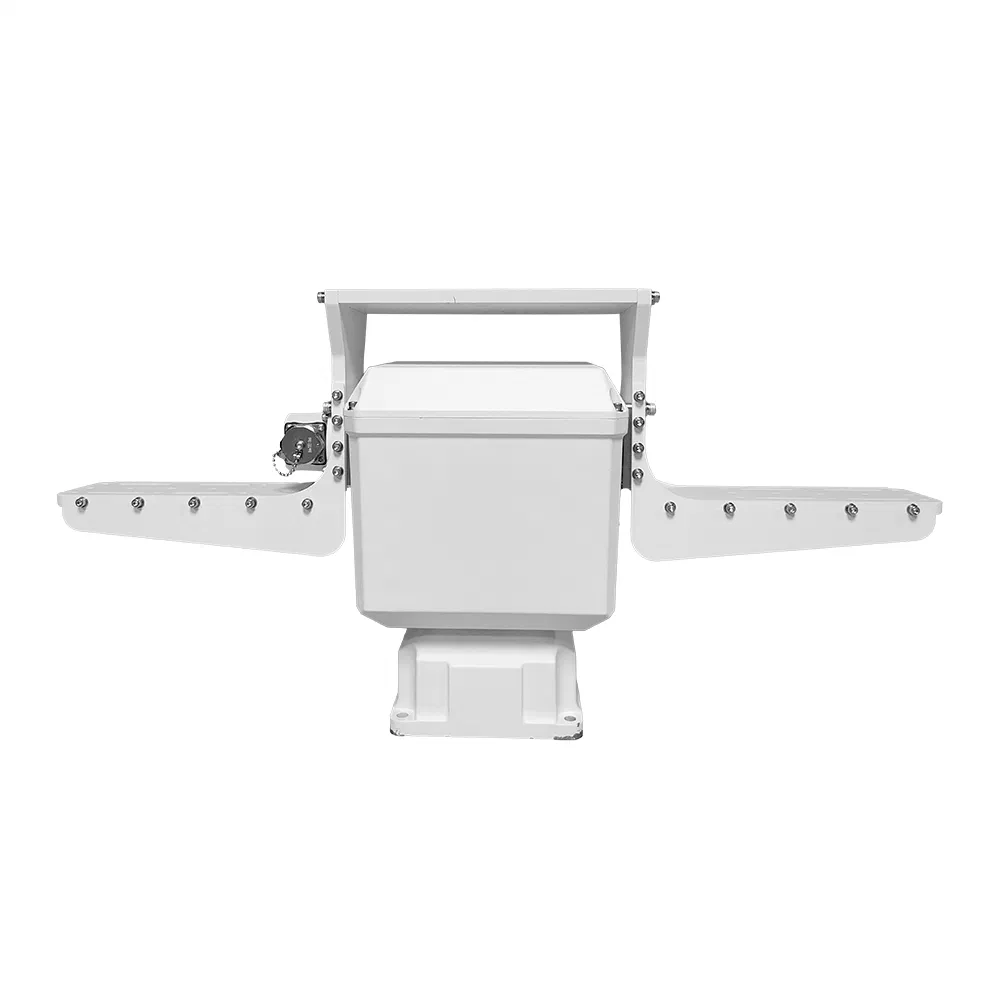

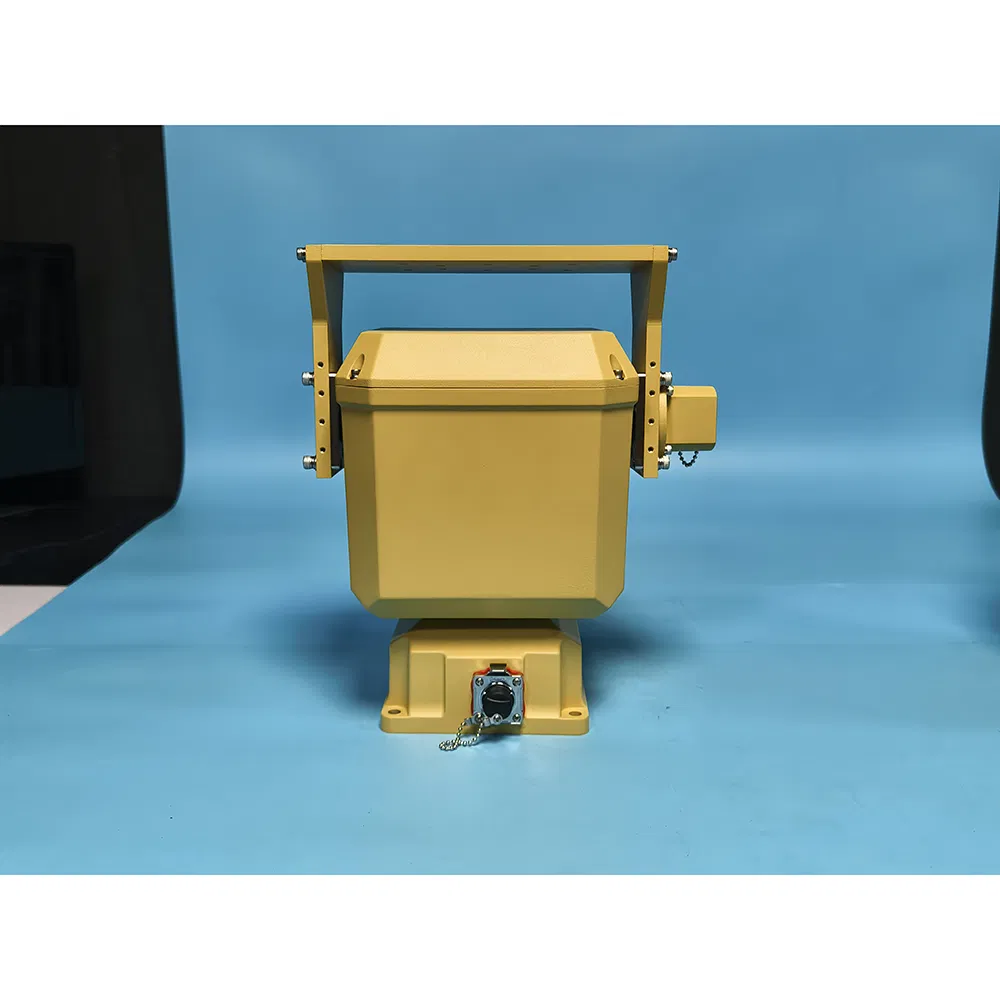

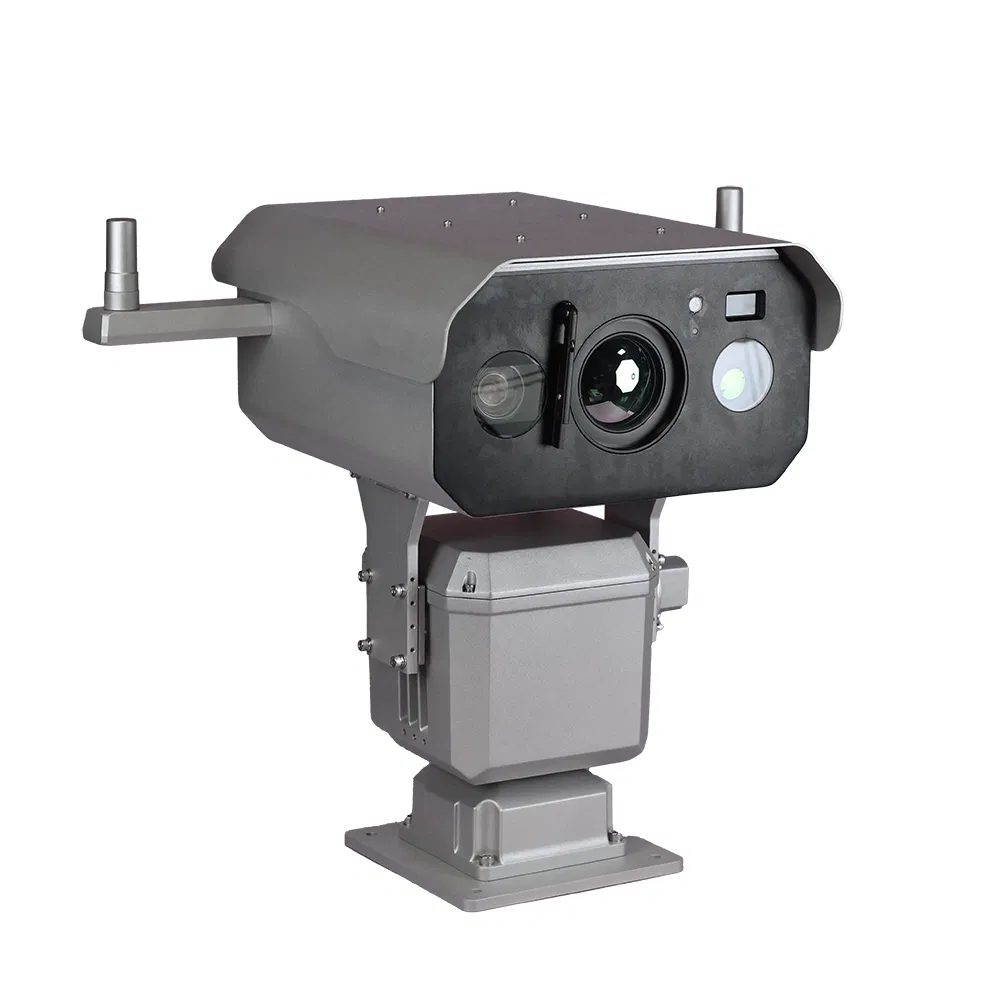

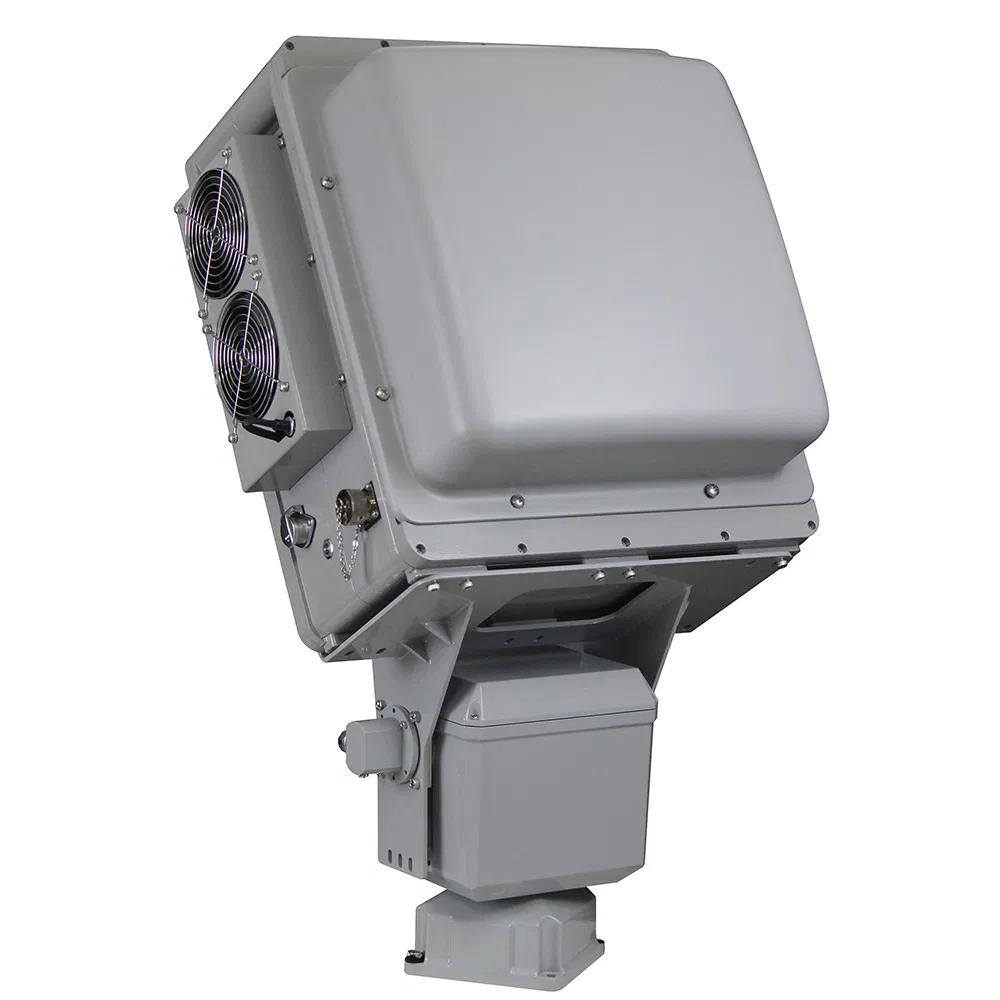

Outdoor Motorized Pan Tilt System with Advanced Load Capacity

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt

Product Description

Basic Information

Model NO.
SOAR1040
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1080P
Kind
Autofocus Lens
Feature
Waterproof, High Definition, Vandal-proof
Effective Distance
≥30m
Sensor Size
1/3 inch
Remote Control
With Remote Control

Product Description

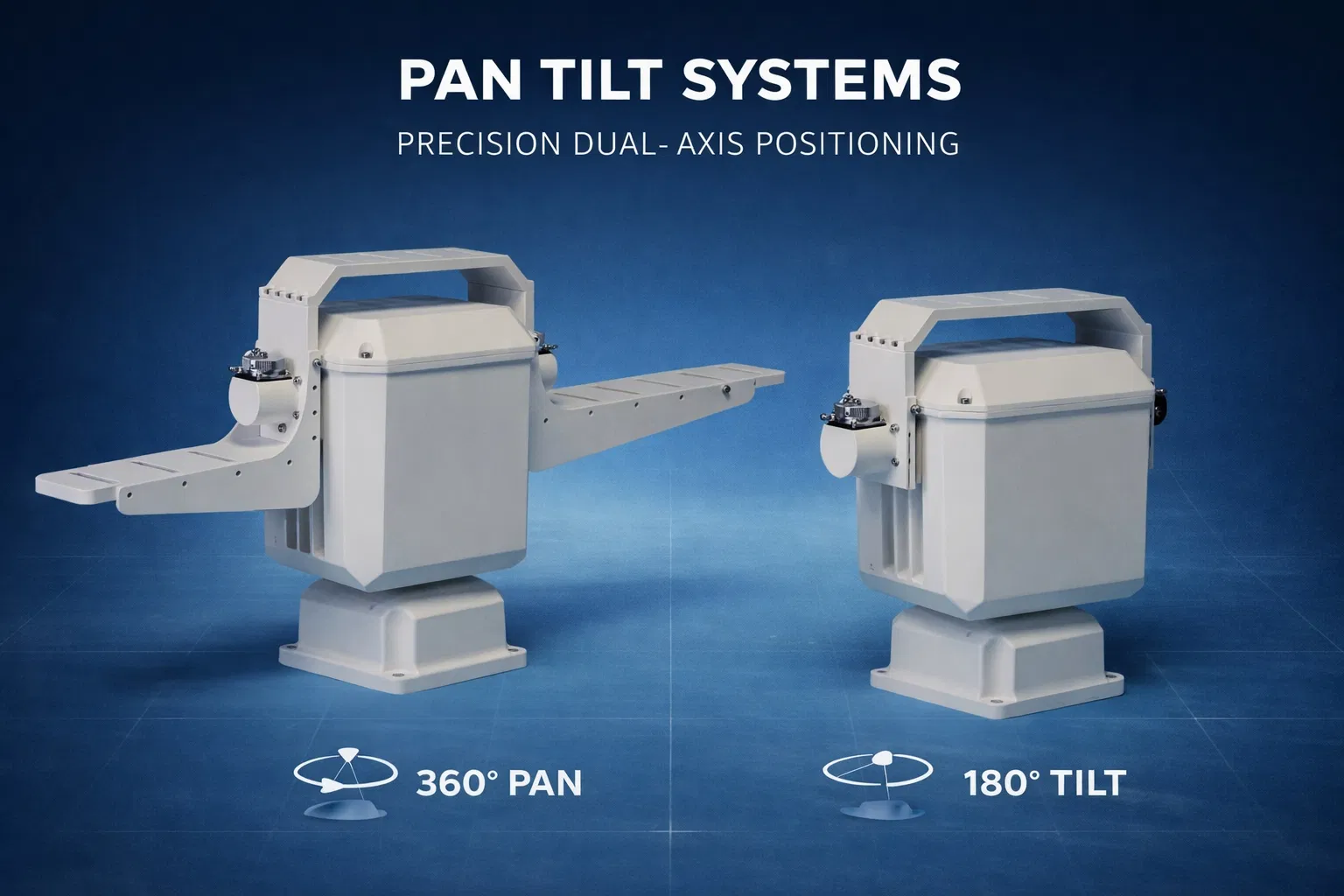

Heavy Duty Pan Tilt System

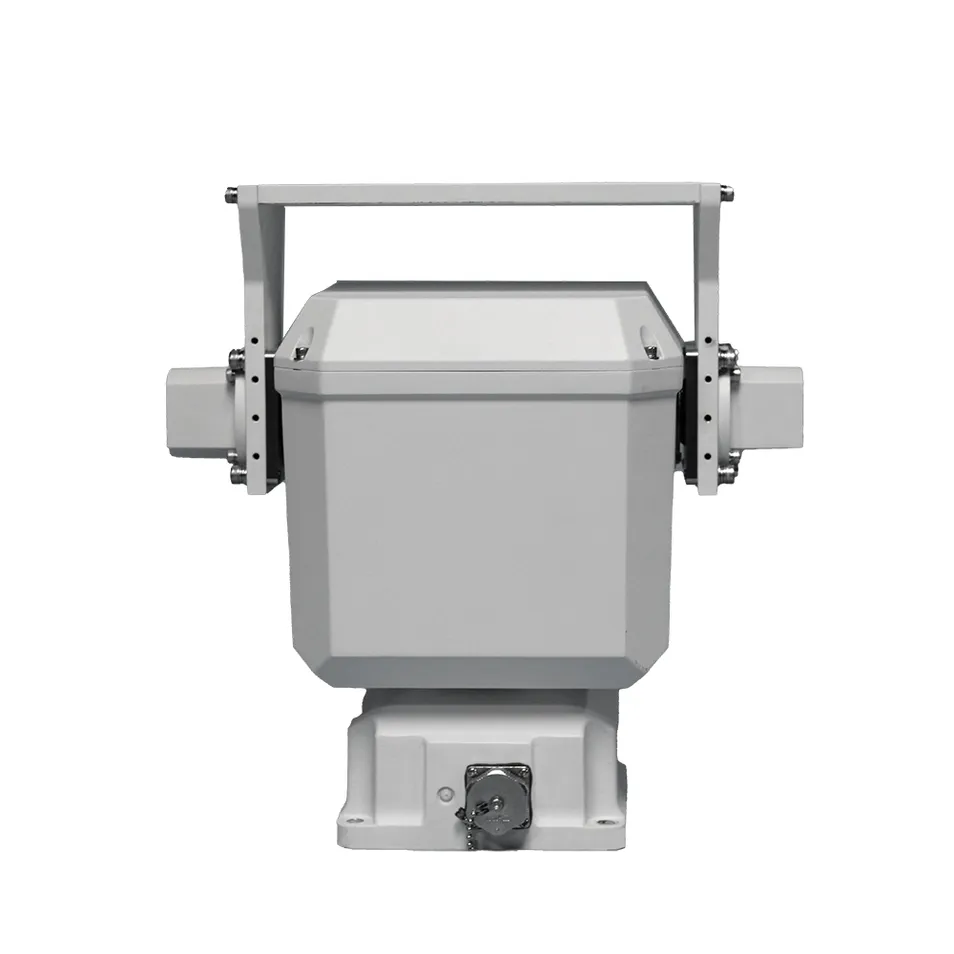

Mid-load Heavy Duty Positioner

Mid-load Heavy Duty Pan Tilt Positioner

The system accommodates various single payloads using a versatile bracketing system for top mounting. It is designed for easy integration, serving as an open platform that offers the necessary flexibility while reducing development and integration efforts.

This unit has demonstrated its reliability in numerous mission-critical applications for positioning cameras, lasers, antennas, and other instruments in both stationary and mobile settings. Features a harmonic gear drive, ensuring high precision and long life. Additionally, it can be delivered as a complete system with all required sensors if needed.

Product Highlights

  • Supports up to 30kg payload for heavy-duty multi-sensor integration
  • Features high-precision harmonic drive with zero-backlash performance and 0.005° positioning accuracy.
  • Provides 360° continuous pan and ±90° tilt with ultra-smooth low-speed control.

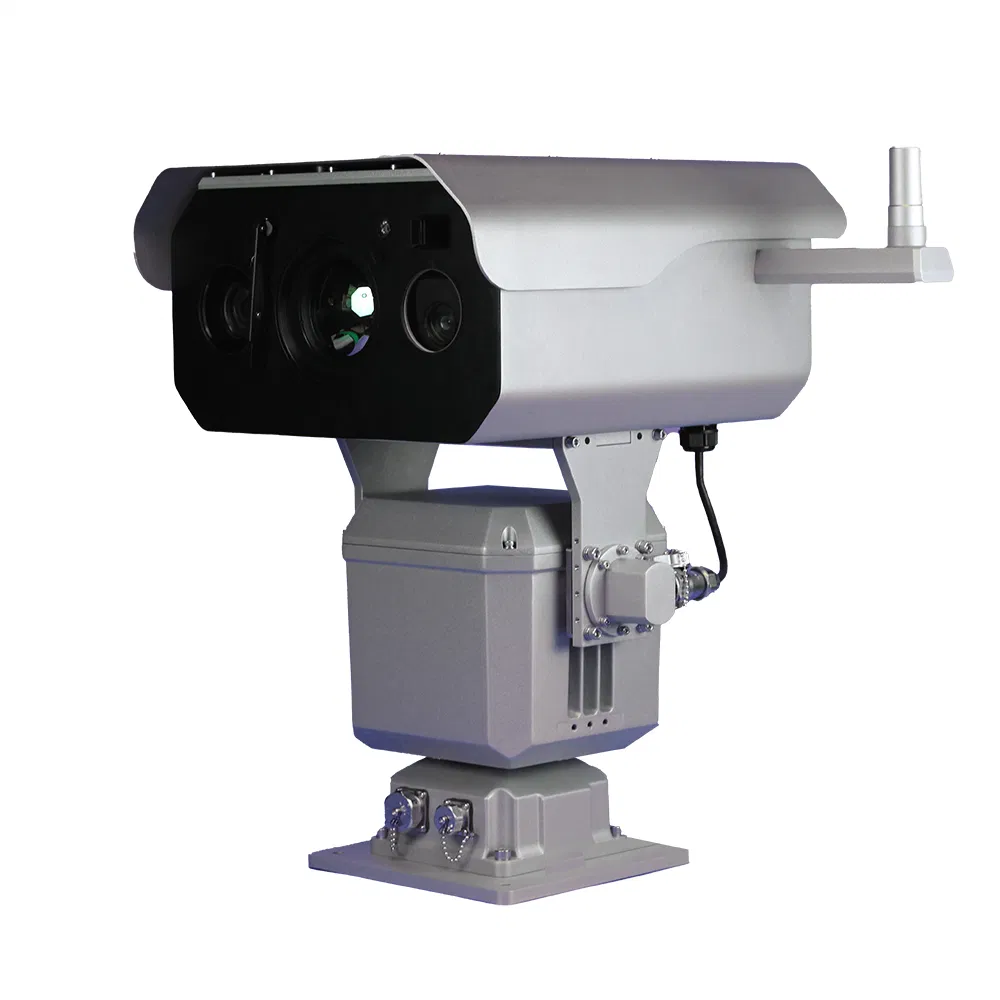

  • Enables long-range surveillance with thermal imaging, 120× optical zoom, and optional 10km laser range finder.
  • Optional built-in AI supports human, vehicle, vessel, and drone detection with auto tracking.
  • IP67-rated rugged design ensures reliable operation from –40°C to +70°C in harsh environments.
  • Pelco-D protocol compatibility and easy integration

Specifications

Payload
Top PayloadUp to 30kg
Side PayloadUp to 30kg
Pan Tilt Performance
Pan/Tilt RangePan: 0° to 360° endless; Tilt: –90° to +90°
Pan/Tilt Speed10kg: 0.05-60°/s; 20kg: 0.05-50°/s; 30kg: 0.05-40°/s
Positioning AccuracyPan: 0.005°; Tilt : 0.01°
CommunicationRS-422/RS-485/RJ45; Protocol: Pelco-D
Interfaces & General
Input PortPower (DC24V/48V), Network (RJ-45), Alarm, Audio, RS-485
Output PortPower (DC24V, 4A), Network, Audio, CVBS Analog
ProtectionIP67; TVS 6000V Lightning & Surge Protection
Working Environment-40°C to +70°C; Humidity 95% or less
Dimensions / Weight335mm × 192mm × 337.5mm / Approx. 9kg

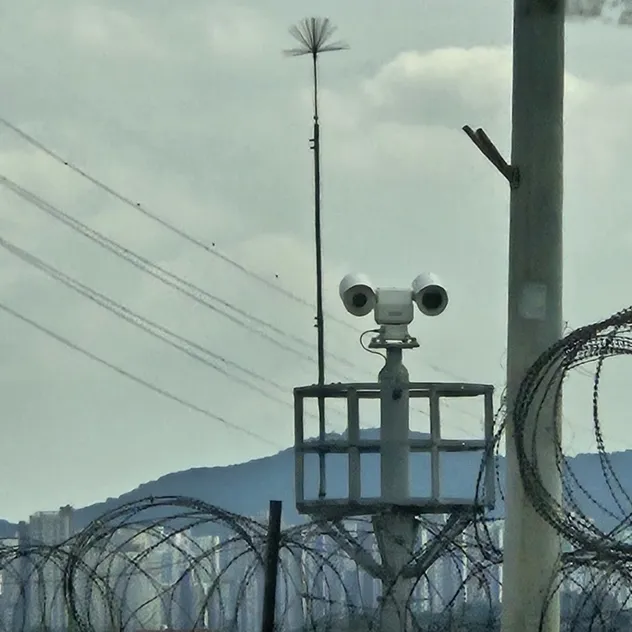

Application Scenarios

Company Overview

Founded in 2005, our company specializes in designing and developing PTZ camera systems and advanced optical imaging solutions. We serve demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. Our business also focuses on mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision.

With a dedicated Optical Camera Division, we focus on high-performance zoom and thermal imaging cameras, ranging from core components to complete, customized system solutions. Our team of over 160 professionals includes 62 R&D experts with an average of 11 years of industry experience, committed to continuous innovation and collaboration.

Frequently Asked Questions

What is the estimated delivery timeline?
For small orders, delivery typically requires 7 working days. For OEM orders, please confirm with our sales team for a specific schedule.
Is there a minimum order quantity (MOQ)?
The MOQ varies depending on the specific product model. Please contact us for details regarding your project requirements.
What payment methods do you accept?
We accept standard payment terms, including T/T (Telegraphic Transfer).
What is the warranty coverage for your products?
Our PTZ products and camera modules are typically covered by a 1-year warranty against manufacturing defects.
Do you provide after-sales technical support?
Yes, we offer lifetime technical support. Our engineers are available to respond to your technical inquiries within 24 hours.
Can the system be customized for specific payloads?
Absolutely. Our Pan/Tilt systems are designed as open platforms that can be customized to accommodate various sensors, lasers, and antennas.
