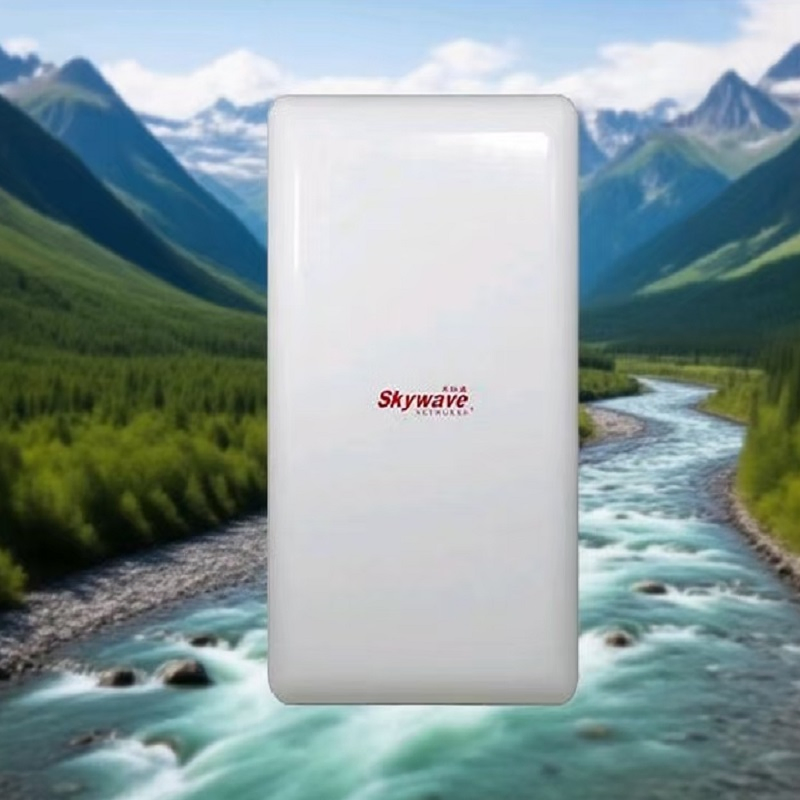

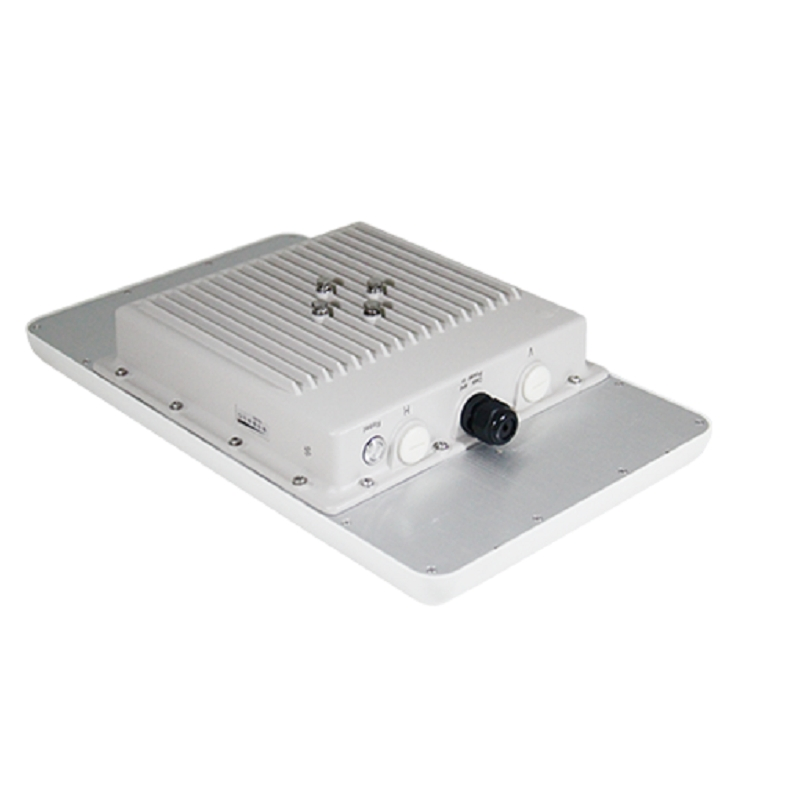

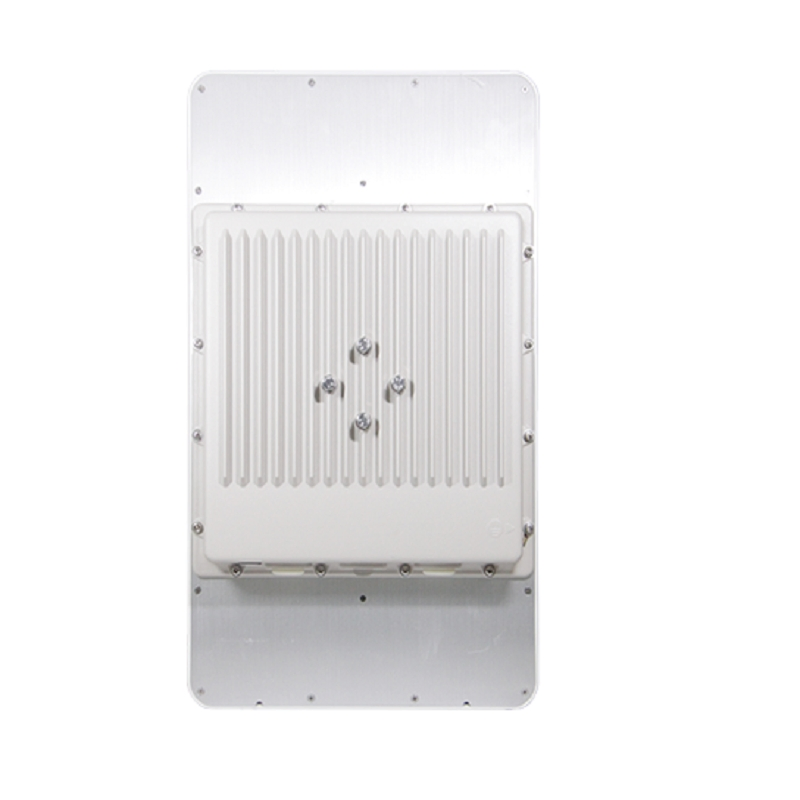

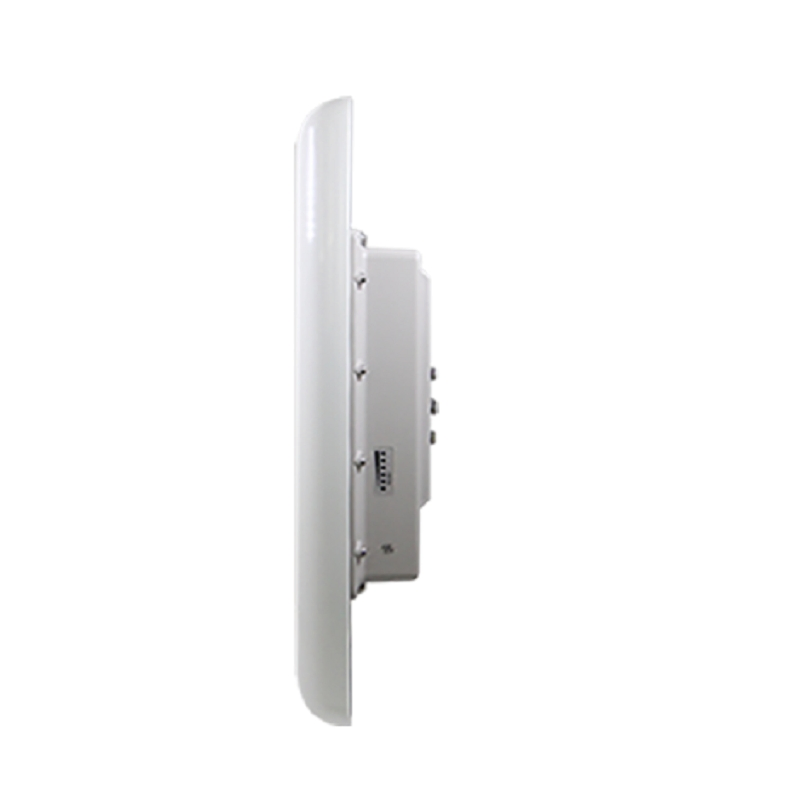

Outdoor Telecom Grade Antenna Integrated Wireless Base Station with Extremely High Transmission Speed

Customization:	Available
Type:	Wireless Base Station
Work Mode:	AP+STA

Basic Information

Model NO.	SW8000CBU
WiFi Antenna Type	Built-in
Transmission Rate	867Mbps
Voltage	AC:100-240V
Antenna Gain	16dBi
Color	White
Certification	ISO9001, RoHS, CE
Origin	China

Product Description

SW8000CBU is an outdoor carrier-grade antenna-integrated wireless base station that operates in the 5GHz unlicensed frequency band. It is a high-performance network device compliant with the IEEE802.11ac standard, utilizing a Qualcomm Atheros processor and 2T2R MIMO technology.

With a wireless transmission rate of up to 867Mbps and RF power output reaching 2500mW, this device integrates a 22 MIMO panel directional antenna. It is engineered for long-distance backbone network transmission and real-time high-definition video surveillance.

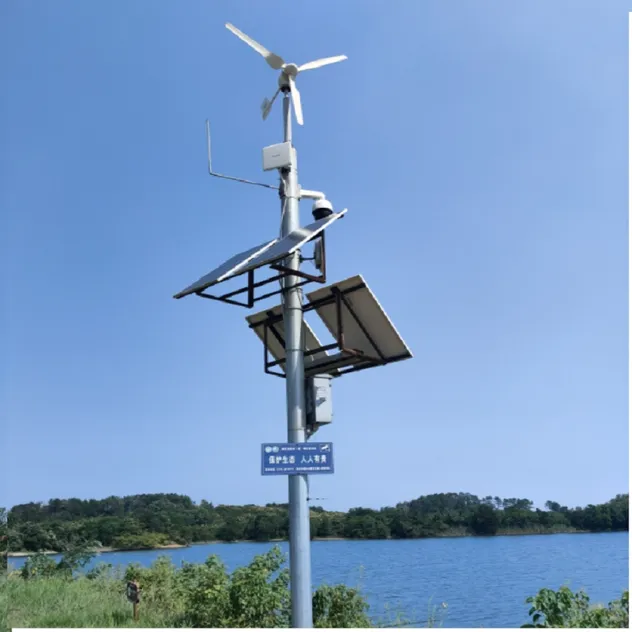

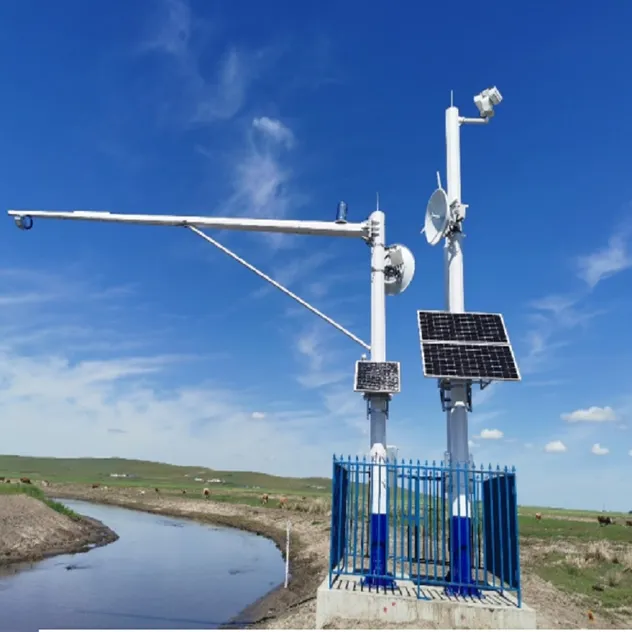

Application Scenarios

Ideal for oil fields, electric power, water conservancy, forestry, industrial enterprises, safe cities, and intelligent transportation systems.

Technical Parameters

Radio Frequency
Frequency Band	IEEE802.11a/n/ac: 4920~ 6100MHz
RF Power Output	2*500mW
Sensitivity	802.11ac: -96 dBm@MCS0, -72dBm@MCS9
Data and Software
Max Working Rate	867Mbps
Working Mode	APBridge, Bridge, Station, StationBridge, WDS, Mesh
Security	WEP/WPA/WPA2/AES/TKIP/EAP
Hardware Specifications
CPU / RAM	720MHz / 128MB DDR2
Dimensions	450×270×90mm

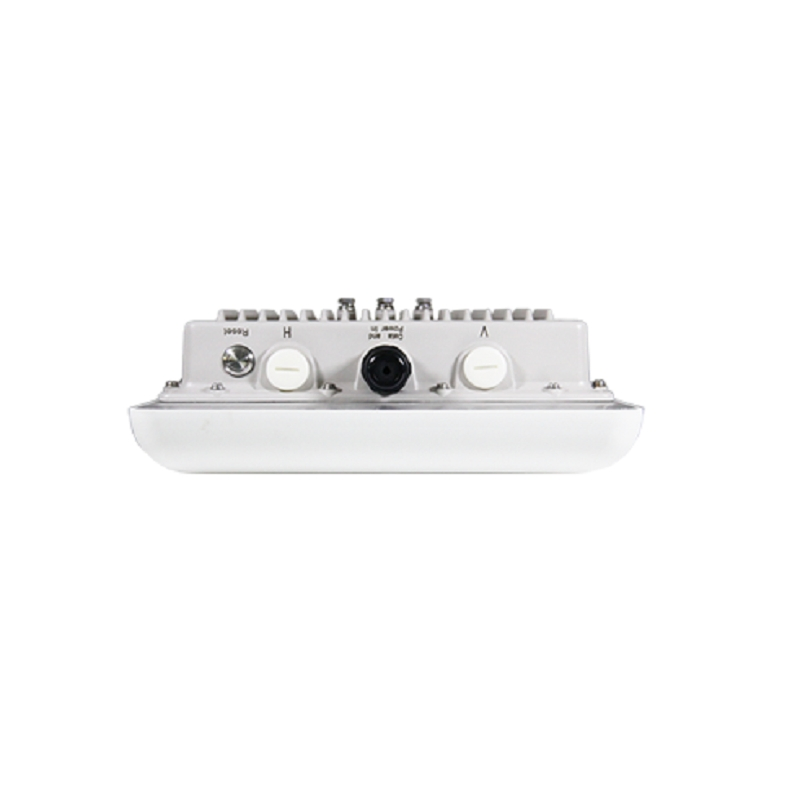

Interface	1*Gigabit PoE Ethernet port
Environmental	IP68 Waterproof and Dustproof

Product Advantages

🚀 High Performance & Reliability

Stable Operation: MTBF over 200,000 hours ensures zero-crash stability.
Long Distance: High transmission power allows for distances over 15 kilometers.
Gigabit Speed: Adaptive Gigabit Ethernet port with PoE support.
TDMA Protocol: Enhances point-to-multipoint efficiency significantly.
BeamForming: Superior interference suppression for higher data rates.
Robust Protection: IP68 rating with 6KV surge and 20KV electrostatic protection.

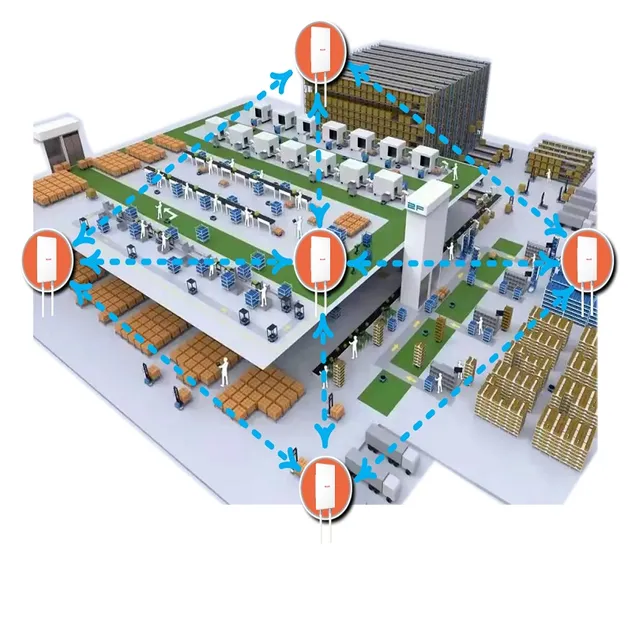

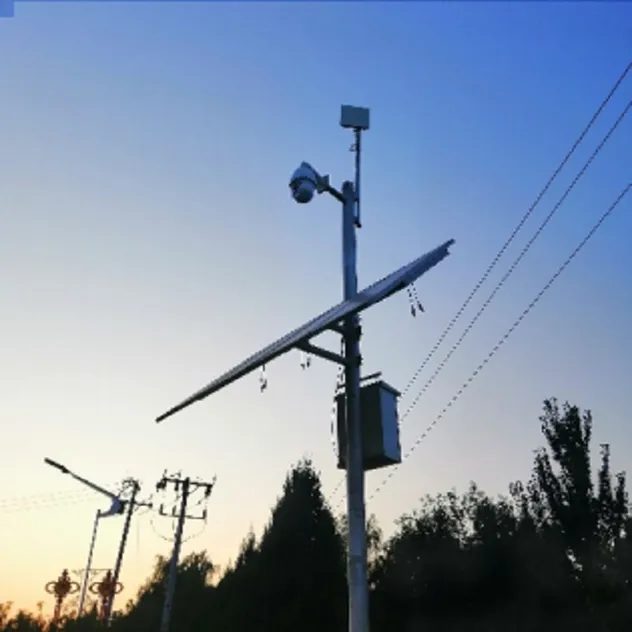

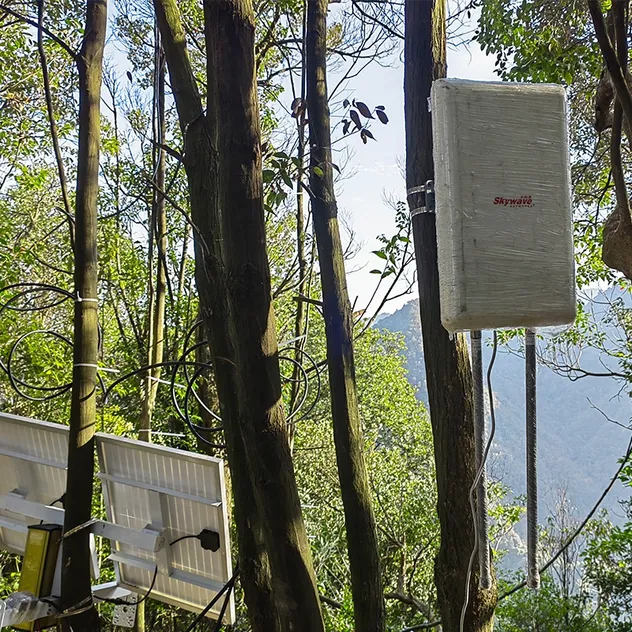

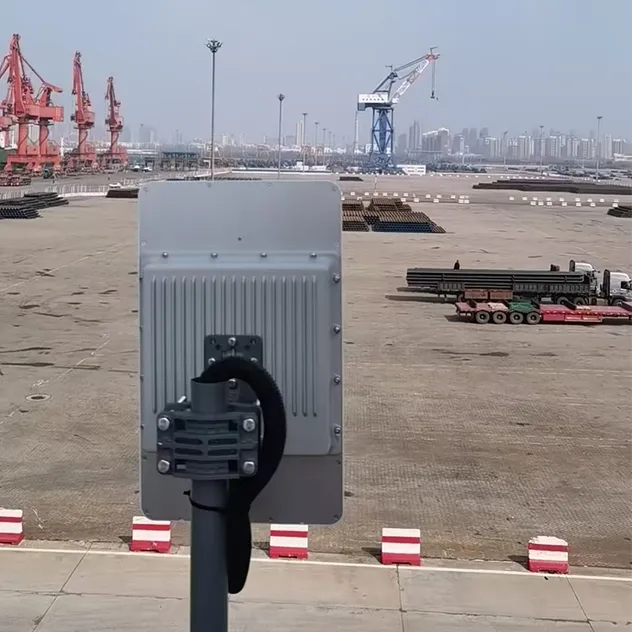

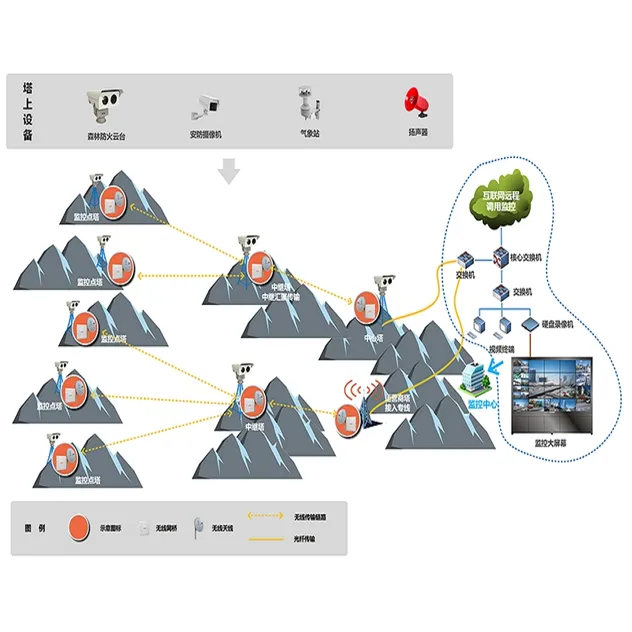

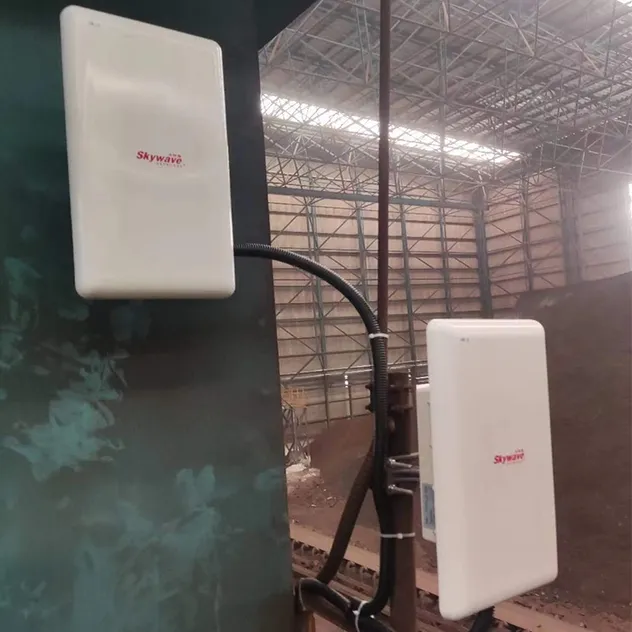

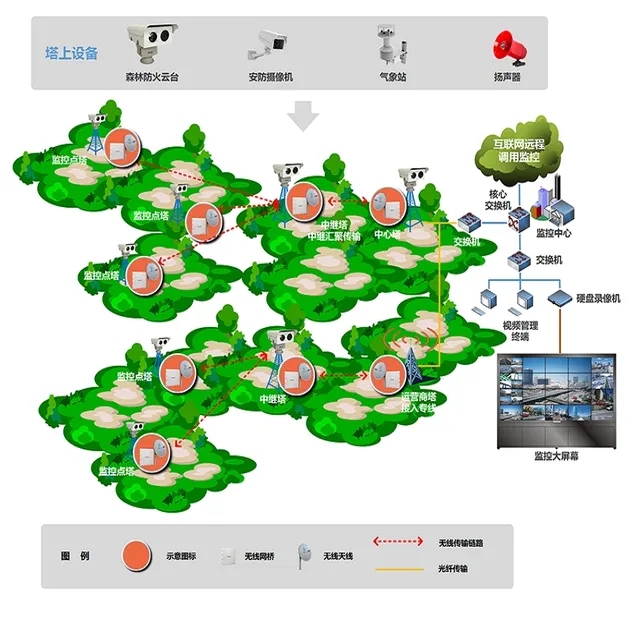

Success Cases

Packing & Delivery

Frequently Asked Questions

Q1: What is the maximum transmission distance of this device?

A: Thanks to its high transmission power and integrated 16dBi antenna, it can achieve a maximum transmission distance of over 15 kilometers in clear line-of-sight conditions.

Q2: Does it support Power over Ethernet (PoE)?

A: Yes, it features a Gigabit adaptive Ethernet port that supports Gigabit PoE power supply, simplifying installation and maintenance.

Q3: Is the SW8000CBU suitable for extreme outdoor weather?

A: Absolutely. It features an IP68-rated fully enclosed design, is dustproof and waterproof, and operates in temperatures ranging from -50℃ to +80℃.

Q4: Can I customize the logo and color for my order?

A: Yes, we support on-demand customization, including LOGO, colors, and appearance size to meet your specific branding requirements.

Q5: What wireless standards does this base station comply with?

A: It is fully compliant with IEEE 802.11a/n/ac standards and is backward compatible with older 802.11a/n network equipment.

Q6: How does the device handle interference in crowded wireless environments?

A: The device utilizes BeamForming technology and dynamic frequency selection (DFS) to automatically scan and select the optimal channel, significantly reducing the impact of interference.

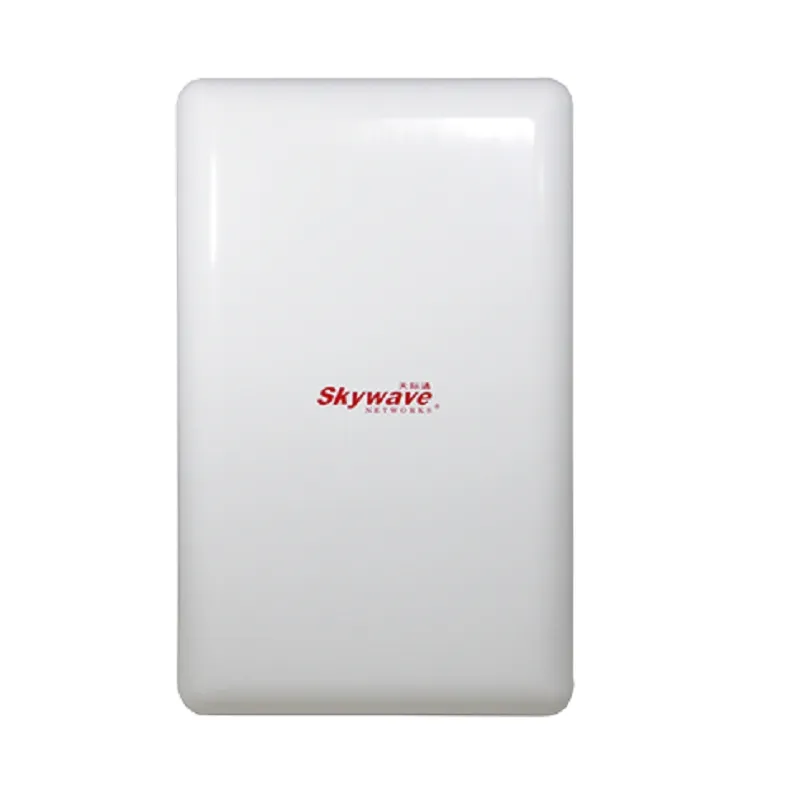

Product Detail
