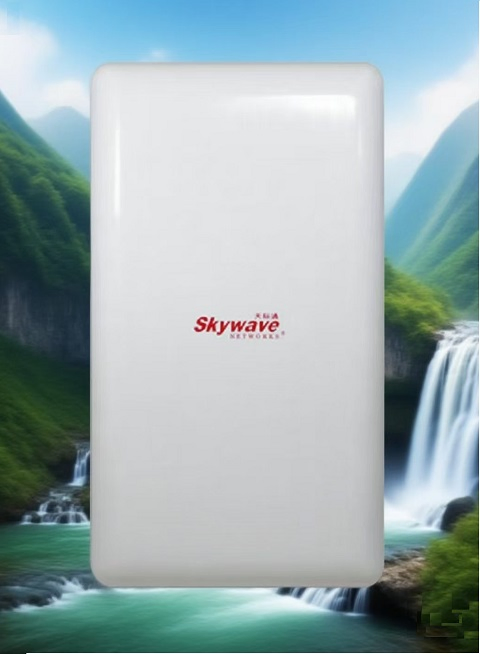

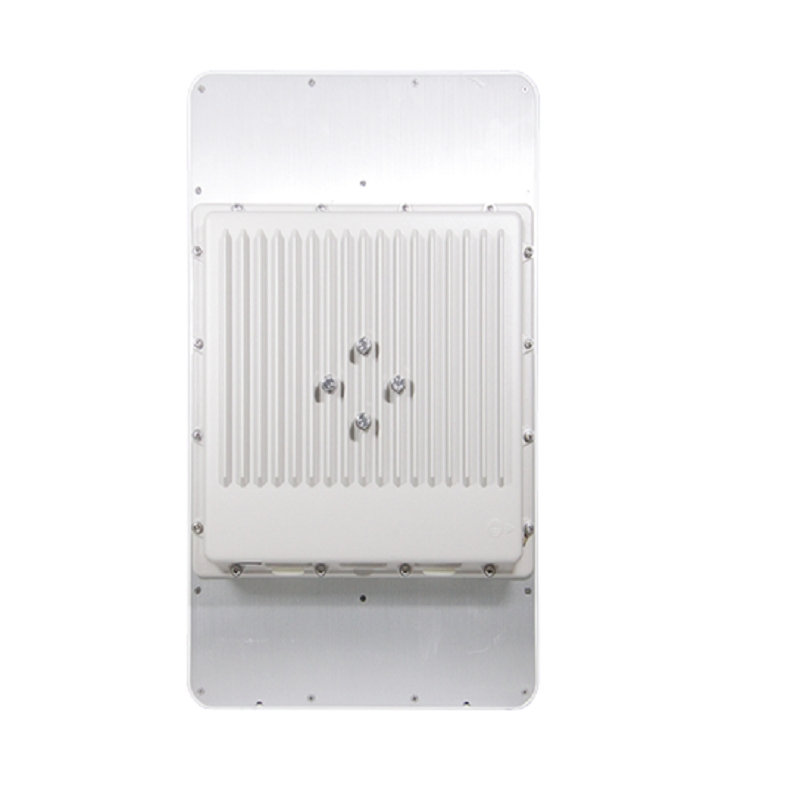

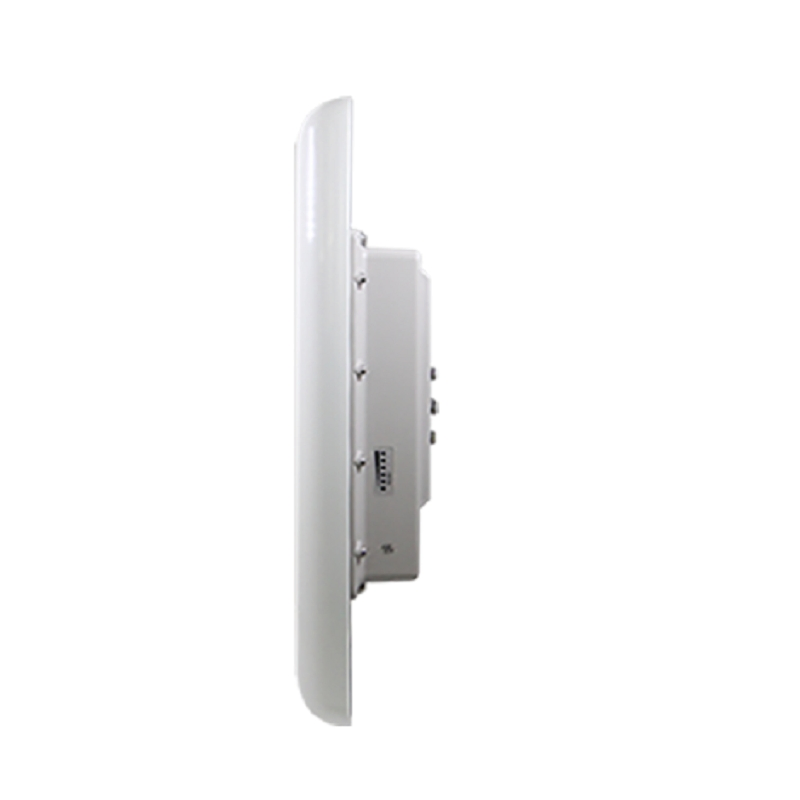

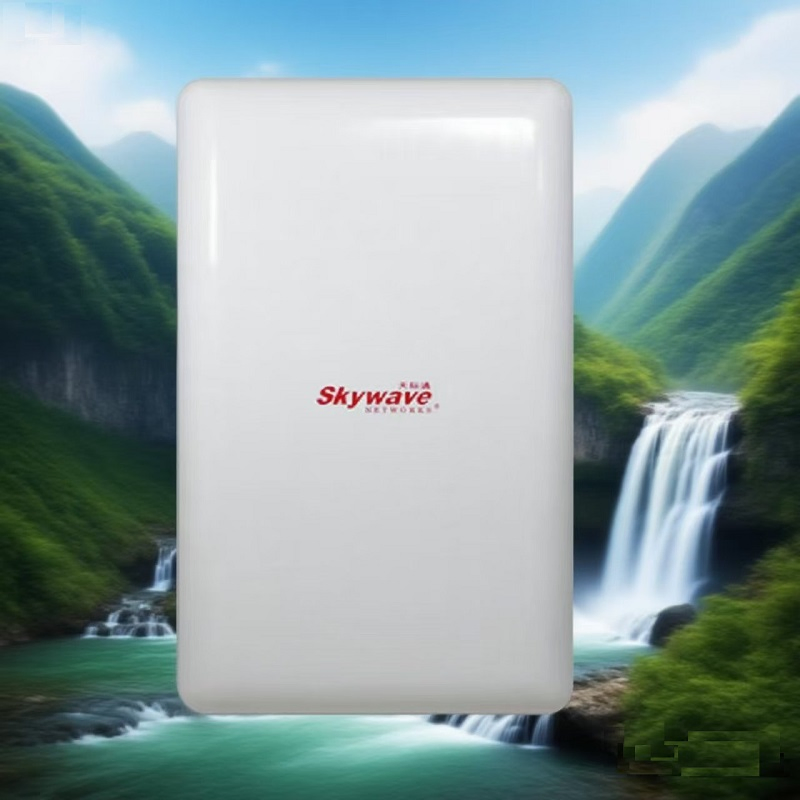

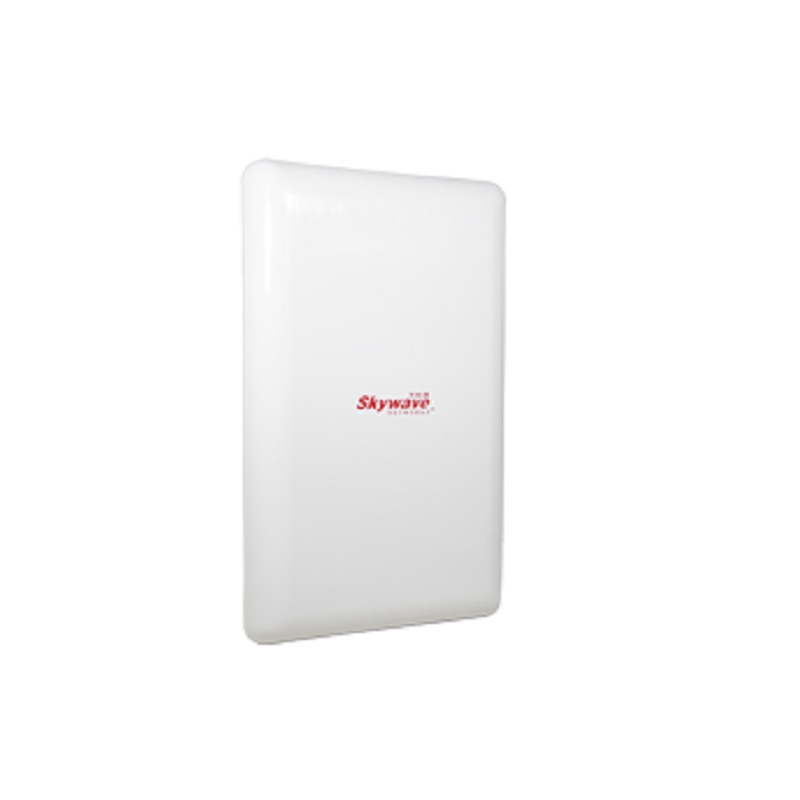

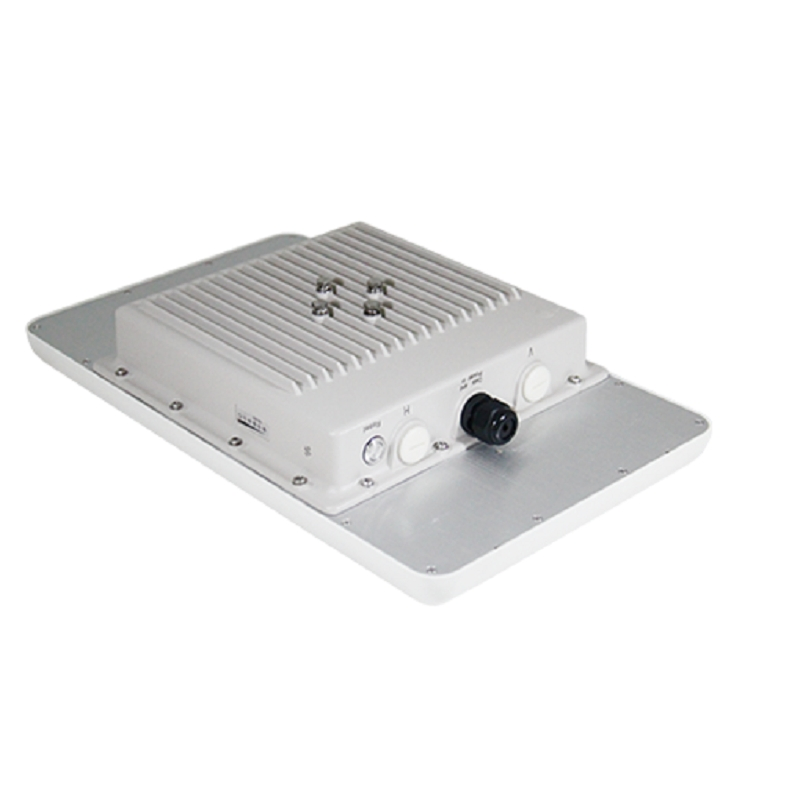

SW8000CBU is an outdoor carrier-grade antenna-integrated wireless base station that operates in the 5GHz unlicensed frequency band. Compliant with IEEE802.11ac standards, it features a high-performance Qualcomm Atheros network processor and MIMO 2T2R technology, supporting transmission rates up to 867Mbps.

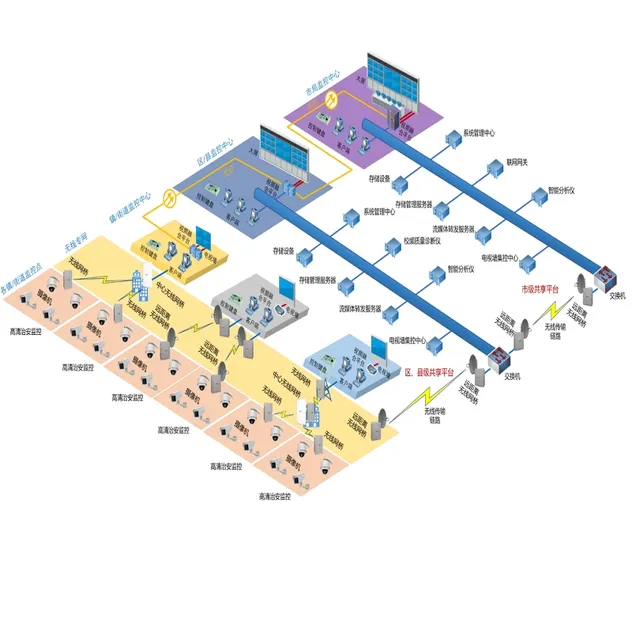

With RF power output reaching 2500mW and sensitivity at -96dBm, the integrated 22 MIMO panel directional antenna makes it ideal for long-distance backbone transmission and high-definition video surveillance in sectors like oil fields, electric power, and smart transportation.

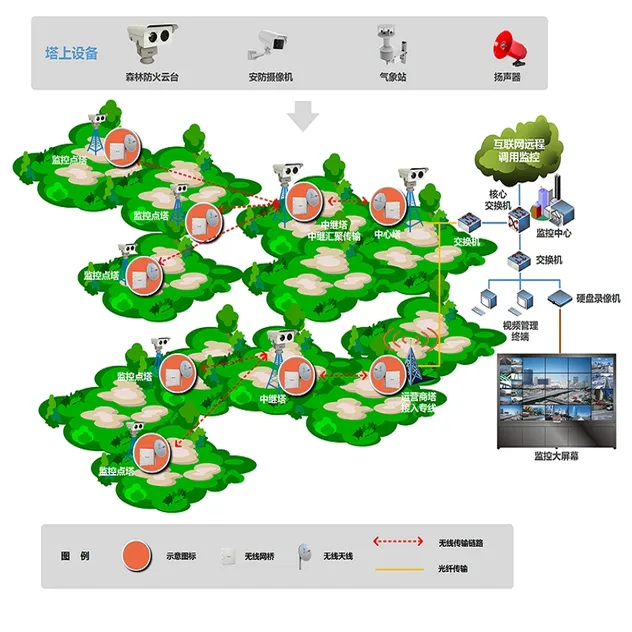

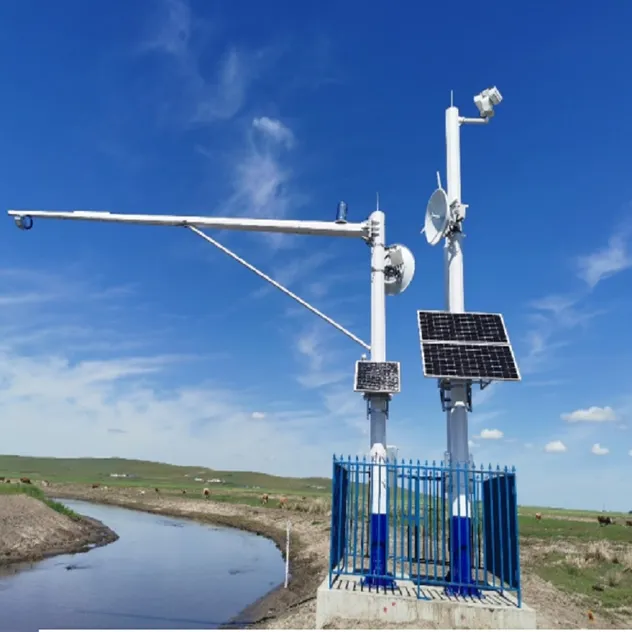

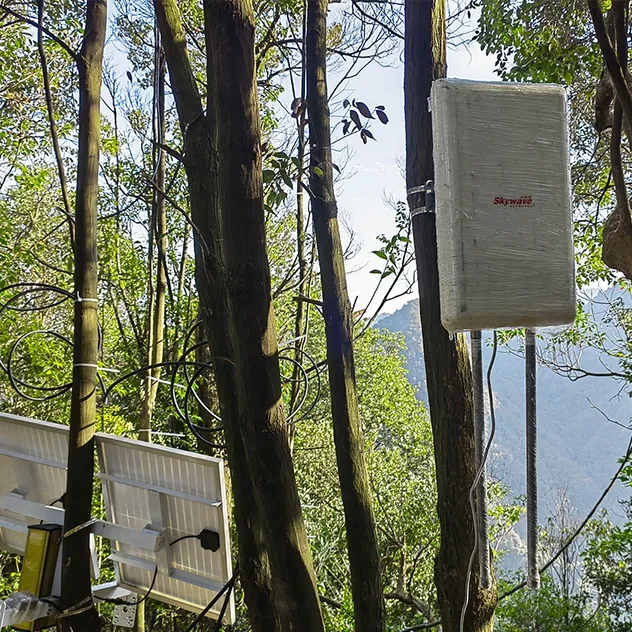

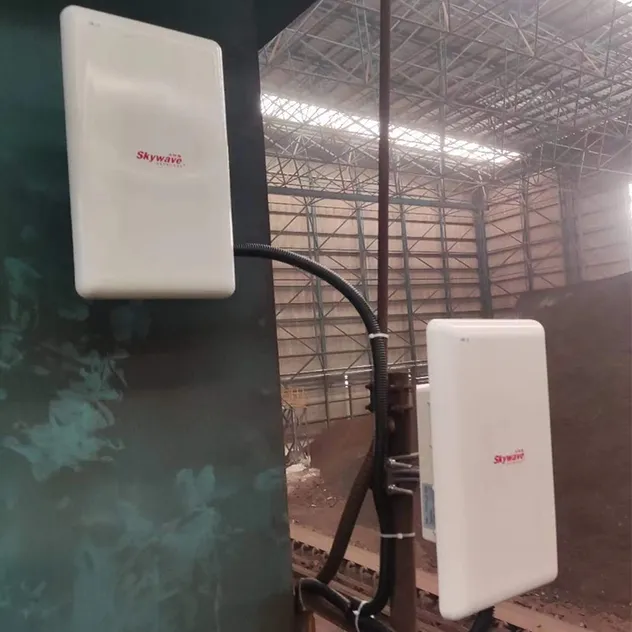

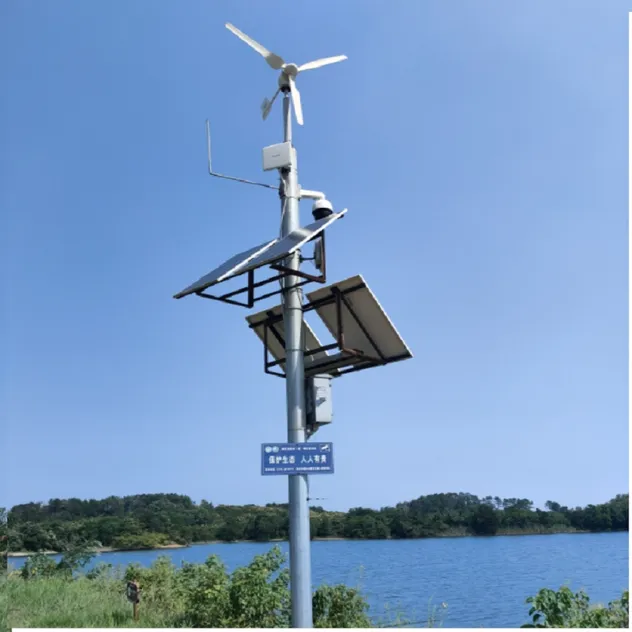

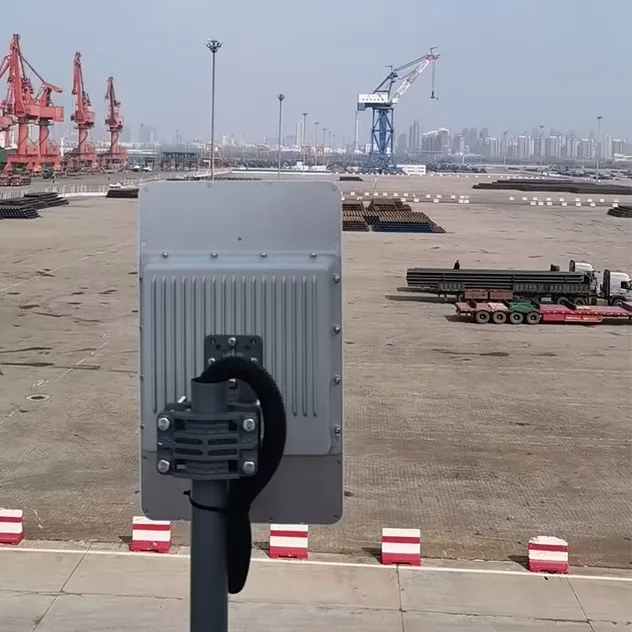

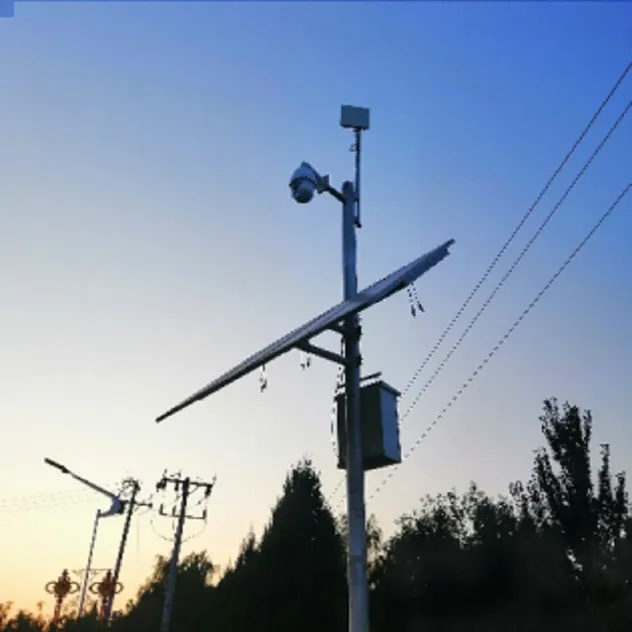

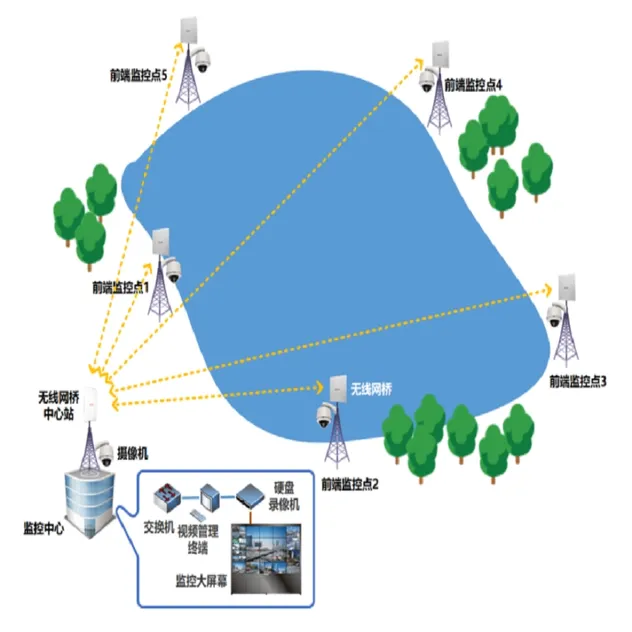

Application Scenarios
Technical Parameters
Radio Frequency & Data
Frequency Band
IEEE802.11a/n/ac: 4920~ 6100MHz
Channel Bandwidth
5/10/20/40/80MHz
RF Power Output
2*500mW
Sensitivity
802.11ac: -96 dBm@MCS0, -72dBm@MCS9
Maximum Rate
867Mbps
Hardware Specifications
CPU / RAM
720MHz / 128MB DDR2
Power Consumption
Max 17W (Gigabit PoE)
Antenna Interface
Built-in 16dBi 90-degree sector antenna
Protection
IP68 Waterproof, 6KV Surge Protection
Operating Temp
-50℃ ~+ 80℃
Product Advantages
Long Distance Transmission distance over 15km with integrated high-gain antenna.
High Stability MTBF over 200,000 hours, ensuring continuous online performance.
TDMA Protocol Enhanced point-to-multipoint efficiency via proprietary protocol.
