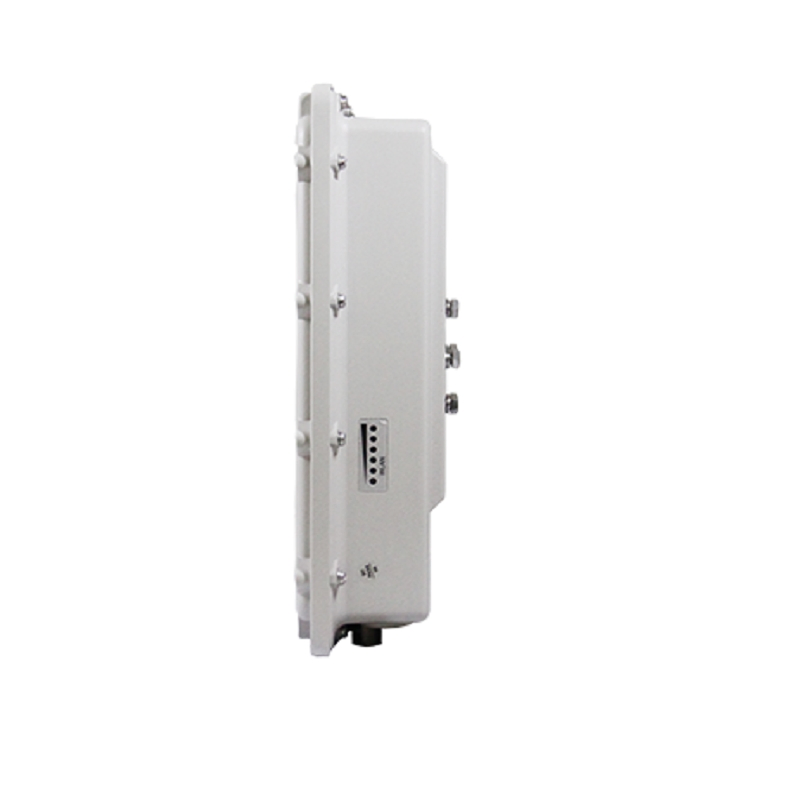

Outdoor Carrier-Grade Wireless Base Station with 128MB DDR2 Memory

Customization:	Available
Type:	Wireless Base Station
Work Mode:	Point-to-Point, Point-to-Multipoint

📋Overview

Model	SW8000CBE
WiFi Antenna Type	External
Transmission Rate	867Mbps
Voltage	AC:100-240V
Antenna Gain	34dBi
Color	White
Certification	ISO9001, RoHS, CE

📍Product Description

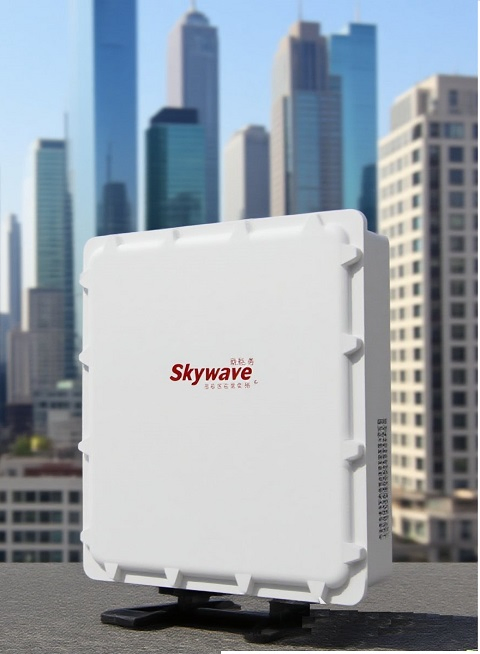

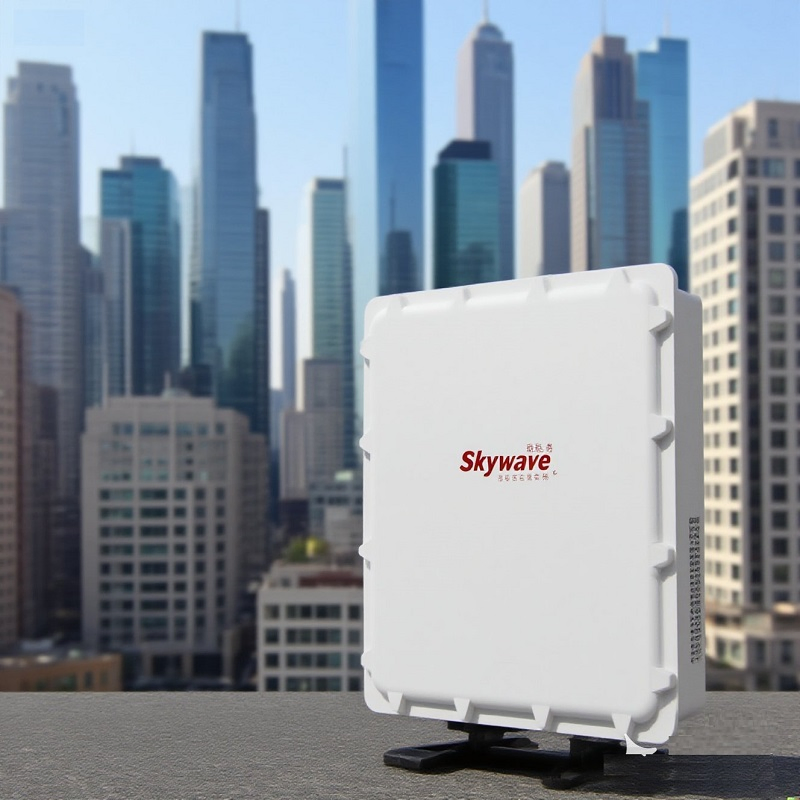

SW8000CBE is an outdoor carrier-grade split-type wireless base station operating in the 5GHz unlicensed frequency band. It is a wireless network device compliant with the IEEE802.11ac standard. The product adopts a high-performance Qualcomm Atheros high-speed network processor and is based on the MIMO technology of IEEE802.11ac, featuring a 2T2R architecture that supports a wireless transmission rate of up to 867Mbps.

It is backward compatible with the 802.11a/n standards, with a maximum combined RF power output of 2500mW and a sensitivity as high as -96dBm. The device is equipped with 2N-type radio frequency interfaces, allowing connection to external antennas of different models according to on-site conditions.

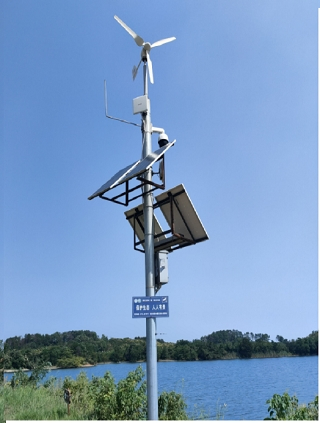

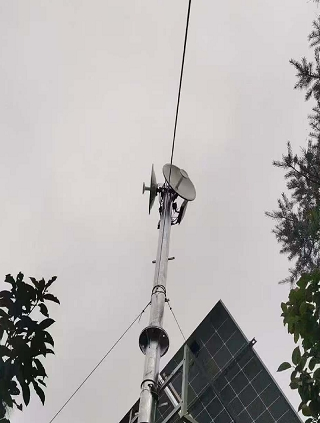

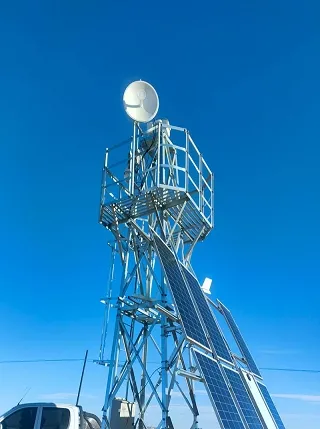

🌐Application Scenarios

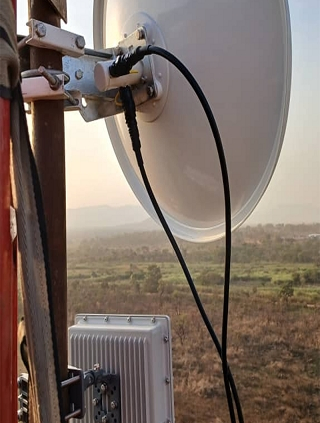

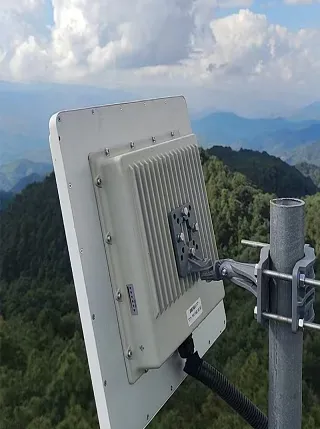

Suitable for long-distance backbone network transmission projects and real-time services with large data flows, such as high-definition video surveillance in oil fields, electric power, water conservancy, forestry, industrial and mining enterprises, safe cities, and intelligent transportation.

⚙Product Parameters

Radio Frequency
Frequency Band	IEEE802.11a/n/ac: 4920~ 6100MHz
Channel	5/10/20/40/80MHz
RF Power Output	2*500mW
Sensitivity	-96dBm @ MCS0 (802.11ac)
Hardware Specifications
CPU	QCA9557-AT4A-R / QCA9882-BR4A-R (720MHz)
RAM	128MB DDR2
Network Interface	1*Gigabit PoE Ethernet port
Antenna Interface	2 * N Seats
Environment	IP68 fully enclosed design
Temperature	Operation: -50℃ to +80℃

🚀Product Advantages

01. High Compatibility: Compliant with IEEE 802.11a/n/ac standards using MIMO and OFDM.

02. Stable Performance: MTBF of over 200,000 hours ensures zero crash reliability.

03. Massive Throughput: Supports rates up to 867Mbps for high-speed data flow.

04. Long Range: High transmission power for backbone network transmission.

05. Advanced Management: Supports TDMA protocol, WMM (QoS), and automatic frequency scanning.

06. Robust Protection: IP68 rating with 6KV surge and 20KV electrostatic protection.

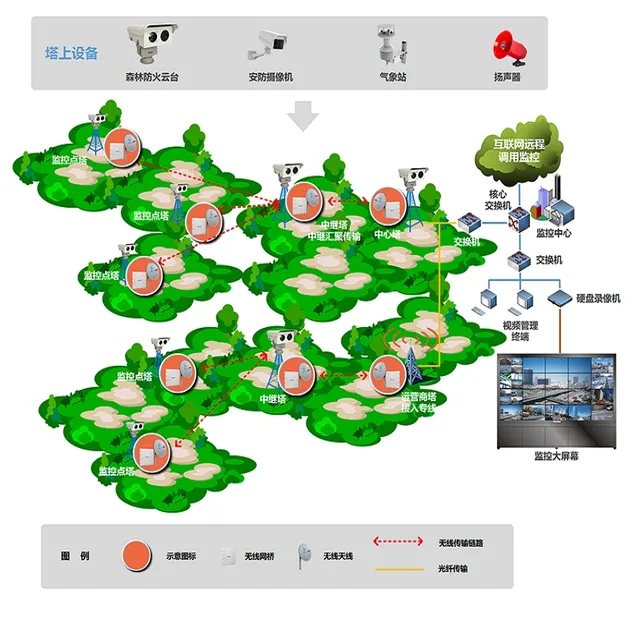

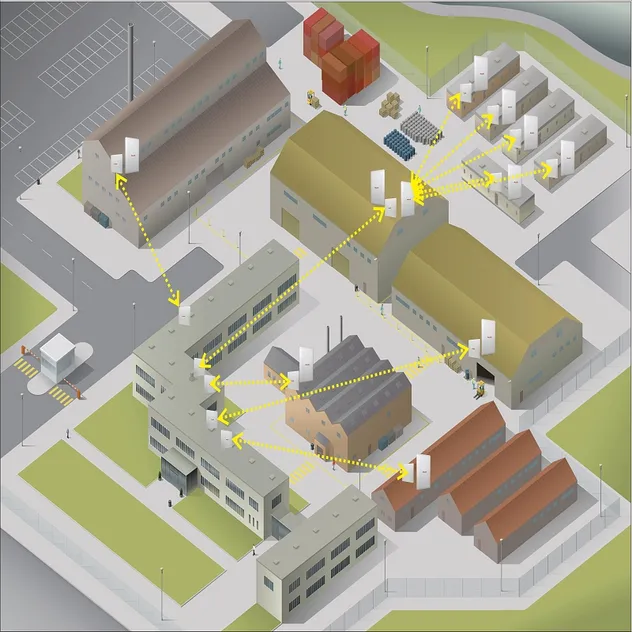

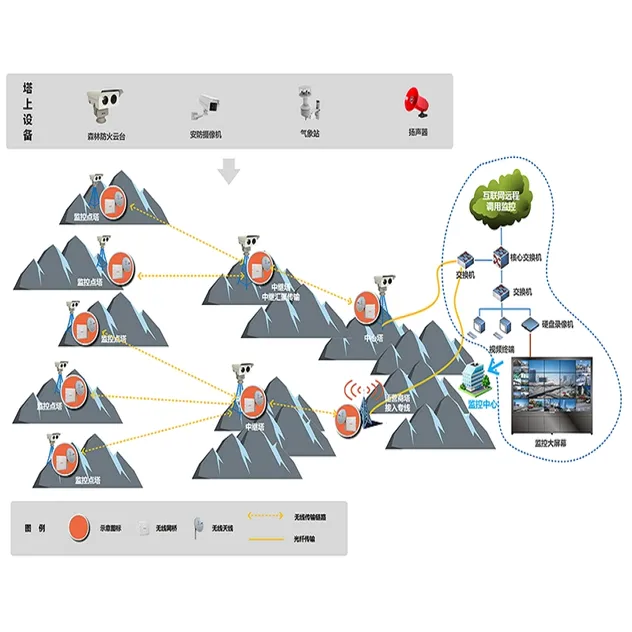

🏆Success Cases

📦Packing & Delivery

❓Frequently Asked Questions

What is the maximum wireless speed of the SW8000CBE?

The device utilizes IEEE802.11ac technology and a 2T2R MIMO architecture to provide a wireless transmission rate of up to 867Mbps.

Is the device suitable for extreme outdoor weather?

Yes, it features an IP68 integrated fully enclosed design that is dustproof and waterproof, and can operate in temperatures ranging from -50℃ to +80℃.

How is the device powered?

The base station supports Gigabit PoE (Power over Ethernet) through its Ethernet port, simplifying installation and maintenance.

What kind of security and encryption are supported?

It supports various encryption methods including WEP, WPA, WPA2, AES, TKIP, EAP, and SSID hiding to ensure data transmission security.

Can the device connect to different types of antennas?

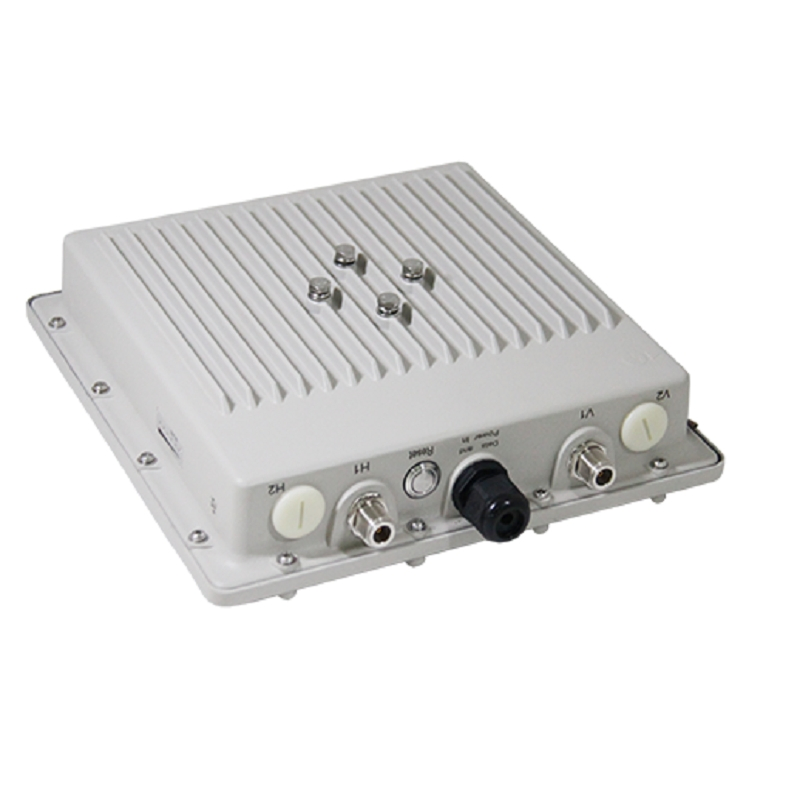

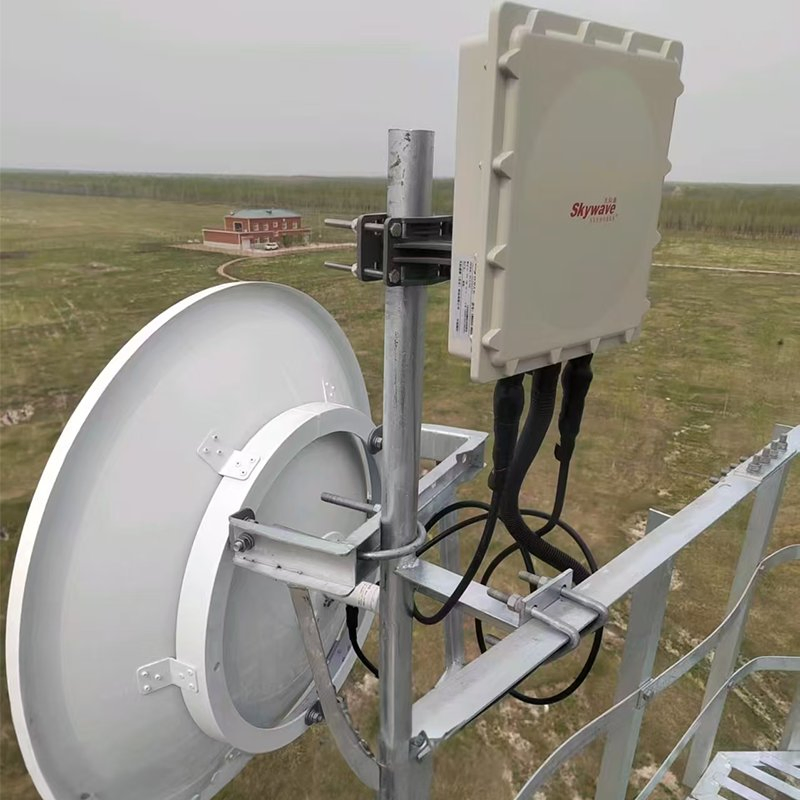

Yes, the device is equipped with 2 standard N-type radio frequency interfaces, allowing you to connect external antennas based on specific site requirements.

What is the advantage of the TDMA protocol?

The proprietary TDMA protocol effectively enhances point-to-multipoint wireless transmission efficiency and reduces interference in complex environments.
