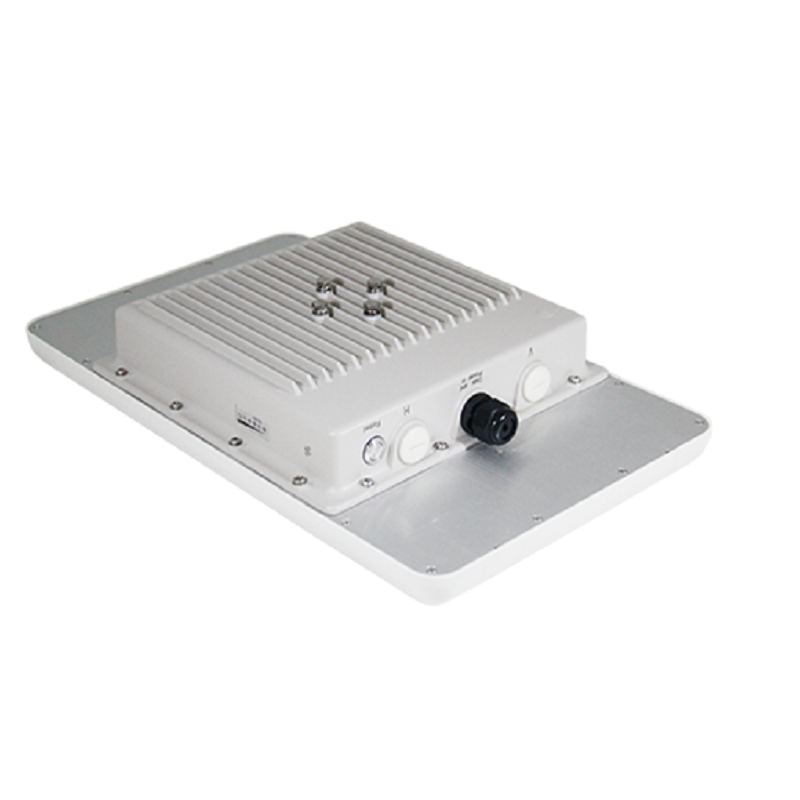

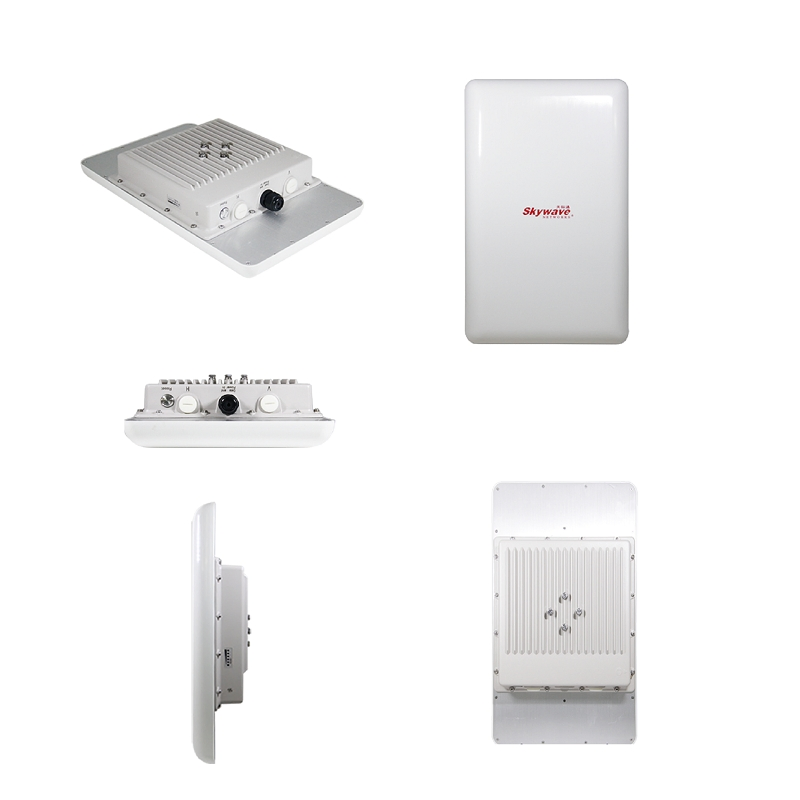

Outdoor Carrier-Grade Wireless Base Station Have Solid Sealing to Stop Moisture Getting in
Outdoor Carrier-Grade Wireless Base Station Have Solid Sealing to Stop Moisture Getting in
Outdoor Carrier-Grade Wireless Base Station Have Solid Sealing to Stop Moisture Getting in
Outdoor Carrier-Grade Wireless Base Station Have Solid Sealing to Stop Moisture Getting in
Outdoor Carrier-Grade Wireless Base Station Have Solid Sealing to Stop Moisture Getting in
1 / 5
Outdoor Carrier-Grade Wireless Base Station Have Solid Sealing to Stop Moisture Getting in
Outdoor Carrier-Grade Wireless Base Station Have Solid Sealing to Stop Moisture Getting in
Outdoor Carrier-Grade Wireless Base Station Have Solid Sealing to Stop Moisture Getting in
Outdoor Carrier-Grade Wireless Base Station Have Solid Sealing to Stop Moisture Getting in
Outdoor Carrier-Grade Wireless Base Station Have Solid Sealing to Stop Moisture Getting in

Outdoor Carrier-Grade Wireless Base Station Have Solid Sealing to Stop Moisture Getting in

Customization: Available
Type: Wireless Base Station
Work Mode: Point-to-Point (Ptp) and Point-to-Multipoint (Ptmp
Send Inquiry

Product Description

Carrier-Grade Wireless Base Station
Basic Specifications
Model SW8000CBU
WiFi Antenna Type Built-in
Transmission Rate 867Mbps
Voltage AC:100-240V
Antenna Gain 16dBi
Certification ISO9001, RoHS, CE
Product Overview

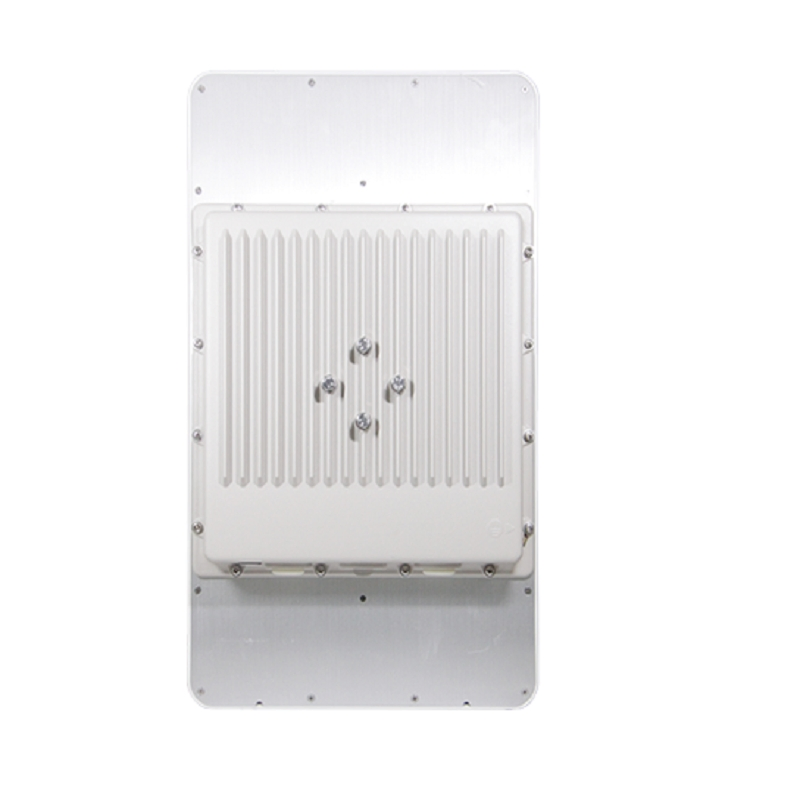

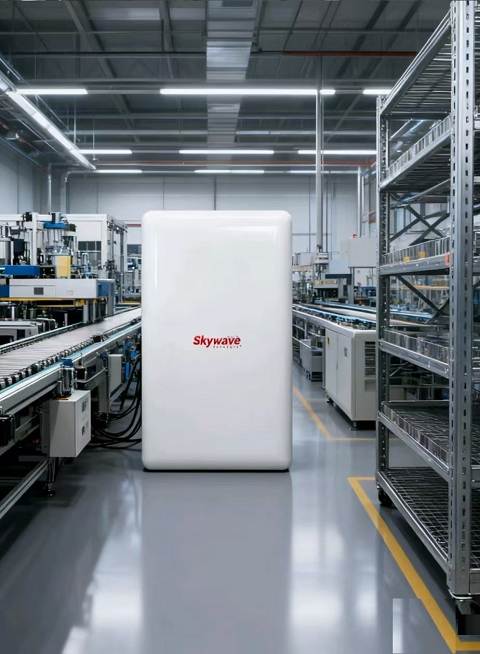

SW8000CBU Wireless Base Station
SW8000CBU is an outdoor carrier-grade antenna-integrated wireless base station operating in the 5GHz unlicensed frequency band. Compliant with IEEE802.11ac standards, it utilizes a high-performance Qualcomm Atheros processor.

Featuring 2T2R MIMO technology, it supports rates up to 867Mbps and is backward compatible with 802.11a/n. With an RF power output up to 2500mW and sensitivity of -96dBm, the integrated 22 MIMO panel antenna makes it ideal for long-distance backbone transmission and high-definition video surveillance.

Application Scenarios

Perfect for real-time services with large data flows, including: Oil fields, Electric power, Water conservancy, Forestry, Mining enterprises, Safe cities, Intelligent transportation, and Digital energy sectors.

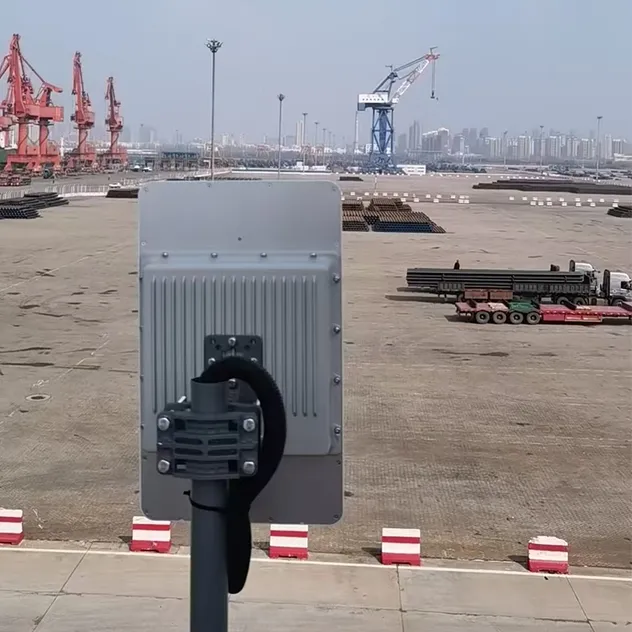

Application 1

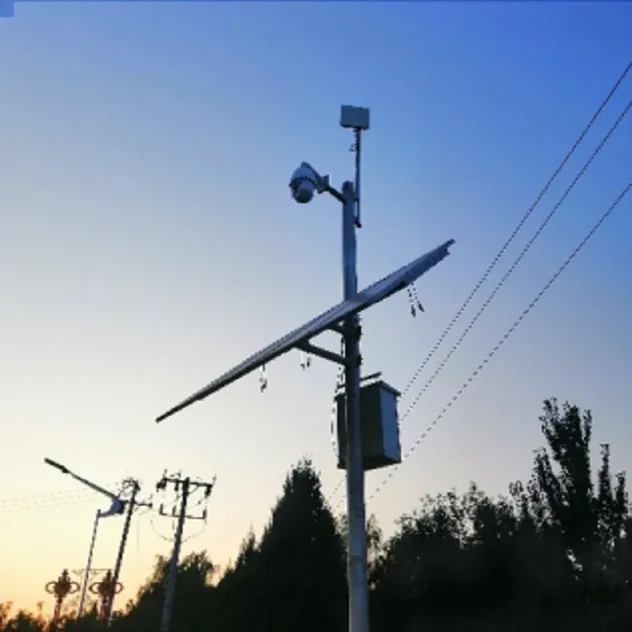

Application 2

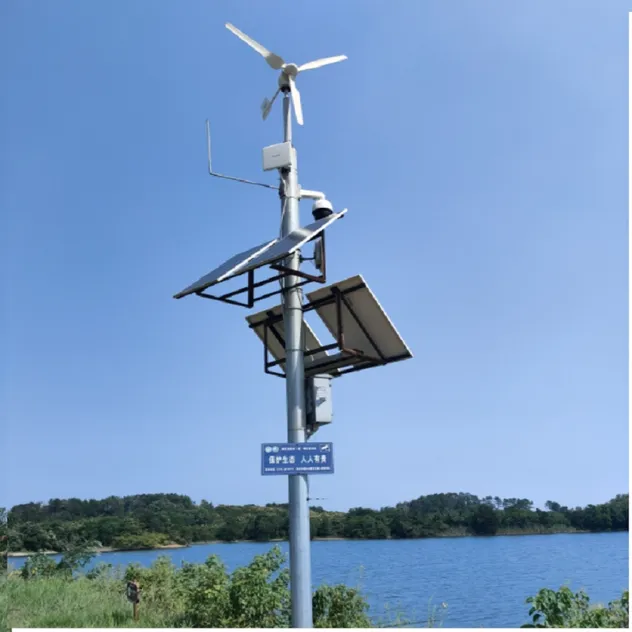

Application 3
Technical Parameters
Radio Frequency
Frequency BandIEEE802.11a/n/ac: 4920 ~ 6100MHz
Channel Bandwidth5/10/20/40/80MHz
RF Power Output2*500mW
Sensitivity802.11ac: -96 dBm@MCS0, -72dBm@MCS9
Hardware Specifications
CPU / RAMQCA9557 720MHz / 128MB DDR2
Dimensions450×270×90mm
Weight2.8Kg
Power InterfaceGigabit PoE Ethernet port
ProtectionIP68 Waterproof, 6KV Surge protection
Key Advantages
✔
High Reliability: MTBF over 200,000 hours, ensuring system stability and uptime.
✔
Long Distance: Integrated high-gain antenna supports transmission distances over 15km.
✔
TDMA Protocol: Enhances point-to-multipoint efficiency and suppresses interference.
✔
Advanced Security: Supports WPA/WPA2, AES, TKIP, EAP, and 802.1X encryption.
✔
Weatherproof Design: IP68 fully enclosed design for extreme environments (-50℃ to +80℃).
Project Success Cases

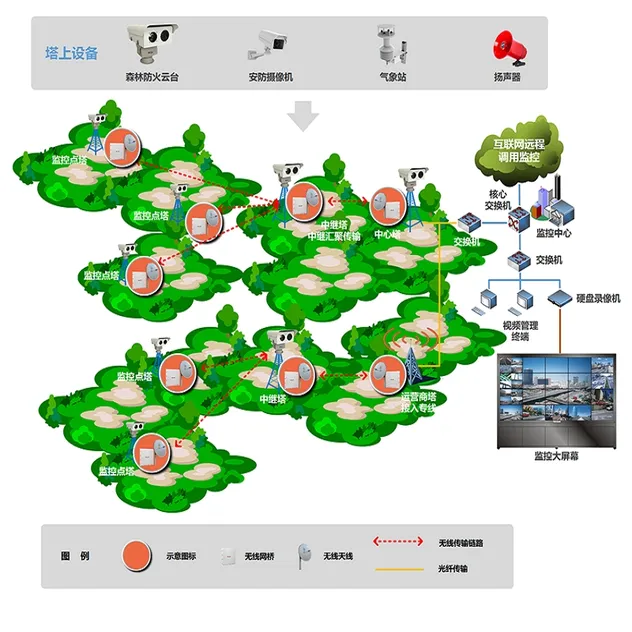

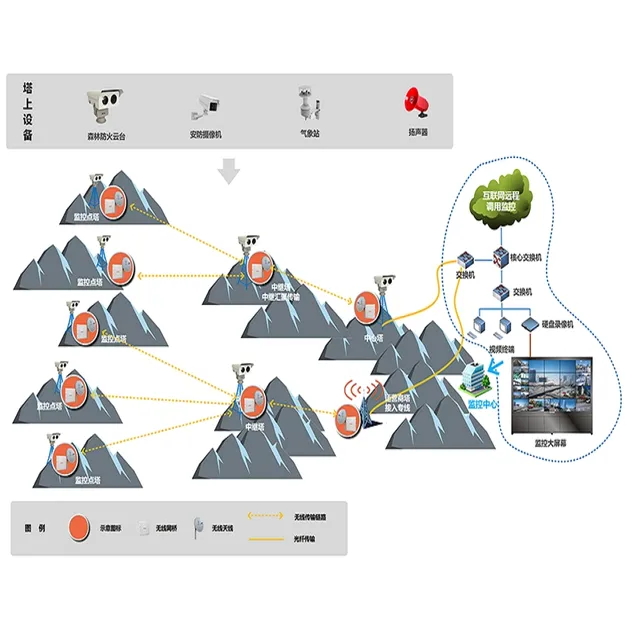

Success Case 1
Success Case 2

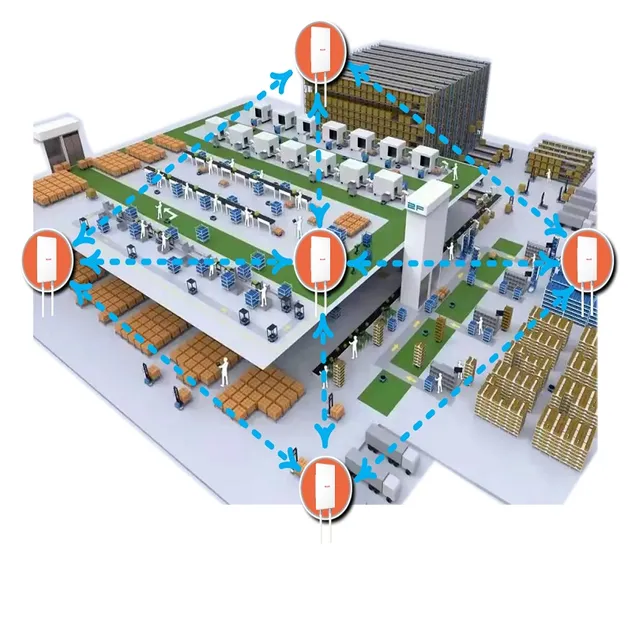

Success Case 3
System Topology
Packing & Delivery
Packing 1
Packing 2
Frequently Asked Questions
Q1: What is the maximum transmission range of the SW8000CBU? A: Thanks to its high RF power and 16dBi integrated antenna, it can achieve a transmission distance of over 15 kilometers in clear line-of-sight conditions.
Q2: Is the device suitable for extreme weather conditions? A: Yes, it features an IP68-rated fully enclosed design, works in temperatures from -50℃ to +80℃, and includes built-in surge and electrostatic protection.
Q3: Does this base station support PoE power supply? A: Yes, it supports Gigabit PoE power supply via its adaptive Ethernet port, which simplifies installation and maintenance in outdoor settings.
Q4: Can I customize the logo and color for my project? A: We support on-demand customization, including logo branding, color adjustments, and appearance size modifications to meet your specific requirements.
Q5: What wireless standards does it comply with? A: It is fully compliant with IEEE 802.11ac/a/n standards and supports various protocols including TDMA, CSMA/CA, and SNMP management.
Q6: What modes of operation are supported? A: It supports multiple modes including AP Bridge, Station, Station Bridge, WDS, and Mesh to adapt to different network topologies.
