Outdoor Carrier-Grade Wireless Base Station with Different Antennas to Meet Different Needs

Customization:	Available
Type:	Wireless Base Station
Work Mode:	Point-to-Point, Point-to-Multipoint

Send Inquiry

Product Description

Product Overview

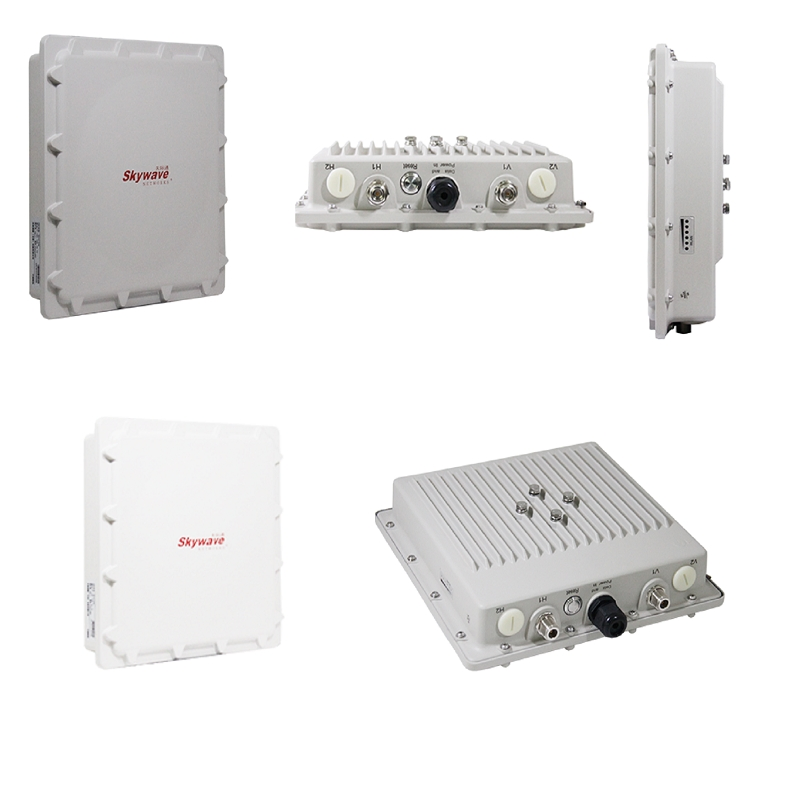

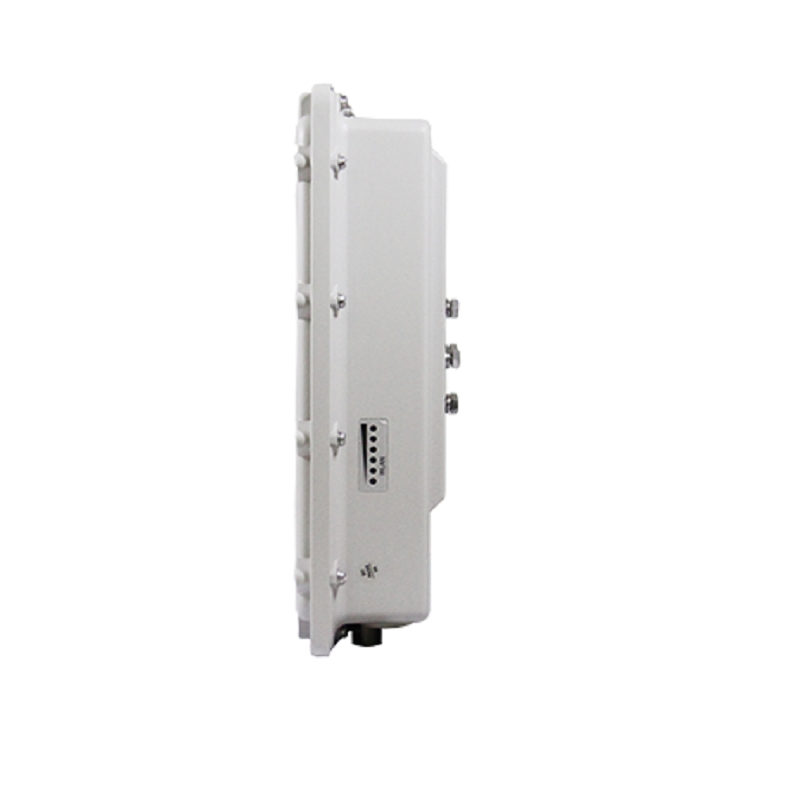

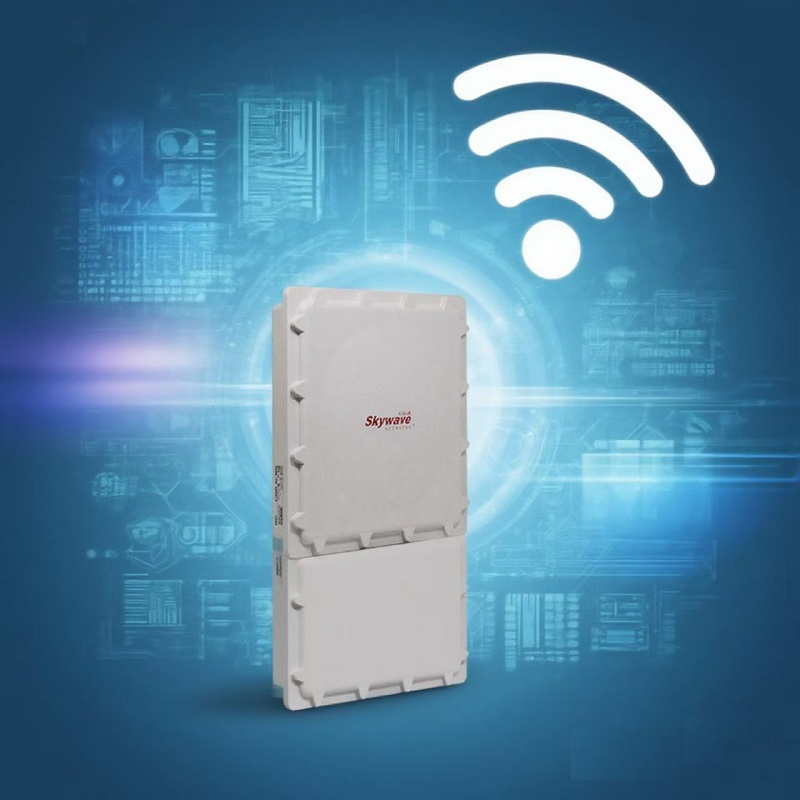

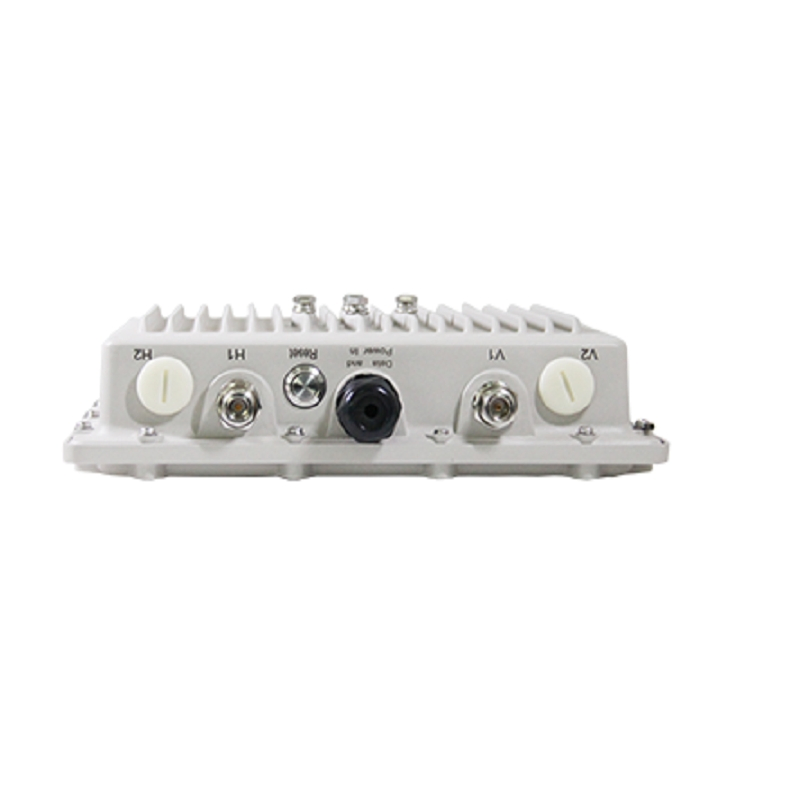

Outdoor Carrier-Grade Wireless Base Station

SW8000CBE is an outdoor carrier-grade split-type wireless base station operating in the 5GHz unlicensed frequency band. Compliant with the IEEE802.11ac standard, it features a high-performance Qualcomm Atheros high-speed network processor. Utilizing MIMO (Multiple-Input Multiple-Output) technology with a 2T2R architecture, it supports wireless transmission rates up to 867Mbps.

Basic Specifications

Model NO.	SW8000CBE

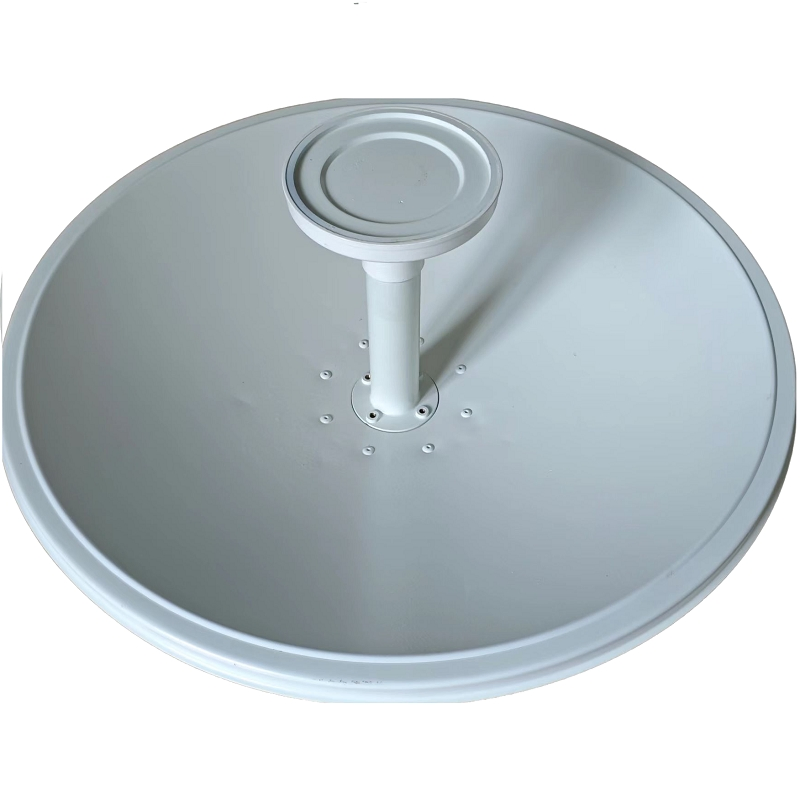

WiFi Antenna Type	External (2 * N-type interfaces)
Transmission Rate	867Mbps
Voltage	AC: 100-240V
Frequency Band	IEEE802.11A/N/AC: 4920 ~ 6100MHz
RF Power Output	2*500MW
Sensitivity	802.11A/N/AC -96dBm
Operating Temp	-50℃ ~ +80℃
Certification	ISO9001, RoHS, CE

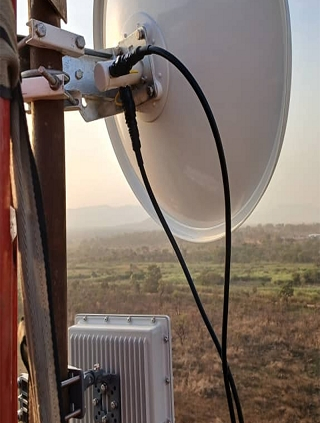

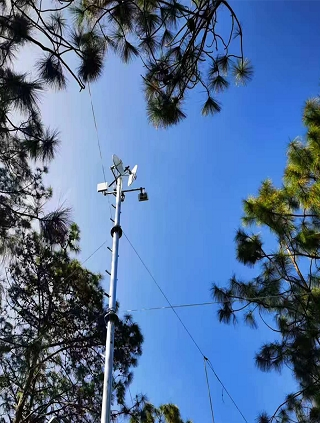

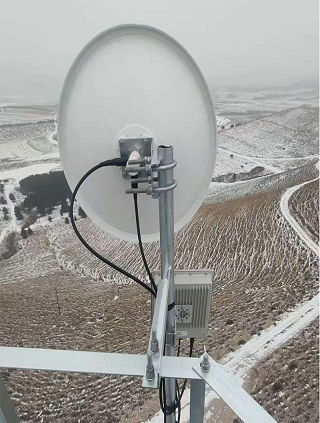

Application Scenarios

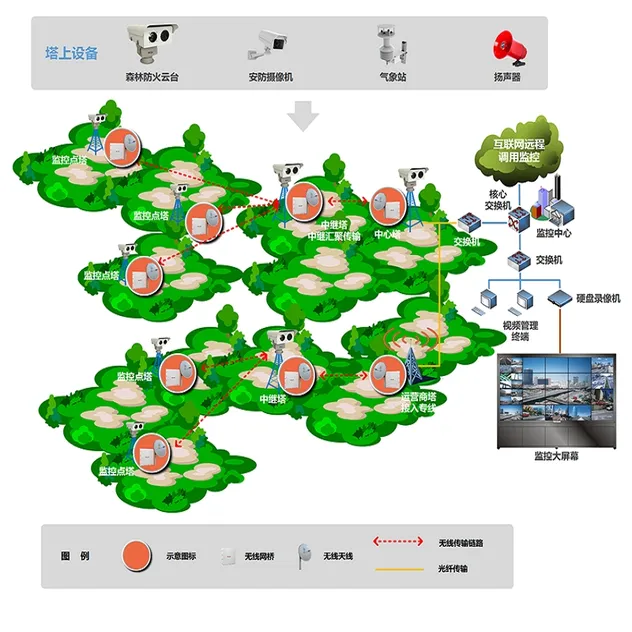

Perfect for long-distance backbone network transmission and real-time services like high-definition video surveillance in oil fields, electric power, water conservancy, industrial mining, and intelligent transportation.

★

Key Advantages

01 High Stability: MTBF over 200,000 hours, eliminating system crashes.
02 Long Distance: Integrated antenna transmission can reach over 200 kilometers.
03 Gigabit Speed: 80MHz bandwidth provides up to 867Mbps transmission.
04 TDMA Protocol: Enhances point-to-multipoint efficiency.
05 Anti-interference: BeamForming technology reduces data rate impact.
06 Durable Design: IP68 fully enclosed design, dustproof and waterproof.

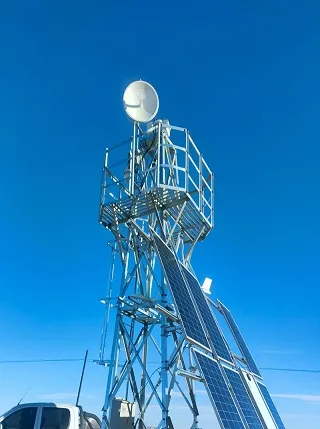

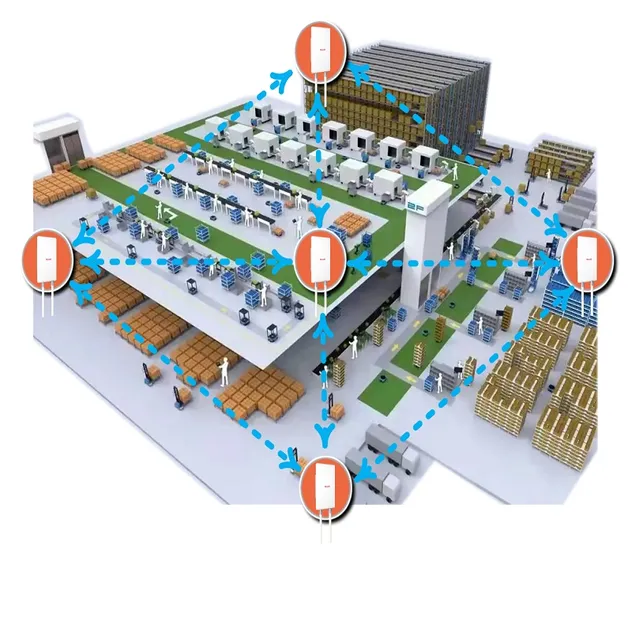

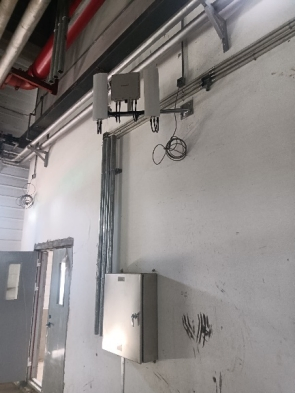

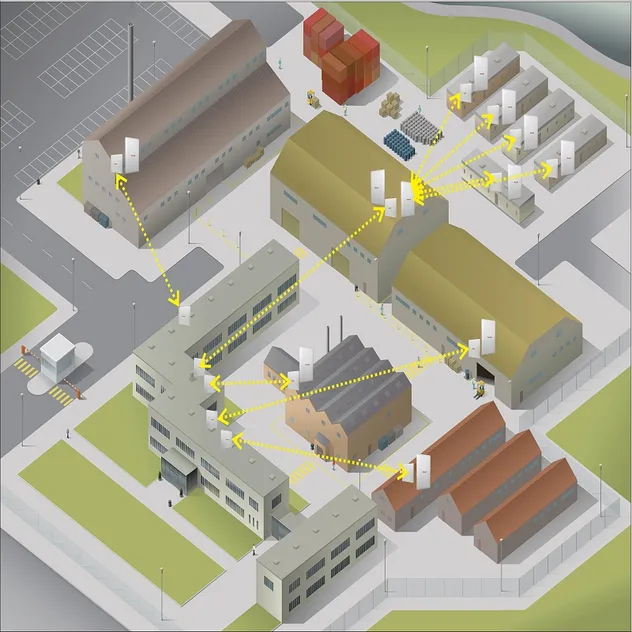

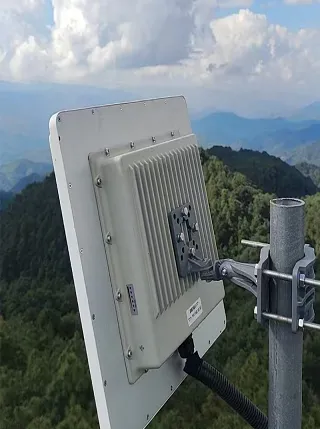

Success Cases & Packing

Frequently Asked Questions

What is the maximum transmission rate of the SW8000CBE?

The device supports a wireless transmission rate of up to 867Mbps using 802.11ac technology and 80MHz bandwidth.

Does this base station support point-to-multipoint (PTMP) applications?

Yes, it supports both point-to-point (PTP) and point-to-multipoint (PTMP) wireless applications, along with wireless roaming (WDS).

Is the device suitable for extreme outdoor environments?

Absolutely. It features an IP68 integrated fully enclosed design, is dustproof and waterproof, and operates in temperatures from -50℃ to +80℃.

Can I customize the logo or product specifications?

Yes, we support on-demand customization, including logo, color, and appearance size customization to meet your specific needs.

What kind of power supply does it use?

It supports Gigabit PoE (Power over Ethernet) power supply, which simplifies construction and maintenance.

How does the device handle signal interference?

By adopting BeamForming technology and supporting Dynamic Frequency Selection (DFS), it can better suppress interference and choose the optimal channel.
