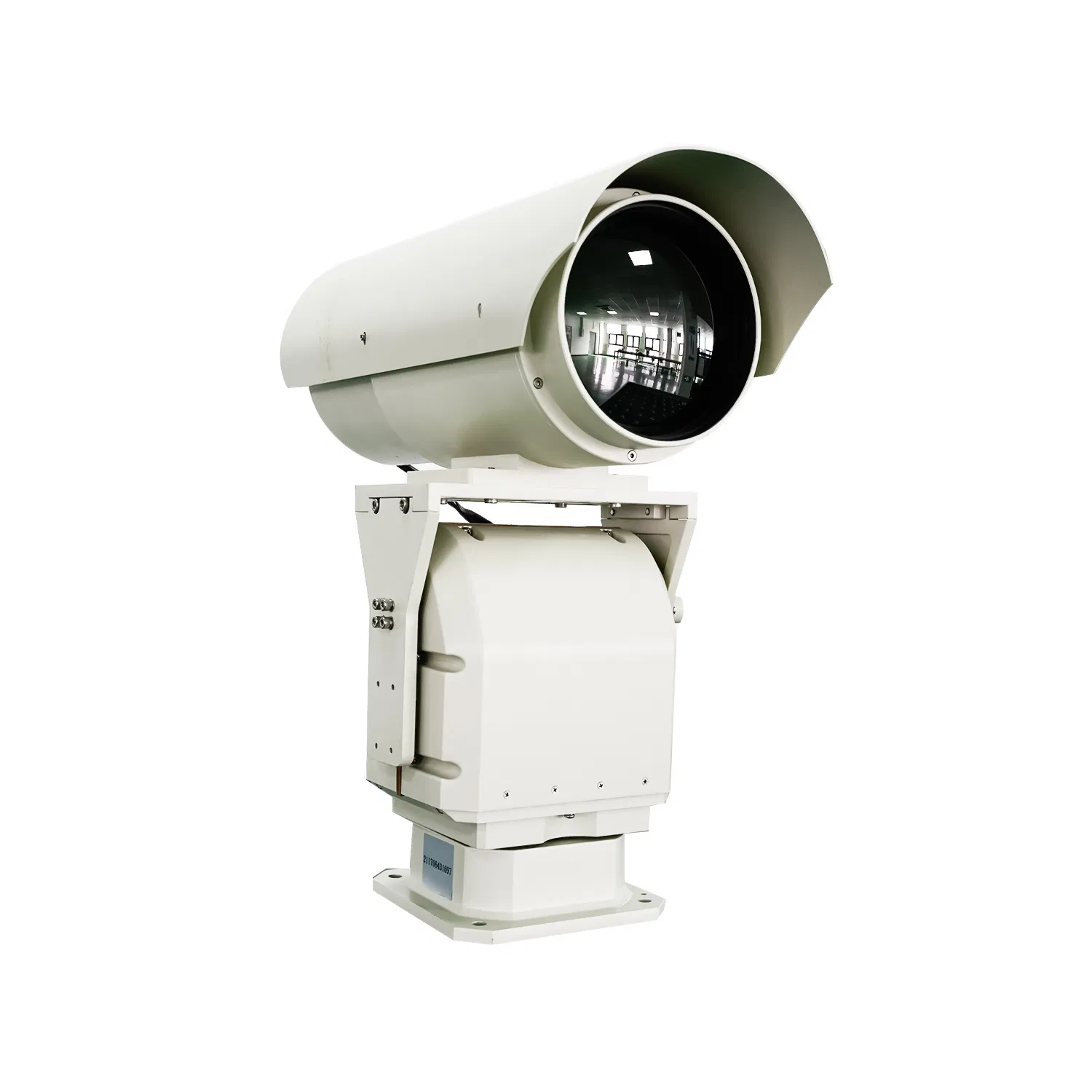

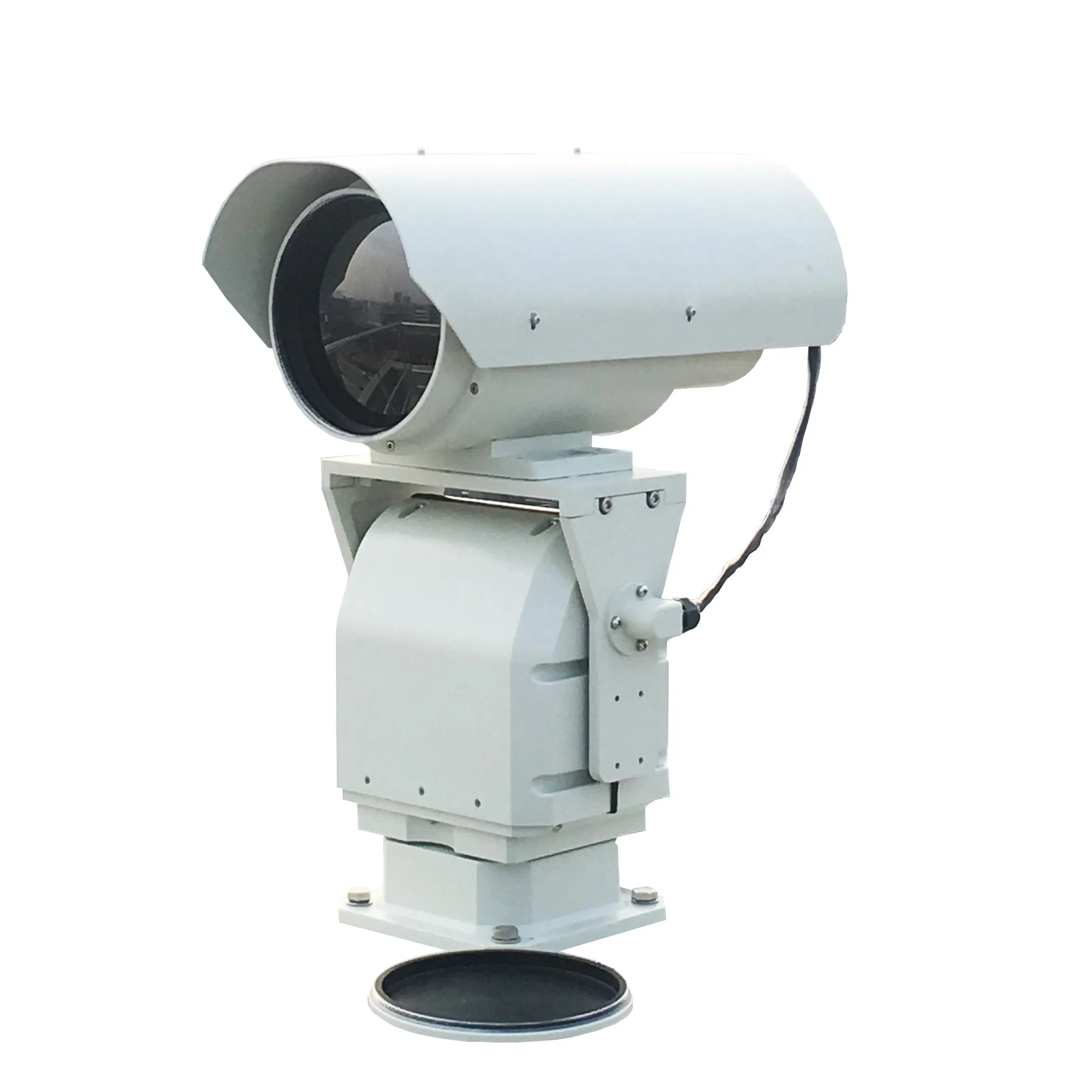

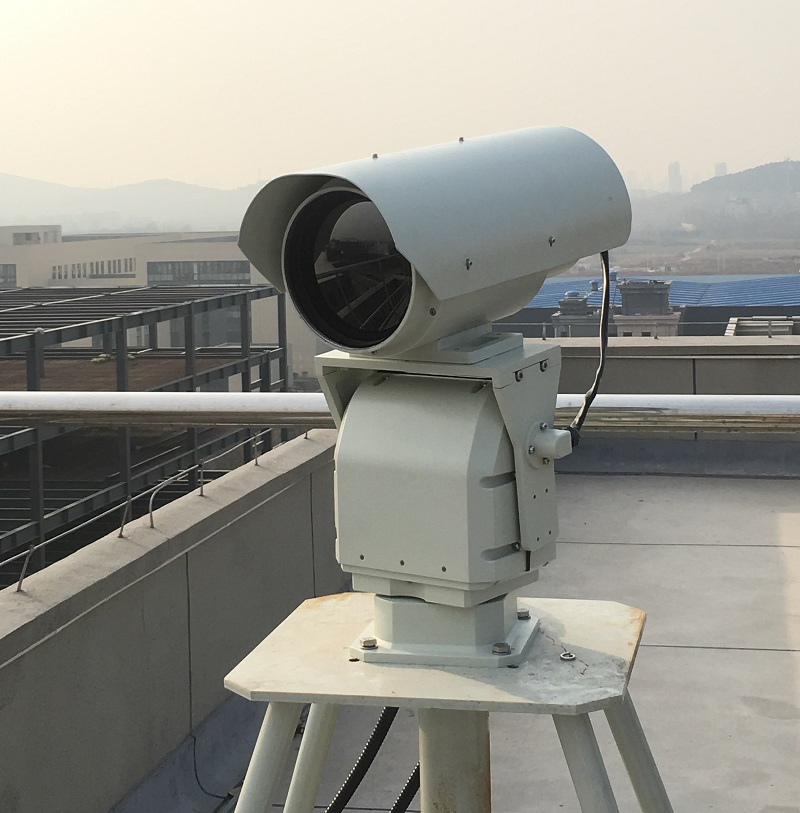

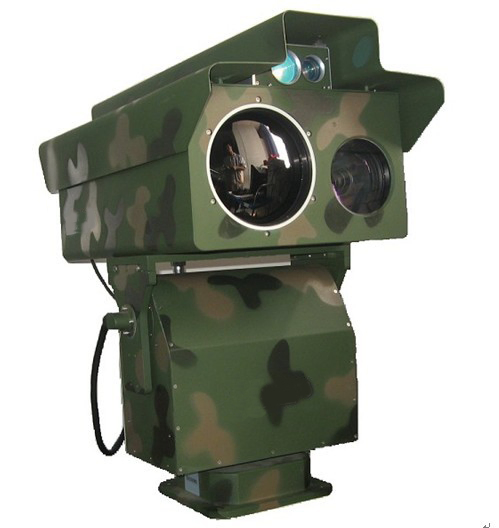

PTZ CMOS IR Infrared CCTV Thermal Imaging Camera

1 / 5

PTZ CMOS IR Infrared CCTV Thermal Imaging Camera

Customization:	Available
Technology:	Infrared
Style:	Zoom Lens

Send Inquiry

Product Description

Basic Specifications

Model NO.SHR-HTIR185RE

TypeCCTV Camera

SensorVox

Resolution640X480

CertificationCE, FCC

FeatureWaterproof / Weatherproof

Effective Distance≧30m

Transport PackageAluminum Alloy Box

Capacity2000 Units / Month

TrademarkOEM Support

Key Product Features

✔ High resolution uncooled microbolometer infrared focal plane arrays (Vox).
✔ 17µm pixel for fine image quality and further detection distance.
✔ High sensitivity with NETD up to 50mk at 25Hz.
✔ 36~180mm continuous optical zooming for wide search and target identification.
✔ Advanced image processing: Noise reduction, DDE function, AGC.
✔ Multiple outputs: Hot white/Hot black/Pseudo color.
✔ Precision casting aluminum alloy shell, IP66 waterproof and nitrogen-filled.

Main Applications

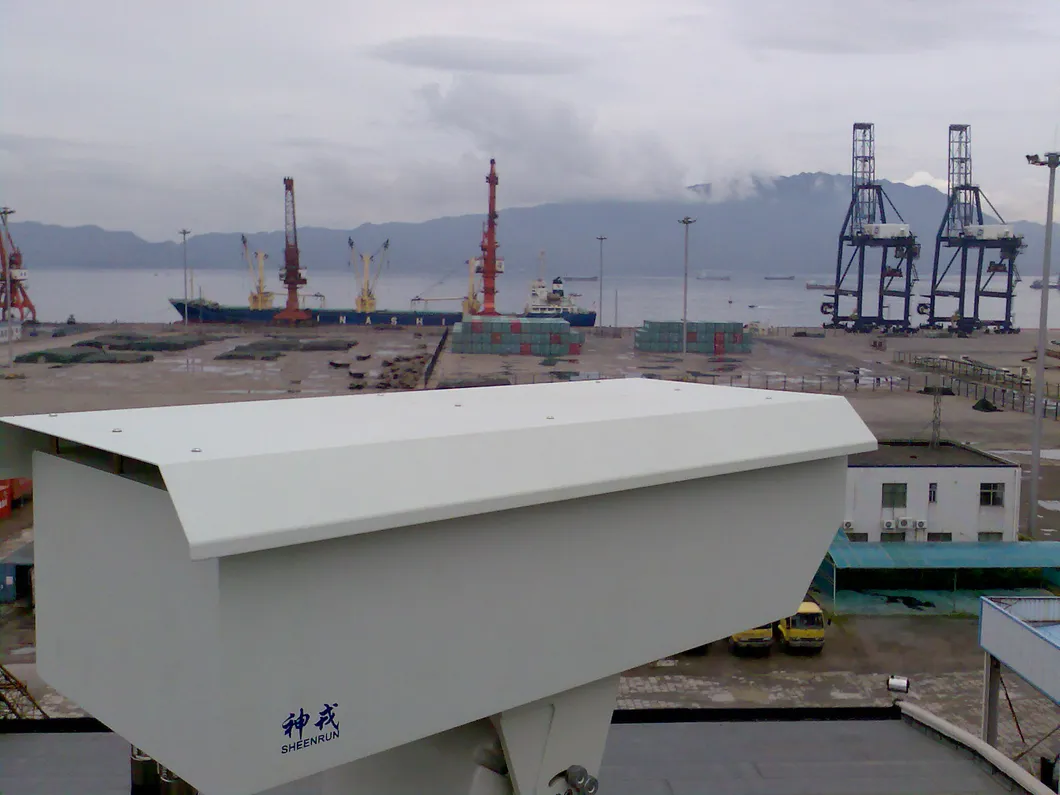

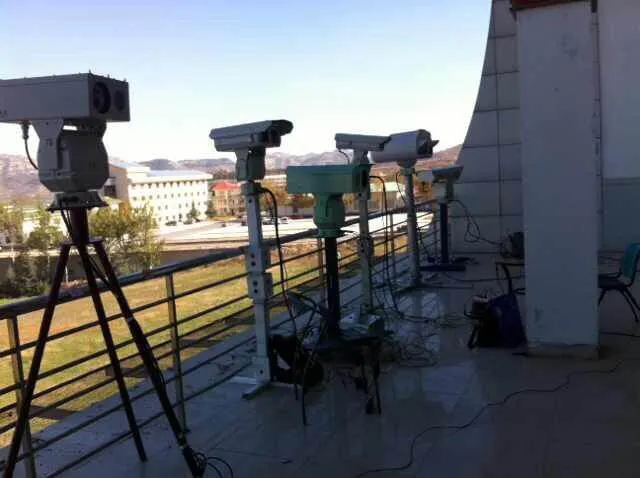

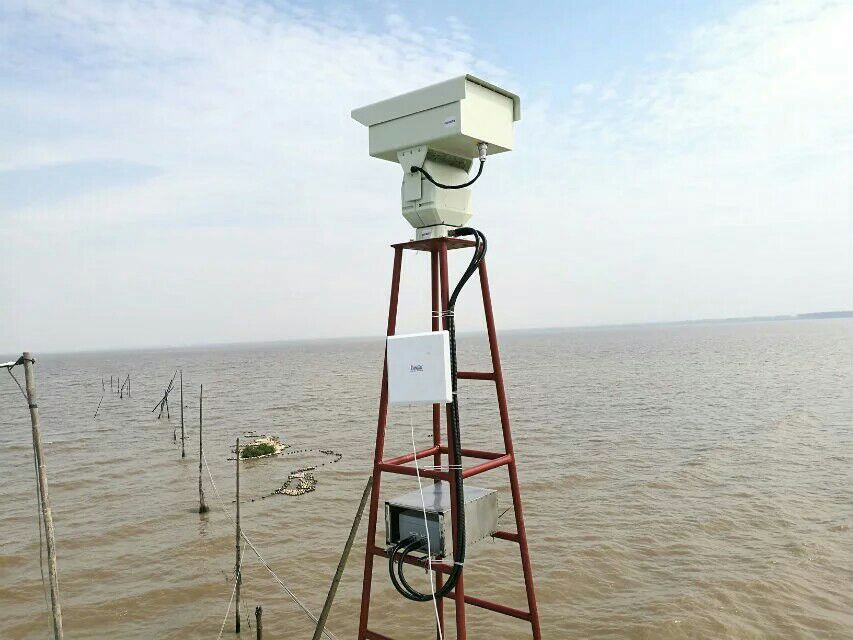

This professional thermal system is ideal for frontier and coast defense, border monitoring, oilfields, railways, airports, harbors, and large area real-time monitoring both day and night.

Technical Indicators

Category	Parameter	Specification
Monitoring Distance	Human (1.8m×0.5m)	Detect: 6000m \| Recognize: 1700m \| Identify: 850m
Monitoring Distance	Vehicle (2.3m×2.3m)	Detect: 16600m \| Recognize: 4400m \| Identify: 2200m
Thermal Lens	Focal Length	36~180mm (5x optical zoom)
	FOV / F Value	2.5°×2.0°~12.7°×10.2° / F1.2
	Lens Control	Electronic zoom/focus
Detector	Type & Pixel	Uncooled FPA Vox, 640×512 resolution
	Spectrum / NETD	8~14μm / ≤50mK
	Video Output	PAL / 25Hz
Pan-Tilt	Angle	Pan: 360° continuous; Tilt: +30° to -45°
	Protection	IP66, Anti-vibration, Anti-thunder 2000V
	Temperature	Working: -25ºC to +55ºC; Storage: -40ºC to +65ºC

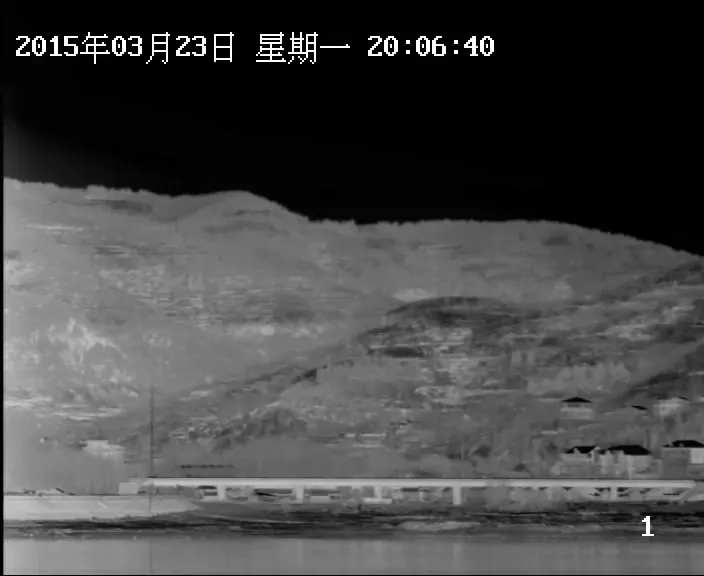

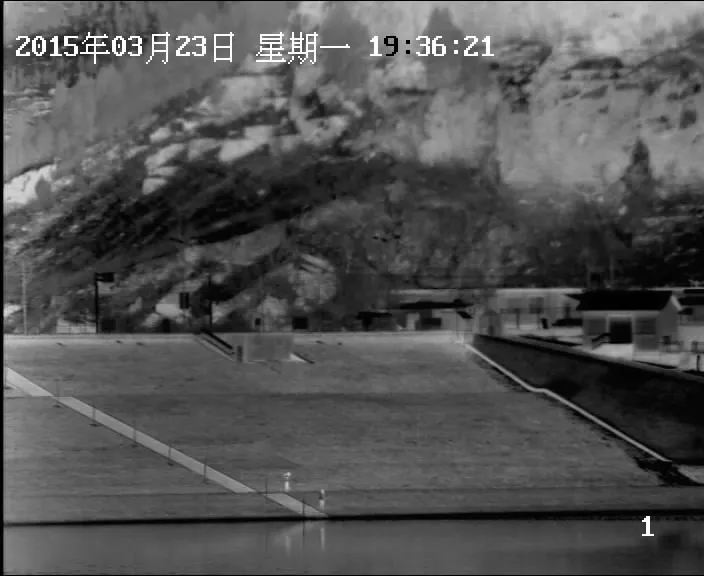

Visual Demonstration

Our Services

★ One-year standard warranty (Extended options available).
★ Life-long professional technical support.
★ OEM and Customized product solutions support.

Frequently Asked Questions

What is the maximum vehicle detection range?

The camera can detect vehicles at a distance of up to 16,600 meters under optimal conditions.

Is the camera suitable for harsh outdoor environments?

Yes, it features an IP66-rated precision-cast aluminum alloy shell, is nitrogen-filled for waterproof protection, and can operate between -25ºC and +55ºC.

What kind of zoom capabilities does the lens have?

It offers a 36~180mm continuous optical zoom, which allows for both wide-area searches and long-range target identification.

Does this thermal camera support image optimization?

Yes, it includes noise reduction processing, Digital Detail Enhancement (DDE), and Automatic Gain Control (AGC) for clear imaging.

What are the power requirements for this system?

The system uses a DC12V power supply with a consumption of ≤8W for the camera unit and AC24V for the Pan-Tilt assembly.
