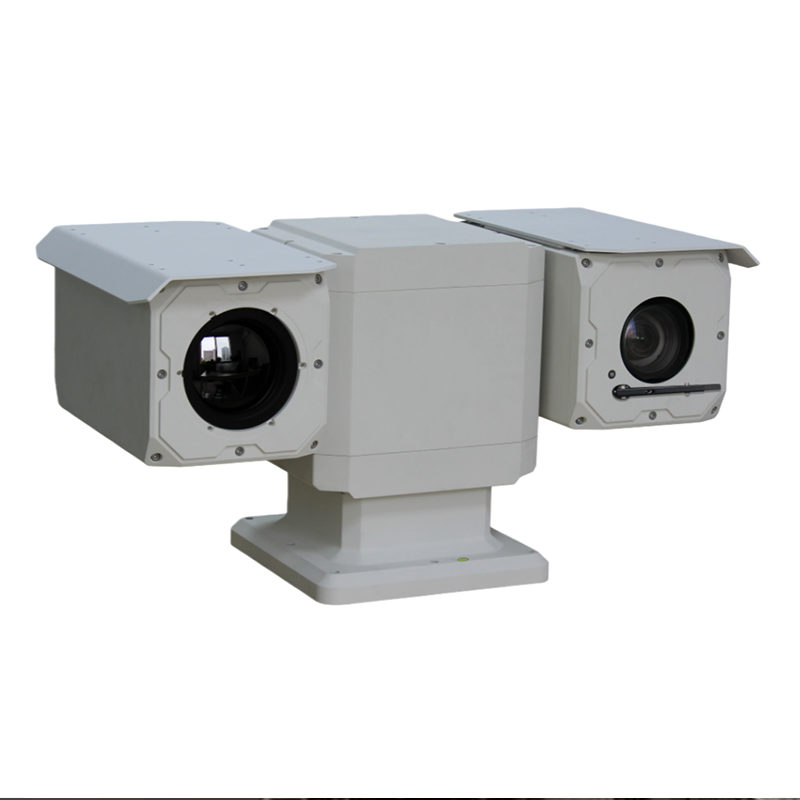

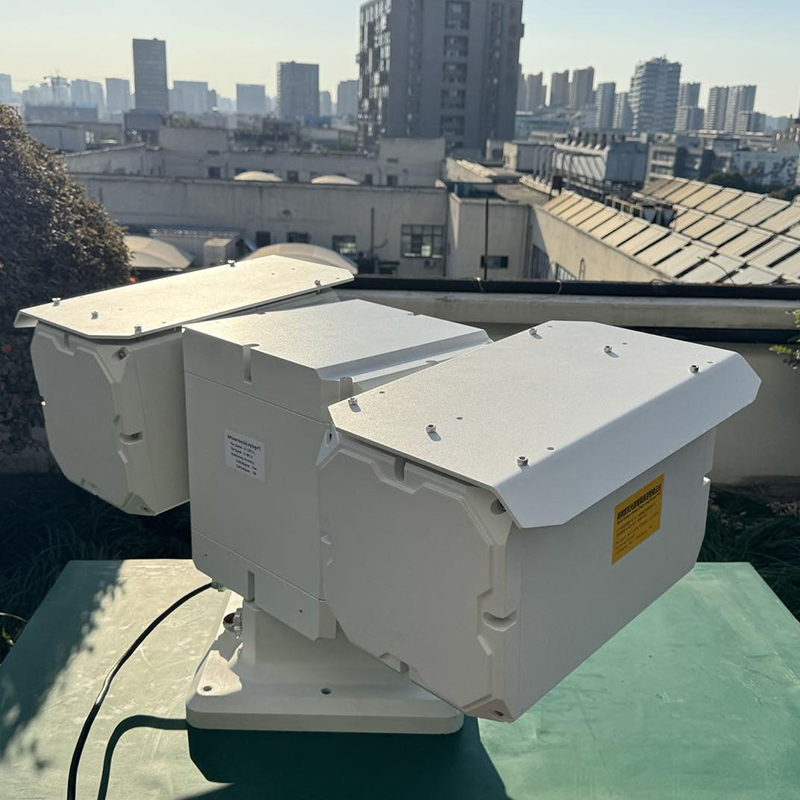

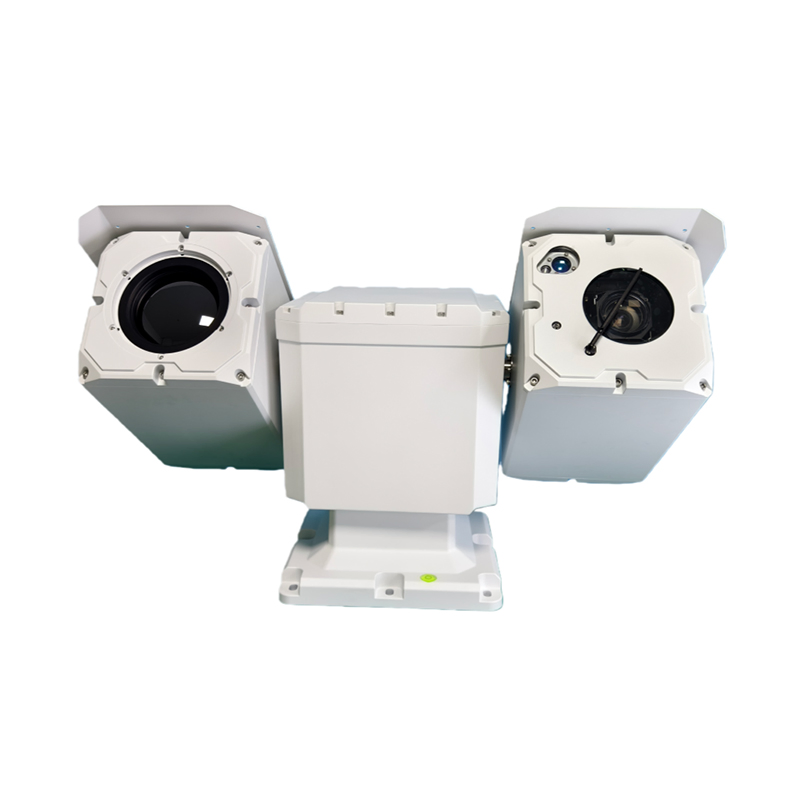

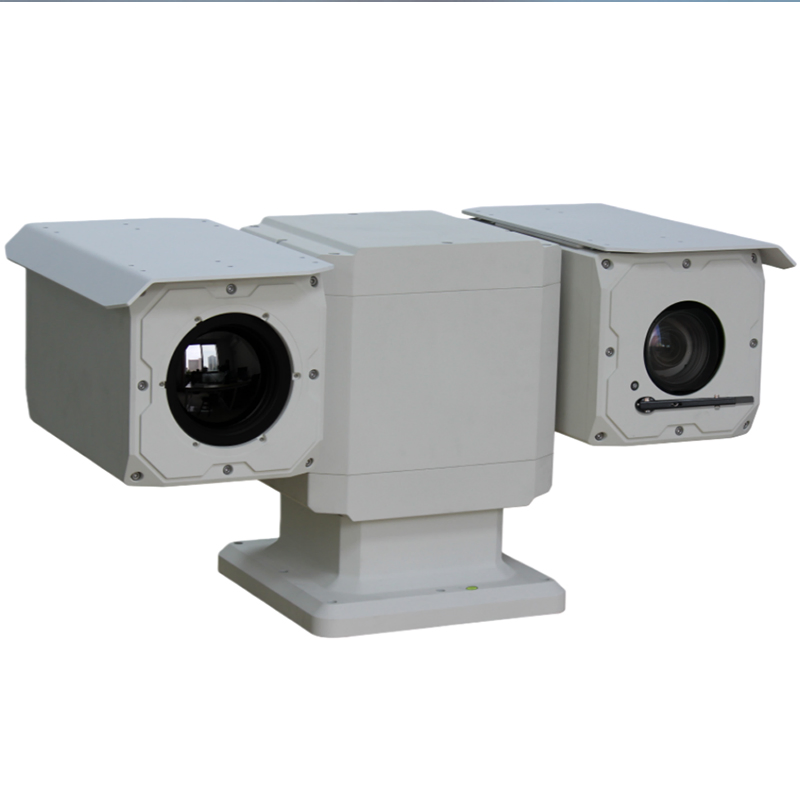

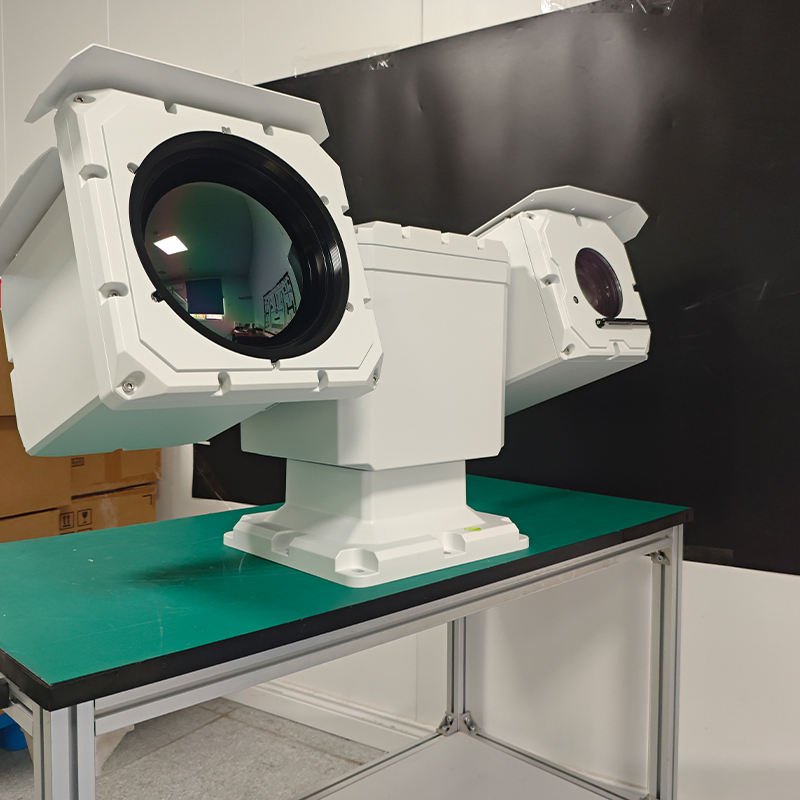

Ultra Long Range PTZ Camera System
The SOAR1050 series is a heavy-duty pan-tilt-zoom system designed for precise detection, recognition, and identification of potential threats over long distances. It supports various sensor configurations, including long-range visible cameras, thermal imaging, and an optional 10 km laser rangefinder (LRF).
Equipped with a built-in hardware processor delivering 5 teraoperations per second (5T computing power), the system runs intelligent algorithms tailored to specific applications. Innovative harmonic drive and closed-loop control technology enable high-speed (up to 150°/s) and high-precision (0.001°) positioning.
This system excels at tracking specialized targets such as fire, smoke, vehicles, people, drones, and vessels, making it ideal for harsh weather conditions with its rugged IP67 aluminum housing.
| Camera Module | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Focal Length | 10.5-1260mm, 120x Optical Zoom |
| Minimum Illumination | Color: 0.0005 Lux; B/W: 0.0001 Lux |
| Main Stream | 2560*1440 @ 25fps |
| Thermal Imager | |
| Detector Type | Vox Uncooled Infrared FPA |
| Resolution | 640*512 |
| Continuous Zooming | 25~225mm |
| PTZ Performance | |
| Movement Range | Pan: 360° Endless; Tilt: -90° to 90° |
| Positioning Accuracy | Pan 0.003°, Tilt 0.001° |
| Motor Drive | Harmonic gear drive |
| Smart Detection | |
| Auto Tracking | Vehicle / human / UAV / Boat / Smoke & Fire |
| Protection | IP67, 6000V Lightning Protection |
Detects temperature anomalies as small as 2m×2m from up to 8.8km away. AI-powered smoke recognition reduces false alarms for 24/7 protection.
Long-range human detection (4.2-6.3 km) and vehicle detection (up to 19.2 km) with real-time AI behavioral analysis and fog penetration.
Tracks ship movements up to 10 km. Features man-overboard detection using thermal signatures and integrates with radar for coastal awareness.
Safeguards power plants and nuclear facilities with continuous thermal monitoring to detect overheating and unauthorized personnel.
Since 2005, we have excelled in PTZ camera systems and advanced optical imaging. Our focus includes maritime monitoring, long-range surveillance, anti-drone systems, and defense applications. With a specialized Optical Camera Division, we deliver high-performance zoom and thermal cameras powered by an expert R&D team. We provide complete system solutions for forest fire prevention, industrial machine vision, and critical infrastructure protection.
