HawkEye Camera
1 / 5
| Model NO. | SOAR970-2133 |
|---|---|
| Type | CCTV Camera |
| Sensor | CMOS |
| HDMI Format | 1080P |
| Kind | Autofocus Lens |
| Certification | RoHS, ISO9001: 2000 |
| Feature | Waterproof / Weatherproof, High Definition, Auto BLC |
| Sensor Size | 1/2.8'' |
| Image Sensor | 1/2.8" Progressive Scan CMOS, 2MP |
| Effective Pixels | 1920(H) X 1080(V), 2 Megapixels |
| Focal Length | 5.5mm~180mm |
| Optical Zoom | 33X, 16X Digital Zoom |
| IR Distance | 150m |
| Compression | H.265/H.264 / Mjpeg |
| Power | DC12~24V, 40W(Max) |
| Mount Option | Vehicle Mounting, Ceiling/Tripod Mounting |

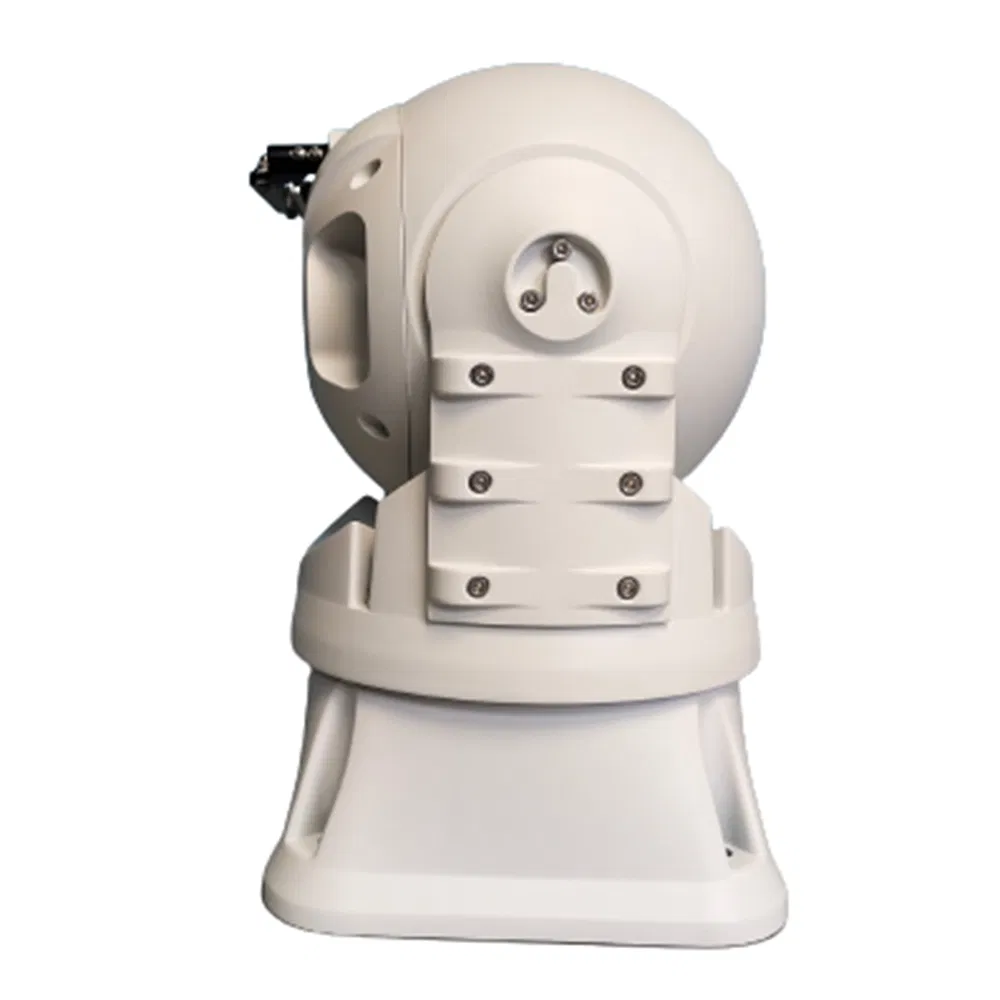

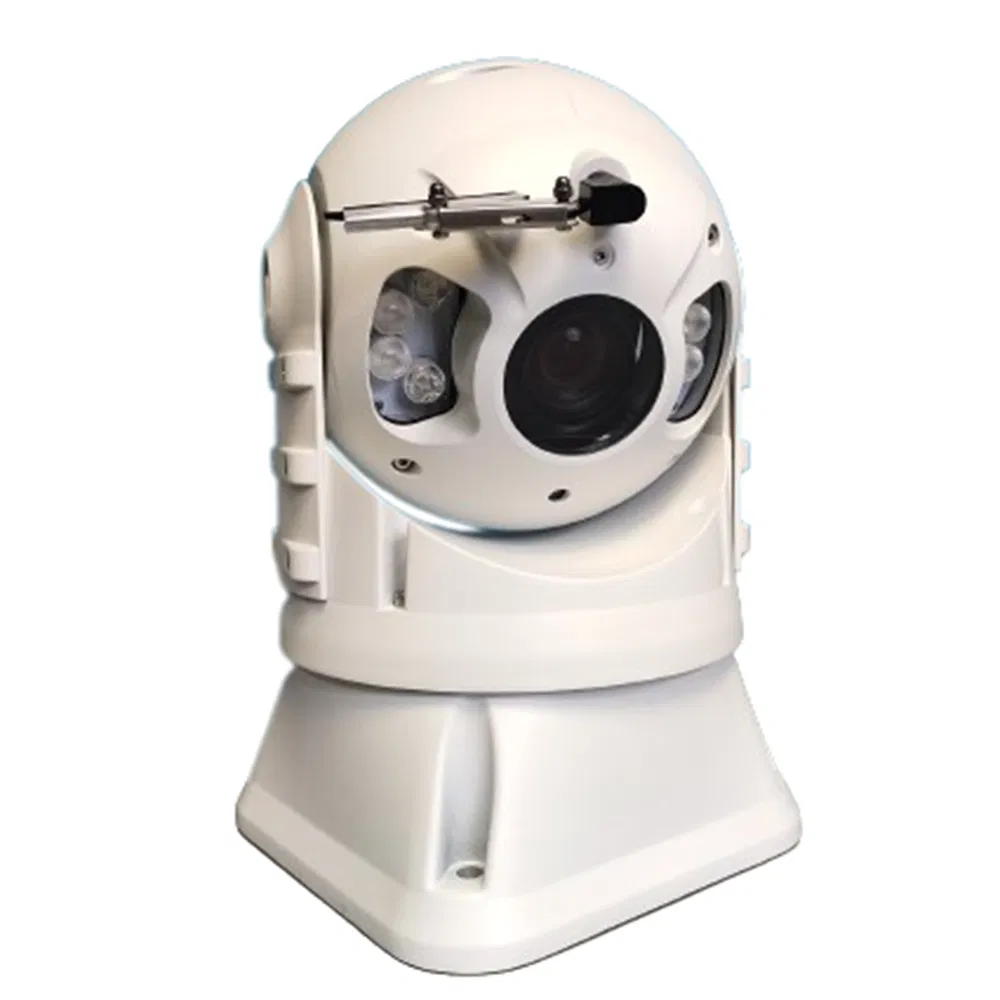

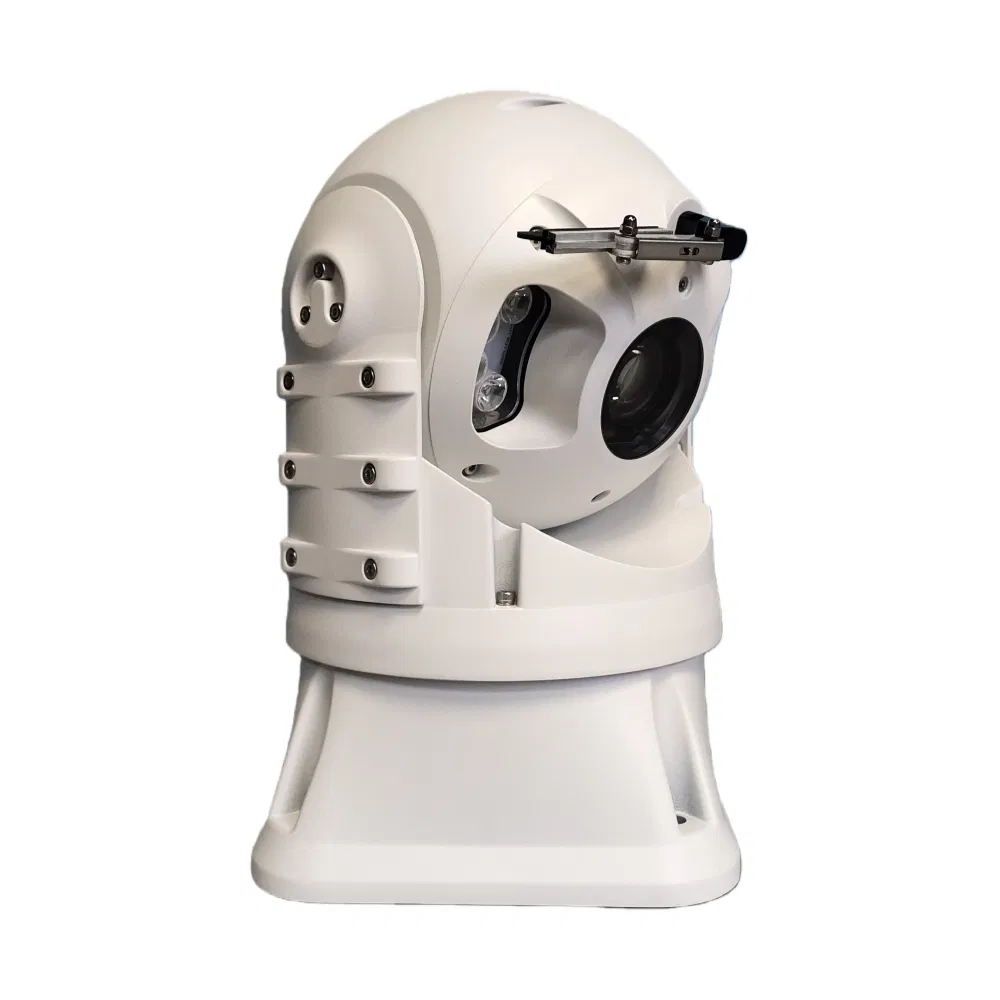

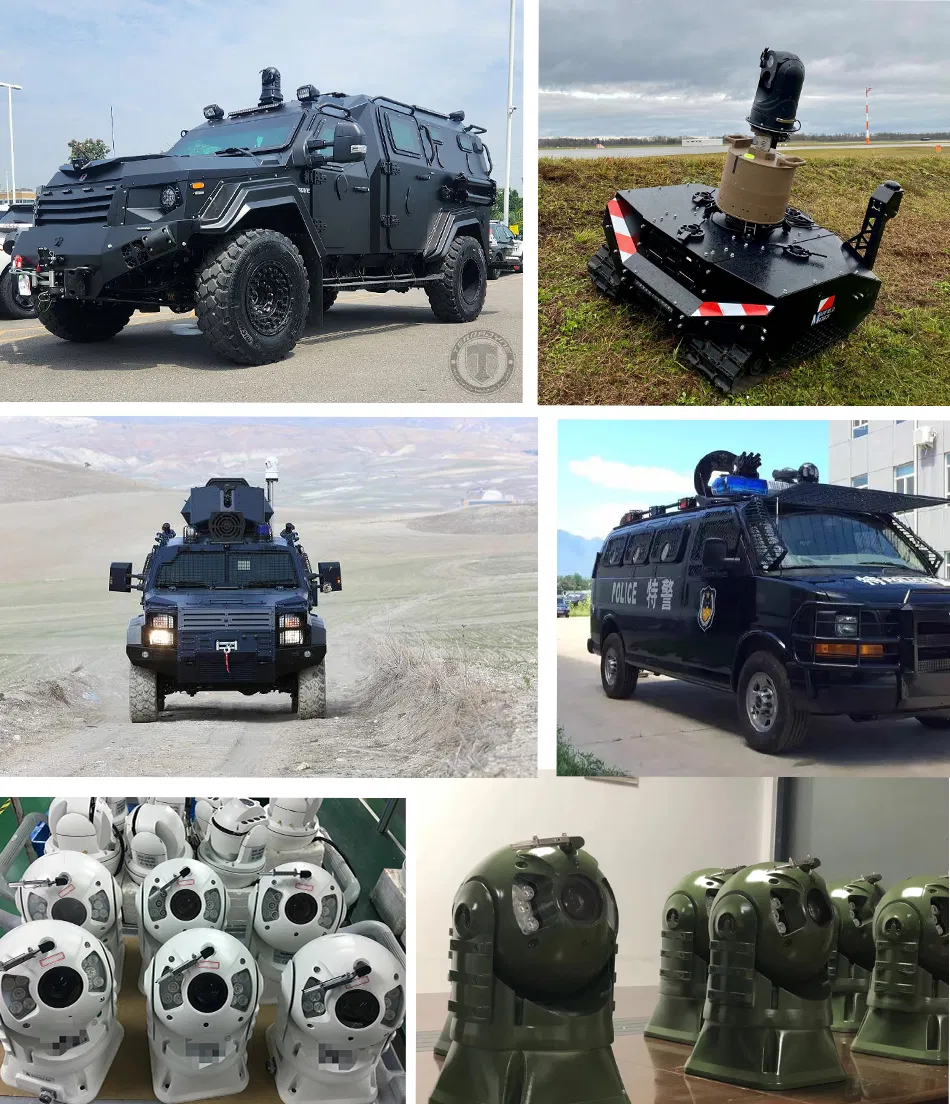

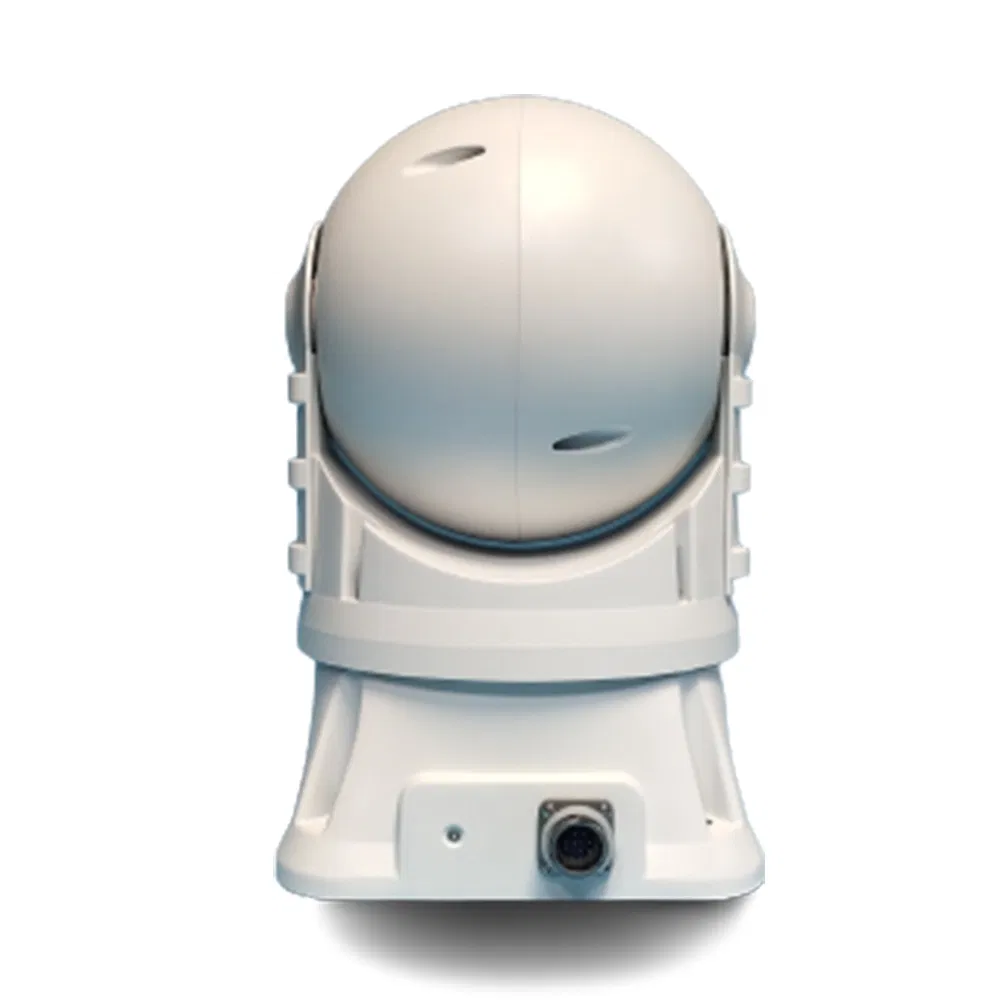

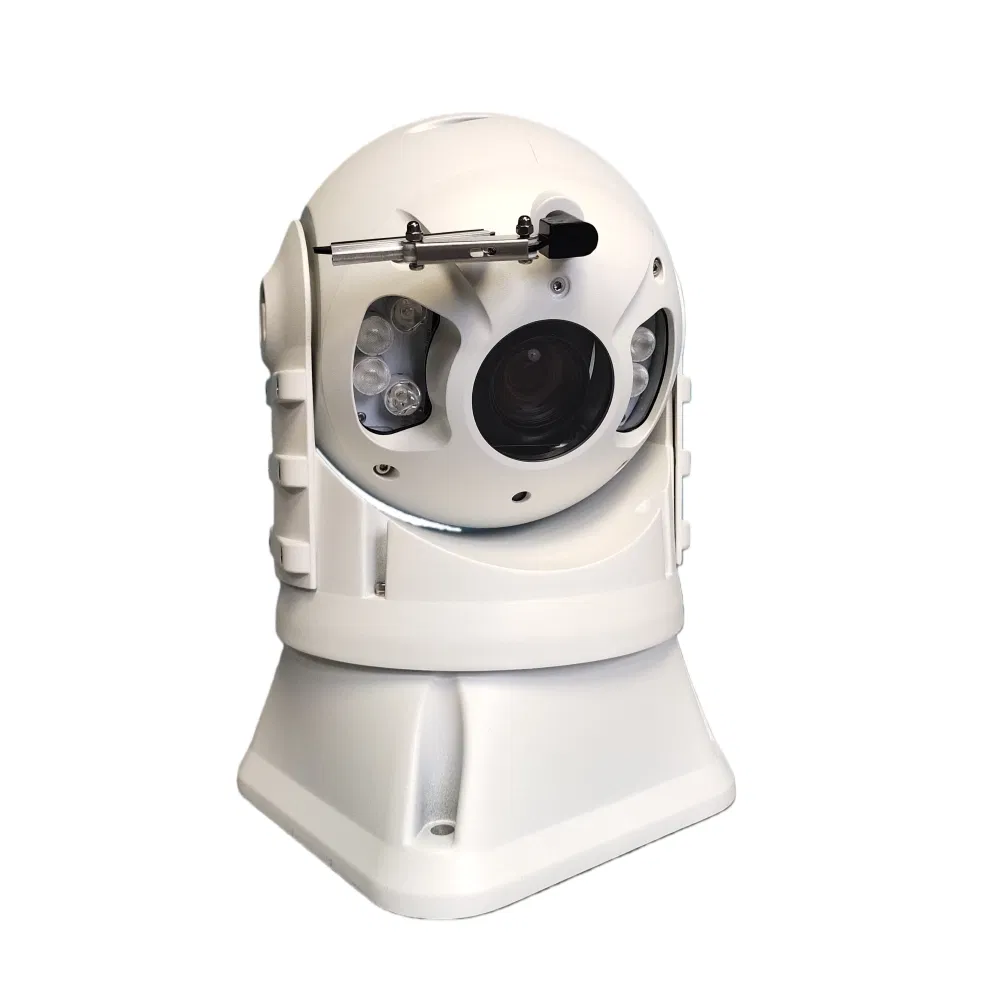

SOAR970 vehicle mounted PTZ Camera
SOAR970 series mobile PTZ is designed for mobile surveillance application. With its excellent waterproof ability up to Ip67, it is also widely applied in marine application. The PTZ can be optionally be ordered with HDIP(2MP, 4MP, 4K); Integrated IR LED or laser illumination allows it to see from 150m up to 800m in complete darkness.
The SOAR970 is built to withstand the harshest conditions. Featuring an IP67-rated waterproof and dustproof housing, it provides complete protection against immersion, heavy rain, salt spray, and airborne particulates. This robust construction makes it the ideal choice for marine surveillance, coastal monitoring, and offshore platforms.
| Thermal Imaging | |
|---|---|
| Detector | VOx Uncooled Infrared FPA |
| Array Format | 640x512 / 12μm |
| Frame Rate | 50Hz |
| Lens | 40mm |
| NETD | ≤50mk@25℃, F#1.0 |
| Visible Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Min. Illumination | Color: 0.05Lux; B/W: 0.01Lux |
| Pan/Tilt | |
| Pan Range | 360° (endless) |
| Tilt Range | –20° ~ +90° (auto reverse) |
| Pan Speed | 0.5°/s ~ 80°/s |
