| Model NO. | SOAR970-TH Series |
| Type | Binocular |
| Sensor | CMOS |
| HDMI Format | 1080P |
| Resolution | 4MP, 8MP |
| Kind | Autofocus Lens |
| Certification | CE |
| Effective Distance | 3km |
| Sensor Size | 1/1.8 inch |
| Feature | Waterproof, High Definition, Thermal Imager, Auto BLC |

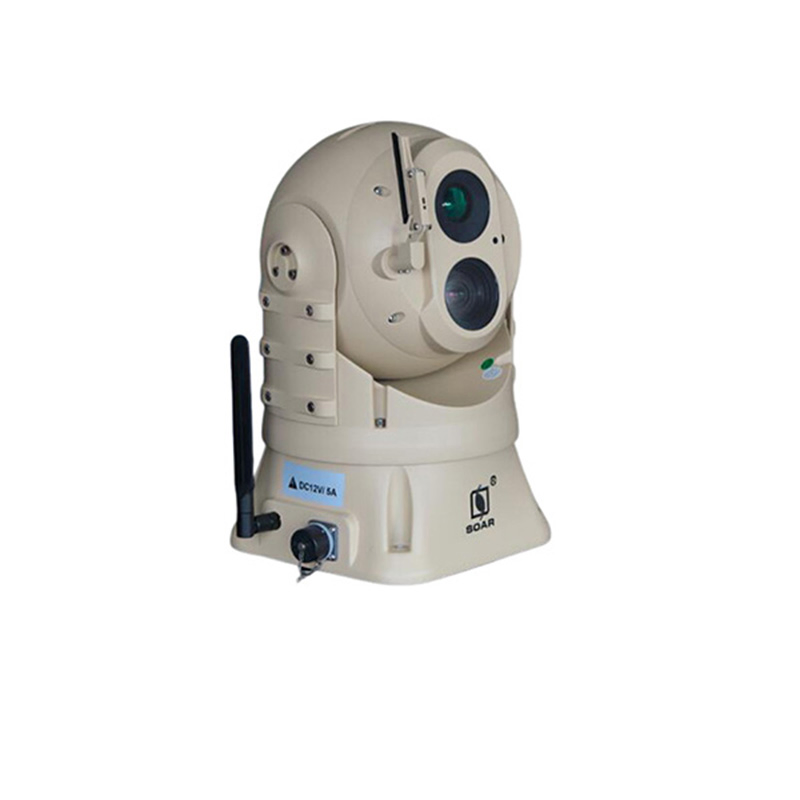

SOAR970 vehicle mounted PTZ Camera
SOAR970 series mobile PTZ is designed for mobile surveillance application. With its excellent waterproof ability up to IP67, it is also widely applied in marine applications. The PTZ can be optionally ordered with HDIP(2MP, 4MP, 4K). Integrated IR LED or laser illumination allows it to see from 150m up to 800m in complete darkness. It can be equipped with dual sensor options, featuring an HD visible camera (up to 33x zoom) and a thermal imager (up to 1280x1024 resolution).
The SOAR970 is built to withstand the harshest conditions, featuring an IP67-rated housing that provides complete protection against immersion, heavy rain, salt spray, and airborne particulates. This makes it ideal for coastal monitoring and offshore platforms.
| Thermal Imaging | |
| Detector | VOx Uncooled Infrared FPA |
| Array Format/Pixel Pitch | 640x512/12μm |
| Frame Rate | 50Hz |
| Lens | 40mm |
| NETD | ≤50mk@25℃, F#1.0 |
| Visible Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Focal Length | 5.5mm~180mm (33x Zoom) |
| Mechanical & Environmental | |
| Pan/Tilt Range | 360° Endless / -20° to +90° |
| Power | DC 12V-24V; Consumption ≤24w |
| Ingress Protection | IP66 |
| Weight | 6.5 kg |

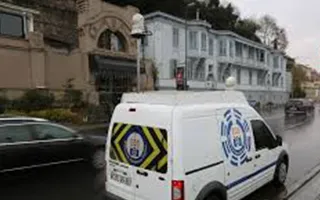

Real-time urban surveillance, patrol car monitoring, and incident response.

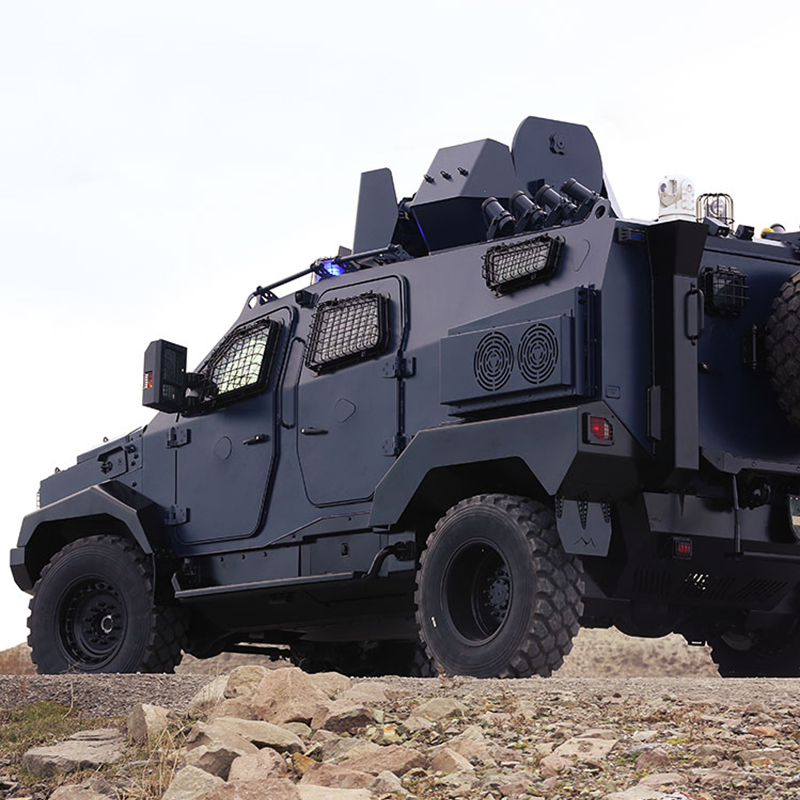

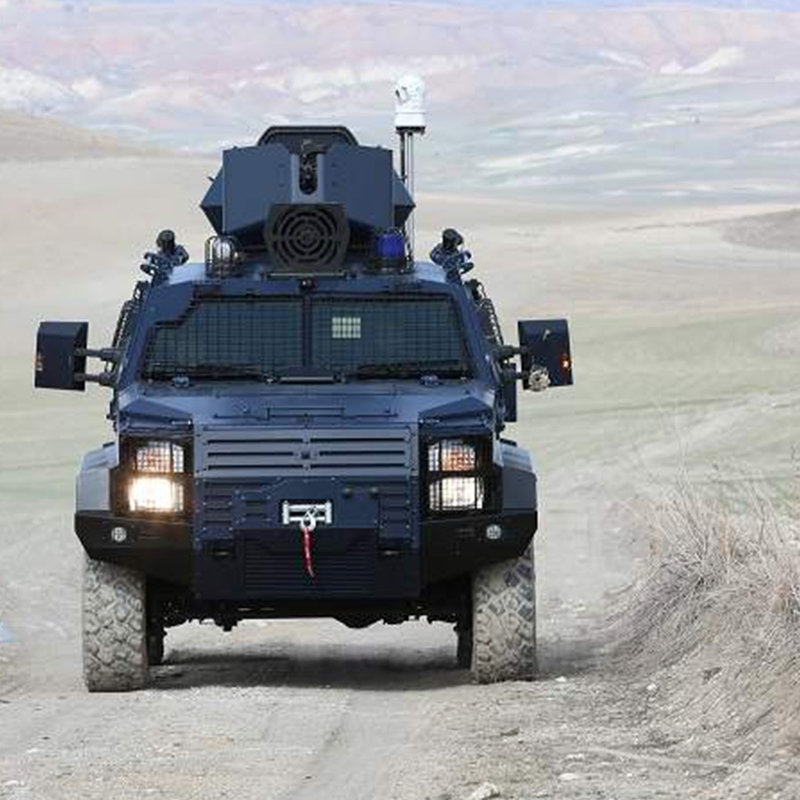

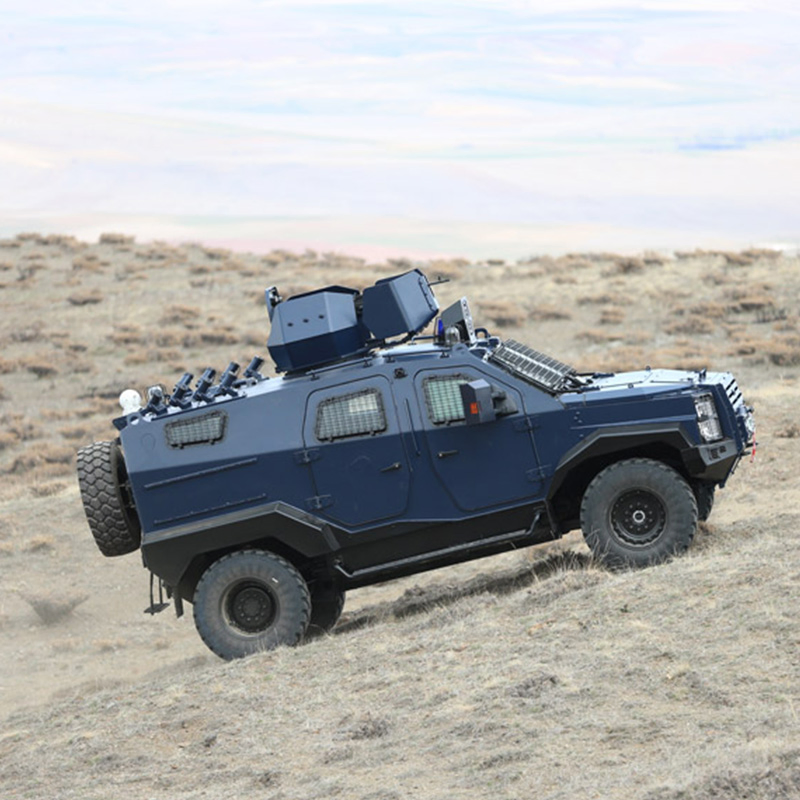

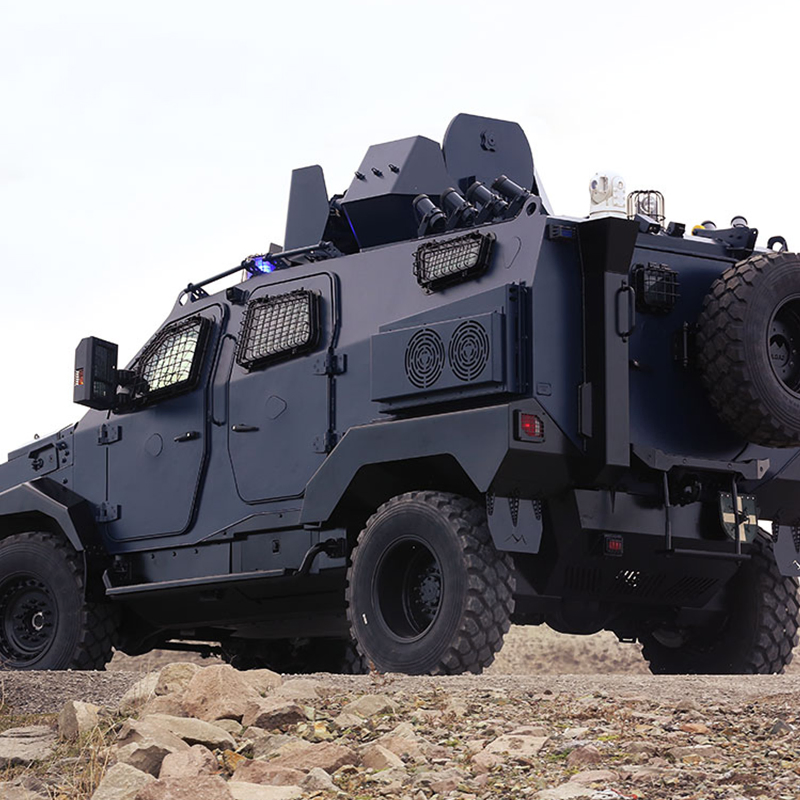

Battlefield surveillance, convoy security, and threat detection from armored vehicles.

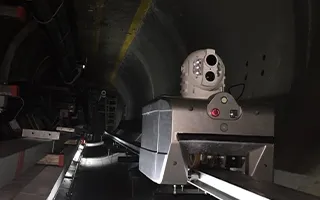

Monitoring power grids, pipelines, and railway security for integrity and safety.
