HawkEye Camera
1 / 5
| Model NO. | SOAR970-TH Series | Type | Binocular |
| Sensor | CMOS | HDMI Format | 1080P |
| Resolution | 4MP, 8MP | Lens | Autofocus |
| Certification | CE | Distance | 3km |
| Sensor Size | 1/1.8inch | Application | Mobile Surveillance |

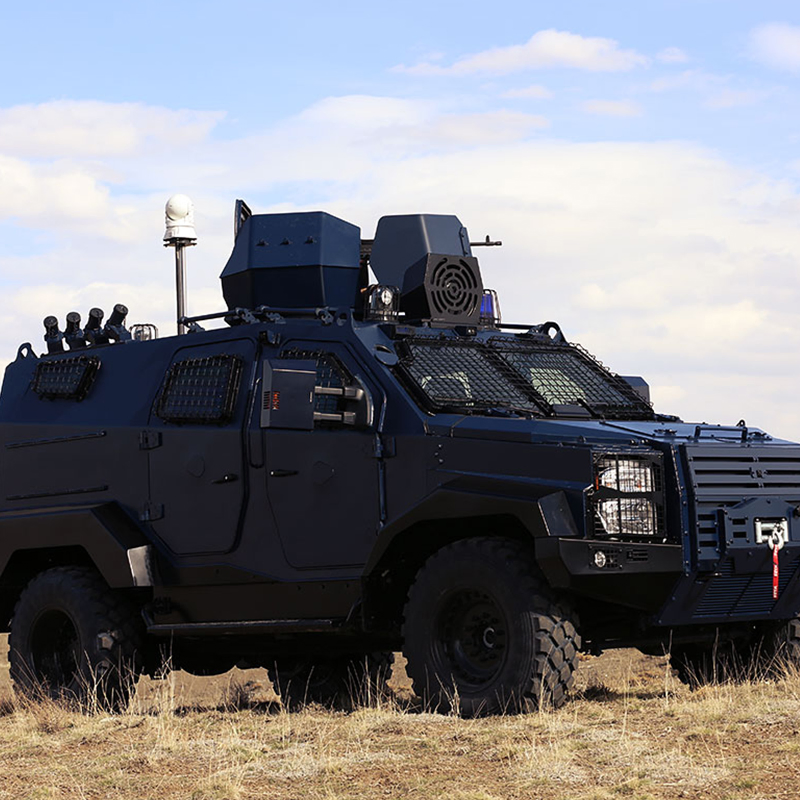

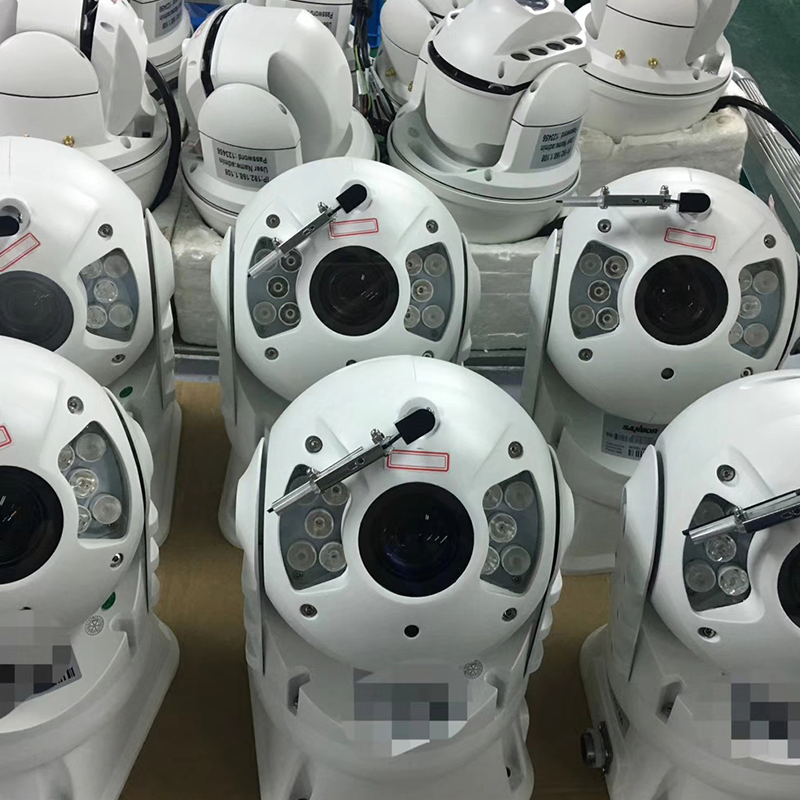

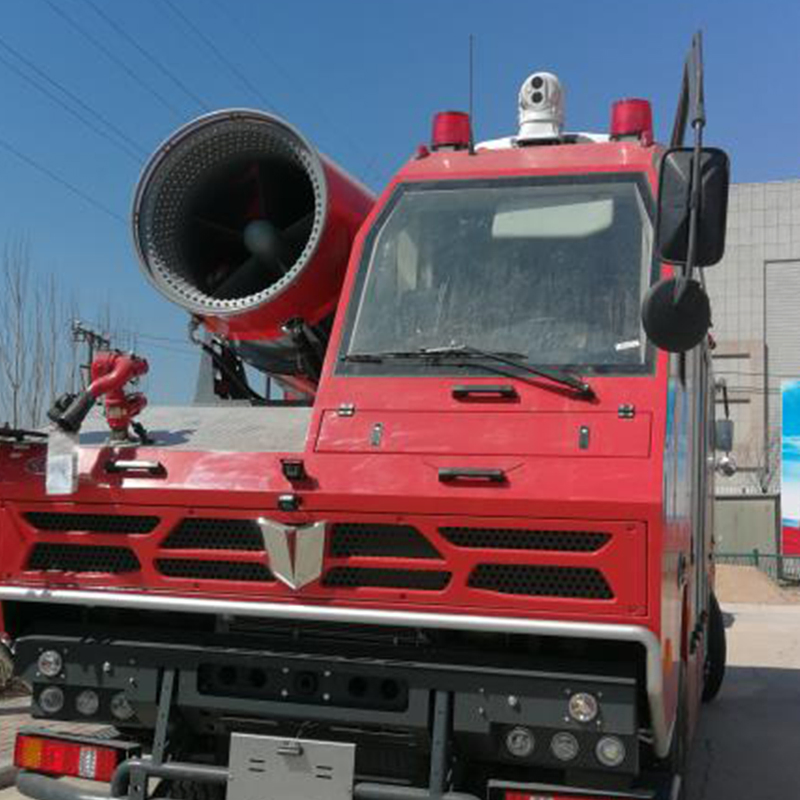

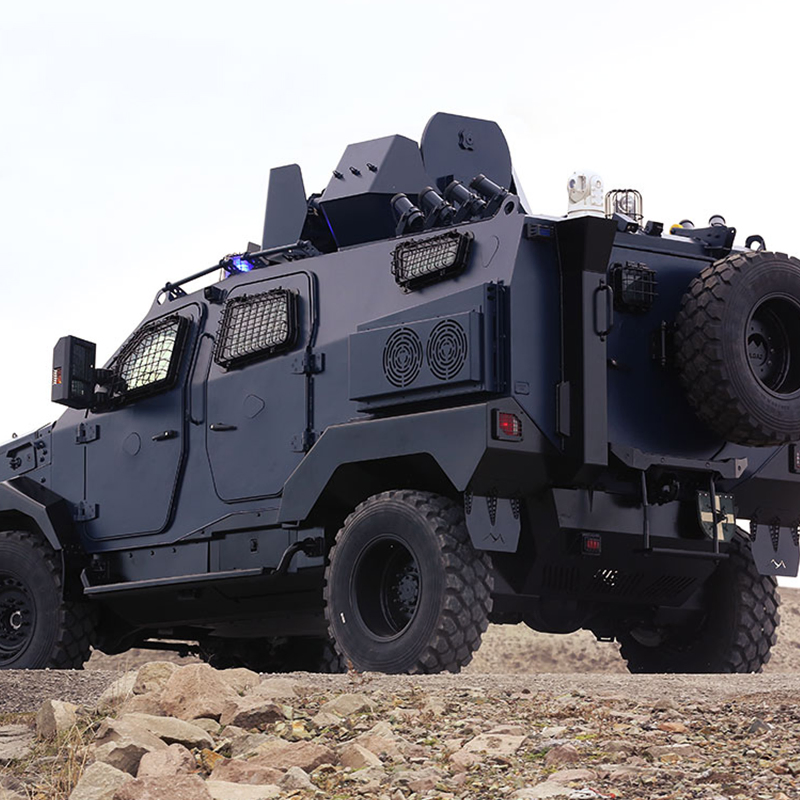

SOAR970 vehicle mounted PTZ Camera is specifically engineered for high-stakes mobile surveillance and marine applications. With its superior IP67 waterproof rating, it withstands complete immersion, heavy rain, and corrosive salt spray, ensuring reliability in the harshest environmental conditions.
Equipped with dual-sensor technology, it integrates a high-definition visible camera (up to 8MP with 33x zoom) and a high-resolution thermal imager. The system features integrated IR LED or laser illumination, providing clear visibility from 150m up to 800m in total darkness.
| Parameter | Details |
|---|---|
| Thermal Imaging | |
| Detector Type | VOx Uncooled Infrared FPA |
| Resolution/Pixel Pitch | 640x512 / 12μm |
| Lens Focal Length | 40mm |
| NETD | ≤50mk@25℃, F#1.0 |
| Palette | 18 types supported |
| Visible Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Focal Length | 5.5mm~180mm (33x Zoom) |
| Pan/Tilt Performance | |
| Pan/Tilt Range | Pan: 360° endless; Tilt: –20° ~ +90° |
| Pan Speed | 0.5°/s ~ 80°/s |
| General | |
| Power Consumption | DC 12V-24V; ≤24W |
| Ingress Protection | IP66/IP67 |
| Dimension / Weight | φ197*316 mm / 6.5 kg |
