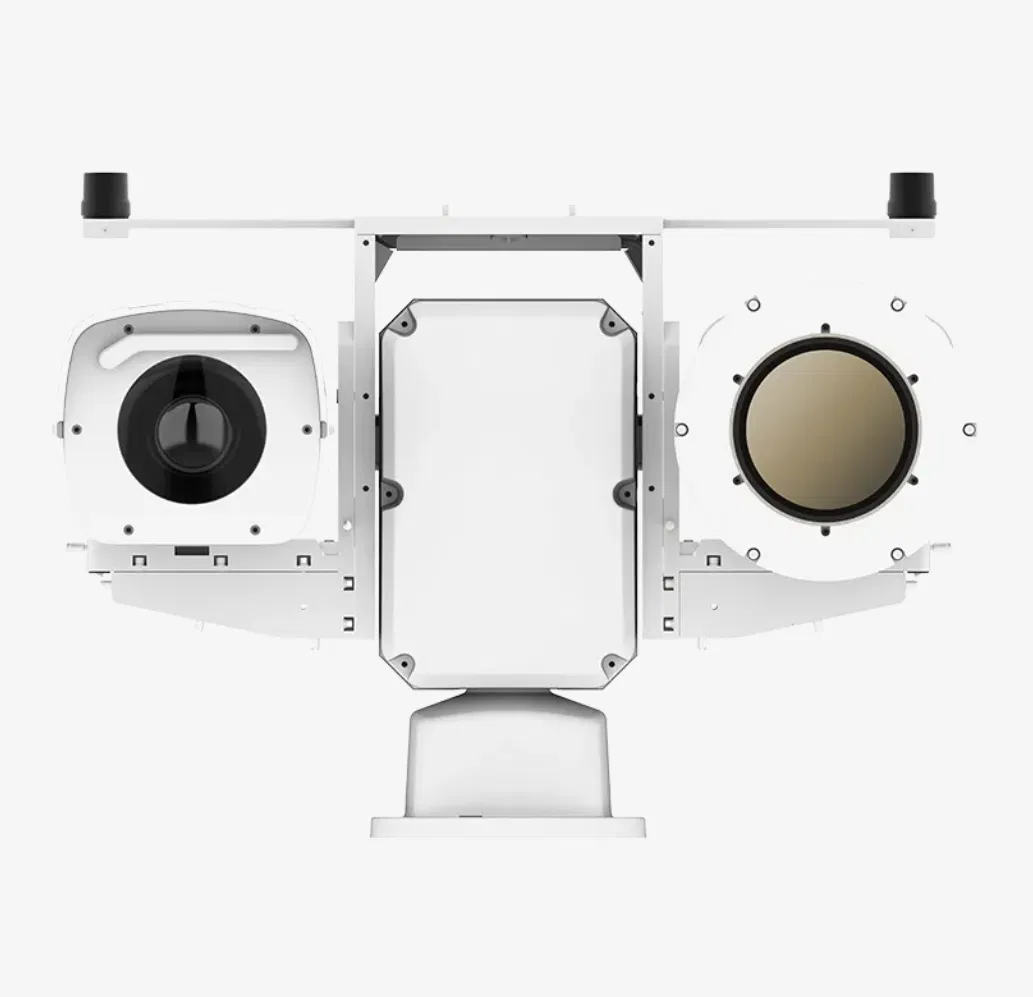

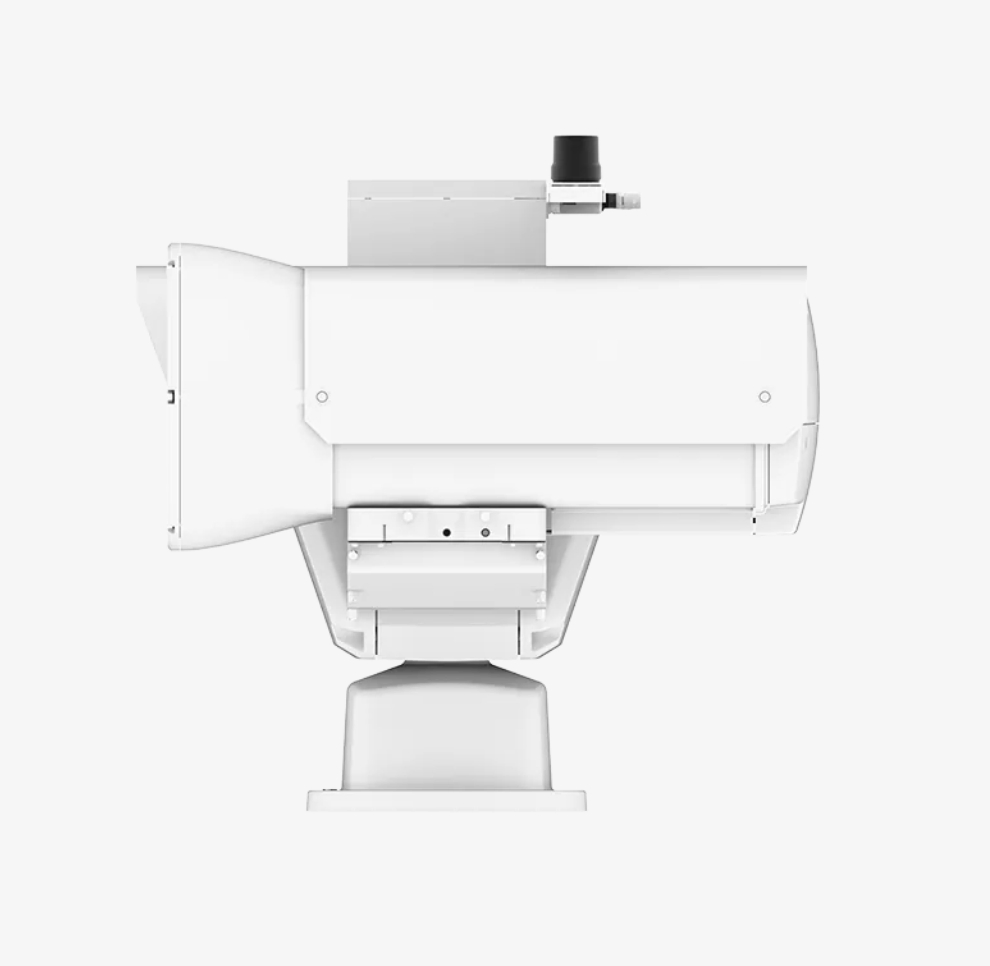

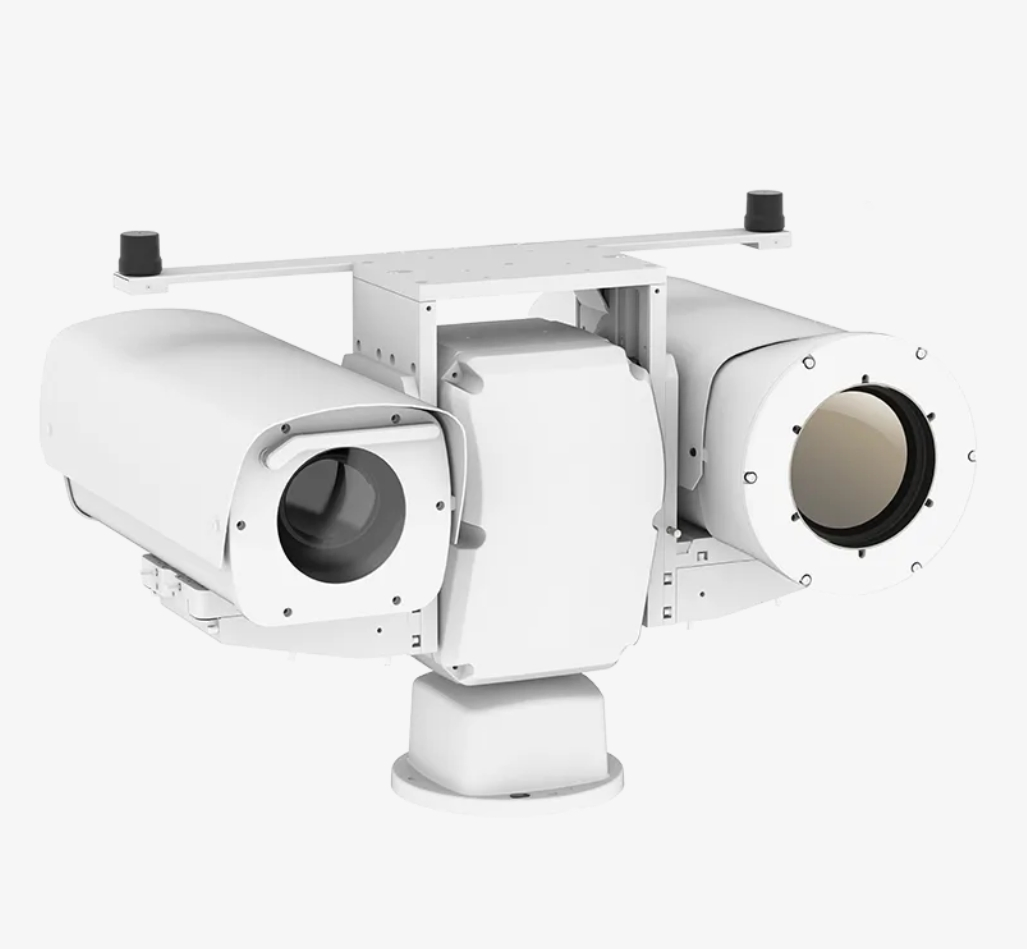

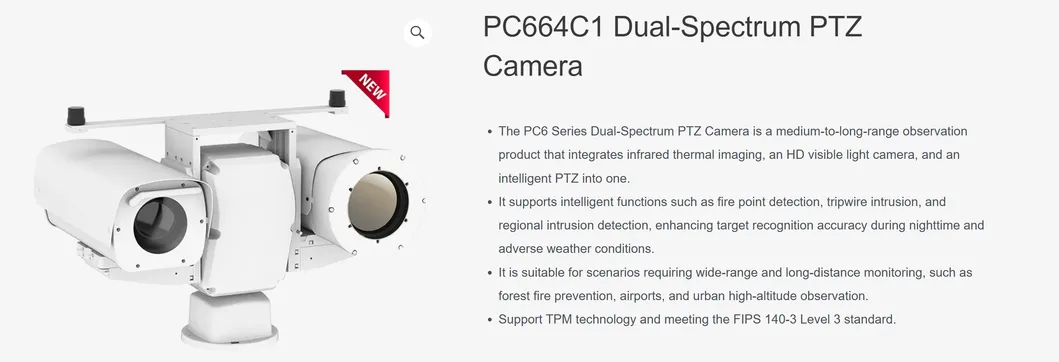

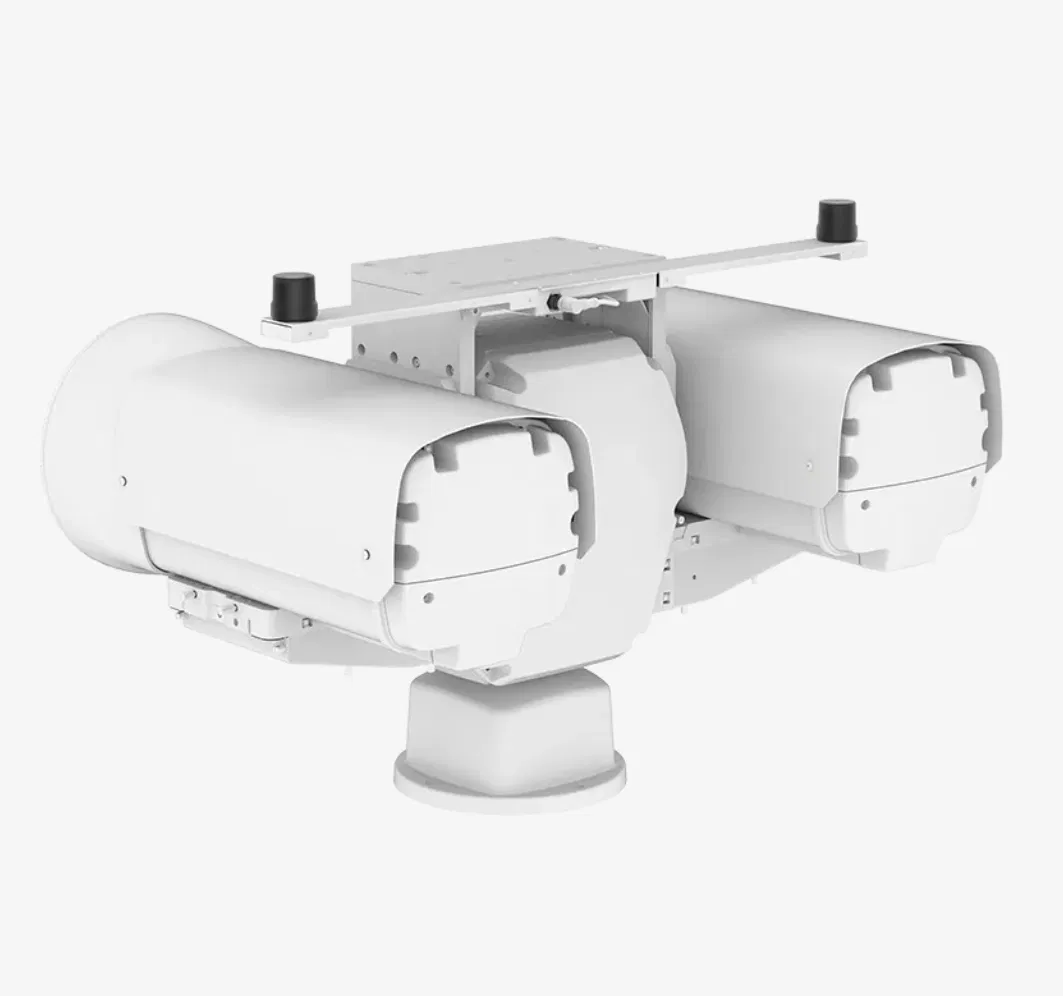

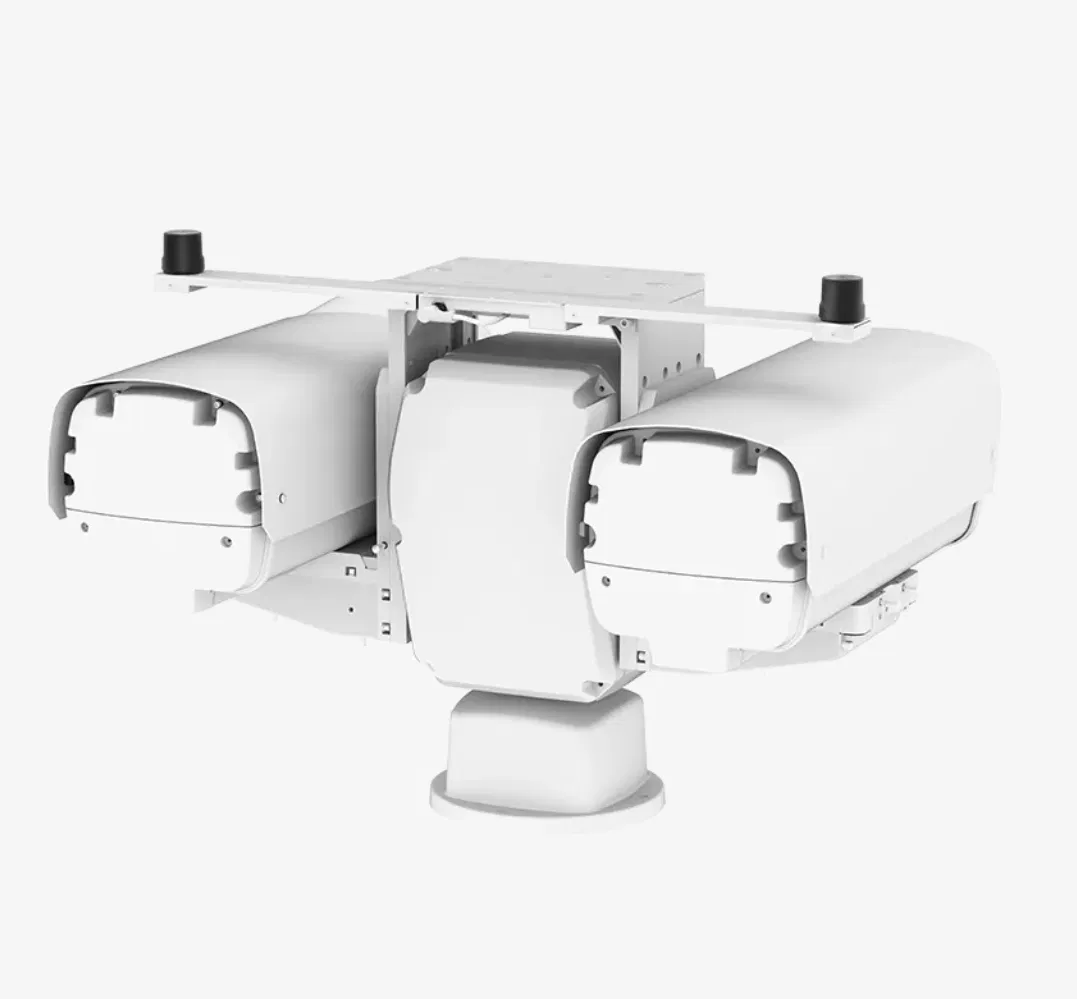

The PC6 Series Dual-Spectrum PTZ Camera is a high-performance medium-to-long-range observation system. By integrating advanced infrared thermal imaging with an HD visible light camera and an intelligent PTZ platform, it provides unparalleled situational awareness. It is engineered for critical applications such as forest fire prevention, airport security, and urban high-altitude surveillance, ensuring reliable target recognition even in total darkness or adverse weather conditions.

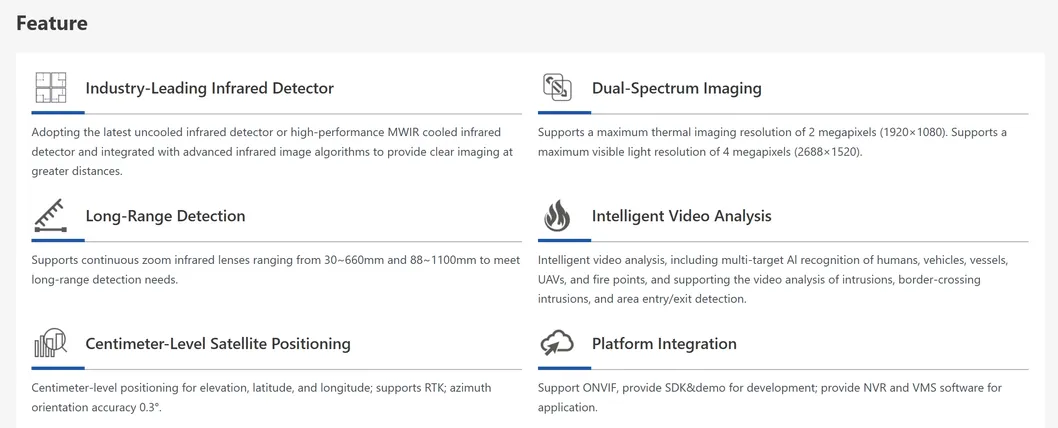

Utilizes the latest uncooled or high-performance MWIR cooled infrared detectors for ultra-clear imaging at extreme distances.
Simultaneous output of 2MP thermal imaging and 4MP visible light (2688×1520) for comprehensive monitoring.
AI-driven recognition for humans, vehicles, vessels, and UAVs, including tripwire and regional intrusion alerts.
Centimeter-level accuracy for latitude, longitude, and elevation with 0.3° azimuth orientation precision.

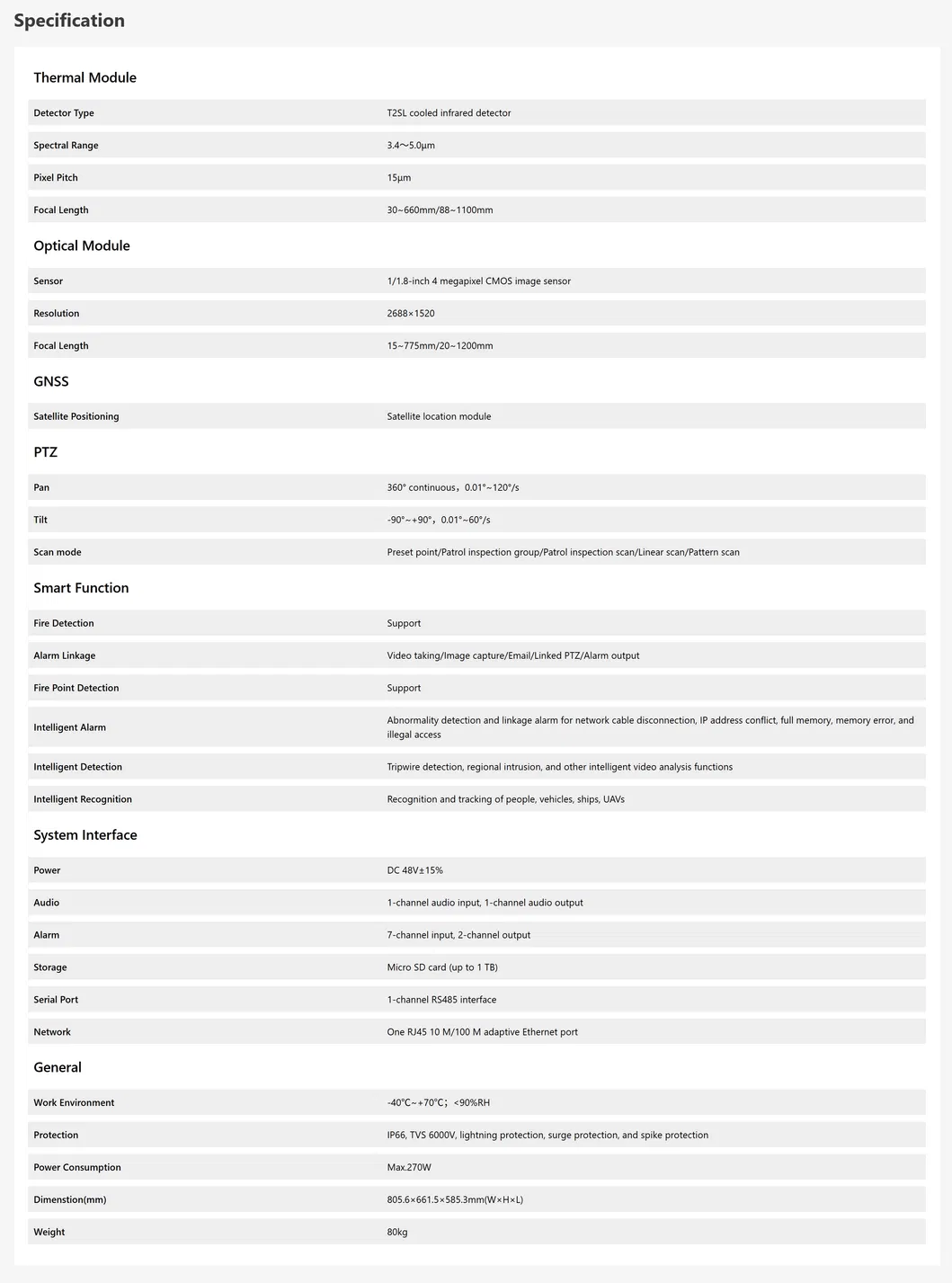

| Thermal Module | |
|---|---|
| Detector Type | T2SL cooled infrared detector |
| Spectral Range | 3.4~5.0μm |
| Resolution | 640×512 (15μm pixel pitch) |
| Focal Length | 30~660mm / 88~1100mm |
| Optical Module | |
| Sensor | 1/1.8-inch 4 megapixel CMOS |
| Resolution | 2688×1520 |
| Focal Length | 15~775mm / 20~1200mm |
| PTZ Performance | |
| Pan Range | 360° continuous (up to 120°/s) |
| Tilt Range | -90°~+90° (up to 60°/s) |
| Scan Modes | Preset / Patrol / Linear / Pattern Scan |
| System & General | |
| Storage | Micro SD card (up to 1 TB) |
| Network | RJ45 10M/100M Adaptive Ethernet |
| Environment | -40ºC~+70ºC; <90%RH |
| Dimensions | 805.6×661.5×585.3mm |
| Weight | 80kg |
