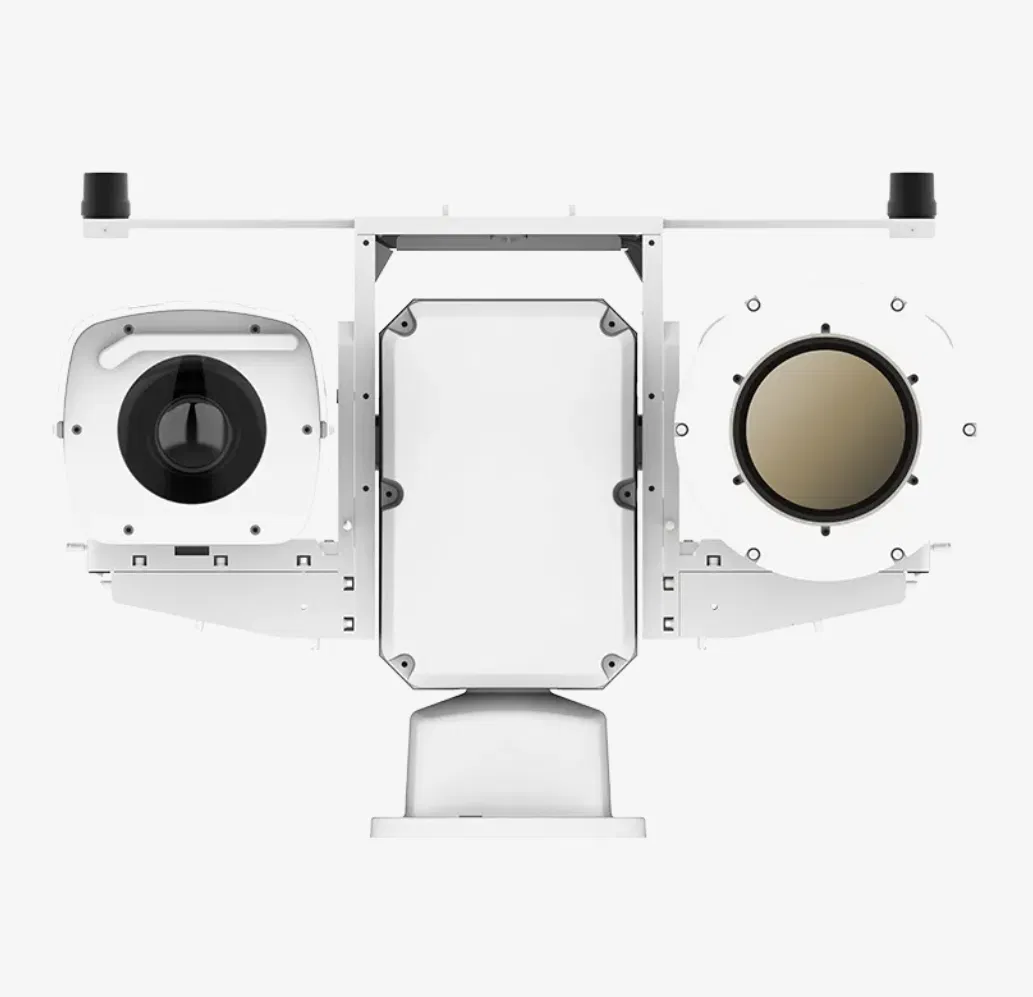

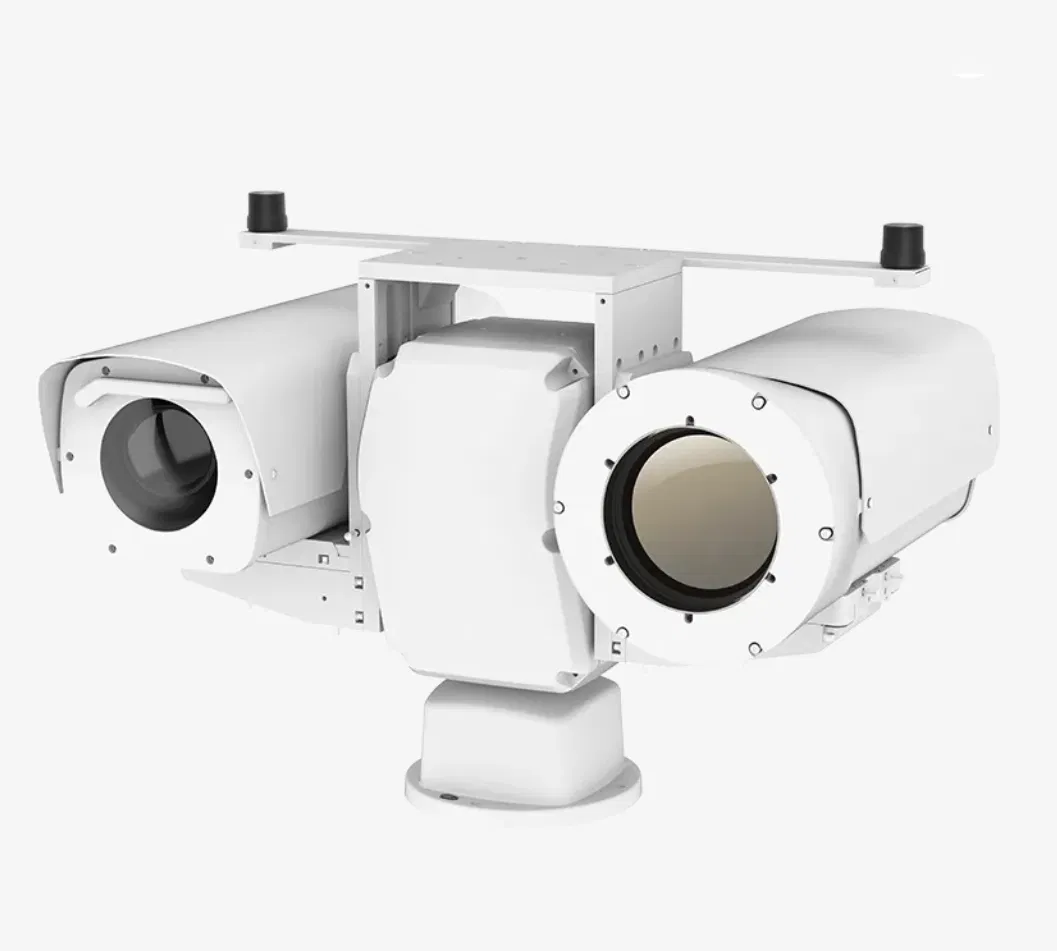

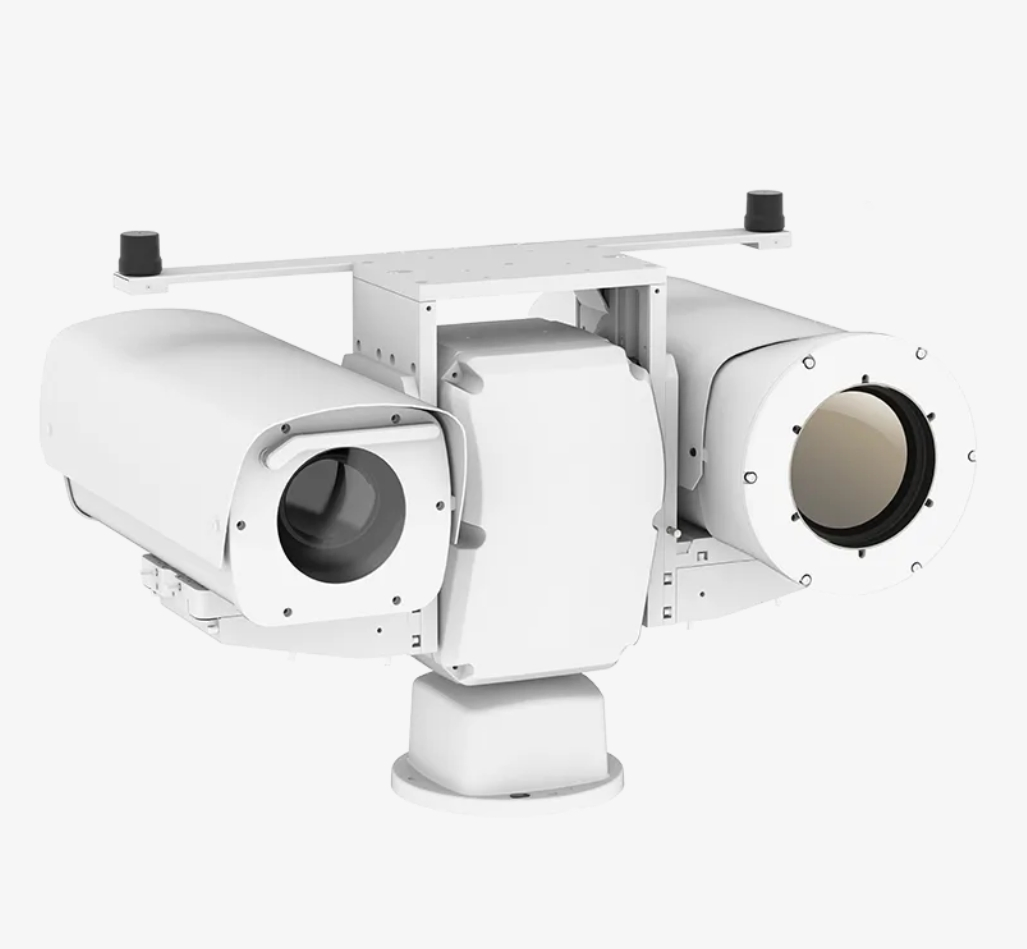

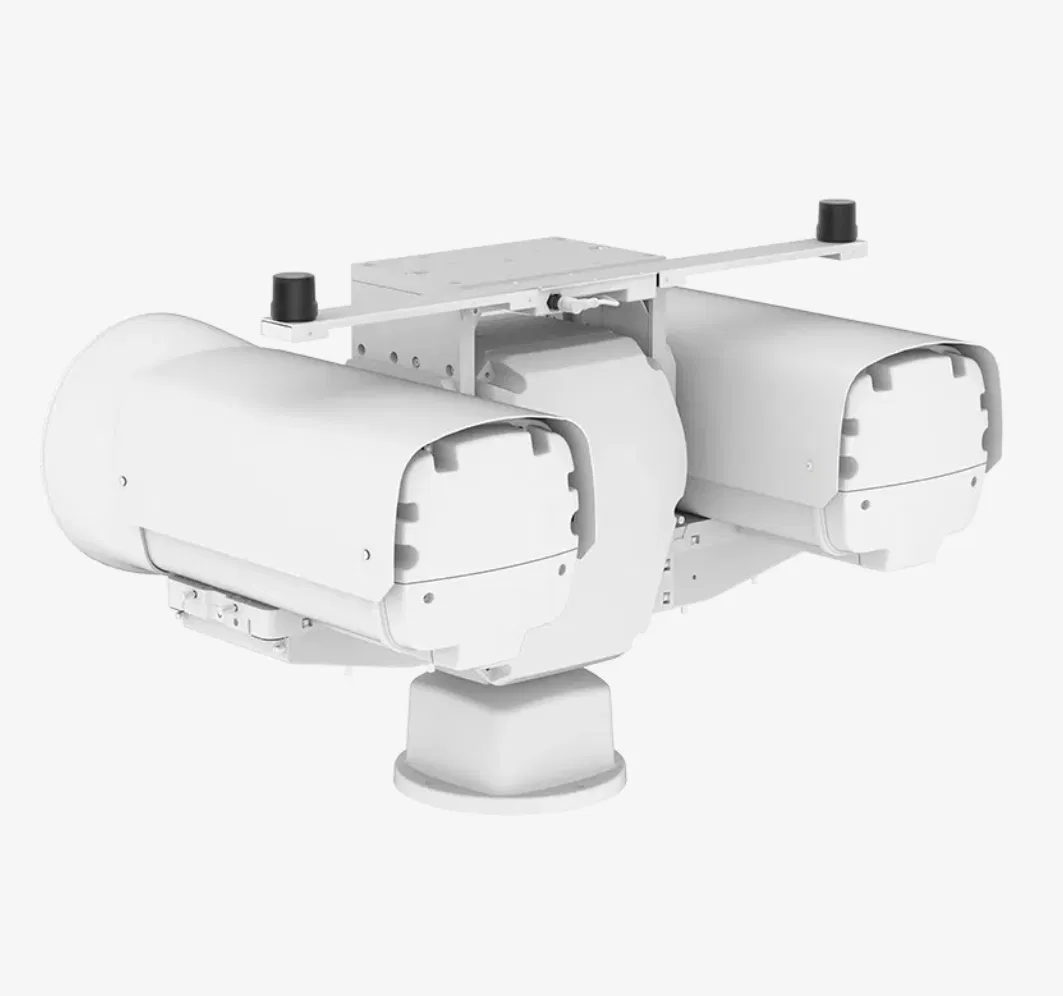

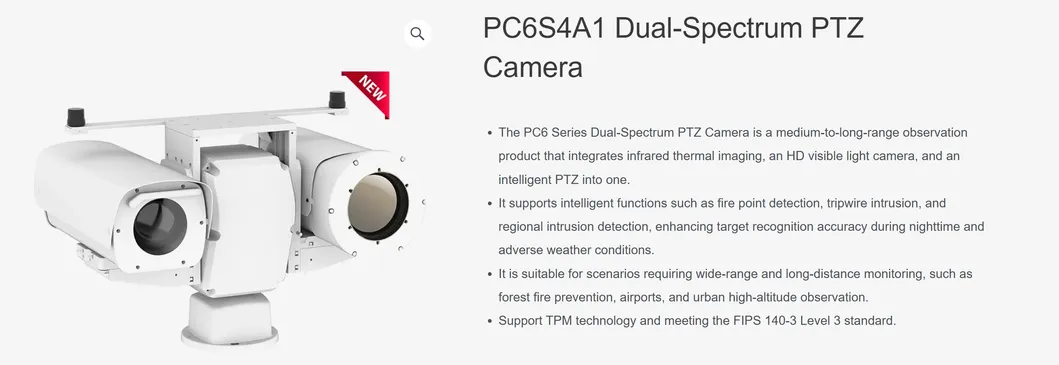

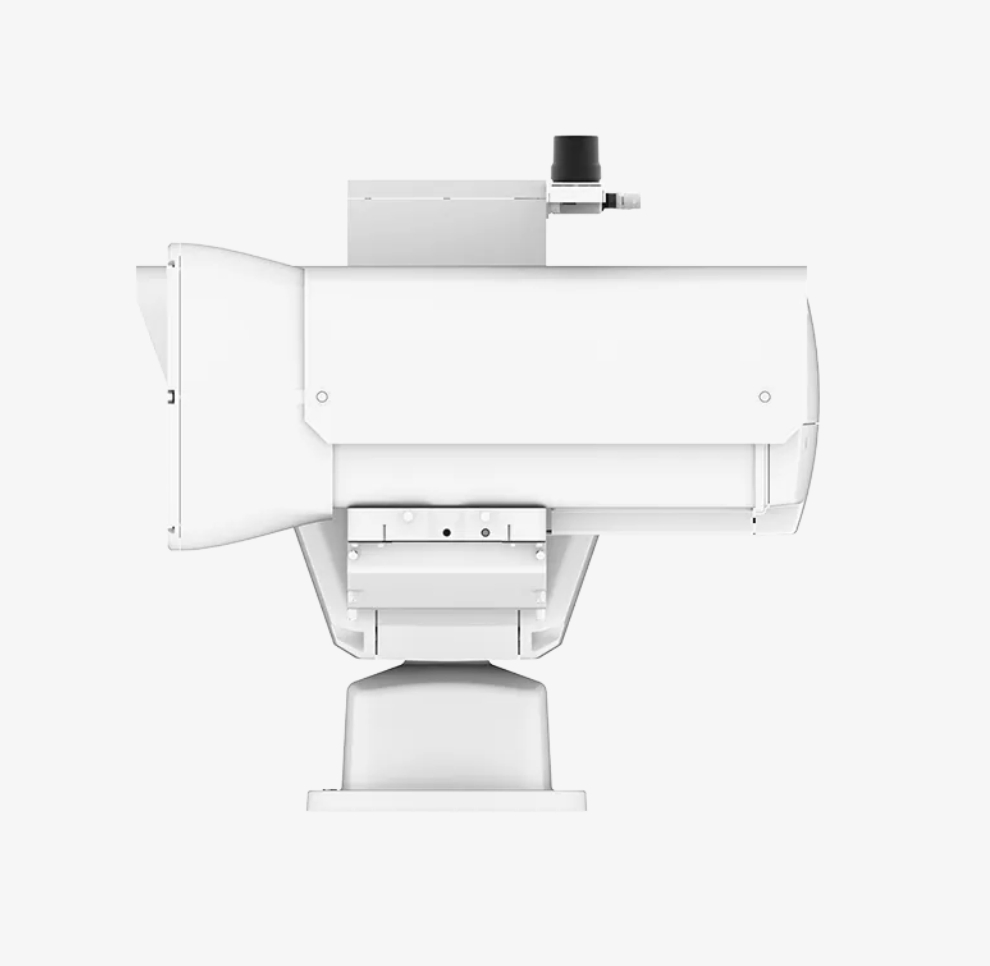

The PC6 Series Dual-Spectrum PTZ Camera is a medium-to-long-range observation product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ into one. It is suitable for scenarios requiring wide-range and long-distance monitoring, such as forest fire prevention, airports, and urban high-altitude observation. It supports TPM technology and meets the FIPS 140-3 Level 3 standard.

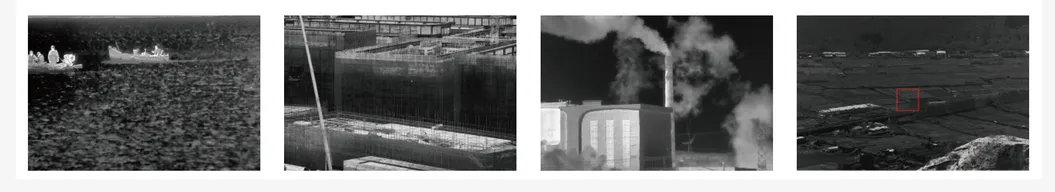

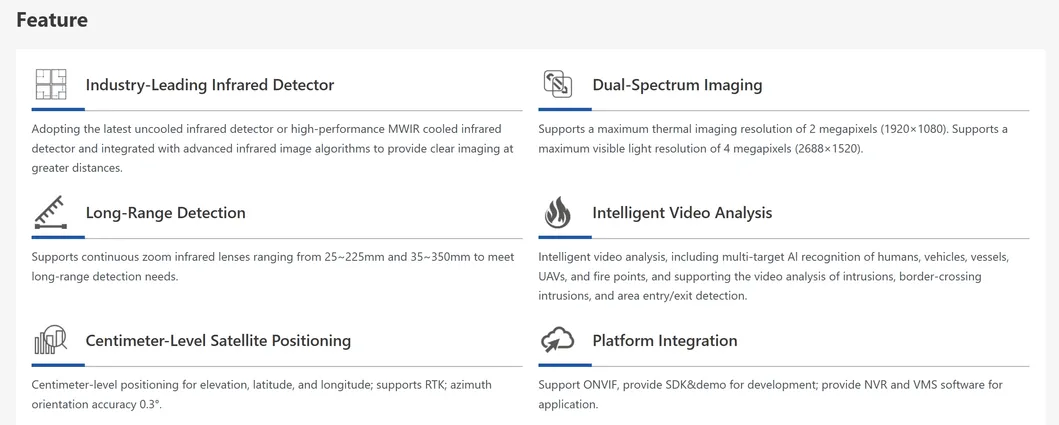

Adopting the latest uncooled infrared detector or high-performance MWIR cooled infrared detector with advanced algorithms for clear imaging at greater distances.
Supports maximum thermal resolution of 2 megapixels (1920×1080) and visible light resolution of 4 megapixels (2688×1520).
Supports continuous zoom infrared lenses ranging from 25~225mm and 35~350mm to meet demanding observation needs.
Multi-target AI recognition of humans, vehicles, vessels, UAVs, and fire points; supports tripwire and area intrusion detection.
Centimeter-level positioning for elevation, latitude, and longitude; supports RTK with an azimuth orientation accuracy of 0.3°.
Supports ONVIF protocol and provides SDK/demo for development; compatible with NVR and VMS software.

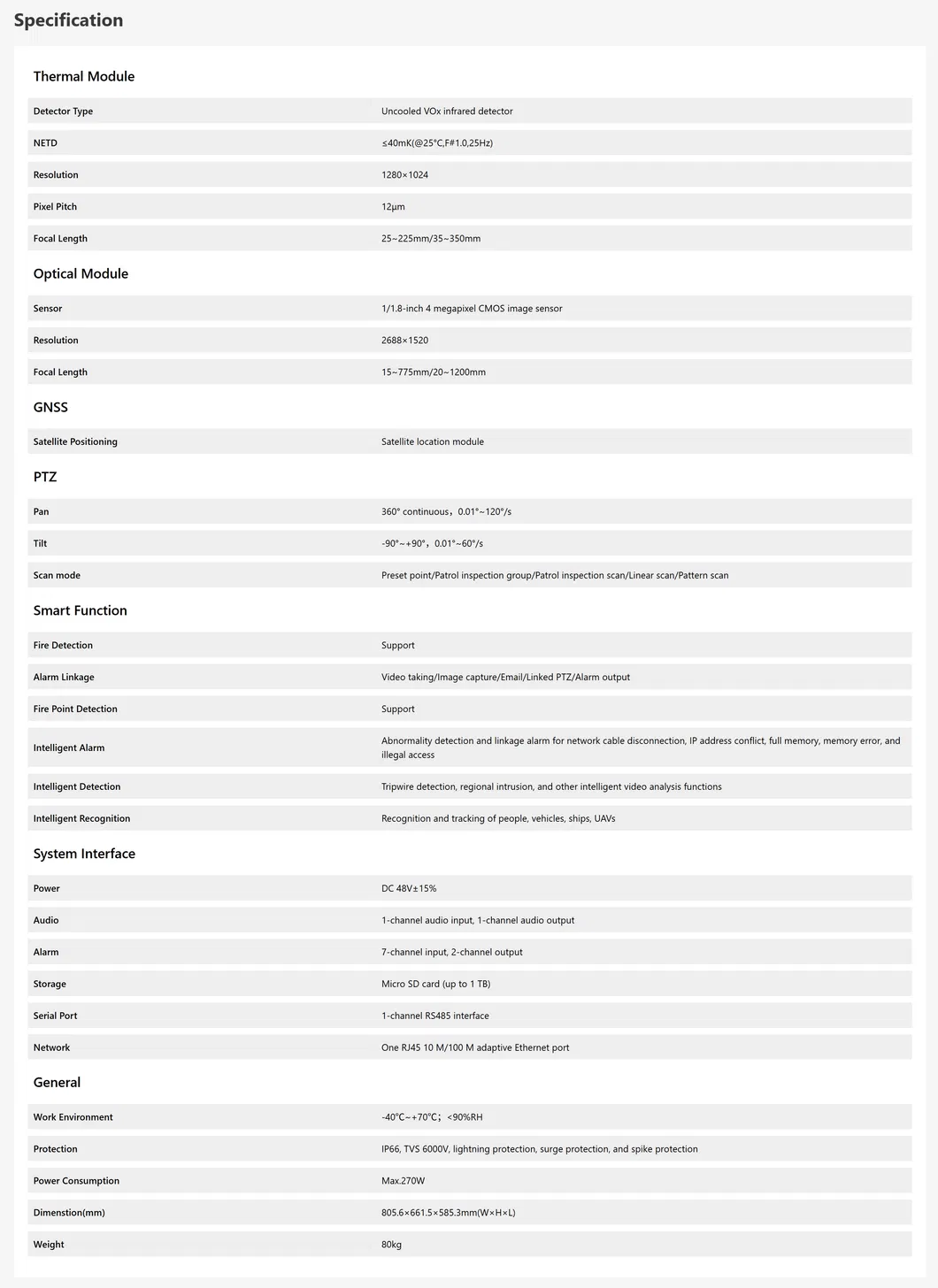

| Thermal Module | |
|---|---|
| Detector Type | Uncooled VOx infrared detector |
| Spectral Range | 8~14μm |
| NETD | ≤40mK (@25°C, F#1.0, 25Hz) |
| Focal Length | 25~225mm / 35~350mm |
| Optical Module | |
| Sensor | 1/1.8-inch 4 megapixel CMOS image sensor |
| Resolution | 2688×1520 |
| Focal Length | 15~775mm / 20~1200mm |
| PTZ Performance | |
| Pan / Tilt Range | Pan: 360° Continuous; Tilt: -90°~+90° |
| Scan Mode | Preset Point, Patrol Inspection, Linear Scan, Pattern Scan |
| General & Interface | |
| Storage | Micro SD card (up to 1 TB) |
| Protection | IP66, TVS 6000V Lightning/Surge Protection |
| Environment | -40ºC ~ +70ºC; <90% RH |
