High-Tech Dual Sensor Thermal PTZ for Reliable Mobile Monitoring

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Basic Information

Model NO.	SOAR970-TH Series	Type	Binocular
Sensor	CMOS	HDMI Format	1080P
Horizontal Resolution	4MP, 8MP	Kind	Autofocus Lens
Certification	CE	Feature	Waterproof, High Definition, Thermal Imager
Effective Distance	3km	Sensor Size	1/1.8inch
Application	Mobile Surveillance	Dual Sensor	Support

Product Description

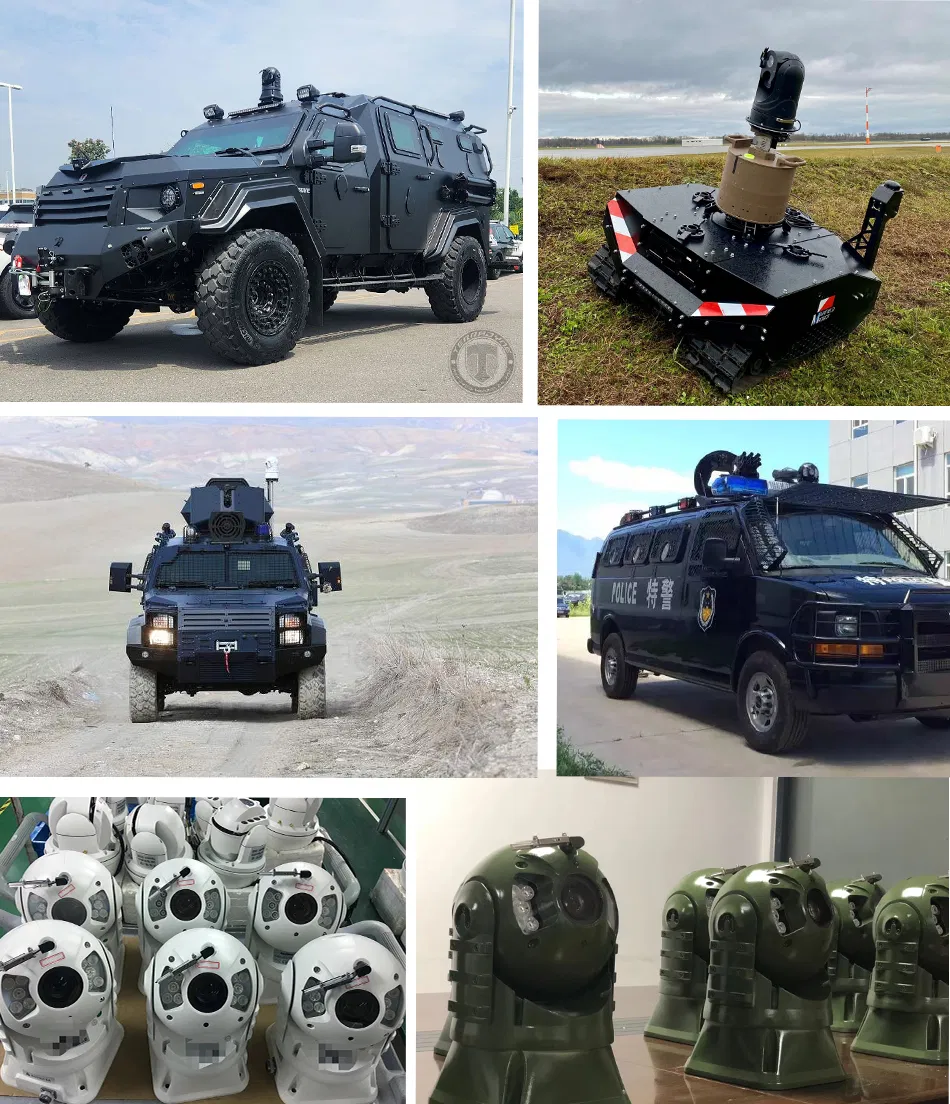

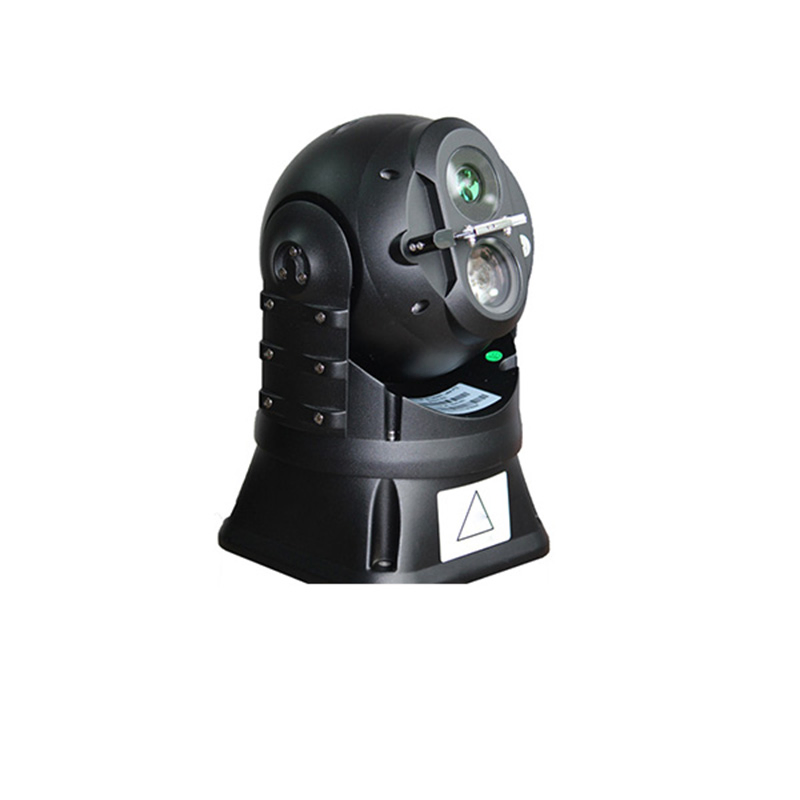

SOAR970 Vehicle Mounted PTZ Camera

The SOAR970 series mobile PTZ is specifically engineered for high-demand mobile surveillance. With an IP67 waterproof rating, it excels in both vehicle-mounted and marine applications. It offers flexible configurations including HDIP (2MP, 4MP, 4K) and optional laser or IR LED illumination for visibility up to 800m in complete darkness.

Equipped with dual-sensor technology, the system integrates a high-definition visible camera (up to 33x optical zoom) and a precision thermal imager (up to 1280x1024 resolution). This robust construction ensures reliable performance in heavy rain, salt spray, and extreme temperatures, making it ideal for coastal monitoring and offshore platforms.

Product Highlights

1920×1080 Progressive Scan CMOS, Day/Night Monitoring (Optional 2MP/4MP/4K)

33X Optical Zoom (5.5~180mm Focal Length)

Thermal Imager 640x512 with 40mm Lens

360° Endless Continuous Rotation

IP67 Rugged Design for Harsh Environments

Extreme Operating Temperature: -40° to +65°C

Optional Integrated Damper Absorber for Vehicle Stability

Technical Specification

Thermal Imaging
Detector	VOx Uncooled Infrared FPA
Resolution / Pixel Pitch	640x512 / 12μm
Frame Rate	50Hz
NETD	≤50mk@25℃, F#1.0
Polarity	Black hot / White hot (18 Palette types)
Visible Camera
Image Sensor	1/2.8” Progressive Scan CMOS
Effective Pixels	1920(H) x 1080(V), 2 MP
Focal Length	5.5mm ~ 180mm (33x Optical)
Pan/Tilt Performance
Pan Range	360° Endless
Tilt Range	–20° ~ +90° (Auto Reverse)
Pan/Tilt Speed	Pan: 80°/s, Tilt: 60°/s
Physical & Power
Power Input	DC 12V-24V Wide Voltage
Protection Class	IP66/IP67
Weight / Dimension	6.5 kg / φ197*316 mm

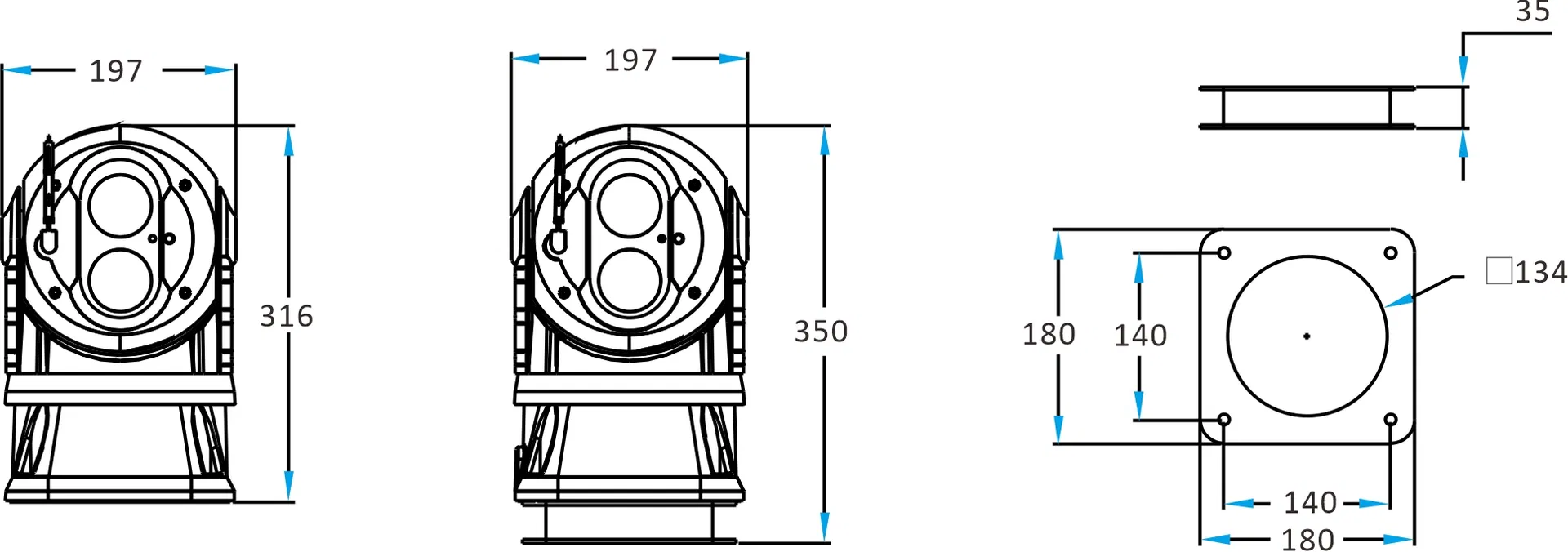

Dimension Analysis

Application Scenarios

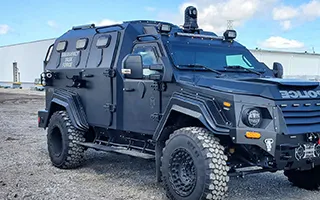

Law Enforcement & Public Safety

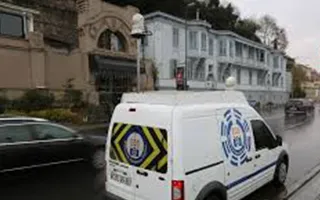

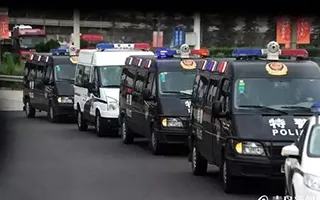

Patrol car urban surveillance, riot control monitoring, border security, and emergency situational awareness.

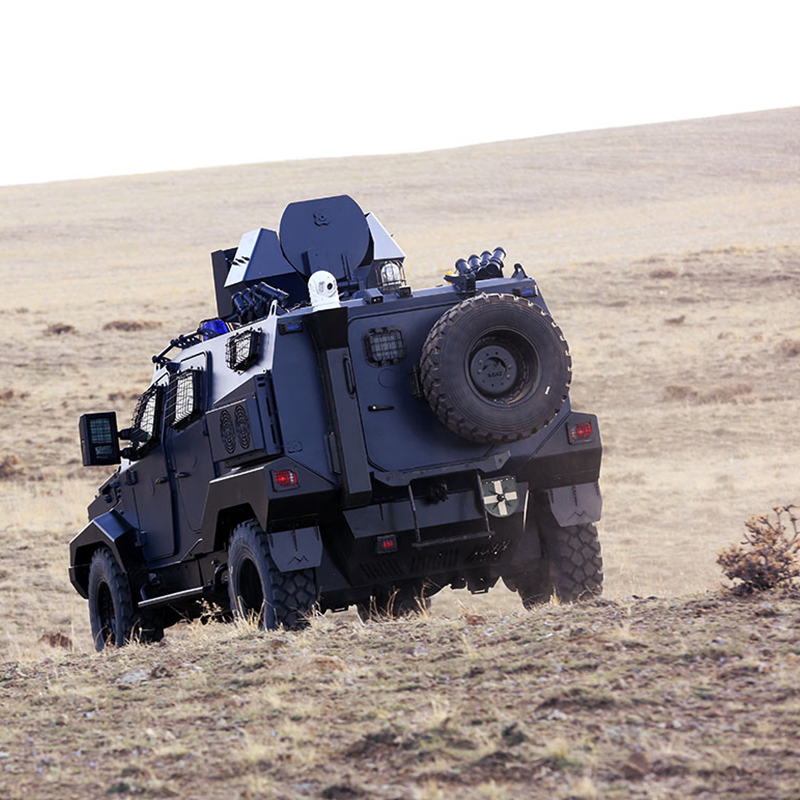

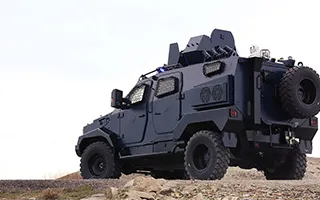

Defense & Reconnaissance

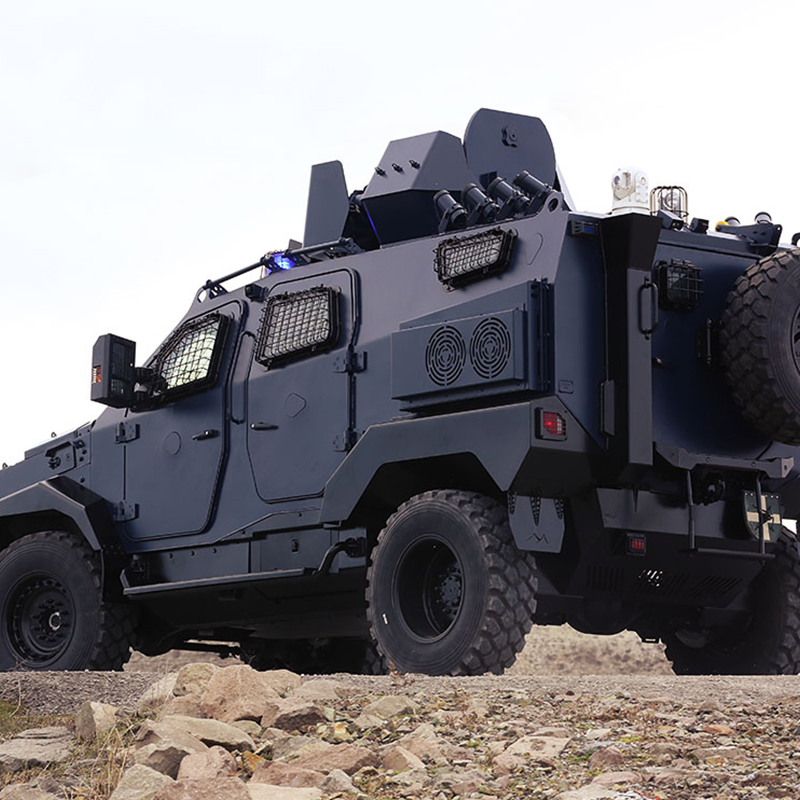

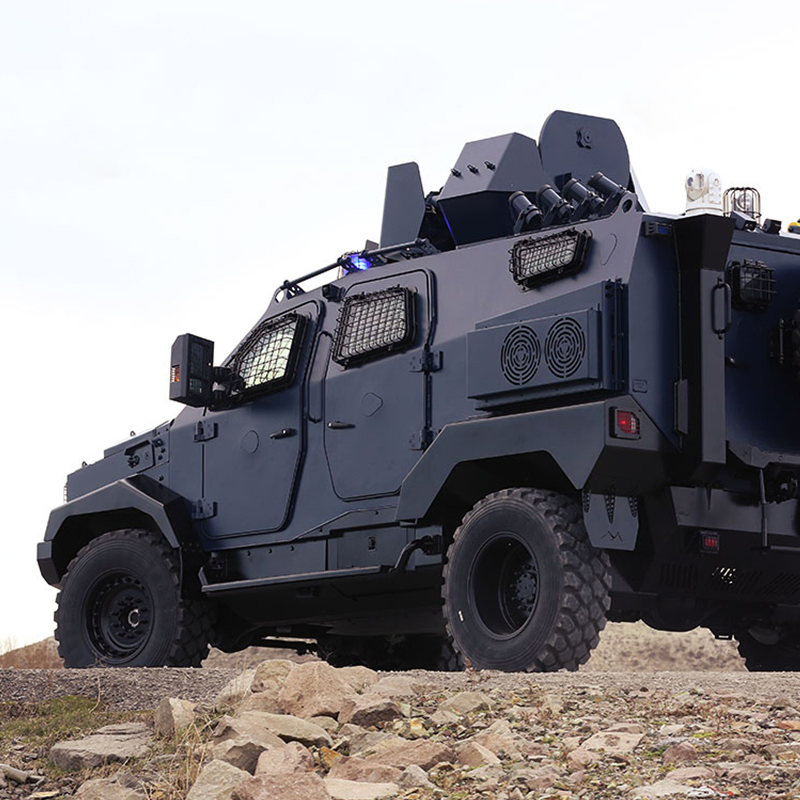

Battlefield intelligence from armored vehicles, convoy security, and perimeter monitoring for forward bases.

Infrastructure Protection

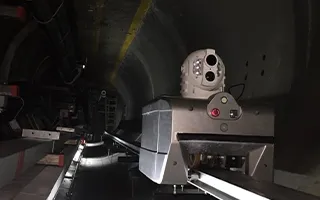

Power grid inspections, oil/gas pipeline surveillance, and railway track safety monitoring.

Frequently Asked Questions

Q1: What is the typical delivery timeline for the SOAR970 series?

For standard small orders, delivery is typically processed within 7 working days. For custom or OEM orders, timelines will be confirmed based on requirements.

Q2: Is there a Minimum Order Quantity (MOQ)?

The MOQ varies depending on the specific model and configuration requested. Please contact our sales team for detailed info.

Q3: What payment methods are accepted for international orders?

We support standard payment terms, including T/T (Telegraphic Transfer).

Q4: What is the warranty period for the PTZ cameras?

All PTZ products and modules are covered by a standard 1-year warranty from the date of purchase.

Q5: How do I receive technical support after purchase?

We provide lifetime technical support. Our engineering team typically responds to all technical inquiries within 24 hours.

Q6: Can this camera be used in extreme marine environments?

Yes, with its IP67 rating and corrosion-resistant design, it is perfectly suited for marine vessels, anti-piracy patrols, and coastal monitoring.
