HawkEye Camera
1 / 5
| Model NO. | SOAR970-TH Series | Type | Binocular |
| Sensor | CMOS | HDMI Format | 1080P |
| Resolution | 4MP, 8MP | Lens | Autofocus Lens |
| Certification | CE | Effective Distance | 3km |
| Sensor Size | 1/1.8 inch | Application | Mobile Surveillance |

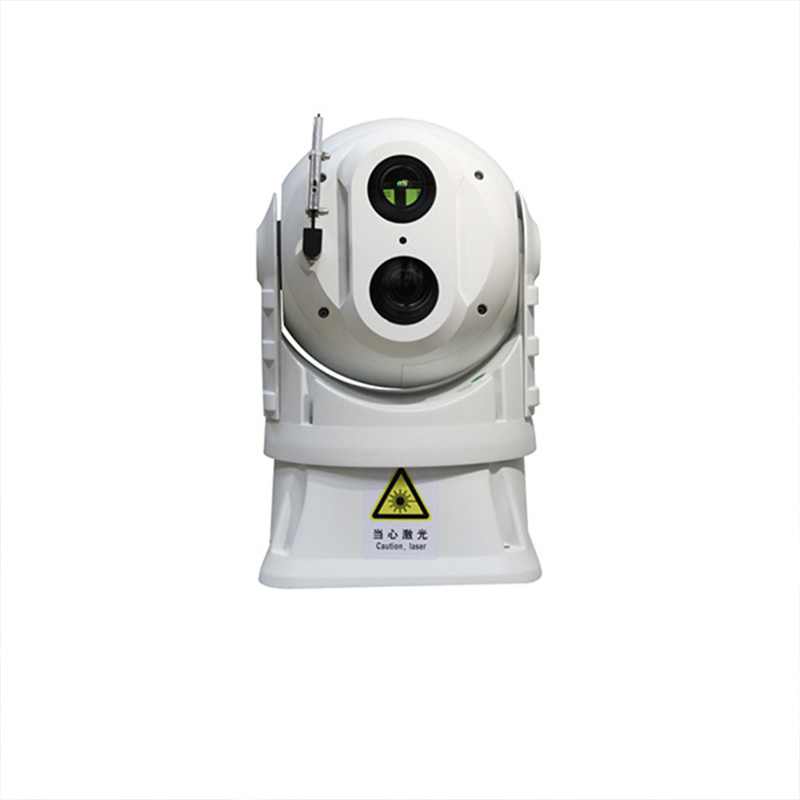

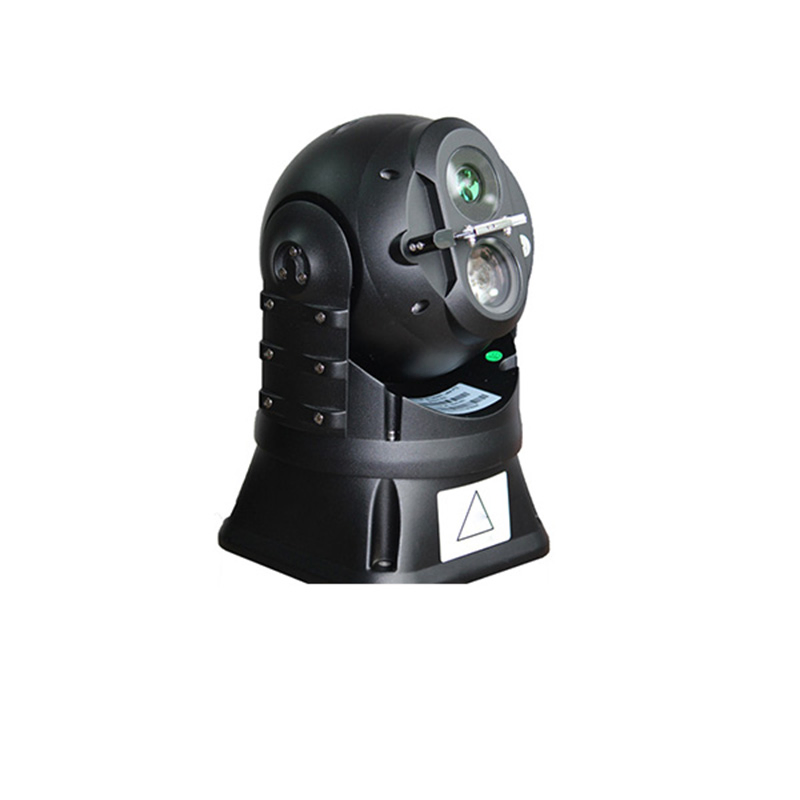

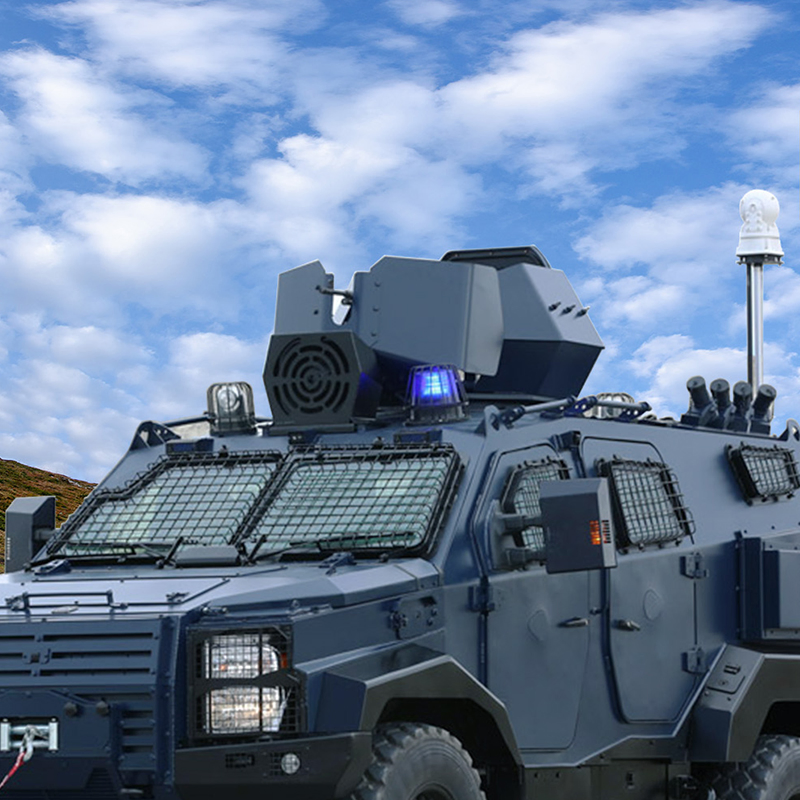

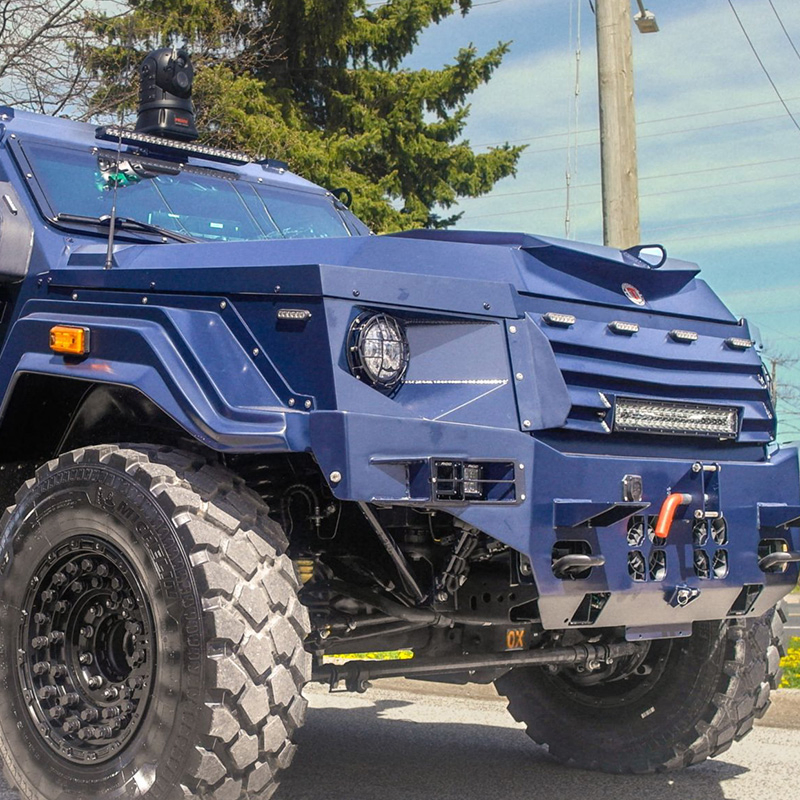

The SOAR970 series mobile PTZ is designed for advanced mobile surveillance applications. With exceptional IP67 waterproof capability, it is widely utilized in both vehicle-mounted and marine environments.
The system features a dual-sensor configuration, integrating a high-definition visible camera (up to 8MP with 33x zoom) and a high-performance thermal imager (up to 1280x1024 resolution). This combination ensures crystal-clear imaging in complete darkness and harsh weather conditions.
Constructed to withstand extreme environments, its robust housing provides protection against heavy rain, salt spray, and corrosion, making it ideal for coastal monitoring and offshore platforms.
| Thermal Imaging Performance | |
| Detector Type | VOx Uncooled Infrared FPA |
| Pixel Pitch | 640x512 / 12μm |
| Frame Rate | 50Hz |
| Lens Focal Length | 40mm |
| Digital Zoom | 1x, 2x, 4x, 8x continuous |
| NETD | ≤50mk@25℃, F#1.0 |
| Visible Camera System | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Optical Zoom | 33X (5.5mm~180mm) |
| Pan/Tilt Mechanics | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.5°/s ~ 80°/s |
| Tilt Range | –20° ~ +90° (Auto Reverse) |
| Physical & Environmental | |
| Power Input | DC 12V-24V (Wide Voltage) |
| Ingress Protection | IP66 / IP67 |
| Operating Temp | -40℃ to +60℃ |

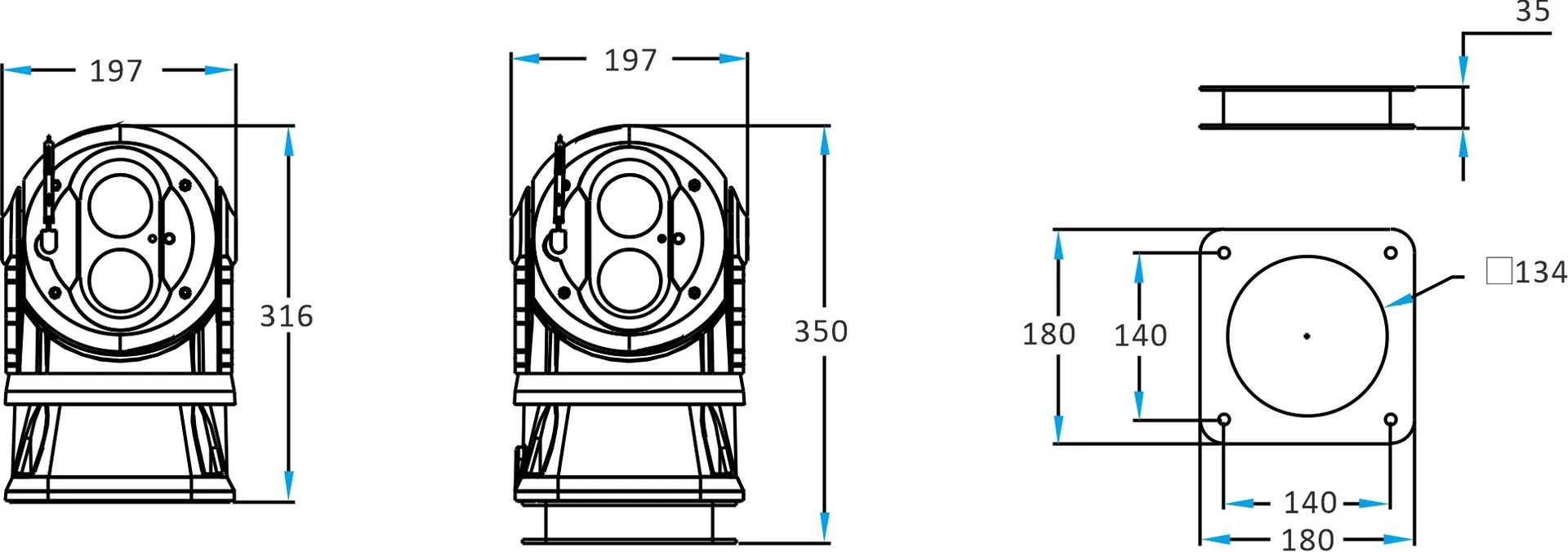

| Dimensions / Weight | φ197 * 316 mm / 6.5 kg |

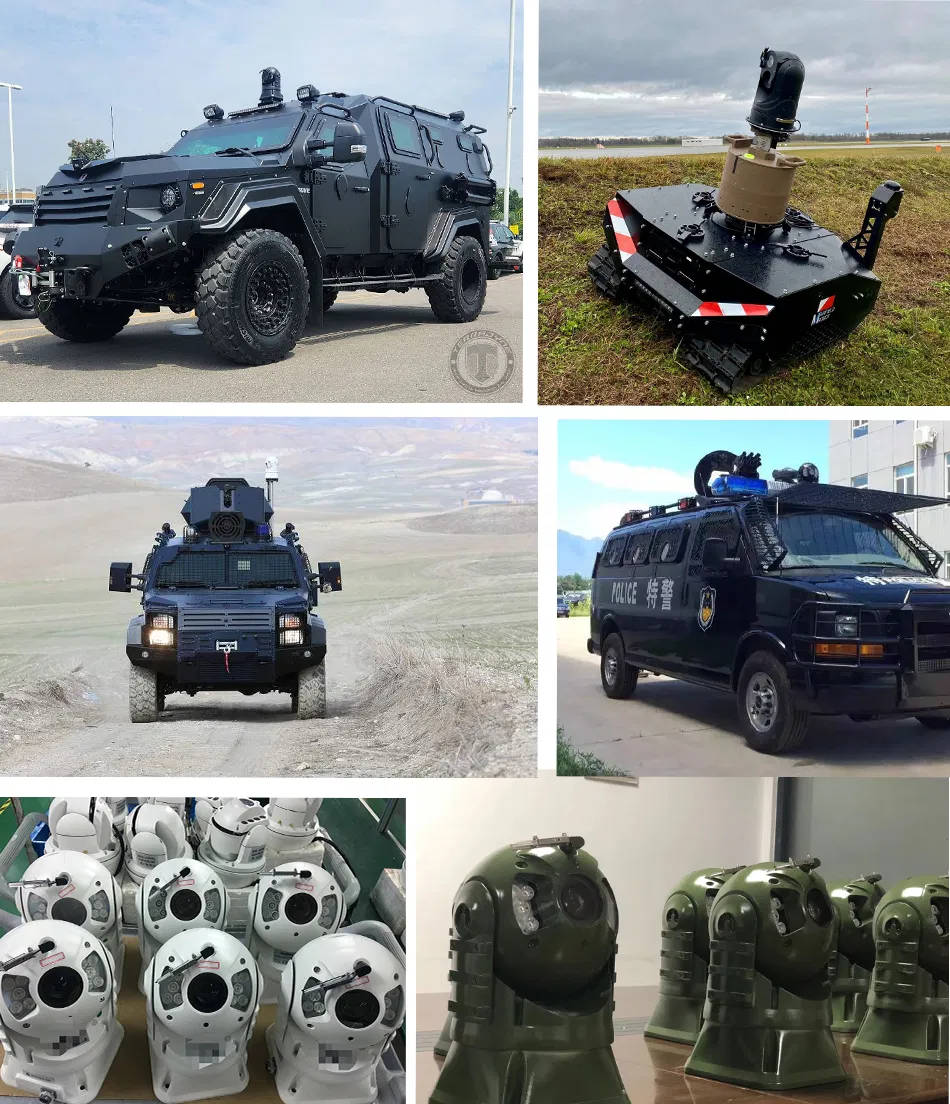

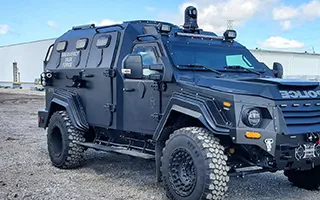

Patrol cars, SWAT units, and riot control monitoring.

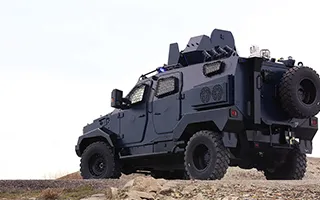

Tactical reconnaissance and battlefield surveillance.
Power grid inspection and oil/gas pipeline protection.

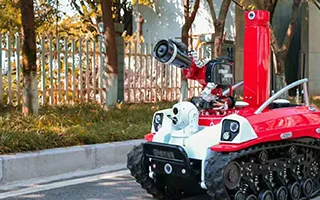

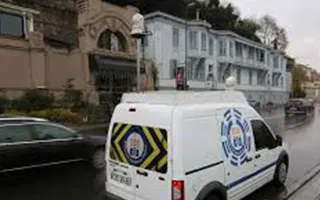

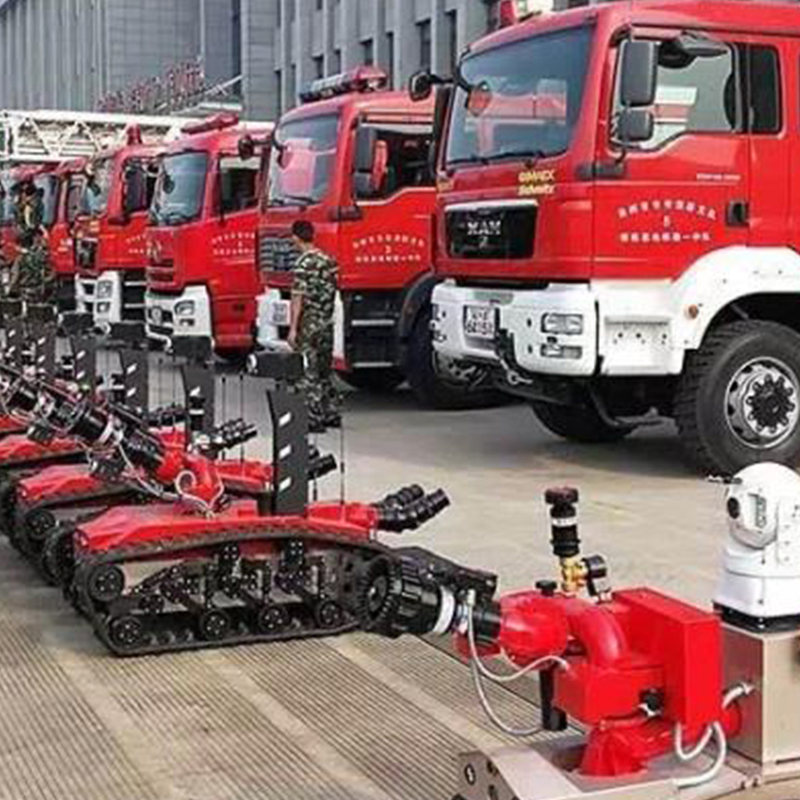

Fire command and search/rescue missions.

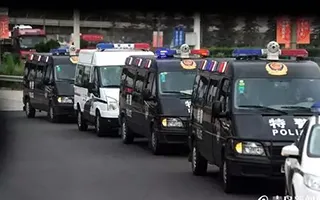

Highway patrol and airport ground security.
Anti-poaching and forest fire prevention.
