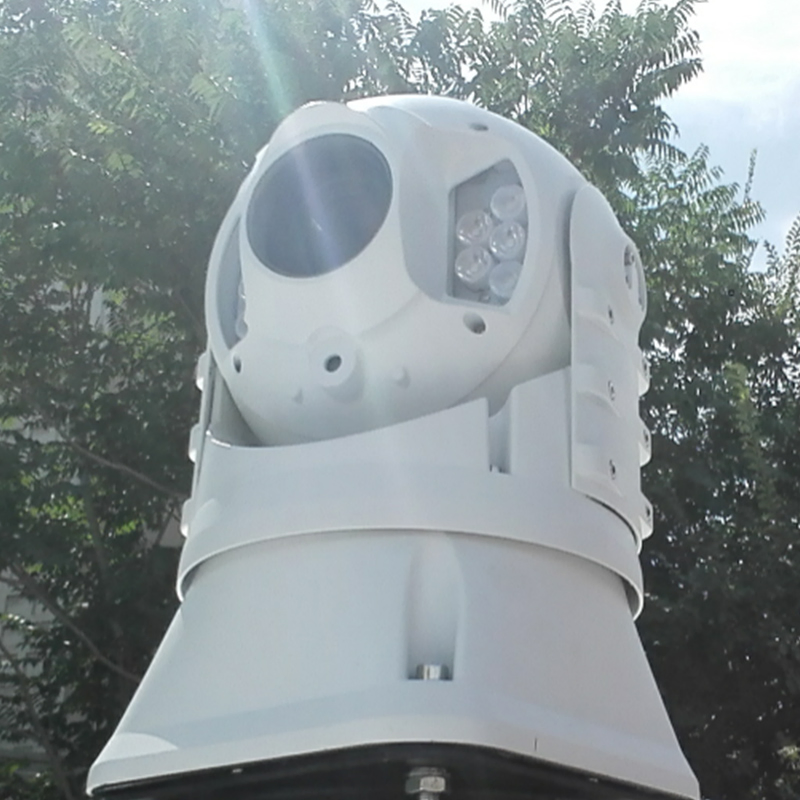

The SOAR970 series mobile PTZ is specifically engineered for high-demand mobile surveillance and marine applications. Featuring IP67 waterproof certification, this robust system is built to withstand extreme environments, including heavy rain, salt spray, and complete dust protection.
Equipped with dual-sensor technology, it combines a high-definition visible camera (up to 4K / 33x optical zoom) with professional thermal imaging capabilities. Integrated IR LED or laser illumination provides visibility ranging from 150m to 800m even in total darkness.
| Model No. | SOAR970-TH640A33 |
| Thermal Imaging | |
| Detector | VOx Uncooled Infrared FPA |
| Array Format | 640x512/12μm |
| Lens | 40mm |
| NETD | ≤50mk@25℃, F#1.0 |
| Palette | 18 types supported |
| Optical Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Focal Length | 5.5mm~180mm (33x Zoom) |
| Mechanical & Environmental | |
| Pan/Tilt Range | Pan: 360° endless; Tilt: -20° to +90° |
| Power | DC 12V-24V; Consumption ≤24W |
| Working Temp | -40℃ to 60℃ |
| Weight | 6.5 kg |

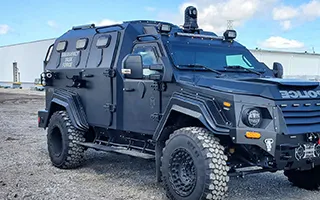

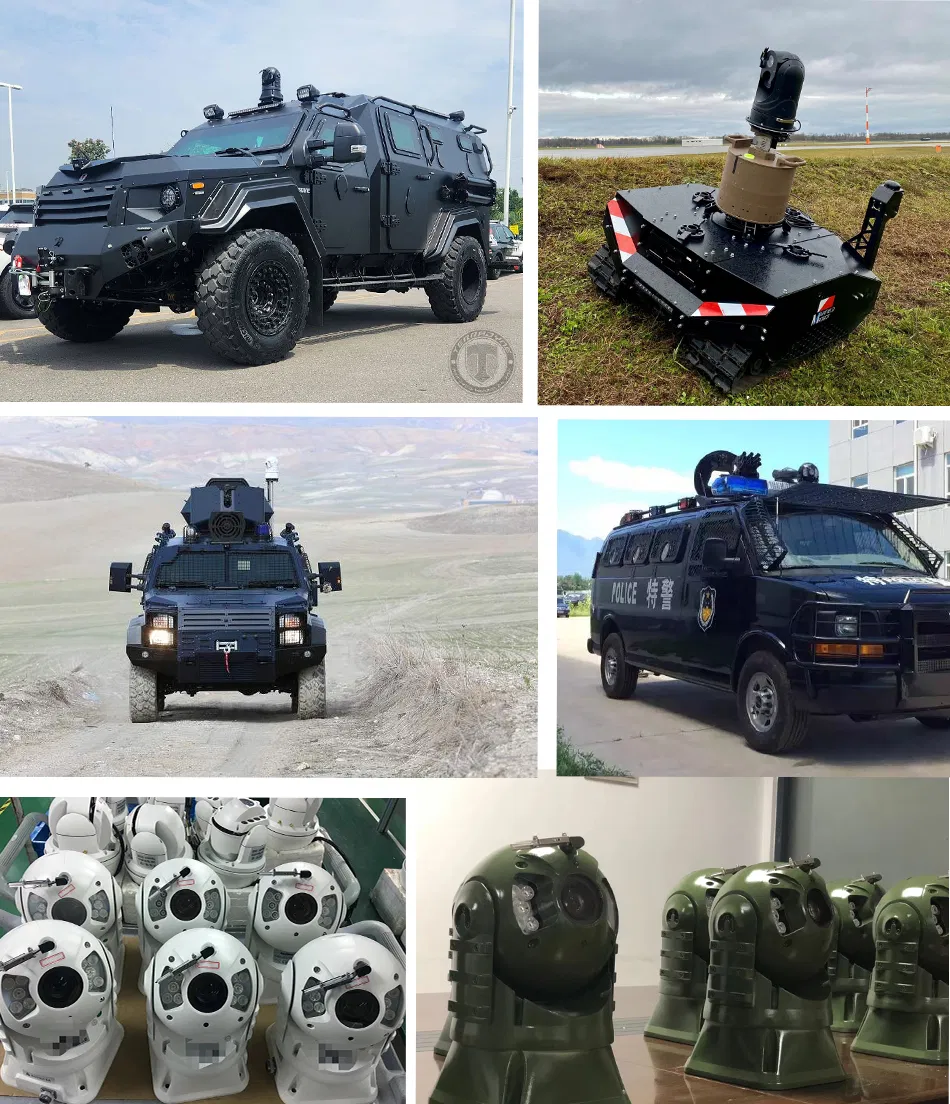

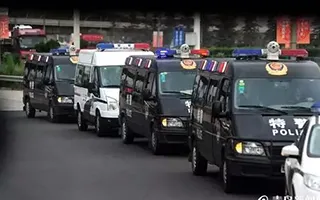

Real-time urban surveillance, patrol car incident response, and riot control monitoring.

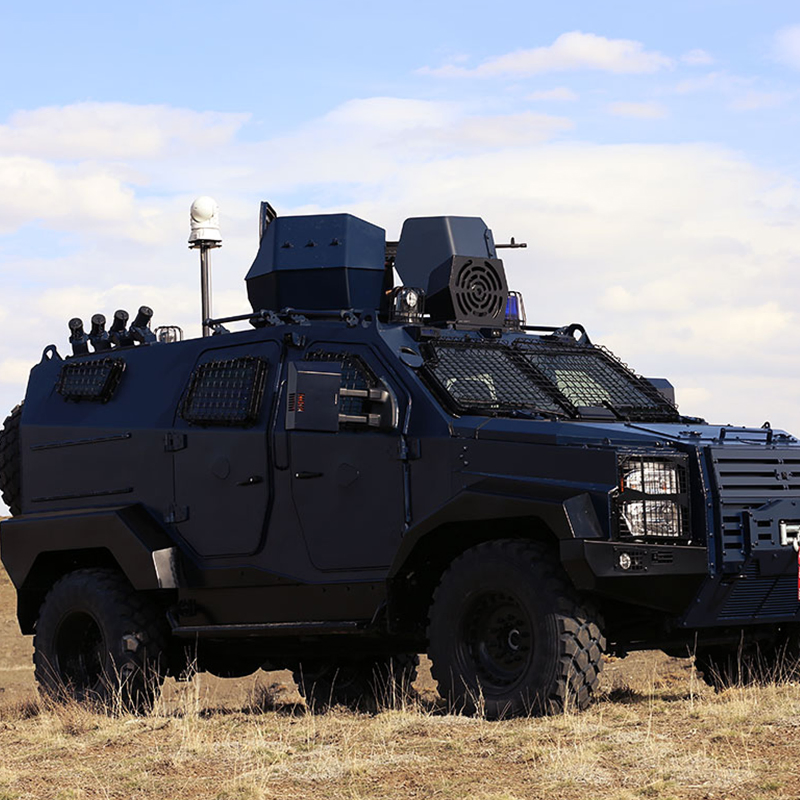

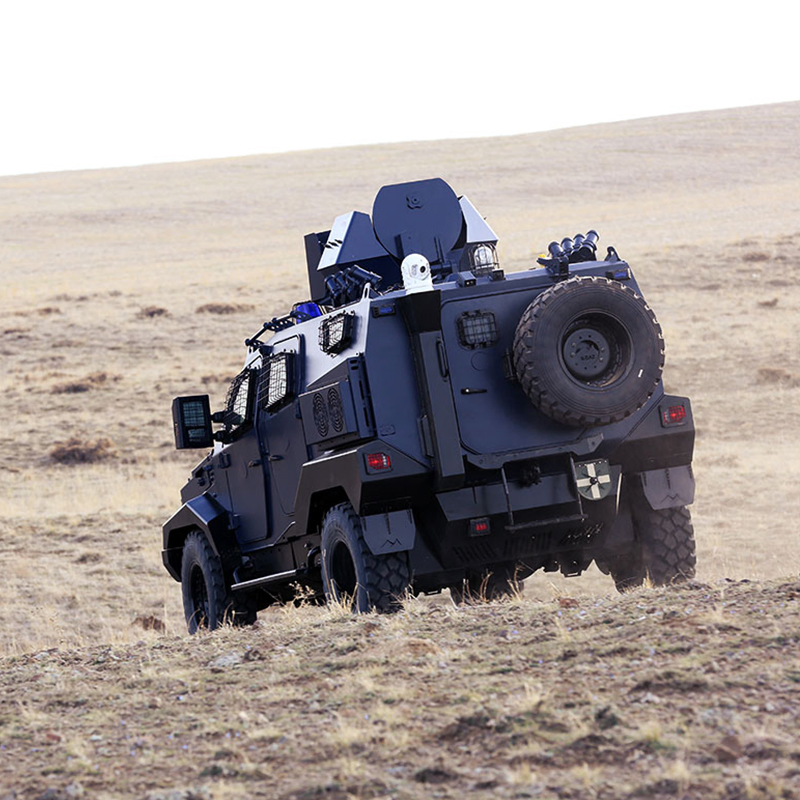

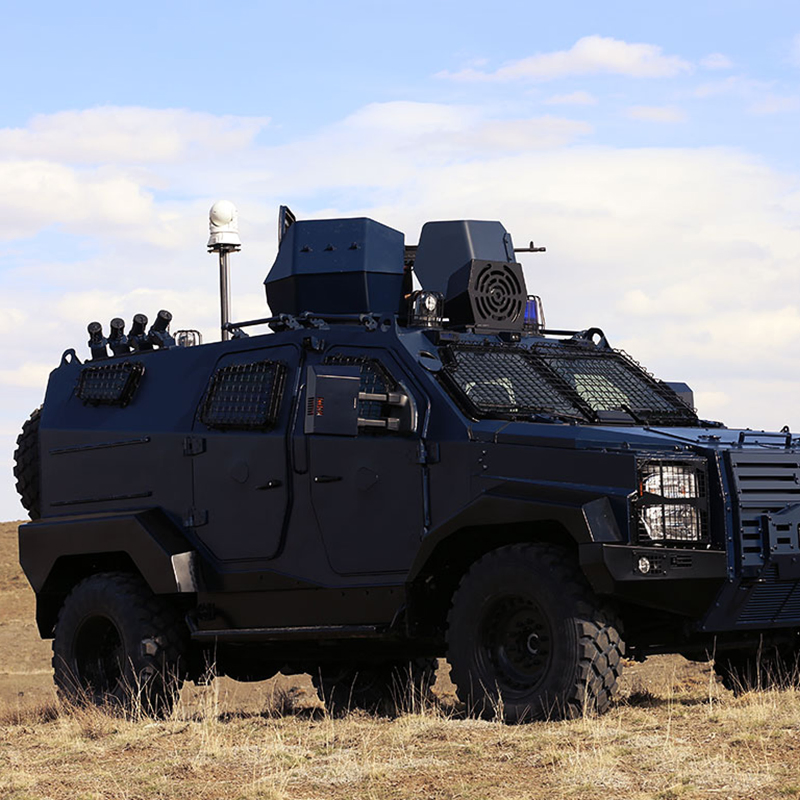

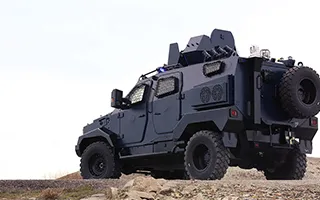

Battlefield reconnaissance, convoy security, and border threat detection from armored vehicles.

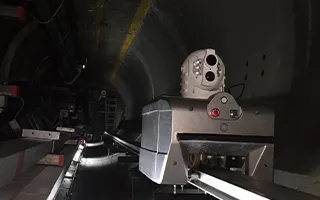

Protection of power grids, oil pipelines, and railway tracks in remote locations.

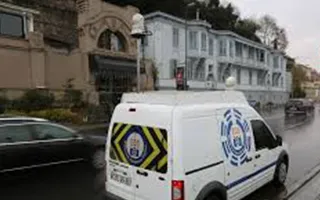

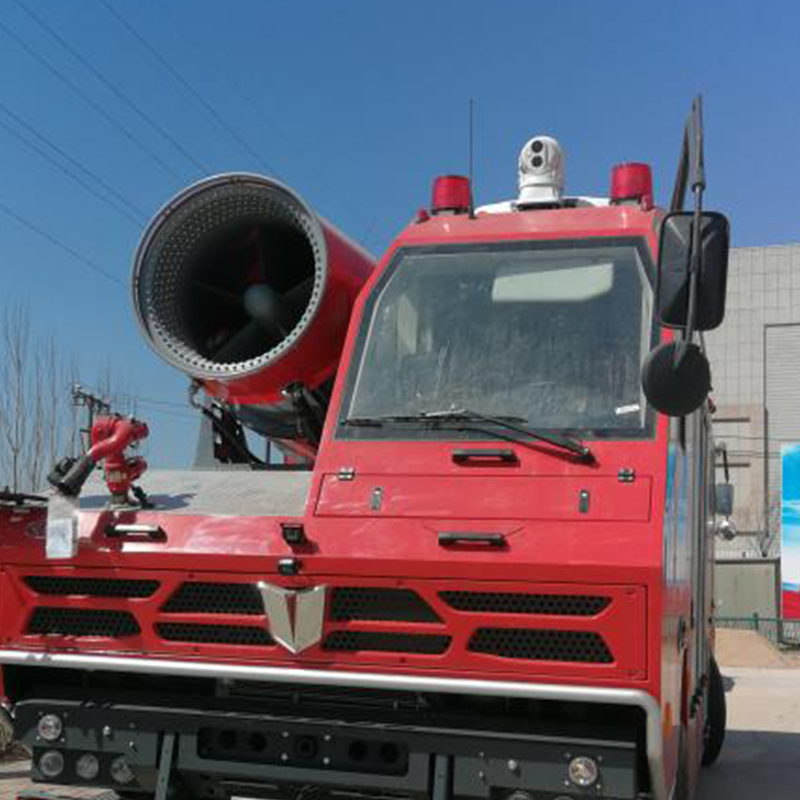

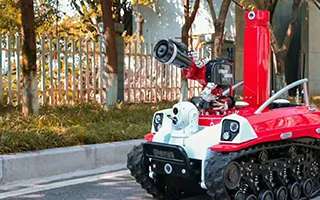

Fire command situational awareness and thermal search & rescue in disaster zones.
Highway patrol traffic flow monitoring and airport ground security surveillance.
Anti-poaching night surveillance and forest fire early detection systems.
