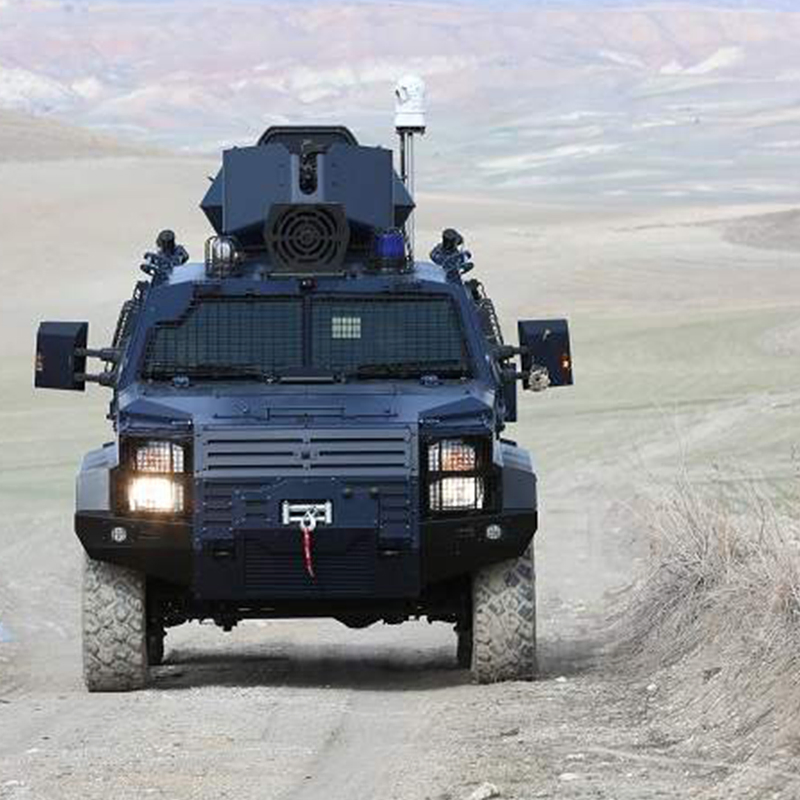

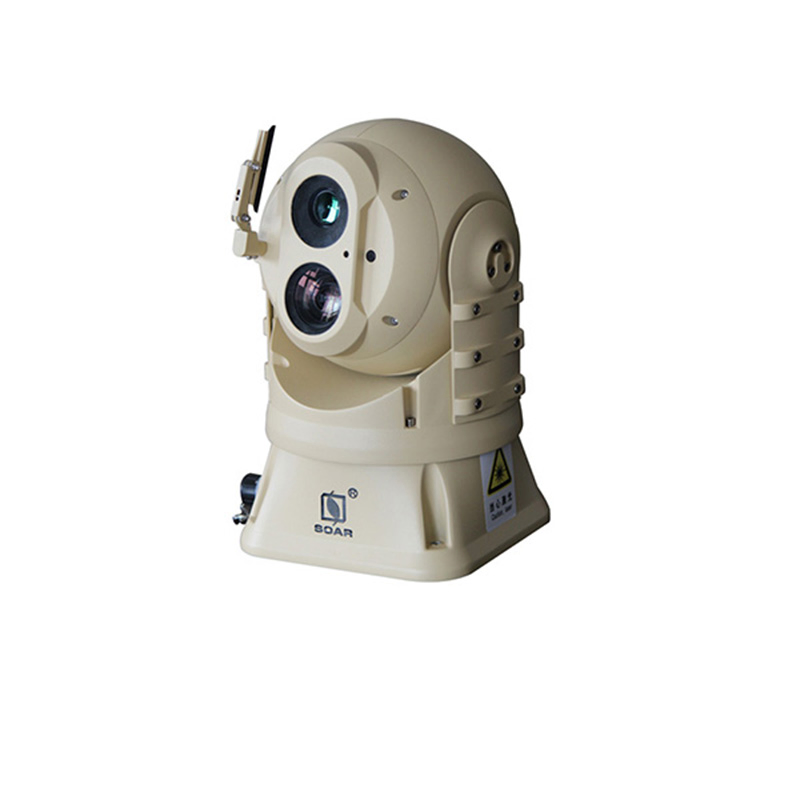

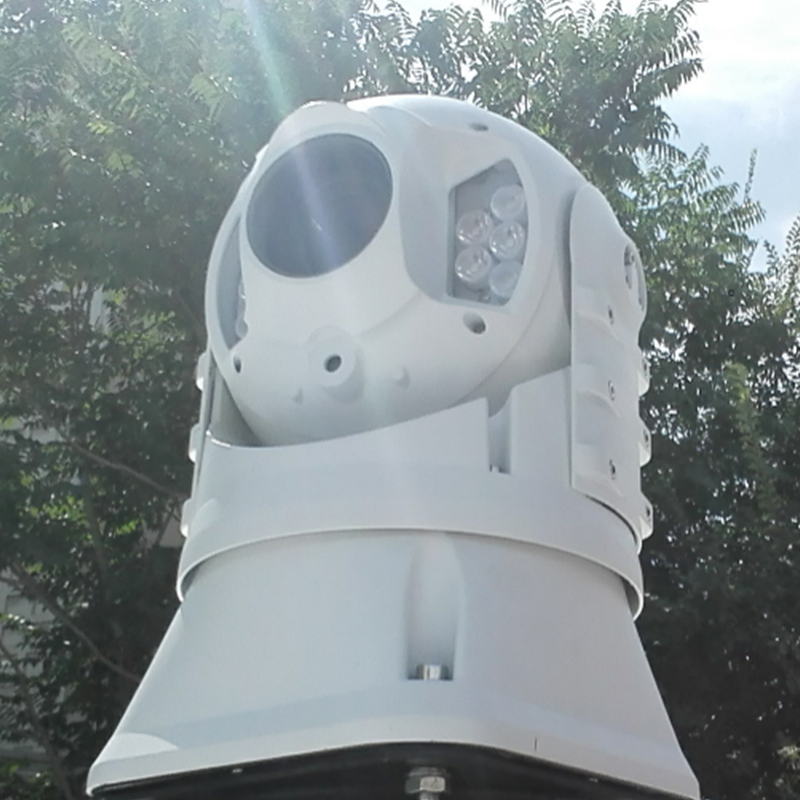

State-of-The-Art Dual Sensor Thermal PTZ for Rugged Mobile Applications
State-of-The-Art Dual Sensor Thermal PTZ for Rugged Mobile Applications
State-of-The-Art Dual Sensor Thermal PTZ for Rugged Mobile Applications
State-of-The-Art Dual Sensor Thermal PTZ for Rugged Mobile Applications
State-of-The-Art Dual Sensor Thermal PTZ for Rugged Mobile Applications
1 / 5
State-of-The-Art Dual Sensor Thermal PTZ for Rugged Mobile Applications
State-of-The-Art Dual Sensor Thermal PTZ for Rugged Mobile Applications
State-of-The-Art Dual Sensor Thermal PTZ for Rugged Mobile Applications
State-of-The-Art Dual Sensor Thermal PTZ for Rugged Mobile Applications
State-of-The-Art Dual Sensor Thermal PTZ for Rugged Mobile Applications

State-of-The-Art Dual Sensor Thermal PTZ for Rugged Mobile Applications

Customization: Available
Technology: Infrared
Style: Pan/Tilt
Send Inquiry

Product Description

Basic Information
ModelSOAR970-TH Series
TypeBinocular
SensorCMOS 1/1.8inch
Resolution1080P (4MP/8MP)
Effective Distance3km
CertificationCE
Product Description
Vehicle Mounted PTZ Camera

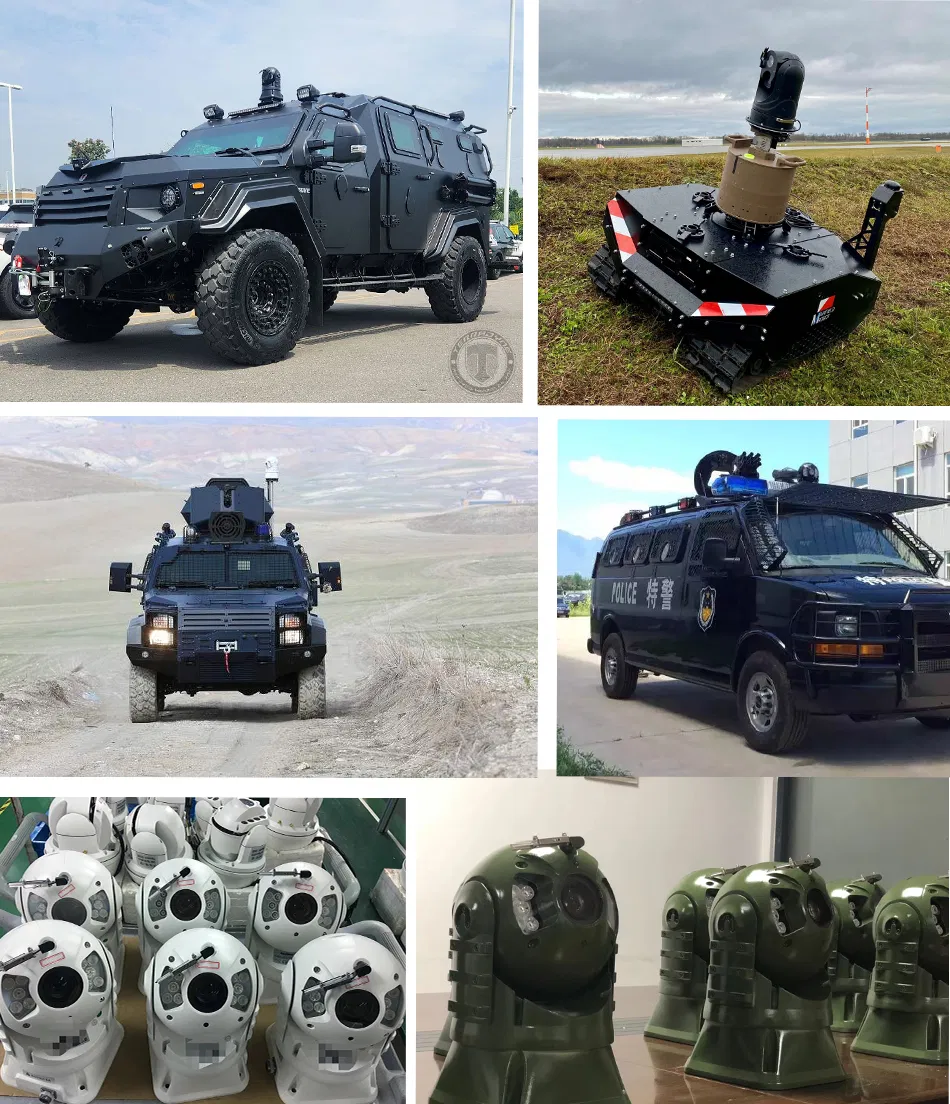

Dual Sensor Thermal PTZ

The SOAR970 series mobile PTZ is specifically engineered for high-demand mobile surveillance. With an IP67 waterproof rating, it excels in both rugged land vehicle applications and maritime environments. This dual-sensor system integrates a high-definition visible camera with a precision thermal imager.

Built to withstand extreme conditions, the housing provides complete protection against heavy rain, salt spray, and dust. It is the premier choice for reconnaissance, search and rescue, and perimeter monitoring in hazardous areas.

Product Highlights
1920×1080 Progressive Scan CMOS (Optional 4MP/4K)
33X Optical Zoom (5.5~180mm) for long-range clarity
Thermal imager 640x512 with focal length up to 40mm
360-degree endless rotation with tilt auto-reverse
Extreme weather operation: -40°C to +65°C
Integrated IR LED or Laser illumination (150m-800m range)
Technical Specifications
Thermal Imaging Performance
DetectorVOx Uncooled Infrared FPA
Pixel Pitch640x512 / 12μm
Frame Rate50Hz
Lens (Thermal)40mm
NETD≤50mk@25℃, F#1.0
Visible Camera Details
Image Sensor1/2.8” Progressive Scan CMOS
Effective Pixels1920(H) x 1080(V), 2 MP
Focal Length5.5mm~180mm (33x Zoom)
Mechanical & Environmental
Pan/Tilt RangePan: 360° Endless; Tilt: –20° ~ +90°
Power InputDC 12V-24V (Wide voltage)
Ingress ProtectionIP66 / IP67
Weight / Dimension6.5 kg / φ197*316 mm
Technical Dimensions

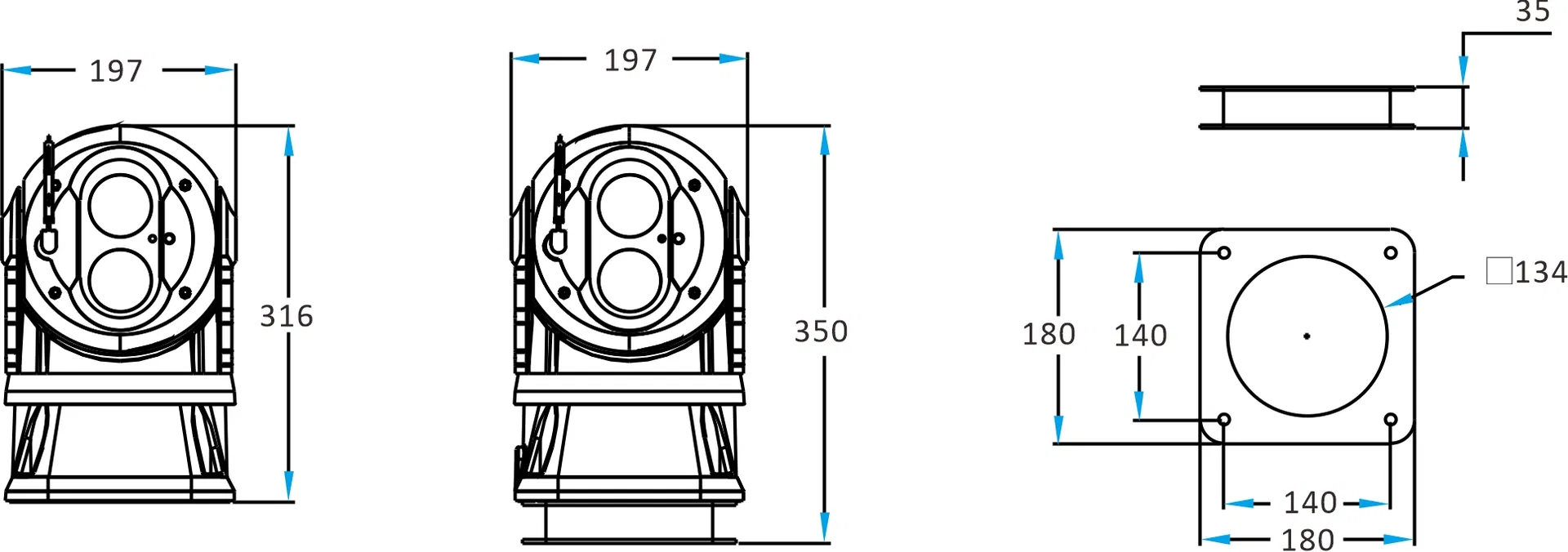

Camera Dimensions
Application Scenarios

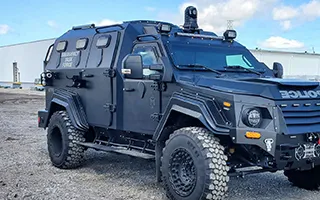

Law Enforcement

Law Enforcement: Rapid incident response, riot control, and border security checkpoints.

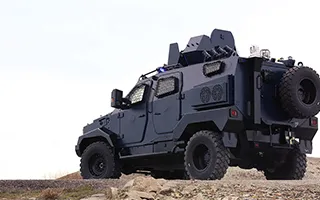

Defense

Defense & Military: Tactical reconnaissance from armored vehicles and convoy protection.

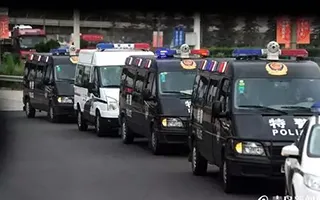

Critical Infrastructure

Infrastructure: Oil/Gas pipeline surveillance and power grid inspections.

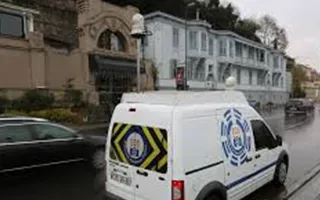

Emergency Response

Emergency Response: Fire command monitoring and search & rescue in disaster zones.

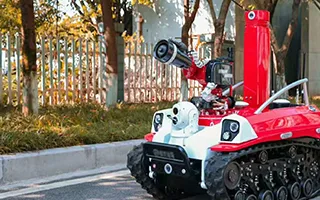

Transportation

Transportation: Highway patrol, tunnel safety, and airport ground security.

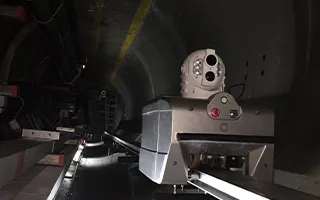

Wildlife Protection

Environmental: Anti-poaching operations and wildlife tracking in remote reserves.

Product Gallery
Gallery 1 Gallery 2 Gallery 3
Frequently Asked Questions
What is the estimated delivery timeline?
For small orders, delivery typically requires 7 working days. For custom OEM orders, timelines vary based on requirements.
Is there a minimum order quantity (MOQ)?
The MOQ varies depending on the specific product model and customization needs.
What payment methods are supported?
We accept standard payment terms, including T/T (Telegraphic Transfer).
What is the warranty coverage?
PTZ products and core camera modules are covered by a standard 1-year warranty.
Do you provide technical after-sales support?
Yes, we offer lifetime technical support. Our engineering team typically responds to technical inquiries within 24 hours.
Is the camera suitable for marine use?
Absolutely. With its IP67-rated waterproof housing and corrosion-resistant construction, it is ideal for commercial vessels and coastal monitoring.
