HawkEye Camera
1 / 5
| Model NO. | SOAR970-TH Series |
| Type | Binocular |
| Sensor | CMOS |
| HDMI Format | 1080P |
| Horizontal Resolution | 4MP, 8MP |
| Kind | Autofocus Lens |
| Certification | CE |
| Feature | Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC, Thermal Imager |
| Effective Distance | 3km |
| Sensor Size | 1/1.8inch |
| Application | Mobile Surveillance Application |

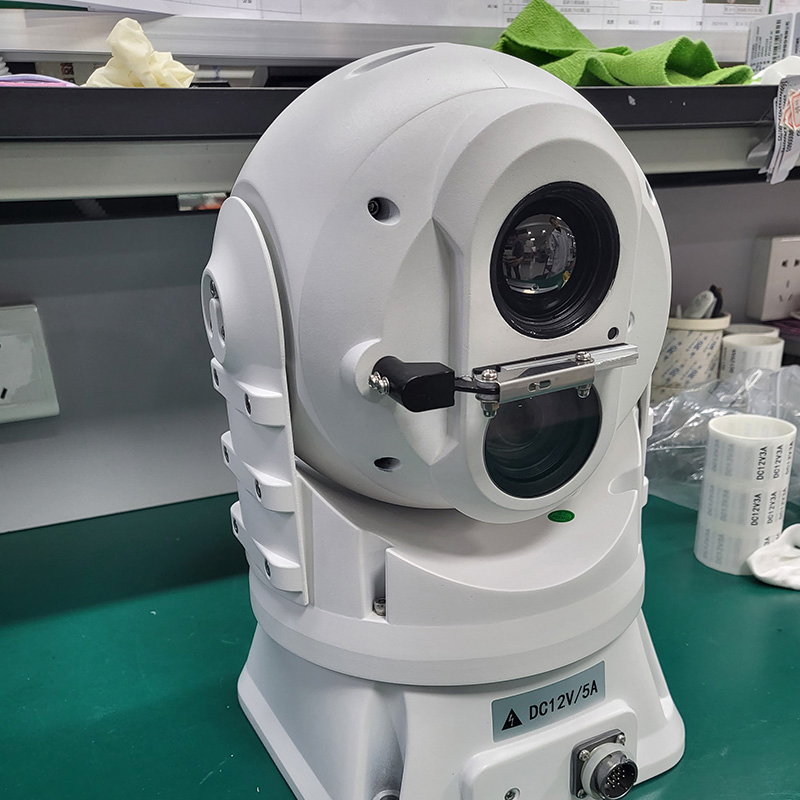

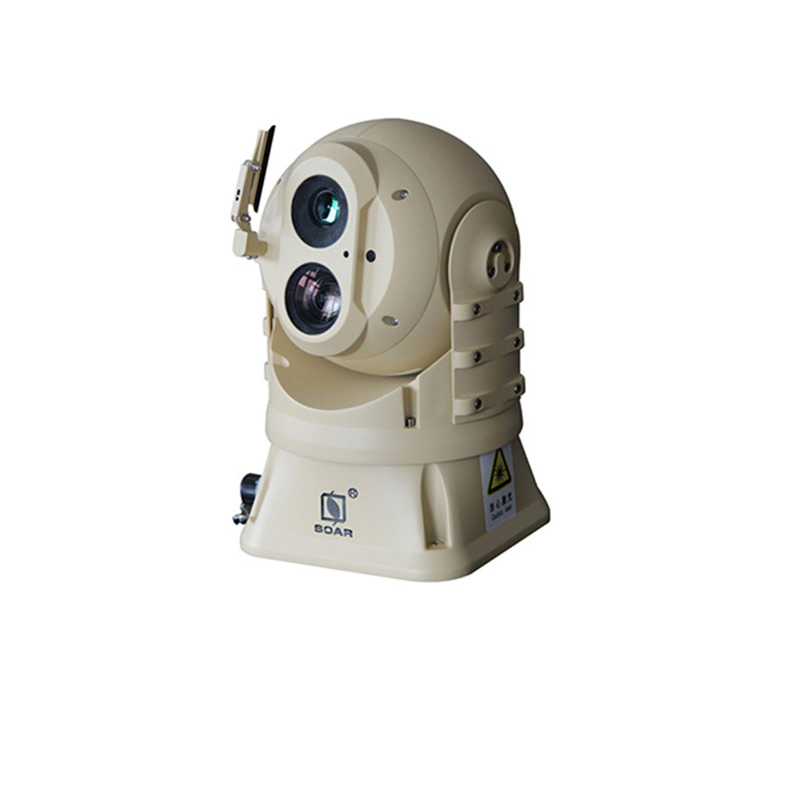

SOAR970 series mobile PTZ is designed for mobile surveillance application. With its excellent waterproof ability up to IP67, it is also widely applied in marine application. The PTZ can be optionally ordered with HDIP(2MP, 4MP, 4K). Integrated IR LED or laser illumination allows it to see from 150m up to 800m in complete darkness.
It can be equipped with dual sensor options, featuring an HD visible camera (2MP/4MP/8MP, up to 33x zoom) and a thermal imager (640x512/1280x1024, up to 40mm focal length).
The SOAR970 is built to withstand the harshest conditions. Featuring an IP67-rated waterproof and dustproof housing, it provides complete protection against immersion, heavy rain, salt spray, and airborne particulates. This robust construction makes it the ideal choice for marine surveillance, coastal monitoring, and offshore platforms.
| Thermal Imaging | |
| Detector | VOx Uncooled Infrared FPA |
| Array Format | 640x512 / 12μm |
| Lens | 40mm |
| NETD | ≤50mk@25℃, F#1.0 |
| Visible Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Resolution | 1920(H) x 1080(V), 2 MP |
| Optical Zoom | 33X (5.5mm~180mm) |
| Pan/Tilt Performance | |
| Pan Range | 360° (Endless) |
| Tilt Range | –20° ~ +90° (Auto Reverse) |
| General | |
| Power | DC 12V-24V; Consumption: ≤24W |
| Working Temp | -40℃ ~ 60℃ |
| Ingress Protection | IP66 / IP67 |
| Dimension | φ197 * 316 mm |
| Weight | 6.5 kg |

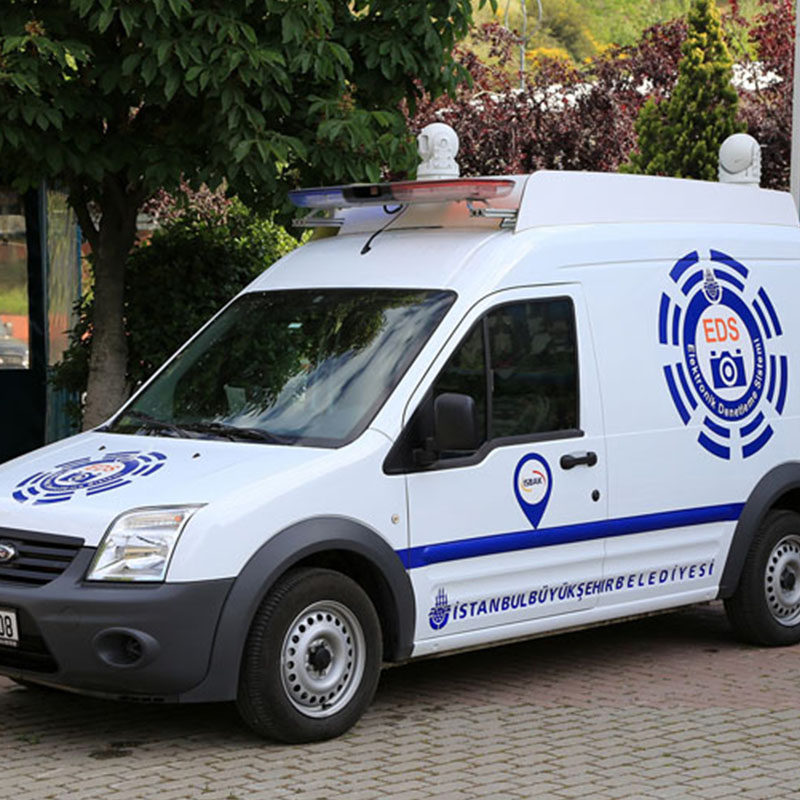

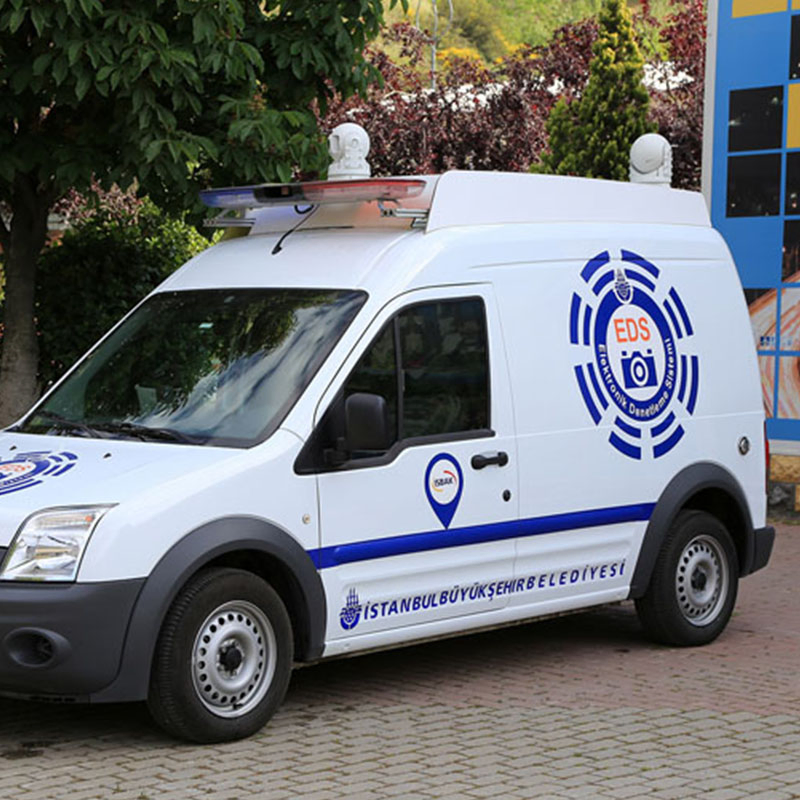

Real-time urban surveillance, crime hotspot monitoring, and rapid incident response from patrol cars.

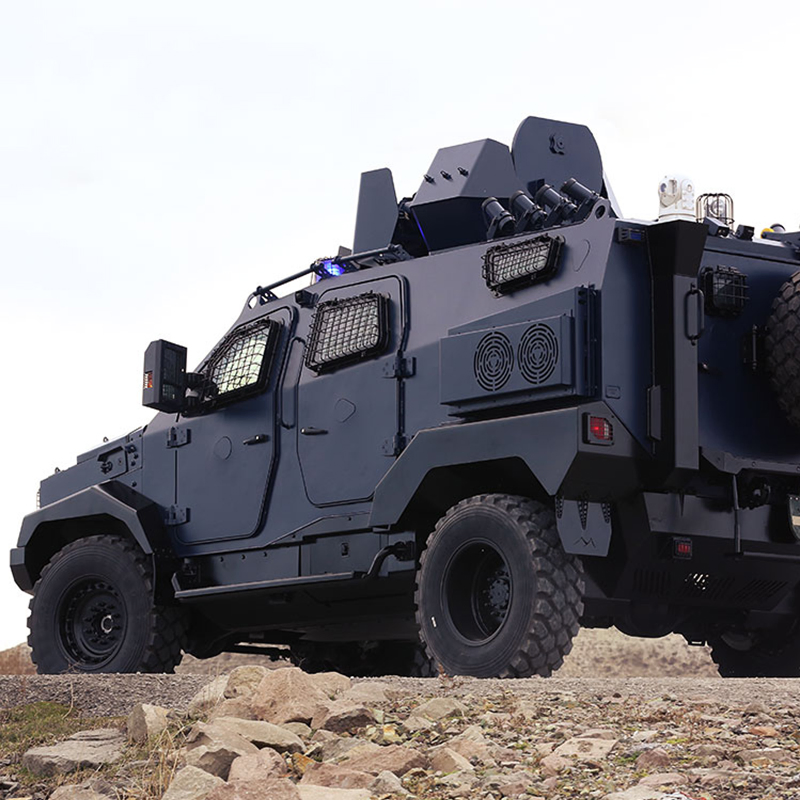

Tactical reconnaissance, battlefield surveillance and intelligence gathering from armored vehicles.

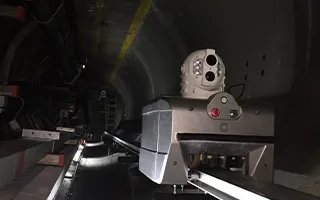

Power grid inspection, pipeline surveillance, and oil/gas integrity checks along remote routes.

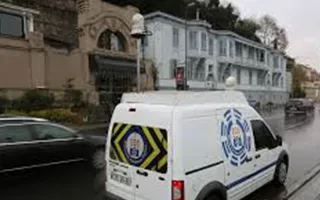

Fire command monitoring, flood assessment, and search & rescue using thermal imaging.

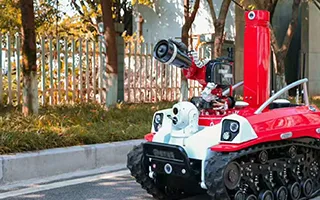

Highway patrol, traffic flow monitoring, airport ground security, and vessel approach monitoring.
Anti-poaching operations, wildlife monitoring, and early forest fire detection.
