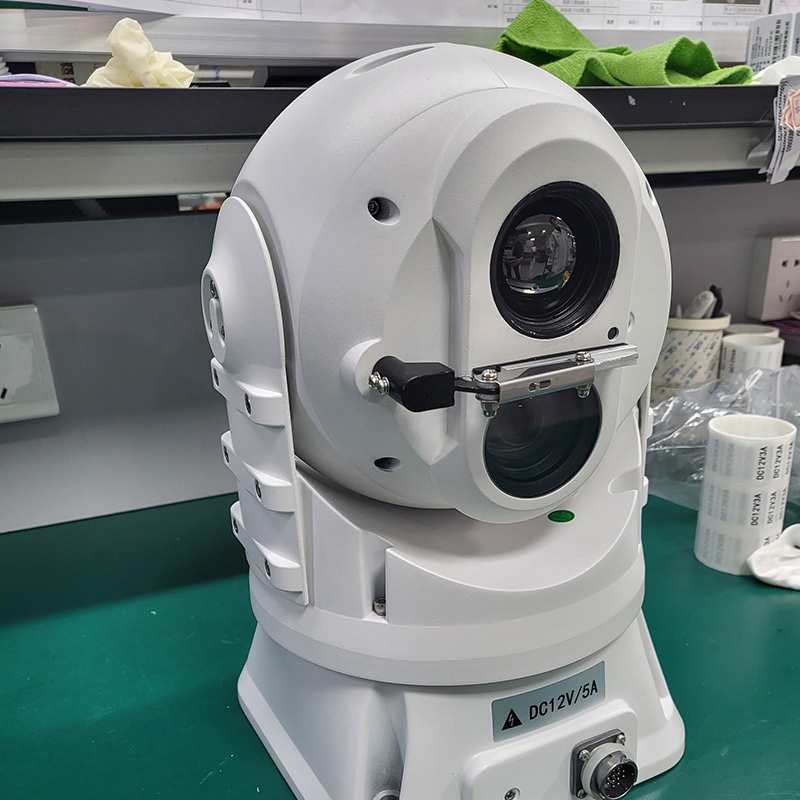

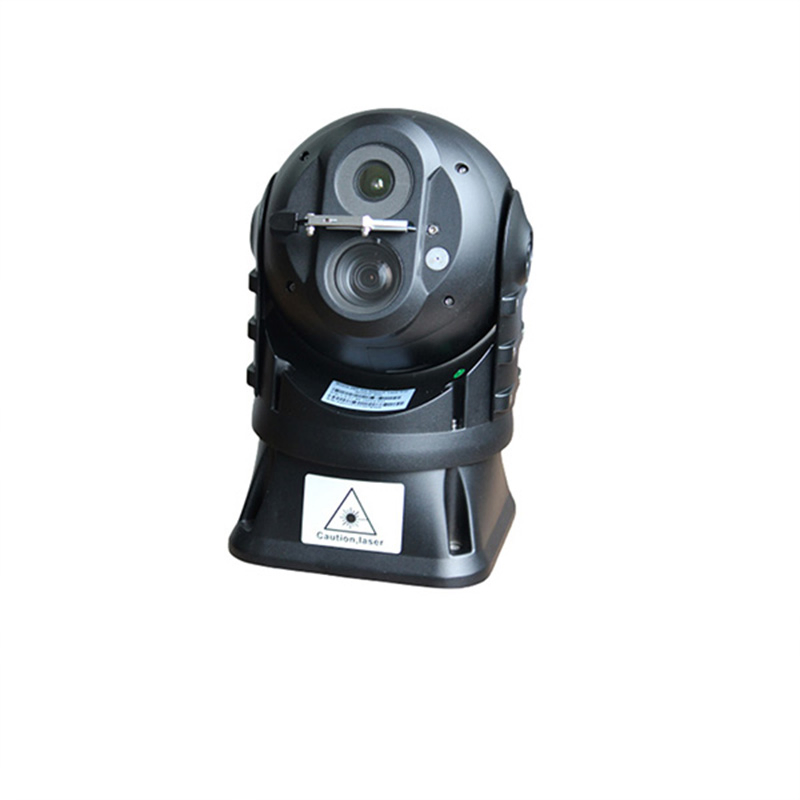

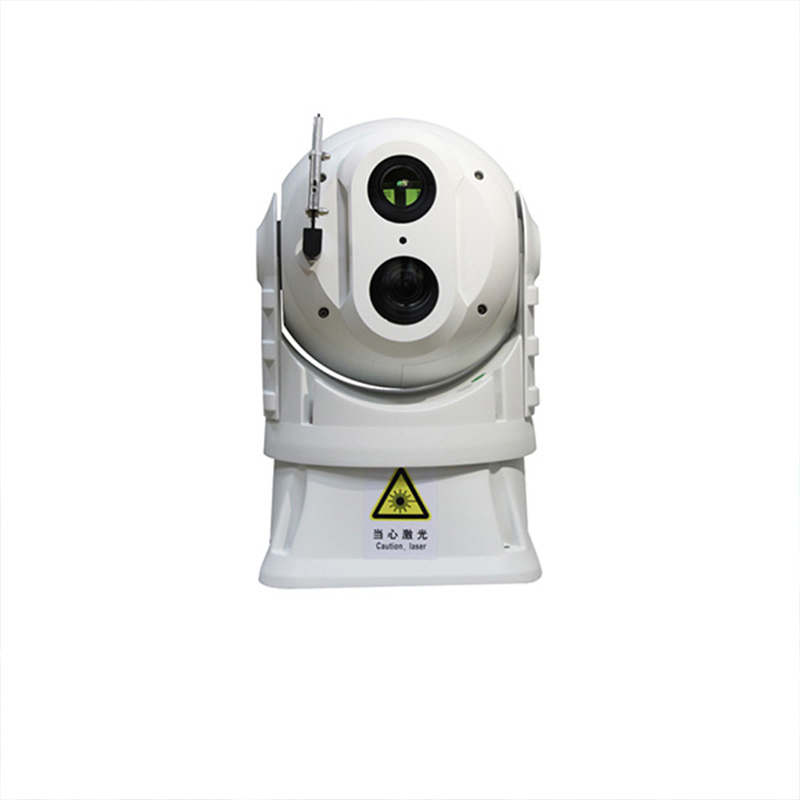

SOAR970 vehicle mounted PTZ Camera
The SOAR970 series mobile PTZ is specifically engineered for demanding mobile surveillance and marine applications. Featuring a robust IP67-rated waterproof and dustproof housing, this camera provides complete protection against heavy rain, salt spray, and extreme environmental conditions.
With integrated IR LED or laser illumination, the system enables visibility from 150m up to 800m in complete darkness. It offers dual sensor options, combining a high-definition visible camera (up to 8MP with 33x zoom) and a high-performance thermal imager (up to 1280x1024 resolution).
| Thermal Imaging | |
|---|---|
| Detector | VOx Uncooled Infrared FPA |
| Resolution/Pixel Pitch | 640x512 / 12μm |
| Lens | 40mm |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Visible Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP (Optional 4MP/8MP) |
| Focal Length | 5.5mm~180mm, 33x Optical Zoom |
| Pan/Tilt Performance | |
| Pan Range | 360° Endless |
| Tilt Range | –20° ~ +90° (Auto Reverse) |
| Pan/Tilt Speed | Pan: 80°/s, Tilt: 60°/s |
| General | |
| Power Supply | DC 12V-24V Wide Voltage Input |
| Protection | IP66 / IP67 (Optional) |
| Operating Temp | -40℃ to +60℃ |
| Weight | 6.5 kg |

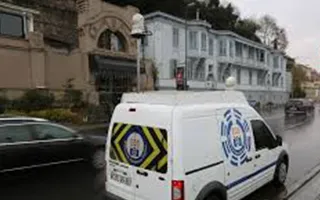

Urban surveillance, incident response from patrol cars, border security, and VIP protection motorcades.

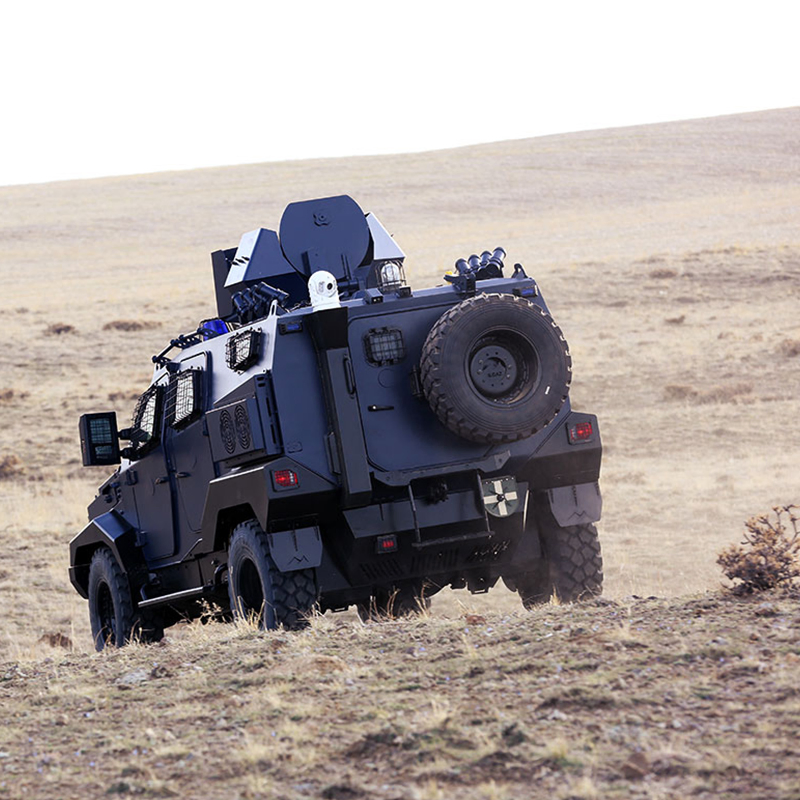

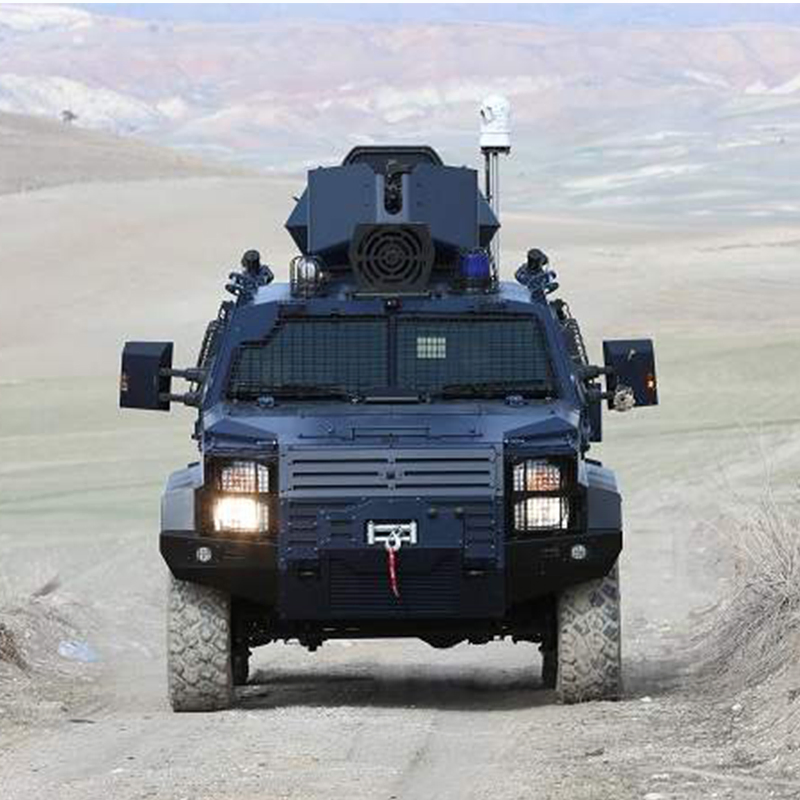

Battlefield reconnaissance from armored vehicles, convoy security, and perimeter monitoring for forward bases.

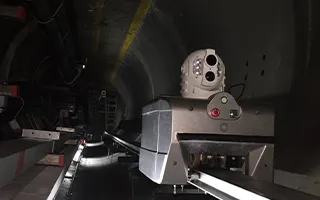

Power grid inspection, oil/gas pipeline surveillance, and railway security monitoring.
