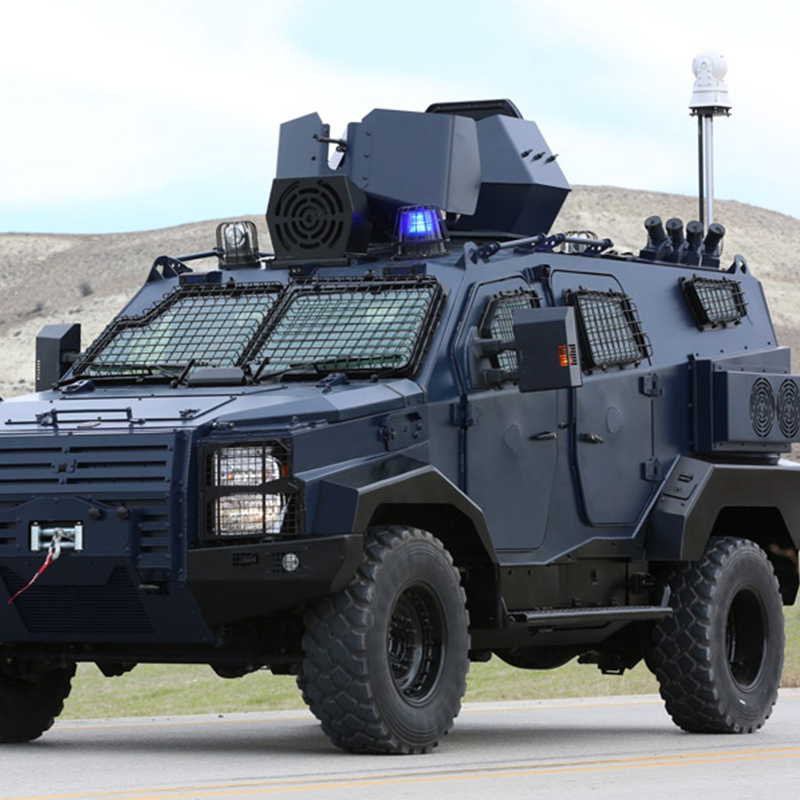

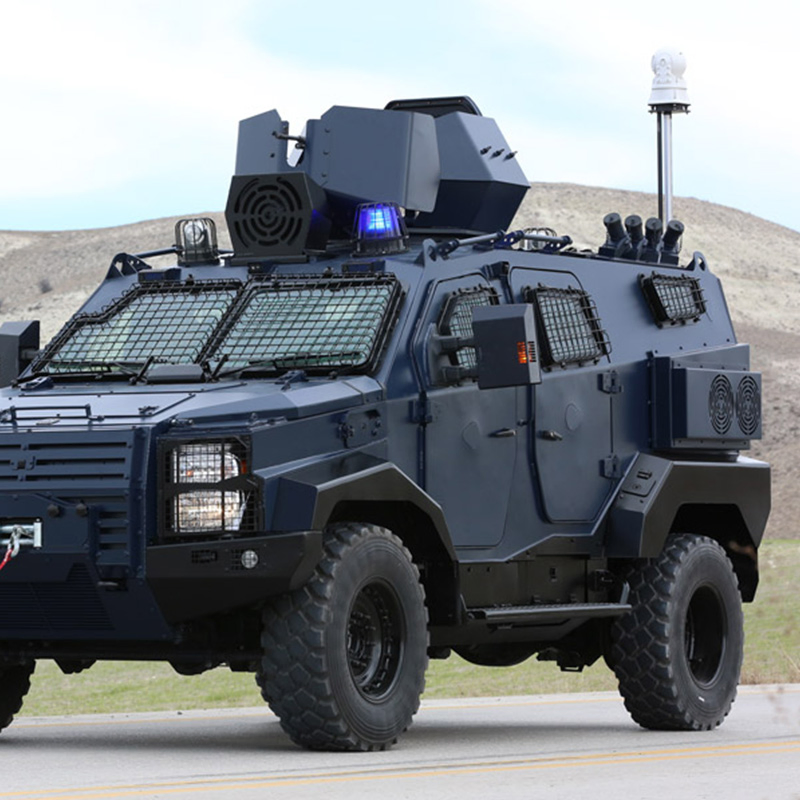

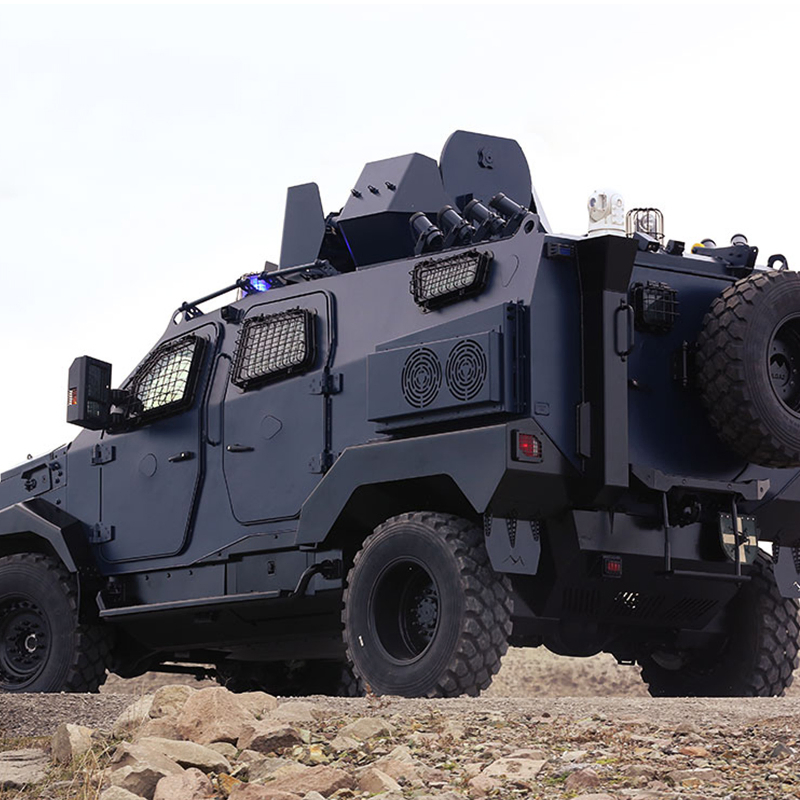

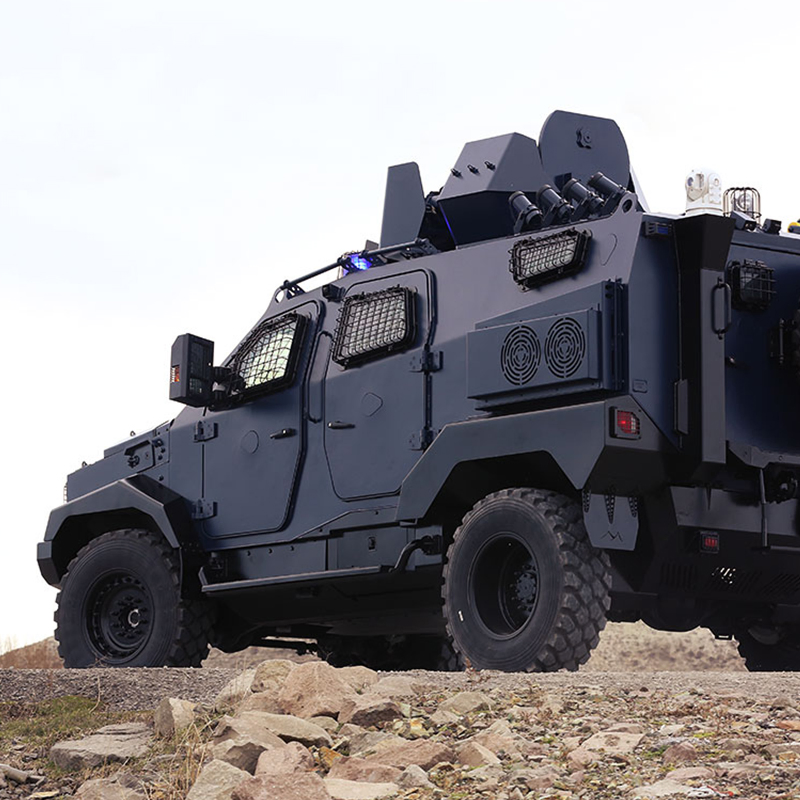

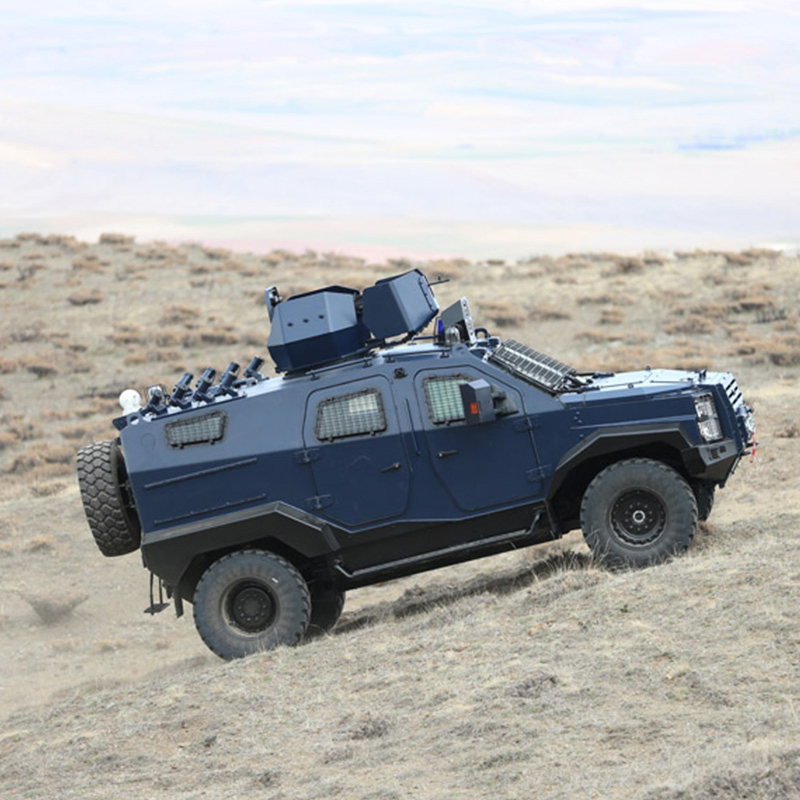

SOAR970 vehicle mounted PTZ Camera
The SOAR970 series mobile PTZ is designed for mobile surveillance application. With its excellent waterproof ability up to IP67, it is also widely applied in marine application. The PTZ can be optionally be ordered with HDIP (2MP, 4MP, 4K). Integrated IR LED or laser illumination allows it to see from 150m up to 800m in complete darkness.
It can be with dual sensor options, with HD visible camera (2MP/4MP/8MP, up to 33x zoom) and thermal imager (640x512/1280x1024, up to 40mm focal length).
Featuring an IP67-rated waterproof and dustproof housing, it provides complete protection against immersion, heavy rain, salt spray, and airborne particulates. This robust construction makes it the ideal choice for marine surveillance, coastal monitoring, and offshore platforms.
| Model No. | SOAR970-TH640A33 |
| Thermal Imaging | |
|---|---|
| Detector | VOx Uncooled Infrared FPA |
| Array Format/Pixel Pitch | 640x512/12μm |
| Frame Rate | 50Hz |
| NETD | ≤50mk@25℃, F#1.0 |
| Visible Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Focal Length | 5.5mm~180mm (33X Optical Zoom) |
| Pan/Tilt | |
| Pan/Tilt Range | Pan: 360° (endless); Tilt: –20° ~ +90° |
| General | |
| Power | DC 12V-24V; Consumption: ≤24w |
| Protection | IP66 |
| Weight / Dimension | 6.5 kg / φ197*316 mm |
Real-time urban surveillance, crime hotspot monitoring, and rapid incident response from patrol cars.
Tactical reconnaissance, battlefield surveillance, and intelligence gathering from armored vehicles.
Power grid inspection, oil & gas pipeline surveillance, and railway security monitoring.
