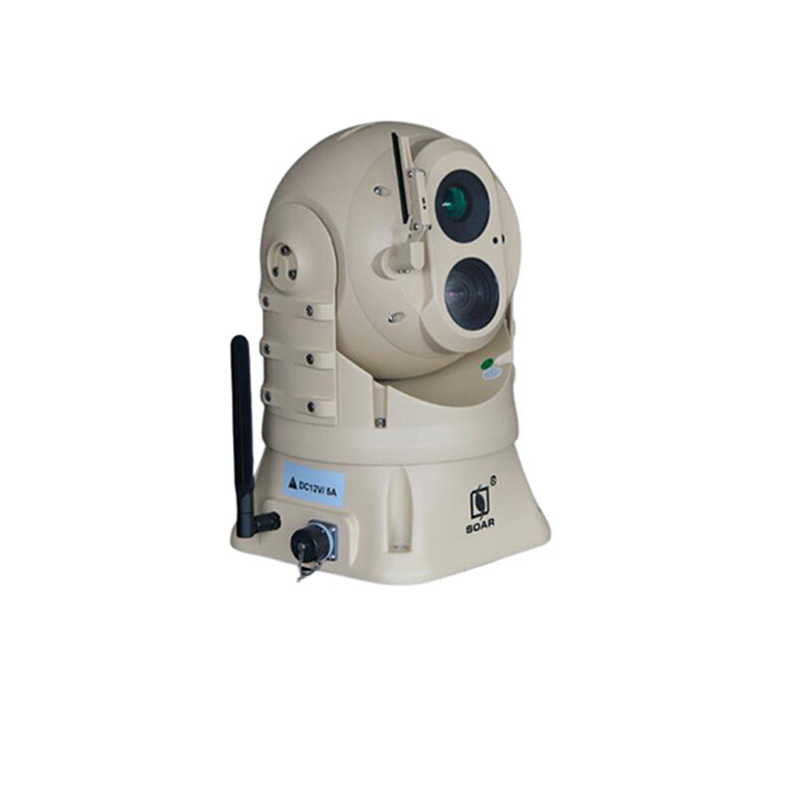

Durable Mobile Surveillance PTZ with Superior Dual Sensor Features

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Basic Information

Model NO.	SOAR970-TH Series
Type	Binocular
Sensor	CMOS
Resolution	1080P / 4MP / 8MP
Feature	Waterproof / Weatherproof, Thermal Imager, Auto BLC
Effective Distance	Up to 3km
Application	Mobile Surveillance Application

Product Description

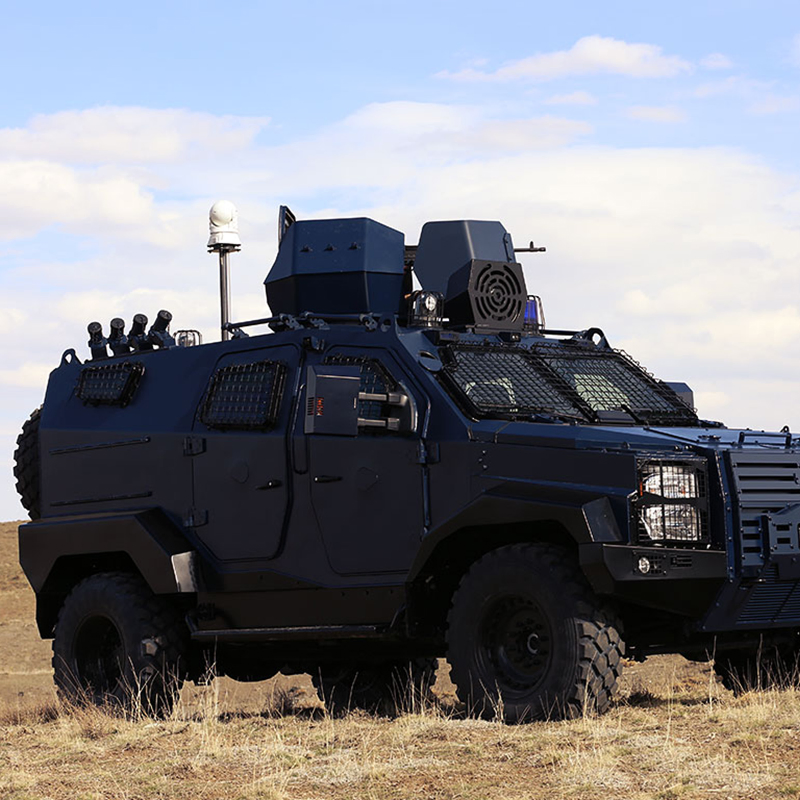

SOAR970 series mobile PTZ is specifically designed for demanding mobile surveillance applications. With its exceptional IP67 waterproof rating, it is perfectly suited for both rugged land vehicle use and challenging marine environments.

This versatile PTZ system supports HD IP configurations including 2MP, 4MP, and 4K resolutions. Integrated IR LED or laser illumination technology provides superior visibility ranging from 150m to 800m even in absolute darkness.

The system features a Dual Sensor setup, combining a high-definition visible camera (up to 33x optical zoom) with a professional-grade thermal imager (up to 1280x1024 resolution) for comprehensive situational awareness.

Built to withstand the harshest environments, the SOAR970 features a robust dustproof and waterproof housing. It provides total protection against heavy rain, salt spray, and airborne particulates, making it the premier choice for coastal monitoring, offshore platforms, and rapid-response patrol vehicles.

Product Highlights

High-performance Progressive Scan CMOS for Day/Night monitoring
Powerful 33X Optical Zoom (5.5~180mm focal length)
Advanced Thermal Imager: 640x512 resolution with 40mm lens
360-degree endless rotation for complete coverage
Rugged IP67 Design for extreme weather durability
Extreme temperature operation: -40° to +65°C
Optional vibration damper absorber for vehicle stability

Technical Specification

Thermal Imaging Parameters
Detector	VOx Uncooled Infrared FPA (640x512)
Pixel Pitch	12μm
NETD	≤50mk@25℃, F#1.0
Palette	18 types (Black hot, White hot, etc.)
Visible Camera & PTZ
Image Sensor	1/2.8” Progressive Scan CMOS
Zoom	33X Optical Zoom (5.5mm~180mm)
Rotation	Pan: 360° endless; Tilt: –20° ~ +90°
Power Supply	DC 12V-24V wide voltage input
Protection	IP66 / IP67 Rated

Product Dimensions

Application Scenarios

Law Enforcement

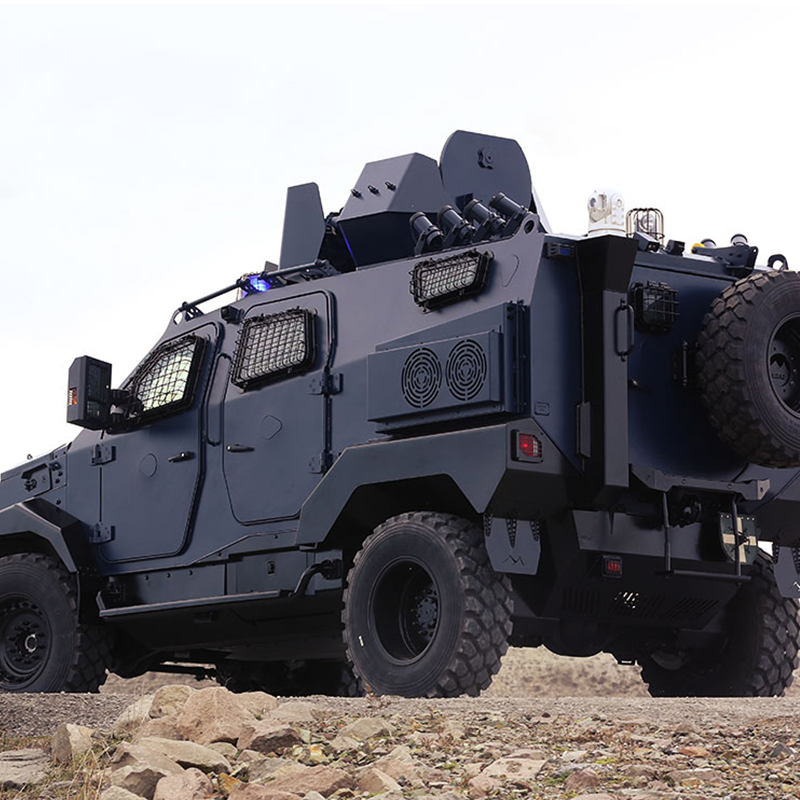

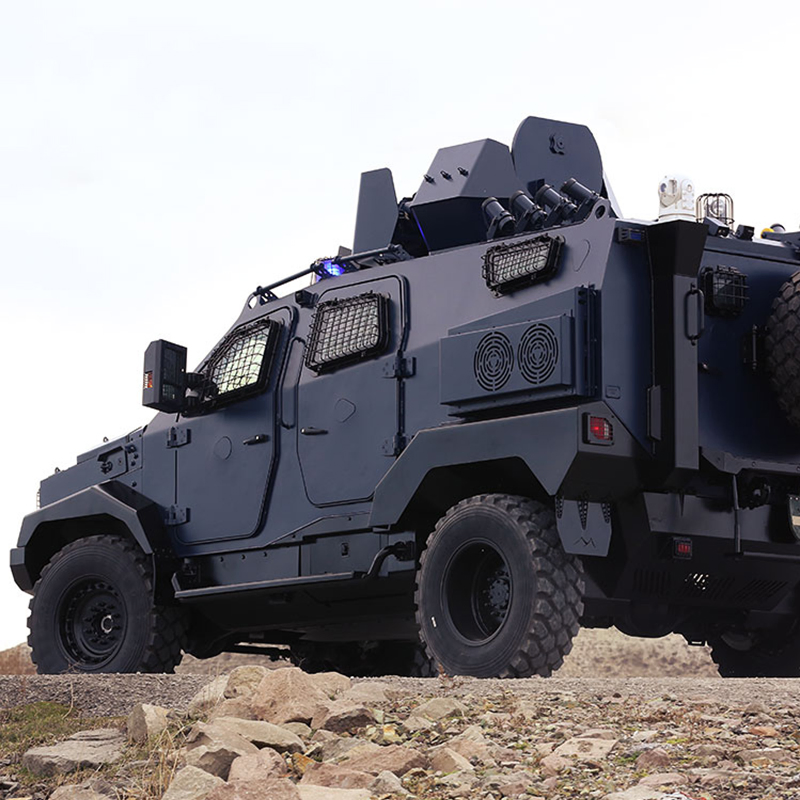

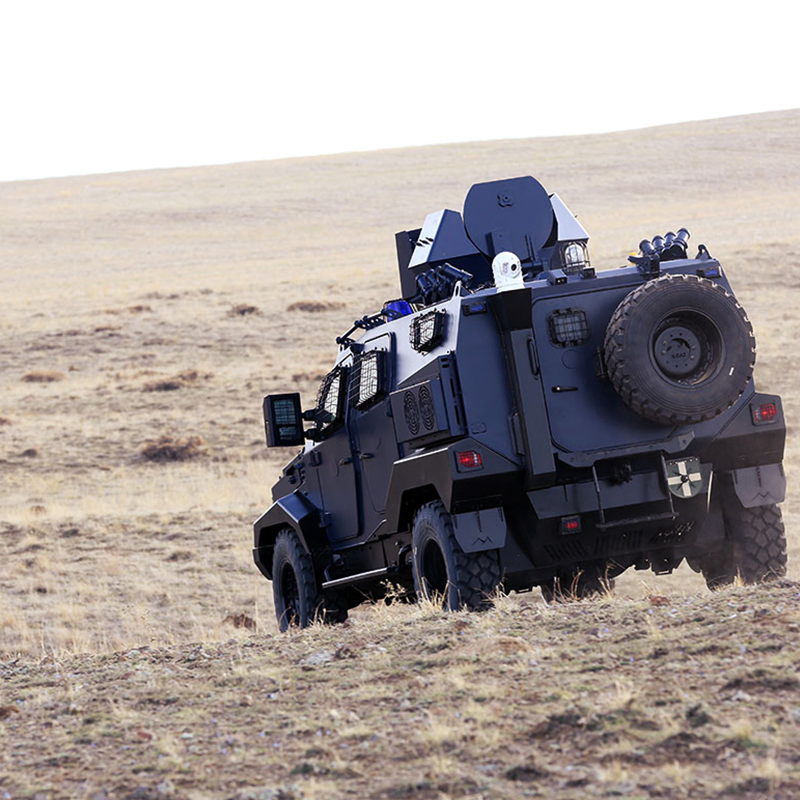

Defense & Military

Infrastructure Protection

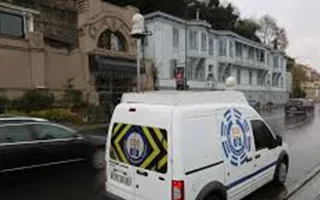

Emergency Response

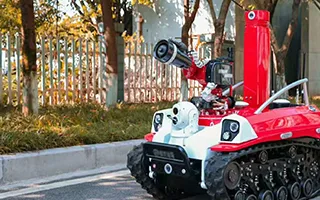

Transportation Management

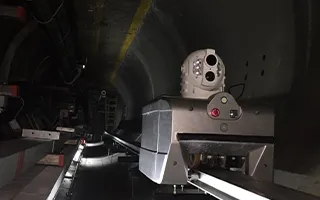

Environmental Protection

Product Gallery

Frequently Asked Questions

Q1: What is the estimated delivery timeline for the SOAR970? A: For standard small orders, delivery typically takes 7 working days. For customized or OEM orders, timelines will be confirmed based on requirements.

Q2: Is there a minimum order quantity (MOQ)? A: The MOQ varies depending on the specific product configuration. Please contact our team for details.

Q3: What payment methods are accepted for international orders? A: We accept various payment terms, including standard Bank Transfer (T/T).

Q4: What is the warranty coverage for PTZ cameras? A: All PTZ products and integrated modules are covered by a standard 1-year warranty against manufacturing defects.

Q5: Do you provide technical support for installation and maintenance? A: Yes, we offer lifetime technical support. Our technical team usually responds to inquiries within 24 hours.

Q6: Can the camera withstand marine salt spray environments? A: Absolutely. The SOAR970 series features an IP67-rated robust construction designed to resist corrosion from salt spray and humidity.
