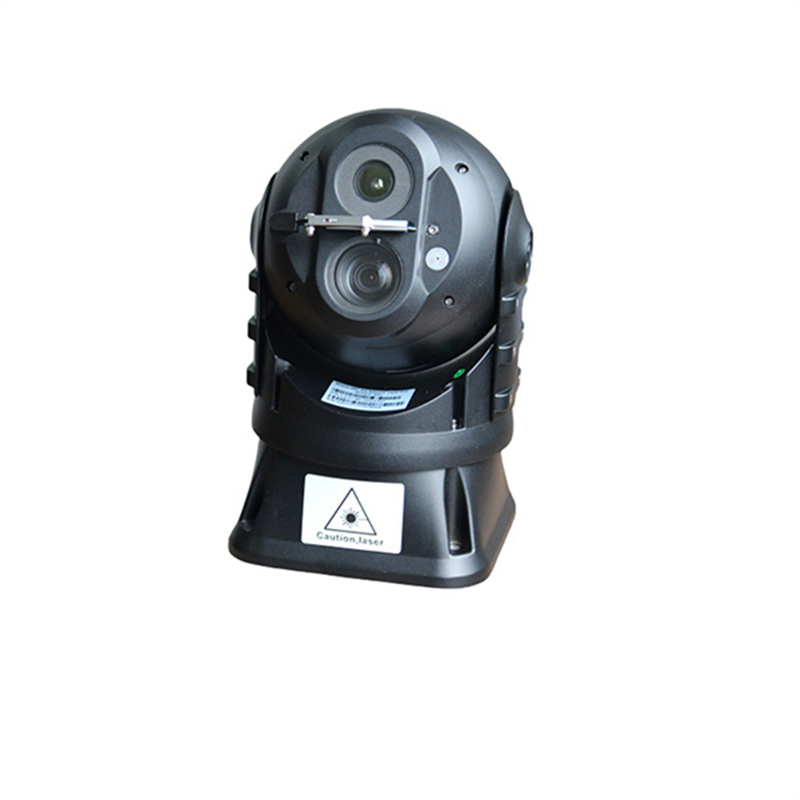

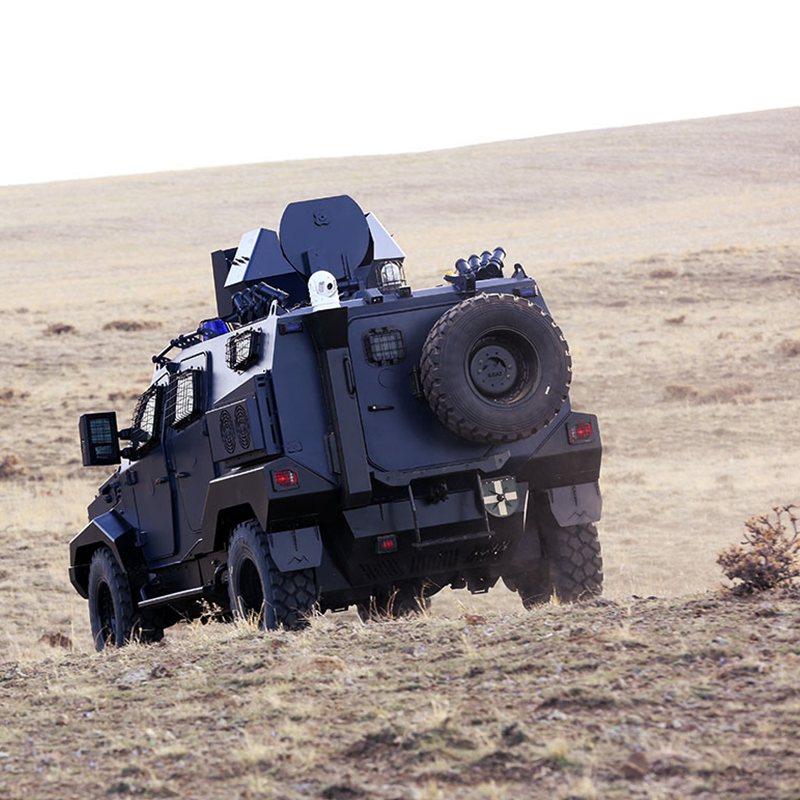

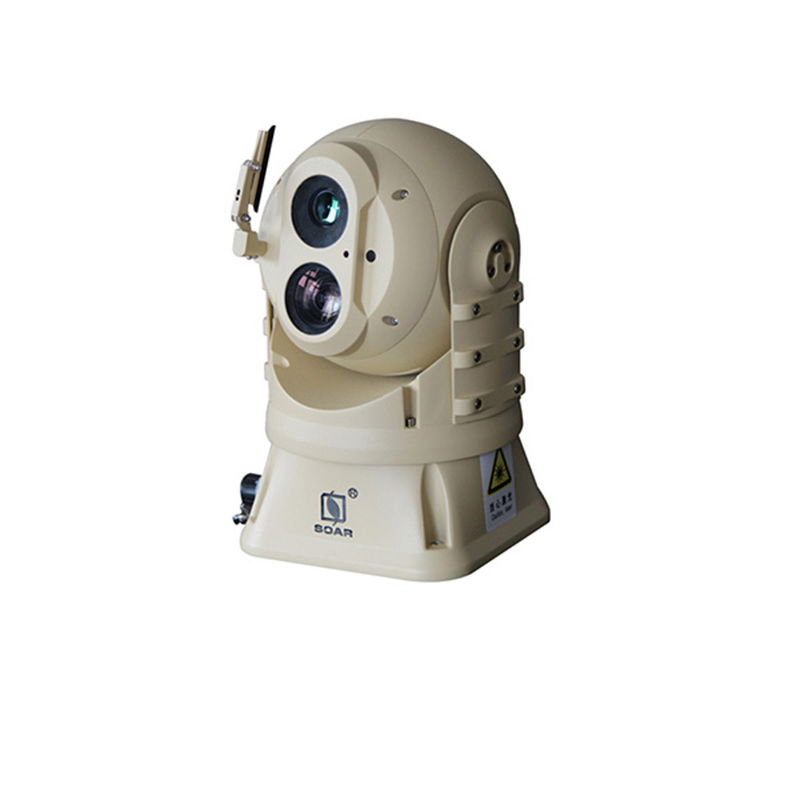

The SOAR970 series mobile PTZ is specifically engineered for high-demand mobile surveillance. With an IP67 waterproof rating, it excels in both land-based vehicle applications and marine environments. The system integrates advanced IR LED or laser illumination, enabling visibility from 150m up to 800m in total darkness.
Equipped with dual-sensor technology, it features a high-definition visible camera (up to 33x optical zoom) paired with a high-sensitivity thermal imager (up to 1280x1024 resolution). Its robust construction resists salt spray and heavy rain, making it ideal for coastal and offshore monitoring.
| Thermal Imaging Performance | |
|---|---|
| Detector Type | VOx Uncooled Infrared FPA |
| Pixel Pitch | 640x512 / 12μm |
| Lens Focal Length | 40mm |
| NETD | ≤50mk @ 25℃ |
| Visible Camera Performance | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Focal Length | 5.5mm ~ 180mm (33X Zoom) |
| Min. Illumination | Color: 0.05 Lux; B/W: 0.01 Lux |
| Mechanical & Environmental | |
| Pan / Tilt Range | Pan: 360° Endless; Tilt: -20° to +90° |
| Ingress Protection | IP66 / IP67 |
| Power Supply | DC 12V-24V (≤24W) |
| Weight / Size | 6.5kg / φ197*316 mm |

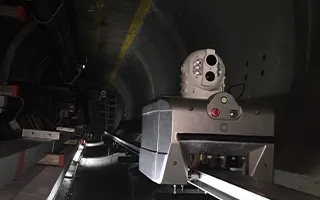

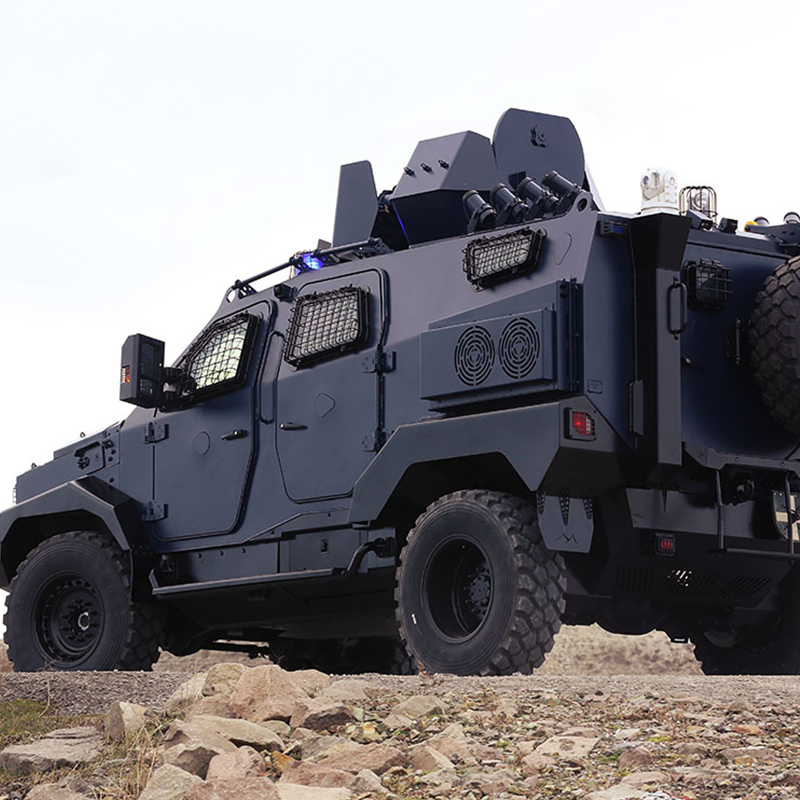

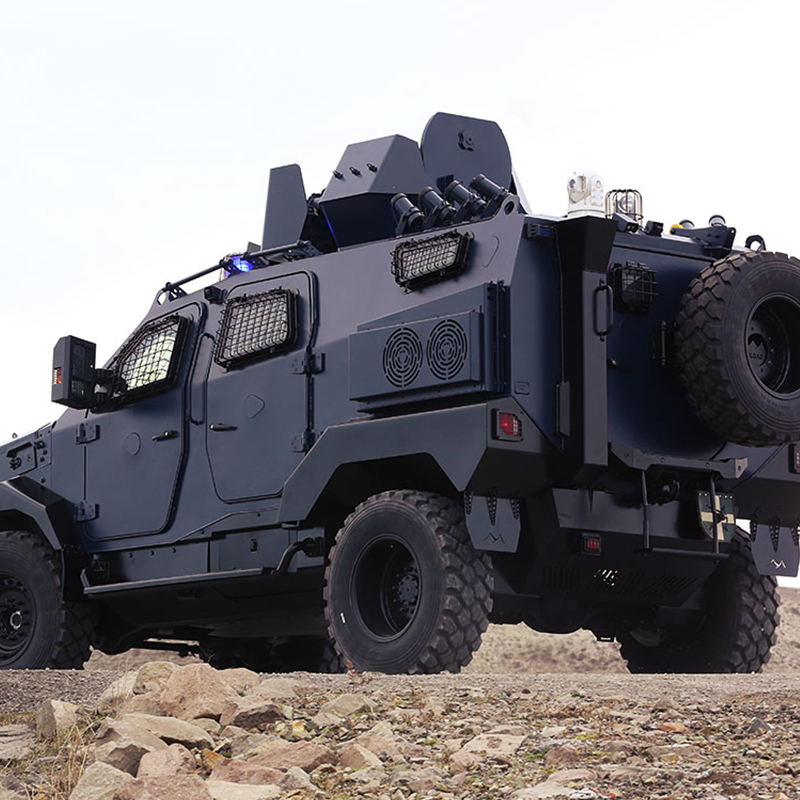

Optimized for Law Enforcement (Patrol cars, incident response), Defense (Battlefield reconnaissance, convoy security), and Infrastructure Protection (Power grid, pipeline, and railway security).

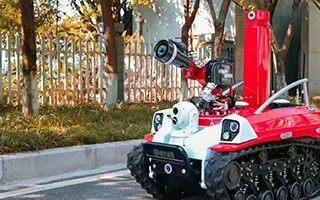

Vital for Disaster Response (Fire command, Search & Rescue) and Environmental Protection (Anti-poaching, forest fire detection, and marine conservation).
