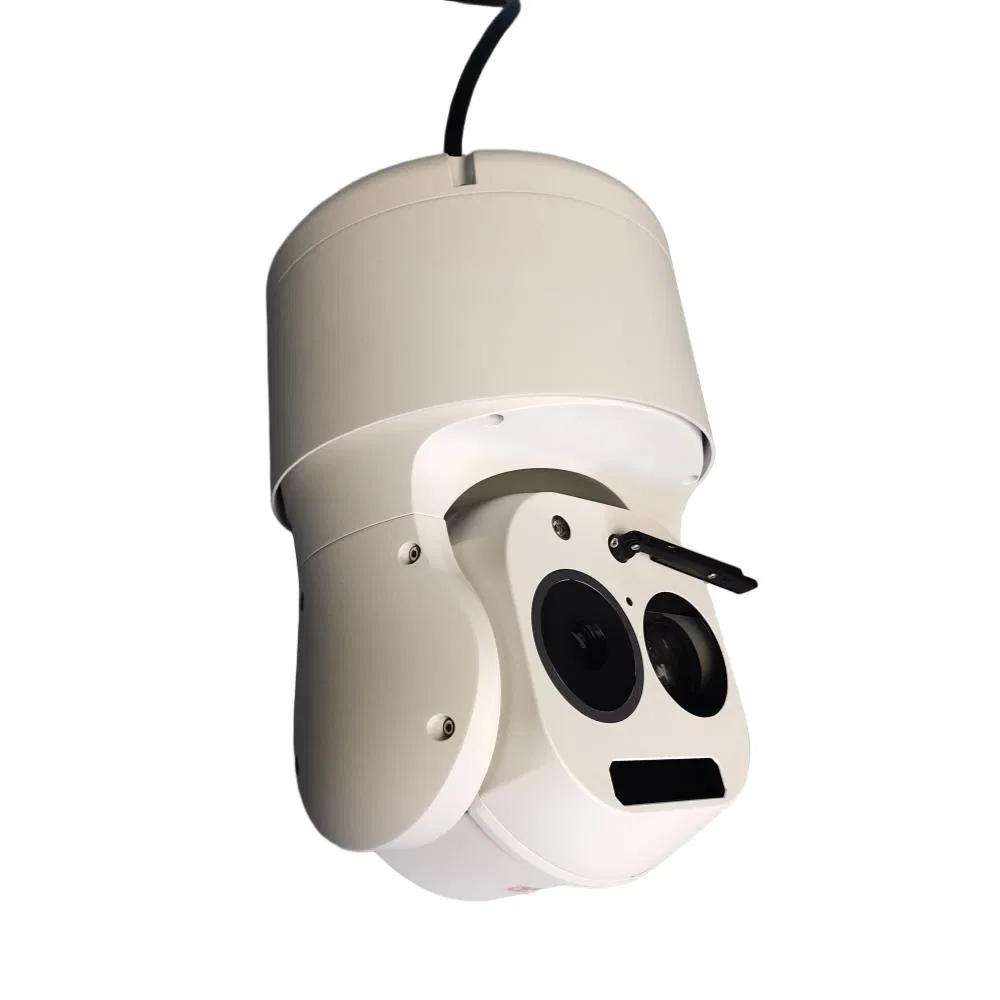

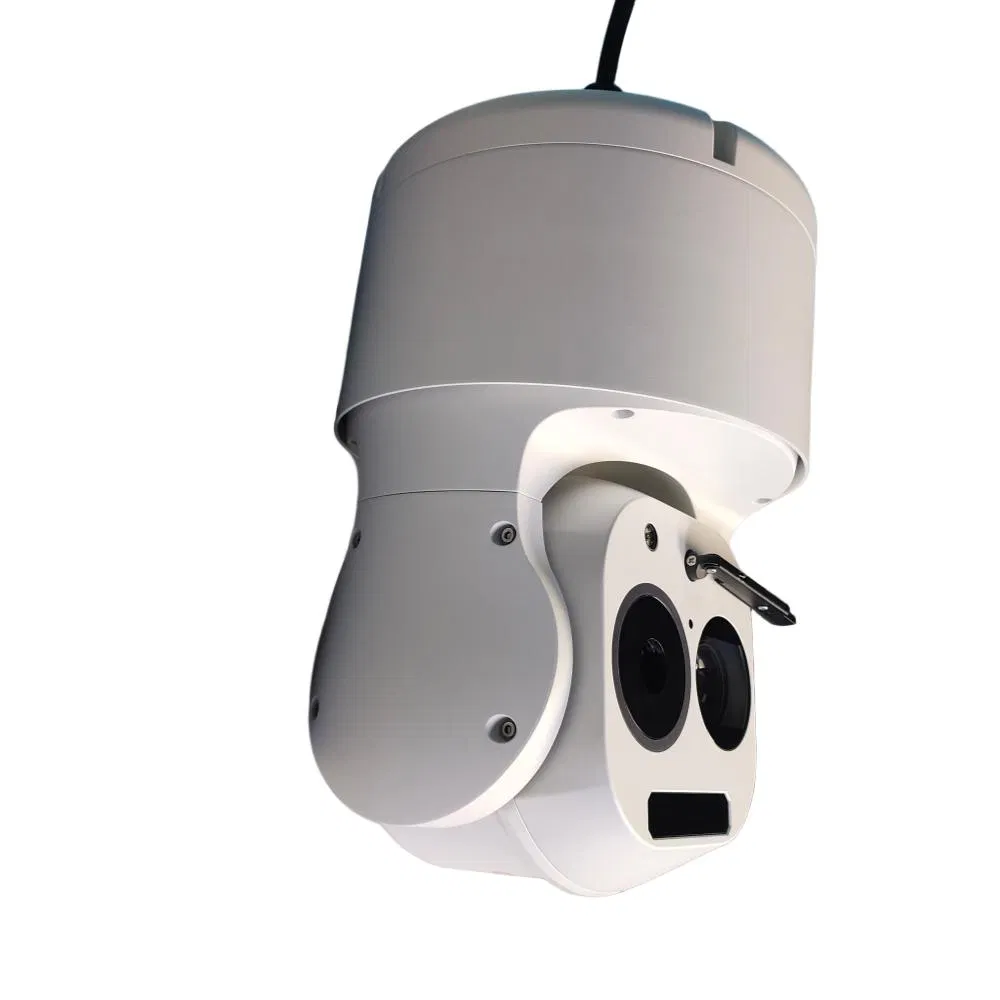

High-Performance Thermal Dome PTZ for Enhanced Surveillance Solutions

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Dome Camera

Basic Information

Model NO.

SOAR789-TH

Type

IP Camera

Sensor

CMOS

Certification

RoHS, ISO9001: 2000

Feature

Waterproof / Weatherproof, High Definition, Auto BLC

Product Description

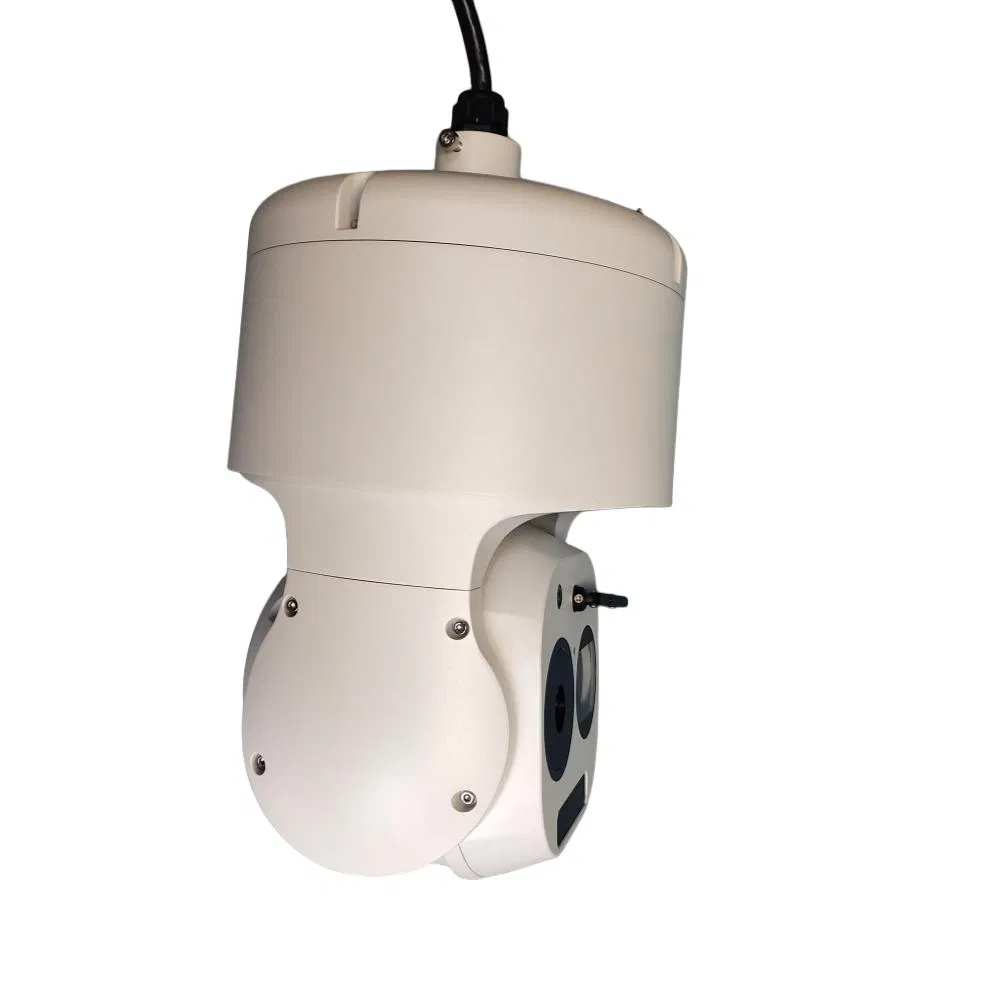

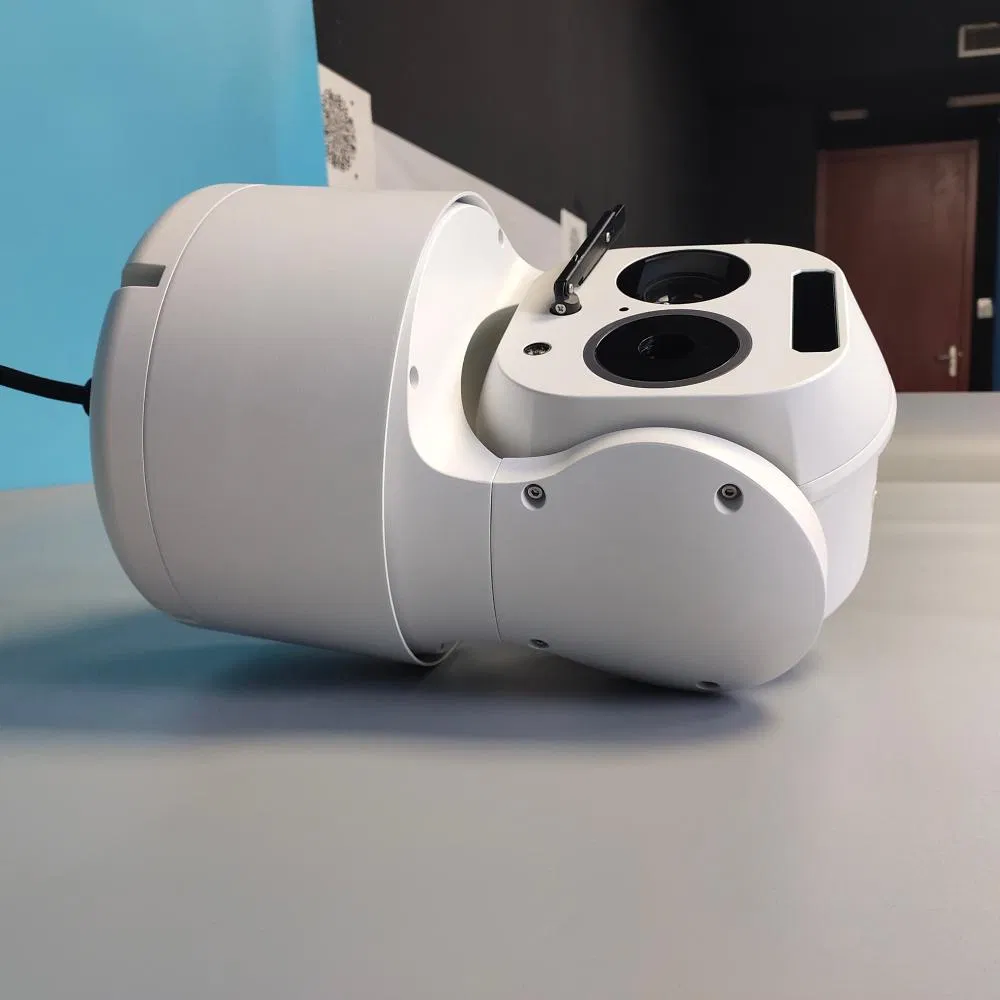

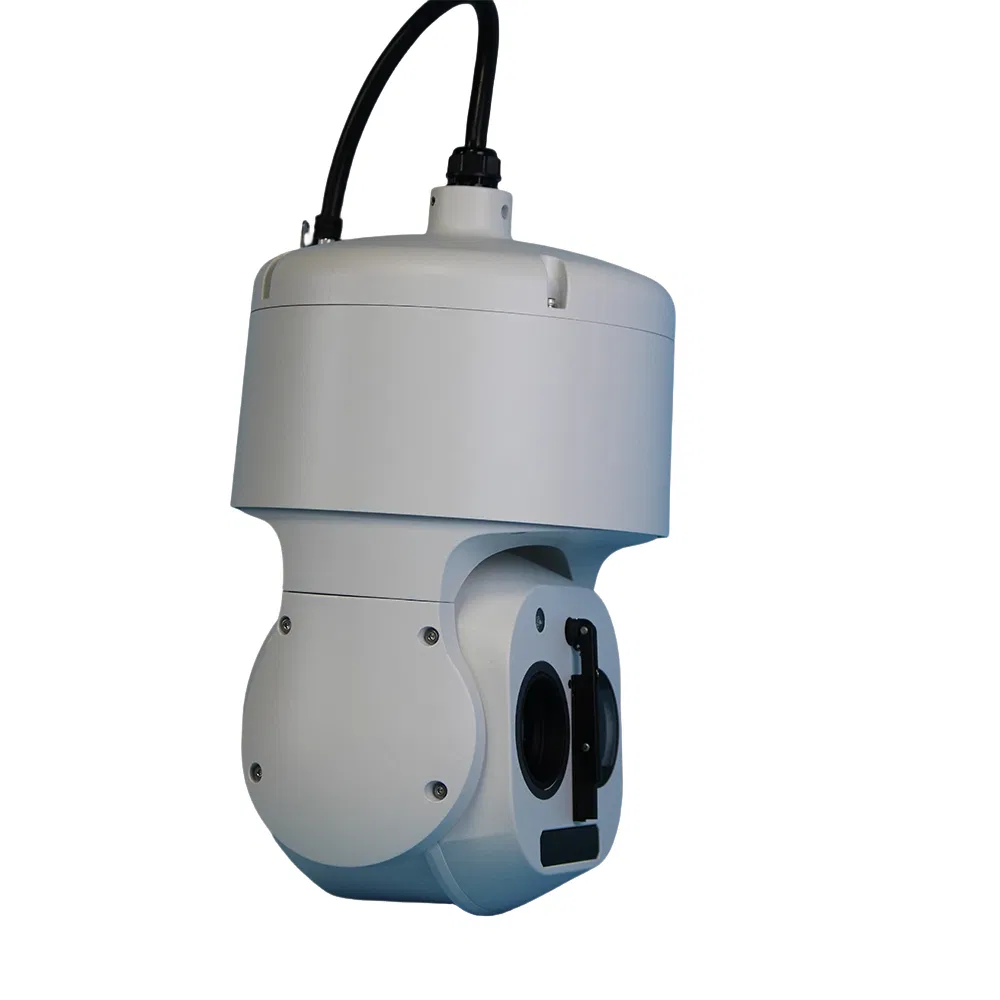

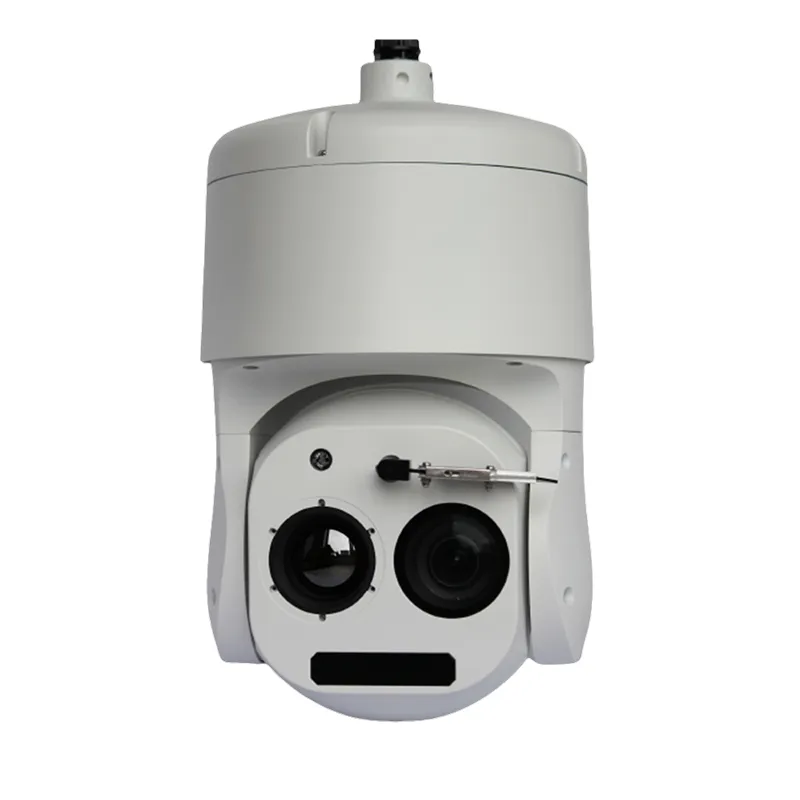

9-inch Dual Sensor Thermal Speed Dome PTZ Camera

With up to 4MP video resolution, on-board illumination, and 40x optical zoom, the series IR Network Speed Dome PTZ Camera delivers critical situational awareness. Exceptional field of view gives operators the ability to monitor key details throughout large areas. The combination of high performance optics and sensors, exceptional low light visible imaging, and effortless integration with all major third-party VMS makes these IR PTZ cameras an ideal solution for critical infrastructure sites and remote facilities that require close monitoring.

Product Highlights

Starlight low illumination enables clear image at night
40X optical zoom with the developed focus algorithm, fast and accurate
640*512 resolution, up to 50 mm lens thermal imager
Image stabilization enables clear image by effectively reducing image blur due to device shaking
Advanced H.265 and SVC algorithms ensure higher encoding efficiency and flexible application
Support ONVIF, with strong compatibility
Support people flow counting and crowd density monitoring
Supports cross line detection, enter area, leave area, and intrusion detection for motor vehicles and pedestrians

Technical Specifications

Thermal Imaging
Detector	VOx Uncooled Focal Plane Arrays
Array Format/Pixel Pitch	640x512/12μm
Frame Rate	50Hz
Response Spectra	8-14μm
NETD	≤50mK@25℃, F#1.0
Lens	50mm
FOV	8.8°×7.0°
Visible Camera
Image Sensor	1/1.8” Progressive Scan CMOS
Effective Pixels	2688(H)*1520(V), 4MP
Minimum Illumination	Color: 0.0005 Lux; B/W: 0.0001 Lux (IR ON)
Shutter	1/25 to 1/100,00s
Focal Length	6.6mm-264mm, 40x optical zoom
Aperture Range	F1.61-F5.19
PTZ Performance
Movement Range	Pan: 360° Continuous; Tilt: -27° to 90°
Pan Speed	0.05° to 200°/s
Tilt Speed	0.05° to 120°/s
Presets	255
Task Scheduling	Preset, pattern scan, patrol scan, dome reboot, etc.
Infrared & Video
IR Distance	Up to 150m (Auto adjusted)
Compression	H.265 / H.264 (3 Streams)
BLC	BLC / HLC / WDR (120dB)
General
Power	AC24V±25%, max. 48 W
Dimension	Ø 250mm × 413mm
Protection	IP66, TVS 4000 V lightning protection

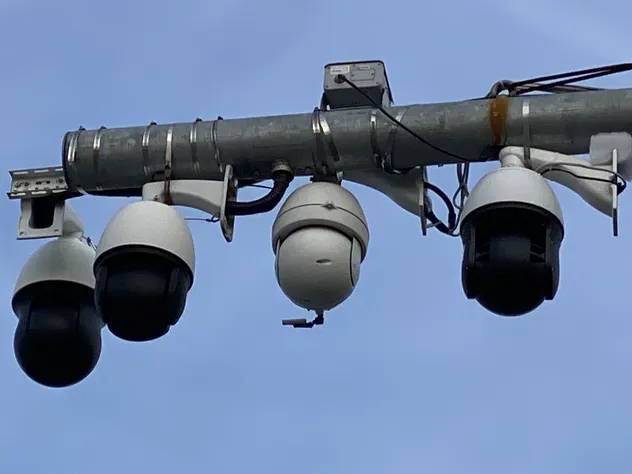

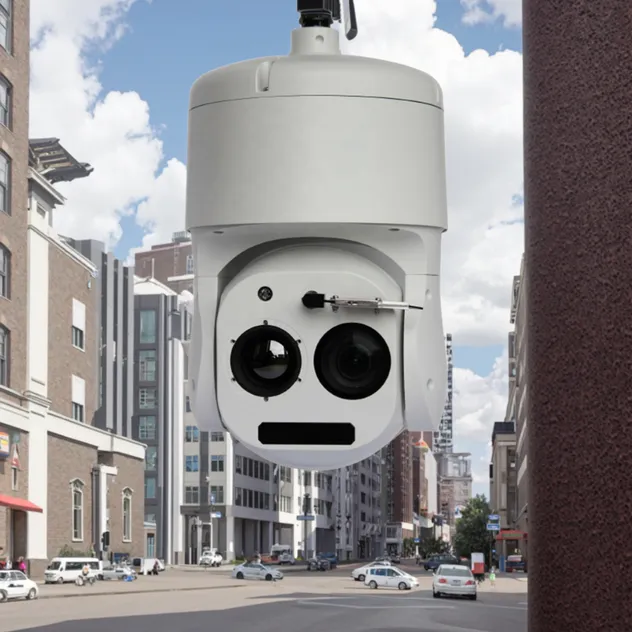

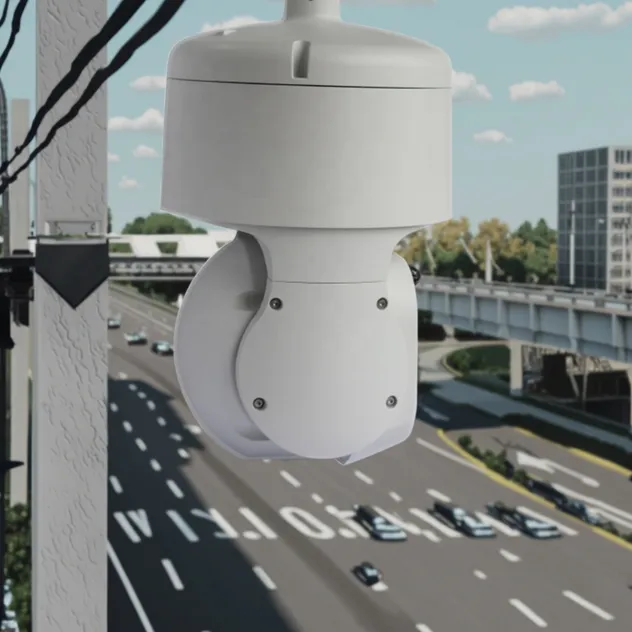

Application Scenarios

Expertise & Capabilities

Specializing in designing and developing PTZ camera systems and advanced optical imaging solutions, our expertise serves demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. Our focus includes mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision. With a dedicated Optical Camera Division, we deliver high-performance zoom and thermal imaging cameras, ranging from core components to complete, customized system solutions. Our team of over 160 professionals includes 62 R&D experts with an average of 11 years of industry experience, ensuring continuous innovation and technical excellence.
