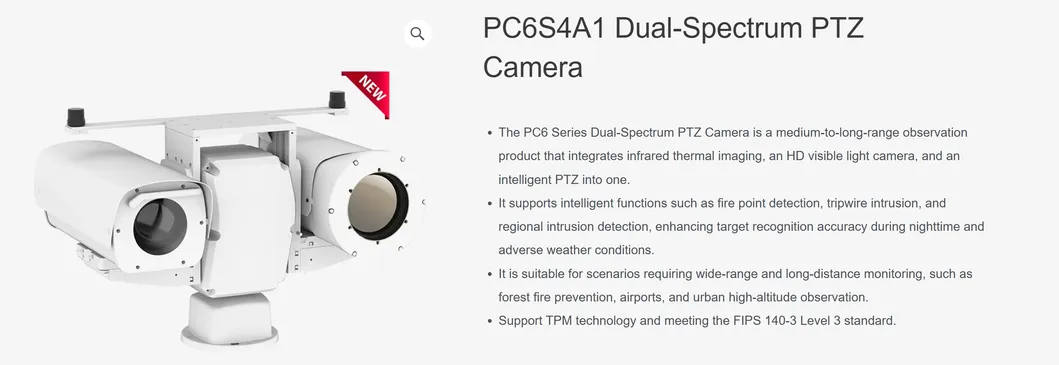

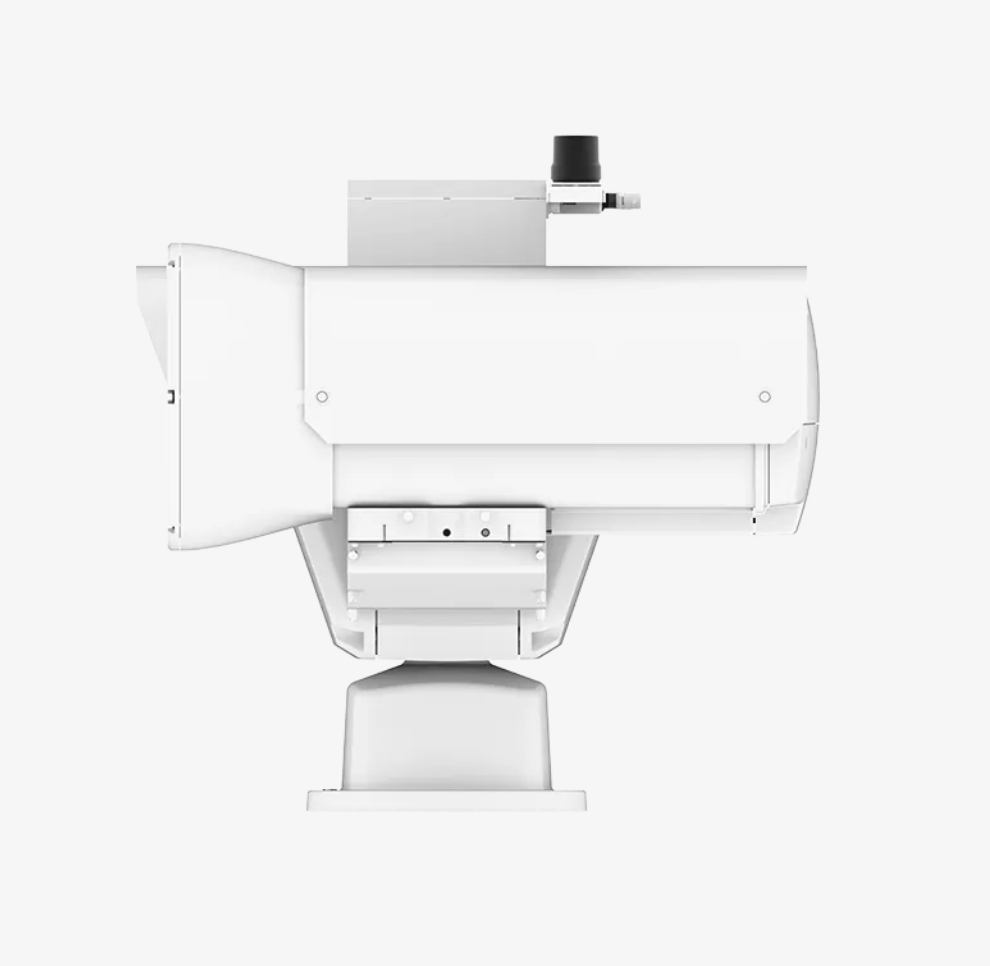

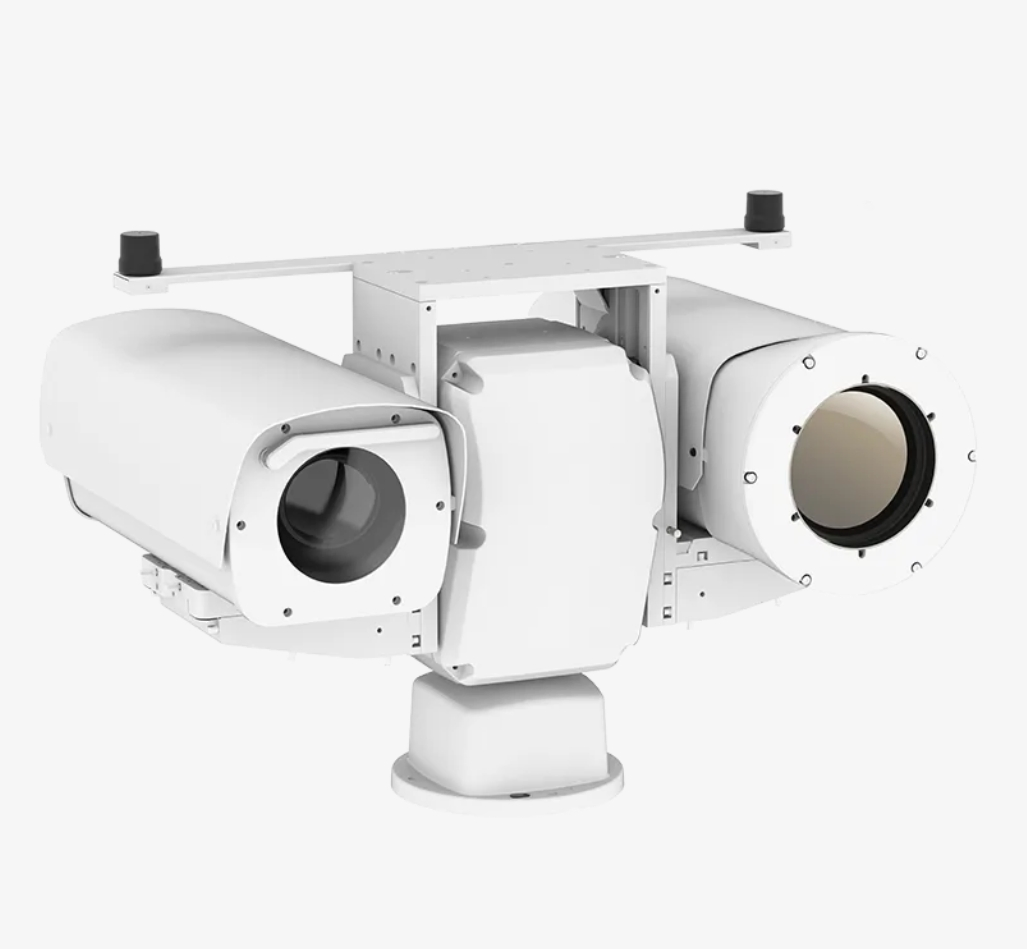

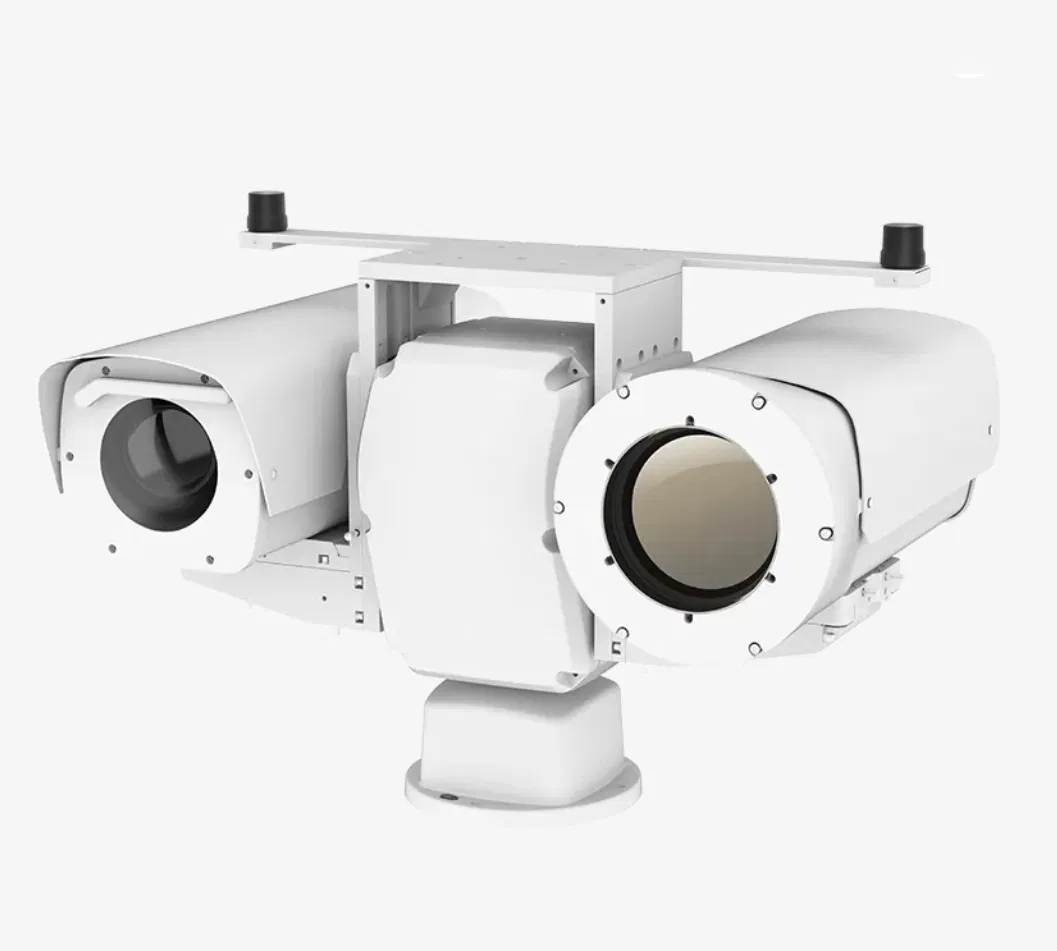

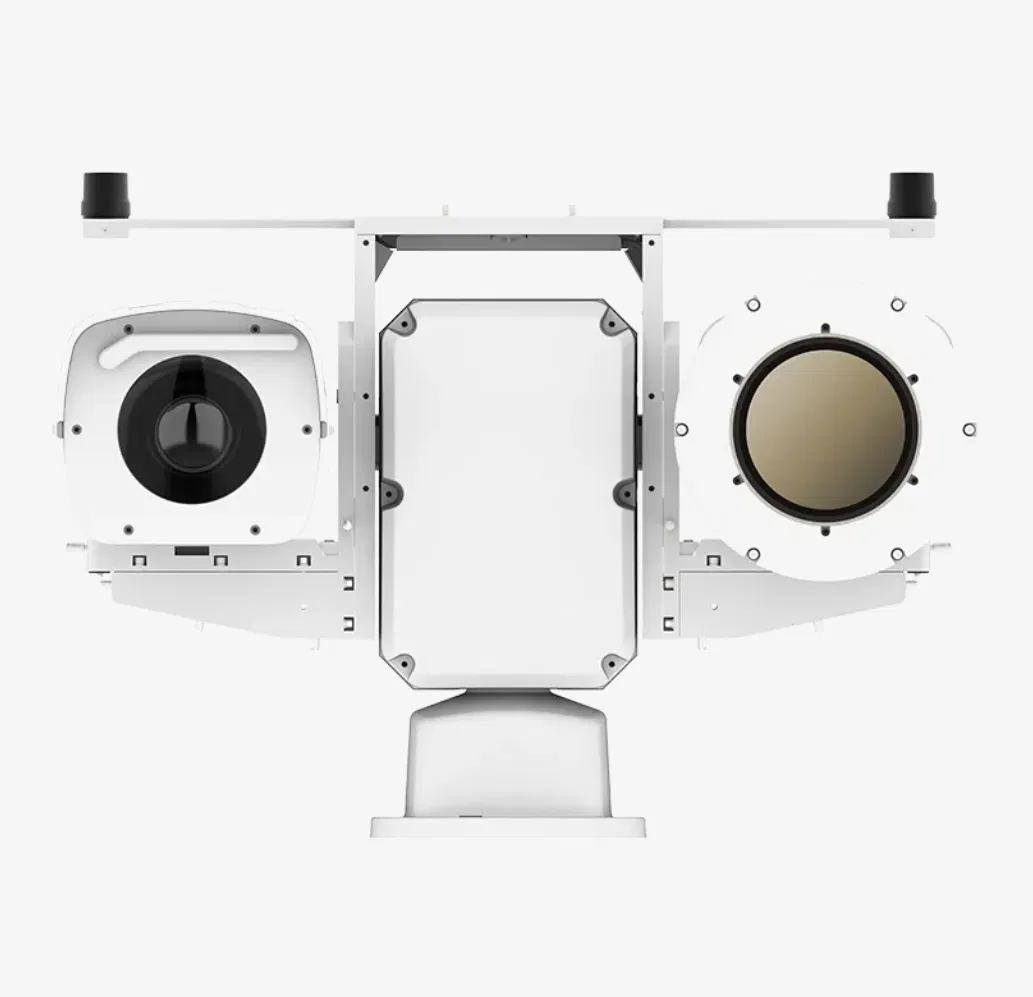

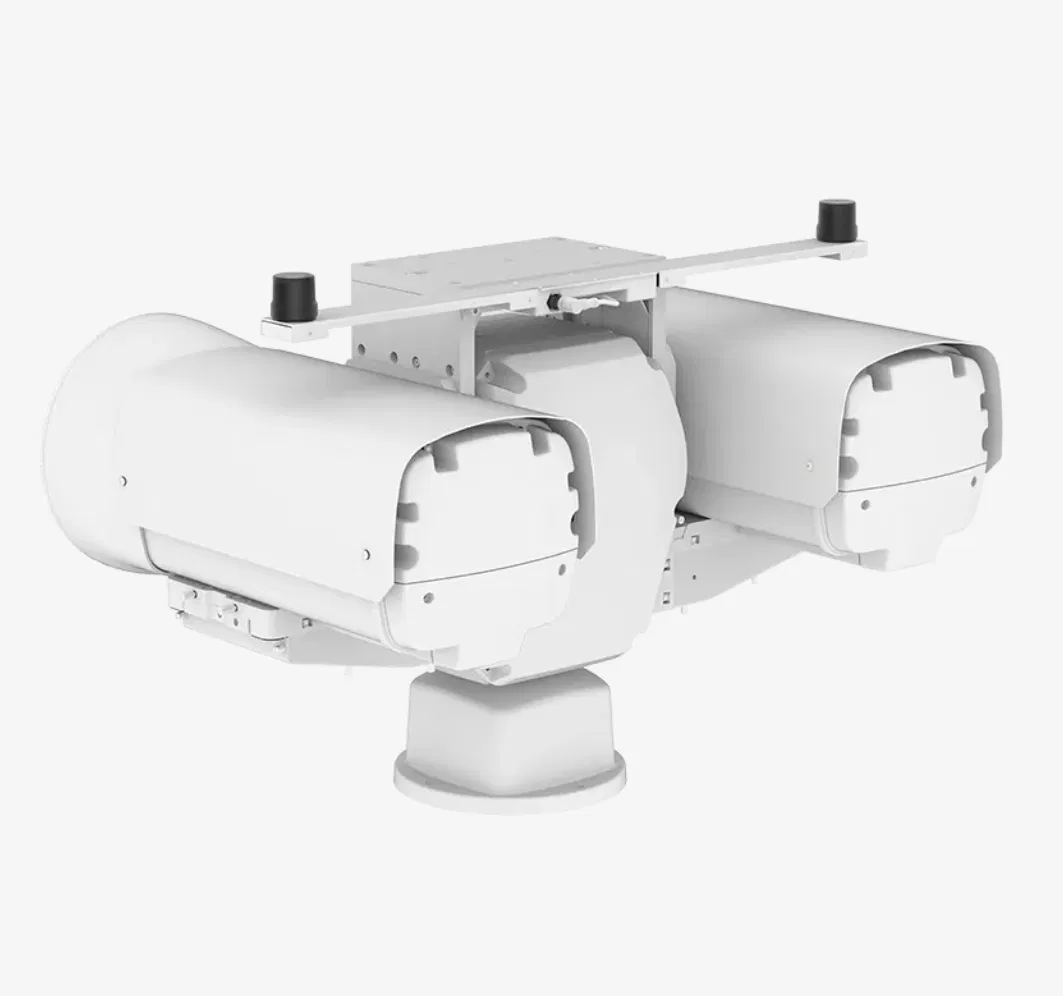

The PC6 Series Dual-Spectrum PTZ Camera is a high-performance medium-to-long-range observation solution. It seamlessly integrates infrared thermal imaging, a high-definition visible light camera, and an intelligent PTZ system into a single robust unit.

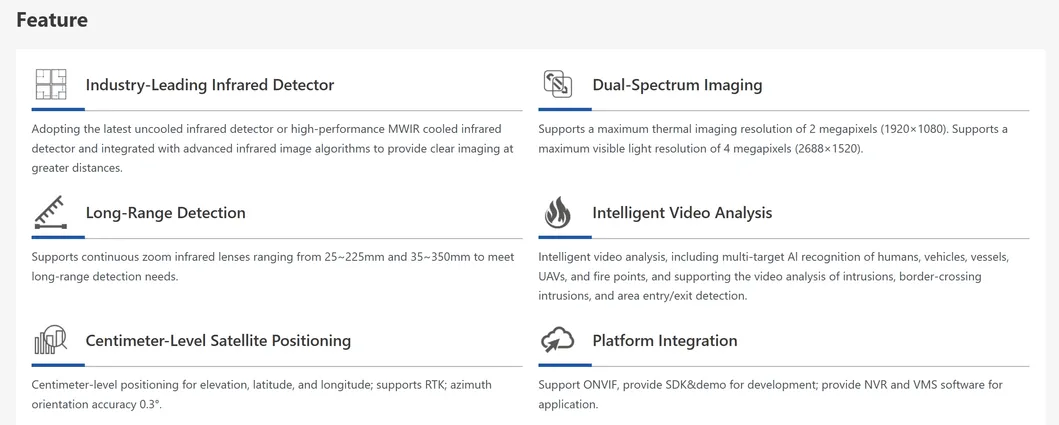

Equipped with the latest uncooled infrared detector or high-performance MWIR cooled detector for crystal-clear long-distance imaging.
Maximum thermal imaging resolution up to 2MP (1920×1080) and visible light resolution up to 4MP (2688×1520).
AI recognition of humans, vehicles, vessels, UAVs, and fire points with border-crossing and area entry/exit detection.
Integrated satellite location module supporting RTK for precise elevation, latitude, and longitude (0.3° accuracy).

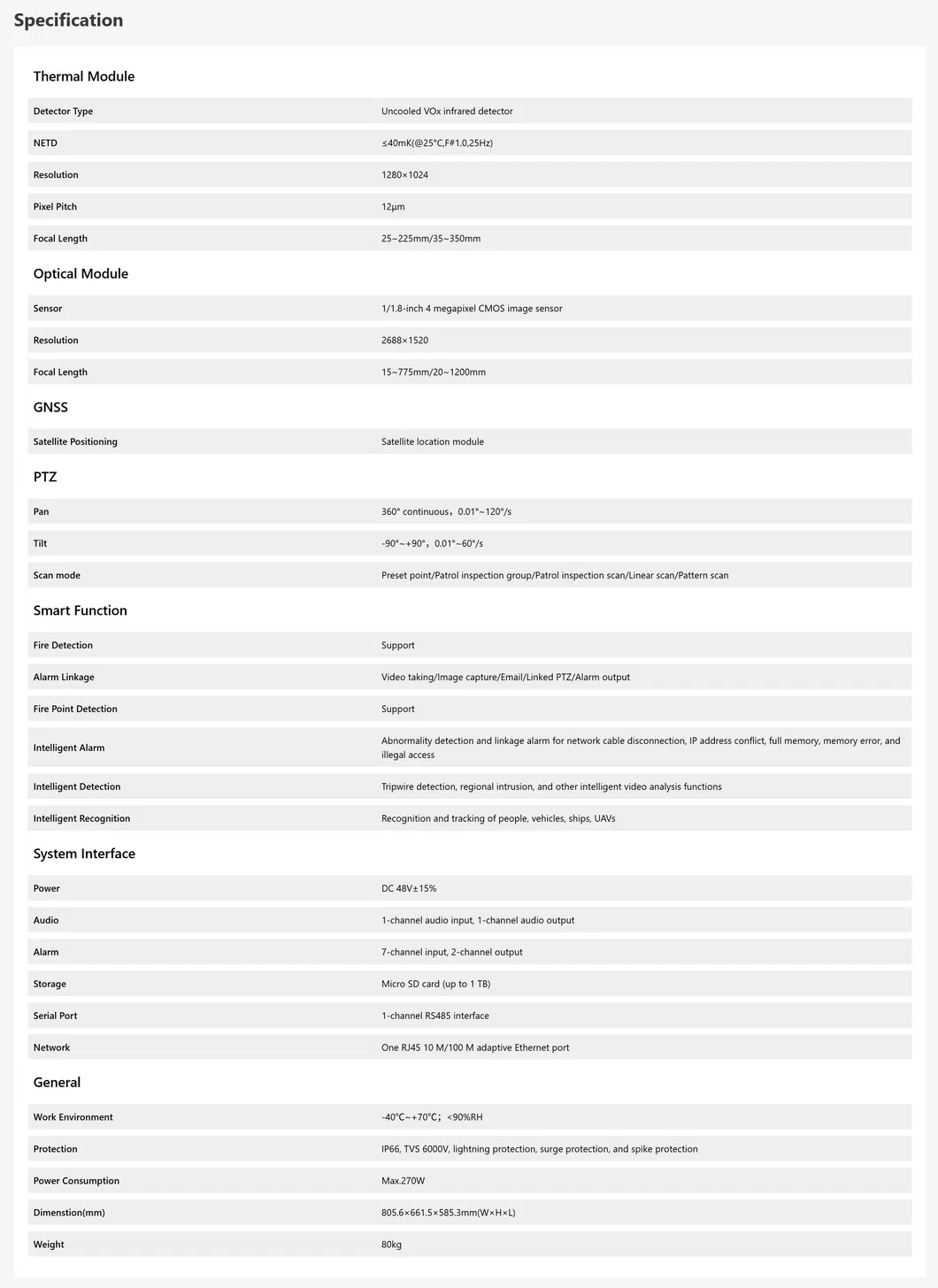

| Thermal & Optical Modules | |
|---|---|
| Thermal Detector | |
| Detector Type | Uncooled VOx infrared detector |
| Resolution / Pixel Pitch | 1280×1024 / 12μm |
| NETD | ≤40mK (@25°C, F#1.0) |
| Focal Length | 25~225mm / 35~350mm |
| Optical Sensor | |
| Image Sensor | 1/1.8-inch 4 megapixel CMOS |
| Resolution | 2688×1520 |
| Focal Length | 15~775mm / 20~1200mm |
| PTZ & Smart Functions | |
|---|---|
| PTZ Mechanism | |
| Pan Range | 360° Continuous (0.01°~120°/s) |
| Tilt Range | -90° to +90° (0.01°~60°/s) |
| Scan Mode | Preset / Patrol / Linear / Pattern Scan |
| Intelligence | |
| Target Tracking | People, Vehicles, Ships, UAVs |
| Alarm Linkage | Video / Capture / Email / Alarm Output |
| Protection | IP66, TVS 6000V Lightning/Surge Protection |

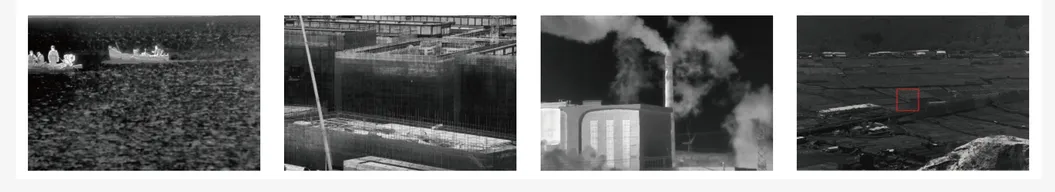

A1: Dual-spectrum technology combines visible light and thermal imaging. This allows the camera to provide clear visual details during the day and detect heat signatures (like fire or hidden targets) in total darkness or through smoke and fog.
A2: With focal lengths up to 350mm for thermal and 1200mm for optical modules, this camera is designed for medium-to-long-range observation, suitable for forest fire monitoring and border security over several kilometers.
A3: Yes, it features intelligent fire point detection and can trigger alarms or linkage actions like PTZ tracking and email notifications immediately upon sensing a fire source.
A4: Absolutely. It features an IP66 weatherproof rating, TVS 6000V lightning protection, and is built with high-quality metal material to operate in temperatures ranging from -40ºC to +70ºC.
A5: Yes, it supports the ONVIF protocol and provides a comprehensive SDK and demo code for developers, ensuring compatibility with most NVR and VMS software.
A6: It utilizes RTK-supported centimeter-level satellite positioning, providing extremely accurate data for azimuth orientation and geographic coordinates, which is critical for high-altitude observation.
