SOAR970 vehicle mounted PTZ Camera
SOAR970 series mobile PTZ is designed for mobile surveillance application. With its excellent waterproof ability up to IP67, it is also widely applied in marine application. The PTZ can be optionally ordered with HDIP (2MP, 4MP, 4K). Integrated IR LED or laser illumination allows it to see from 150m up to 800m in complete darkness.
It can be with dual sensor options, with HD visible camera (2MP/4MP/8MP, up to 33x zoom) and thermal imager (640x512/1280x1024, up to 40mm focal length).
The SOAR970 is built to withstand the harshest conditions. Featuring an IP67-rated waterproof and dustproof housing, it provides complete protection against immersion, heavy rain, salt spray, and airborne particulates. This robust construction makes it the ideal choice for marine surveillance, coastal monitoring, and offshore platforms.
| Thermal Imaging | |
| Detector | VOx Uncooled Infrared FPA |
| Array Format/Pixel Pitch | 640x512/12μm |
| Lens | 40mm |
| NETD | ≤50mk@25℃, F#1.0 |
| Visible Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Focal Length | 5.5mm~180mm (33X Optical Zoom) |
| Pan/Tilt | |
| Pan/Tilt Range | 360° Endless / –20° ~ +90° |
| Speed | Pan: 0.5°/s ~ 80°/s; Tilt: 0.5° ~ 60°/s |
| General | |
| Power | DC 12V-24V, ≤24w |
| Ingress Protection | IP66 / IP67 |
| Dimensions / Weight | φ197*316 mm / 6.5 kg |
Patrol surveillance, crime hotspot monitoring, rapid incident response, border security, and riot control.

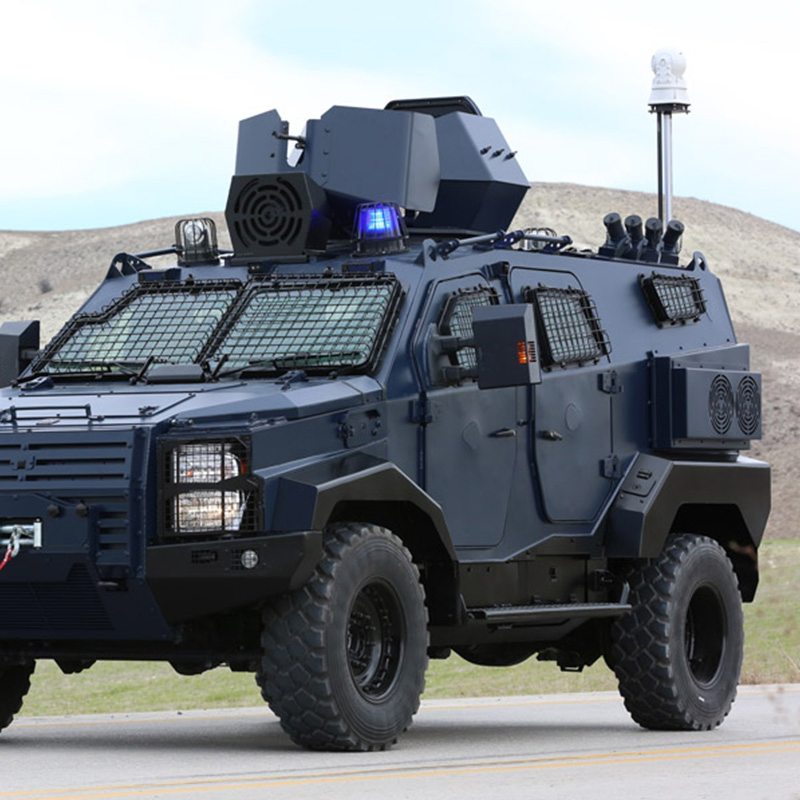

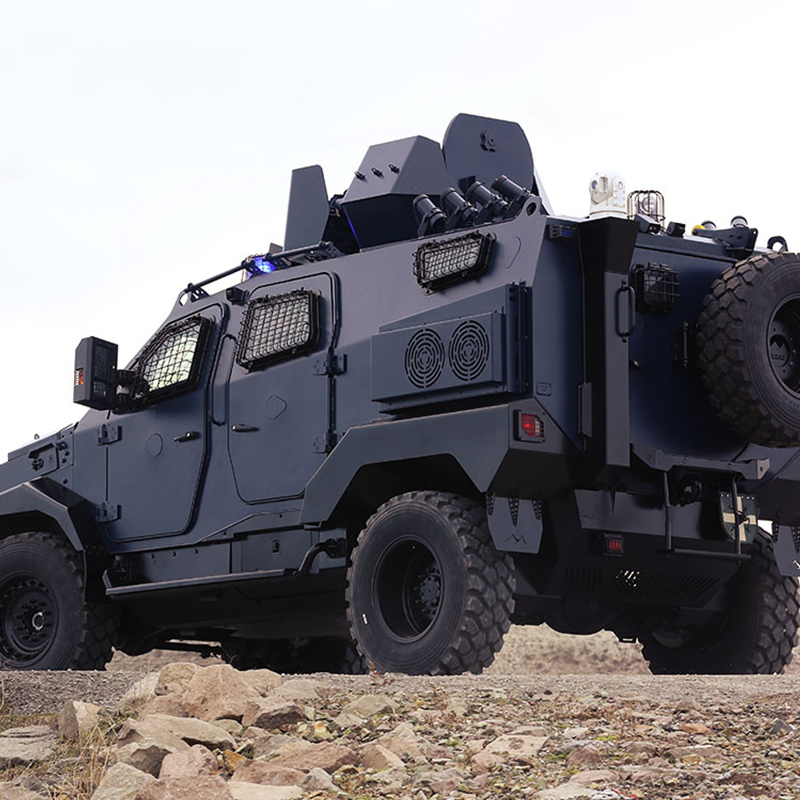

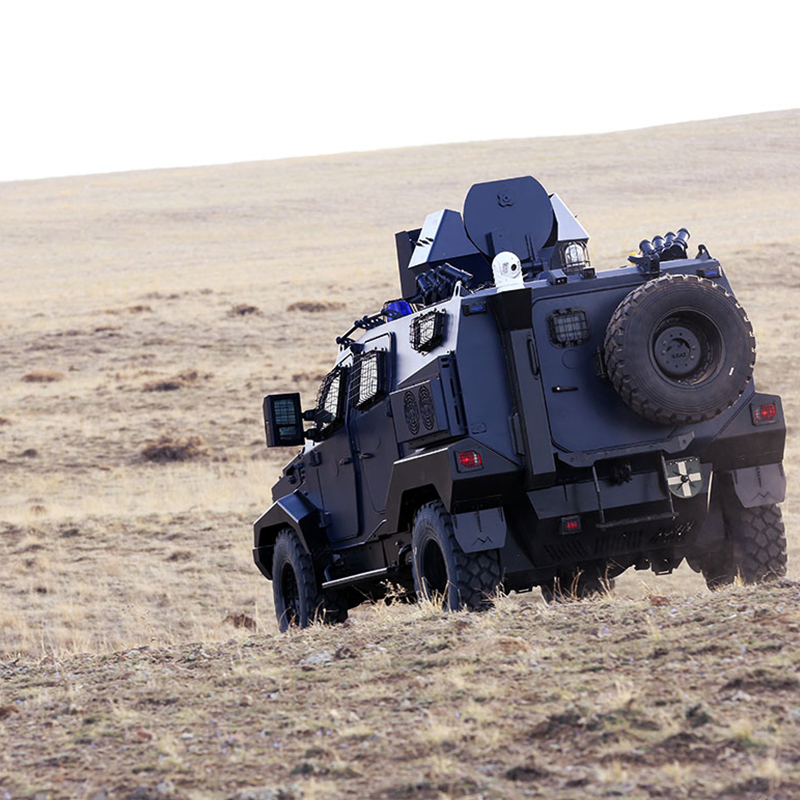

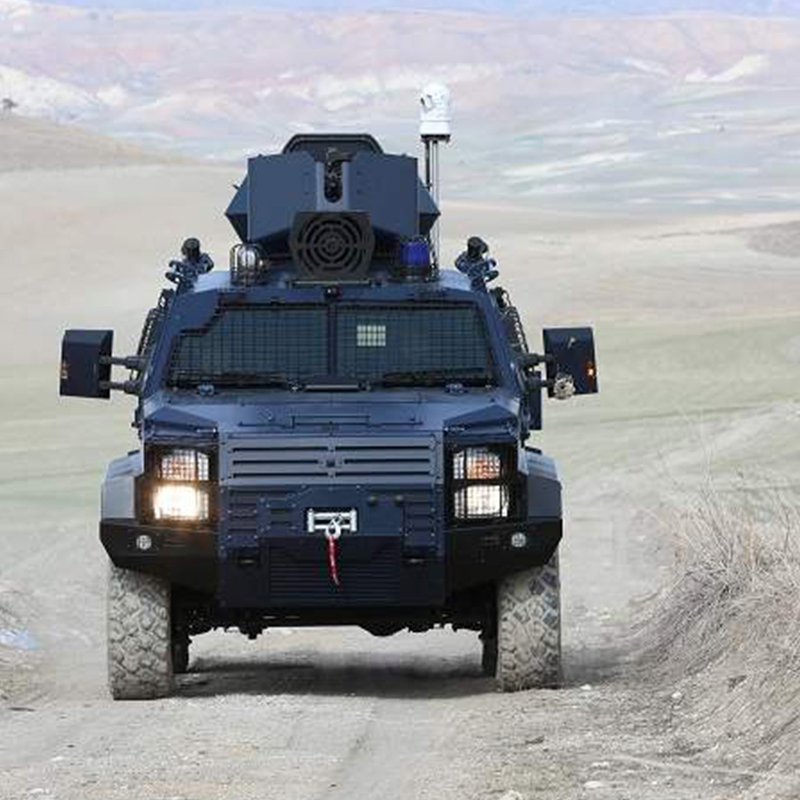

Battlefield surveillance from armored vehicles, convoy security, and threat detection for supply lines.

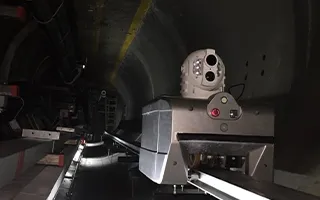

Power grid inspection, oil and gas pipeline surveillance, and railway track safety monitoring.

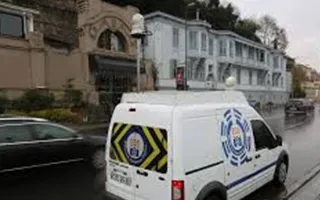

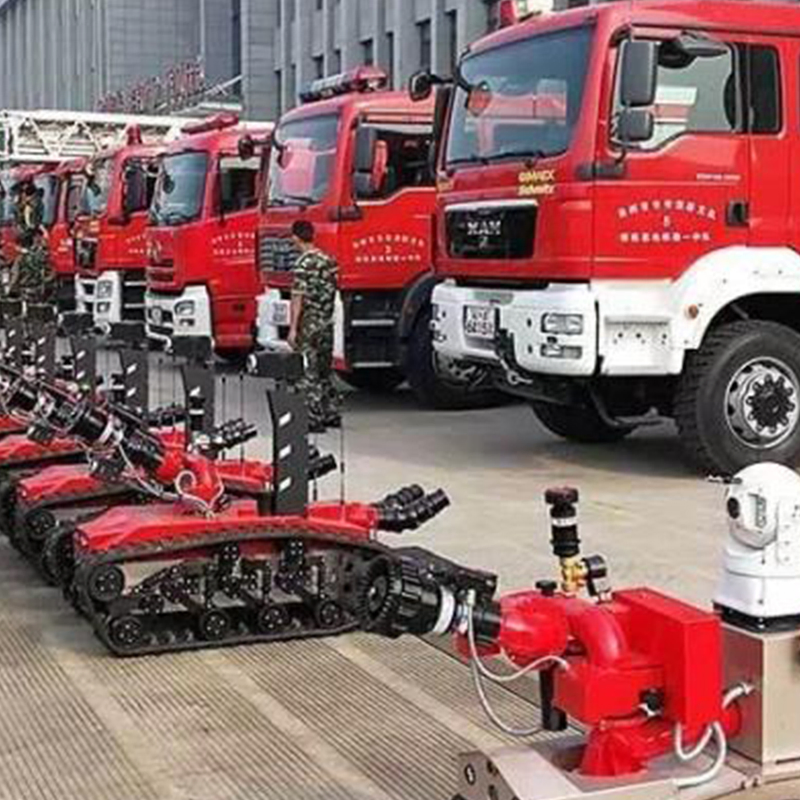

Fire command monitoring, flood assessment, search and rescue using thermal imaging for survivors.

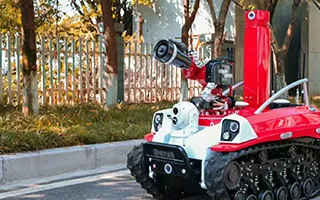

Highway patrol traffic flow monitoring, accident detection, and airport ground security.
Anti-poaching operations, wildlife tracking, forest fire detection, and marine conservation patrol.
