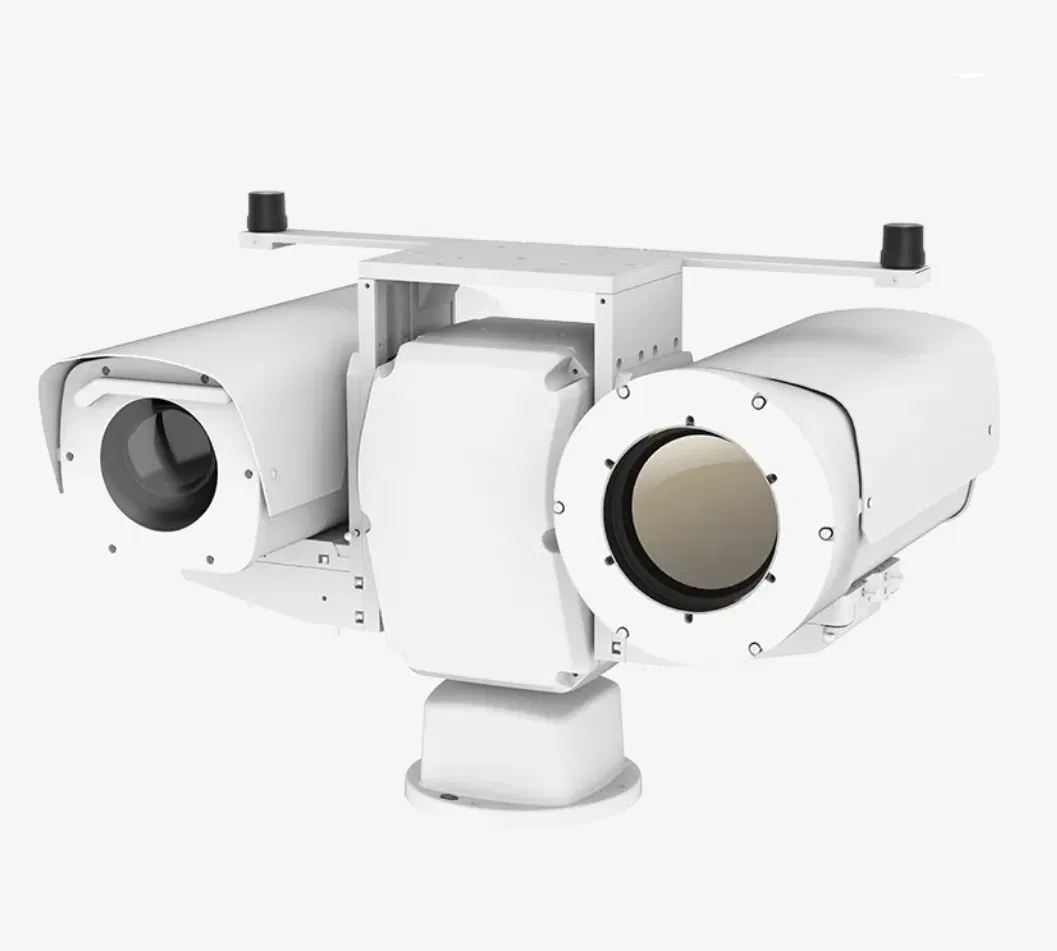

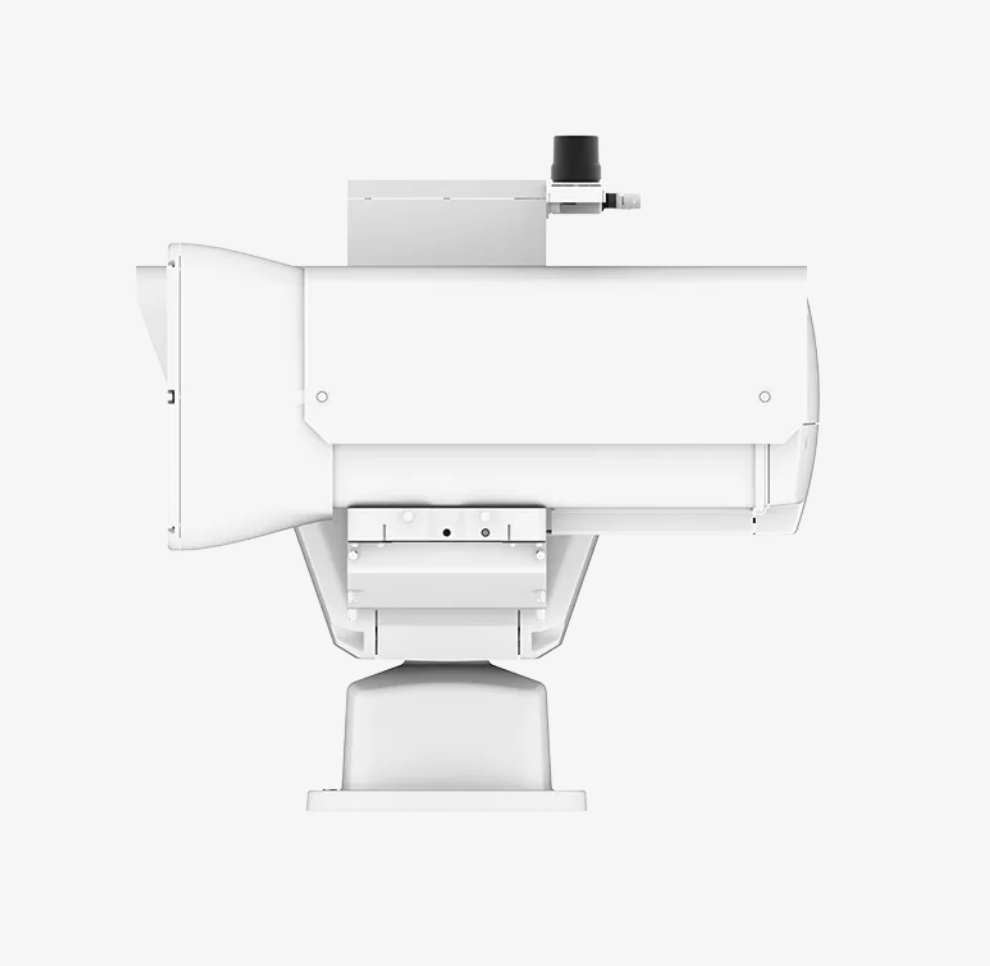

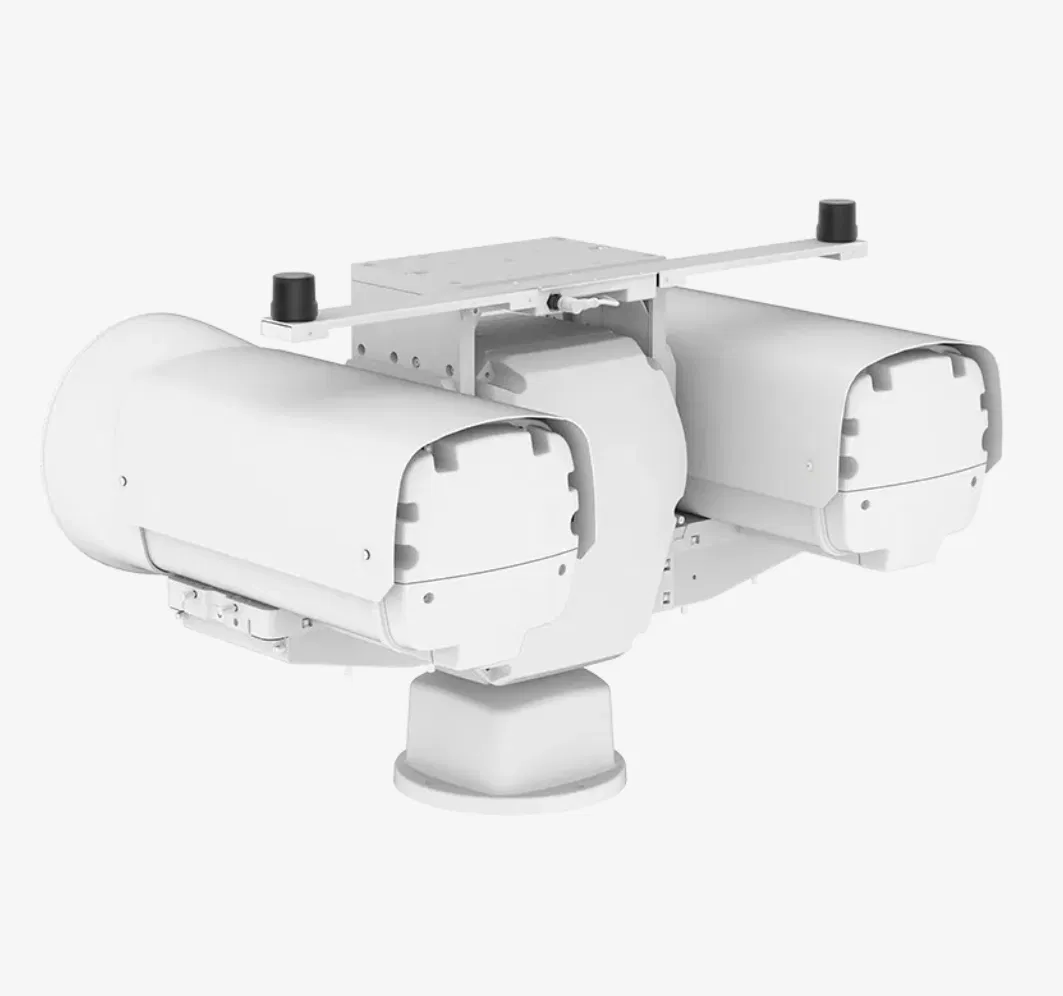

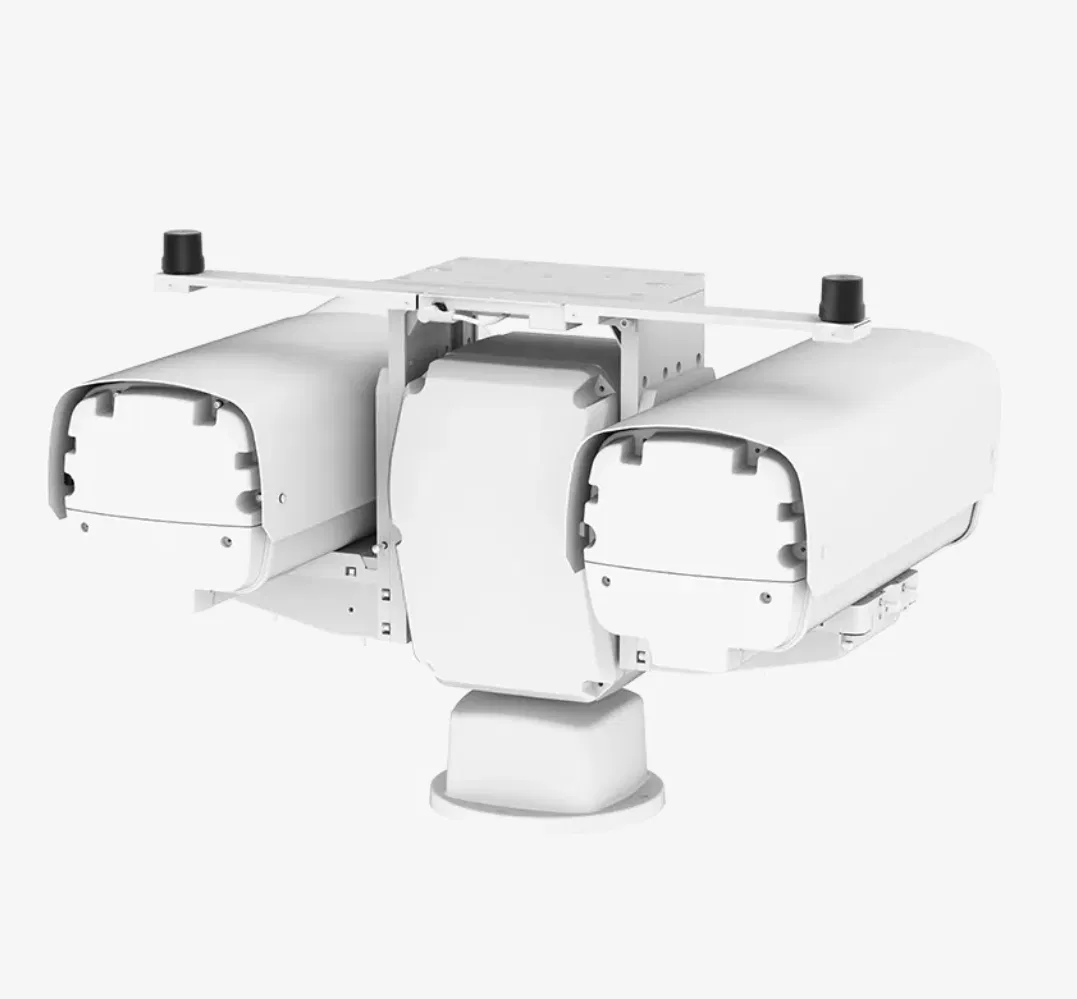

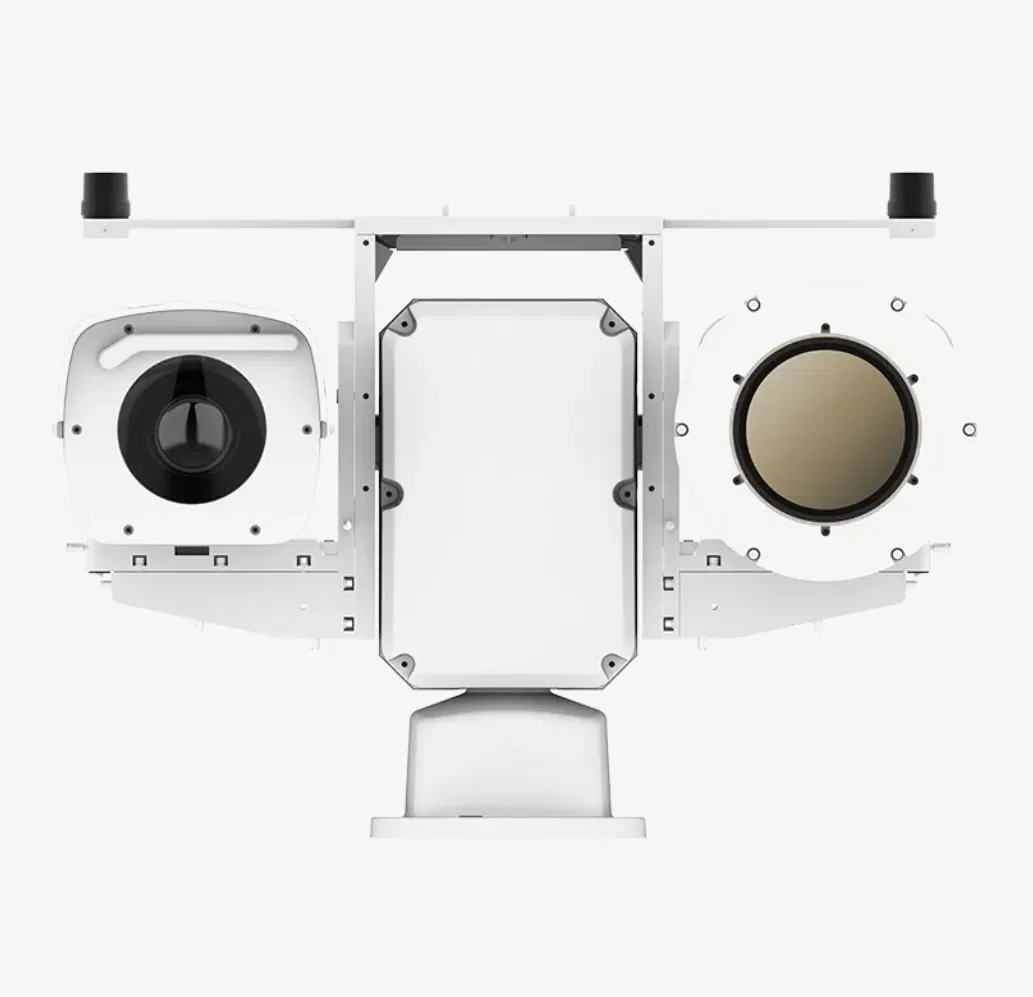

PC664c1 PTZ Camera Supports Thermal Imaging Resolution of 2 Megapixels (640*512) . Supports Visible Light Resolution of 4 Megapixels (2688*1520)

Customization:	Available
After-sales Service:	2 Years Warranty
Warranty:	2 Years Warranty

Basic Information

Model NO.

PC664C1

Application

Civil

Style

Dual-Spectrum PTZ Camera

Kind

Thermal Imaging Night Vision

Operation Principle

Infrared Night Vision

Shell Material

Metal

Thermal Resolution

640*512

Thermal Focal Length

30~660mm / 88~1100mm

Optical Resolution

2688*1520

Sensor

1/1.8-Inch 4 Megapixel CMOS

PTZ Pan

360° Continuous

Origin

China

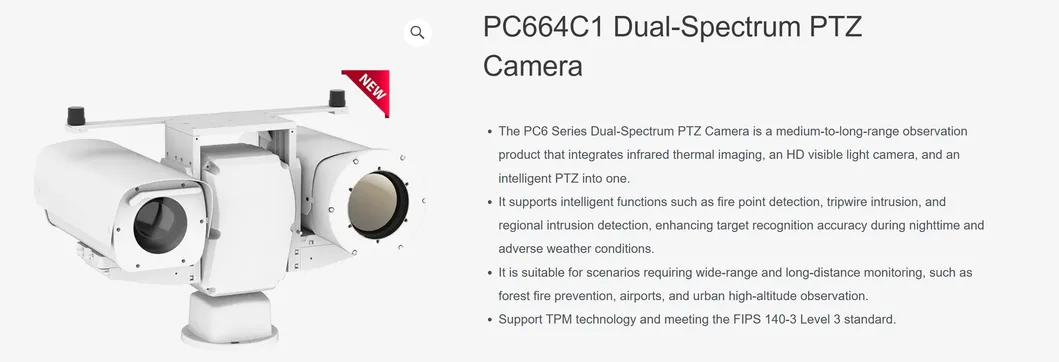

Product Description

The PC6 Series Dual-Spectrum PTZ Camera is a medium-to-long-range observation product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ into one system.

Supports intelligent functions: fire point detection, tripwire intrusion, and regional intrusion detection.
Enhanced target recognition accuracy during nighttime and adverse weather conditions.
Suitable for wide-range monitoring: forest fire prevention, airports, and urban high-altitude observation.
Supports TPM technology and meets FIPS 140-3 Level 3 security standards.

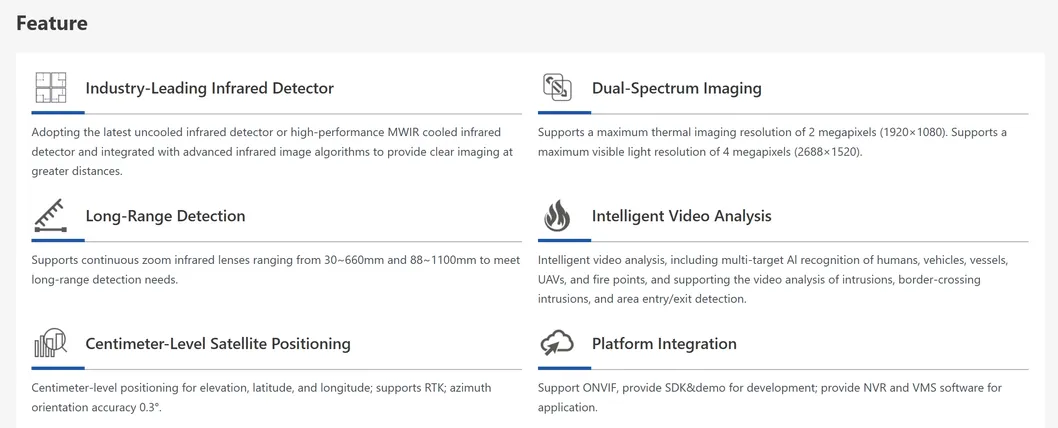

Key Features

■Advanced Infrared Detector

Adopting the latest uncooled or high-performance MWIR cooled infrared detectors integrated with advanced algorithms for clear imaging at extreme distances.

■Dual-Spectrum Imaging

Thermal resolution up to 2 megapixels (1920×1080) and visible light resolution of 4 megapixels (2688×1520).

■Long-Range Detection

Supports continuous zoom infrared lenses (30~660mm and 88~1100mm) for long-distance surveillance needs.

■Intelligent Video Analysis

AI recognition for humans, vehicles, vessels, UAVs, and fire points. Supports border-crossing and area entry/exit detection.

■Satellite Positioning

Centimeter-level positioning for elevation, latitude, and longitude; supports RTK with 0.3° azimuth orientation accuracy.

■Platform Integration

Supports ONVIF, provides SDK/demo for development, and is compatible with NVR and VMS software.

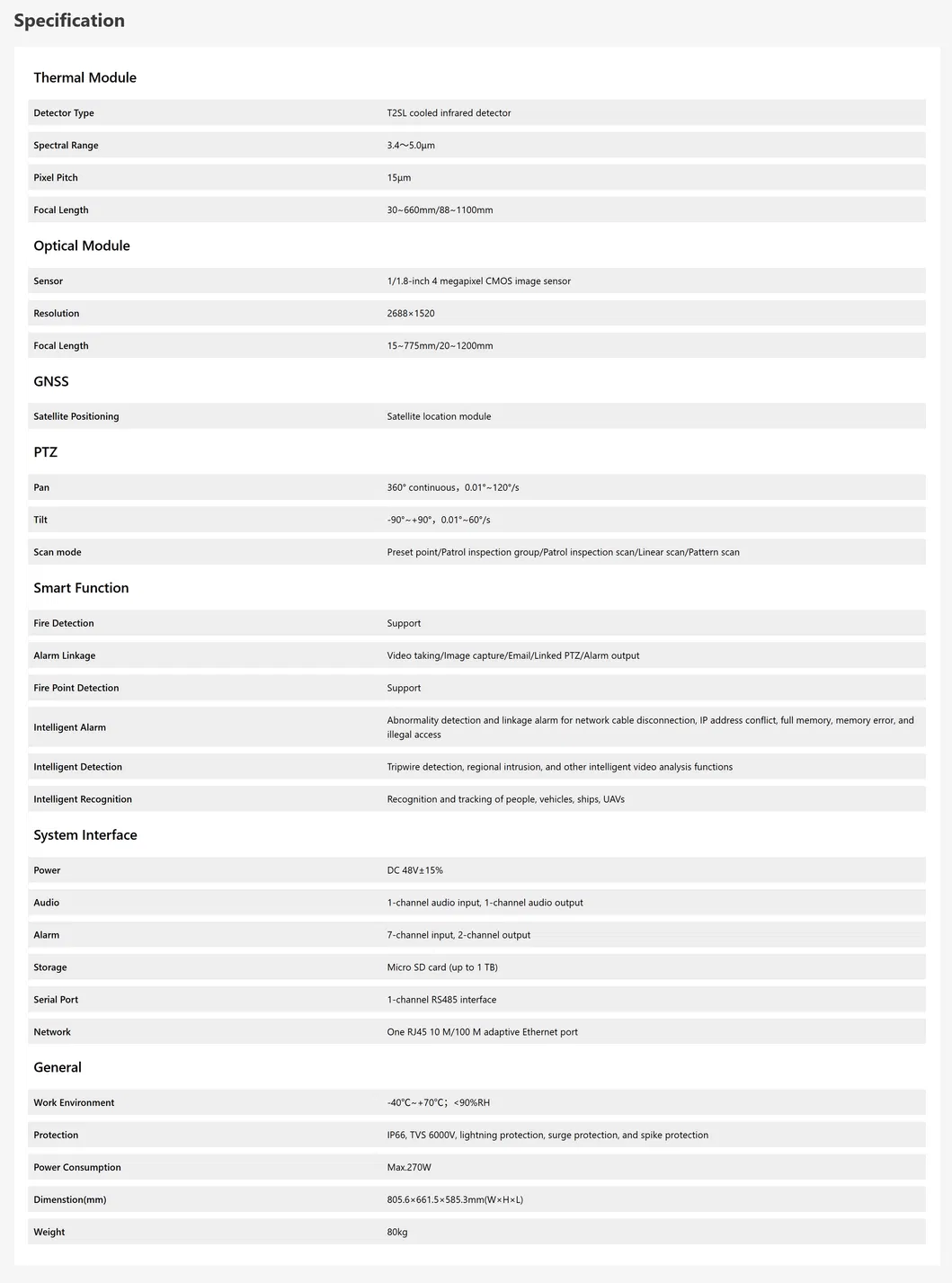

Technical Specifications

Thermal Module
Detector Type	T2SL cooled infrared detector
Spectral Range	3.4~5.0μm
Resolution	640×512
Pixel Pitch	15μm
Optical Module
Sensor	1/1.8-inch 4 megapixel CMOS image sensor
Resolution	2688×1520
Focal Length	15~775mm / 20~1200mm
PTZ Performance
Pan Range	360° continuous, 0.01°~120°/s
Tilt Range	-90°~+90°, 0.01°~60°/s
Scan Mode	Preset point, Patrol inspection, Linear scan, Pattern scan
System & General
Power	DC 48V±15% (Max 270W)
Protection	IP66, TVS 6000V, Lightning & Surge protection
Dimensions	805.6×661.5×585.3mm
Weight	80kg

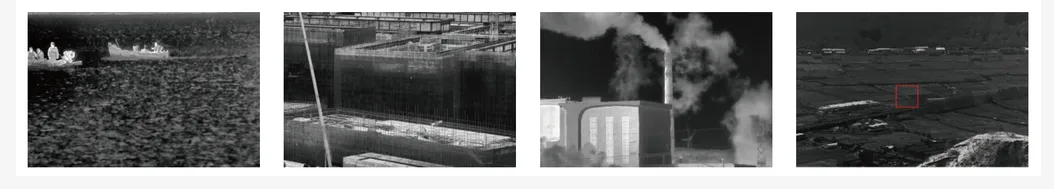

Product Showcase

Frequently Asked Questions

Q1: What are the primary applications for the PC664C1 PTZ camera?

It is ideal for medium-to-long-range observation, specifically in forest fire prevention, airport security, and urban high-altitude monitoring.

Q2: How does the dual-spectrum technology benefit surveillance?

It combines thermal imaging and high-definition visible light, allowing for accurate target recognition and fire point detection even in total darkness or adverse weather conditions.

Q3: What is the maximum detection range of this camera?

With focal lengths reaching up to 1100mm for thermal and 1200mm for optical modules, it is designed for extreme long-range detection.

Q4: Does the camera support automatic tracking?

Yes, it features intelligent recognition and tracking for people, vehicles, ships, and even UAVs (drones).

Q5: Is this camera durable for outdoor environments?

The camera is rated IP66 for dust and water resistance, includes TVS 6000V lightning protection, and can operate in temperatures ranging from -40ºC to +70ºC.

Q6: What kind of positioning accuracy does it offer?

It supports RTK for centimeter-level positioning accuracy of elevation, latitude, and longitude, with a 0.3° azimuth orientation accuracy.
