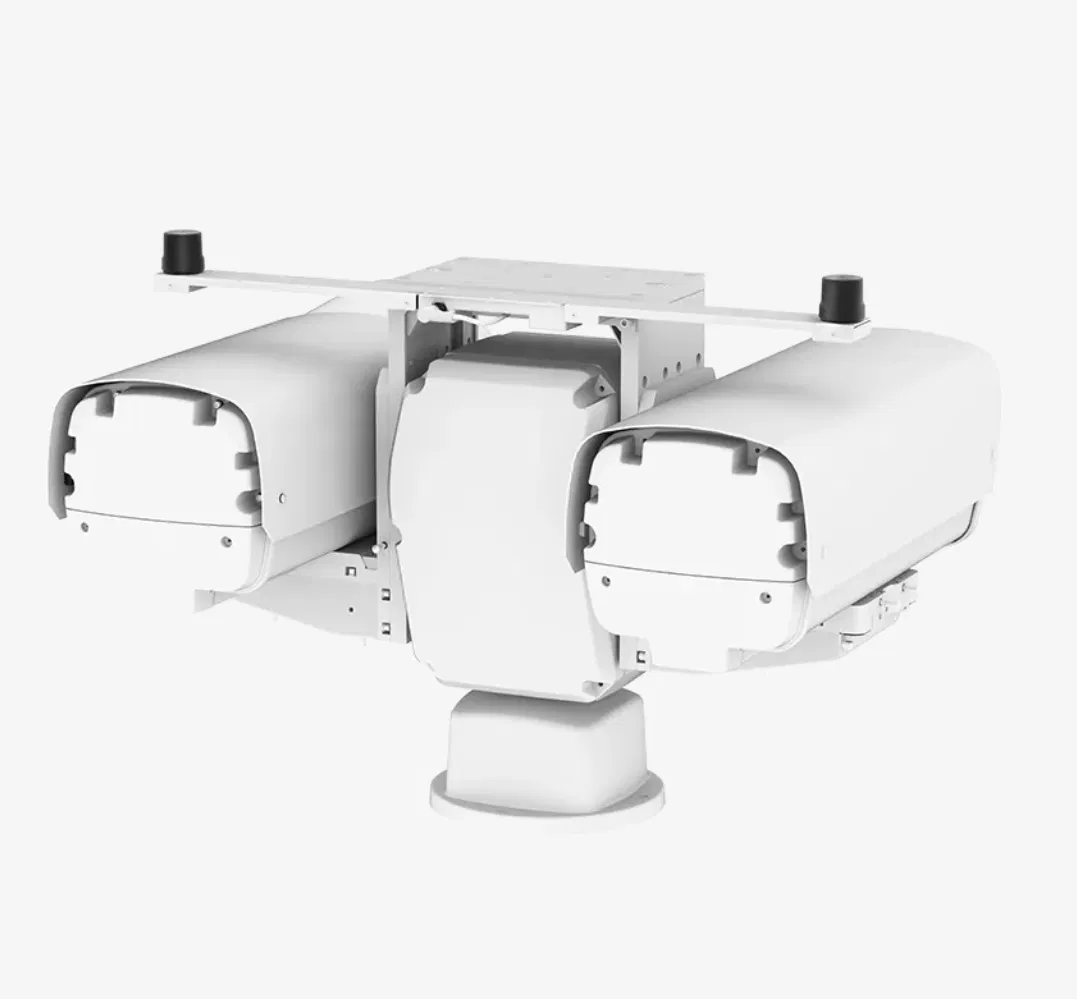

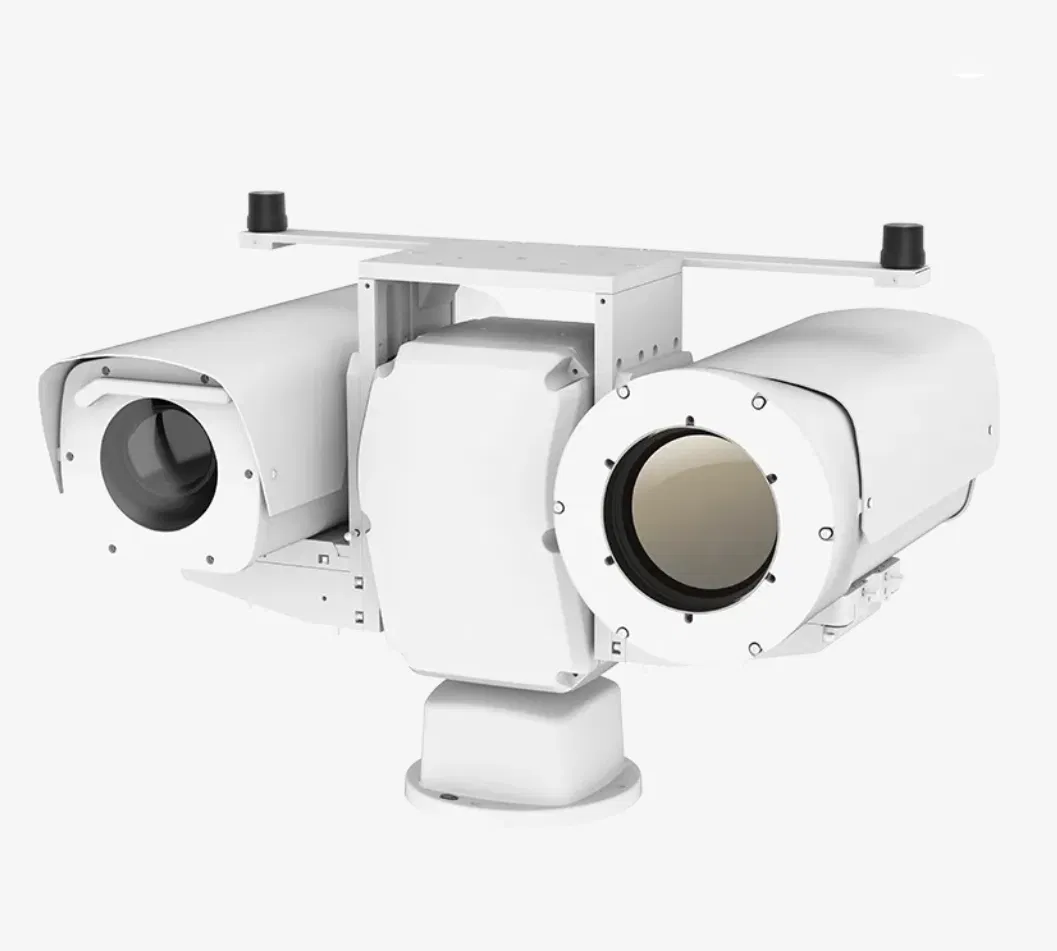

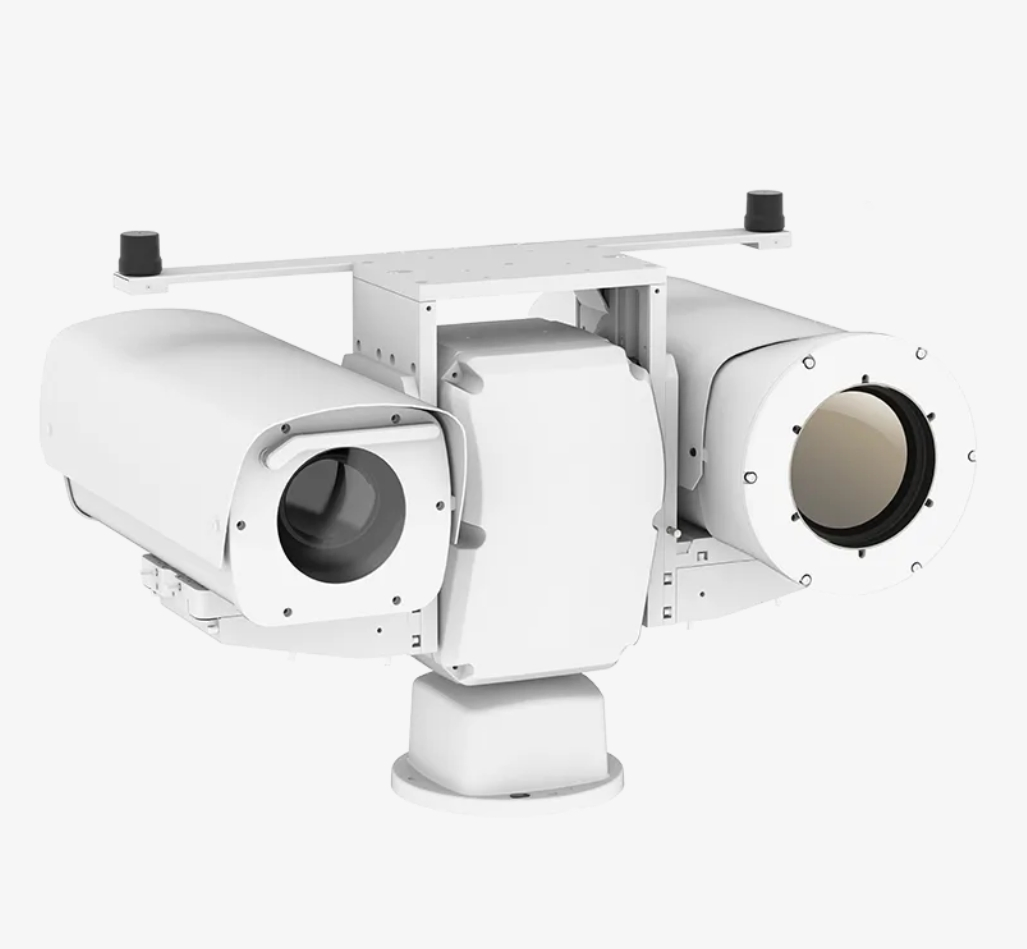

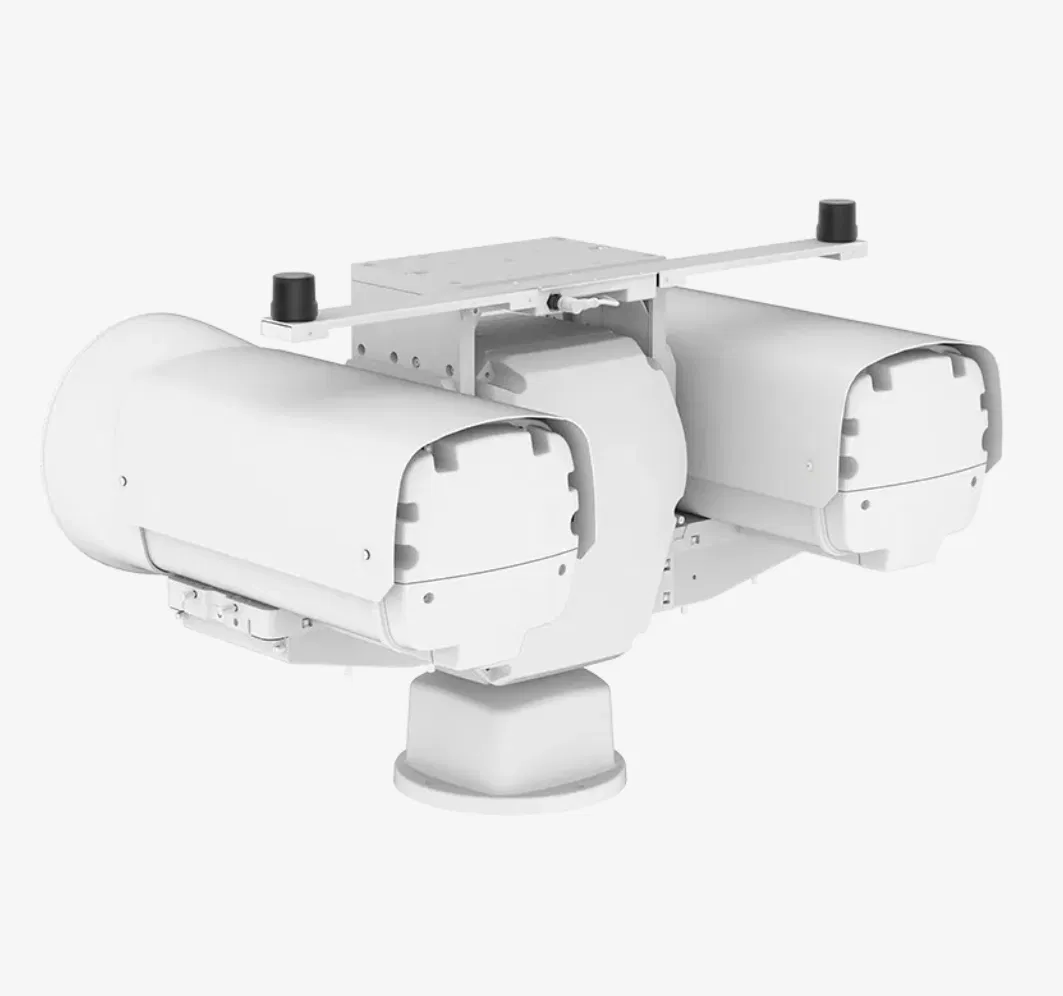

PC664c1 PTZ Supports IP66, Tvs 6000V, Lightning Protection, Surge Protection, Spike Protection

1 / 5

PC664c1 PTZ Supports IP66, Tvs 6000V, Lightning Protection, Surge Protection, Spike Protection

Customization:	Available
After-sales Service:	2 Years Warranty
Warranty:	2 Years Warranty

Send Inquiry

Product Description

Basic Specifications

Model NO.PC664C1

ApplicationCivil

StyleDual-Spectrum PTZ Camera

KindThermal Imaging Night Vision

Operation PrincipleInfrared Night Vision

Shell MaterialMetal

Thermal Resolution640*512

Thermal Pixel Size15μm

Thermal Focal Length30~660mm/88~1100mm

Optical Resolution2688*1520

Optical Focal Length15~775mm/20~1200mm

PTZ Pan360° Continuous

OriginChina

Product Overview

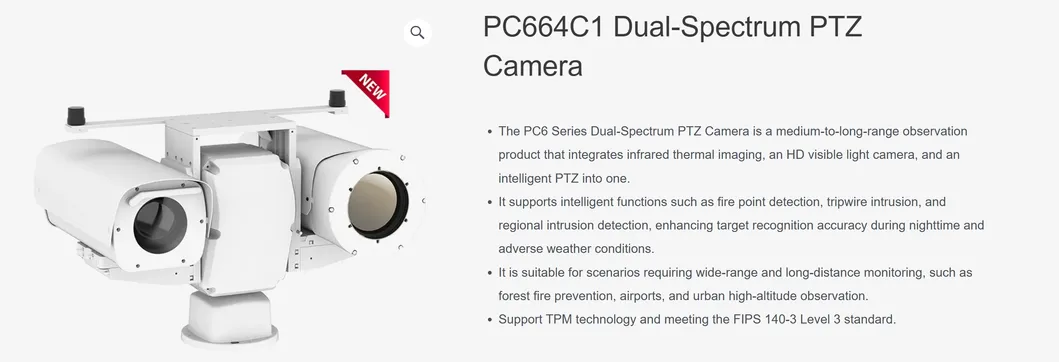

The PC6 Series Dual-Spectrum PTZ Camera is a medium-to-long-range observation product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ.
Supports intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection.
Enhances target recognition accuracy during nighttime and adverse weather conditions.
Suitable for forest fire prevention, airports, and urban high-altitude observation.
Support TPM technology and meeting the FIPS 140-3 Level 3 standard.

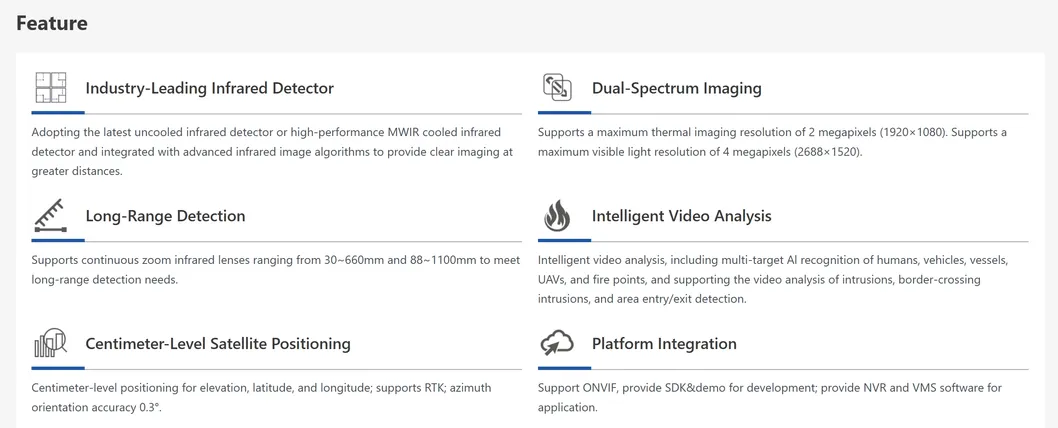

Key Features

★ Leading Detector

Latest uncooled or high-performance MWIR cooled infrared detector with advanced algorithms for clear long-distance imaging.

★ Dual-Spectrum

Thermal resolution up to 2MP (1920×1080) and visible light resolution up to 4MP (2688×1520).

★ Long-Range

Continuous zoom infrared lenses (30~660mm/88~1100mm) designed for extreme distance detection.

★ Video Analysis

AI recognition of humans, vehicles, vessels, UAVs, and fire points with intrusion and border-crossing detection.

★ Satellite Positioning

Centimeter-level positioning for elevation, latitude, and longitude; supports RTK and 0.3° azimuth accuracy.

★ Easy Integration

Full support for ONVIF, SDK/demo for development, and compatible NVR/VMS software.

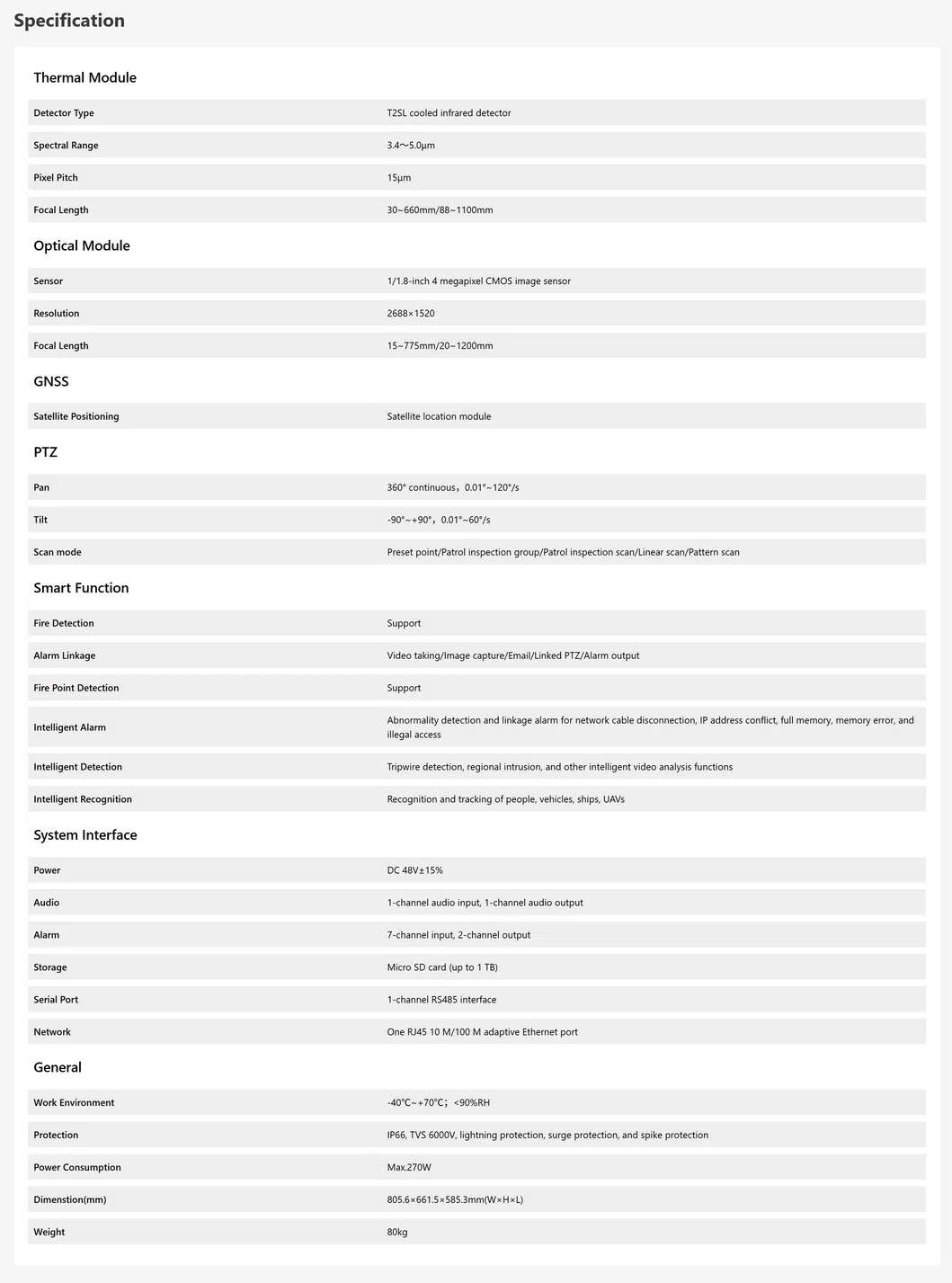

Detailed Specification

Thermal Module
Detector Type	T2SL cooled infrared detector
Spectral Range	3.4~5.0μm
Resolution	640×512
NETD	≤20mK @ F1.0, 25℃

PTZ & Mechanics
Pan Range	360° continuous, 0.01°~120°/s
Tilt Range	-90°~+90°, 0.01°~60°/s
Protection	IP66, TVS 6000V, Lightning/Surge Protection
Dimensions	805.6×661.5×585.3mm
Weight	80kg

Product Gallery

Frequently Asked Questions

What is the primary advantage of the dual-spectrum technology?

It combines thermal imaging (for detection in total darkness and smoke) with high-definition visible light imaging (for identification and detail), providing superior situational awareness in all conditions.

Can the PC664C1 detect fire from a long distance?

Yes, it features specialized fire point detection algorithms and supports focal lengths up to 1100mm, making it ideal for forest fire prevention and high-altitude urban monitoring.

Does this camera support automated tracking?

Yes, the camera includes intelligent recognition and tracking for multiple target types including people, vehicles, vessels, and UAVs (drones).

How does the camera perform in extreme weather?

The unit is rated IP66 and can operate in temperatures from -40ºC to +70ºC. It also features 6000V lightning and surge protection.

What storage options are available?

The camera supports local storage via a Micro SD card with a capacity of up to 1TB, as well as integration with NVR and VMS software.

What is the positioning accuracy of the system?

It utilizes centimeter-level satellite positioning for elevation, latitude, and longitude, with an azimuth orientation accuracy of 0.3°.
