Premium Mobile Surveillance PTZ with Dual Sensor Thermal Capabilities
Premium Mobile Surveillance PTZ with Dual Sensor Thermal Capabilities
Premium Mobile Surveillance PTZ with Dual Sensor Thermal Capabilities
Premium Mobile Surveillance PTZ with Dual Sensor Thermal Capabilities
Premium Mobile Surveillance PTZ with Dual Sensor Thermal Capabilities
1 / 5
Premium Mobile Surveillance PTZ with Dual Sensor Thermal Capabilities
Premium Mobile Surveillance PTZ with Dual Sensor Thermal Capabilities
Premium Mobile Surveillance PTZ with Dual Sensor Thermal Capabilities
Premium Mobile Surveillance PTZ with Dual Sensor Thermal Capabilities
Premium Mobile Surveillance PTZ with Dual Sensor Thermal Capabilities

Premium Mobile Surveillance PTZ with Dual Sensor Thermal Capabilities

Customization: Available
Technology: Infrared
Style: Pan/Tilt
Send Inquiry

Product Description

Basic Specifications
Model NO.
SOAR970-TH Series
Type
Binocular
Sensor
CMOS
Format
1080P
Resolution
4MP, 8MP
Lens
Autofocus Lens
Effective Dist.
3km
Feature
Waterproof, Thermal Imager, Vandal-proof
Product Overview

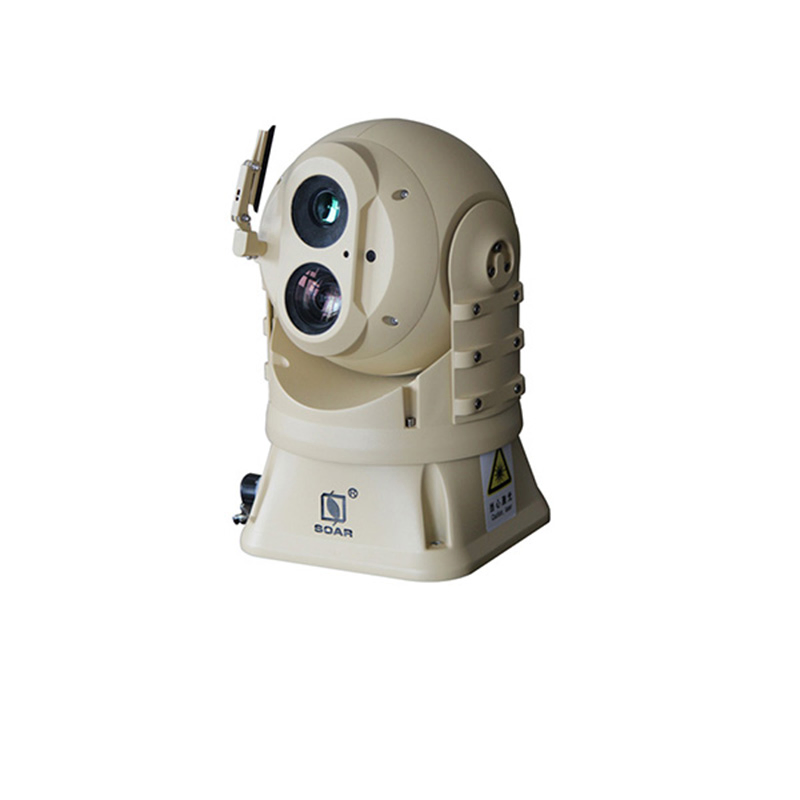

SOAR970 vehicle mounted PTZ Camera is specifically engineered for mobile surveillance and marine applications. Featuring an IP67-rated waterproof and dustproof housing, it provides robust protection against immersion, heavy rain, and salt spray.
Mobile Surveillance PTZ
This series integrates dual-sensor technology, combining an HD visible camera with up to 33x optical zoom and a high-resolution thermal imager. It supports versatile deployment across robotic units, patrol vehicles, and commercial vessels for real-time visual feedback and perimeter monitoring in complete darkness.
Technical Highlights
  • 1920×1080 Progressive Scan CMOS for Day/Night monitoring
  • 33X Optical zoom (5.5~180mm focal length)
  • High-resolution Thermal imager (640x512)
  • 360-degree endless rotation for full situational awareness
  • Rugged IP67 design for extreme environments
  • Operating temperature range from -40° to +65°C
  • Optional damper absorber for high-stability vehicle mounting
Technical Specifications
Thermal Imaging
DetectorVOx Uncooled Infrared FPA
Resolution / Pitch640x512 / 12μm
Thermal Lens40mm
NETD≤50mk@25℃, F#1.0
Optical Camera
Image Sensor1/2.8” Progressive Scan CMOS
Optical Zoom33X (5.5mm~180mm)
Min. IlluminationColor: 0.05 Lux; B/W: 0.01 Lux (IR ON)
PTZ Performance
Pan Range360° Endless
Tilt Range–20° ~ +90° (Auto Reverse)
Pan/Tilt SpeedPan: 80°/s; Tilt: 60°/s
General
Power InputDC 12V-24V (≤24W)
InterfaceRJ45 (Network Video), RS485
Ingress ProtectionIP66 / IP67
Dimension Analysis
PTZ Camera Dimensions
Application Scenarios
Law Enforcement Defense Infrastructure
Law Enforcement & Public Safety

Ideal for patrol cars, riot control monitoring, border security, and emergency command centers to ensure rapid incident response.

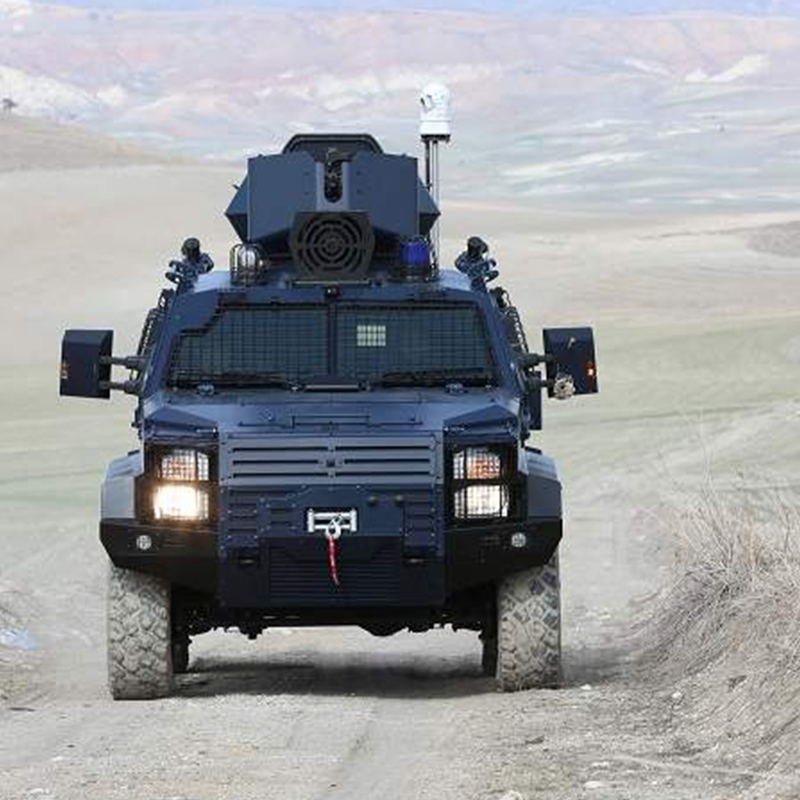

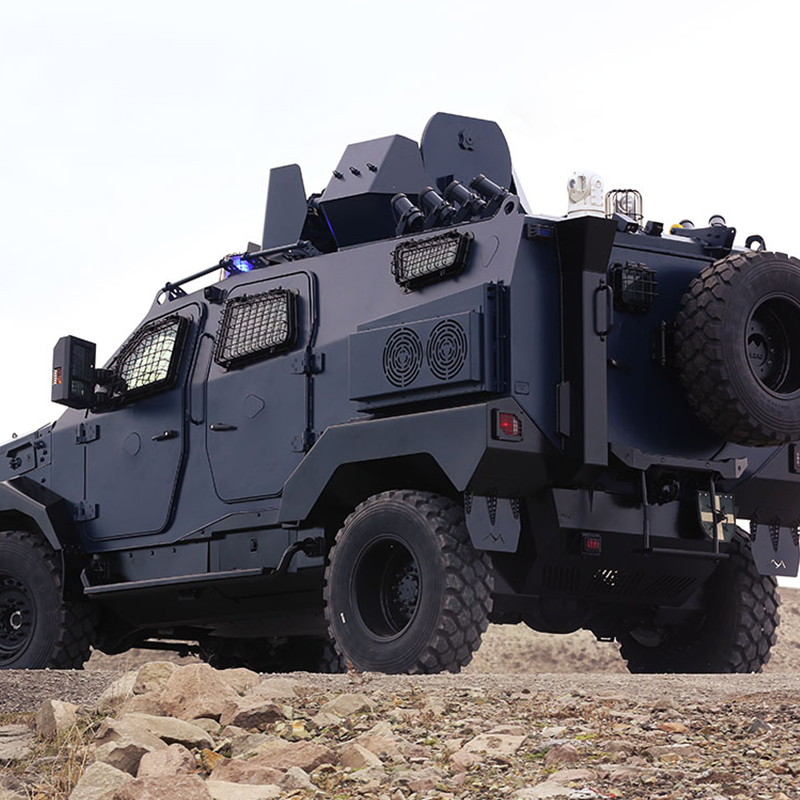

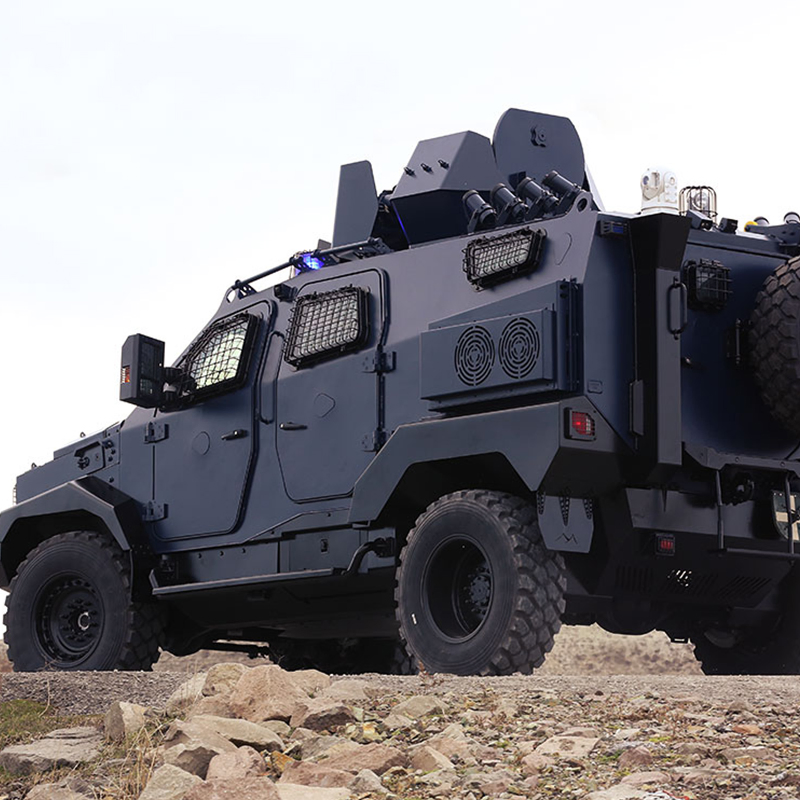

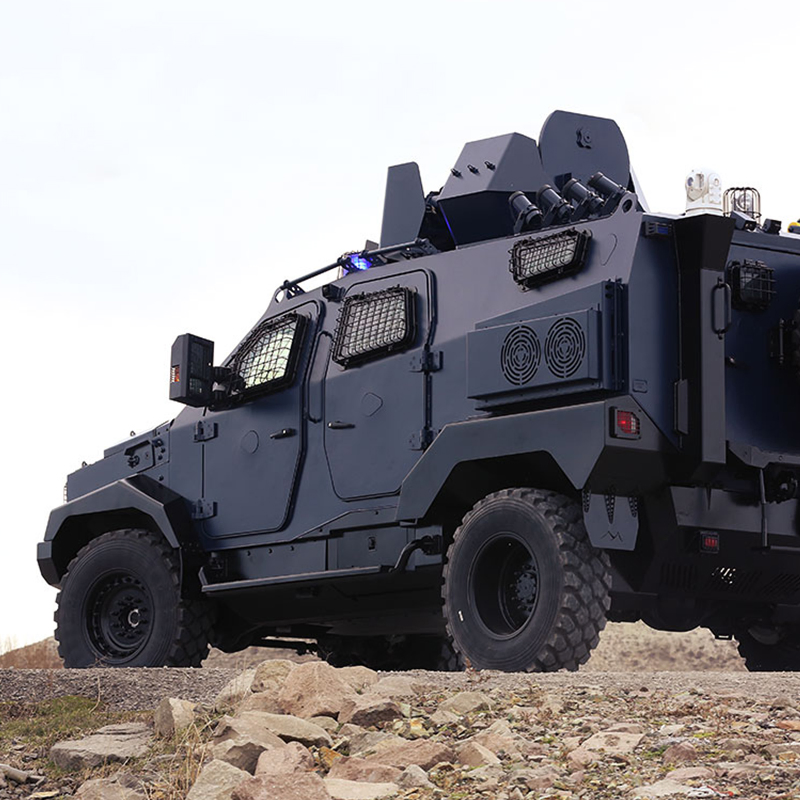

Defense & Tactical Reconnaissance

Supports battlefield surveillance, convoy security, and threat detection from armored vehicles in hostile environments.

Critical Infrastructure Protection

Ensures security for power grids, oil & gas pipelines, and railway systems through remote and mobile monitoring.

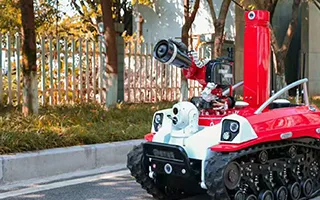

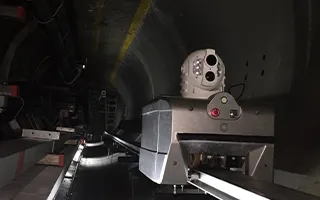

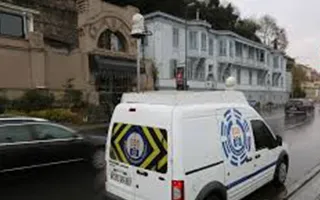

Disaster Response Transportation Environmental
Field Application Night Vision Performance
Frequently Asked Questions
Q1: What is the estimated delivery timeline?
For small orders, delivery typically takes about 7 working days. For custom OEM orders, please consult with our team for a specific schedule.
Q2: Is there a minimum order quantity (MOQ)?
The MOQ varies depending on the specific product model and customization requirements.
Q3: What payment methods are supported?
We generally accept T/T (Telegraphic Transfer) and other standard international payment terms.
Q4: What is the warranty period for the PTZ cameras?
All PTZ camera products and modules are covered by a standard 1-year warranty.
Q5: Do you provide technical after-sales support?
Yes, we provide lifetime technical support. Our engineering team typically responds to technical inquiries within 24 hours.
Q6: Can this camera be integrated with third-party software?
The camera supports standard protocols such as Pelco-D/P and ONVIF, ensuring compatibility with most VMS and control systems.
