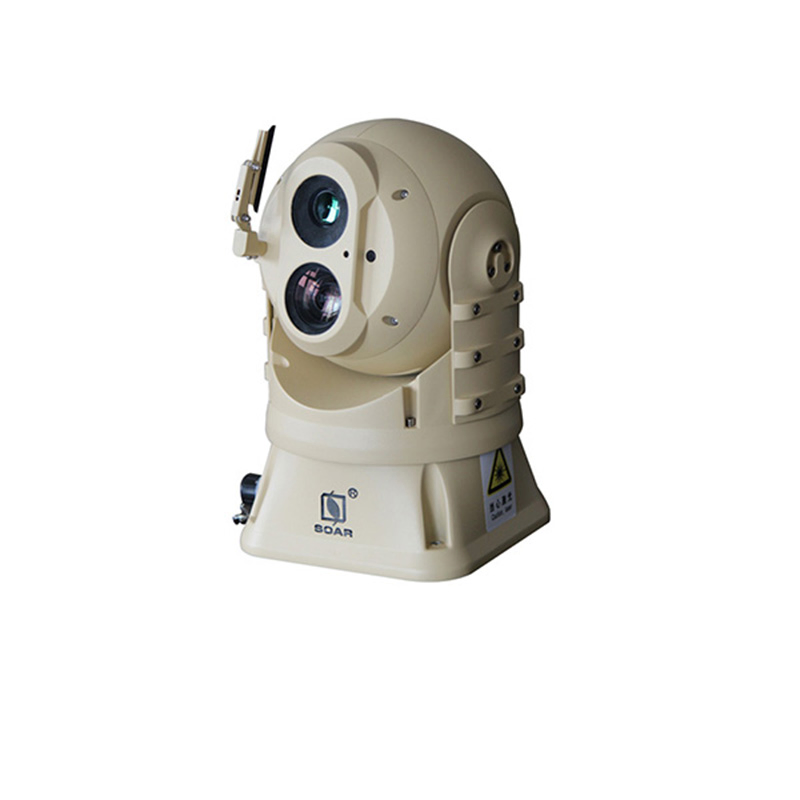

SOAR970 vehicle mounted PTZ Camera
SOAR970 series mobile PTZ is designed for mobile surveillance application. With its excellent waterproof ability up to IP67, it is also widely applied in marine application. The PTZ can be optionally be ordered with HDIP (2MP, 4MP, 4K). Integrated IR LED or laser illumination allows it to see from 150m up to 800m in complete darkness.

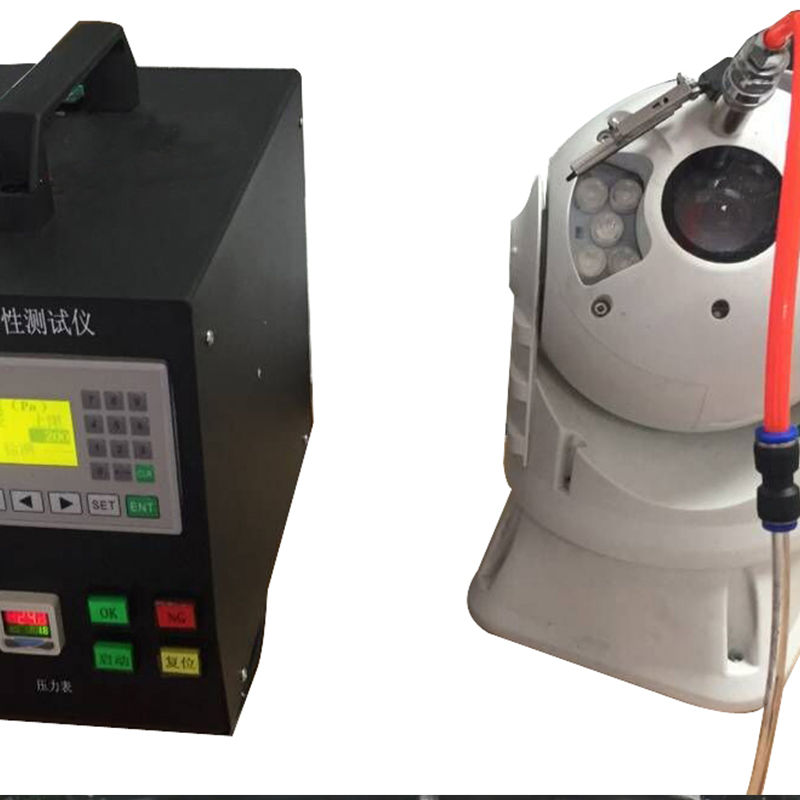

It can be with dual sensor options, with HD visible camera (2MP/4MP/8MP, up to 33x zoom) and thermal imager (640x512/1280x1024, up to 40mm focal length). The SOAR970 is built to withstand the harshest conditions, featuring an IP67-rated waterproof and dustproof housing that provides protection against heavy rain, salt spray, and particulates.
| Thermal Imaging Performance | |
| Detector | VOx Uncooled Infrared FPA |
| Array Format/Pixel Pitch | 640x512/12μm |
| Lens | 40mm |
| NETD | ≤50mk@25℃, F#1.0 |
| Visible Camera Performance | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Focal Length | 5.5mm~180mm (33x Zoom) |
| Mechanical & Environmental | |
| Pan/Tilt Range | Pan: 360° endless; Tilt: –20° ~ +90° |
| Power | DC 12V-24V; Consumption: ≤24W |
| Ingress Protection | IP66/IP67 |
| Weight | 6.5 kg |

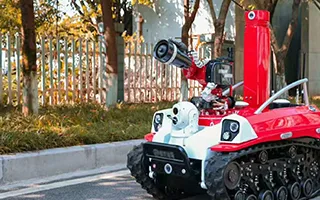

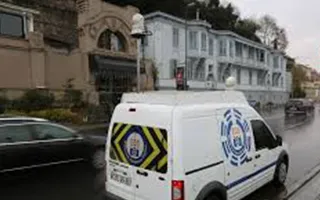

Real-time urban surveillance, patrol cars monitoring, incident response, and border security.
Battlefield surveillance from armored vehicles, convoy security, and threat detection.
Power grid inspection, oil/gas pipeline surveillance, and railway track security monitoring.

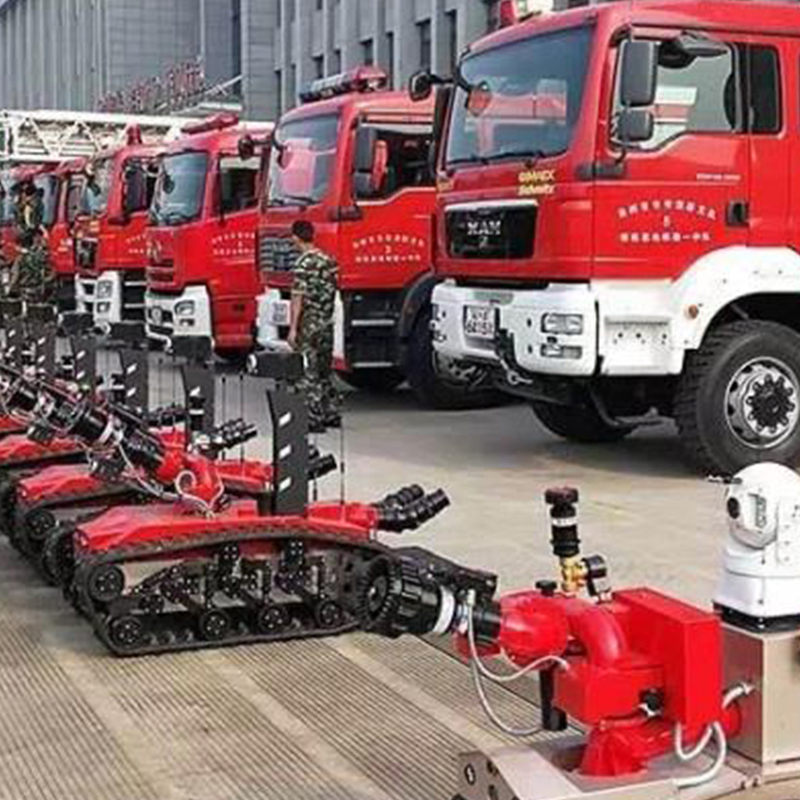

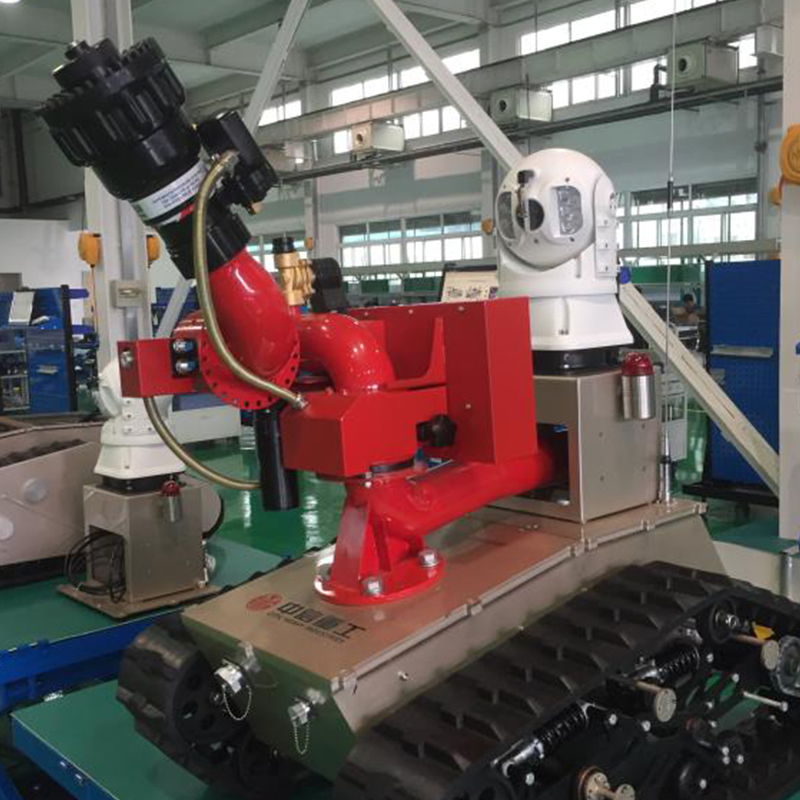

Fire command monitoring, flood assessment, and search & rescue using thermal imaging.
Highway patrol, airport ground security, and port terminal vessel monitoring.
Anti-poaching operations, wildlife tracking, and forest fire prevention.
