Rugged Mobile Surveillance Dual Sensor Thermal PTZ Camera

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Basic Information

Model NO.:SOAR970-TH Series

Type:Binocular

Sensor:CMOS

HDMI Format:1080P

Horizontal Res.:4MP, 8MP

Kind:Autofocus Lens

Certification:CE

Effective Distance:3km

Sensor Size:1/1.8inch

Application:Mobile Surveillance

Product Description

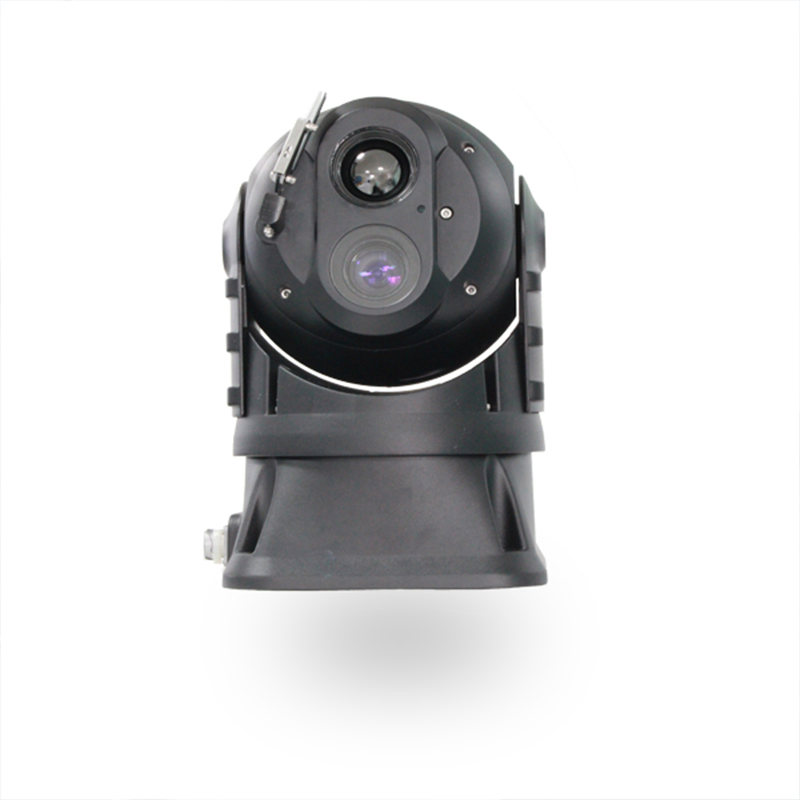

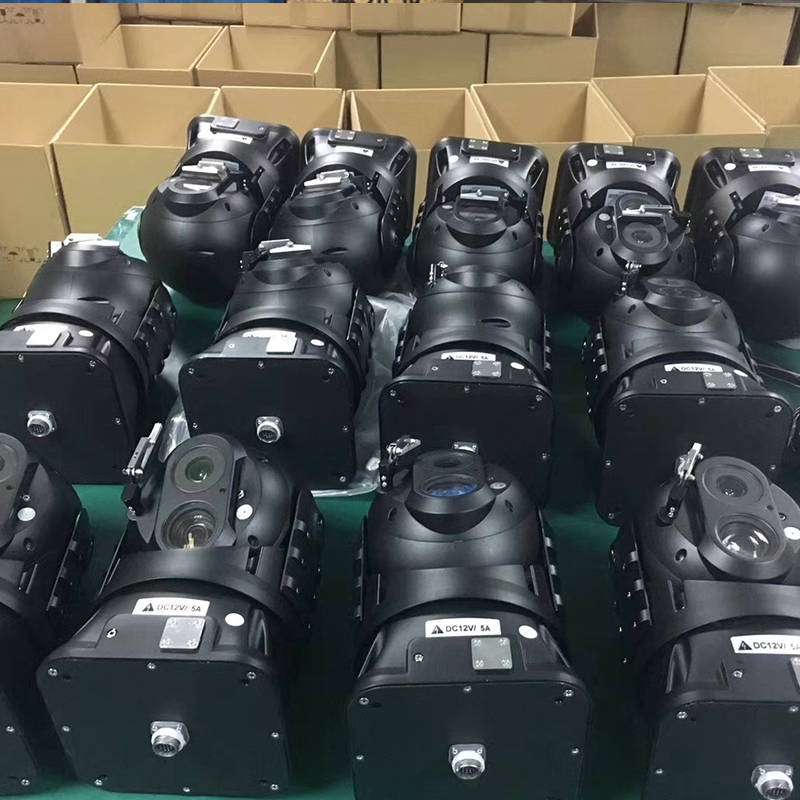

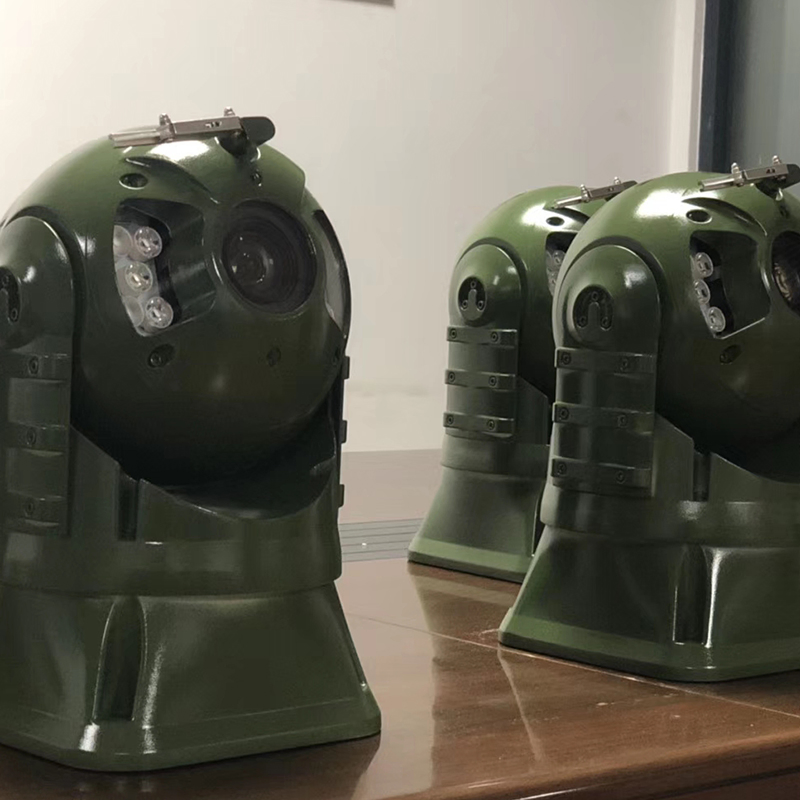

SOAR970 vehicle mounted PTZ Camera

Rugged Mobile Surveillance Dual Sensor Thermal PTZ Camera

SOAR970 series mobile PTZ is designed for mobile surveillance application. With its excellent waterproof ability up to IP67, it is also widely applied in marine application. The PTZ can be optionally ordered with HDIP (2MP, 4MP, 4K). Integrated IR LED or laser illumination allows it to see from 150m up to 800m in complete darkness. It can be equipped with dual sensor options, featuring an HD visible camera (up to 33x zoom) and a thermal imager (up to 40mm focal length).

Built to withstand the harshest conditions, the SOAR970 features an IP67-rated waterproof and dustproof housing, providing complete protection against immersion, heavy rain, salt spray, and airborne particulates. This robust construction makes it ideal for marine surveillance, coastal monitoring, and offshore platforms.

Product Highlights

1920×1080 Progressive Scan CMOS, Day/Night monitoring. Optional 2MP, 4MP, 4K resolution
33X Optical zoom, 5.5~180mm
Thermal imager 640x512, focal length up to 40mm
360 degree endless rotation
IP67 Waterproof Design
Operation Temperatures Ranging from -40° to +65°C
Optional damper absorber for vehicle stability

Technical Specification

Model No.	SOAR970-TH640A33
Thermal Imaging
Detector	VOx Uncooled Infrared FPA
Array Format	640x512/12μm
Lens	40mm
NETD	≤50mk@25℃, F#1.0
Visible Camera
Image Sensor	1/2.8” Progressive Scan CMOS
Effective Pixels	1920(H) x 1080(V), 2 MP
Focal Length	5.5mm~180mm (33X Zoom)
Pan/Tilt Performance
Pan Range	360° (endless)
Tilt Range	–20° ~ +90° (auto reverse)
General
Power	DC 12V-24V; Consumption: ≤24w
Ingress Protection	IP66/IP67
Weight	6.5 kg

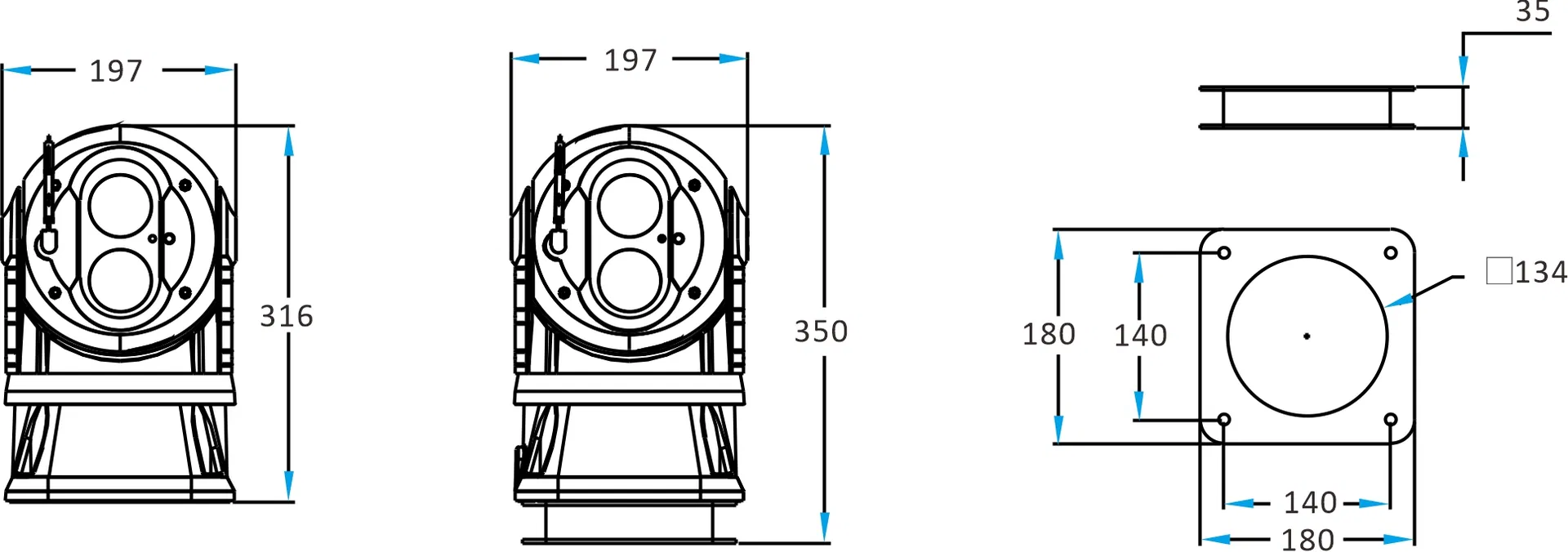

Dimension

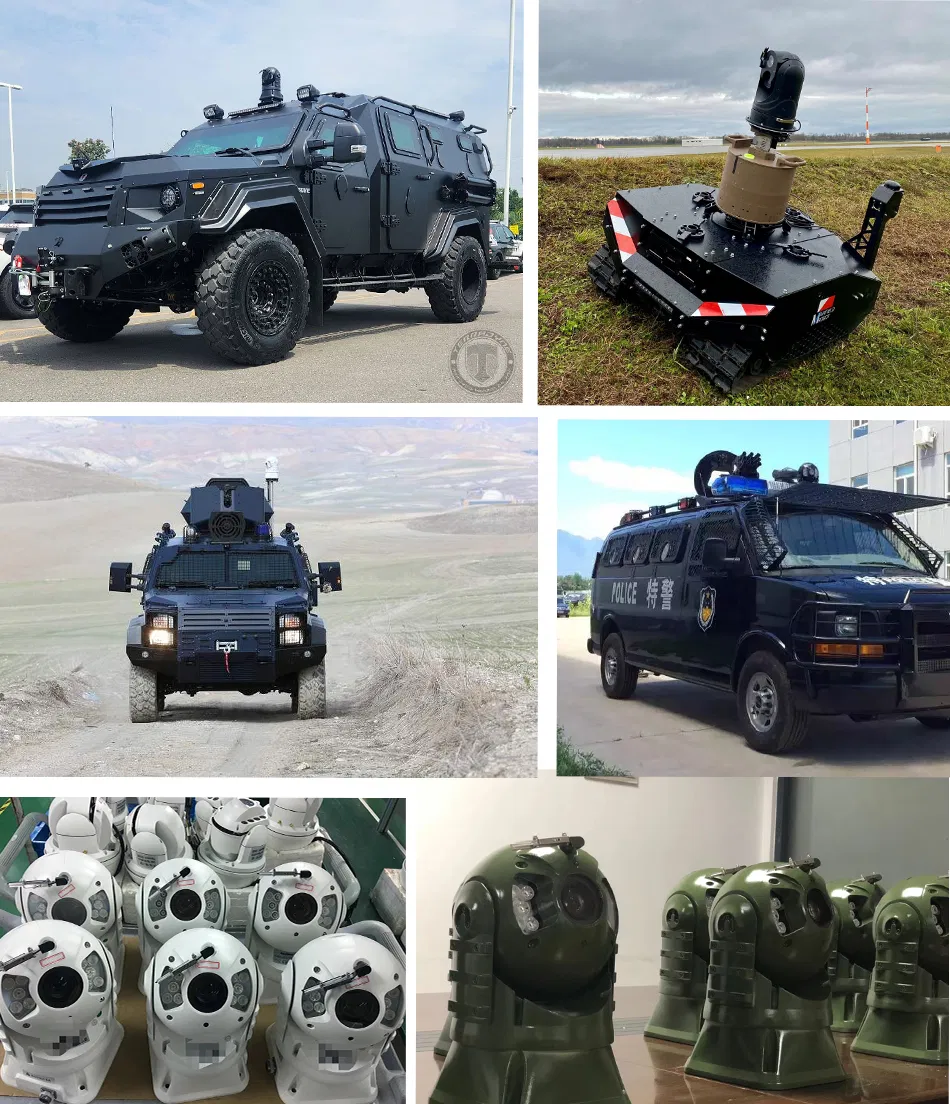

Application Scenarios

Key Applications:

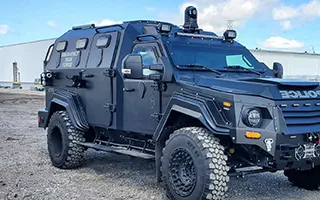

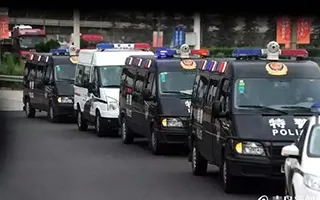

Public Safety: Real-time urban surveillance, incident response, and riot control.

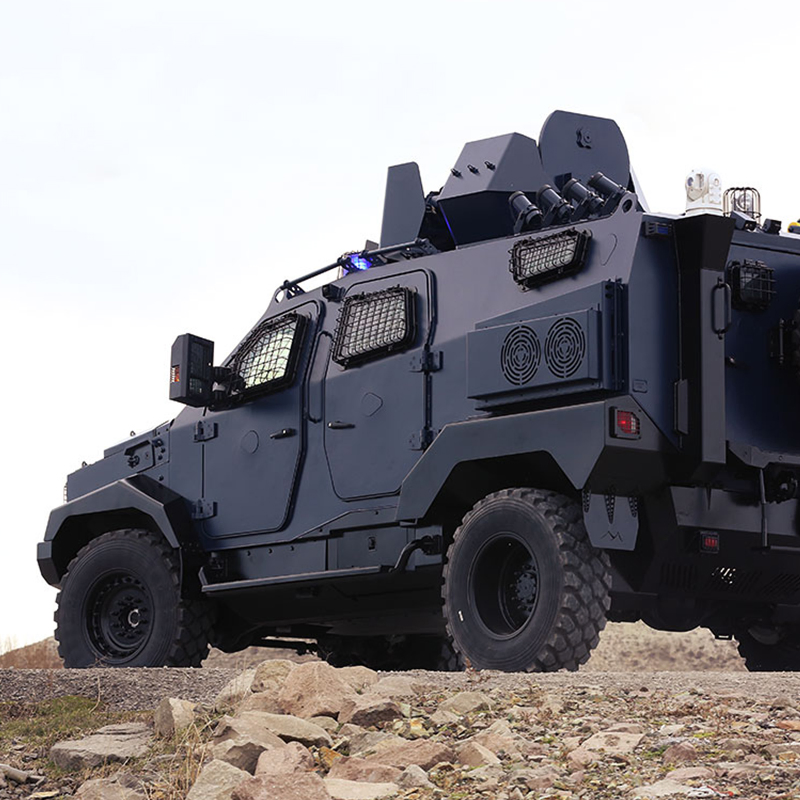

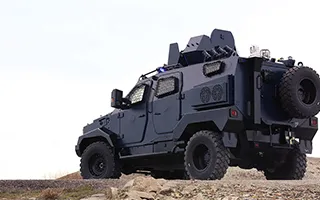

Defense: Battlefield reconnaissance and convoy security from armored vehicles.

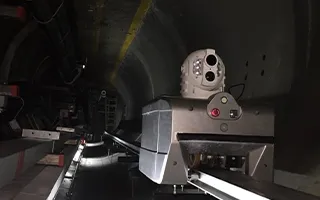

Critical Infrastructure: Power grid inspection, pipeline surveillance, and railway security.

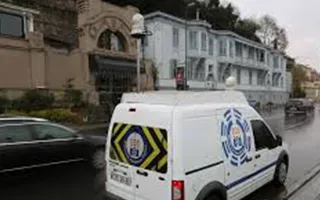

Disaster Response: Thermal imaging for search and rescue and flood assessment.

Frequently Asked Questions

Q1: What is the estimated delivery timeline?

For small orders, delivery typically requires 7 working days. For bulk or customized orders, please confirm specific timelines with our team.

Q2: Is there a minimum order quantity (MOQ)?

The MOQ varies depending on the specific product model and customization requirements.

Q3: What payment methods are accepted?

We accept various payment terms, including T/T (Telegraphic Transfer).

Q4: What is the warranty coverage for your products?

All PTZ products and camera modules are covered by a standard 1-year warranty from the date of purchase.

Q5: Do you provide after-sales technical support?

Yes, we offer lifetime technical support. Our technical engineers respond to inquiries within 24 hours to ensure smooth operation.

Q6: Is the camera suitable for marine environments?

Absolutely. With an IP67 rating and robust construction, it is specifically designed to resist salt spray and heavy rain, making it ideal for ships and coastal monitoring.
